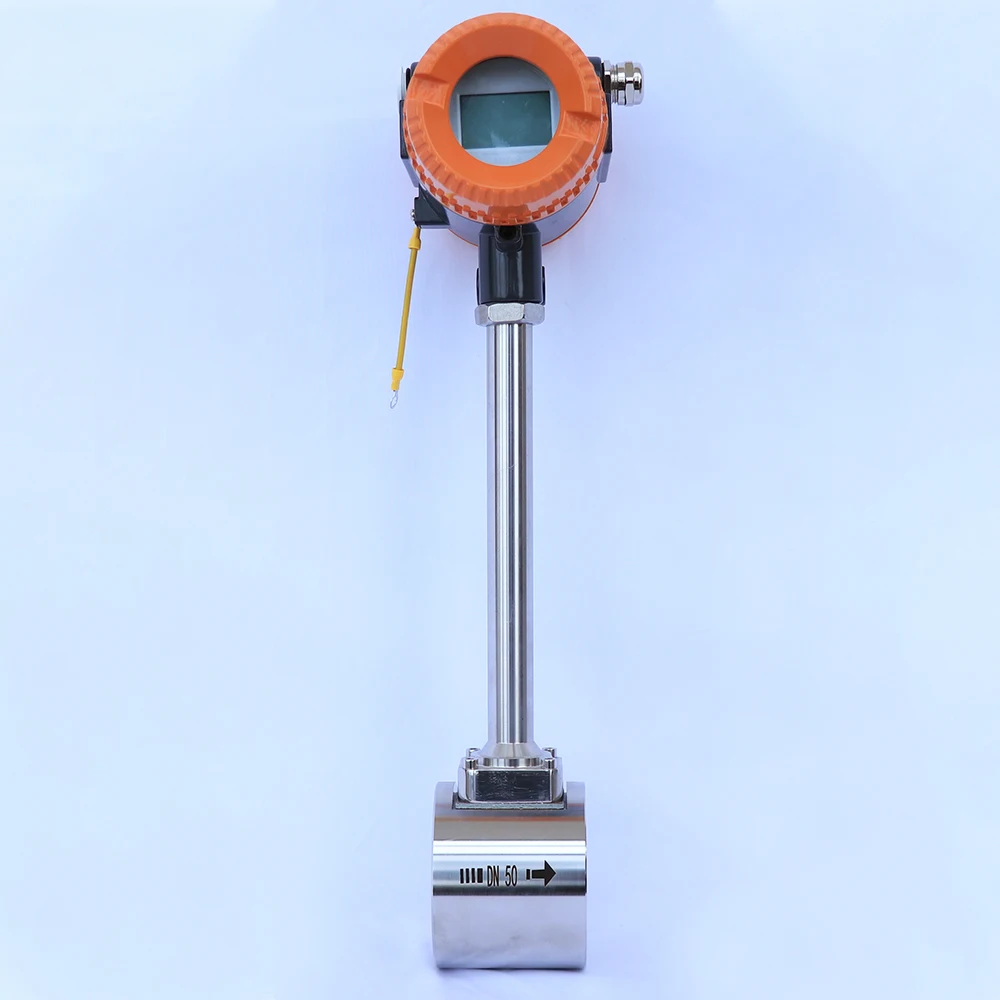

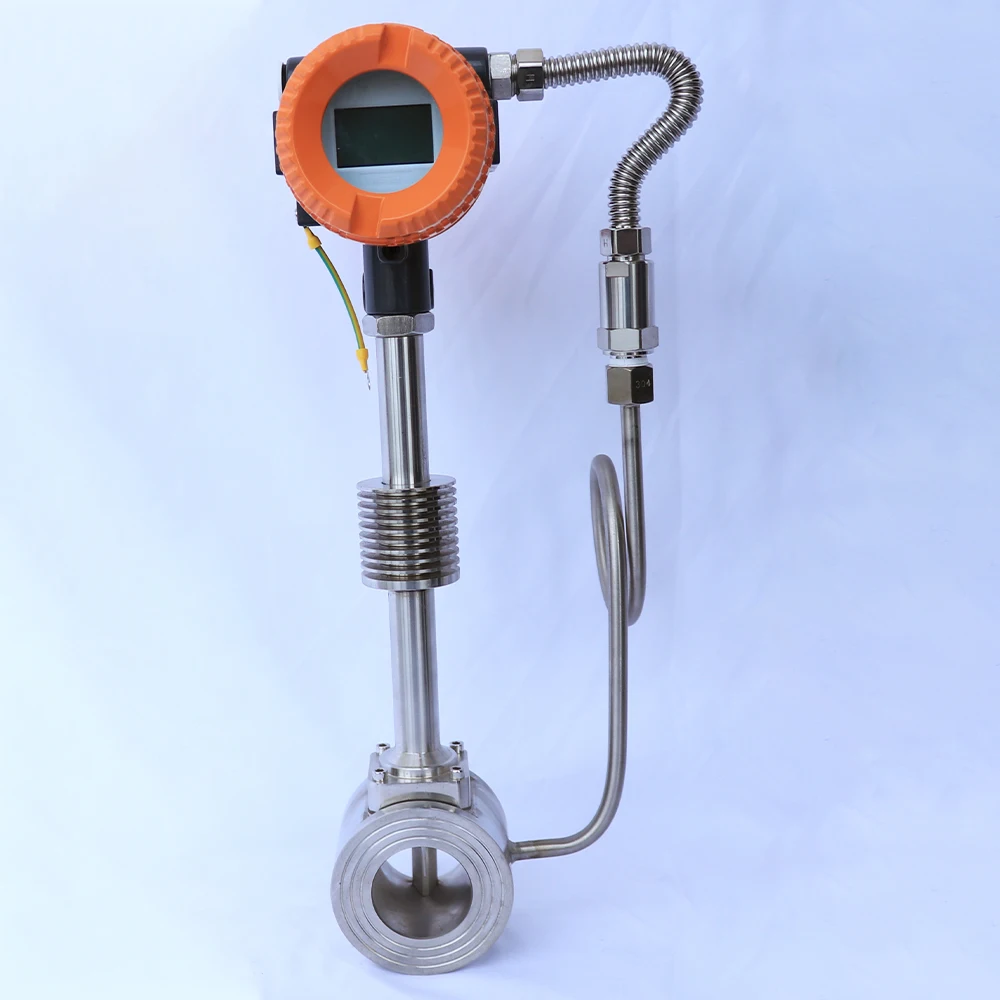

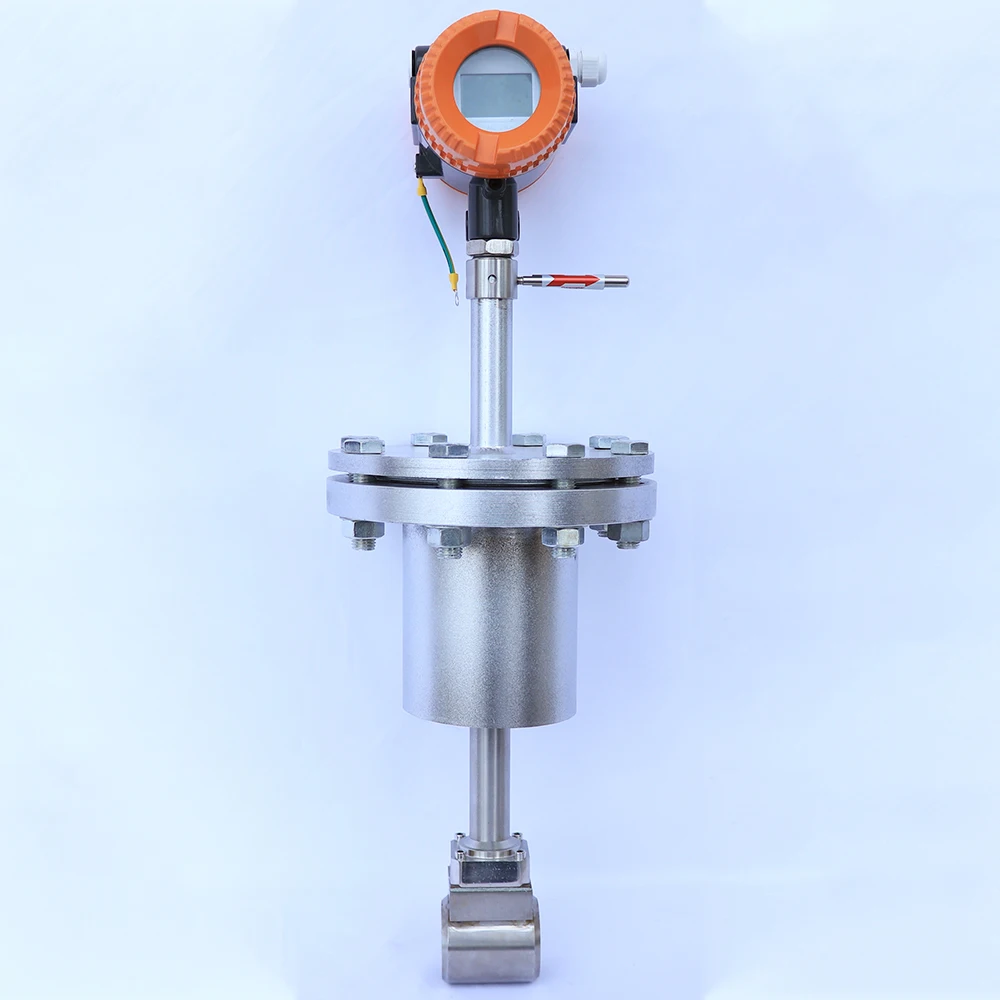

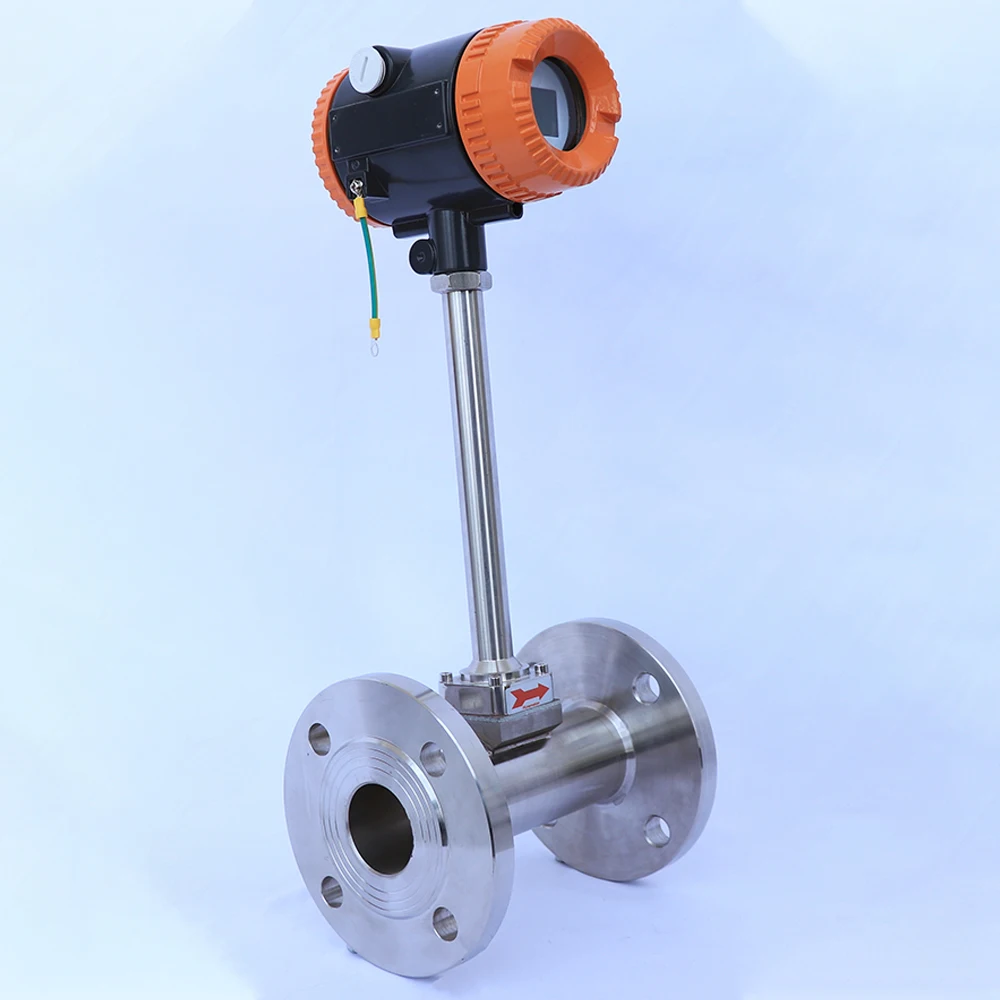

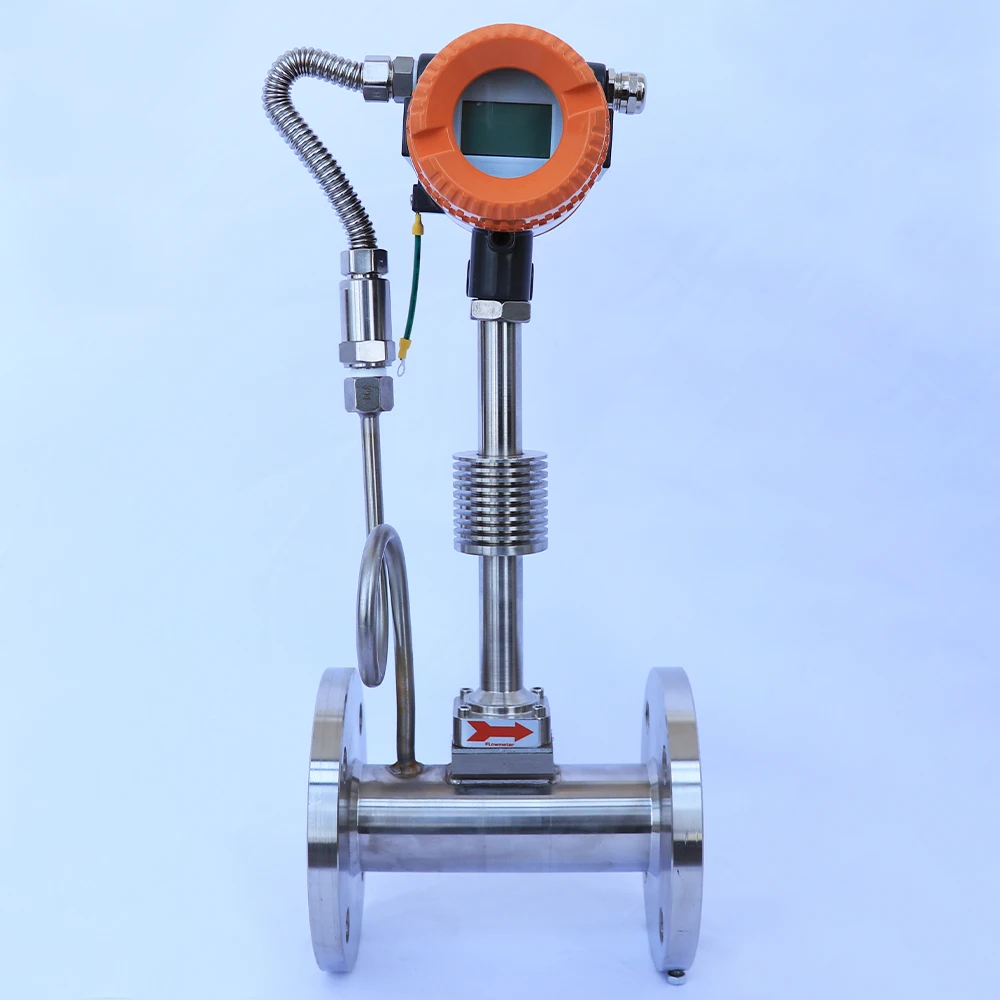

OEM Vortex flowmeter for Steam, Gas and Liquid use
- Category: >>>
- Supplier: Jiangsu Aice Instrument Technology Co. Ltd.
Share on (1600449622643):
Product Overview
Description
Product Description
| Specifications (caliber) | 15/20/25/40/50/65/80/100/125/150/200/250/300/350/400 |
| Measuring medium | Liquid, gas, steam (saturated steam, superheated steam) special type can measure corrosive medium |
| Precision | Level 1 |
| Tolerance scope | Within ±1% of display range or within ±1% of full scale |
| Repeatability | Within ±0.2% |
| Greatest pressure | It varies with flange specifications, generally 1.6MPa, under special conditions 2.5~4MPa, can be customized according to the conditions of the measuring medium |
| Temperature range | -10~150 low temperature, -10~250 °C medium temperature, 250~350 °C high temperature |

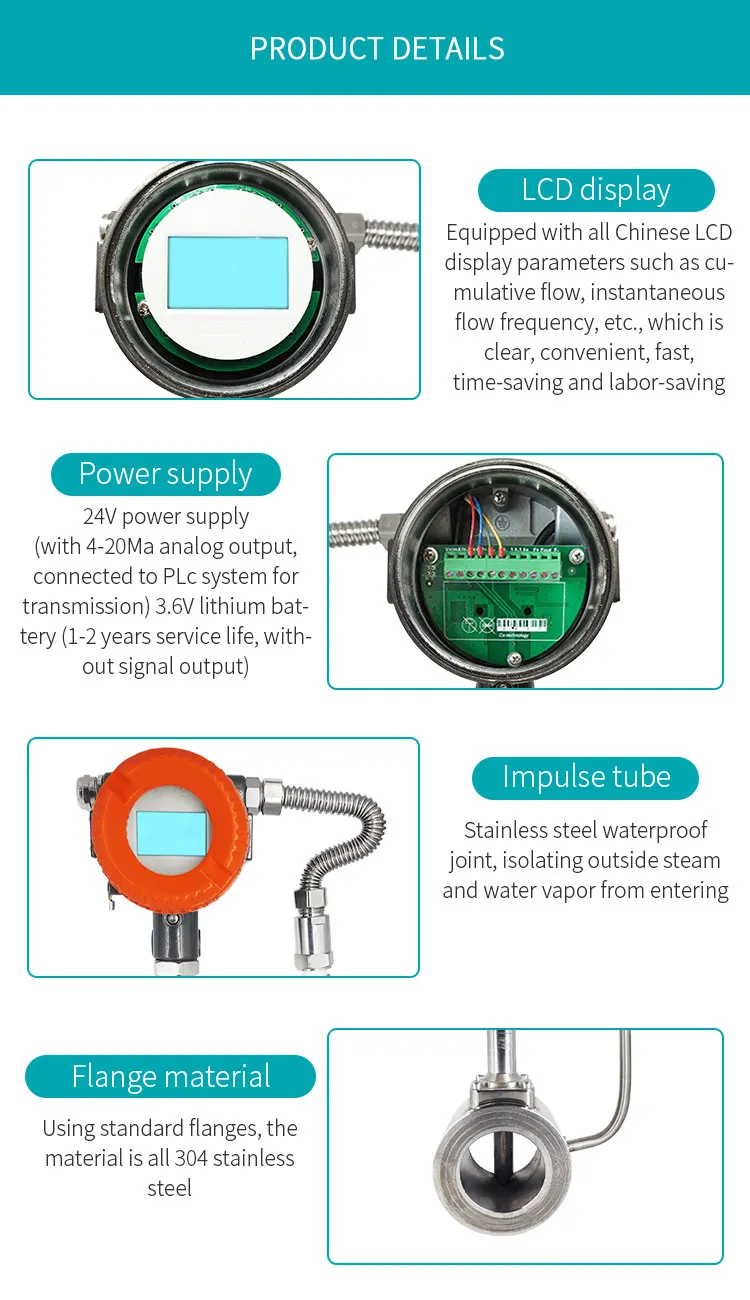

| Power supply | DC voltage 24V, on-site display 3.6V lithium battery |
| Output signal | Pulse signal, 4~20mA analog signal |
| Environmental conditions | Temperature -30~60℃, Humidity 5~90% |
| Flow range | Liquid velocity 0.3~7m/s, gas velocity 3~55m/s |
| Communication Interface | RS232, RS485, HART protocol |
| Explosion-proof model | EXiaIIBT4 or EXiaIIBT5 |
| Transmission distance | Between the converter and the secondary instrument ≤ 1km, between the separate probe and the converter ≤ 200m |
Company Information
Jiangsu Aice Instrument Technology Co., Ltd. has been committed to providing comprehensive services for industrial automation control.
It is a comprehensive company specializing in the design, development, production and sales of digital display instrument, transmitter and recorder.
Packaging & Shipping
FAQ
Q:What kind of products do you offer ?
A:We supply pressure sensor, level sensor, flow meter and digital controllers. Main market is European countries, American, the Middle East and Asia. Certificates are international ones.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q:Could you provide me the shortest lead time?
A:We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
Q:Could I visit your factory?
A:Of course,if you need we will help you to visit our factory.
Q: How can I get the quotation or send my inquiry to?
A: Send your inquiry to us by the inquiry from on the right-side or the bottom of this page.
