construction building cradle gondola/ used swing stage scaffolding for sale
- Category: >>>
- Supplier: Hao Ke (Shanghai) Industrial Co. Ltd.
Share on (1600449665441):
Product Overview
Description
Product Paramenters

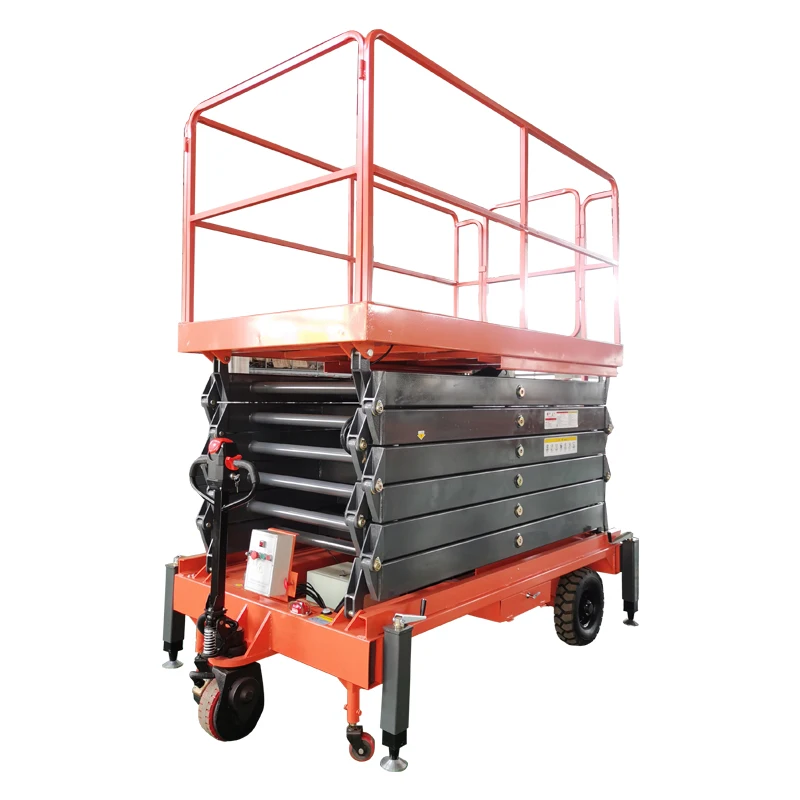

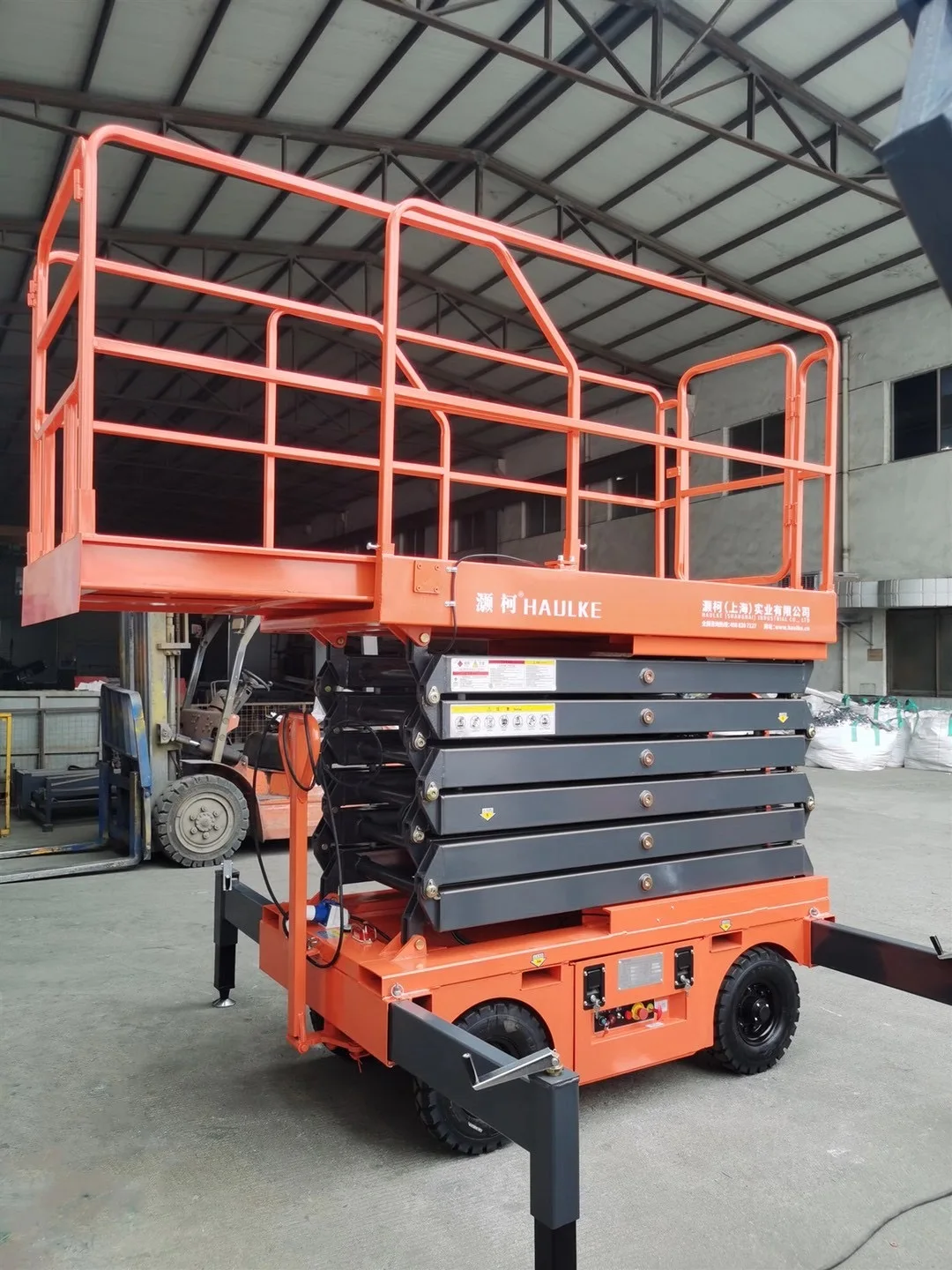

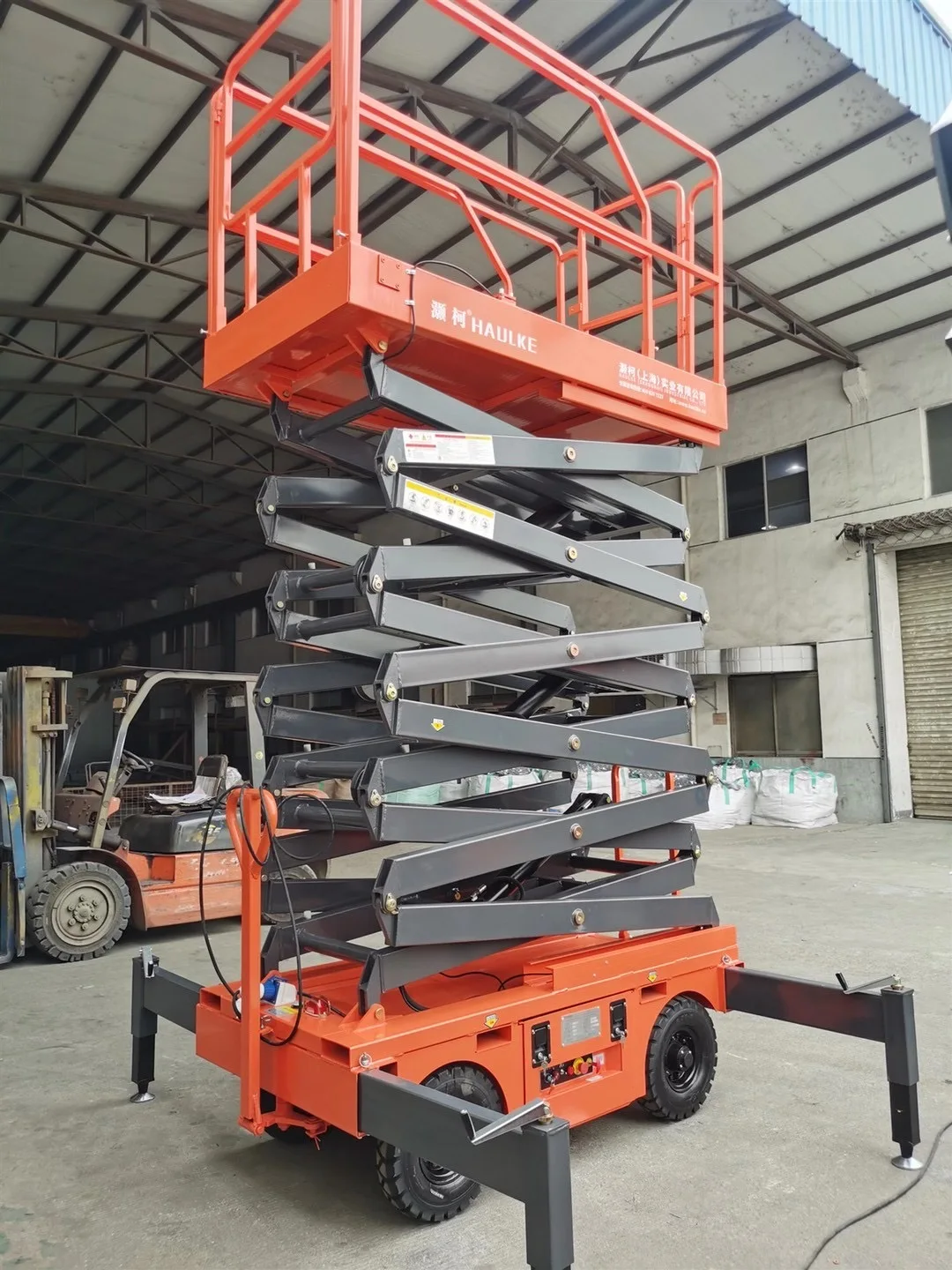

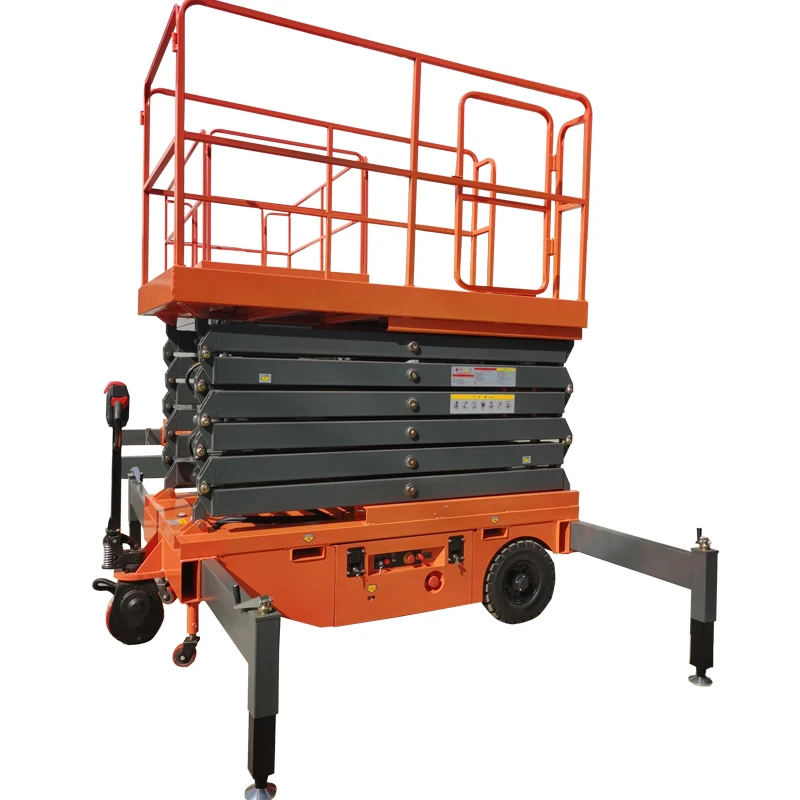

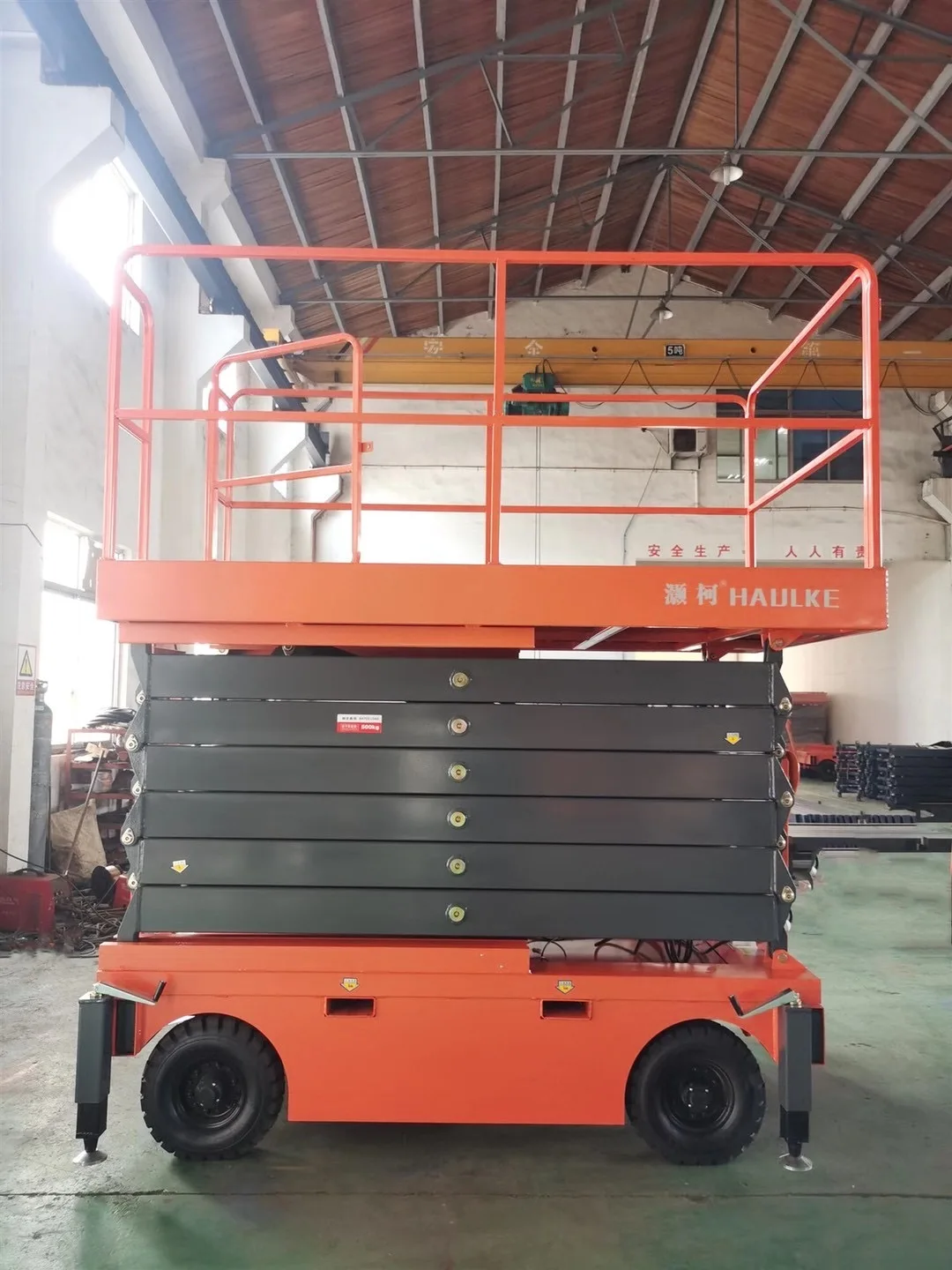

4m 500kg mobile scissor lift/hydraulic lift/lift elevator used for aerial work | ||||||||||||||||||
Model | Load Capacity (kg) | Table Size (mm) | Maximum Platform Height (mm) | Height (mm) | Motor Power (kw) | Overall Dimension | Oil Cylinder | Sheer Weight (kg) | Wheel | |||||||||
HKG0.3-6 | 300 | 1780×840 | 6000 | 1080 | 1.5 | 1900x1000x1080 | Φ80*2 | 850 | 200 polyurethane | |||||||||
HKG0.5-6 | 500 | 1780×840 | 6000 | 1080 | ||||||||||||||
HKG0.3-7.5 | 300 | 2000×1000 | 7500 | 1650 | 1.5 | 2100x1250x1650 | Φ80*2 | 1270 | 500-8 rubber aerated | |||||||||
HKG0.5-7.5 | 500 | 2000×1000 | 7500 | 1650 | ||||||||||||||
HKG0.3-9 | 300 | 2000×1000 | 9000 | 1800 | 2.2 | 2100x1250x1800 | Φ80*3 | 1500 | 500-8 rubber aerated | |||||||||
HKG0.5-9 | 500 | 2000×1000 | 9000 | 1800 | ||||||||||||||
HKG0.3-11 | 300 | 2100×1200 | 11000 | 1810 | 2.2 | 2200x1450x1810 | Φ80*3 | 1700 | 500-8rubber aerated | |||||||||
HKG0.5-11 | 500 | 2100×1200 | 11000 | 1810 | ||||||||||||||
HKG0.3-12 | 300 | 2400×1350 | 12000 | 1950 | 3 | 2500x1600x1950 | Φ100*3 | 2480 | 500-8 rubber aerated | |||||||||
HKG0.5-12 | 500 | 2400×1350 | 12000 | 1950 | ||||||||||||||
HKG0.3-14 | 300 | 2600×1350 | 14000 | 2100 | 4 | 2700x1600x2100 | Φ100*3 | 2800 | 600-9 rubber aerated | |||||||||
HKG0.5-14 | 500 | 2600×1350 | 14000 | 2100 | ||||||||||||||
HKG0.5-16 | 500 | 3100×1400 | 16000 | 2100 | 4 | 3200x1650x2100 | Φ100*4 | 3500 | 600-9 rubber aerated | |||||||||
HKG1-6 | 1000 | 1780x840 | 6000 | 1500 | 2.2 | 1900x1250x1500 | Φ100*2 | 1300 | 500-8 rubber aerated | |||||||||
HKG1-7.5 | 1000 | 2100x1000 | 7500 | 1650 | 4 | 2200x1250x1570mm | Φ100*2 | 1650 | 500-8 rubber inflatable wheel | |||||||||
HKG1-9 | 1000 | 2100×1200 | 9000 | 1770 | 4 | 2200x1450x1770 | φ100*2 | 1900 | 500-8 rubber aerated | |||||||||
HKG1-11 | 1000 | 2300×1350 | 11000 | 1990 | 4 | 2400x1600x1990 | Φ80*6 | 2860 | 600-9 rubber aerated | |||||||||
HKG1-12 | 1000 | 2400×1350 | 12000 | 1910 | 4 | 2500x1600x1910 | Φ80*6 | 2900 | 600-9 rubber aerated | |||||||||
HKG1-14 | 1000 | 2700×1500 | 14000 | 2200 | 4 | 2800x1750x2200 | Φ100*6 | 3500 | 600-9 rubber aerated | |||||||||
HKG1-16 | 1000 | 2600×1500 | 16000 | 2420 | 4 | 2700x1750x2420 | Φ100*2、Φ80*4 | 4000 | 600-9 rubber aerated | |||||||||
HKG1-18 | 300 | 3100×1500 | 18000 | 2430 | 4 | 3200x1750x2430 | Φ100*5 | 4500 | 600-9 rubber aerated | |||||||||
Product packaging
After-sale Service
Certifications
Company Profile
HaoKe (Shanghai) Industrial Co., Ltd. is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working
platform, electric lifting platform, fixed lifting platform, stacker series, lift table series, pallet truck series, forklift
attachments series etc.
At present, our company's products have been certified by a lot of international quality certification, covering an area of
20000㎡, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.
HaoKe would continue to innovate and transform new technologies into products and services with influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.
platform, electric lifting platform, fixed lifting platform, stacker series, lift table series, pallet truck series, forklift
attachments series etc.
At present, our company's products have been certified by a lot of international quality certification, covering an area of
20000㎡, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.
HaoKe would continue to innovate and transform new technologies into products and services with influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.
