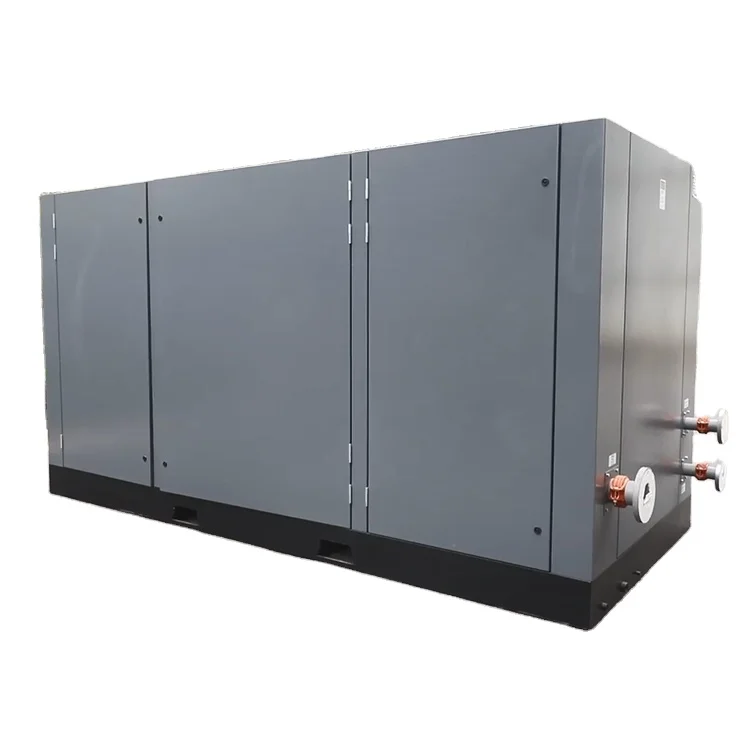

BD DM55 Medical Air Compressor Oil Free Air Compressor Air Compressor for Pharma Industry
- Category: >>>
- Supplier: Guangdong Baldor-Tech Co. Ltd.
Share on (1600449758668):
Product Overview
Description
Dry Type Oil - free Screw CompressorDM Series
●Protection level higher than lP55;
●Energy saving lE3 fixed speed induction motor;
●“B&D Cloud"digital supervisory system provided.
●Effective specialized oil seals, no wear with good effect;
●Durable compression modules with stability and reliability;
●Certified 100% oil-free compressed air with the industrial standard;
Quality accessories are of better reliability
Efficient air intake valve
B&D's efficient intake valves use hydraulicregulating mechanism instead of pneumaticregulating mechanism, which eliminatesperiodic replacement of pneumaticcomponents and reduces unnecessarydowntime and maintenance costs.
lt controls the loading and unloading througha combination of air intake and exhaust combination valve, which is simple andreliable.

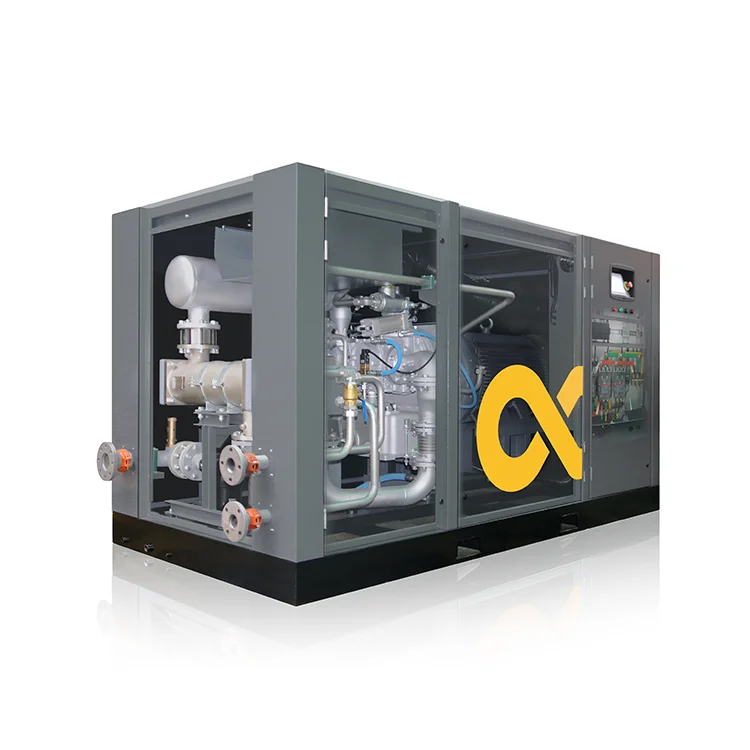

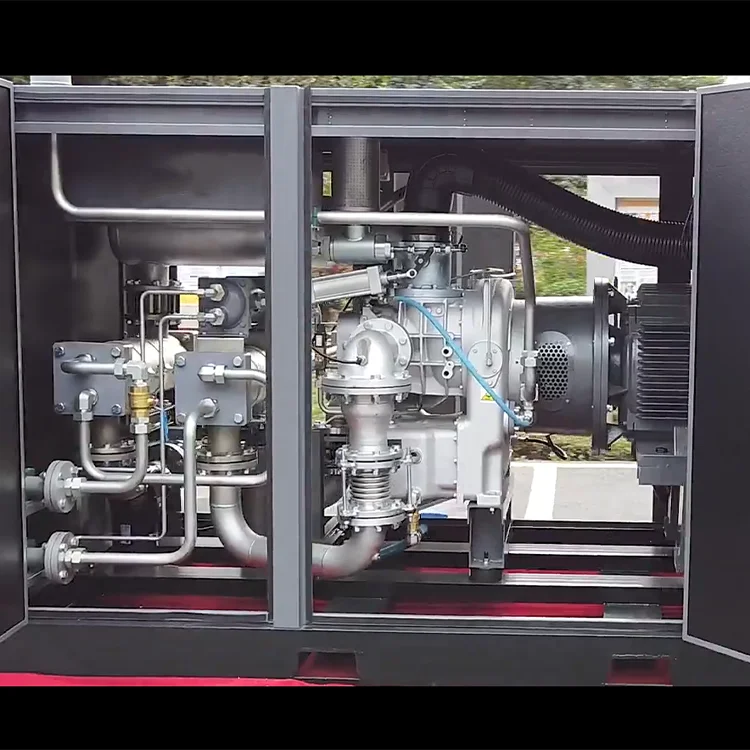

Durable compression module
Efficient twin screw two-stage compressionmodule is with cast iron housing and is drivenby synchronous gear. B&D uses a pair ofthrust bearings to replace the balanced pistonsto withstand the axial force and improve theairend operating reliability.
Advanced intelligent control system
The intelligent control system is with perfect self-diagnosis,alarm，interlock shutdown andmonitoring functions, and able to save the fault cause and components in memory.
The compressor control panel is in backlight LED display and with touch button,with completefunction and simple operation. It could configure three controlling methods according to user'sdemand, i.e. local, remote and interlocking control. With the standard configuration of RS485interface to support MODBUS RTU communication.
Excellent rotor coating
The intelligent control system is with perfect self-diagnosis,alarm，interlock shutdown andmonitoring functions, and able to save the fault cause and components in memory.
The compressor control panel is in backlight LED display and with touch button,with completefunction and simple operation. It could configure three controlling methods according to user'sdemand, i.e. local, remote and interlocking control. With the standard configuration of RS485interface to support MODBUS RTU communication.
Excellent rotor coating
The coating is to protect rotors againstcorrosion, reduce clearance between rotorsand improves efficiency.
Multiple layers of the composite coating withdifferent components are realized after severalsintering and running-in.
With rich experience in the development anduse of coating technology , the latest coatinghas been tested with a variety of chemicals,the temperature resistance is up to 270 degreeCelsius,which ensures the reliability anddurability of the rotors.
Permanent magnet motor + Inverter
The mechanical efficiency of efficient permanent magnet variable frequency motor is6%-8% higher than that of traditional asynchronous motor. B&D is the earliest manufacturer of using permanent magnet frequency conversion technology in the fieldof air compressor, which is with advanced technology and reliable performance. Withthe help of permanent magnet motor + Inverter, it makes the output pressure stable, andkeeps running in the high efficiency area, and the energy saving is even up to more than35%.
With the motor of protection grade of IP55 or above to prevent dust and other particlesfrom entering into the motor.
Always continuous and stable operation under harsh ambient temperature conditions.
The mechanical efficiency of efficient permanent magnet variable frequency motor is6%-8% higher than that of traditional asynchronous motor. B&D is the earliest manufacturer of using permanent magnet frequency conversion technology in the fieldof air compressor, which is with advanced technology and reliable performance. Withthe help of permanent magnet motor + Inverter, it makes the output pressure stable, andkeeps running in the high efficiency area, and the energy saving is even up to more than35%.
With the motor of protection grade of IP55 or above to prevent dust and other particlesfrom entering into the motor.
Always continuous and stable operation under harsh ambient temperature conditions.
Excellent and reliable coolingsystem
The operating environment of the compressoris designed according to the harsh high temperature and high humidity workingenvironment.
All the air or water cooling systems of B&Dcompressors are designed according to theambient temperature of 46 degree Celsius,they all can realize continuous and stable operation under harsh ambient temperatures toavoid high-temperature shutdown.
●Cooling module of air-cooled unit: It isconfigured with stainless steel pre-coolerwith high temperature resistance and
aluminum brazed plate fin heat exchangerwith good heat exchange effect, resistantto heat shock, and suitable for occasionswithout cooling water.
●Cooling module of water-cooled unit: It isconfigured with stainless steel shell-and-tube heat exchanger. The wateris in the tube pass and air is in the shellpass, which is good in cooling effect andeasy to clean.
The operating environment of the compressoris designed according to the harsh high temperature and high humidity workingenvironment.
All the air or water cooling systems of B&Dcompressors are designed according to theambient temperature of 46 degree Celsius,they all can realize continuous and stable operation under harsh ambient temperatures toavoid high-temperature shutdown.
●Cooling module of air-cooled unit: It isconfigured with stainless steel pre-coolerwith high temperature resistance and
aluminum brazed plate fin heat exchangerwith good heat exchange effect, resistantto heat shock, and suitable for occasionswithout cooling water.
●Cooling module of water-cooled unit: It isconfigured with stainless steel shell-and-tube heat exchanger. The wateris in the tube pass and air is in the shellpass, which is good in cooling effect andeasy to clean.
Model | Motor Power kw | FAD m³/min 7.5bar(g) | FAD m³/min 8.5bar(g) | FAD m³/min 10bar(g) | Dimensions (L*W*H)mm | Net Weight kg |
DM55 | 55 | 10 | 9 | 8 | 3060*1500*1750 | 2350 |
DM75 | 75 | 13.1 | 12.2 | 11.2 | 3060*1500*1750 | 2550 |
DM90 | 90 | / | 13.2 | 12.1 | 3060*1500*1750 | 2650 |
DM110 | 110 | 20 | 18.5 | 16.2 | 3260*1500*1800 | 3400 |
DM132 | 132 | / | 22 | 19.7 | 3260*1500*1800 | 3500 |

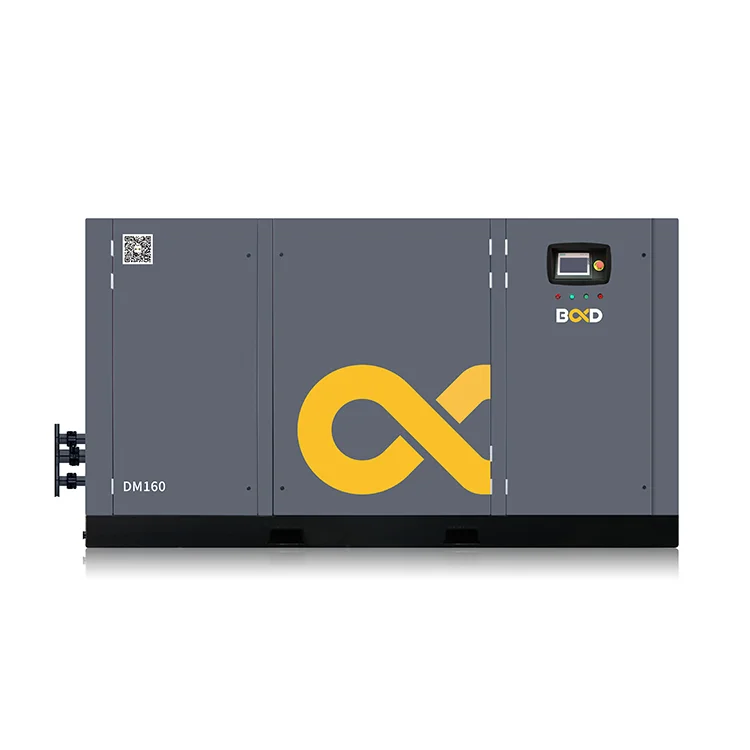

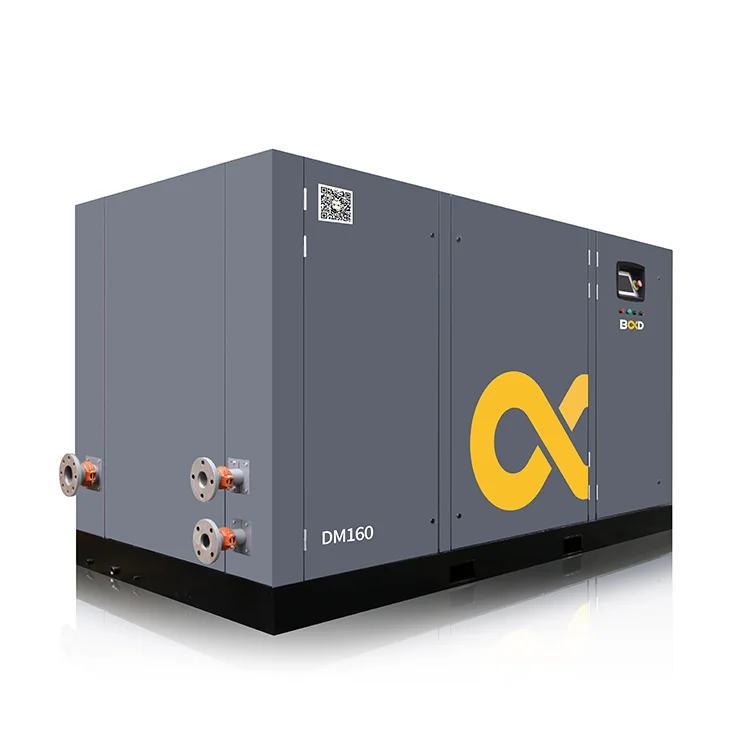

DM160 | 160 | 23.3 | 26.5 | 23.2 | 3260*1500*1800 | 3700 |
DM200 | 200 | / | 32.8 | 29.5 | 3950*1850*2100 | 5700 |
DM250 | 250 | 46 | 42 | 37.6 | 3950*1850*2100 | 5800 |
DM315 | 315 | / | 50.2 | 45.8 | 3950*1850*2100 | 6000 |
Why do you need 100% oil-free compressed air?
1. To protect the equipment and reduce the production cost.
2. 100% oil-free air reliably guaranteesthe production of high-quality products.
3. To meet the national environmental protection requirements.
4. Oil-free compressed air is needed everywhere In applications such as equipment operation, cleaning, drying and testing, etc.
5. To reduce scrapmetals,improve the product quality and enhance the market power.
2. 100% oil-free air reliably guaranteesthe production of high-quality products.
3. To meet the national environmental protection requirements.
4. Oil-free compressed air is needed everywhere In applications such as equipment operation, cleaning, drying and testing, etc.
5. To reduce scrapmetals,improve the product quality and enhance the market power.
Industries for food&beverages, medicine,Air-separation industry, petrochemical industry,electronic engineering and instrument industry.
Food and Beverage Industry
Provides 100% pure, oil-free air for a variety of applications (such as fermentation, packaging ~ aeration, transport ~ filling and capping, cleaning ~ instrumentation origin).
Certified to ISO 8573-1CLASS 0 (2010), there is no compromise on the purity of the final product, ensuring no risk of contamination.
Provides 100% pure, oil-free air for a variety of applications (such as fermentation, packaging ~ aeration, transport ~ filling and capping, cleaning ~ instrumentation origin).
Certified to ISO 8573-1CLASS 0 (2010), there is no compromise on the purity of the final product, ensuring no risk of contamination.
Pharmaceutical Industry
100% oil-free air is essential to prevent process contamination (eg fermentation, aeration, tablet coating, packaging and bottling, automated production lines).
CLASS 0 eliminates all risks and maintains the high quality and professional brand reputation of the product.
CLASS 0 eliminates all risks and maintains the high quality and professional brand reputation of the product.
Air separation industry
Use the purest air to produce medical oxygen, security nitrogen, etc.
Petrochemical industry
Certified pure 100% oil-free, reliable compressed air is essential to keep production running continuously.
Capable of operating in extreme temperature and humidity conditions, high performance and reliability are essential.
Certified pure 100% oil-free, reliable compressed air is essential to keep production running continuously.
Capable of operating in extreme temperature and humidity conditions, high performance and reliability are essential.
Electronics industry
It is extremely important to produce clean, dry, high-quality air with optimum energy efficiency.
Applications include removing microscopic debris from computer chip surfaces and motherboards.
It is extremely important to produce clean, dry, high-quality air with optimum energy efficiency.
Applications include removing microscopic debris from computer chip surfaces and motherboards.
Instrument air
To ensure the reliability of pneumatic control and execution components, as well as to meet the cleanliness requirements of theproduction workshop, the compressed air produced by the dry oil-freescrew air compressor can meet the above requirements.
