Product Overview

Description



Product Description

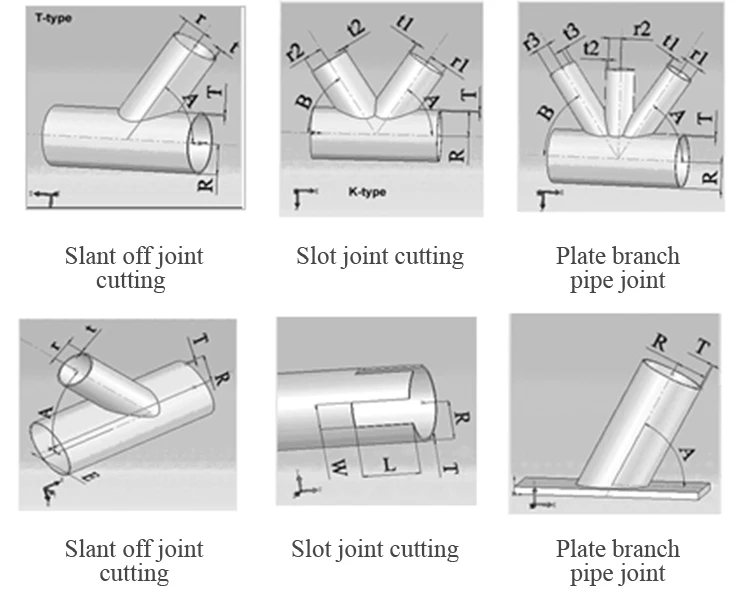

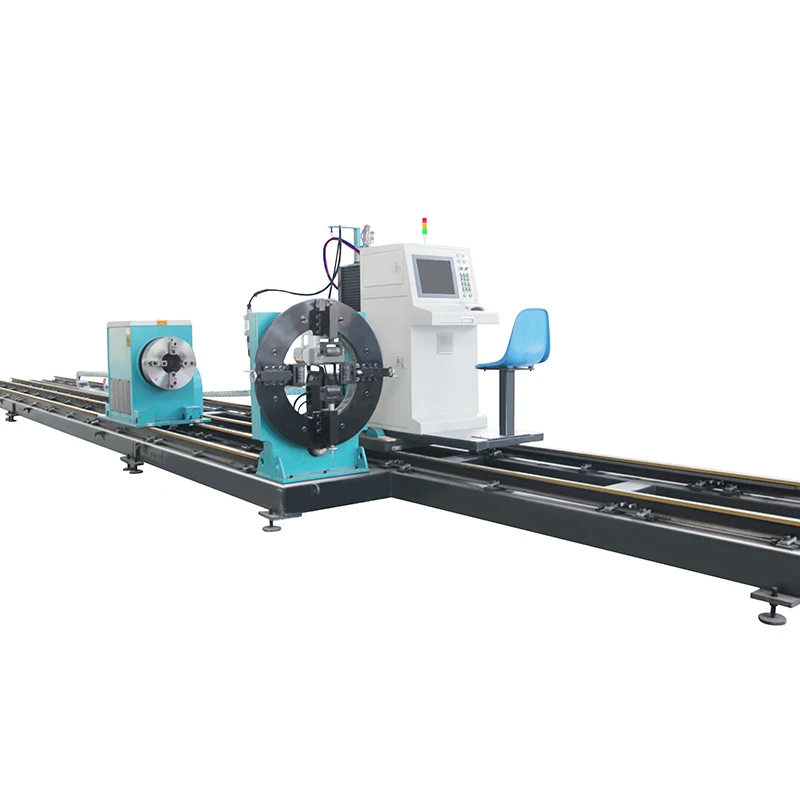

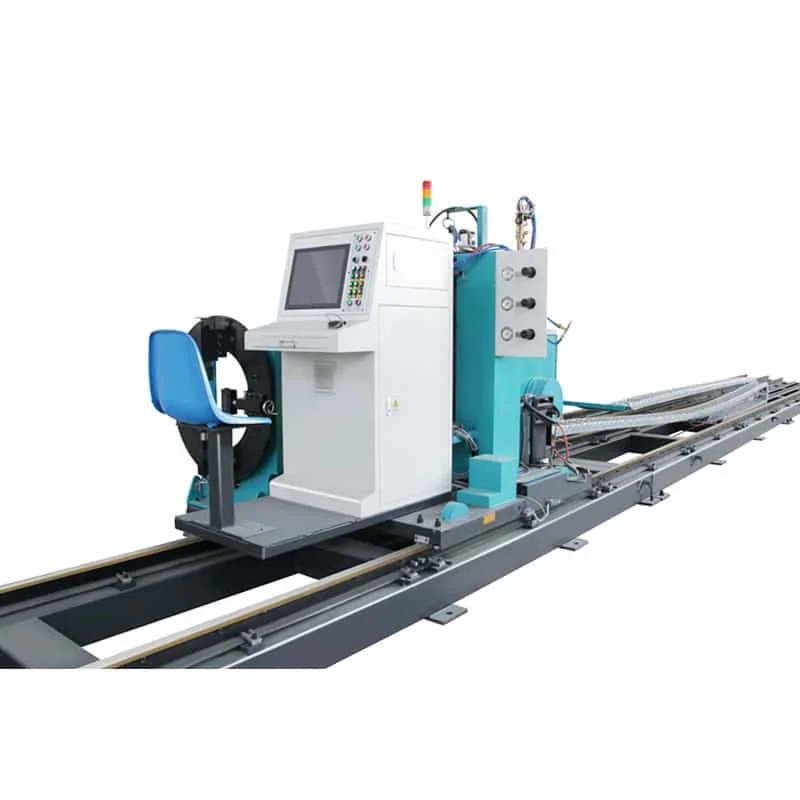

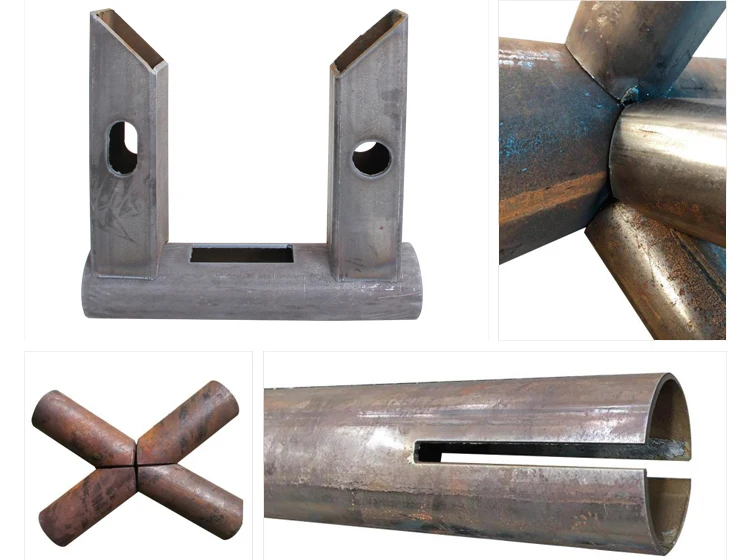

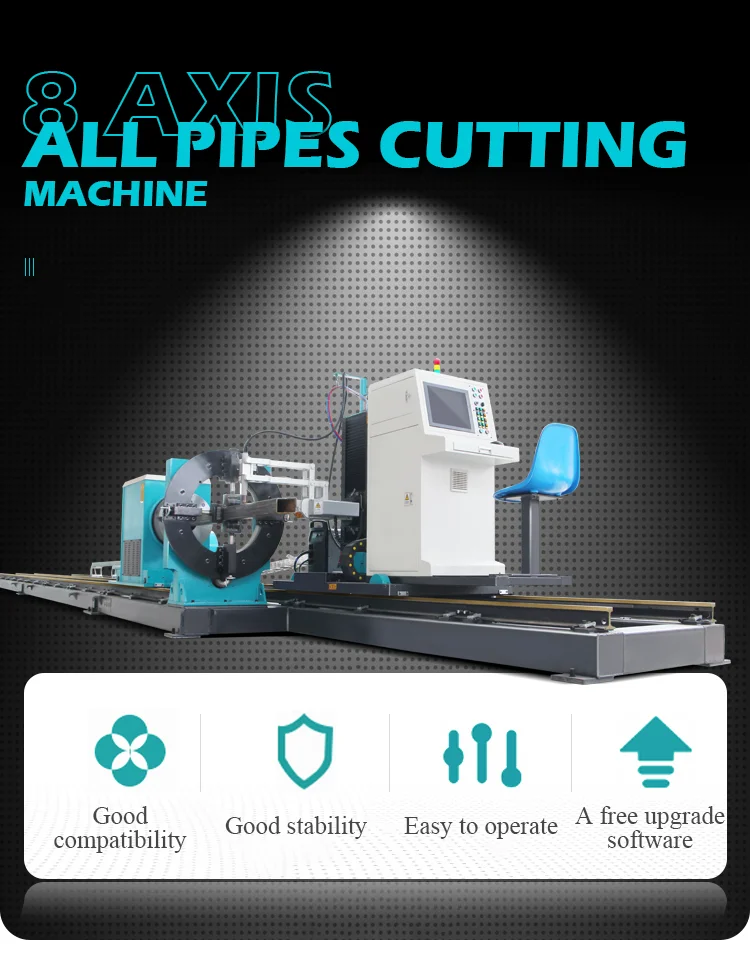

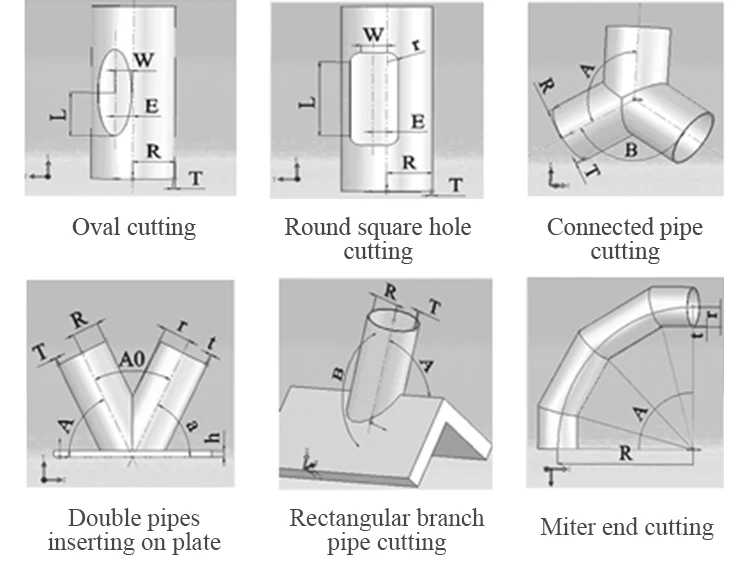

8 axis plasma pipe cutting machine,can cut round pipe, square pipe, Irregular pipe, can cut and bevel, use one machine can do these all, it reduce the cost.






Technical Parameters


Model
8 axis pipe square tube CNC cutting machine
Square tube
Width 40-400mm , cutting length 6000/9000/12000mm
Round pipe
Diameter 50-630mm ,cutting length 6000/9000/12000mm
Cutting method
Plasma & flame
Plasma power
Hypertherm 125A plasma power ,
For 1-25mm
Flame cutting thickness
6-60mm
Plasma cutting speed
500-3500mm/min
A axis Bevel angle
±45 degree
B axis Bevel angle
±45 degree
Plasma bevel thickness
6-14mm
Flame bevel thickness
6-40mm
Control system
Yomi control system
Computer
Taiwan Advantech Industrial Computer
Driving motor
Japanese Panasonic Servo motor with reducer

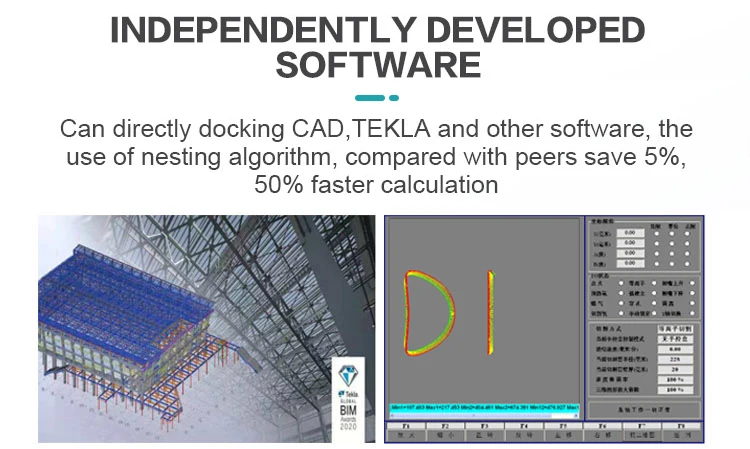

Software
Yomi Pipe Nest software
Load
8t
Weight
7000kg
Shipping
40ft container








Our Advantages


High Precision, Smooth Operation

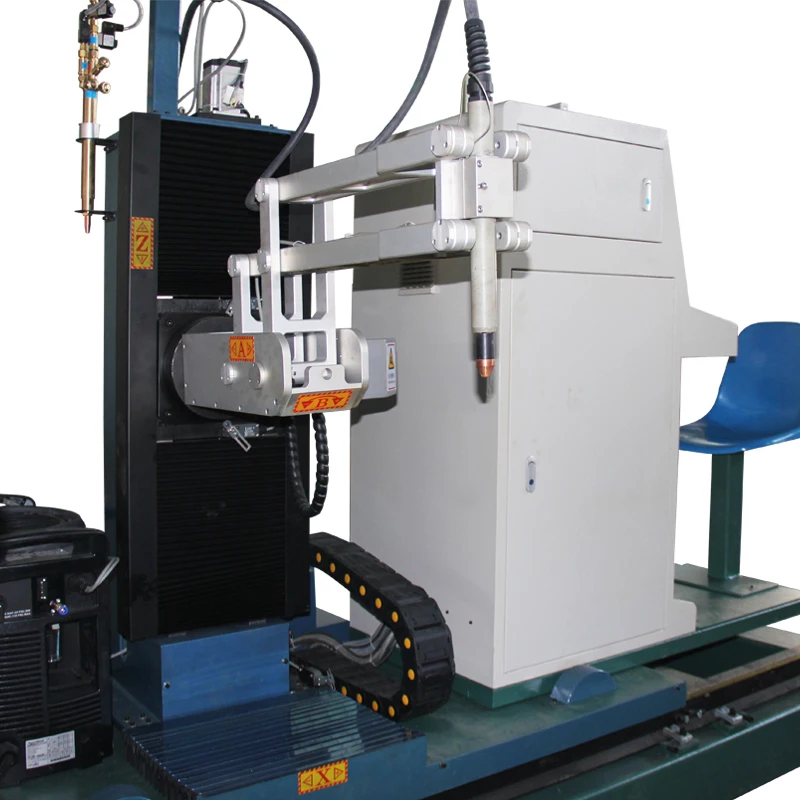

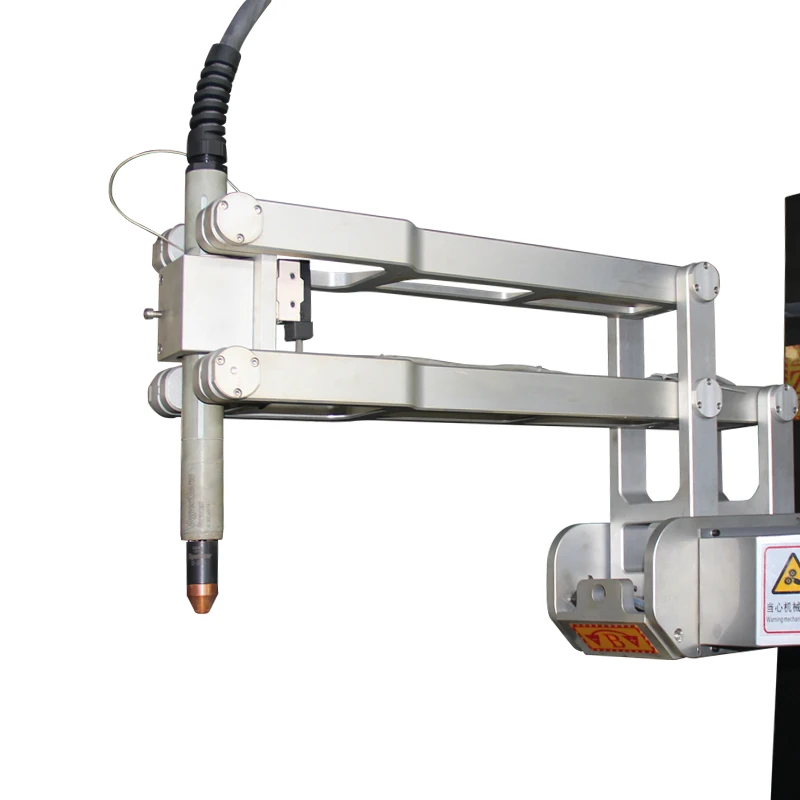

Cutting arm adopts aeronautical aluminum material,resistnt to high temperature and pressure.
Adopt imported servo motor, machine body finishing


Improve Productivity
It is 5-10 times of traditional pipe cutting machine, saving labor 5-6 people.

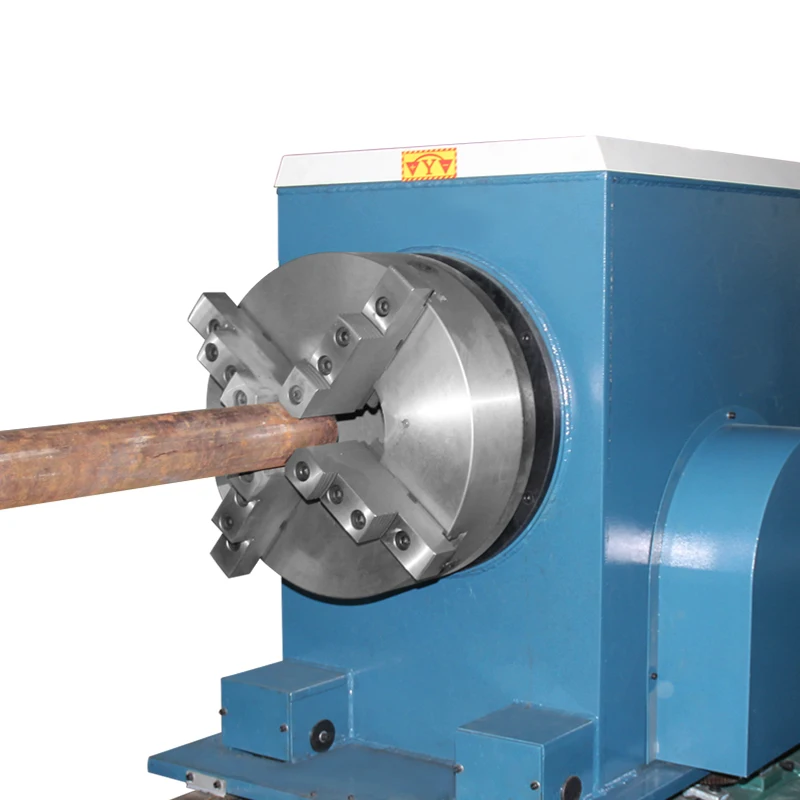

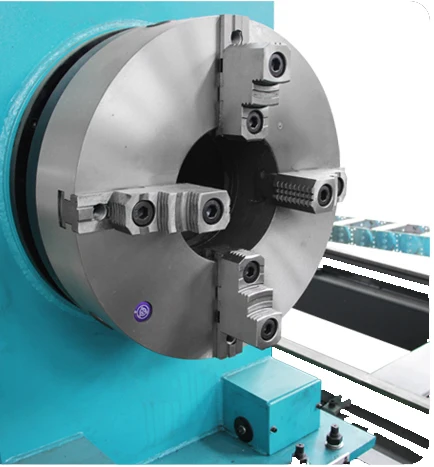

HEADSTOCK-The steel plate tailor-welded box structure design is adopted,and the structure is compact to improve the overall
rigdity and strength.


Low Cost
One person can operate more than two sets machines.

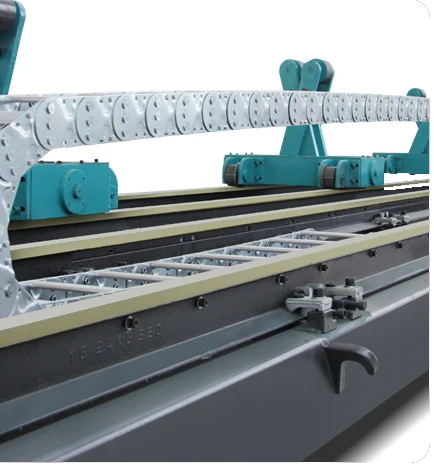

24KG RAIL-The top surface and two side surfaces are precisely processed bya CNC grinder using 24KG grade S5Q ground rails to ensure the leveland parallelism of the moving torch.

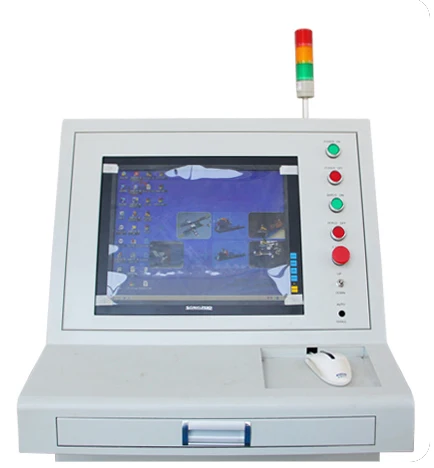

Advanced System
The system uses Pro-face's GP-2301HL handheld graphical operation
interface.lt has world-class safety protection functios:3-position enadle switch.












Packing&Shipping




Packaging Details：Standard shipping package




Shandong Yomi Intelligent Science and technology Co., Ltd is an Industrial Leader in the Cutting & Welding Field. We target to build the Integrated Supply Chain with High Quality Products at Competitive Prices and offer a complete After-Sales Service in the Local Market. We cater for all Steel Fabricators, Heavy Equipment Manufacturers as well as Small Workshops and Engineering Companies, etc. We have established overseas warehouses in South Africa. This is our first overseas warehouse. More warehouses will be established around the world. In addition to the warehouse, it is also equipped with local after-sales service personnel who have been trained in our factory. Inventory products + local services + integrated supply chain will be our main business method.




















FAQ


1.Are you factory or foreign trade company?
We are factory ,do both domestic and froeign market
2.What shall we do if don't know how to operate your machine after bought from you?
We have detailed installation and operating instructions attached, also comes with video, it is very simple. We have telephone and email support at 24 hours a day. If you need our engineer go to your factory installation and training , that all no problems
3.What's the quality of your products?
For the machine frame all made by ourself, quality and delivery time have enough guarantee . Also our products passed CE certification, exported to lots countries around the world, such as Russia, Iraq, Belgium, Kazakhstan, Korea, etc. You can rest assured with the quality absolutely.
4.What to do if the machine has a problem?
24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
5.What other things also need after we bought your machines?
(1) With flame cutting: you just need to access to oxygen and fuel gas.
(2) With plasma cutting: need plasma power source and air compressor. You can match plasma power supply by yourself, or buy together with the cutter from us, it's optional. If you buy from us, we will connect the wires of plasma power source and CNC cutting machine together, then more conveniently to use.
6.What's the leading time after payment?
The leading time is according to your ordered products and quantity.Gantry cutting machine need 15 days ;pipe cutting machine need 30 days ;h beam cutting machine need 60 days .It should be confirmed by the communication with our sales staff.
7.What are your payment terms?
We support T/T, L/C, Western Union and so on. Other ways can also be received after we both sides discussion and agreement
