PUR hot melt adhesive High speed hot melt injection valve with pneumatic
- Category: >>>
- Supplier: Dongguan Yiren Industry Co. Ltd.
Share on (1600449825372):
Product Overview
Description
Products Description

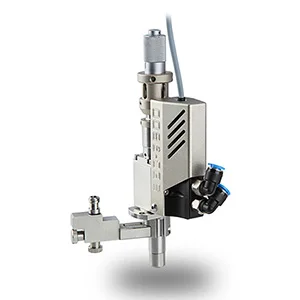

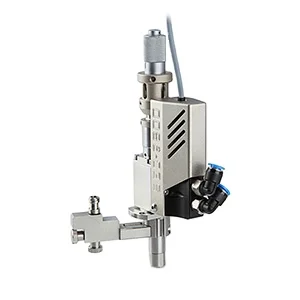

High speed injection dispensing valve
The high-speed injection dispensing valve is a non-contact high-speed injection valve driven by air pressure and controlled by solenoid valve precision. It breaks through the traditional contact dispensing technology, does not need z-axis movement during operation, and the spring pressure in the cavity is adjustable; It can realize high-speed and controllable dispensing of a variety of fluids and adhesives, such as bottom filling adhesive, UV adhesive, silver paste, silica gel, epoxy resin, surface coating adhesive, surface mounting adhesive, etc.
1.Non contact dispensing
2.Frequency 200 times / S
3.for medium and high viscosity materials
4.Convenient maintenance and replacement
Details
Voltage | DC24V | ||||||
Minimum drive pressure | 0.6-0.8mpa（90Psi） | ||||||
Cylinder pressure | 0-0.4mpa（50Psi） | ||||||
Body material | Aluminium alloy | ||||||
Fluid tank material | SUS304 | ||||||
Piston sael ring | PTFE Synthetic material | ||||||
Firing Pin seal ring | PEK/PTFE/PE Optional | ||||||
Firing Pin material | Superhare alloy | ||||||
Air inlet diameter | 6.0mm | ||||||
Vlve body temperature | ≤100℃ | ||||||
Nozzle temperatureroom: | temperature~ 130℃ | ||||||
Stroke adjustment | Adjustable spring pressure | ||||||
Dimension | 24*90*160mm | ||||||
Weight | 0.55kg | ||||||
Product packaging
Package & Terms
Package: Y&D standard package.
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
payment:100% T/T in advance after confirm the order
Shipping:DHL/TNT&Fedex express shipment
Exhibition
We will participate in Munich Fair every year to show our products and technologies and build our own brand with all our heart.
Company Profile
Company Strenghth
We are a professional manufacturer of dispensing equipment and liquid dispenser and all the accessories. Valve, pressure tank, cartridge, barrels, tips, dispensing pen, glue gun, connect and so on. Our main product including dispensing equipment and liquid dispenser. We also have gantry conveyor robot.
Competitive Advantages
* Professionalism,creativity,advanced fluid control technology.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
* Established an unshakable position in the liquid control and dispensing production.
* Highly Vertical Integration Of Manufacturing.
* Worldwide Sales
* Advanced Engineering/ Development Capability.
* Good Material Management Programs.
OEM/ODM service offered
Our product could match with other accessories (valve, tank, cartridge) according to your actual situation or as your request. We are capable to manufacture dispensing equipment and liquid dispenser according to customer's drawings or samples. We are insisting on providing top quality products with competitive price. Please feel free to contact us. Welcome your inquiry.
For more information, please feel free to contact our sales, and we will give you a quick reply as soon as we get to know it.
Our office hour
Monday to Saturday
AM 8:00-12:00 PM:13:30-17:30
Notice(Saturday we only work on half day)
Yan Zhong
Phone: 86-769-85705386
Wechat: 15015488307
Phone: 86-769-85705386
Wechat: 15015488307
Whatsapp: +86 15015488307
Skype: ydsales-6
E-mail: sales2@dispensing.cc
E-mail: sales2@dispensing.cc
Our office hour
Monday to Saturday
AM 8:00-12:00 PM:13:30-17:30
Notice(Saturday we only work on half day)
