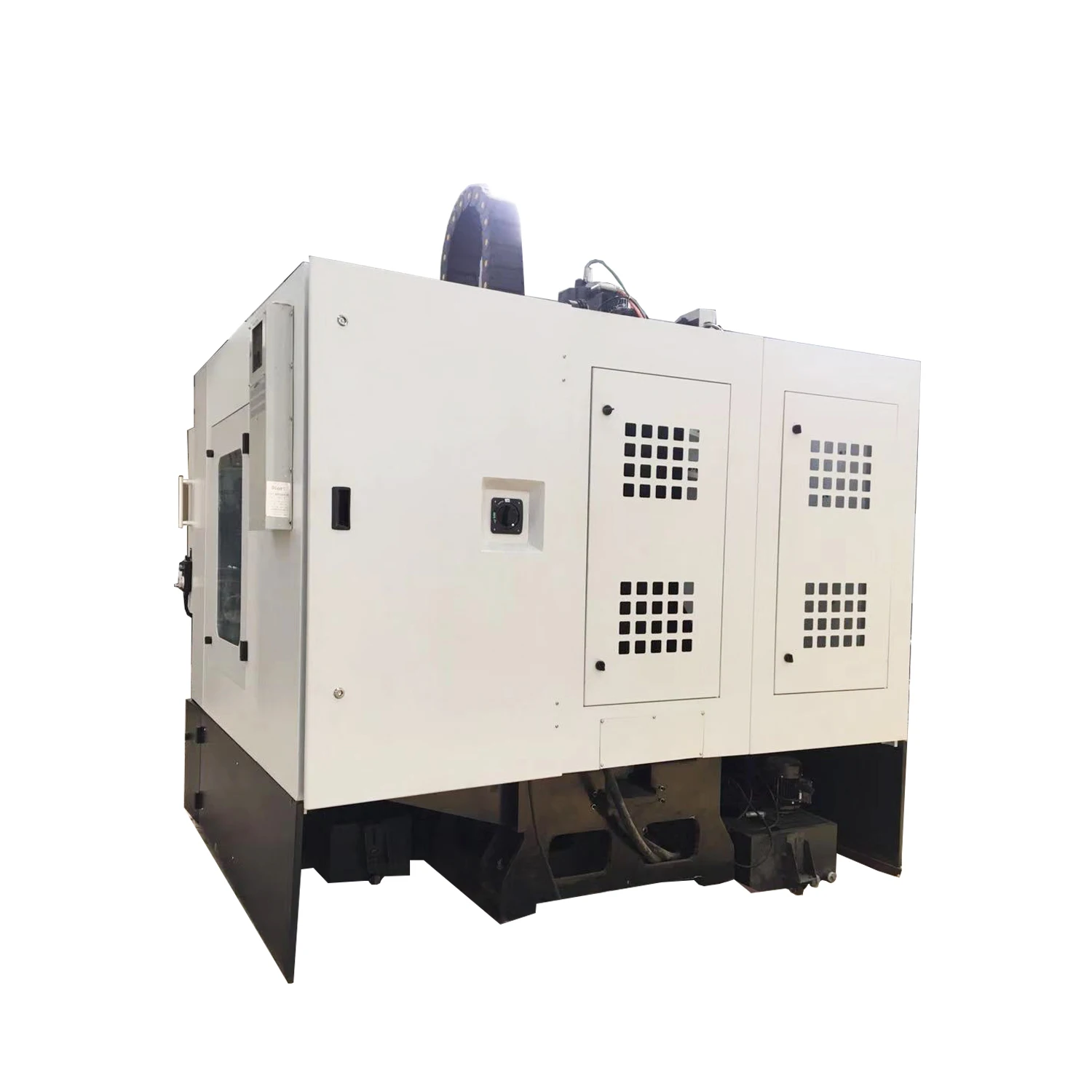

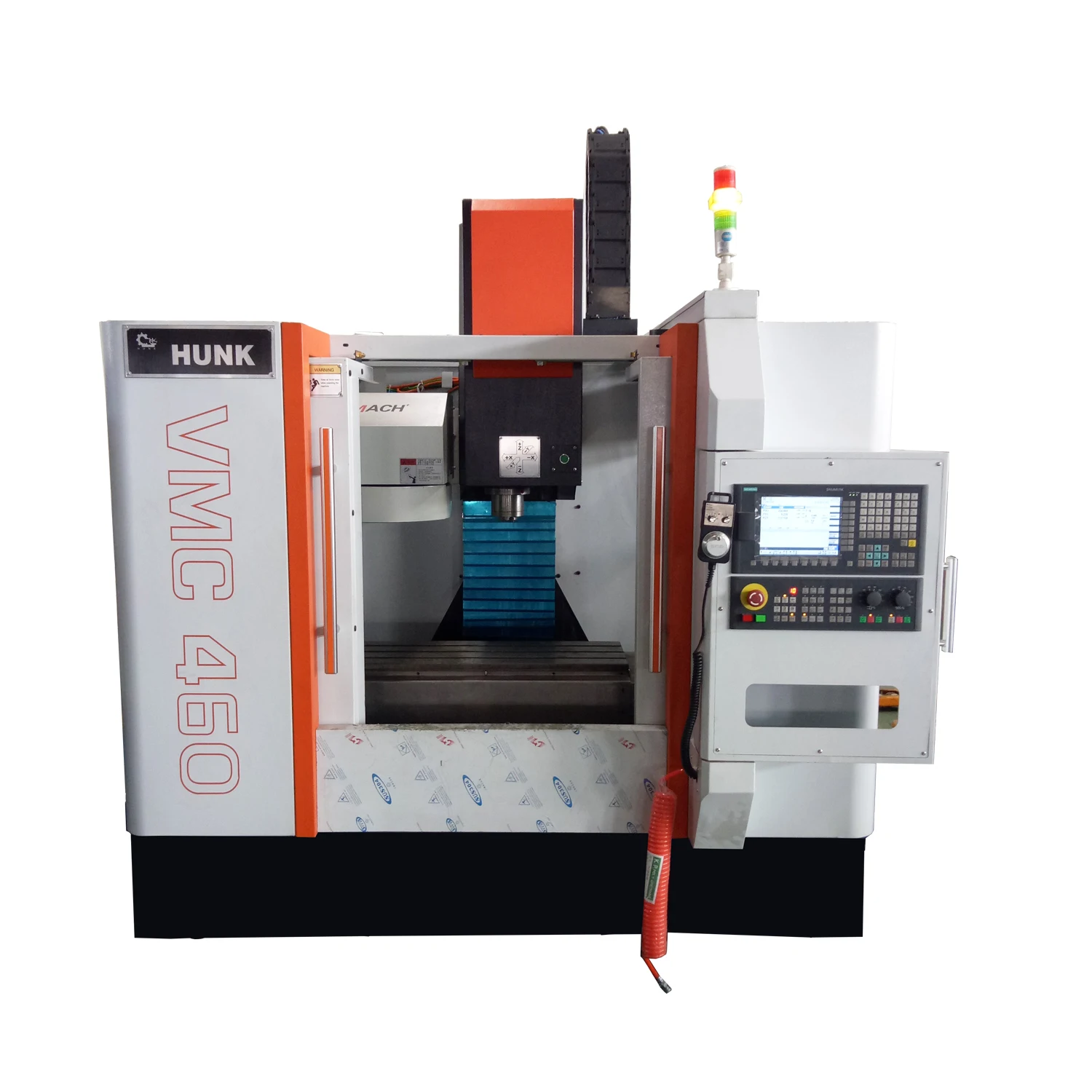

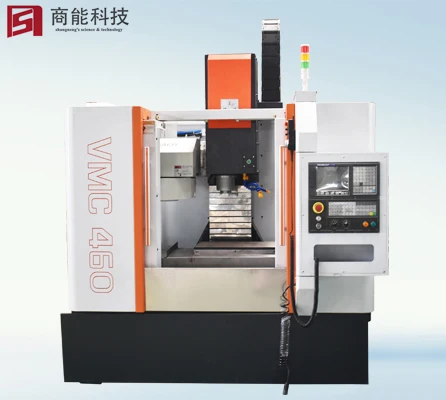

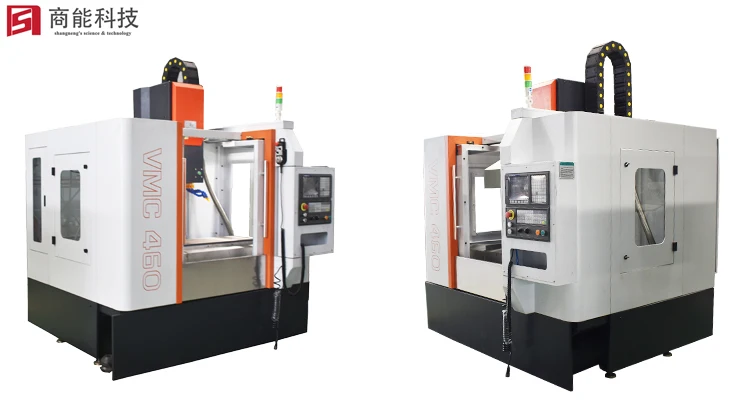

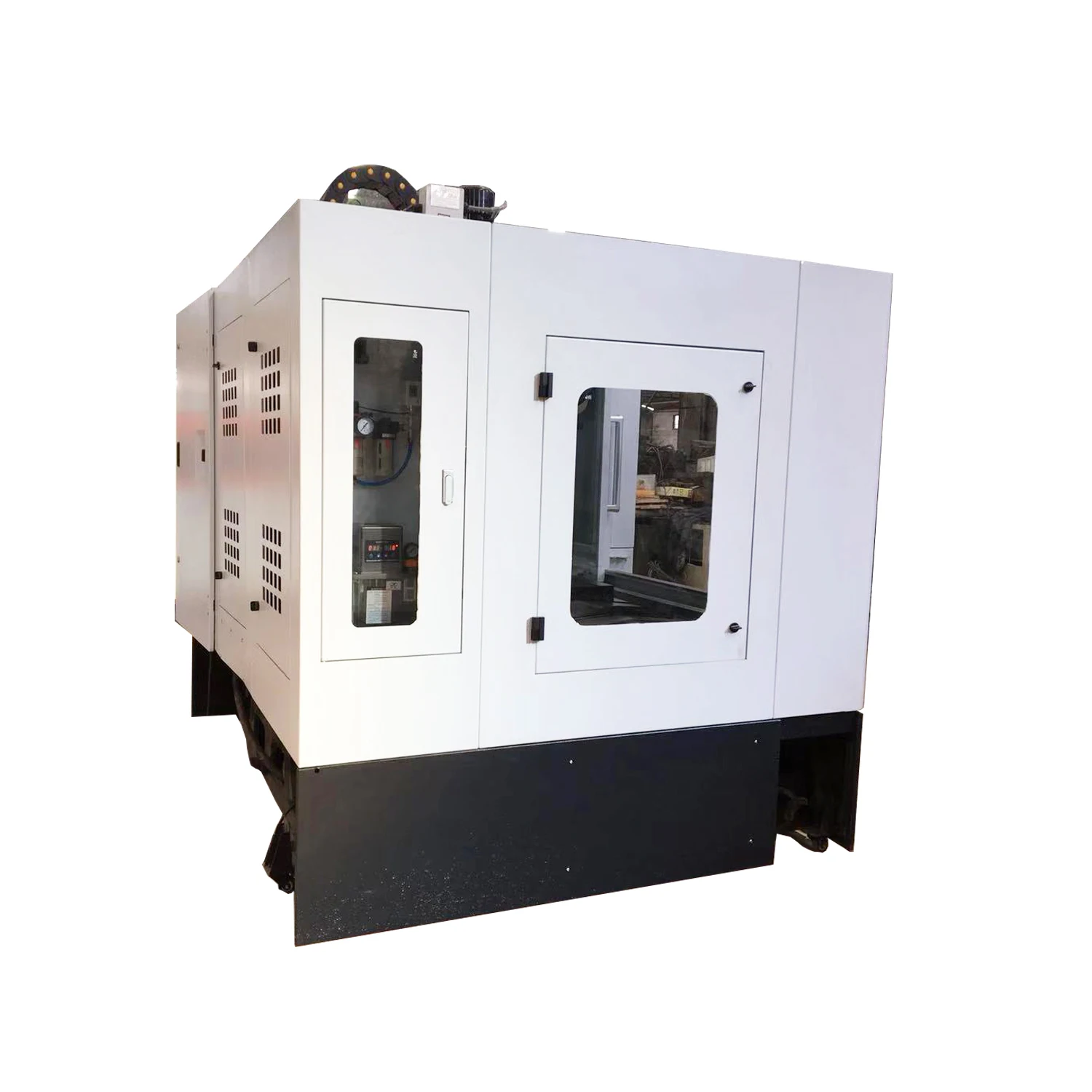

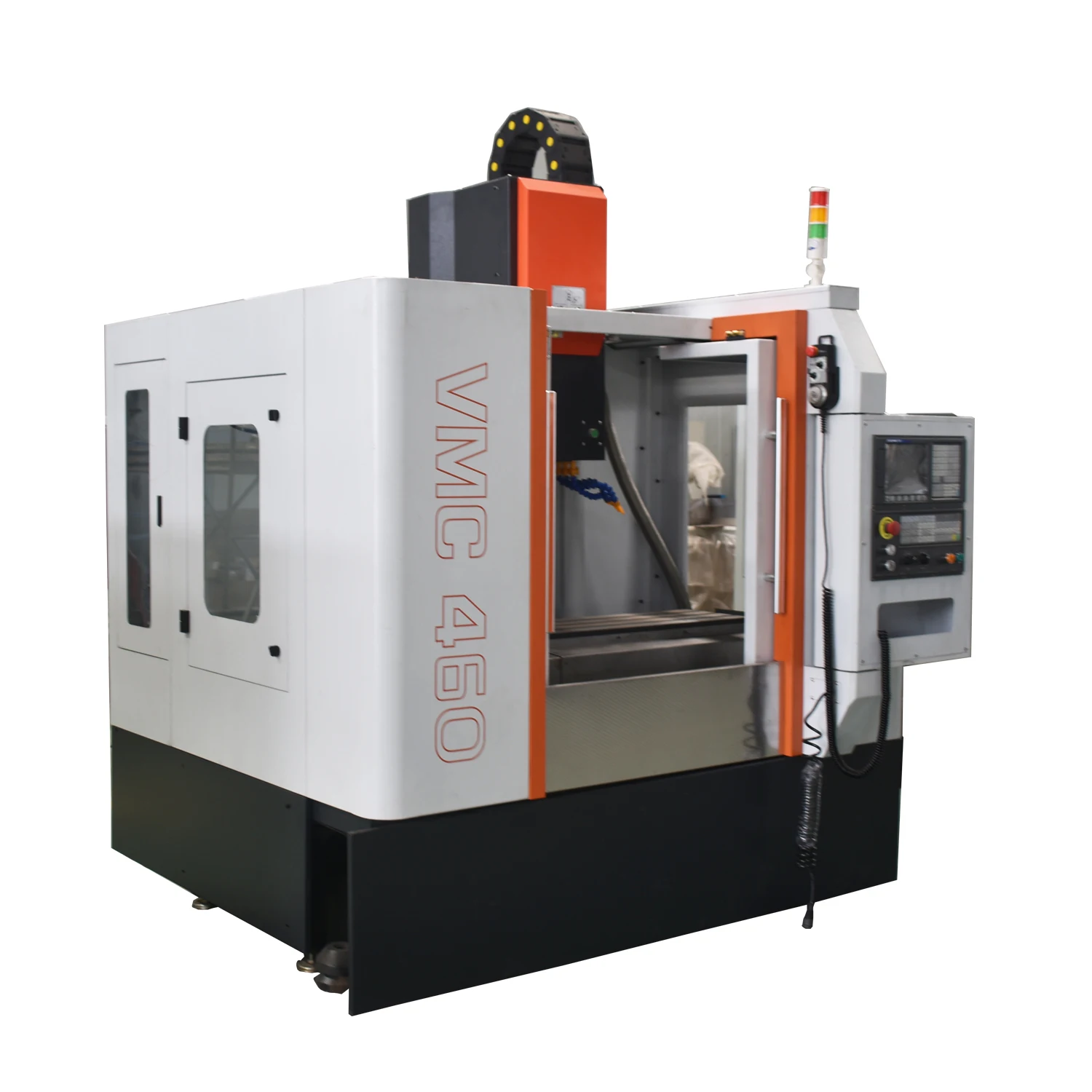

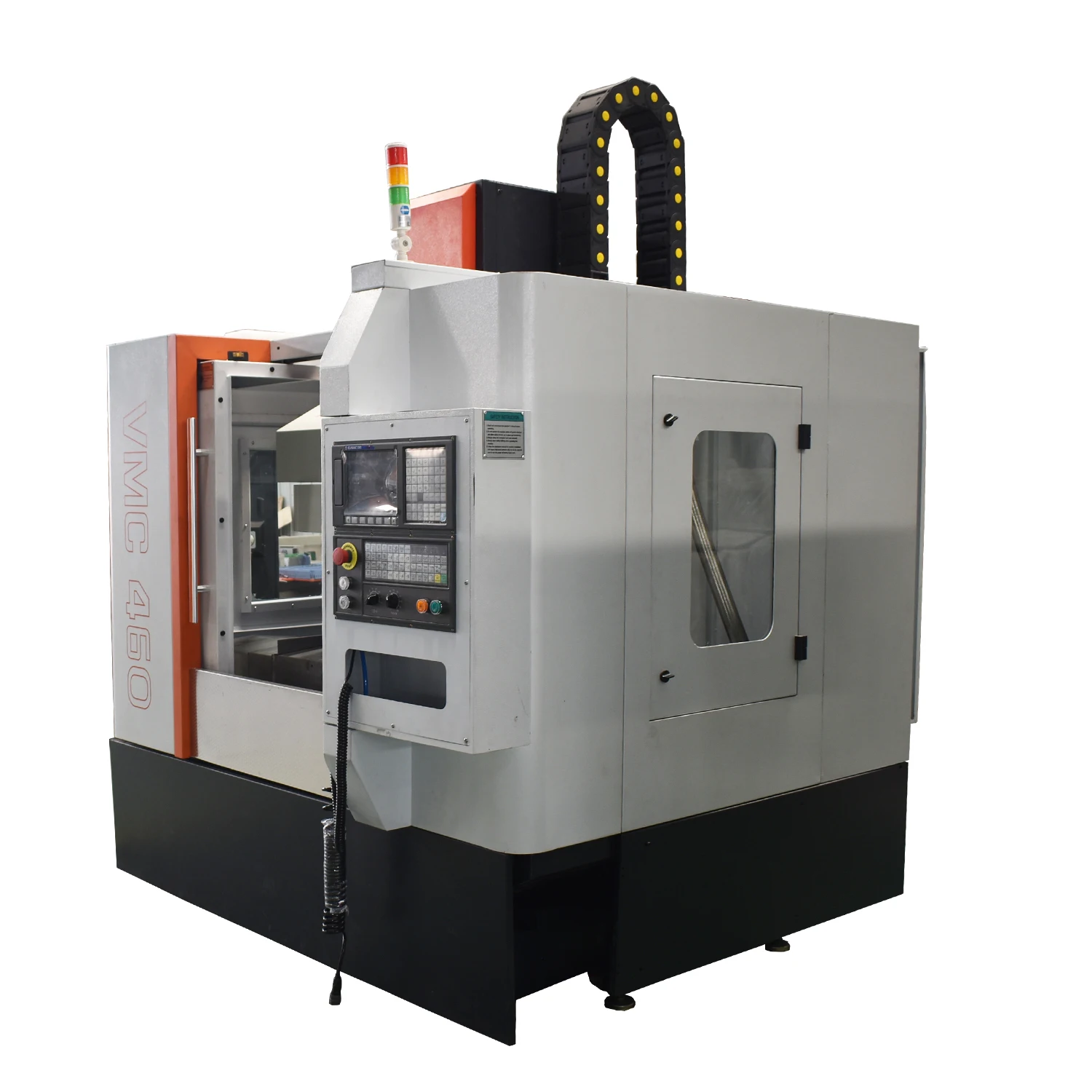

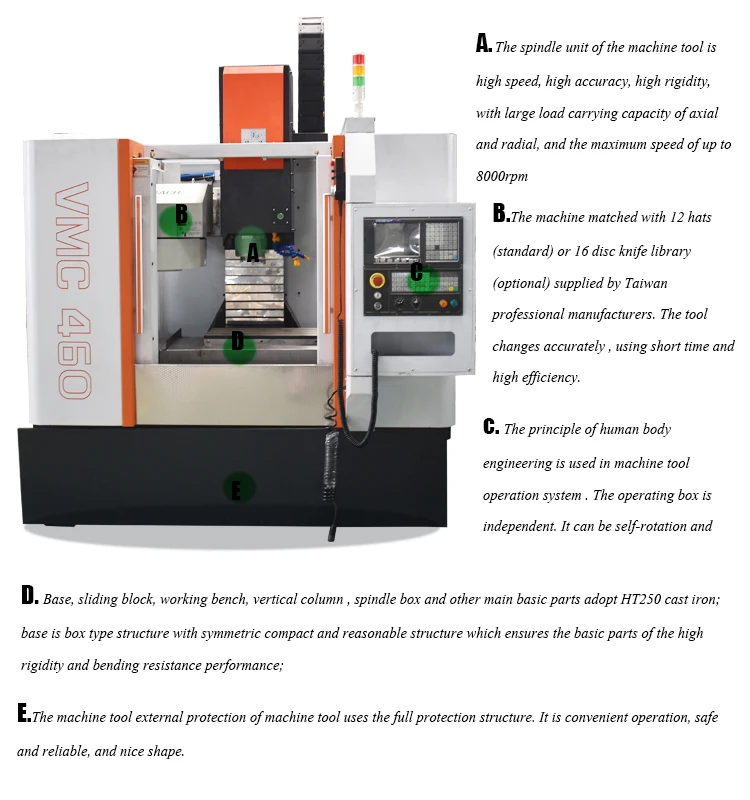

3d CNC mill manufacturers VMC460L precision micro cnc milling machine
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600449909882):
Product Overview
Description
Application
It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finish the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.
Product Description
Standard configuration:
1) 3.7kw servo motor, spindle speed 10000rpm, BT30;

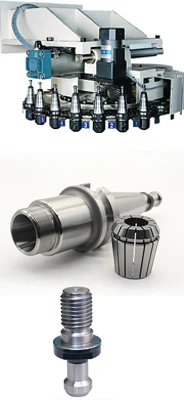

2) 12(standard) tools, Umbrella-type tool magazine,
3) Nozzle coolant, Belt Driven,
5) PMI (Taiwan) linear guideway,

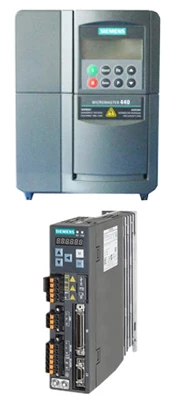

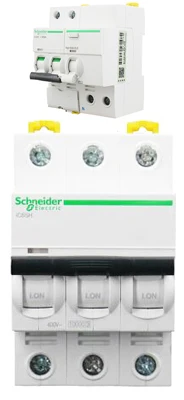

7) Schneider( France) electric parts,
8) Heat exchanger
2) 12(standard) tools, Umbrella-type tool magazine,
3) Nozzle coolant, Belt Driven,
4) HIWIN (Taiwan) ballscrew,
5) PMI (Taiwan) linear guideway,

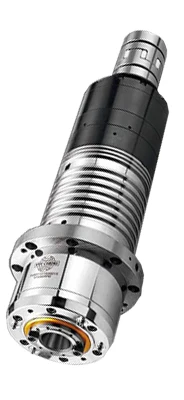

6) ROYAL/POSA (Taiwan) spindle,
7) Schneider( France) electric parts,
8) Heat exchanger
Optional configuration:
1）No tool magazine；
2）12 tools, Drum-type tool magazine, BT40 spindle；
3) 12 tools, Umbrella-type tool magazine, BT40 spindle;
4) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
5) 4th axis ( bar type, made in China), center height 110mm, with tailstock;
6) 4th axis ( bar type, made in China), center height 125mm, with tailstock;
7) 4th axis (bar type, GAS Taiwan) CNC-120R/170R, with tailstock;
2）12 tools, Drum-type tool magazine, BT40 spindle；
3) 12 tools, Umbrella-type tool magazine, BT40 spindle;
4) Spindle speed 12000r(with oil cooler), spindle conneted to the drive motor directly;
5) 4th axis ( bar type, made in China), center height 110mm, with tailstock;
6) 4th axis ( bar type, made in China), center height 125mm, with tailstock;
7) 4th axis (bar type, GAS Taiwan) CNC-120R/170R, with tailstock;

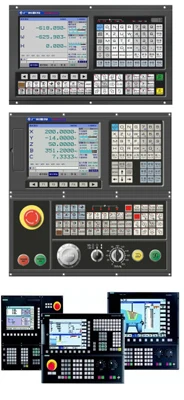

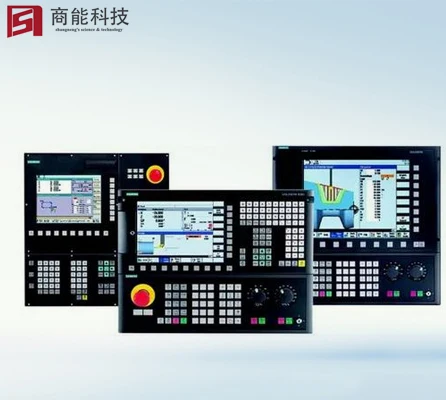

Option Control system:
1) SIEMENS808D2
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
2) SIEMENS828D
3) MitsubishiM70B
4) MitsubishiM70A
5) Fanuc 0i-MF 5
6) Syntec 21TMA
7) GSK218/KND1000MC
Specification
Mode | VMC460L |
Work Capacity | |
Travel X,Y,Z | 460mm,320mm,460mm |
Spindle Nose to Table | 90-550mm |
Spindle Center to Column | 395mm |
Work Table | |
Table Area | 800*300mm |
Spindle | |
Spindle Max. Speed | 10000RPM |
Driving Type | Belt Drive |
Spindle motor power | 3.7KW |
Spindle taper | BT30/BT40 |
Automatic Tool Changer (ATC) | |
Magazine type | Carousel type |
Magazine Capacity | 12 tools |
Tool Selection Type | Set Tool Number |
Max. Tool Diameter | 80/120mm |
Max Tool Length | 200mm |
Max Tool Weight | 6kgs |
Air Blast at Tool Change | Standard |
Motion | |
Cutting Feed Rate | 1-4000 |
Rapid Traverse X/Y/Z | 10000/10000/10000 mm |
Accuracy | |
Positioning Accuracy | 0.012mm |
Repeatability Accuracy | 0.007mm |
CNC Control Features | |
Controller | SIEMENS or other option |
Control Model | SIEMENS808D2 or other option |
Programming Assist | Manual Guide |
4th Axis | Support |
5th Axis | No Support |
Coolant System | |
Flood Coolant Nozzles | 2 |
Coolant Tank Capacity | 100L |
Chip conveyor | option |
Power Requirement | |
Electrical | Three phase AC 380V±10% 50Hz±10% or customer's request |
Using air pressure | 0.6MPa |
Machine Measurements | |
Out dimension | 1850*1800*1900mm |
Machine weight | 2500kgs |

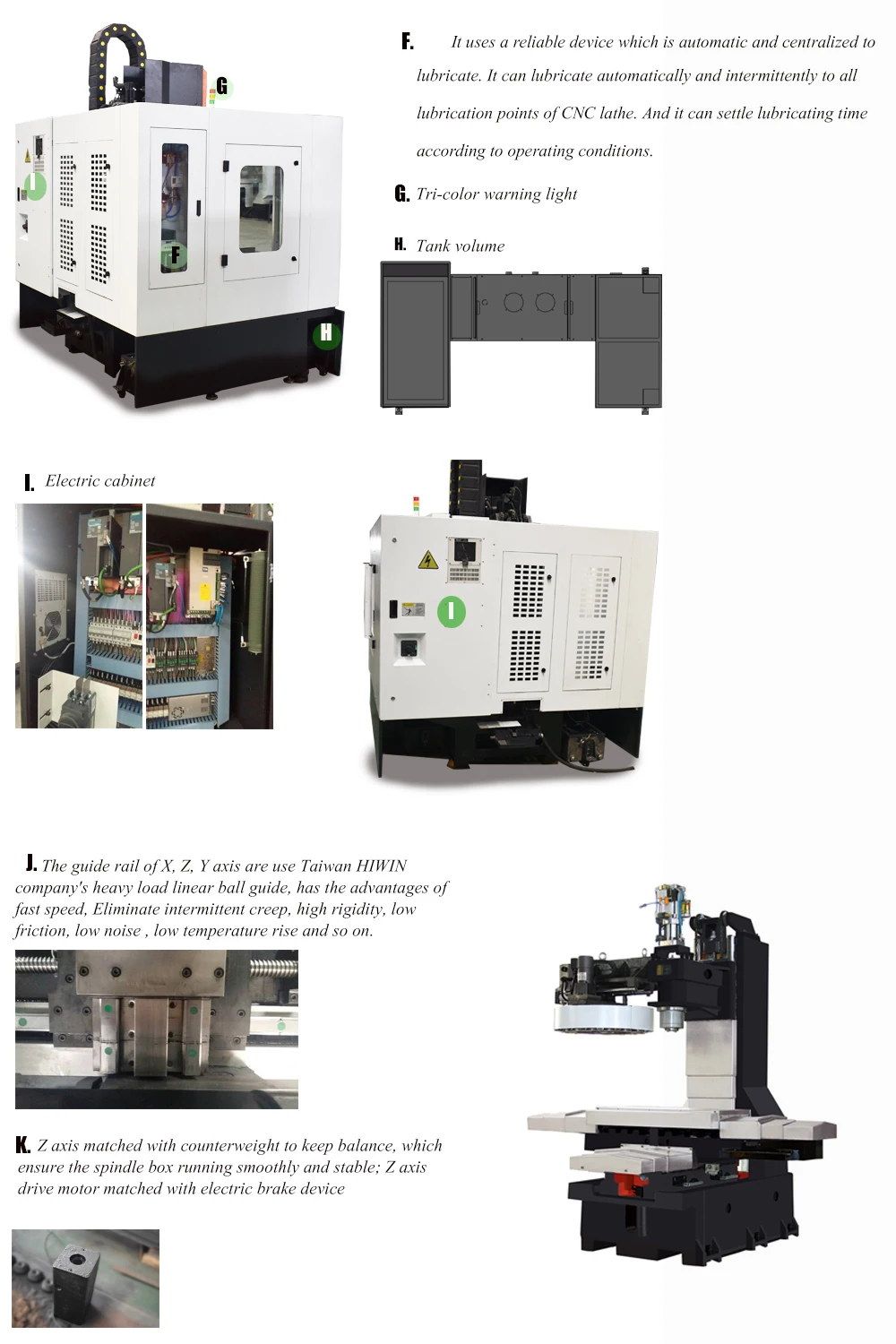

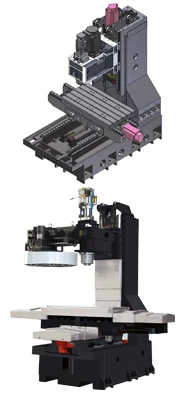

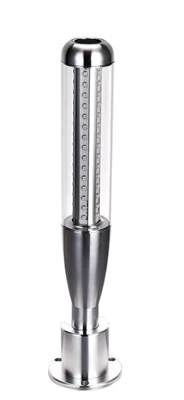

Details Images
Produce process
Packing & Delivery
1）plywood package as LCL
2) delivery time is about 15-35 working days;

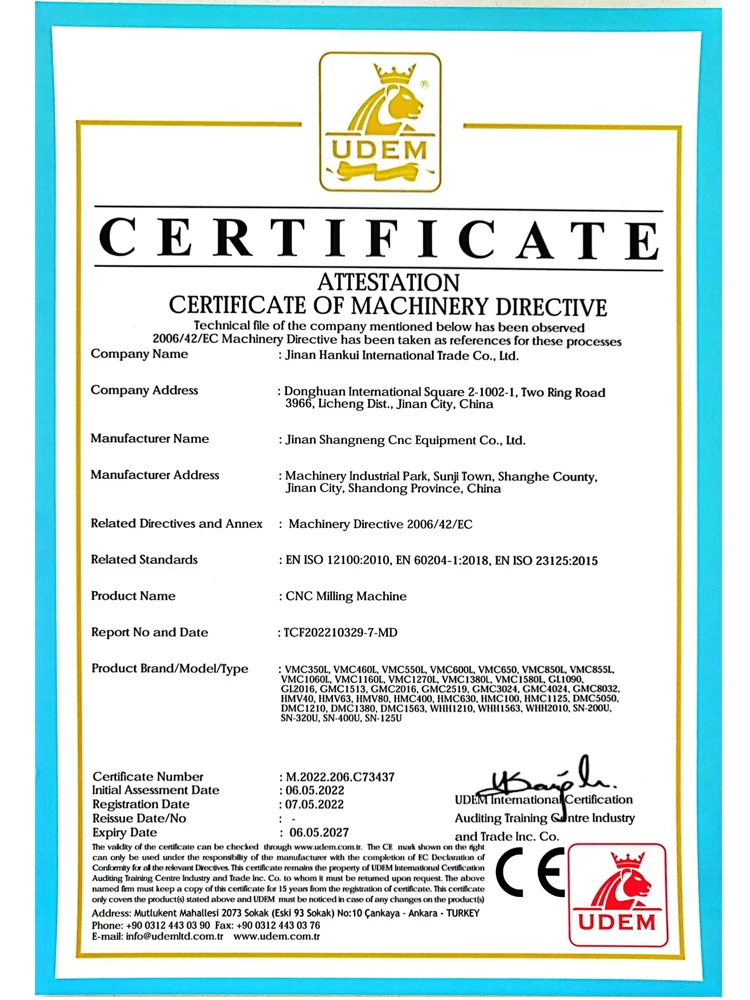

Certifications
