Product Overview

Description



Product Description

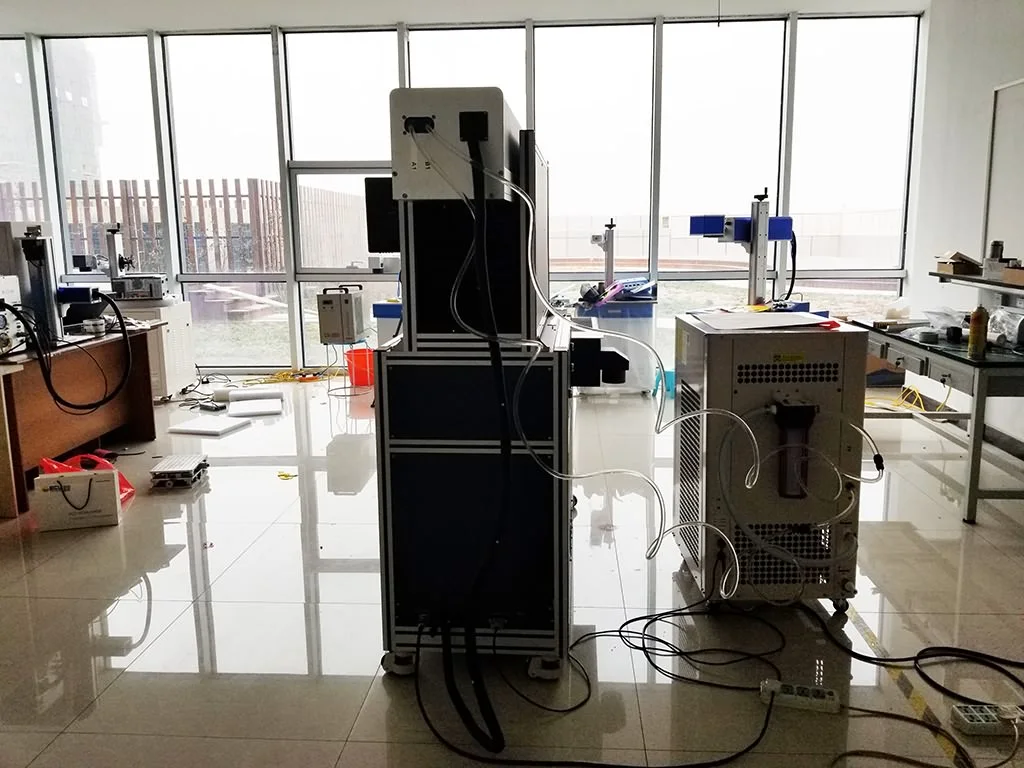

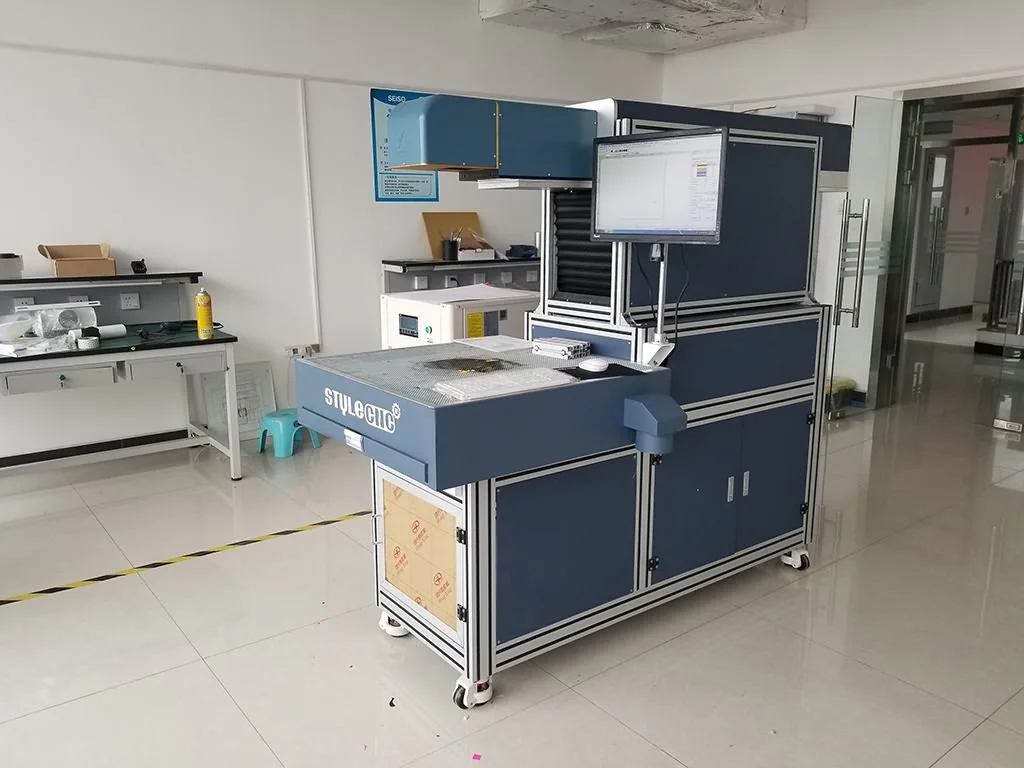

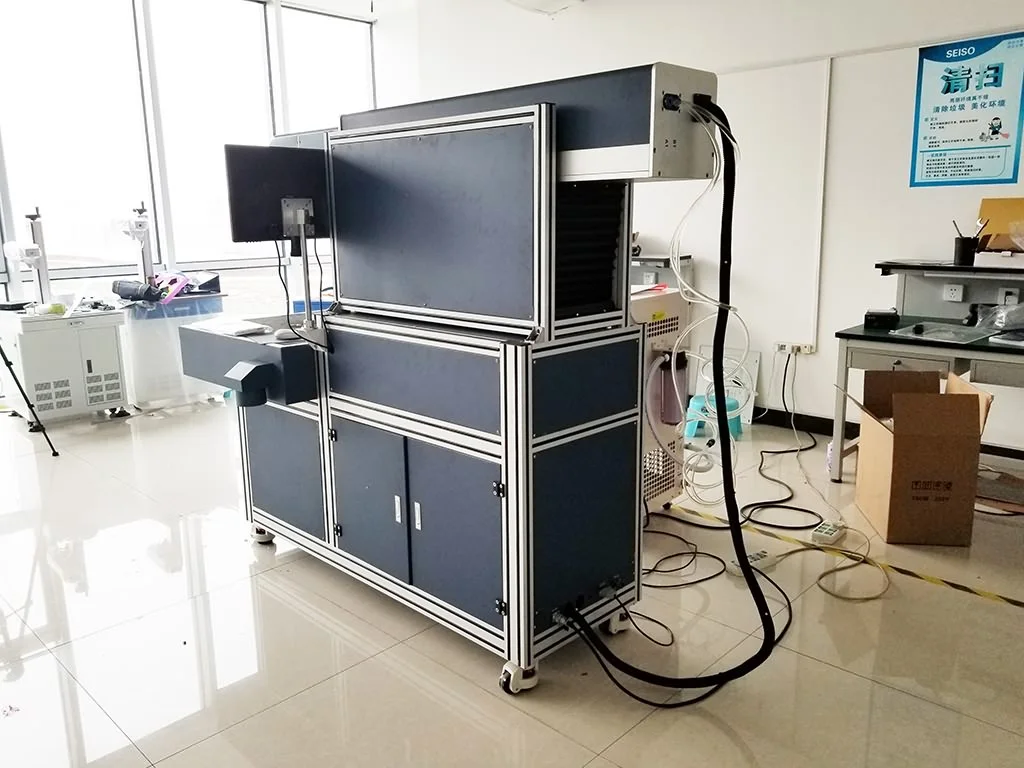

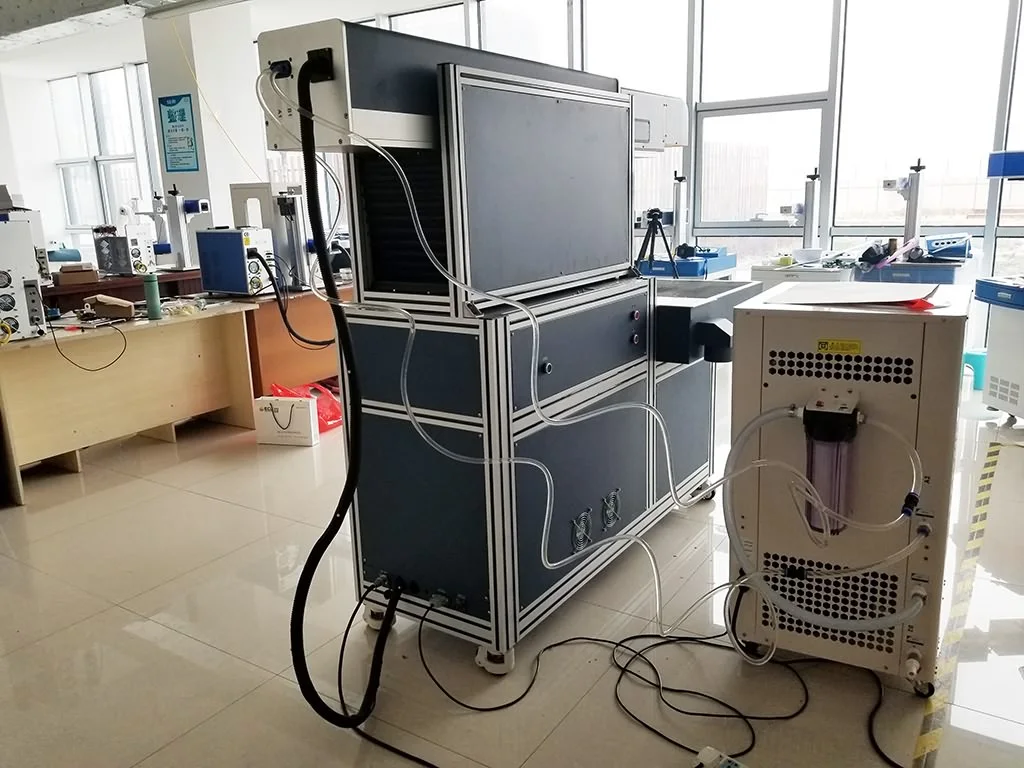

3D dynamic focus CO2 laser engraving & cutting machine with 200W CO2 RF laser tube is used for 2D/3D cutting & marking card stock, paper crafts, and paper cards, including holiday cards, invitation cards, wedding cards, Christmas cards.




3D dynamic focus CO2 laser engraving & cutting machine is equipped with high power RF laser tube from America. The 200W RF CO2 laser machine with high precision, high speed and long working lifetime.

3D dynamic focus CO2 laser cutting machine is equipped with hi-tech dynamic focusing scanning mirror and control card, it is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is
specially designed for the laser scanning with tiny light spot, large working range and high flexibility. Furthermore, this equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, which can ensure the stability of the system under long-hours working conditions.

3D dynamic focus CO2 laser engraving machine is used for marking in leather carving, hollow-out leather, greeting cards, and laser marking in woods, and laser firing in jeans wear and other laser marking technologies of nonmetal.


Specification


item
value
Application
Laser Marking
Working Accuracy
0.01mm
Graphic Format Supported
AI, PLT, DXF, BMP, Dst, Dwg
Laser Type
CO2
Condition
New
CNC or Not
Yes
Cooling Mode
Air Cooling
Place of Origin
China
Laser Source Brand
Yongli
Weight (KG)
65KG
Key Selling Points
High-accuracy
Warranty
3 years
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Marking Area
100mm*100mm
Core Components
Pressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Mode of Operation
continuous wave
Configuration
stand-alone
Feature
3D
Laser Power
60w 80w 100w 130w
Laser source
Yongli laser tube
Keywords
Co2 Laser Marking Printer
Marking material
Nonmatal
Laser wavelength
1064nm
Application
Packaging Industry
Working area
100*100mm
Laser head
Sino-galvo Laser Head
Control system
EZCAD Control System
Cooling system
Ari Cooling


Features


1. Unique optical path design based on laser beam characteristics, low optical loss with 20% efficiency increased.
2. Rapid response with high speed THK guide rail of Z axis.
3. High stability with CTI galvanometer.
4. Original USA coherent CO2 laser tube with long working lifetime is characterized by high laser power, high-quality light spot, excellent performance, stable power and long service life (20k hours).
5. Tiny beam spot, making more precision.
6. Full sealed and maintenance-free laser optic system which key components all imported from USA or UK, realizes usage at installation without adjustment.
7. The 3 axis laser scanning system features compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability and more.
8. The heat elimination method of the scanning motor and the drive board has been taken into full consideration during the design of the system, so as to ensure the stability of the system under long-hours working condition.
9. High-precision and high-speed engraving & cutting, the efficiency is 20% higher than other similar models.
10. This equipment can run more stably and with even longer service life by utilizing water cooling on both the RF laser and extender lens.
11. USB interface bus has been adopted for the control card, which supports offline operation, stepper motor with X, Y, Z and R axis (X, Y and Z axis linked), it supports start-up and stopping marking by external control.
12. Rotary worktable system is optional, thus, accomplish marking on cambered surface.
13. Strong graphics drawing and editing functions enable direct marking of color graphic or marking after color convert from RGB to grey scale.
14. Under WINDOWS interface, compatible with files outputted from software such as CORELDRAW, AUTOCAD, PHOTOSHOP etc. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font.
15. Industrial computer support Windows 7, XP or 10.
16. Strong anti-jamming ability.






Applications


Application Materials:

3D CO2 laser cutting machine is suitable for almost all non-metal materials, including cardstock, paper, cardboard, leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, and more materials.

Application Industries:

3D CO2 laser cutting machine is used in arts & crafts, leather products, glasses, clothing, bamboo and wood products industry, package, advertising decoration and architectural model.


SAMPLES


3D Dynamic Focus CO2 Laser Engraving & Cutting Projects:
