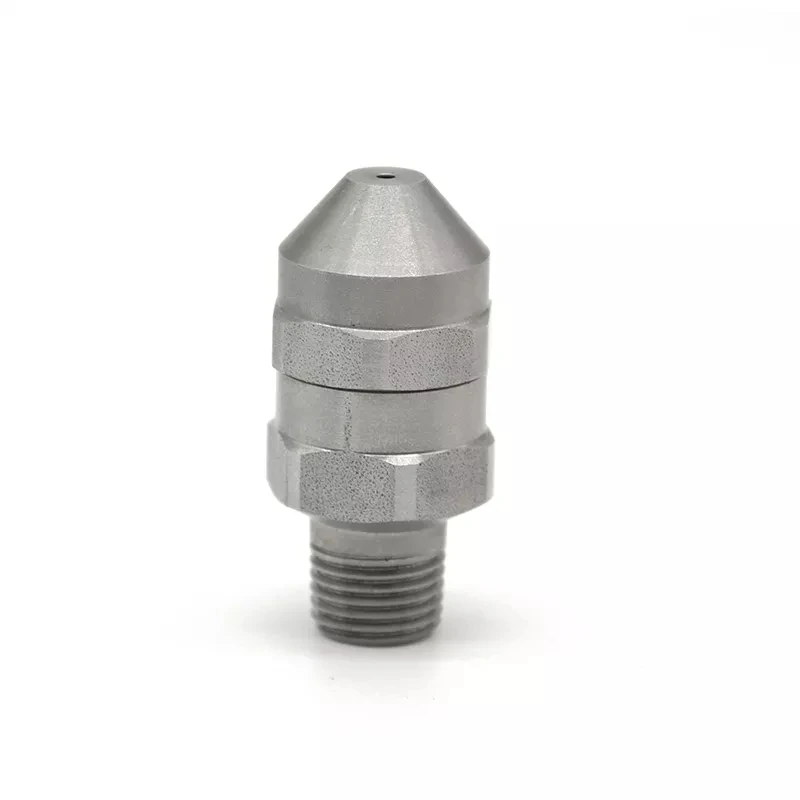

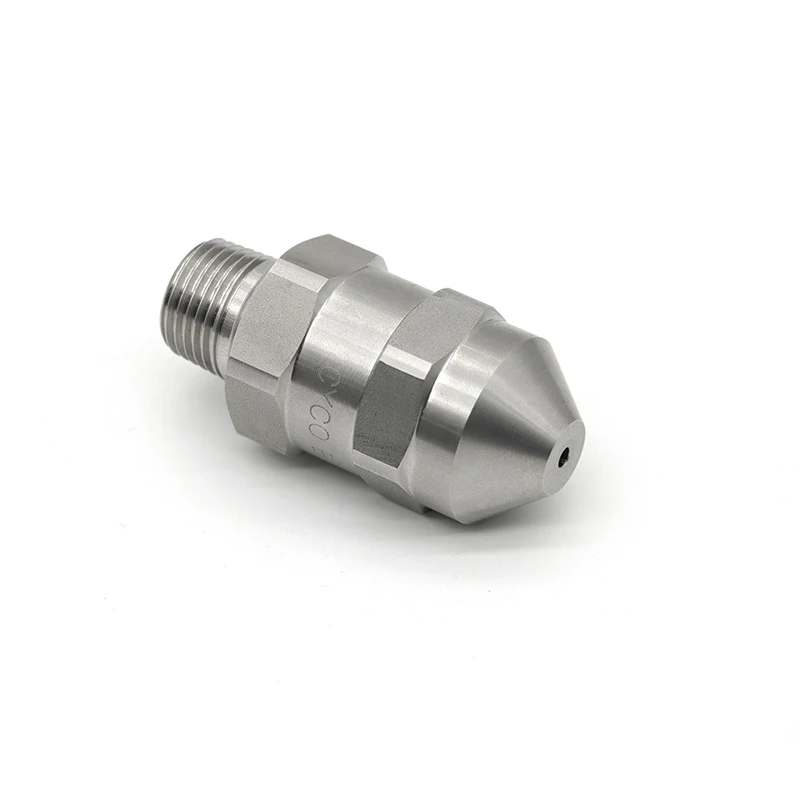

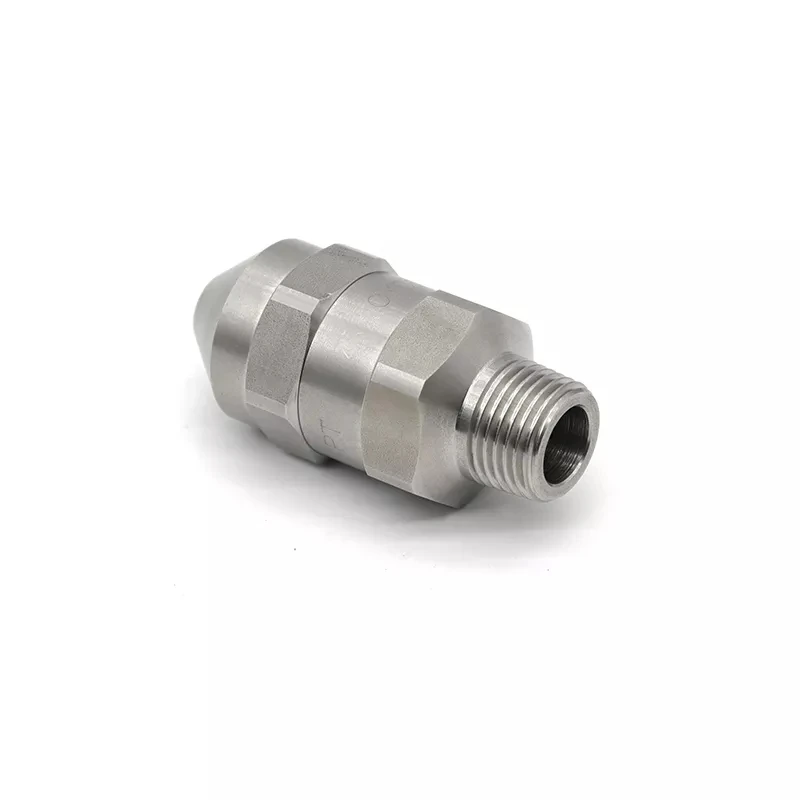

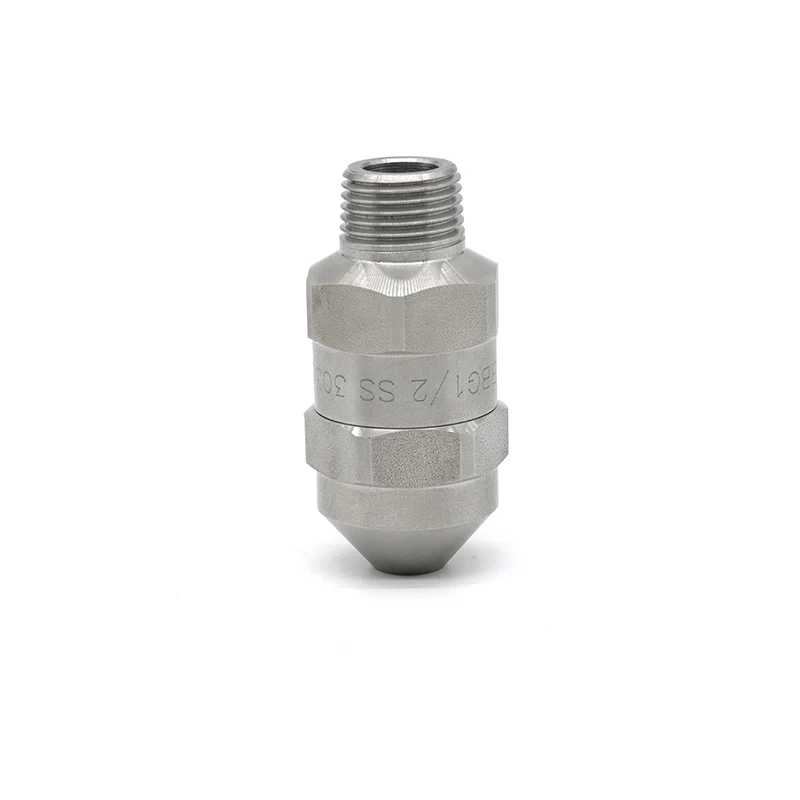

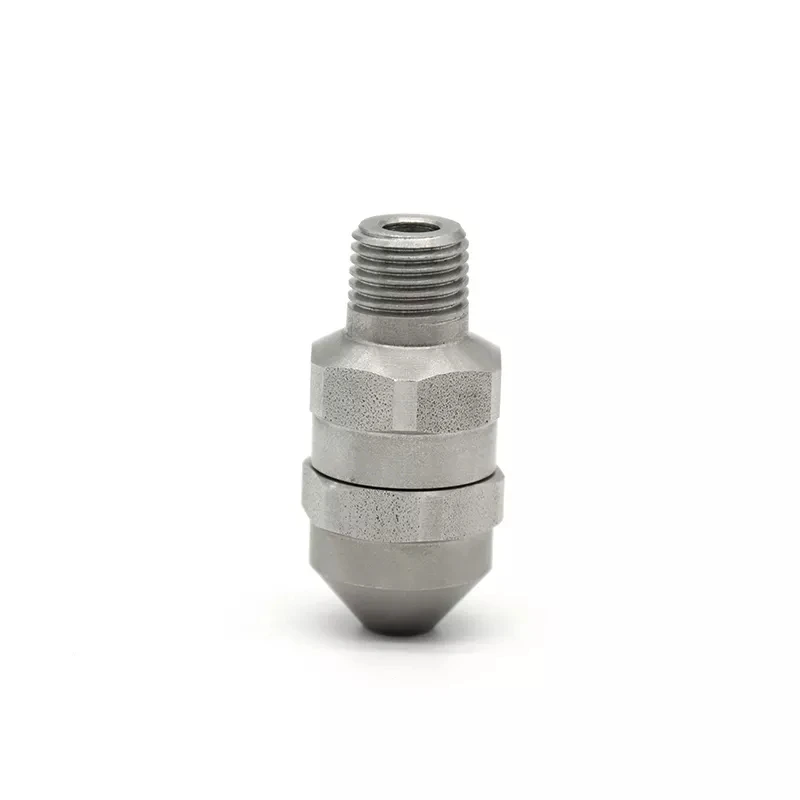

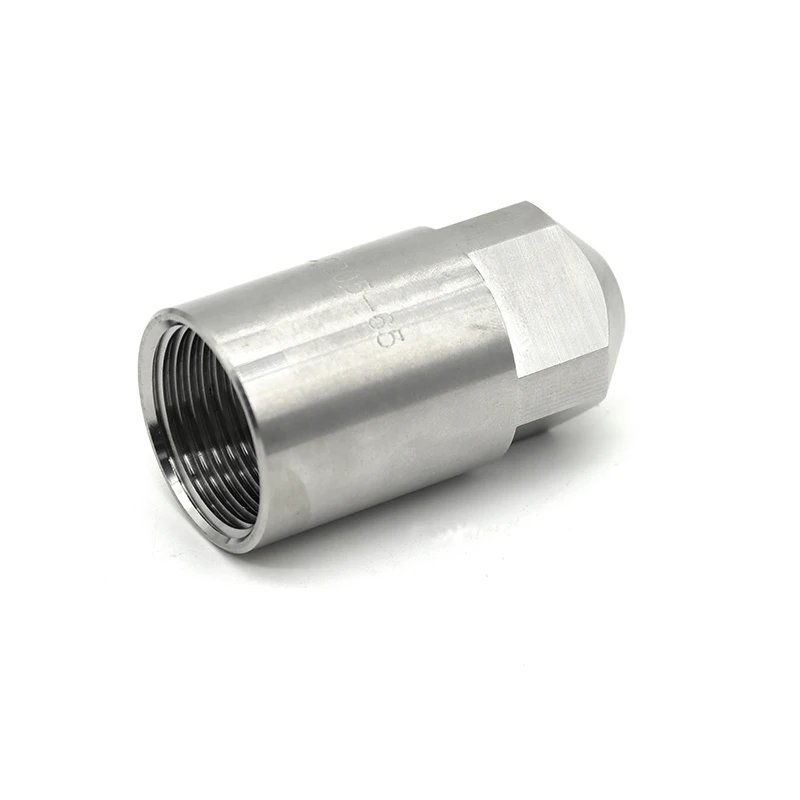

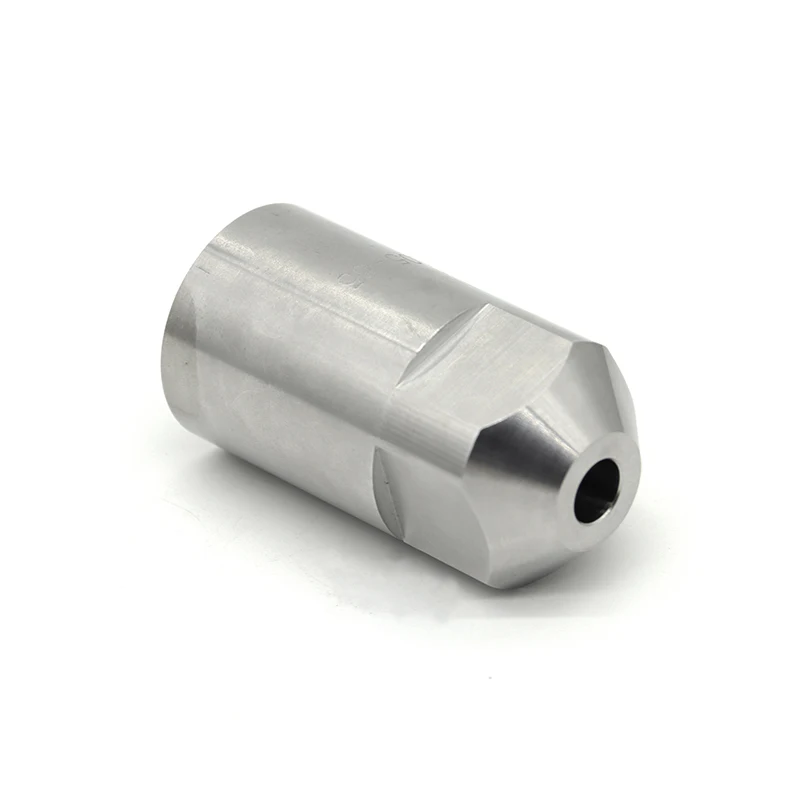

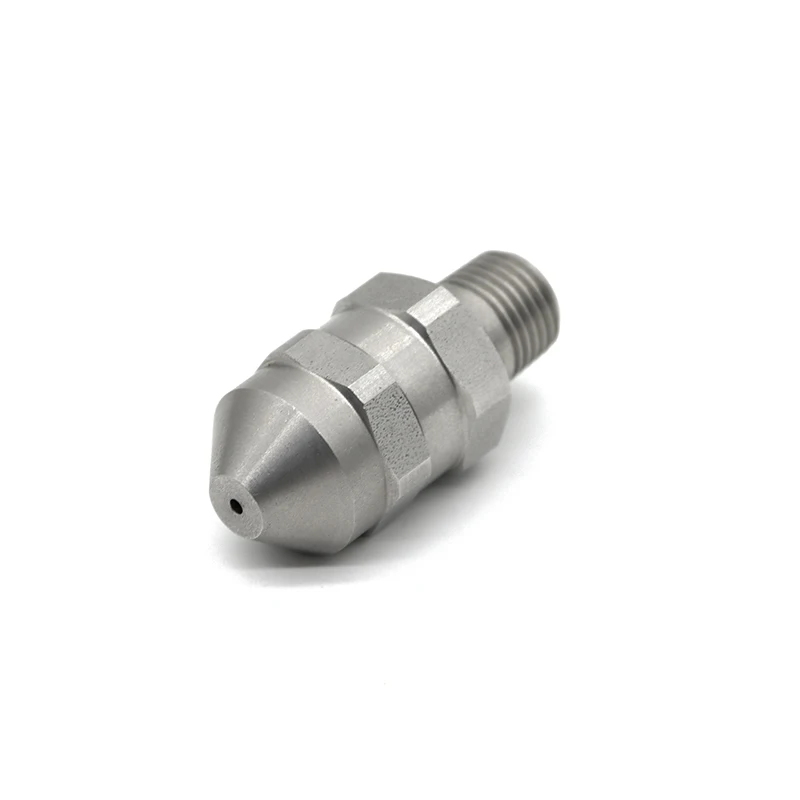

Unique Vane Design Stainless Steel Narrow Angle Full Cone Spray Nozzle
- Category: >>>
- Supplier: Hunan Changyuan Technology Co. Ltd.
Share on (1600449981007):
Product Overview
Description
Products Description

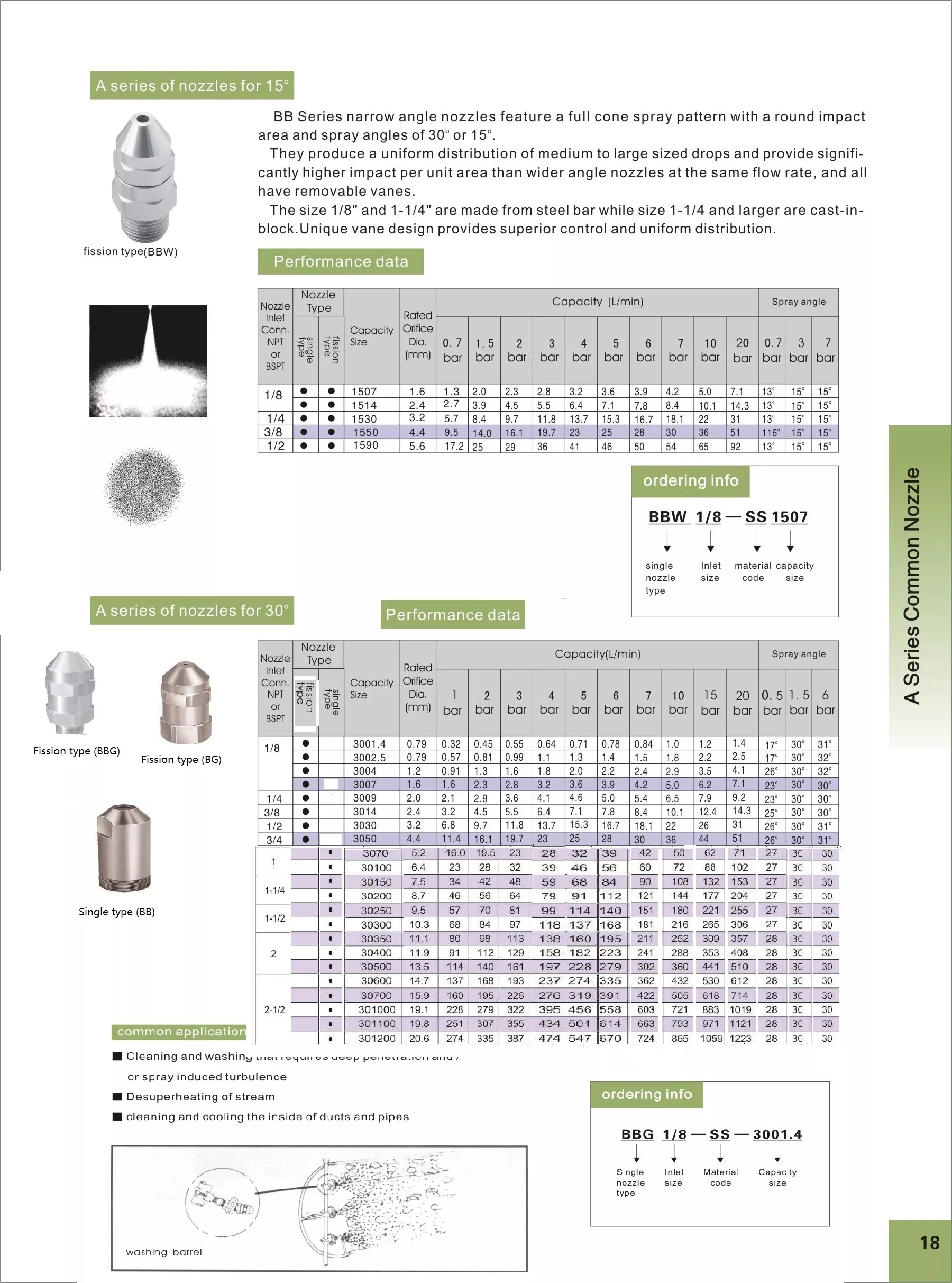

BB series narrow angle nozzles feature a full cone spray pattern with a round impact area and spray angles of 15° or 30°. They produce a uniform distribution of medium to large sized drops and provide significantly higher impact per unit area than wider angle nozzles at the same flow rate, and all have removable cap and vanes. The size 1/8 and 1-1/4 are made from steel bar while size 1-1/4 and larger and cast-in-block. The narrow angle nozzle is made of thick and thin process, which realizes the accurate specification to ensure the best performance. Unique vane design provides superior control and uniform distribution.
Application:
1. Gas washing and gas cooling
2. Water cooling
3. Dust control
4. Metal treating
5. Chemical reaction treating
6. Other heat transfer applications
Application:
1. Gas washing and gas cooling
2. Water cooling
3. Dust control
4. Metal treating
5. Chemical reaction treating
6. Other heat transfer applications
Product name | BB Narrow Angle Full Cone Nozzle |
Material | Brass ,303SS,316SS |
Thread size | 1/8'', 1/4'', 3/8", 1/2",3/8",3/4", 1'', 1-1/4",1-1/2",2", 2-1/2'', 3'', 4'' |
Thread type | BSPT ,NPT |
Spray pattern | full cone |
Pressure | 0.7-20 Bar |
Capacity | 1.3L/min-7136L/min |
Spray angle | 15° , 30° |
Drop size | Medium to Large |
Application | 1. Gas washing and gas cooling 2. Water cooling 3. Dust control 4. Metal treating 5. Chemical reaction treating 6. Other heat transfer application |
Brand | CYCO |
Quality Assurance
Product quality is the cornerstone of our business, also the source of life for the our company.Our focus is on maintaining our ISO9001:2015 Quality Management System, while our sophisticated approach to quality control, planning, assurance and improvement has seen CYCO granted with numerous global certifications such as ISO9001, ISO14001, IATF 16949, and SGS for nozzles, as well as series of testing.
Please kindly contact us to get the detailed certificate and testing report.
Recommend Products
Company Profile
Hunan Changyuan Technology Co.,Ltd found in 2016, located in Liuyang, Hunan province. has been specializing in R&D and production of high-quality cordless electrostatic sprayer, electrostatic backpack sprayer, face mask and nozzles, which are widely used in disinfection, sterilize, personal protection, insecticide, indoor and outdoor cleaning filed.
Advanced Production Equipments:
4 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines,
2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
1 Laser marking machines.
4 Citizen Auto-feed Lathes, imported from Japan, the precision can reach 2 micro or below, 100 Domestic CNC lathes, good for preliminary machining (less orifice).
9 Drilling Machines,
2 Five-axis CNC Machine Center, the orifice can reach 0.1 mm.
4 Wire Cutting Machines.
3 Pneumatic Marking Machines.
1 Laser marking machines.
Hunan Changyuan Technology Co.,Ltd, covering an area of 50 acres in Liuyang city,Hunan province with more than 200 employees. Relying on the intelligent infrastructure and extensive supplier resource, our factory has built a complete, efficient and flexible supply chain system, and obtained the certificate of ISO 9001(QMS) and ISO 14001 (EMS).
FAQ
Q1. Can you help me with my project?
-Yes, of course. Let us help you to design the right misting system for you. Send to us an email with description, drawings, pictures of the area you want to cool/mist and we'll send you a quote for free.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
Q2. Can I have a sample order for this nozzle?
-Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3. What about the lead time?
-Usually, sample needs 1-2 days, mass production time needs 1-3 weeks.
Q4. How do you ship the nozzles and how long does it take to arrive?
-We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Do you offer guarantee for the products?
-Yes, we offer 3 months warranty to our formal products.
Q6. How to order?
-Step 1 : send an inquiry
-Step 2 : confirm the operating conditions
-Step 3 : product recommendation and quotation
-Step 4 : sampling
-Step 5 : confirm order details and make a payment
-Step 6 : proceed with product preparation upon receipt of payment
-Step 7 : shipping
Q7. Nozzle Questions?
-With over 21 years experience and 5,000,000+ nozzles shipped, you can trust us with your spray application. Call or contact us today to learn how partnering with CYCO can make your project a success.
>>>>> For more information welcome to contact us
