Wireless Remote Control pool light RGB Smart WIFI APP Tuya Led Controller 12 24V RF 2.4G Lighting Solution 3 Years OEM
- Category: >>>
- Supplier: Shenzhen,Poolux,Lighting,Co.,Ltd
Share on:
Product Overview
Description
DC12-24V PL-D016 3 channels RF 2.4G Smart wireless sync remote strip lights RGB Tuya APP WIFI led controller
WIFI RGB Controller---PL-D015
WIFI RGBW Controller---PL-D016
Constant current RF dimming driver for DIM/CCT:
RF 2.4G SYNC dimming driver (DIM) RF 2.4G SYNC dimming driver(CCT)
RF 2.4G remote control RF 2.4G multiple-zone remote control
Working temperature | -20-60℃ | Supply voltage | DC12V-24V |
Static power consumption | <1W | Connecting mode | Common anode |
Grayscale | 1024 levels | Speed stage | 100 levels |
External dimension | L70*W40*H20 mm | Packing size | L95*W47*H33mm |
Net weight | 65g | Gross weight | 80g |
RF frequency | 2.4GHz | RF distance | ≤20m |
Short circuit protection | Yes | Memory function | Yes |
Output | 3 channels | Output current | ≤5A(each channel) |
PWM frequency | 1.95KHz | Max. Output power | 12V:<180W, 24V:<360W |
Product Description
PL-D016(Only receiver)
Tuya WIFI led controller for RGBW
Product Features
l WIFI technology powered by Tuya.
l Short-circuit protection.
l DC12-24V, four channels output, Max. load current: 3CH*4A; Max. load power: 12V:<192W, 24V:<384W.
l RF remote control is optional, compatible remote control item: PL-RFBK-RGB-2.4G
PL-SWC-RGBW-2.4G, PL-HWP86-RGBW-2.4G.
l Memory function, each time power-on reserve the mode which stop in the last power-off.
l Warranty of this product is three years, exclude the artificial situation of damaged or overload working.
3. Technical Parameters

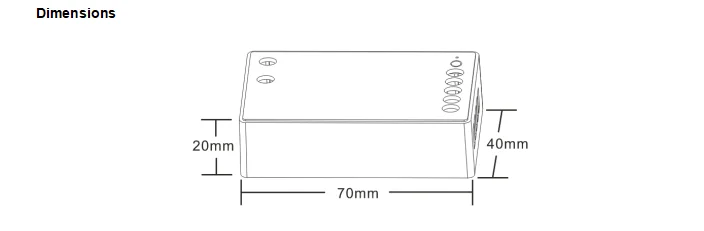

4.Dimensions
Interface Specifications
Direction for use
1)WIFI controlled by Tuya Applica on to achieve smart control like group control, scene control, mer control, music control and so on.
Download Tuya applica on from App store/ Google play: (Tuya).
Long pressing “Reset” bu on on controller and hold for 5 seconds to start the connec on with APP. Please read opera on instruc on of App, or following the pop-up prompt message with the APP, to finish the rest connec on opera on.
And compa ble with voice control via Amazon Alexa, Google Assistant, Yandex Alice and so on.

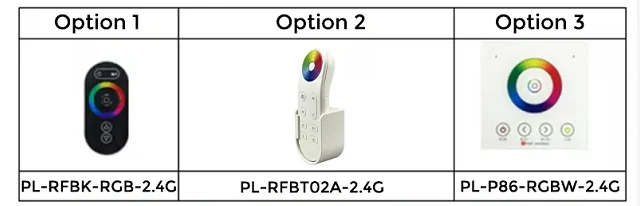

2) 3 Option for Remote controlled by RF 2.4GHz remote control as below:
In order to achieve perfect wireless synchronization effect, please keep the distance between receivers within 10 meters as above show.
Typical Applications
Product information for placing order
Product name | Item number |
Tuya WIFI led controller for RGBW |
Receiver: D016 Remote control(optional): PL-RFBK-RGB-2.4G |
