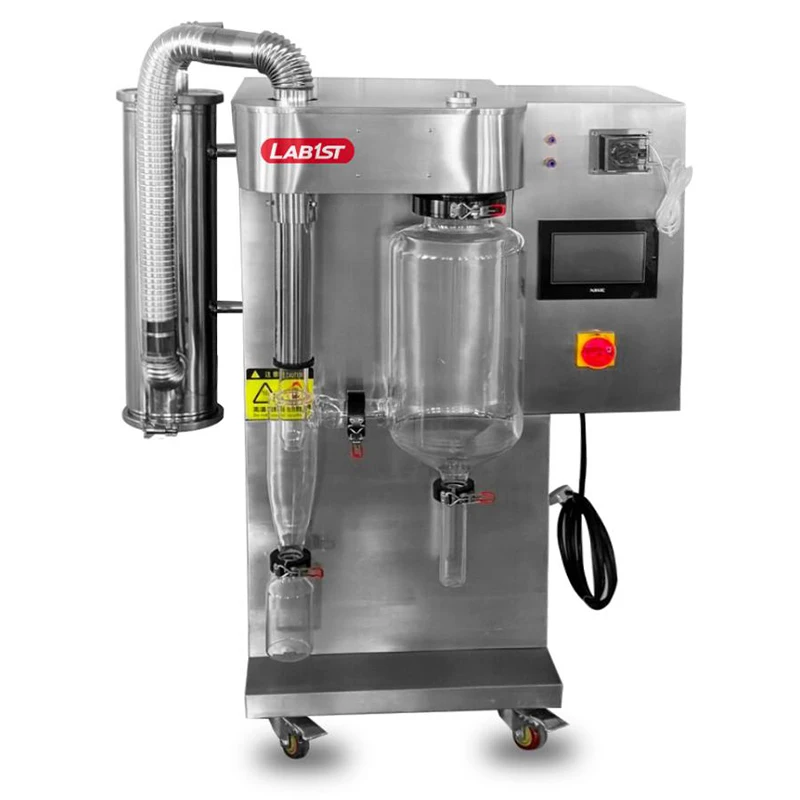

Lab Laboratory Glass Mini Small Centrifugal Drying Machine Spray Dryer Equipment for Dry Milk Powder Herbs Fruit Juice
- Category: Chemical & Pharmaceutical Machinery >>>
- Supplier: Labfirst,Scientific,Instruments,(Shanghai),Co.,Ltd.
Share on:
Product Overview
Description

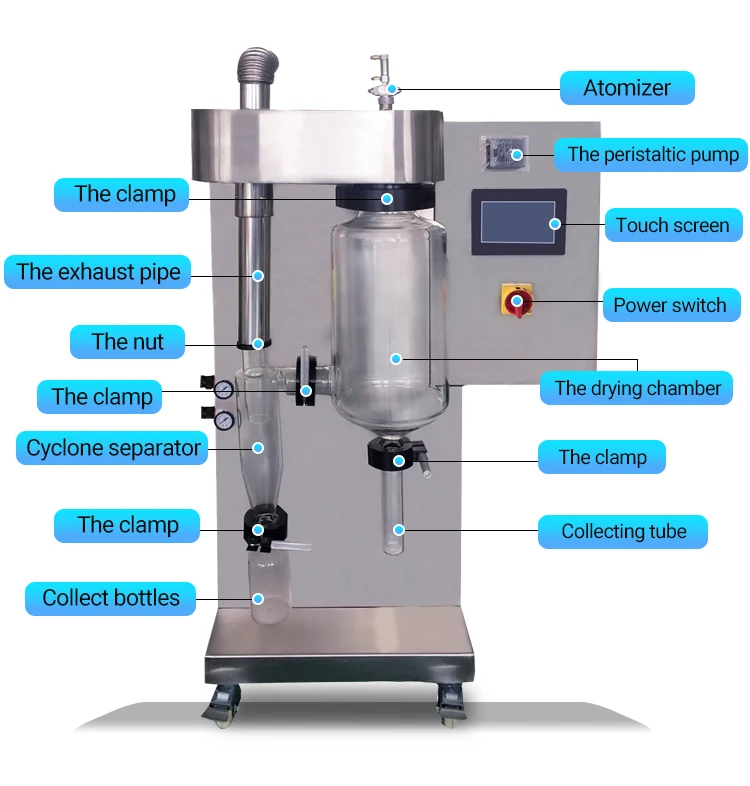

Product Structure
Product Paramenters
Air Compressor: | Built-in, Silent type Temperature Control Range: ±1℃ |
Inlet Temperature Control Range | 30℃～300℃ Average Drying Time: 1.0～1.5S |
Outlet Temperature Control Range | 30℃～300℃ Average Drying Time: 1.0～1.5S |
Evaporation Capacity: | 1500mL/H～2500ml/h Power: 3KW /220V |
Feeding Capacity: | 30～2500ml/h（Adjustable） |
Feeding Way | Peristaltic Pump |
Details
Features

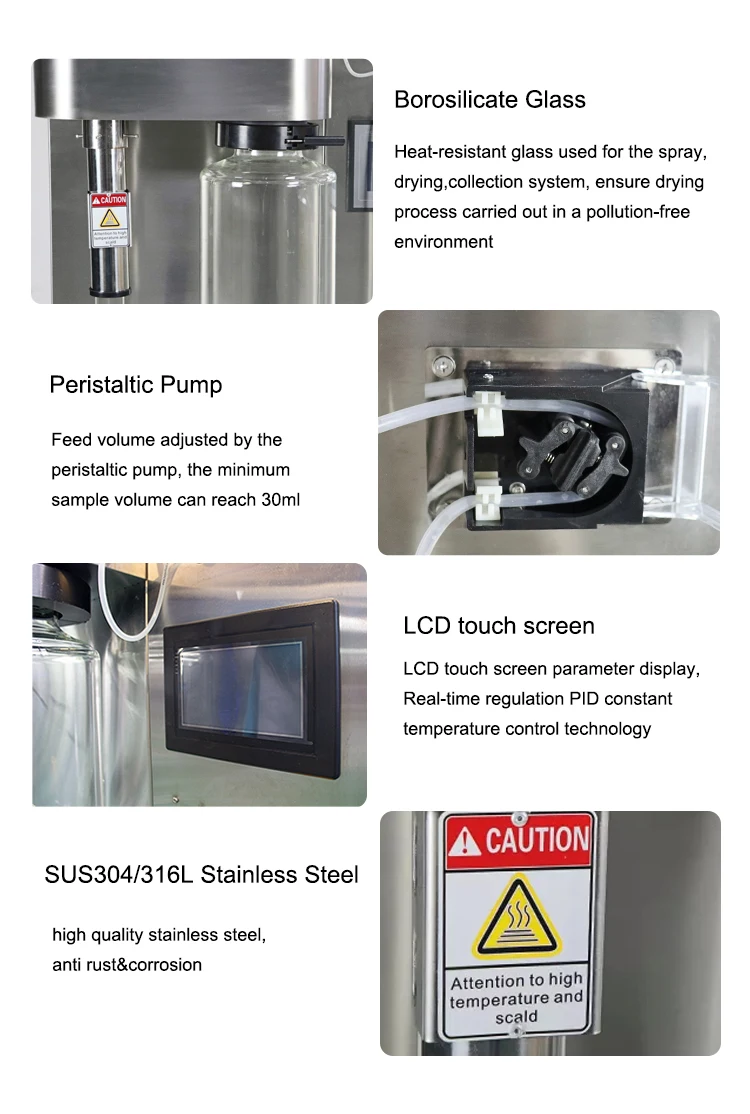

●High-quality borosilicate heat-resistant glass used for the spray,drying,collection system, ensure drying process carried out in a pollution-free environment.
● Software operating system with independent intellectual property rights (software copyright number: 2019SR1071014) powerful, optional 485 communication.
●Stainless steel nozzle with two-fluid spray structure , high efficiency, good atomization effect.
●LCD touch screen parameter display.
●Real-time regulation PID constant temperature control technology.
●Equipped with air inlet filter to keep the sample purity.
●Feed volume adjusted by theperistaltic pump, the minimum sample volume can reach 30ml.
●Finished dry powder has uniform particle size, >95% dry powder in the same particle size range.
●Equipped with nozzle cleaner (through needle), automatically cleared when the nozzle is blocked.
● Software operating system with independent intellectual property rights (software copyright number: 2019SR1071014) powerful, optional 485 communication.
●Stainless steel nozzle with two-fluid spray structure , high efficiency, good atomization effect.
●LCD touch screen parameter display.
●Real-time regulation PID constant temperature control technology.
●Equipped with air inlet filter to keep the sample purity.
●Feed volume adjusted by theperistaltic pump, the minimum sample volume can reach 30ml.
●Finished dry powder has uniform particle size, >95% dry powder in the same particle size range.
●Equipped with nozzle cleaner (through needle), automatically cleared when the nozzle is blocked.
