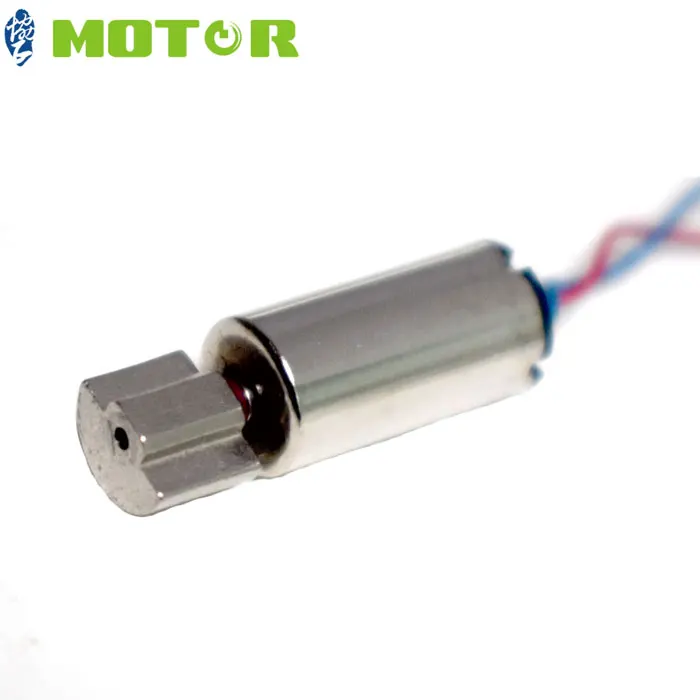

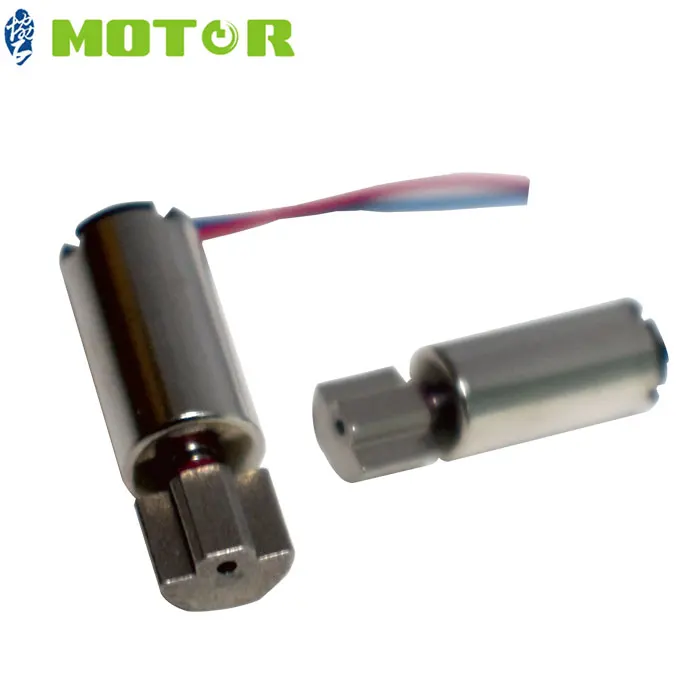

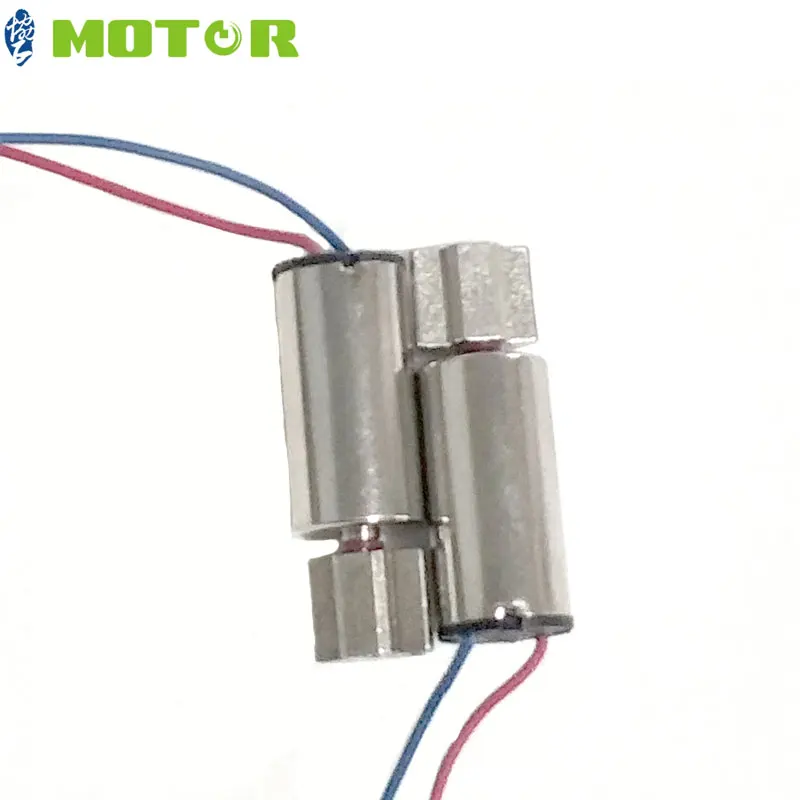

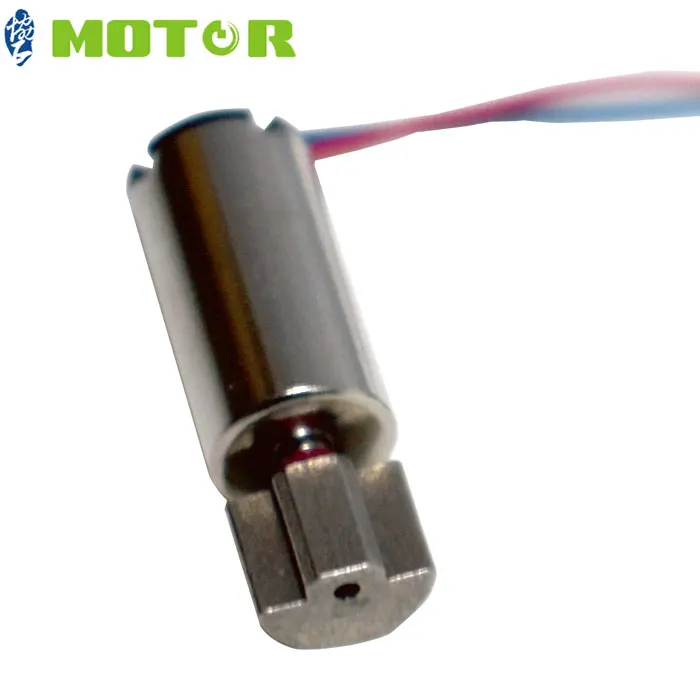

DC 3V 6x12mm Coreless Micro Vibration Motor
- Category: >>>
- Supplier: Chongqing Co-Well Electromechaical Co. Ltd.
Share on (1600450213902):
Product Overview
Description
Products Description
Item | DC 3V 6x12mm Coreless Micro Vibration Motor | ||||||
Use Environment | -20~+60℃，15~90%RH | ||||||
Application | Boat, Car, Electric Bicycle, Fan, aircraft, Home Appliance, medical equipment, beauty equipment and so on. | ||||||
Accept Motor Custom OEM&ODM. Let me know your vlot、No-load speed and NO-load current or stall speed and stall current then I can recommend suitable motor for you.
Details Images

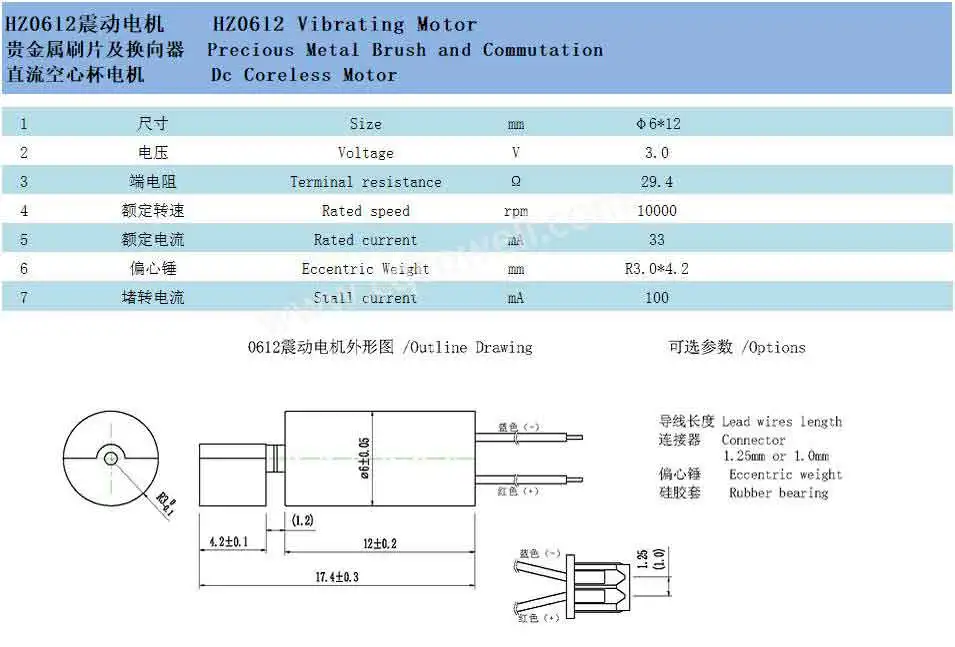

Model | 0612 vibrator motor |

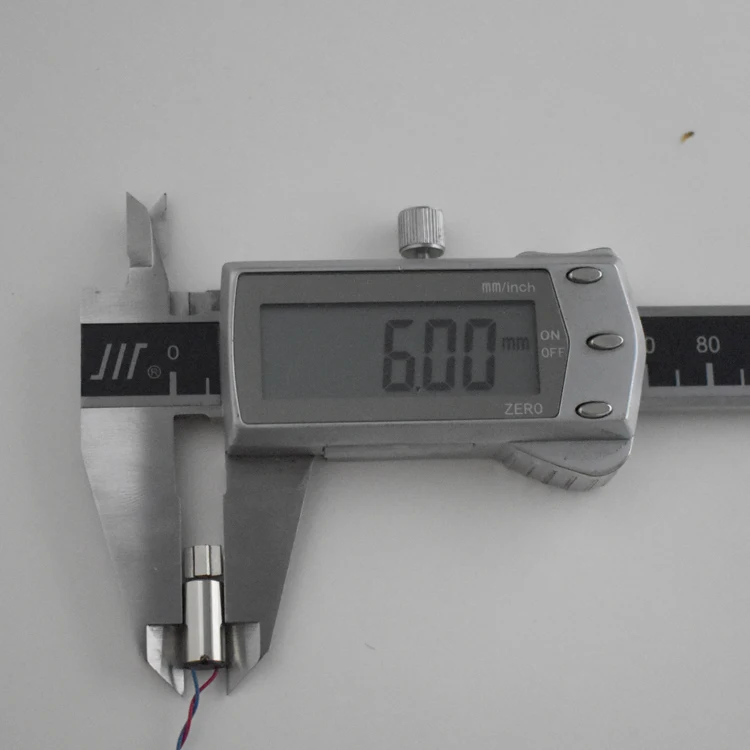

Size | D6*L12 |
Voltage | 3.0V |
Load speed | 10000rpm |
Load current | 33.0mA |
Eccentric weight | R3.0*4.2 |
Stall current | 100mA |
\t\t\t\t\t\t\t\t\tOther Specification \t\t\t\t\t\t\t
Click the blue number to select the corresponding motor DC coreless driving motor
Specification Series | Motor Length | Voltage | Speed | Customized Serive |
mm | V | rpm | ||
7.6/8.1/11.2/12.1 | 1.5V~6.0V | 10000~100000 | All motors in our company can be customized according to customers’ requirement. | |
9.3/10.3/12.0/14.0/15.2/16.6 | 1.5V~6.0V | 5000~80000 | ||
10.5/14.1/16.5/20.0 | 1.5V~12.0V | 5000~80000 | ||
12.6/16.7 | 1.5V~12.0V | 5000~60000 | ||
17.0/20.0/23.0 | 1.5V~12.0V | 5000~60000 | ||
13.1/15.0/17.2/20.7/23.0 | 1.5V~24.0V | 3000~50000 | ||
15.0/20.7/32.0 | 1.5V~24.0V | 3000~50000 |
Dc Coreless Vibration Motor | ||||||||
Specification Series | Motor Length | Voltage | Eccentric Weight | Customized Serive |
mm | V | mm | ||
The same as driving motor | 1.5V~6.0V | According to customers' requirement | All motors in our company can be customized according to customers’ requirement. |
Planetary Gearbox Motor | ||||||||
Dc Sonic Motor For Electric Toothbrush | ||||||||
If you want know more，please click to our website：https://cqcowell.en.alibaba.com/company_profile.html
Why Choose Us

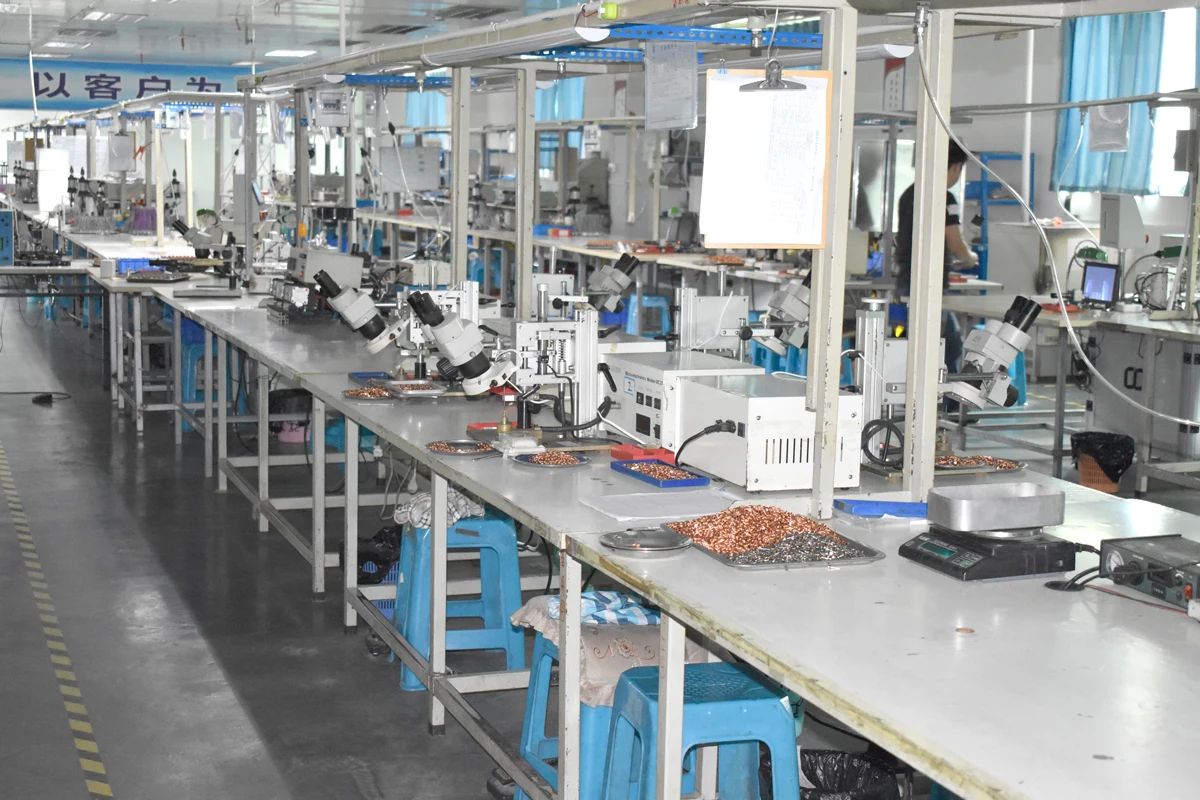

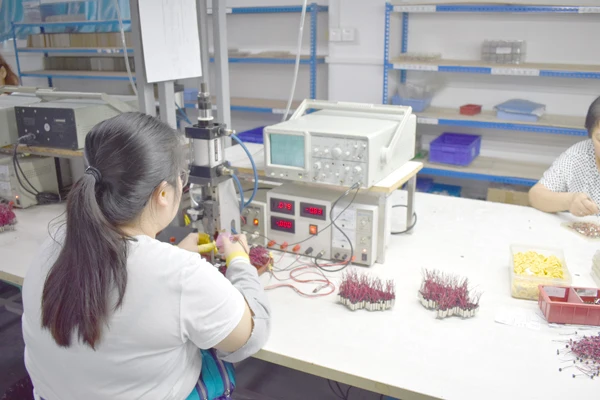

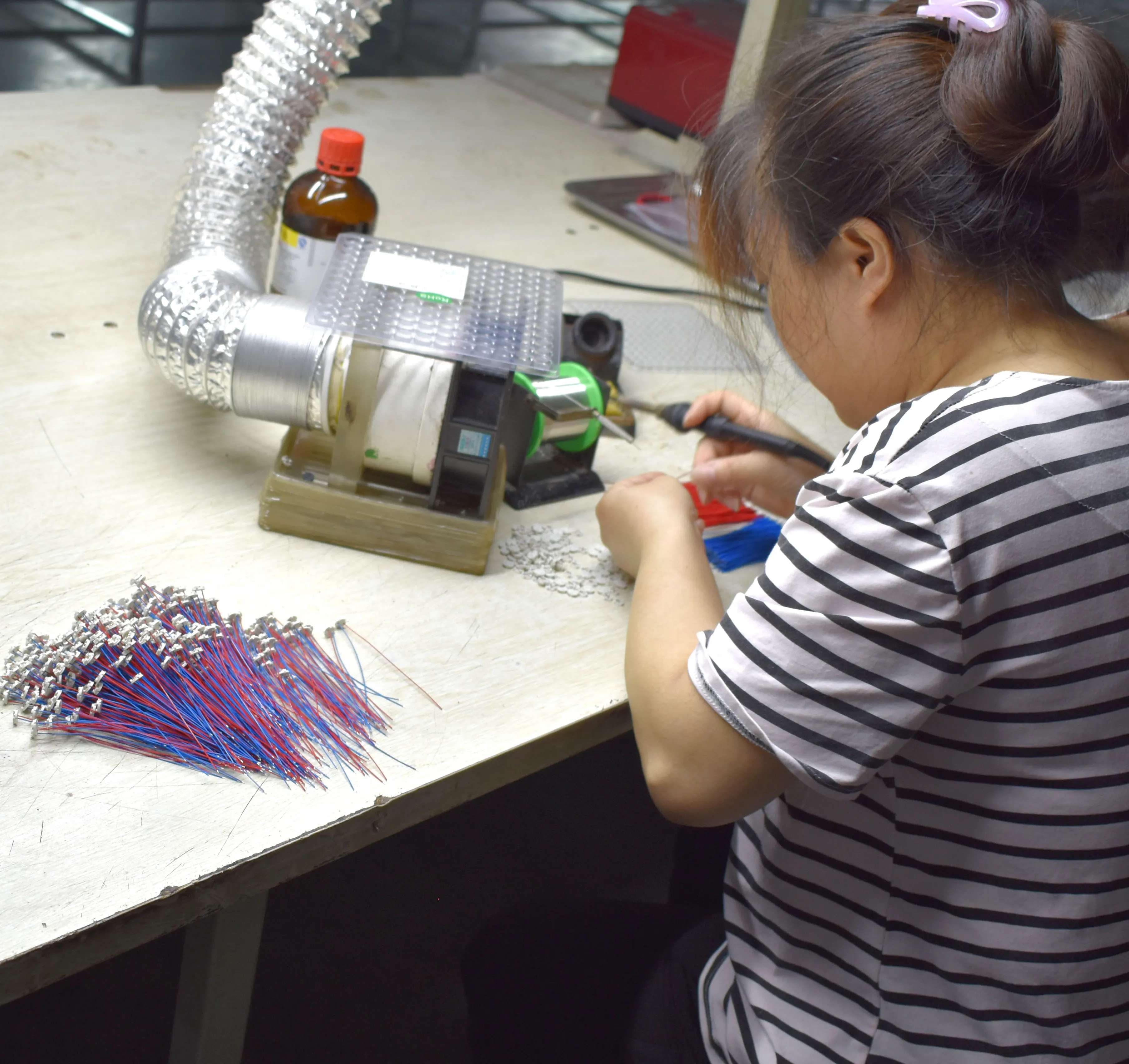

Company Profile
About CO-WELL
Chongqing CO-WELL Electromechanical Co., LTD., located in chongqing, China, is a factory with 12 years' experience in coreless
motor production.Our main drive motor, vibration motor, planetary gear motor and sonic motor. Application field is wide, welcome to consult in the past. CO-WELL has 200 employees, covers an area of 1000 square meters, and supplies more than 1500000.
CO-WELL Electromechanical Co., LTD., is adhering to the purpose of "work together, zhengshape genuine", pay close attention to
quality, strict control, try to achieve customer satisfaction, at ease, assured.
Our company has a strong technical team, engineers provide one-to-one whole-process tracking service, strive to solve customer
problems with the fastest speed.
motor production.Our main drive motor, vibration motor, planetary gear motor and sonic motor. Application field is wide, welcome to consult in the past. CO-WELL has 200 employees, covers an area of 1000 square meters, and supplies more than 1500000.
CO-WELL Electromechanical Co., LTD., is adhering to the purpose of "work together, zhengshape genuine", pay close attention to
quality, strict control, try to achieve customer satisfaction, at ease, assured.
Our company has a strong technical team, engineers provide one-to-one whole-process tracking service, strive to solve customer
problems with the fastest speed.
FAQ
1.Q:What parameter should I provide before the sample making ?
A: Good question. Normally we need to know the dimensions (motor diameter, diameter shaft extension length, electrodes, etc.), the motor performance requirements (rated voltage, the speed control, no-load current, locked-rotor torque, locked-rotor current, load torque, load speed, load current, etc.), and other requirements (compatible with current limit, noise limited, life expectancy (corresponding to use conditions) required). If complete parameters cannot be provided, it is ok. Please tell us your installation requirements, product use and use requirements, and we will recommend some motors for you to choose according to these requirements.
2.Q:Is there any Testing Report or Motor Specification when I get the sample ?
A: Yes, we will attach the test report to the sample.As a matter of fact, before the sample is made, we will complete the PDF file of motor specifications (including motor profile, characteristic parameters and other requirements) according to your requirements and send it to you for confirmation. The sample will be made according to the specifications you have confirmed so as to meet your requirements to the maximum extent.
3.Q:Can I get some samples first ? How soon can I get the samples ?
A: Yes, we can make a sample and provide it to you, but you need to pay the postage.The sample completion time depends on different motor specifications and requirements, generally 3-10 days can be completed.
4.Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
5.Q:Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
A: Good question. Normally we need to know the dimensions (motor diameter, diameter shaft extension length, electrodes, etc.), the motor performance requirements (rated voltage, the speed control, no-load current, locked-rotor torque, locked-rotor current, load torque, load speed, load current, etc.), and other requirements (compatible with current limit, noise limited, life expectancy (corresponding to use conditions) required). If complete parameters cannot be provided, it is ok. Please tell us your installation requirements, product use and use requirements, and we will recommend some motors for you to choose according to these requirements.
2.Q:Is there any Testing Report or Motor Specification when I get the sample ?
A: Yes, we will attach the test report to the sample.As a matter of fact, before the sample is made, we will complete the PDF file of motor specifications (including motor profile, characteristic parameters and other requirements) according to your requirements and send it to you for confirmation. The sample will be made according to the specifications you have confirmed so as to meet your requirements to the maximum extent.
3.Q:Can I get some samples first ? How soon can I get the samples ?
A: Yes, we can make a sample and provide it to you, but you need to pay the postage.The sample completion time depends on different motor specifications and requirements, generally 3-10 days can be completed.
4.Q:Is it possible for you to develop new motors if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
5.Q:Is there a MOQ for your motors?
A: Yes. The MOQ is 1,000pcs for different models after sample approval. But it's also okay for us to accept smaller lots like a few dozens, hundreds after sample approval.
