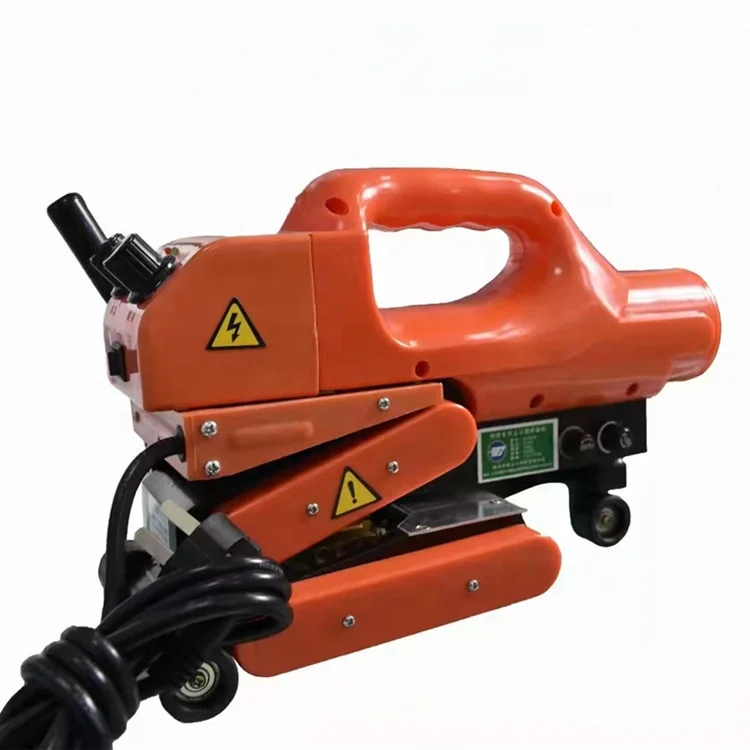

HDPE Geomembrane pond liner sheet Welding Machine
- Category: >>>
- Supplier: Taian Zhongqi Building Materials Co. Ltd.
Share on (1600450233003):
Product Overview
Description
Product Description

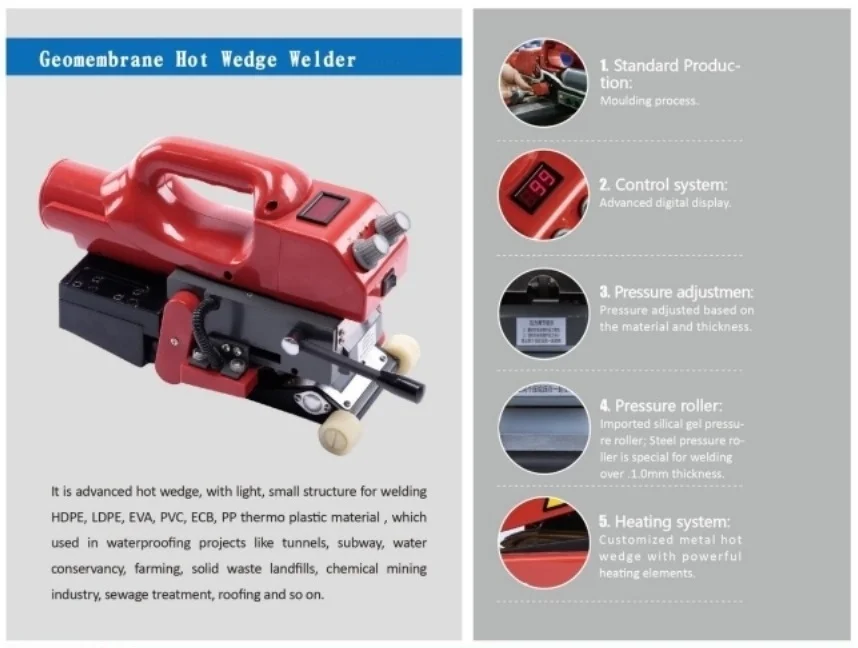

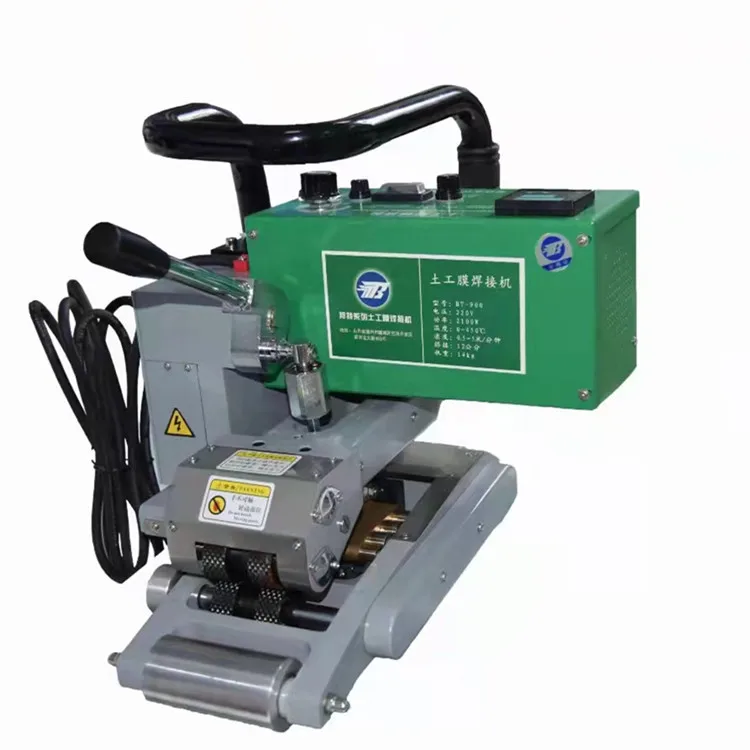

Product Features:
This series of geomembrane welding machines have excellent performance, convenient operation, high welding efficiency, and strong reliability, and are well received by users.
1. The temperature control part adopts PID automatic constant temperature control, and the materials are imported temperature sensors and industrial-grade control chips, which have high control accuracy and small temperature fluctuations.
2. The speed control part adopts pulse width modulation (PWM) automatic voltage stabilization and speed stabilization circuit;driven by a DC servo motor, the output torque is large, and the walking is stable; it can maintain a constant speed when climbing, vertical crawling and road load changes.
3. The improved material of the upper and lower pressure rollers is more temperature-resistant and wear-resistant.
4. The hot wedge knife with a unique copper alloy formula greatly prolongs the service life.
This series of geomembrane welding machines have excellent performance, convenient operation, high welding efficiency, and strong reliability, and are well received by users.
1. The temperature control part adopts PID automatic constant temperature control, and the materials are imported temperature sensors and industrial-grade control chips, which have high control accuracy and small temperature fluctuations.
2. The speed control part adopts pulse width modulation (PWM) automatic voltage stabilization and speed stabilization circuit;driven by a DC servo motor, the output torque is large, and the walking is stable; it can maintain a constant speed when climbing, vertical crawling and road load changes.
3. The improved material of the upper and lower pressure rollers is more temperature-resistant and wear-resistant.
4. The hot wedge knife with a unique copper alloy formula greatly prolongs the service life.
Technical Parameters
Product Type | Automatic Plastic Geomembrane Welding Machine | ||||
Voltage | 220V/Customized | ||||
Power | 800W | ||||
Frequency | 50/60Hz | ||||
Welding Principle | Thermofussion welding | ||||
Welding Speed | 0.5-5m/min | ||||
Heating temperature | 0-500℃(tensile resistance in shear direction) | ||||
Thickness of material | 0.2mm--1.5mm | ||||
Seam welding width | 12.5mm×2, interior cavity 12mm | ||||
Seam strength | ≥85% Base material(tensile resistant in shear direction) | ||||
Net Weight | 5kg | 5.5kg | 6kg | ||
Overlap width | 100mm | 150mm | 200mm | ||

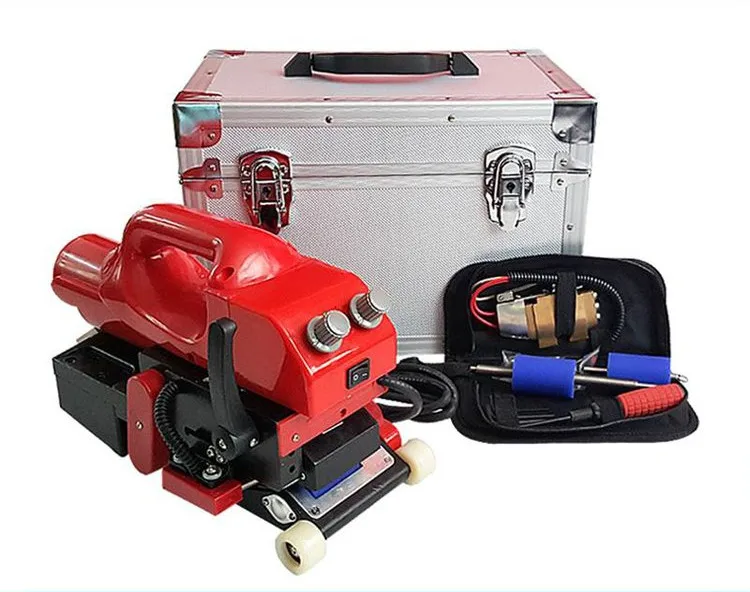

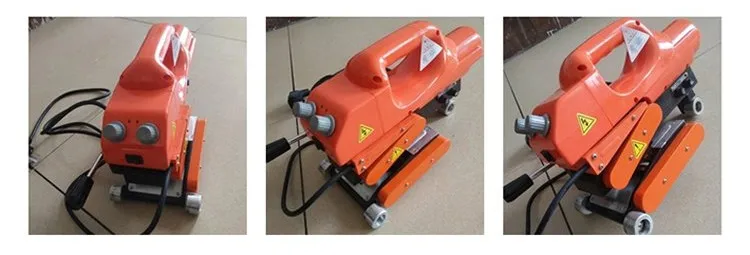

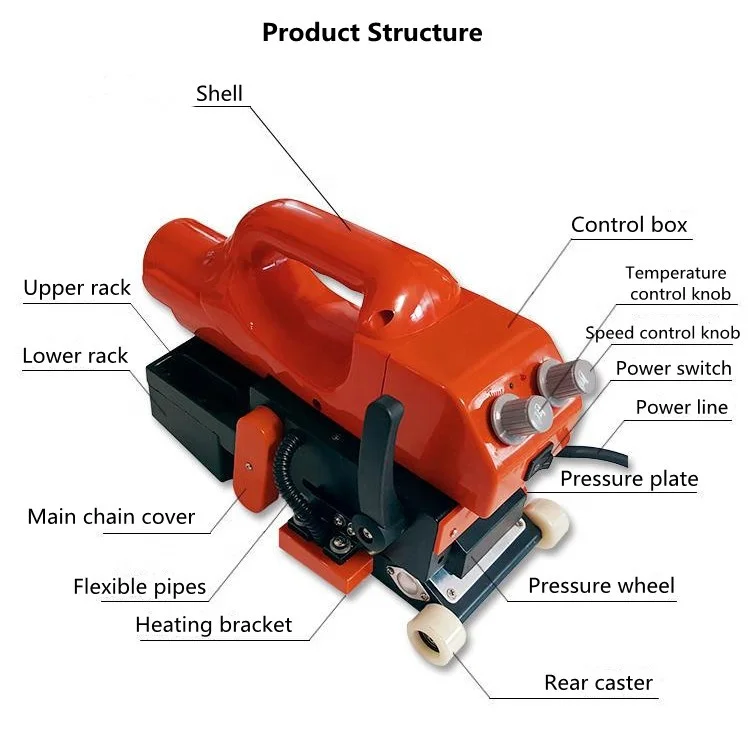

Product Details

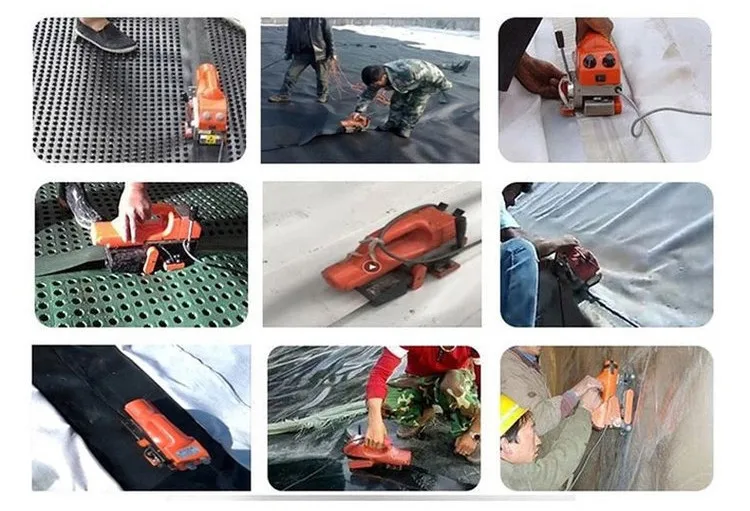

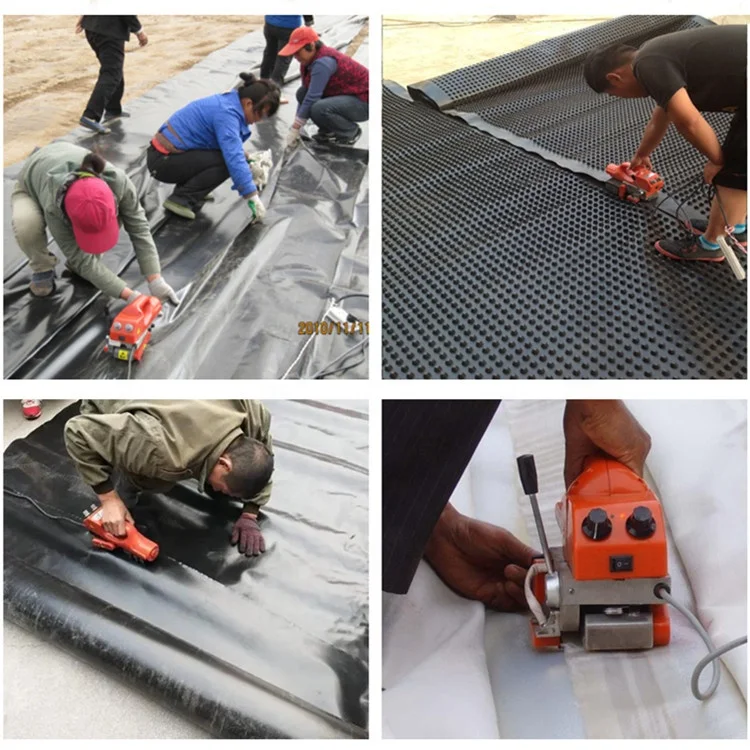

Product Application
Climbing welding machine is suitable for all kinds of plastic materials such as PP/PE/PVC/ABS/HDPE and other plastic soluble materials, such as: geomembrane, geotextile, waterproof board, waterproof membrane, drainage board, etc. It is widely used in highways, railways, subways, tunnels, bridges, roof constructions, artificial lakes, swimming pools, breeding farms, landfills, tailings treatment and other waterproof projects.

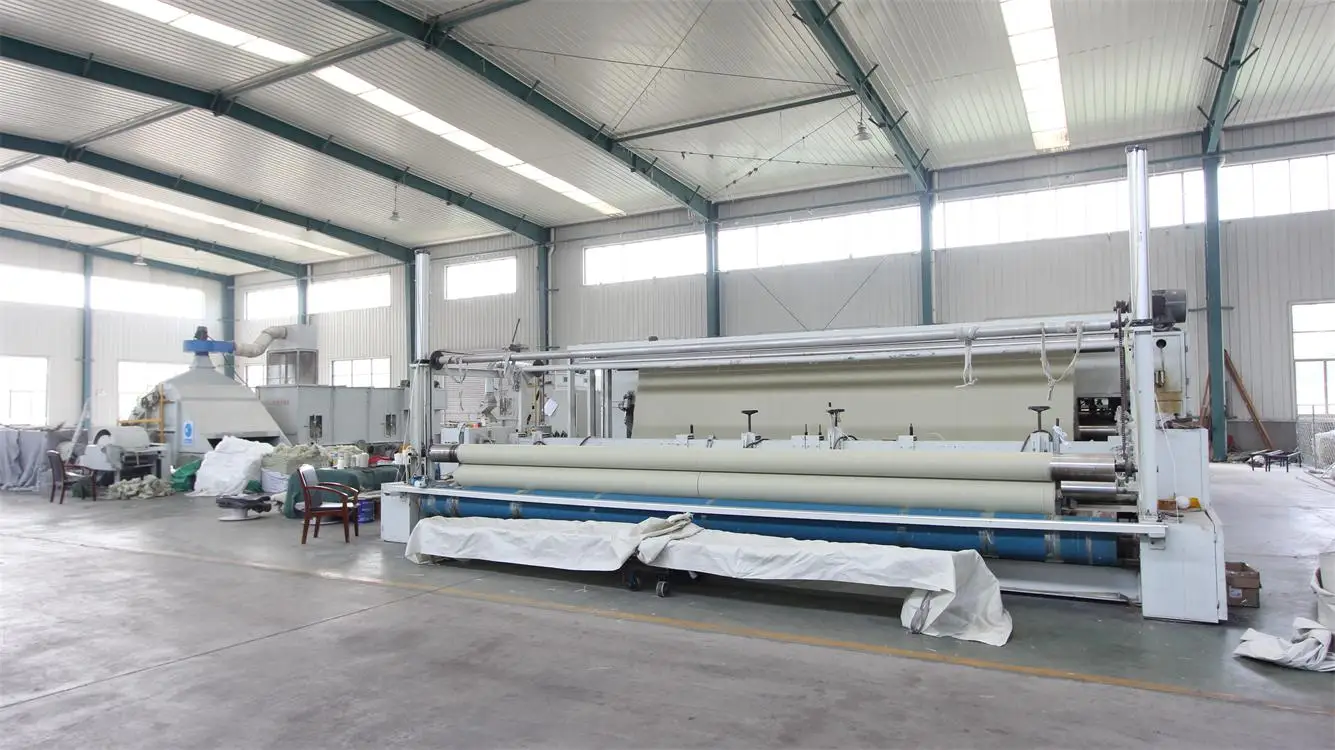

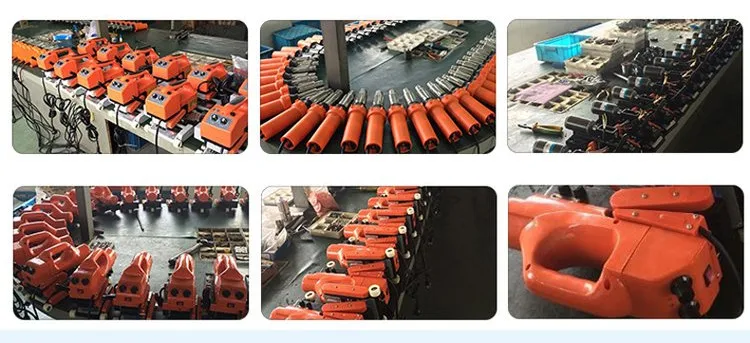

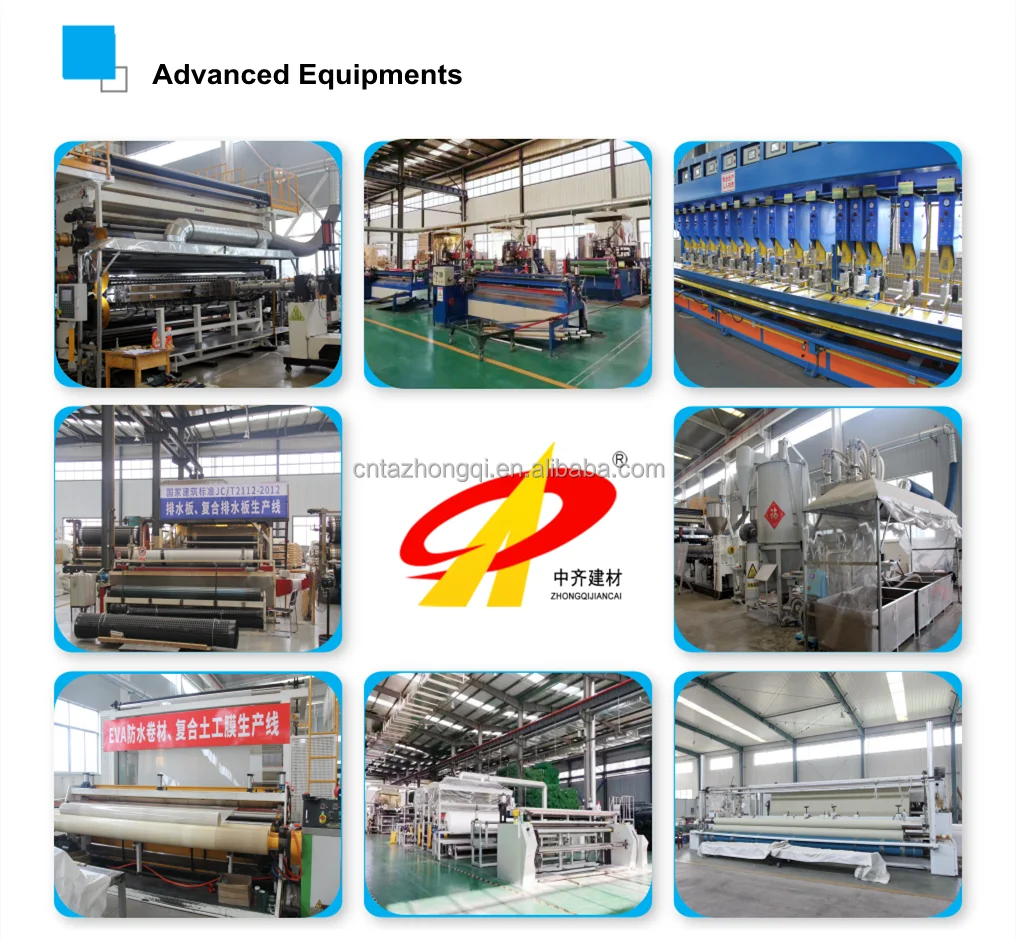

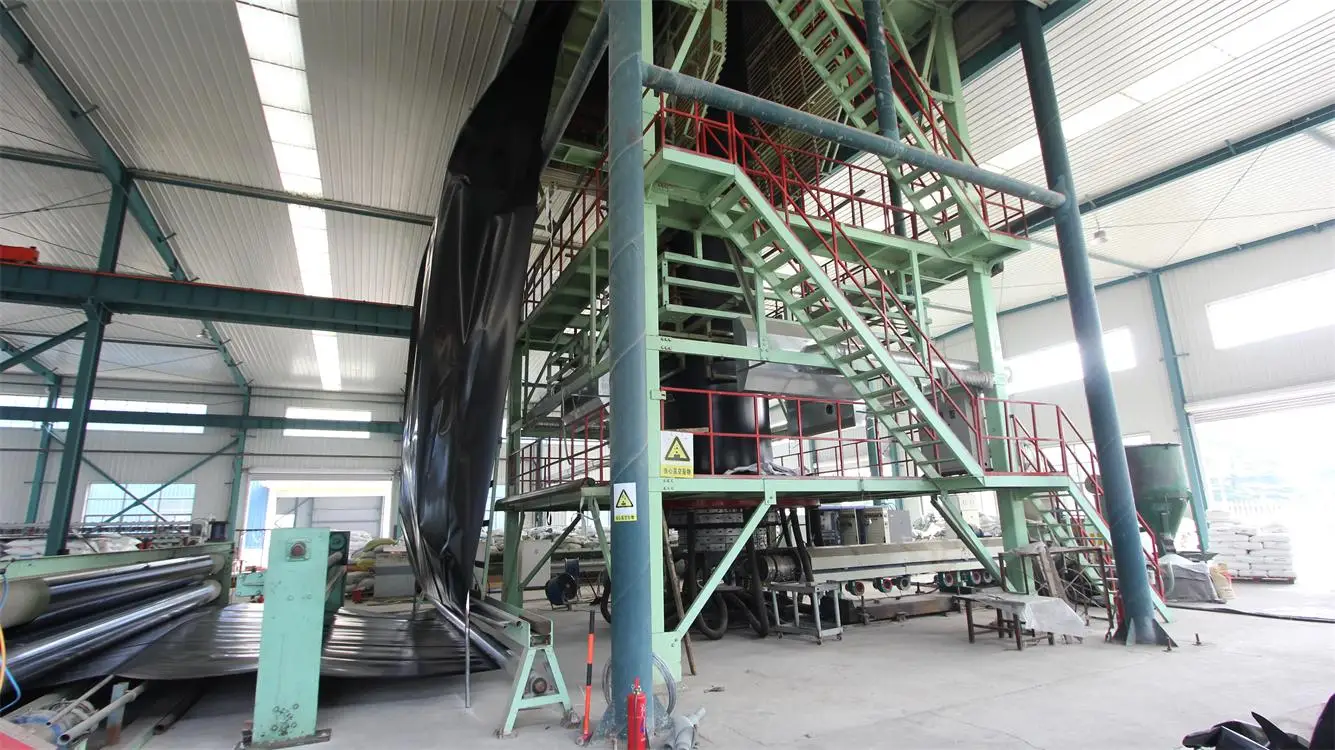

Our Workshop

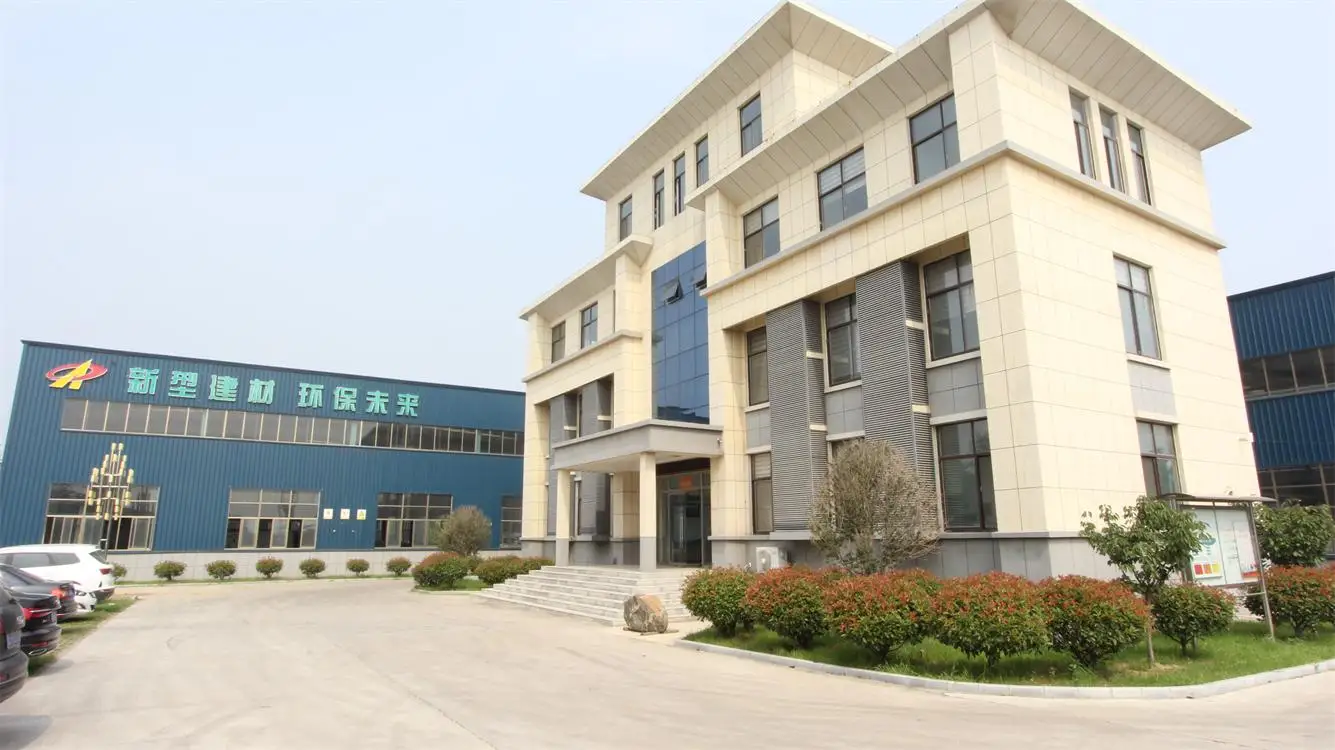

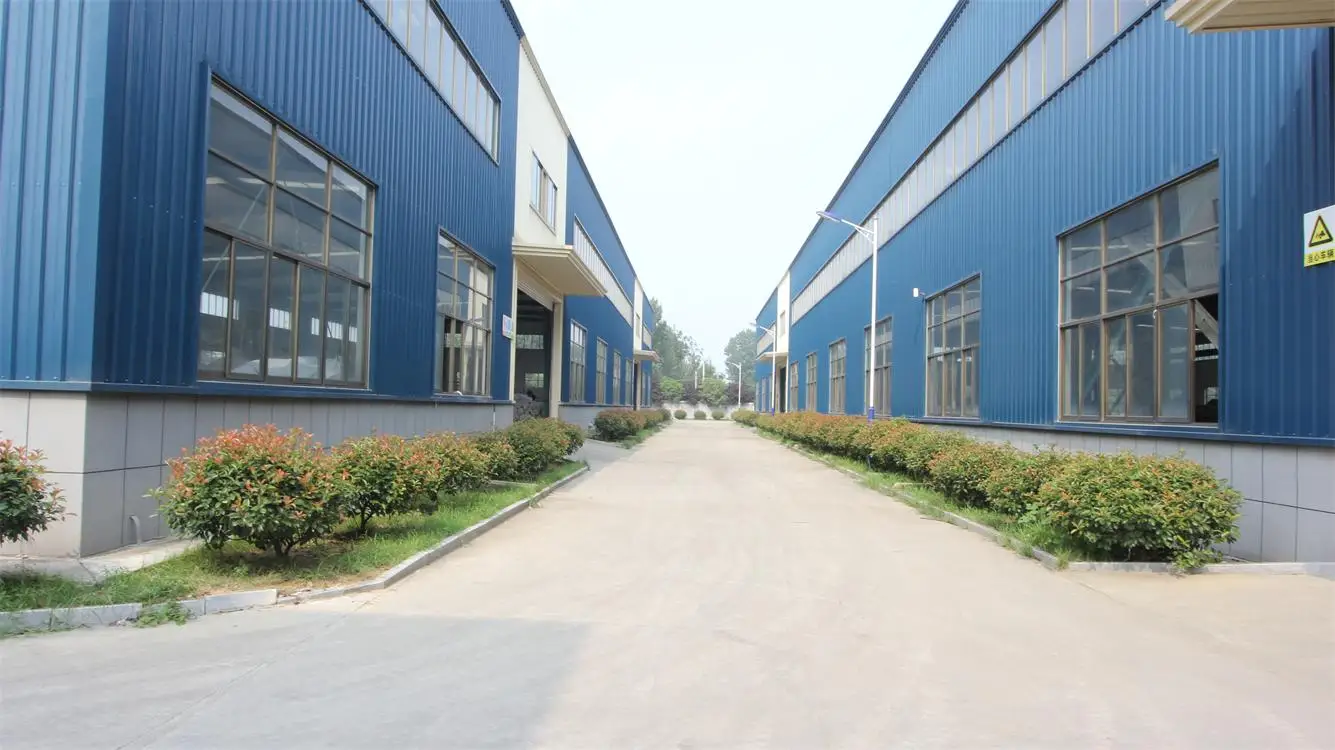

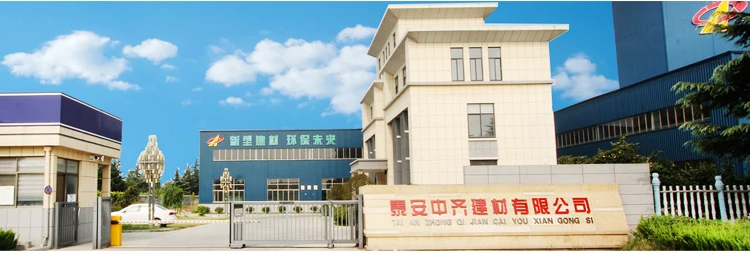

Company Profile
Taian Zhongqi Buildings Materials Co.Ltd. was estabished in 2005, with a registered capital of 50.8 million, more than 300 employees, covers an area of 35,000 square,equipped with professional technical research and development teams, it is a comprehensive company integrating production,sales,construction and after-sales. Some production lines have reached fully automated operation.
Zhongqi Buildings company is specialized in geotextile, geomembrane, composite geomembrane, geocell, geogrid,3D geomat,grosyntheic clay liner and other geosynthetic materials. The products are widely used in foundation reinforecement of highways,railways,airports, municipal projects, anti-seepage of construction projects, landscaping, landfills, sewage treament, soild waste disposla, waterproffing projects and etc.
Zhongqi Buildings company is specialized in geotextile, geomembrane, composite geomembrane, geocell, geogrid,3D geomat,grosyntheic clay liner and other geosynthetic materials. The products are widely used in foundation reinforecement of highways,railways,airports, municipal projects, anti-seepage of construction projects, landscaping, landfills, sewage treament, soild waste disposla, waterproffing projects and etc.

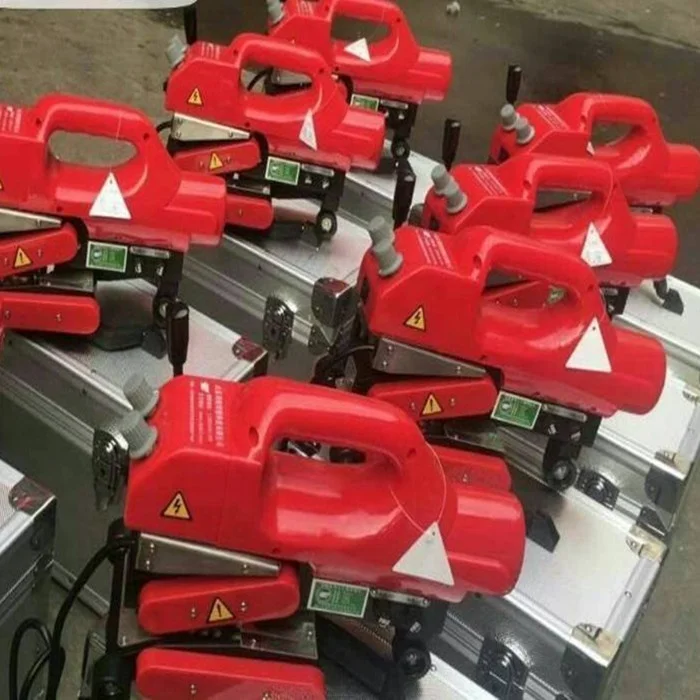

Package&Delivery
