Six Colour Flexographic label paper film Printing Machine
- Category: Printing Machine >>>
- Supplier: Wenzhou,Yibo,Trade,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Standard configuration:
1. Machine body.
2. Each color comes with a ceramic Anilox rollers (Japanese brand for maximum print quality), hexagonal cell.
3. Three sets of printing cylinders from 55T to 120T (step 1/8 ")
4. Three magnetic cylinders.
5. Turner band (can flip at any station).
6. Lamination Station.
7. Two die (mould) stations, can stamp above or below.
8. Unwinder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
9. Winder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
10. Stress (tension) Control of the independent machine.
11. Table assemblies.
12. Band´s aligner
13. UV curing lamp at the last station.
14. Hydraulic lift for operator.
1. Machine body.
2. Each color comes with a ceramic Anilox rollers (Japanese brand for maximum print quality), hexagonal cell.
3. Three sets of printing cylinders from 55T to 120T (step 1/8 ")
4. Three magnetic cylinders.
5. Turner band (can flip at any station).
6. Lamination Station.
7. Two die (mould) stations, can stamp above or below.
8. Unwinder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
9. Winder with automatic stress (tension) control. Panasonic, japanese or another brand that can be obtained in Colombia
10. Stress (tension) Control of the independent machine.
11. Table assemblies.
12. Band´s aligner
13. UV curing lamp at the last station.
14. Hydraulic lift for operator.
Printed form | Flexo |
Printing speed | 10m/min－130m/min |
Mechanical speed | 10m/min150m/min |
Maximum width of substrate | 320- 520mm |
Printing width | 100-520mm |
Printing circumference | 222.25-600mm |
Plate thickness | 1.7mm（special advance notice） |
Anilox roller specifications | Φ85*540*5 |
Aluminum guide roller specifications | Φ70*550 |
Printing bottom roller | Φ85*550 |
Unwinding maximum diameter | Φ600 mm |
Maximum winding diameter | Φ600 mm |
Oven maximum temperature | 80℃ |
Substrate core diameter | 74mm |
Total power of the whole machine | 52KW |
Drying heat source | Electric heating |
Machine weight | 4500KG |
Dimensions | 7500(L) x 1500 (W) x 1200（H）mm |
Body color | White (special advance notice) |

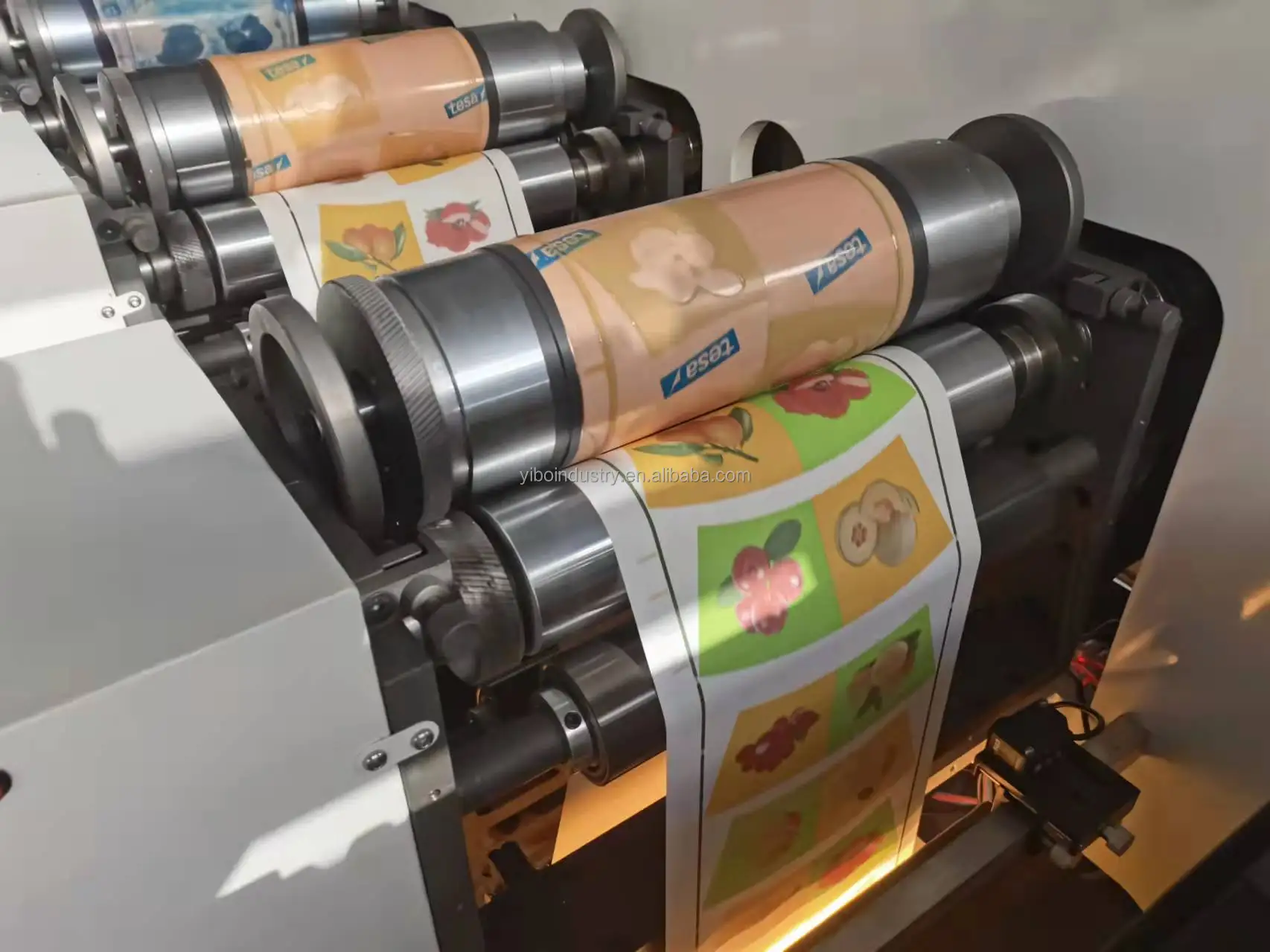

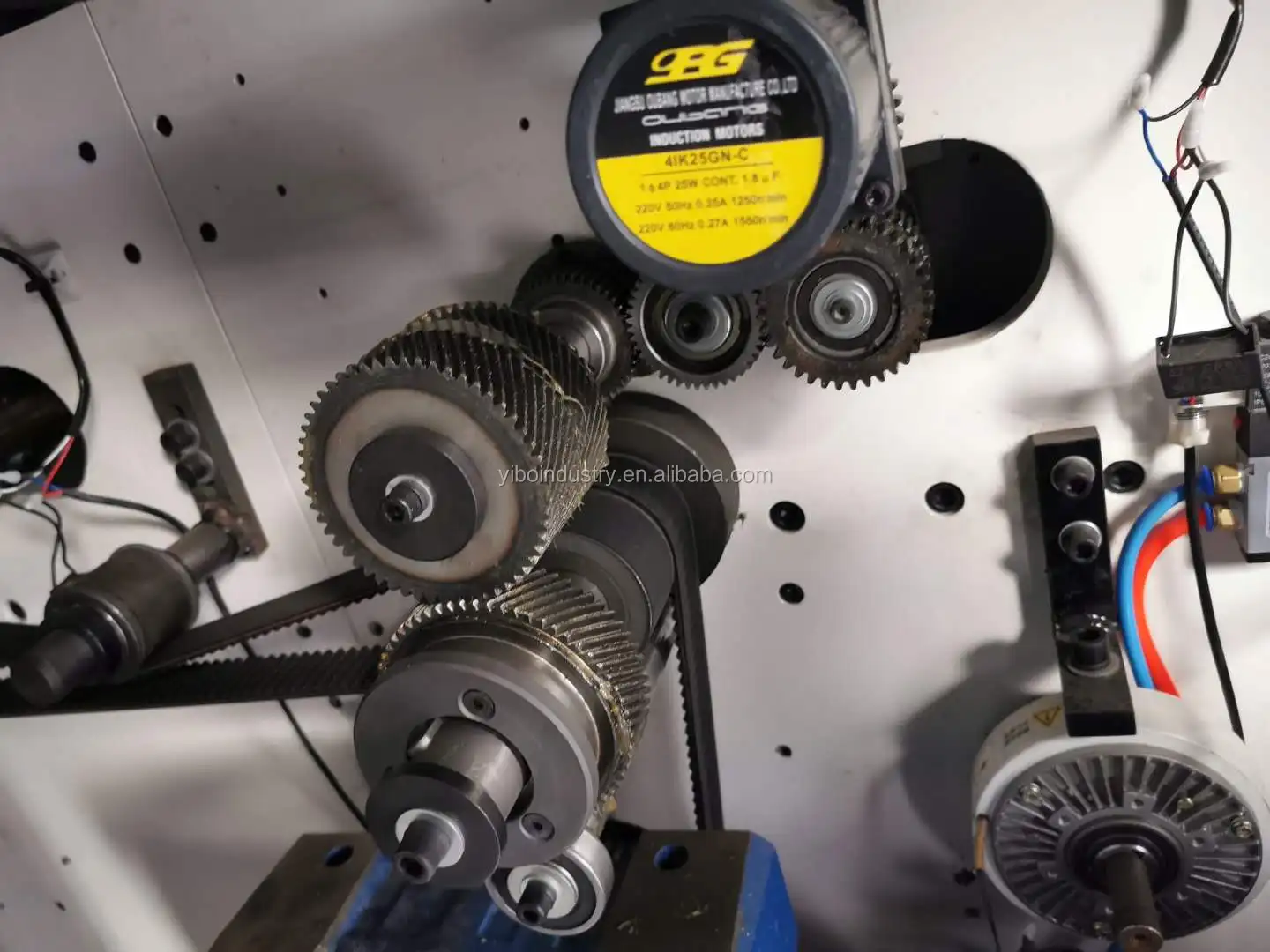

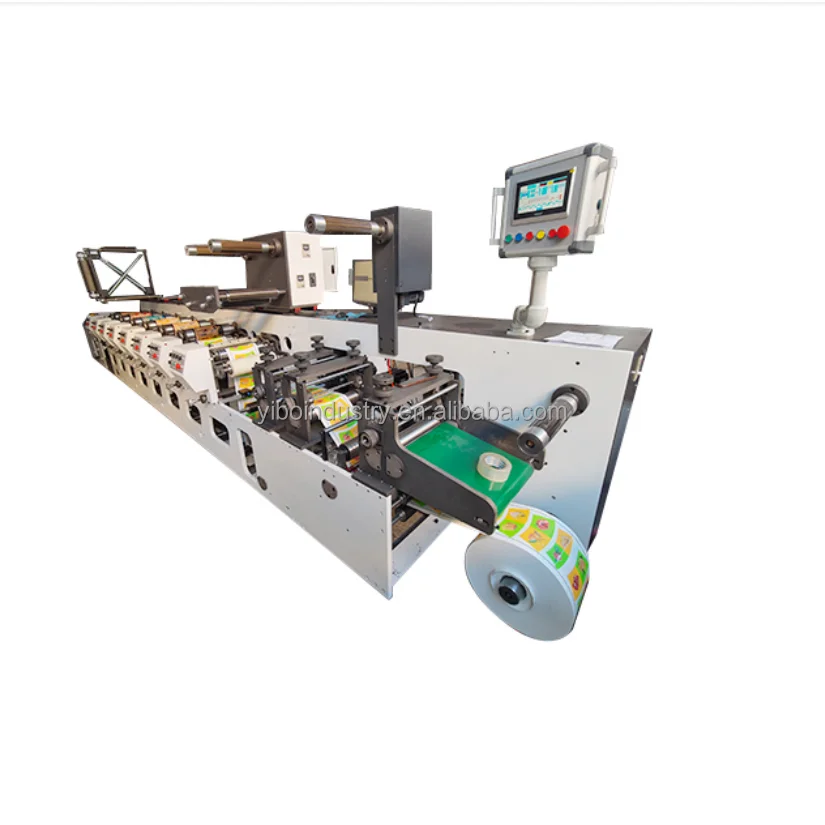

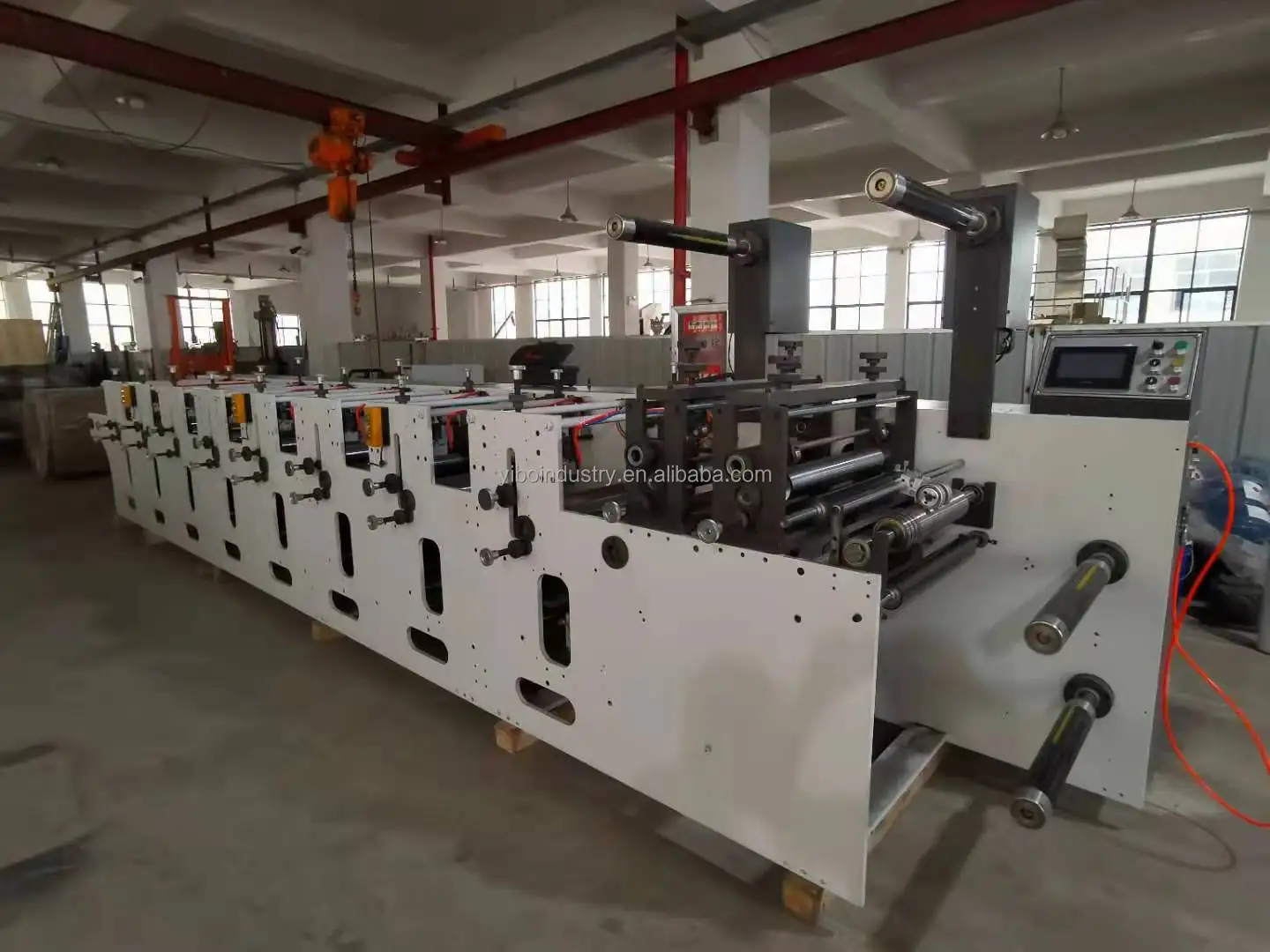

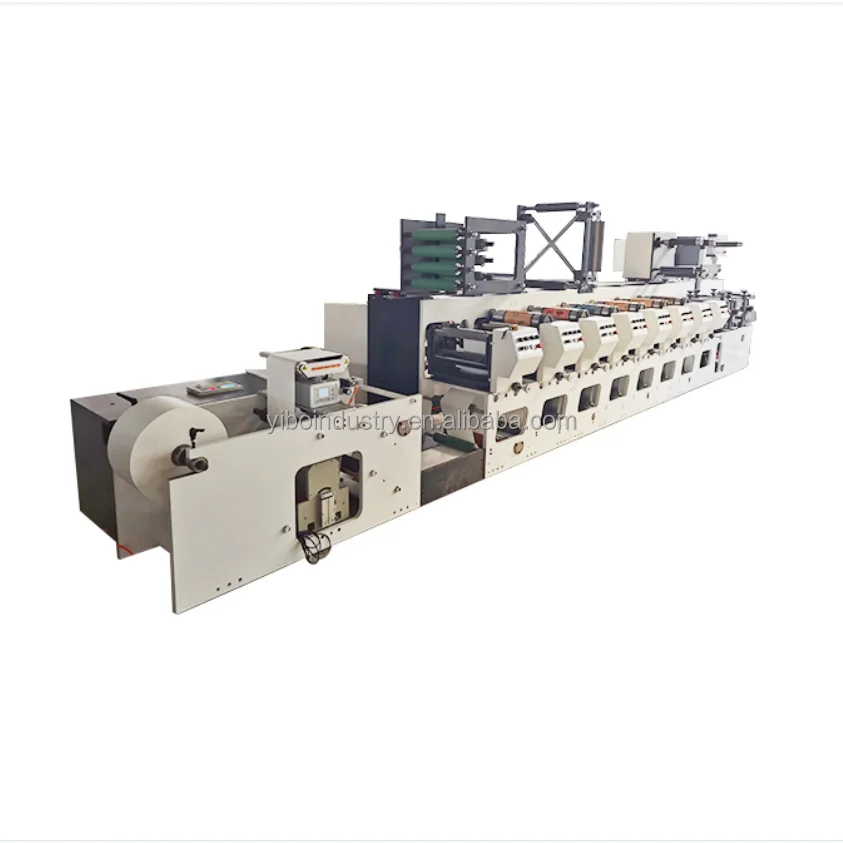

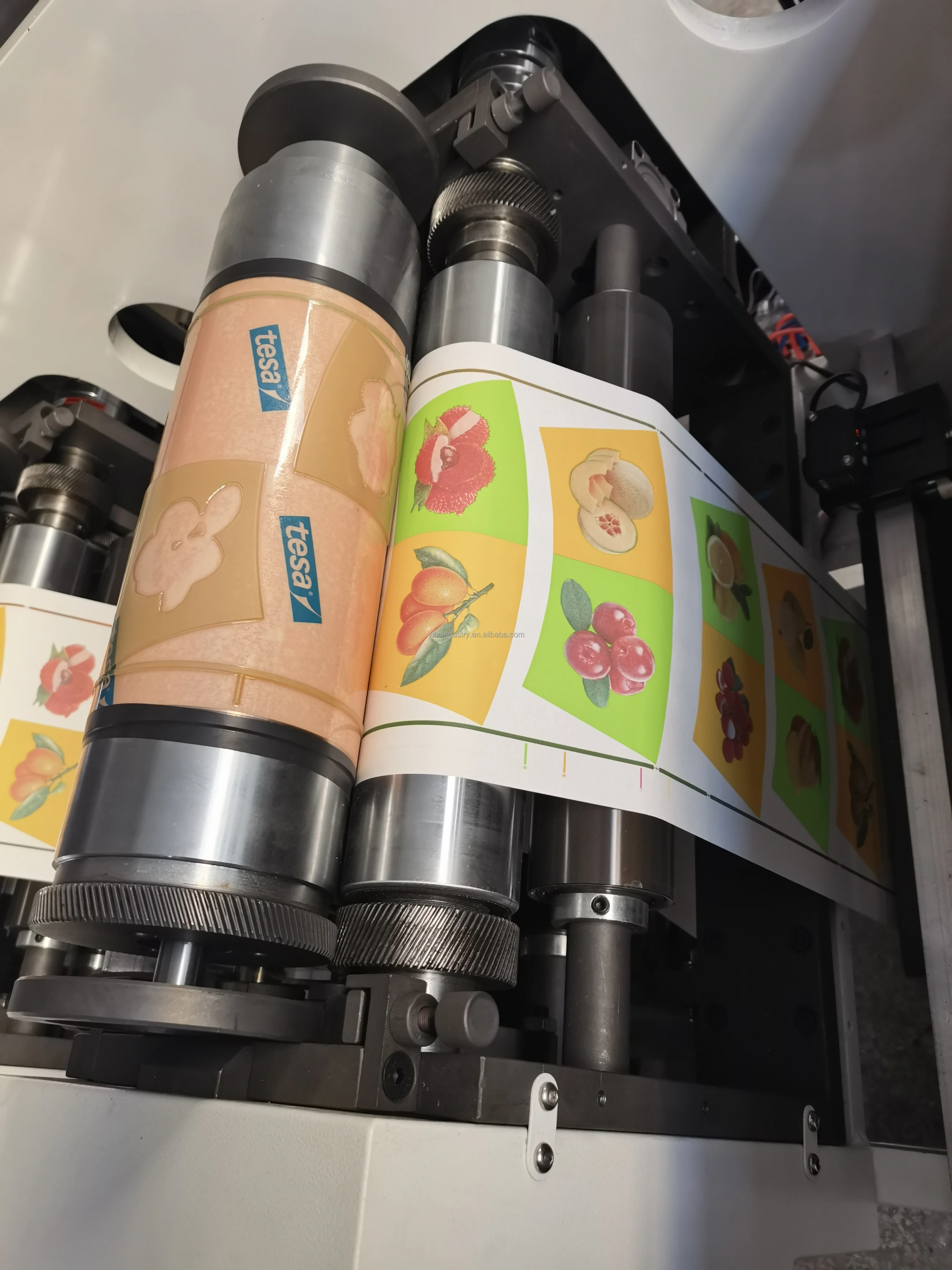

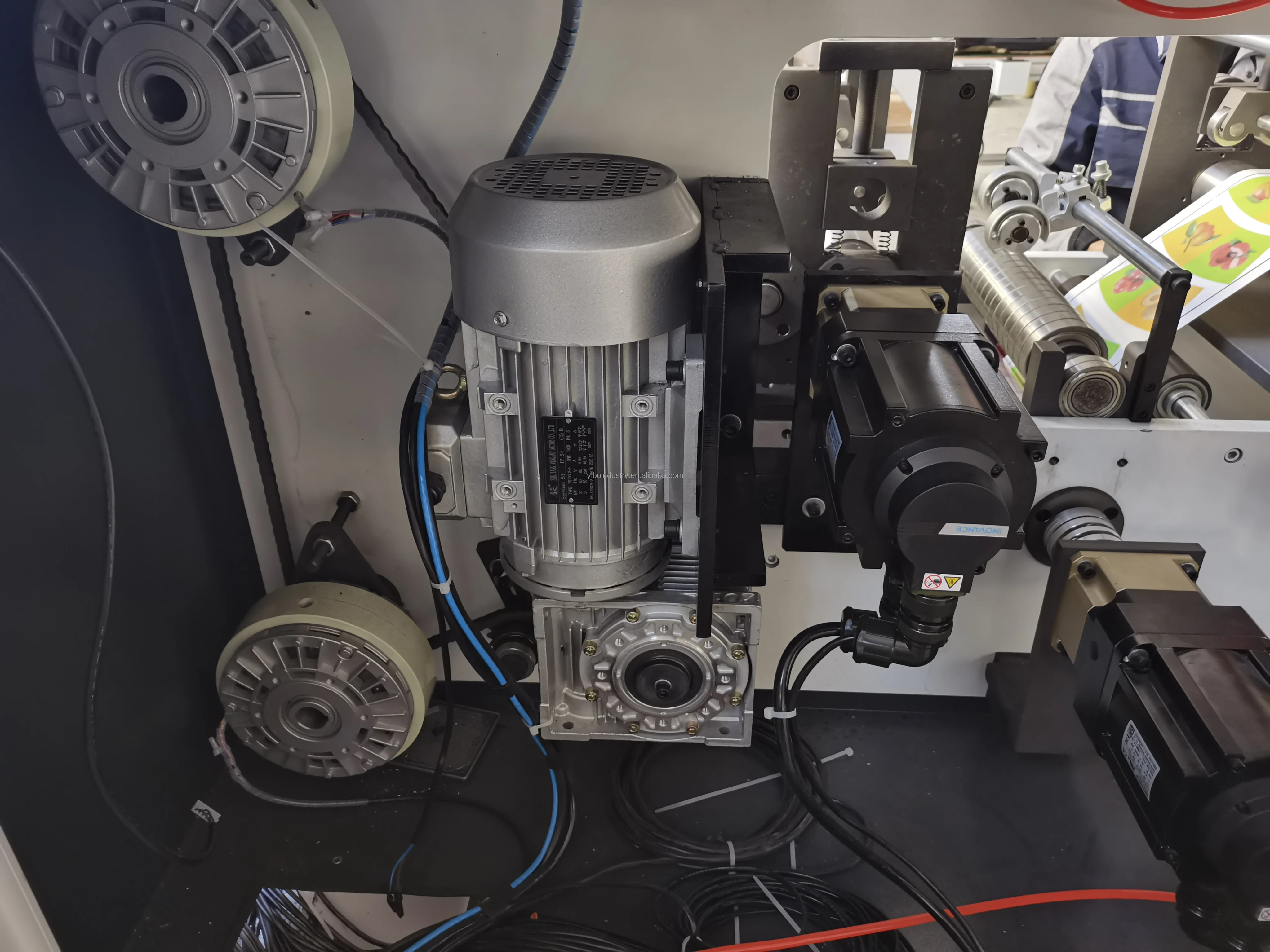

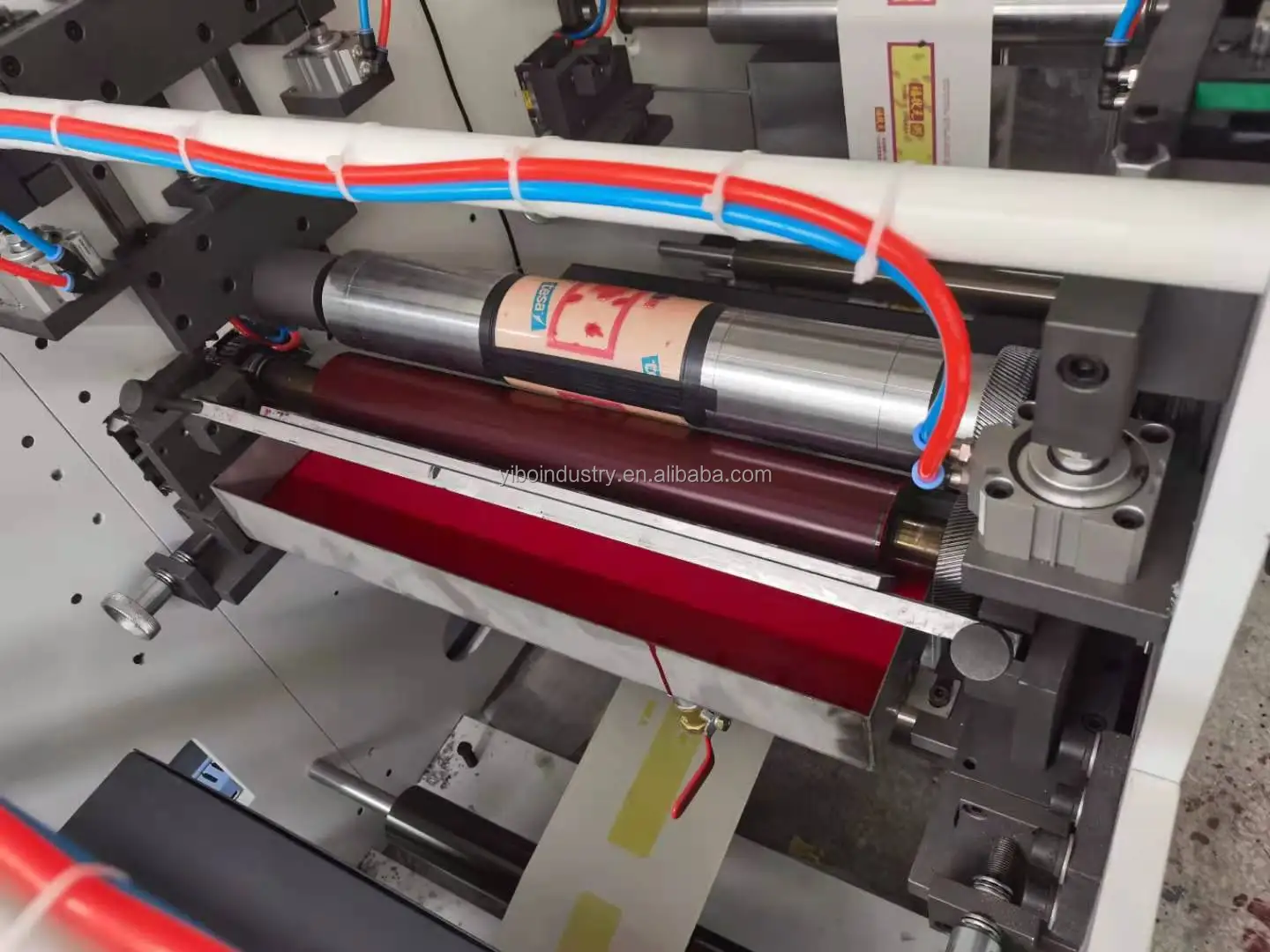

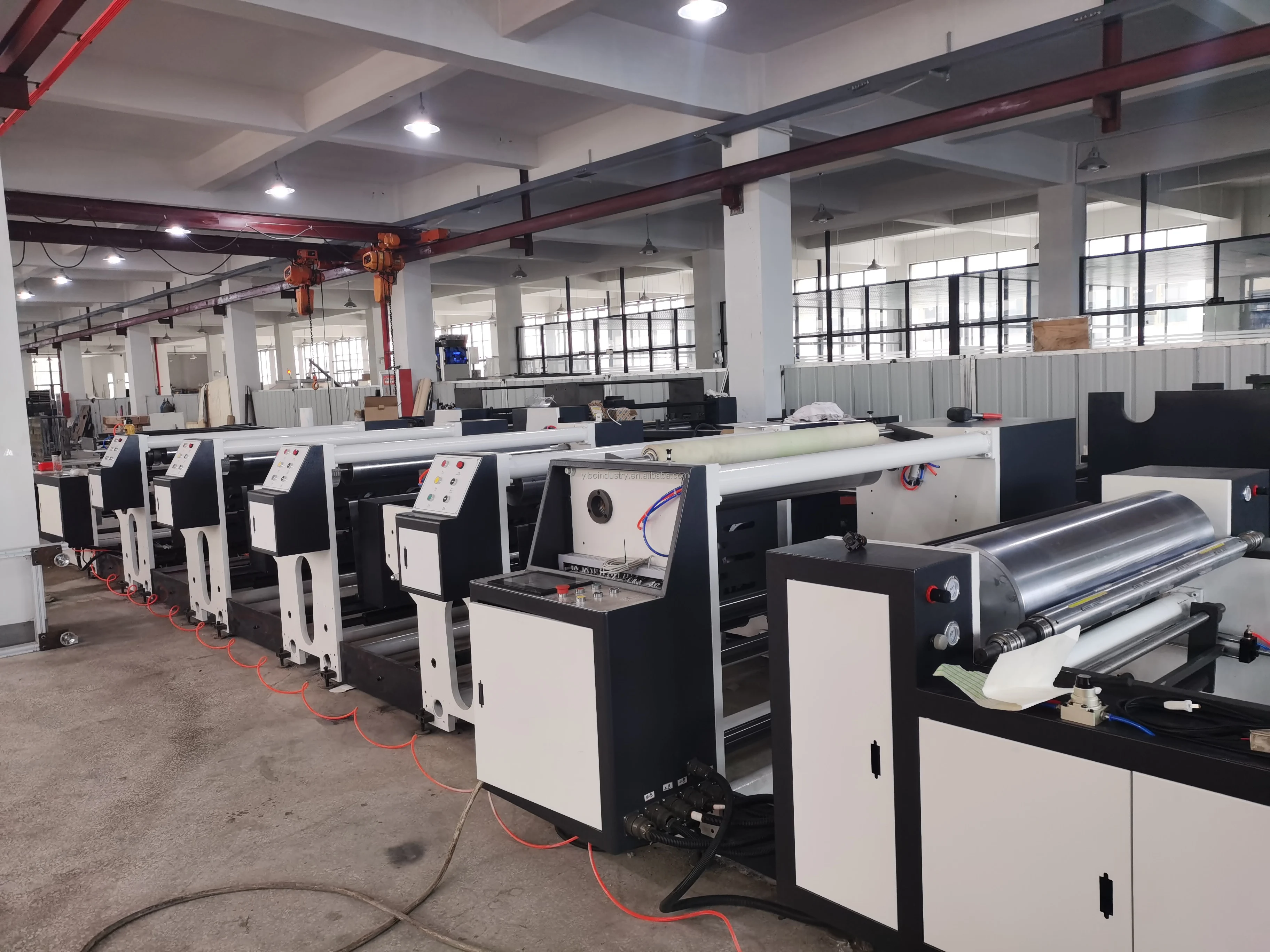

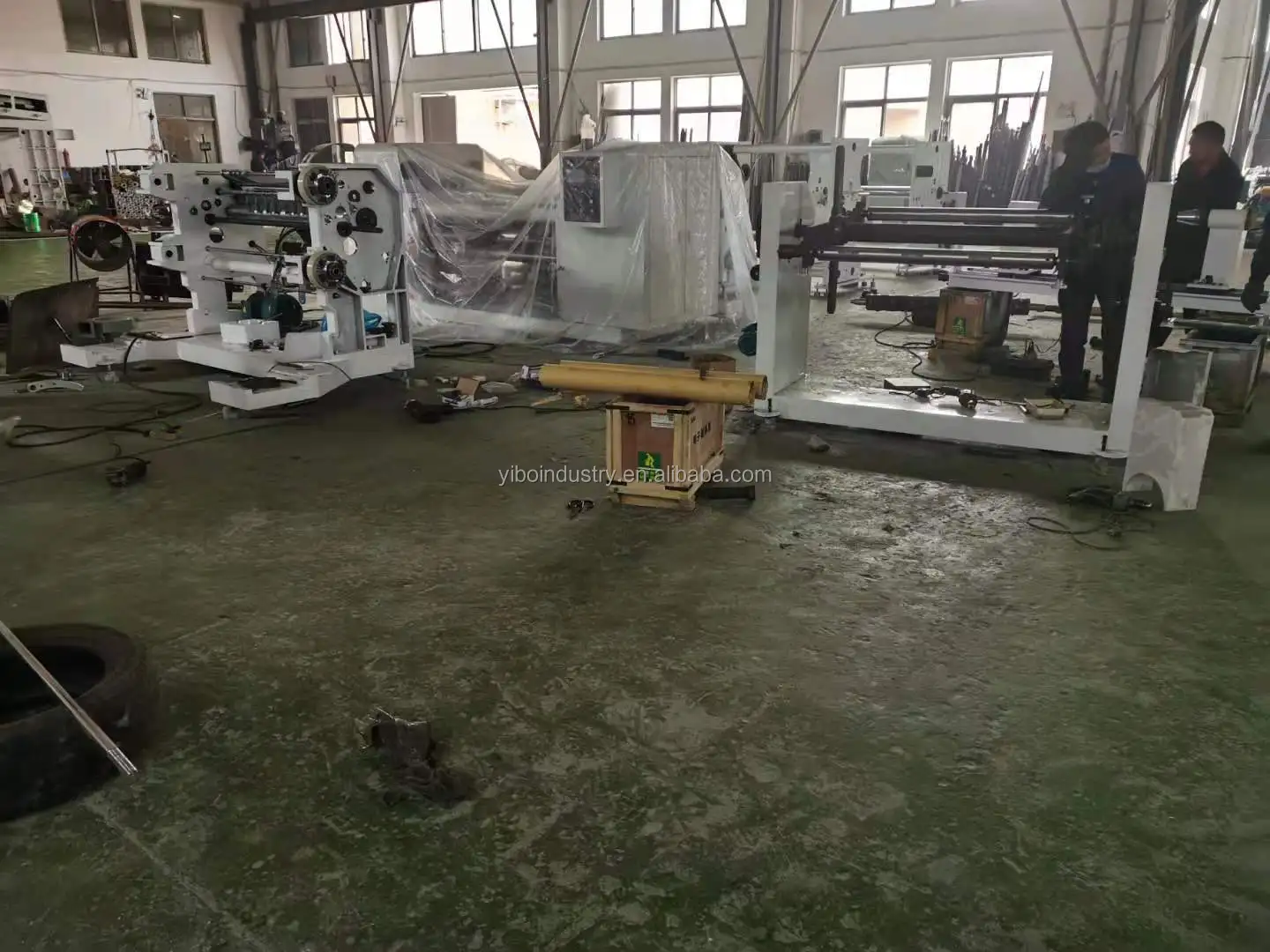

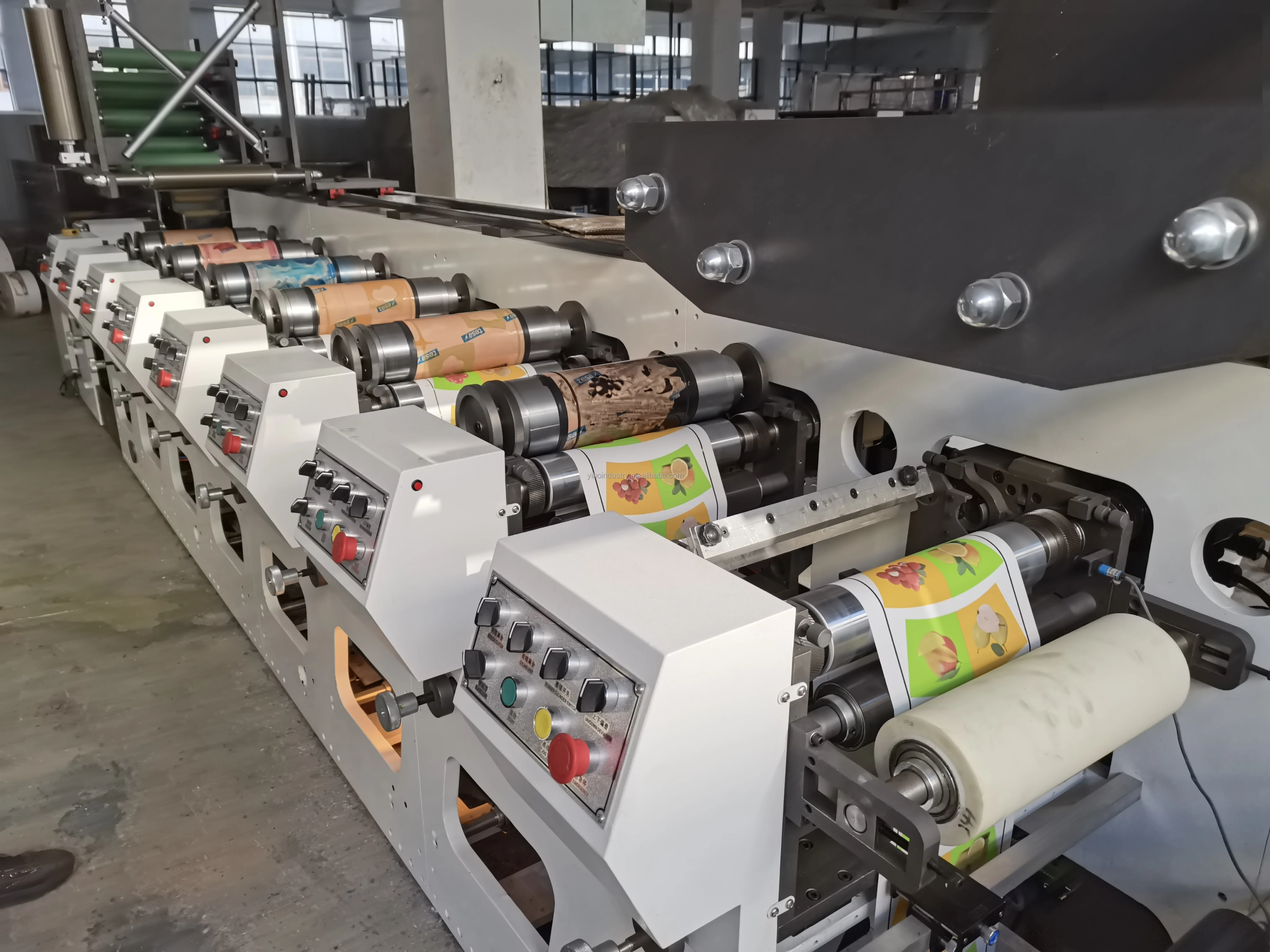

Machine show

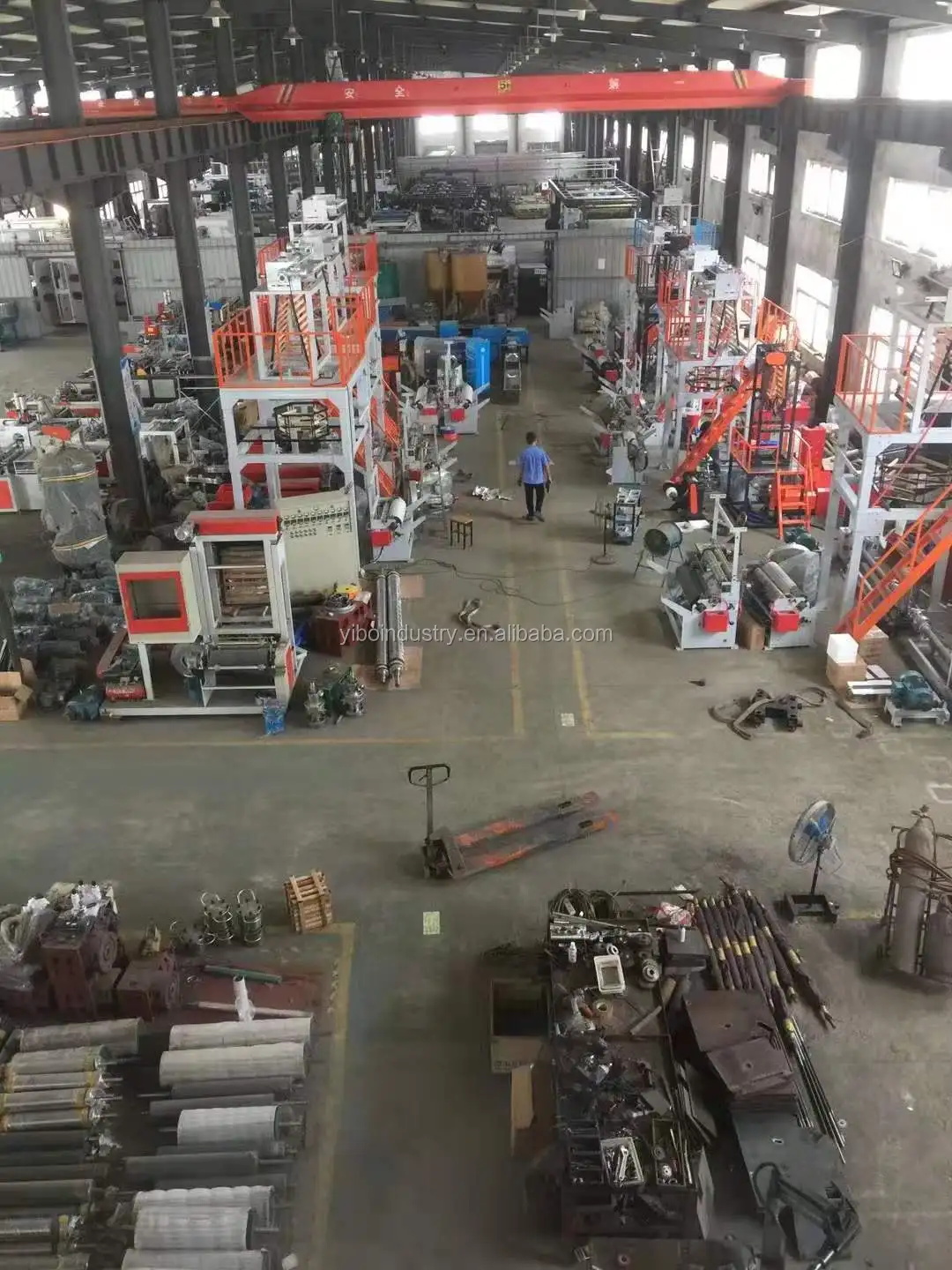

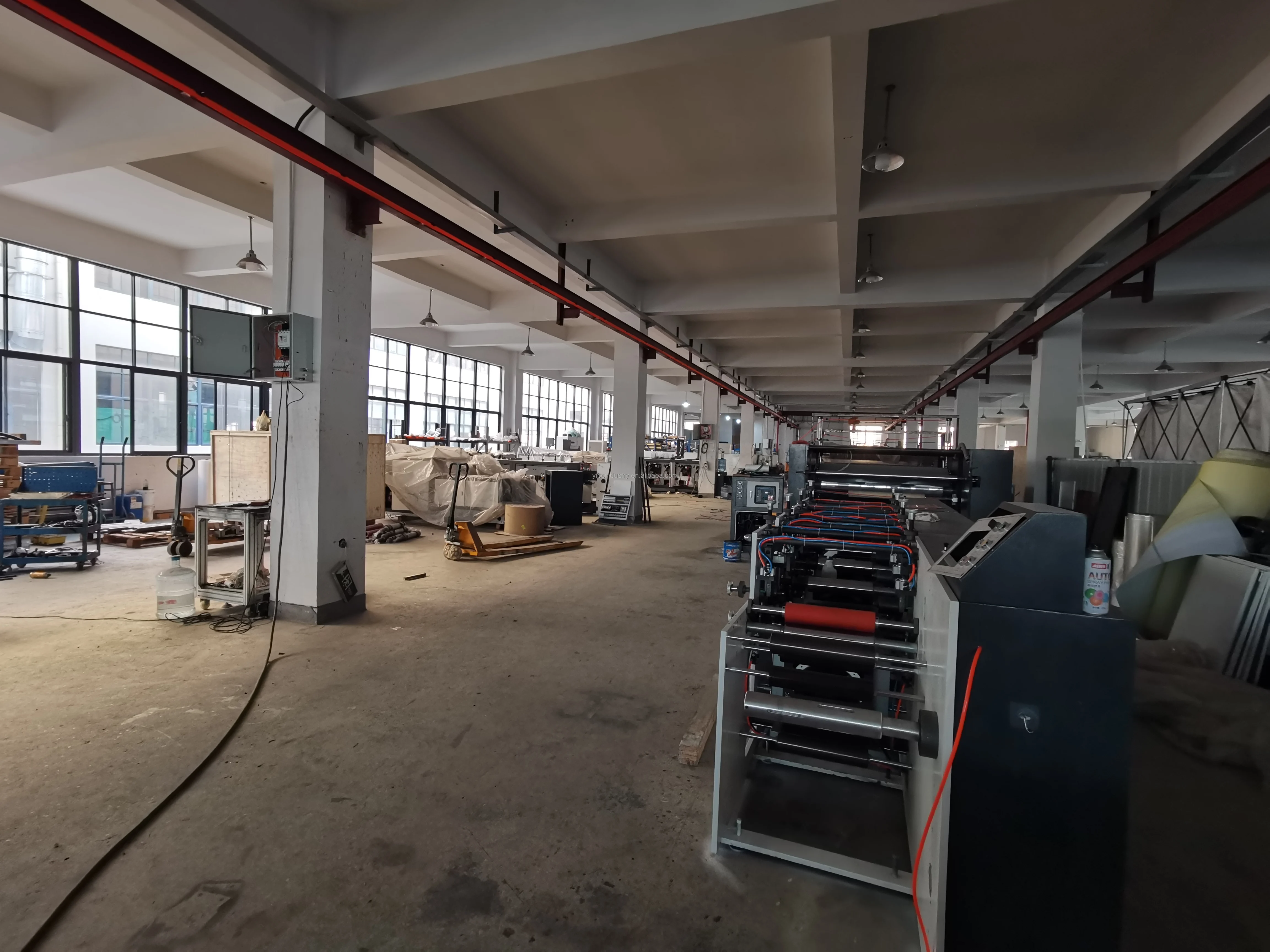

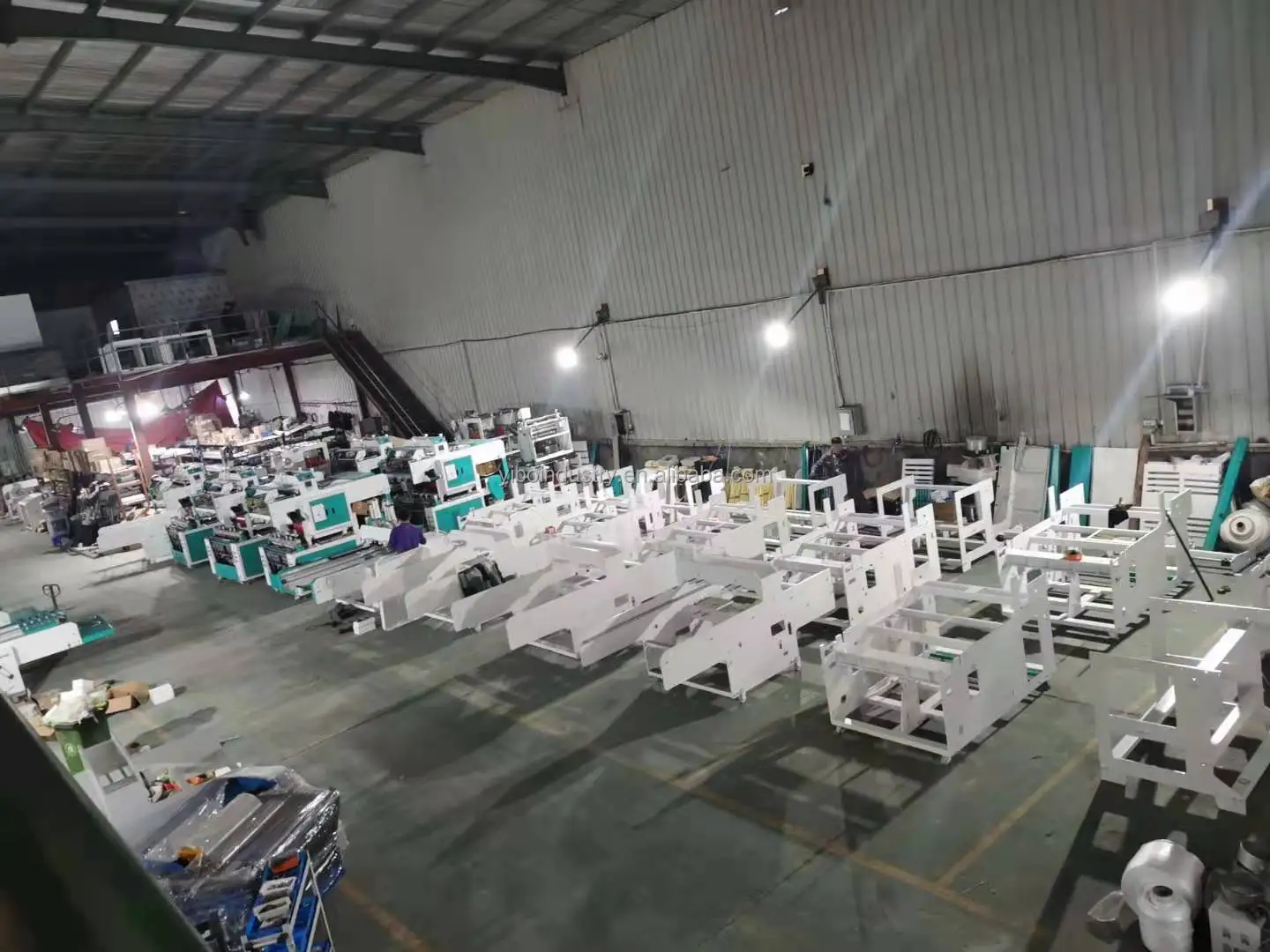

Company Profile
Customer Photos

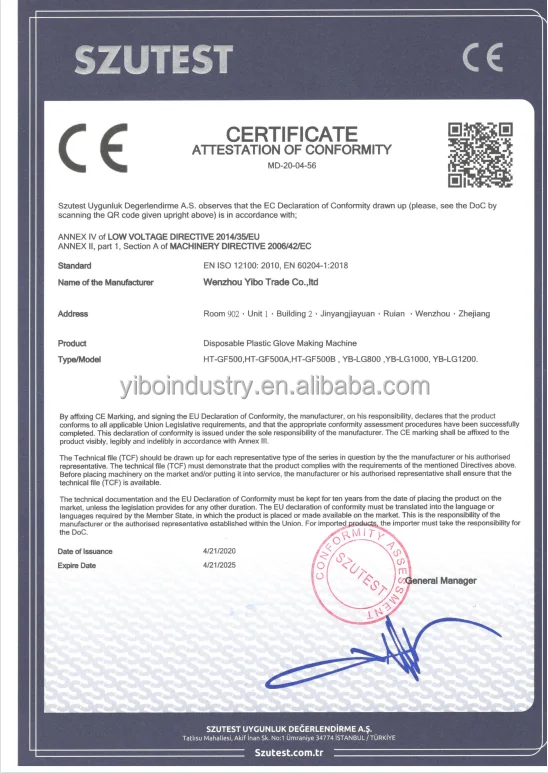

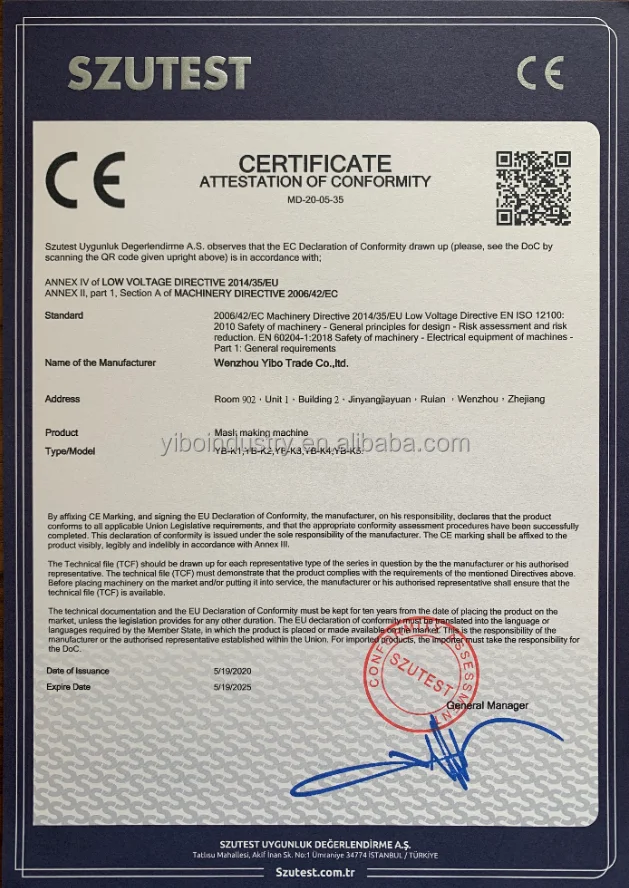

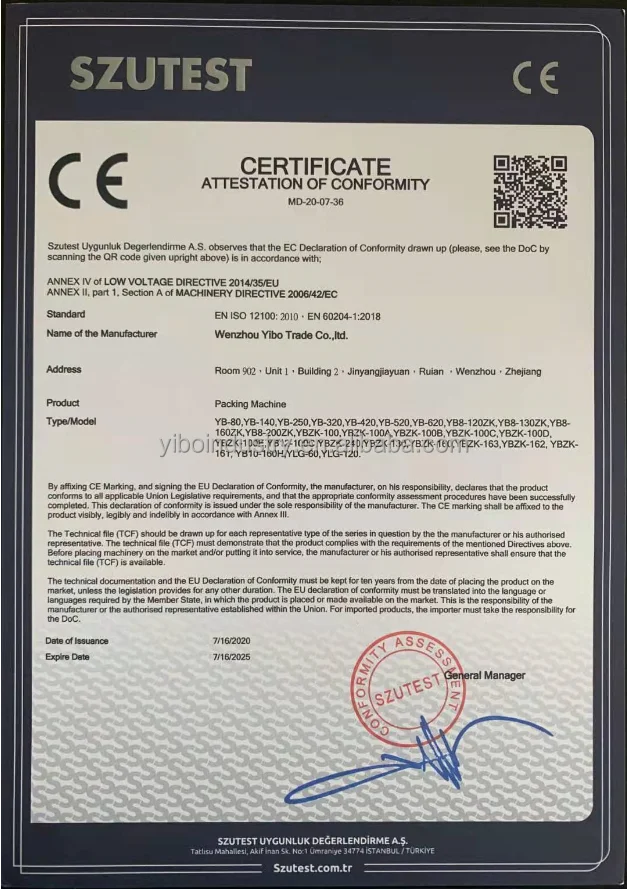

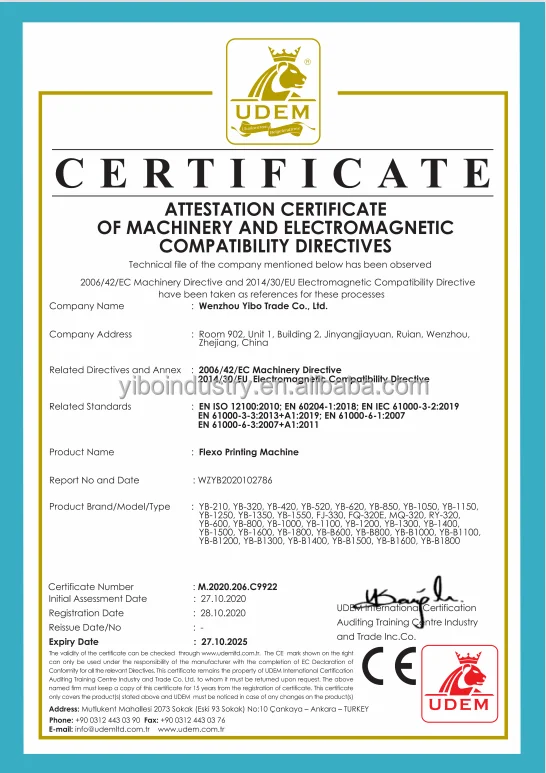

Certifications
