Product Overview

Description



Product Description

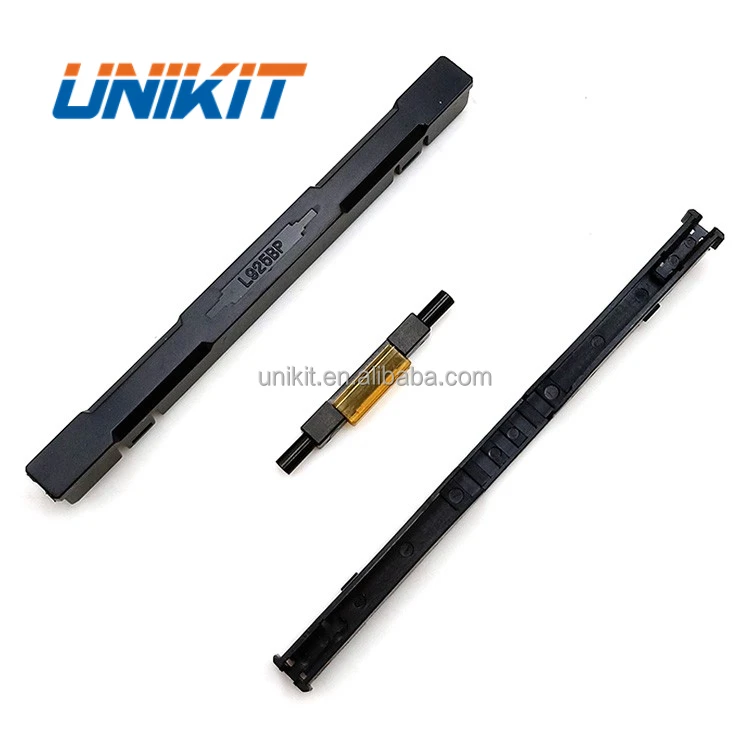

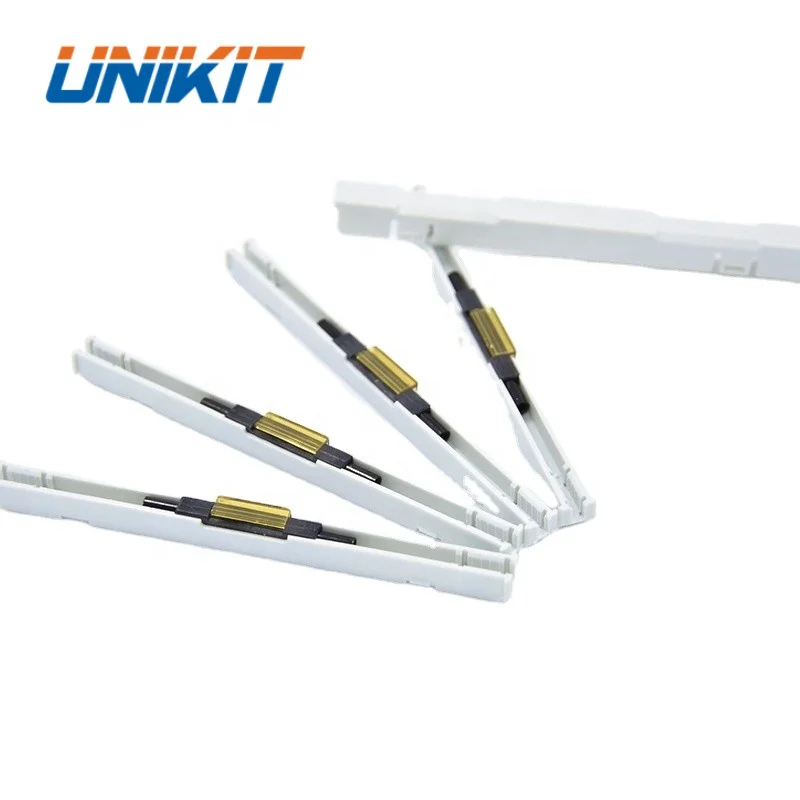

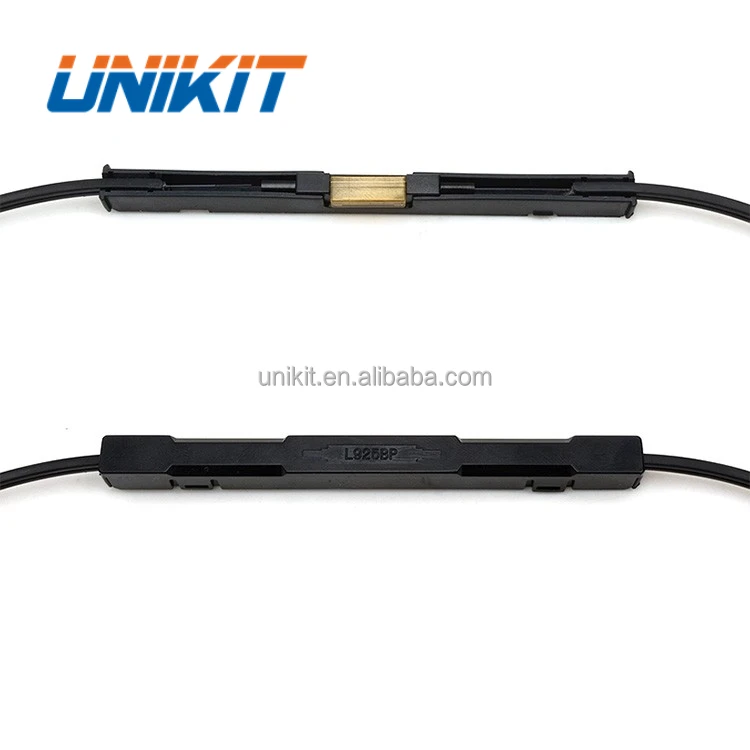

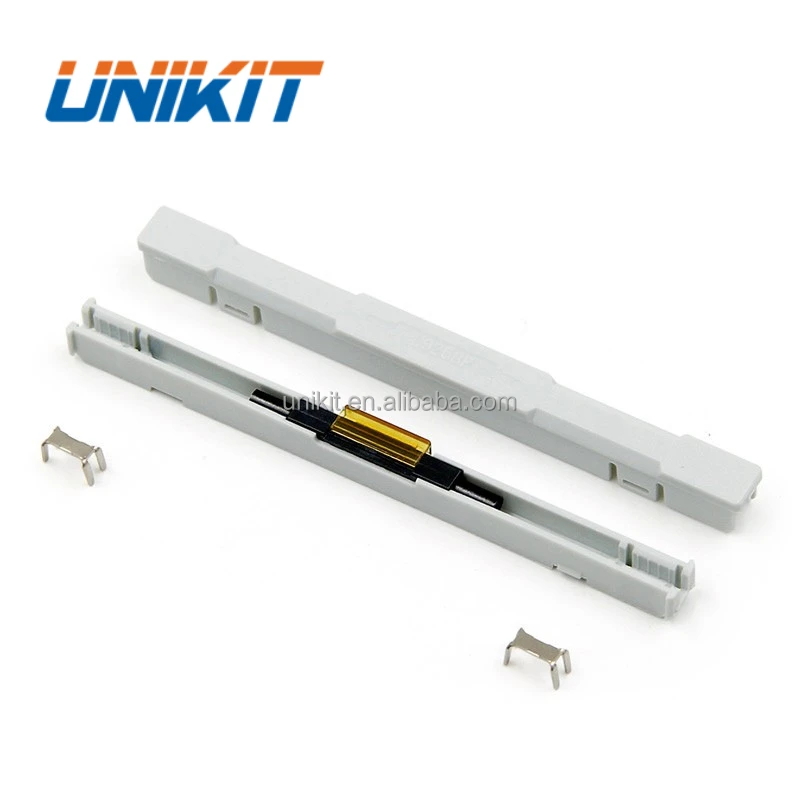

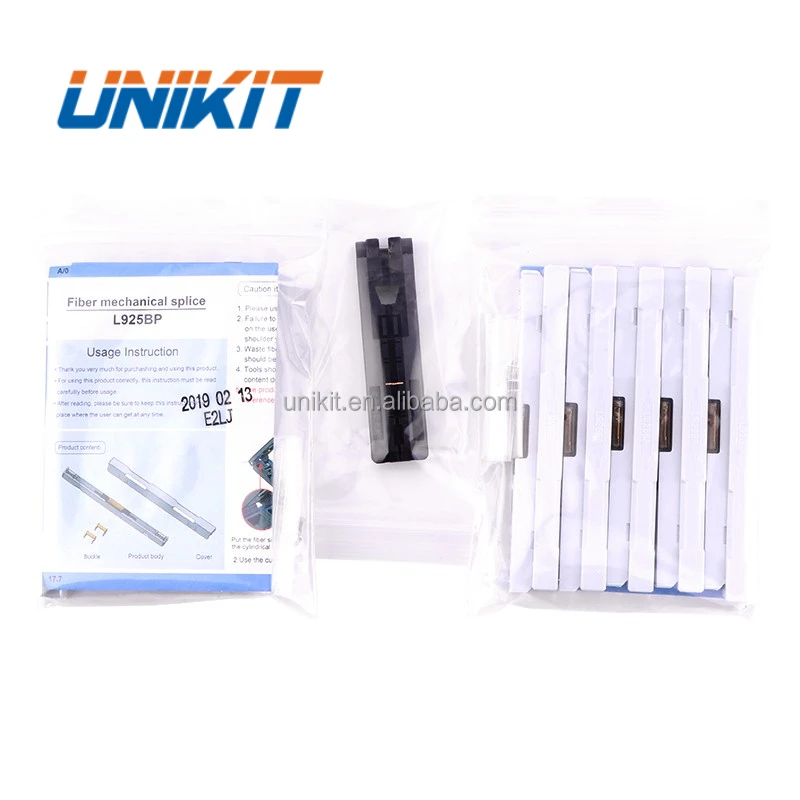

L925BP

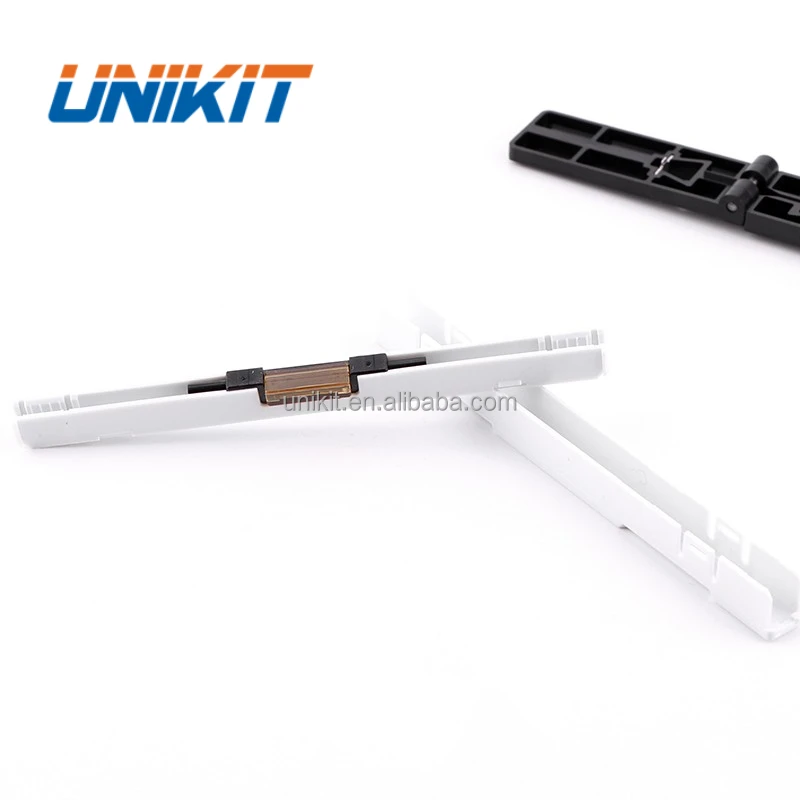

Fiber optic mechanical splice





1. Metal V groove design, fiber connection with high precision, excellent optical performance;
2. Core structure: adopt the box-type structure design, good sealing, matching gel is not easy to lose, strong resistance to environment;

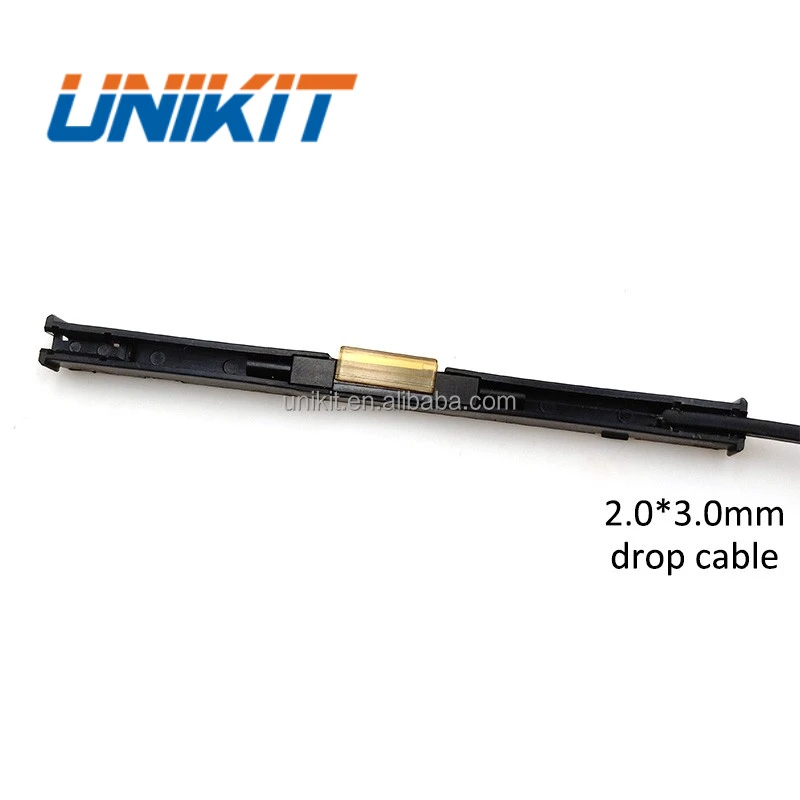

3. Applicable to 2.0 × 3.0 mm drop cable;
4. Easy to operate, fast to assemble, high success rate, long time of using, easy maintenance;
5. Applied to FTTH and cable repair.










Specification


Item
Parameter
Model number
L925BP
Brand name
UNIKIT/OEM
Applicable for
3.0 x 2.0 mm butterfly cable ( drop cable )
Size
90*7*8mm
Optical fiber diameter
125μm ( G652D & G657A )
Tight buffer diameter
250μm & 900μm
Applicable mode
SM & MM
Operation time
About 30s (without fiber cut)
Insert loss
≤ 0.15dB(1310nm & 1490nm& 1550nm)
Return loss
≥ 50dB
Success rate
>98%
Shell color
Black/Gray
Reusability times
>10 times



Relevant solutions

1. The drop cable connect to ONU directly in FTTH, the tensile strength is more than 5KG, especially applicable for network upgrading, fiber optic project restruction.
2. It reduce one socket with an adapter, not only reduce the cost, but also be easy to operate.
3. Can be matched with pigtail (SC、FC、LC、ST and etc ).
