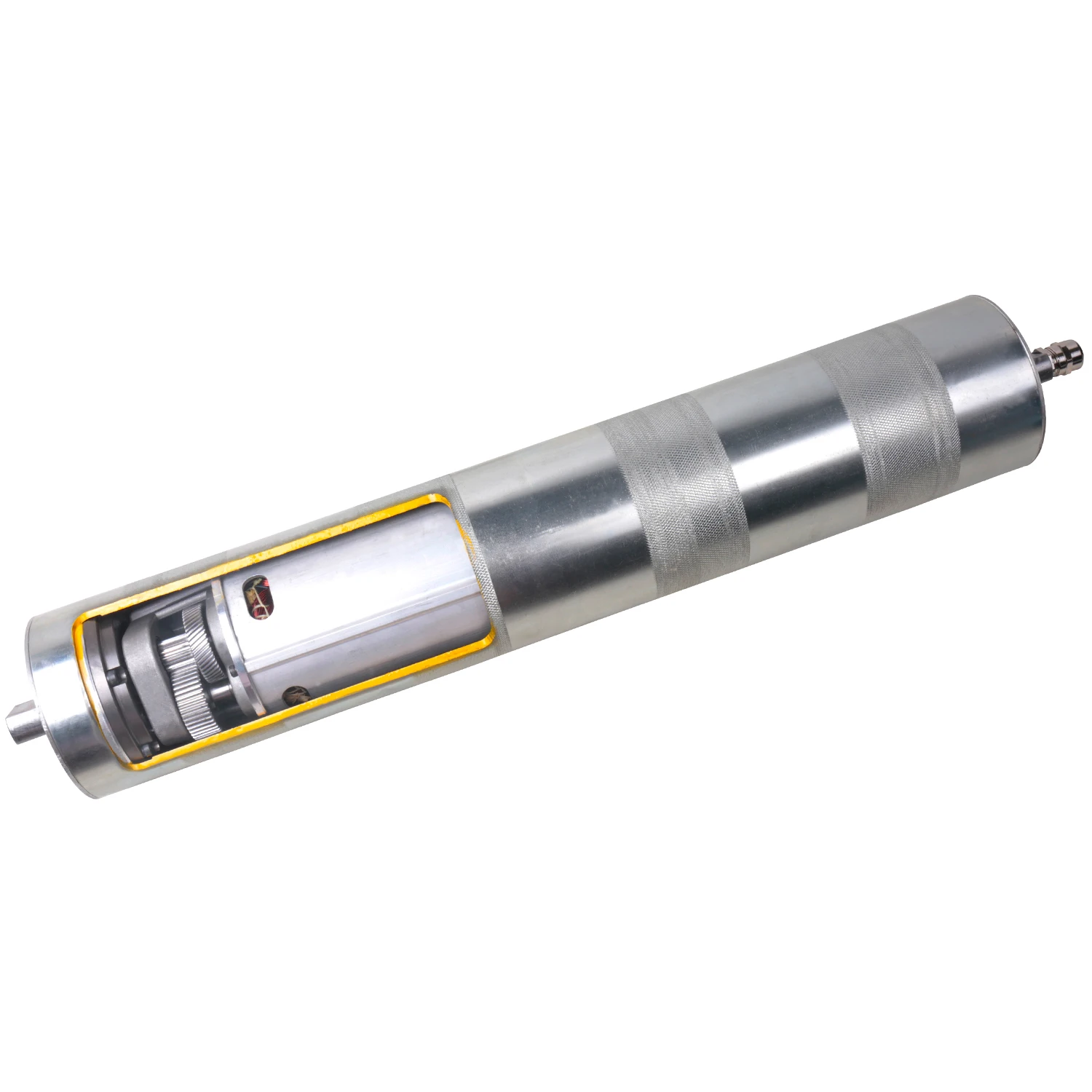

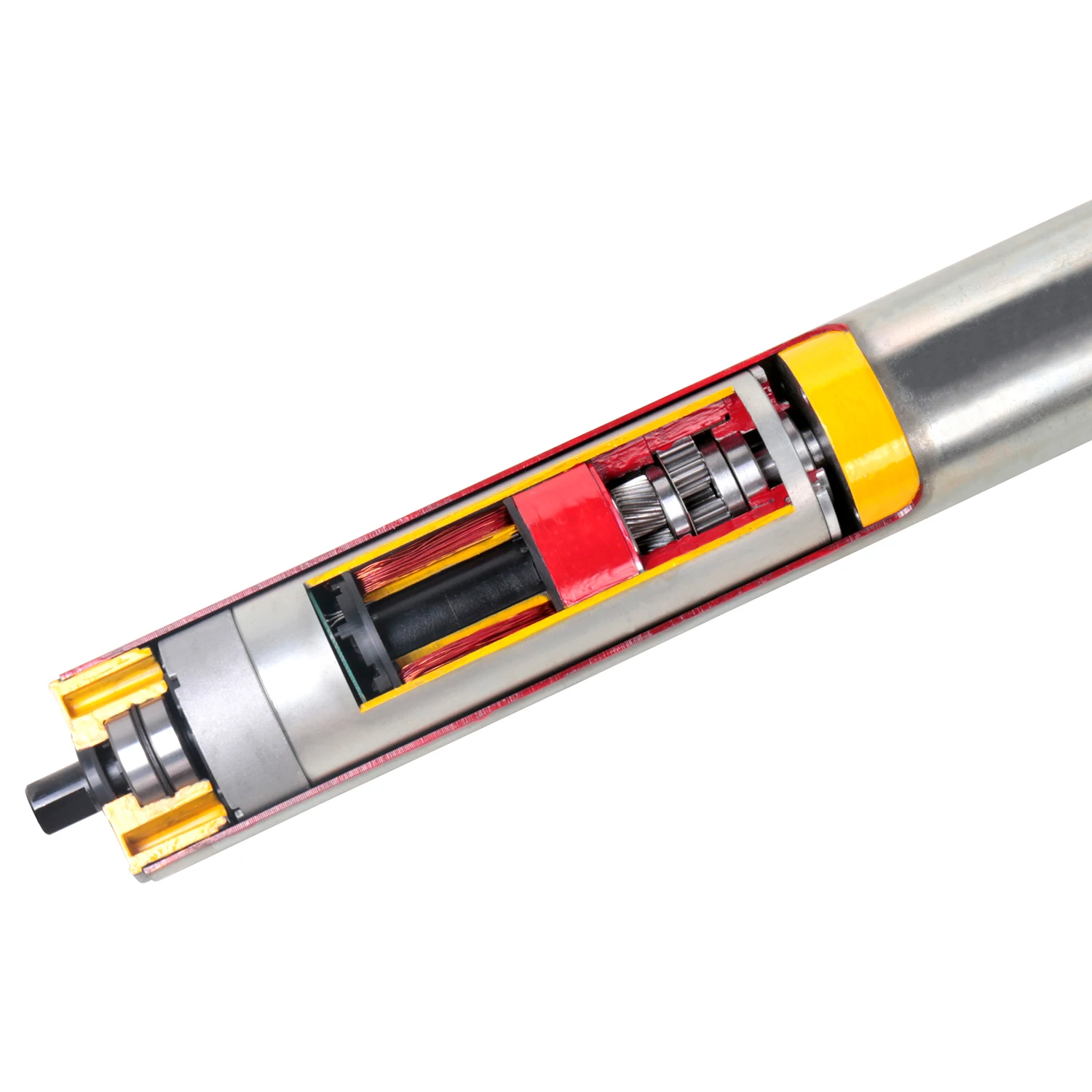

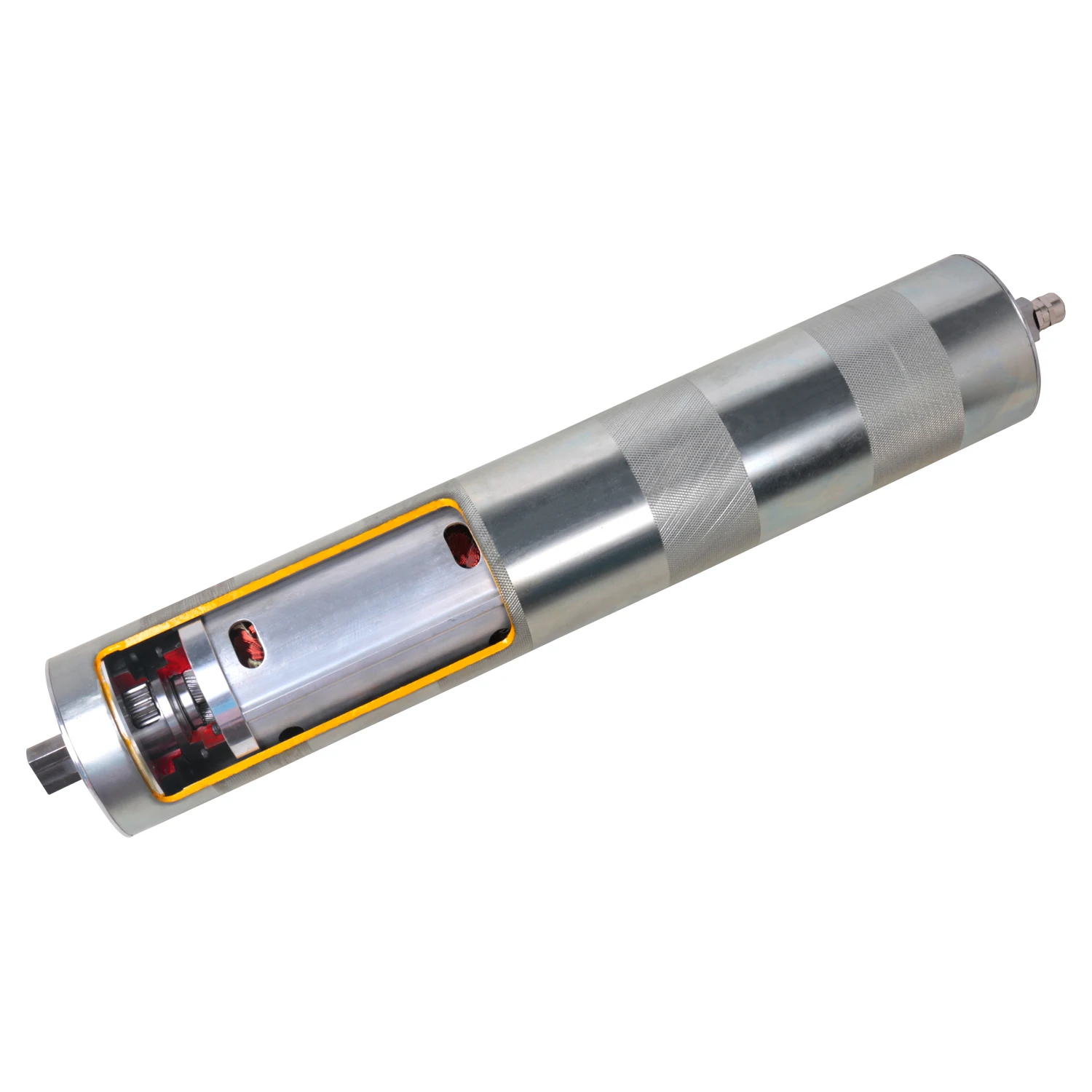

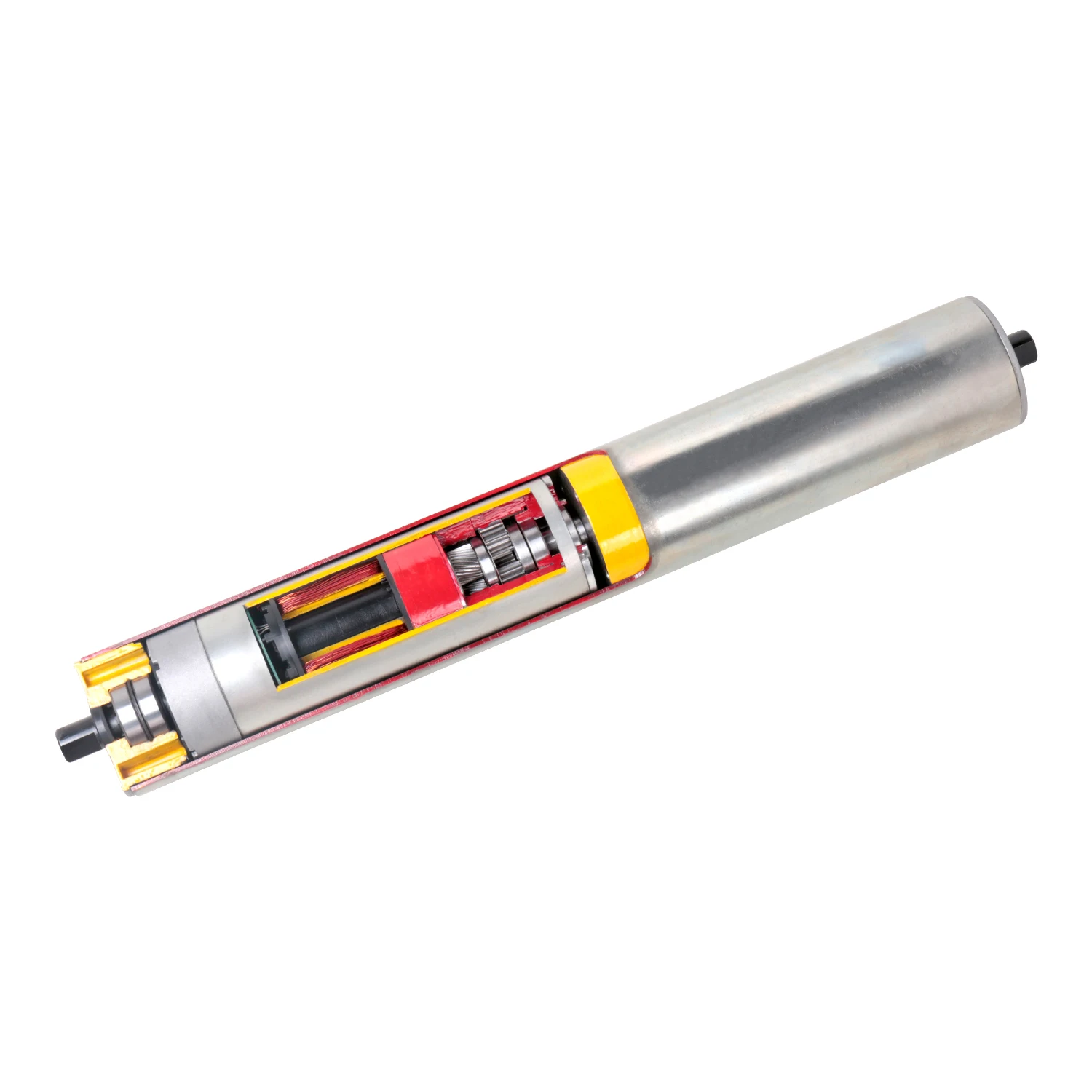

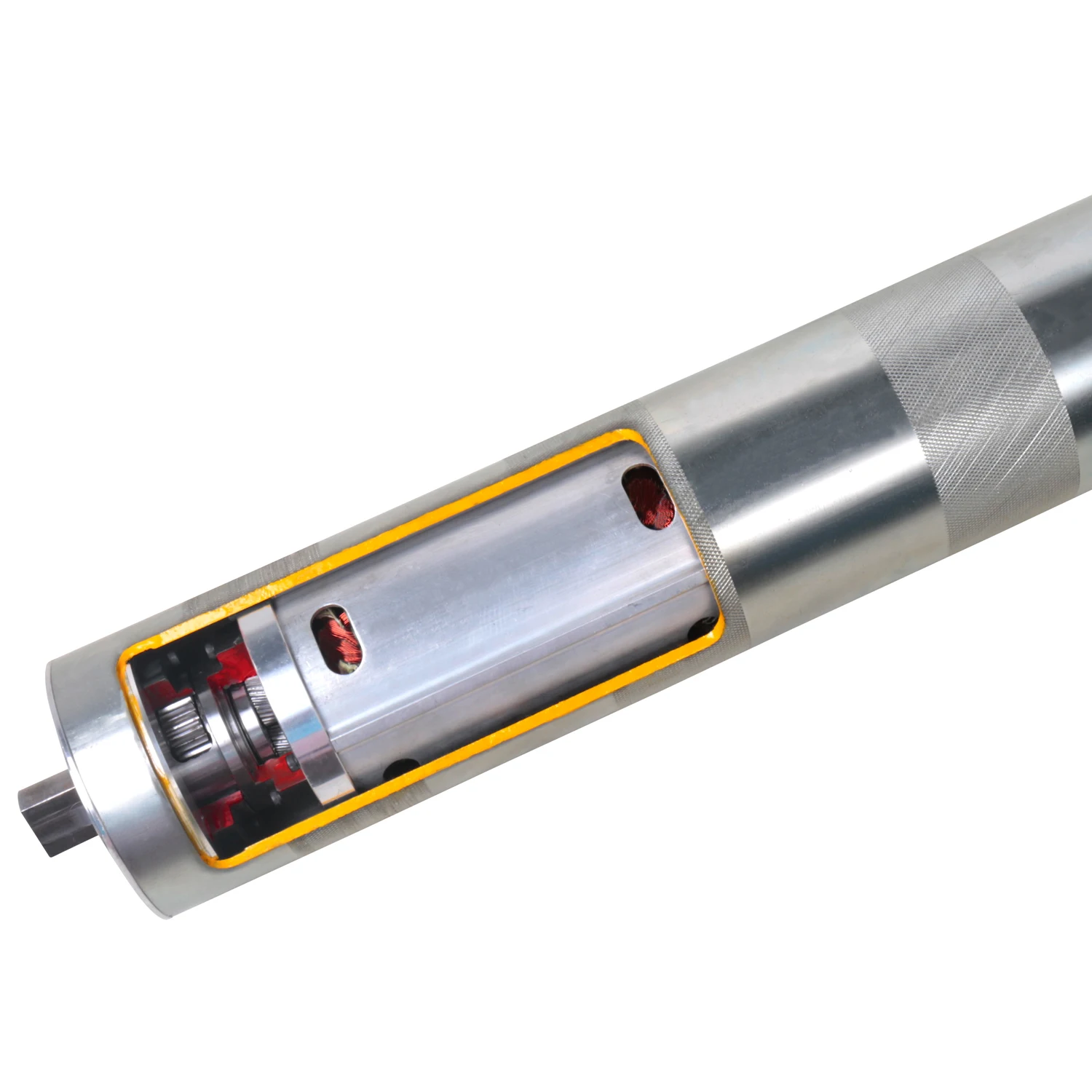

Zd Leader 50mm 2 in 60mm 2.5 in Brushless Motorized Motor Driven Roller For Conveyor Belt
- Category: >>>
- Supplier: Ningbo Zhongda Leader Intelligent Transmission Co. Ltd.
Share on (1600450754730):
Product Overview
Description
Products Description
1:What is a Drum Motor?
Drum motor is a new type of driving device that puts the motor and reducer together inside the drum body. It is mainly used in stationary and mobile belt conveyors, instead of traditional motors, and a separate drive device where the reducer is in addition to the drive drum.
2:What is the main function of Drum Motor?
Compared with traditional helical gear motors, angle gear motors, drum motors can better realize the transmission function.
3:What is the application of Drum Motor?
Drum motors have been more and more widely used in traditional industries and emerging industries.
Feature Overview
Series | BL60 |
Built-in Motor Type | DC brushless motor |
Rated Power | 90 watts |
DC Power Supply | 24VDC/36VDC/48VDC |
Speed Control Range | 200~3000 rpm |
Material of Drum Body (Optional) | 1:Carbon Steel Tube 2:304 Stainless Tube |
Linear Speed | 1.44~155 m/min |
Drum Length | 270~1000 mm |
ZD Drum Motor Model Read:
ZD BL T 60 -A-30-380-90-D-24-G1 a b c d e f g h i j k
a | “ZD” stands for our company name"Zhongda Leader" | ||||
b | “BL” stands for motor type is dc brushless motor | ||||
c | “T” stands for Carbon Steel Tube material / “S” stands for 304 Stainless Steel Tube material | ||||
d | “60” stands for Drum diameter is 60 mm | ||||
e | “A” stands for Cylindrical Drum Shape | ||||
f | “30” stands for linear speed is 30 m/min | ||||
g | “380” stands for drum length is 380mm | ||||
h | “90” stands for rated power is 90w | ||||
i | “D” stands for voltage type is dc power supply, 1 stands for single phase AC power supply | ||||
j | “24” stands for Voltage is 24V | ||||
k | "G1" stands for lead wire type, normally it is straight out | ||||
Product Paramenters
Rated Power（W) | Gear Stage | Reduction Ratio(i) | Max Linear Speed V(m/min) | Rated Speed n (rpm) | Allowable Torque T (N.m) | Driving Force F（N） | Length L (mm） | |||||||
1 stage | 3.65K | 155 | 821.9 | 0.940 | 62.70 | 270~1000 | ||||||||
5.36K | 105 | 559.7 | 1.380 | 92.00 | ||||||||||
6.55K | 86.0 | 458.0 | 1.690 | 112.70 | ||||||||||
8.63K | 65.0 | 347.6 | 2.230 | 148.70 | ||||||||||
2 stages | 13.53K | 42.0 | 221.7 | 3.140 | 209.30 | 290~1000 | ||||||||
18.92K | 30.0 | 158.6 | 4.390 | 292.70 | ||||||||||
24.65K | 23.0 | 121.7 | 5.720 | 381.30 | ||||||||||
28.05K | 20.0 | 106.9 | 6.510 | 434.00 | ||||||||||
33.92K | 17.0 | 88.40 | 7.870 | 524.70 | ||||||||||
44.69K | 13.0 | 67.10 | 10.37 | 691.30 | ||||||||||
58.22K | 10.0 | 51.50 | 12.00 | 800.00 | ||||||||||
3 stages | 67.08K | 8.00 | 44.70 | 14.03 | 935.30 | 305~1000 | ||||||||
81.11K | 7.00 | 37.00 | 16.96 | 1130.70 | ||||||||||
91.36K | 6.00 | 32.80 | 19.11 | 1274.00 | ||||||||||
102.88K | 5.50 | 29.20 | 21.52 | 1434.70 | ||||||||||
118.98K | 5.00 | 25.20 | 24.88 | 1658.70 | ||||||||||
127.74K | 4.40 | 23.50 | 25.00 | 1666.70 | ||||||||||
145.36K | 4.00 | 20.60 | 25.00 | 1666.70 | ||||||||||
165.64K | 3.40 | 18.10 | 25.00 | 1666.70 | ||||||||||
191.56K | 3.00 | 15.70 | 25.00 | 1666.70 | ||||||||||
231.61K | 2.40 | 12.90 | 25.00 | 1666.70 | ||||||||||
301.68K | 2.00 | 9.90 | 25.00 | 1666.70 | ||||||||||
392.98K | 1.44 | 7.60 | 25.00 | 1666.70 | ||||||||||
This parameter is used for motor speed range in 200~3000 rpm. | ||||||||||||||

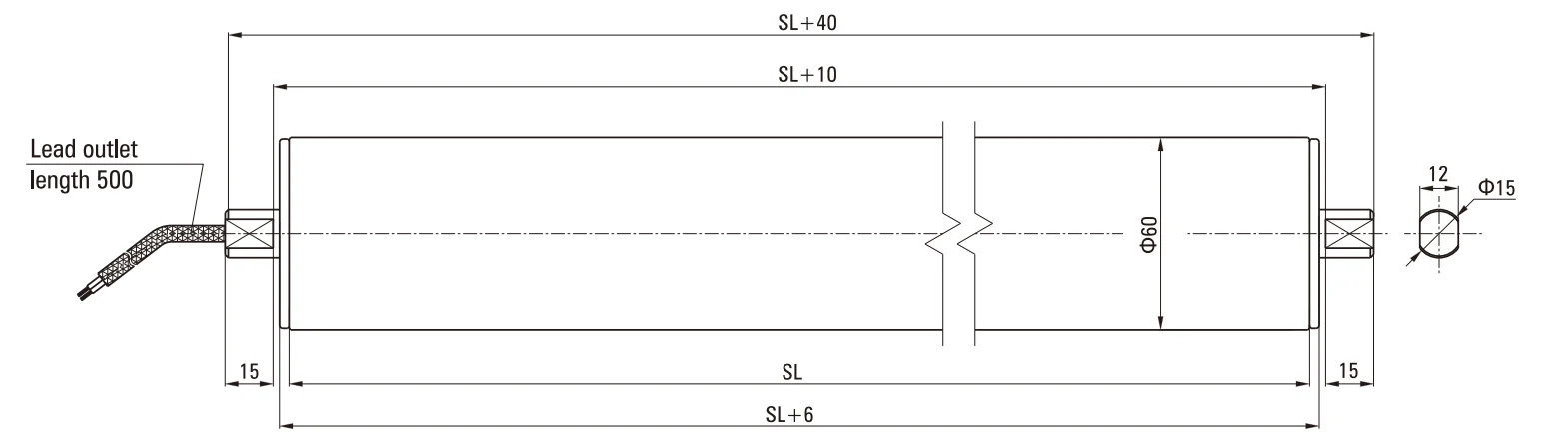

Dimensions（Unit mm）
BL60 Outlining Dimensions :
Diameter: 60mm Wall thickness:t1.5 Power supply: DC24/36/48V
Related Products
Why Choose Us
FAQ
Q1: What're your main products?
A1: We currently produce Brushed DC Motors, Brushed DC Gear Motors, Planetary DC Gear Motors, Brushless Dc Motors, Stepper motors, AC Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can also tell us your special requirements by email and we will recommend the motor you need.
Q2: How to select a suitable motor?
A2: If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q3: Do you have a customized service for your standard motors?
A3: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q4: Do you have an individual design service for motors?
A4: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q5: What's your lead time?
A5: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
