2 3 position metal selector 1no1nc on off pin terminal waterproof latching 22mm rotary switch
- Category: >>>
- Supplier: Yueqing Dahe Electric Co. Ltd.
Share on (1600451243434):
Product Overview
Description
Products Description
Product Paramenters
Metal Selector Switch | ||

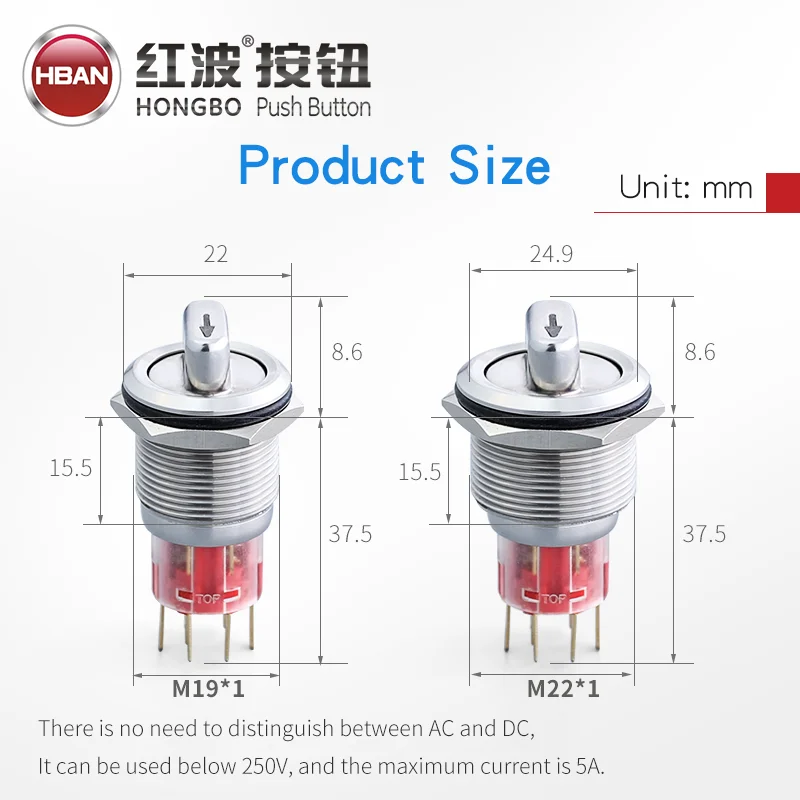

Mounting hole size: | 22mm | |
Switch value: | 5A/250V AC | |
Operation type: | Maintained | |
Contact configuration: | 1NO1NC,2NO2NC | |
Type: | Selector Switch | |
Operation Position: | 2position | |
Illumination Type: | No led/Arrow Indicator | |
Lamp Color: | R G B O W Y | |
Led voltage: | 6V 12V 24V 36V 110V 220V | |
Led life: | 50,000 hours | |

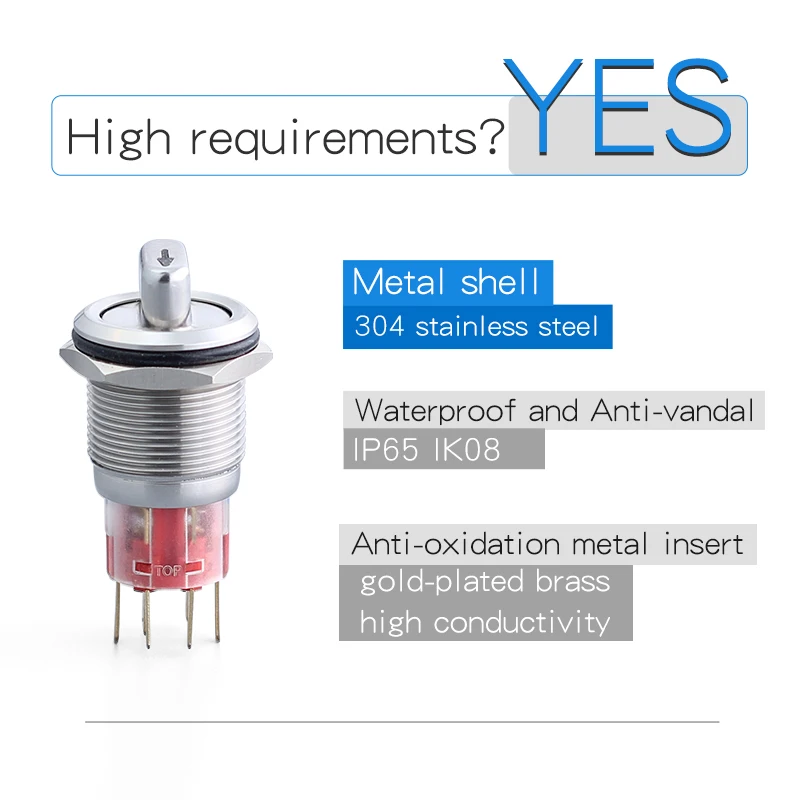

Crust material: | Stainless steel | |

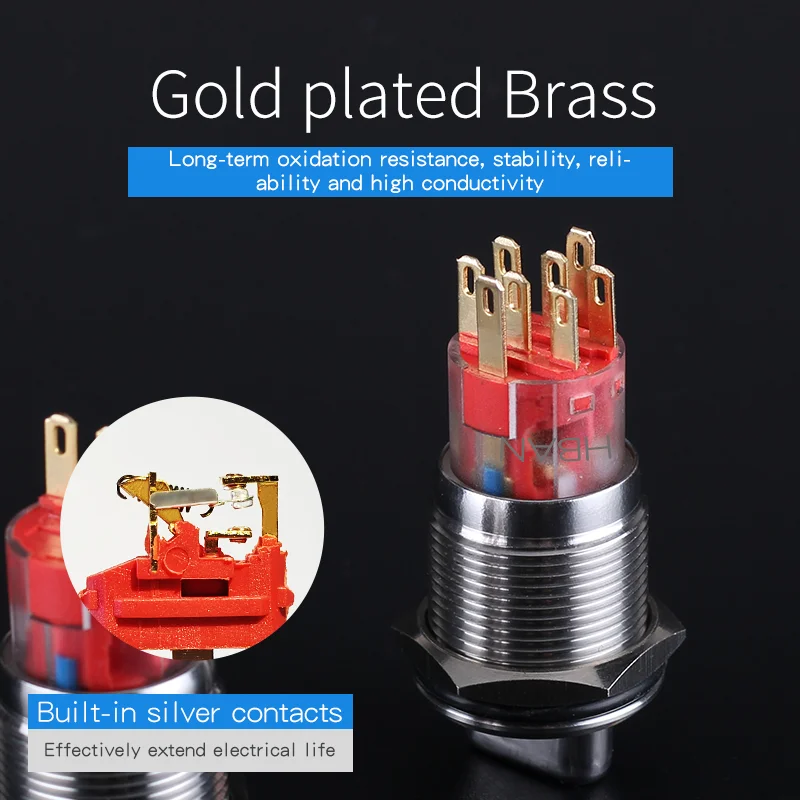

Contact material: | Silver alloy | |
Electrical life : | ≥50,000 times | |
Mechanical life: | ≥1，000,000 times | |
Operation trmperature: | -40℃~+80℃ | |
Contact Resistance: | ≤50mΩ | |
Insulation Resistance: | ≥1000mΩ | |
Operation stroke: | 0.5mm,3mm | |
Company information
Product packaging
We pack 20 pieces diameter 22/25 mm key switches into 1 foam box to protect them.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Foam box packaging
Kraft paper outer box
③
External labeling
④ Packaging complete
1.We ship to worldwide
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
2.Generally,items will be shipped within 3-7 business day on payment received.
3. Delivery time depends on destination and other factors. it may takes up to 3-8
business days.
FAQ
Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
A: Yes , We have product catalog.Please contact us on line or send an Email to hb at hban.cc for send-ing the catalog.
Q: Can you provide samples ?
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
"A: Yes,we can provide samples.
we will collect samples fee(1-3pcs)and you have to pay for the shipping cost.when you place normal order.we will refund the samplefee for you."
Q: What kind of payment do you accept ?
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
"A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can re-ceive the same amount of the Invoice.
Q : What about your delivery time?
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
"A: We have a lot of products in stock.We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.will update to you within 48 hours"
Q : How to ship my order ? Is it safe?
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
A: For small package, we will send it by Express, such as DHL,FedEx,UPS,TNT.That’s a Door to Door service.
For big packages, we will send them by Air or By sea.We will use good packing and ensure the safet-y.We will be responsible to any product damage caused on delivery.
