1024x768 tft lcd panel 15 inch industrial touch screen lcd display module
- Category: Touch Screen Monitors >>>
- Supplier: Hangzhou,Hongxiao,Technology,Co.,Ltd.
Share on:
Product Overview
Description

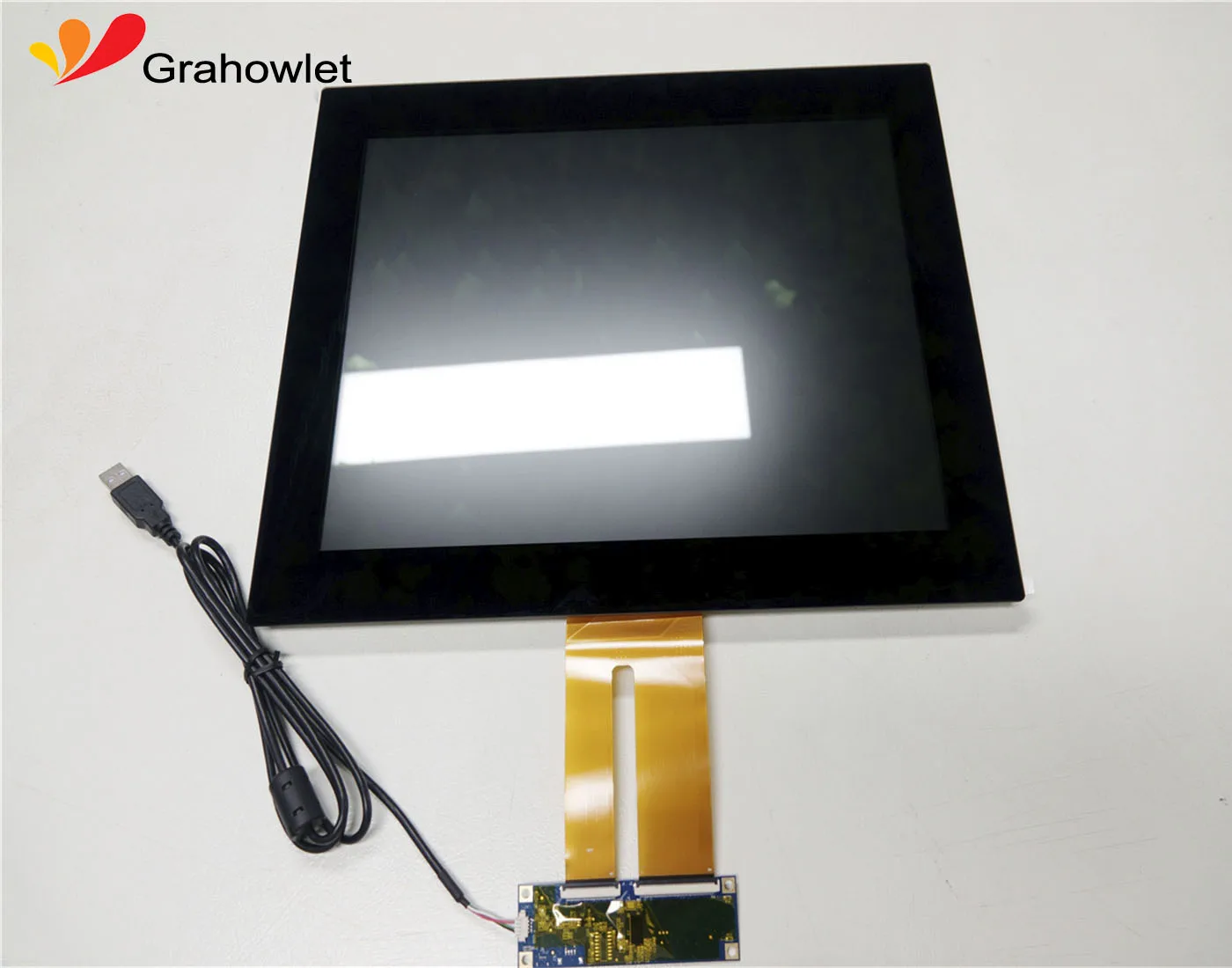

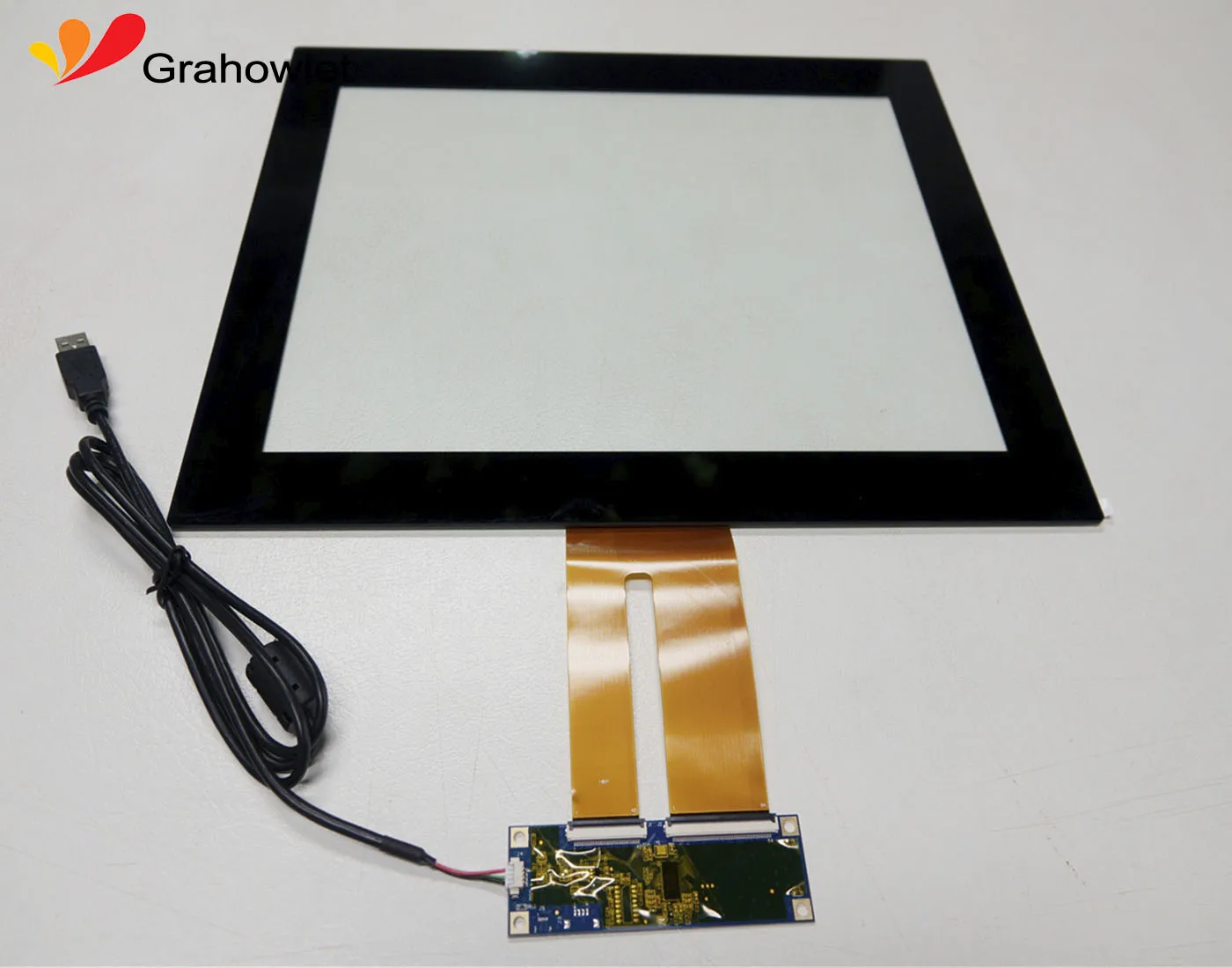

TFT lcd panel 15 inch capacitive touch screen lcd display
Customized Solution

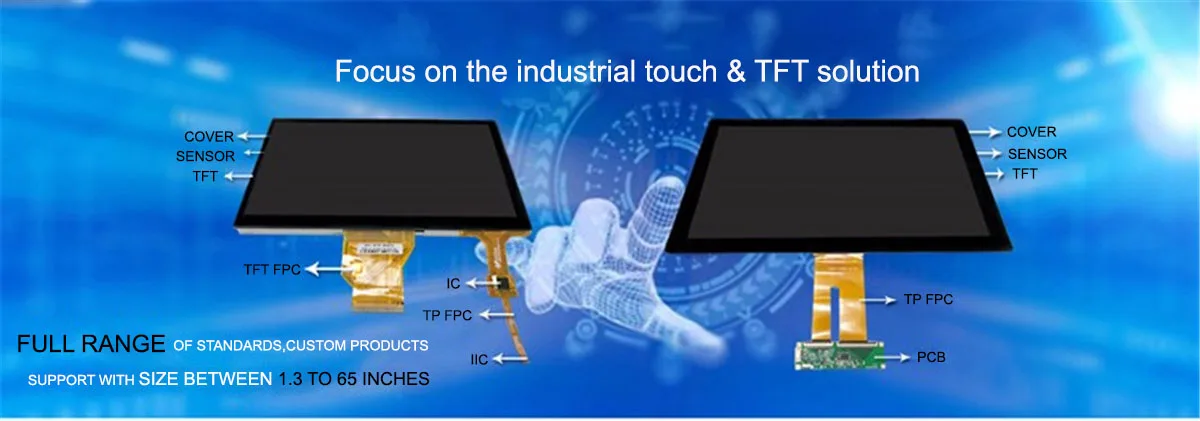

Grahowlet- China P-CAP & TFT Manufacturer
• PCAP size from 1.3”-65”
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
• CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
• PCAP & LCD module size: 1.3”-32”
• Optical Bonding service : 1.3”-21.5”
• HDMI & VGA T-CON Board available
• IIC-USB interface Bridge board available
• CTP can be Customized with cover glass surface treatment process AG(anti-glare), AR(anti-reflective), AF(anti-fingerprint)
• Support touch with 12mm cover glass.
• Support touch with water.
• Support touch with 5mm gloves.
• Custom Highlight TFT (Up to 2300cd/㎡)
• Support operating temperature: -40℃-85℃.
>>>Contact us to get your individual customized solution!!<<<
Products Description
MODULE PRODUCT DETAILS
Model Number:HX1501803
Size:15.0 inch
Operating Temperature:-10℃ ~ 70℃
Outline Dimension:365.00x294.50x15.20mm
Active Area:304.13(W)x228.10(H) mm
Support Systems:Windows/Android/Linux etc.
Warranty:1 year
Size:15.0 inch
Operating Temperature:-10℃ ~ 70℃
Outline Dimension:365.00x294.50x15.20mm
Active Area:304.13(W)x228.10(H) mm
Support Systems:Windows/Android/Linux etc.
Warranty:1 year
Light Transmittance:≥85%
Surface Hardness:≥6H
Interface Type:USB
Controller IC:ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V
Surface Hardness:≥6H
Interface Type:USB
Controller IC:ILITEK
Touch Points:1-10 Points
Power Supply Voltage:5V
TFT(Lcd display)
Resolution:1024x768
Interface Type:LVDS/HDMI/VGA
Luminance:420 cd/m²
Viewing Angle:80/80/80/80
Interface Type:LVDS/HDMI/VGA
Luminance:420 cd/m²
Viewing Angle:80/80/80/80
Related Products

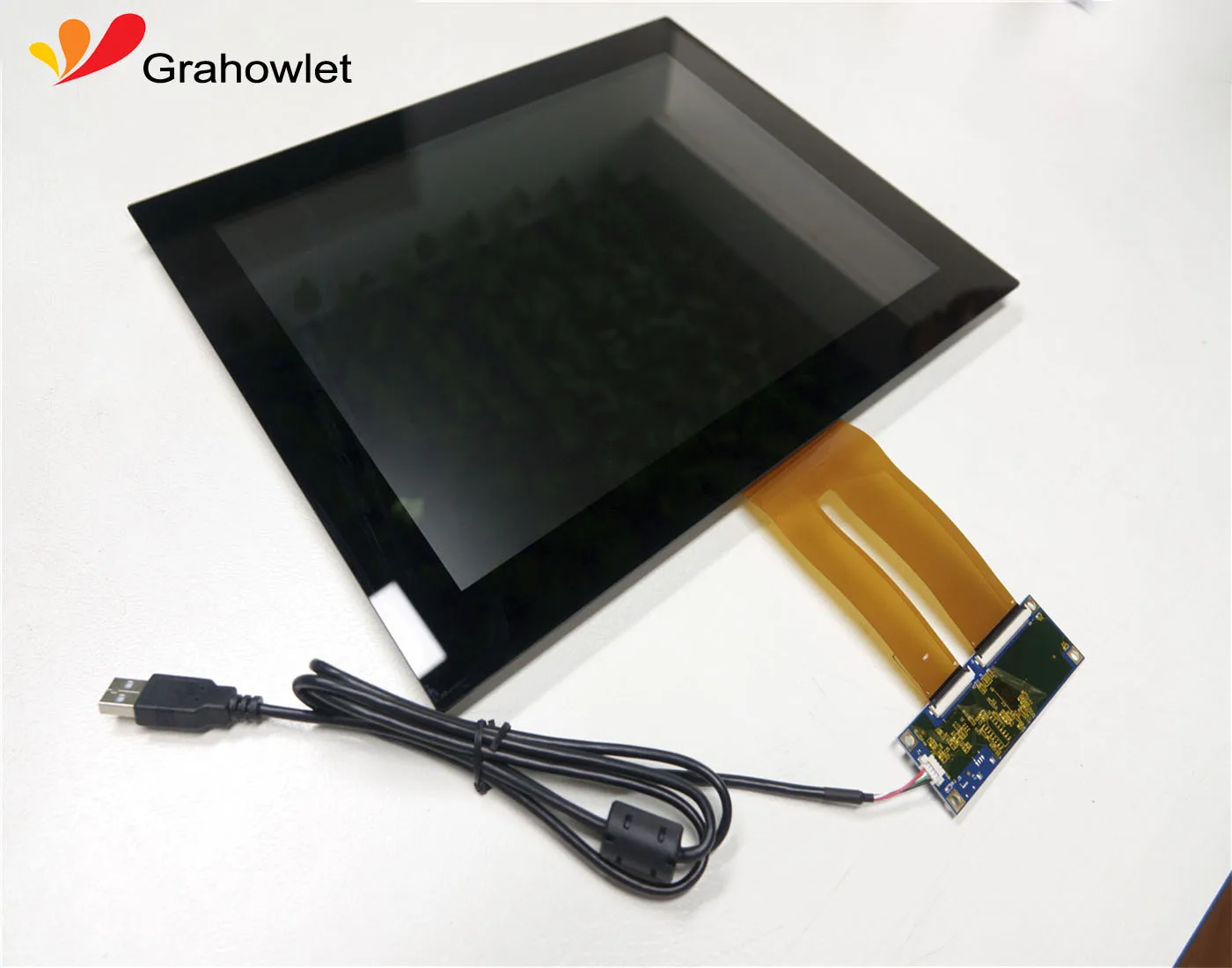

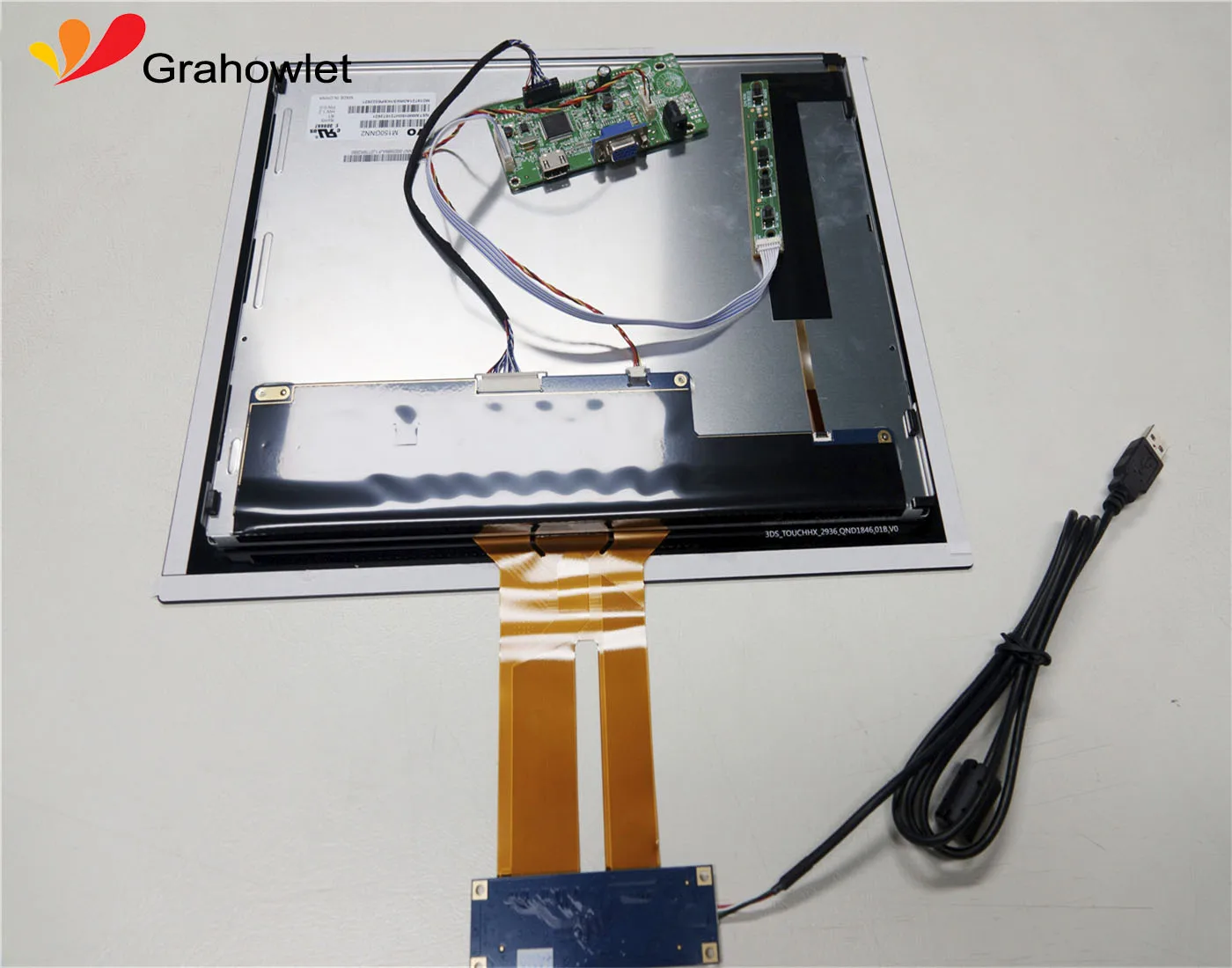

We can provide USB controller and HDMI/VGA driver board.
If you didn't find the suit one, Just tell us your requirements, so i could recommended you more suitable products.Please contact us.

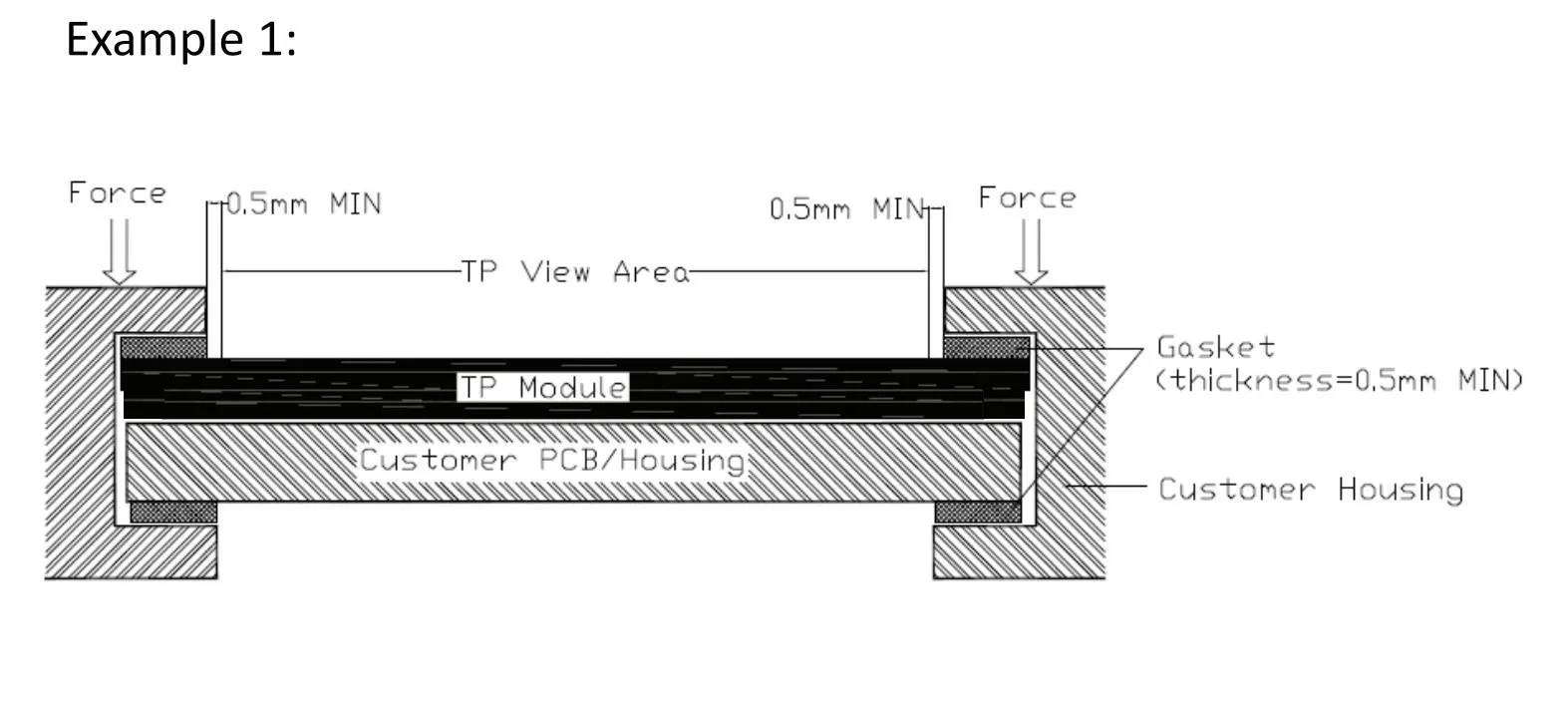

Installation method
Inframe assemble module
Suitable products: The dimension of the touch screen and the display almost reached 1:1.
Flat assemble module
Suitable products:TFT+CTP with boarder (PCAP's OD is greater than TFT's OD)
Application
Industrail Control
Touch Panel solution
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly ..........
1.G+G structure,2.0 thick Corning tempered glass cover with surface AF processed.
2.Cypress program with FPC screened.
3. Convenient for TP and TFT Assembly ..........
Intelligent Household
Touch screen solution
1.G+G Structure, thick tempered glass cover with surface AF processed
2.Cypress or Atmel program with good anti-interfernce......
1.G+G Structure, thick tempered glass cover with surface AF processed
2.Cypress or Atmel program with good anti-interfernce......
Medical Equipment
Touch Panel solution
1.G+G structure,Asahi glass cover with surface AF processed.
2.Cypress, fifth series progarm with good anti-interference performance..........
1.G+G structure,Asahi glass cover with surface AF processed.
2.Cypress, fifth series progarm with good anti-interference performance..........
Outdoor Equipment
Touch screen solution:
Capacitive touch screen glove function and water function, service life, visibility in the sun, impact resistance is generally comcerned, so stable G+G structure is usually recommeded........
Cover Lens
Materials:Glass,PMMA
Shape:Support for specialcut, drillhole (minimum aperture 0.8 mm)Color:Different colors of silkprint and LOGO screen print(UV-proof ink optional)
Brand:Options: AGC,Corning,CG etc.
Thickness:Thickness option: 0.55,
0.7,1.0,1.1,1.8,2.0,3.0,4.0,5.0,6.0mm etc.
0.7,1.0,1.1,1.8,2.0,3.0,4.0,5.0,6.0mm etc.

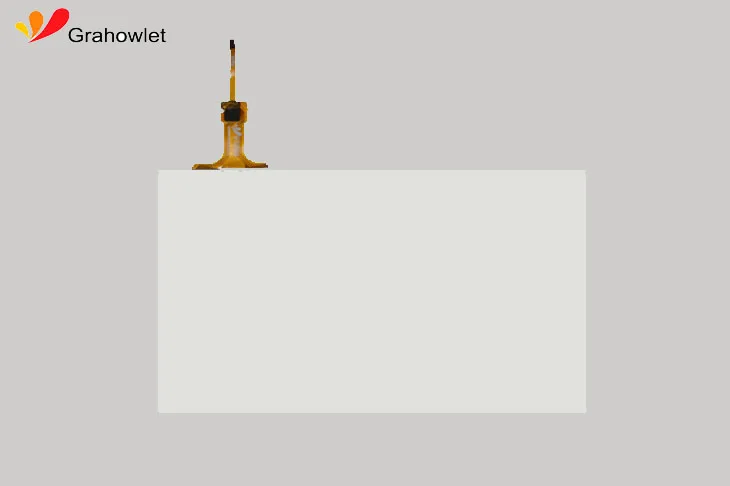

Sensor Features
Materials:Glass,fiilm,film+film
Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm
FPC:shape design optional
IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc
Interface:IIC,USB,RS232
Thickness:0.005mm,0.125mm,0.4mm,0.55mm,0.7mm,1.1mm
FPC:shape design optional
IC:Cypress,Ilitek,Atmel,Focaltech,Goodix,EETI,etc
Interface:IIC,USB,RS232

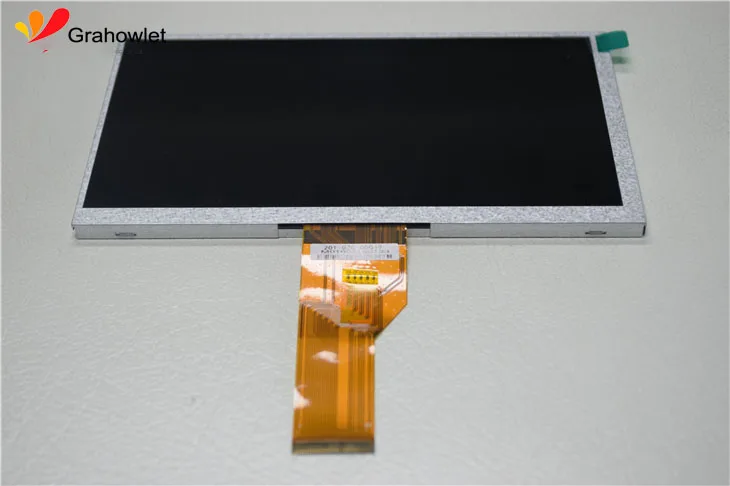

Display
Partners: BOE, AUO, LNNOLux, TianMa, IVO, etc.
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Category: TFT-LCD, OLED
Optical Bonding:OCA,OCR
Interface:MCU,SPI,RGB,MIPI,LVDS,EDP,HDMI,VGA, ect.

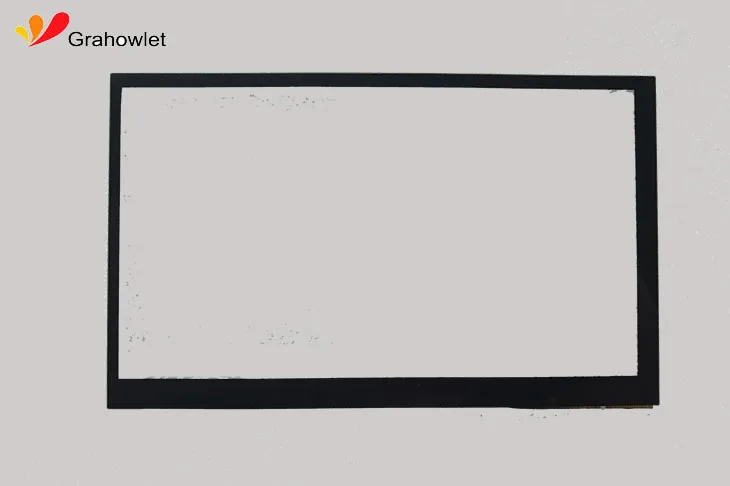

Frame Adhension
Frame Adhension
1.Support Touch with glove of all materials and thickness with 6mm
2.Support Touch with water/brine

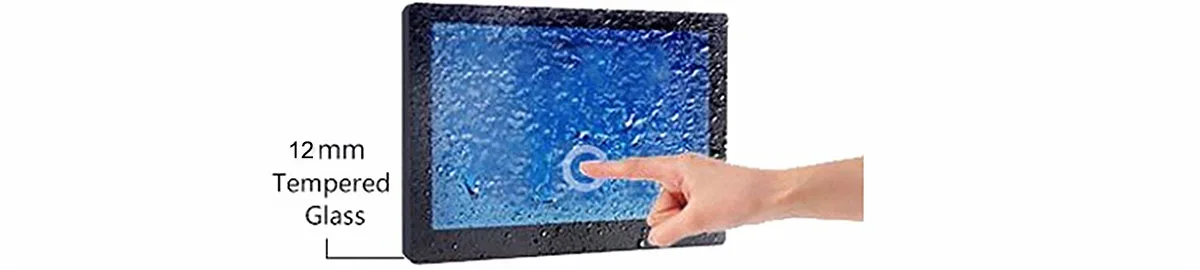

3.Cover glass Support -12mm thickness--explosion-proof
4.Cover glass surface treatment--AG, AR, AF

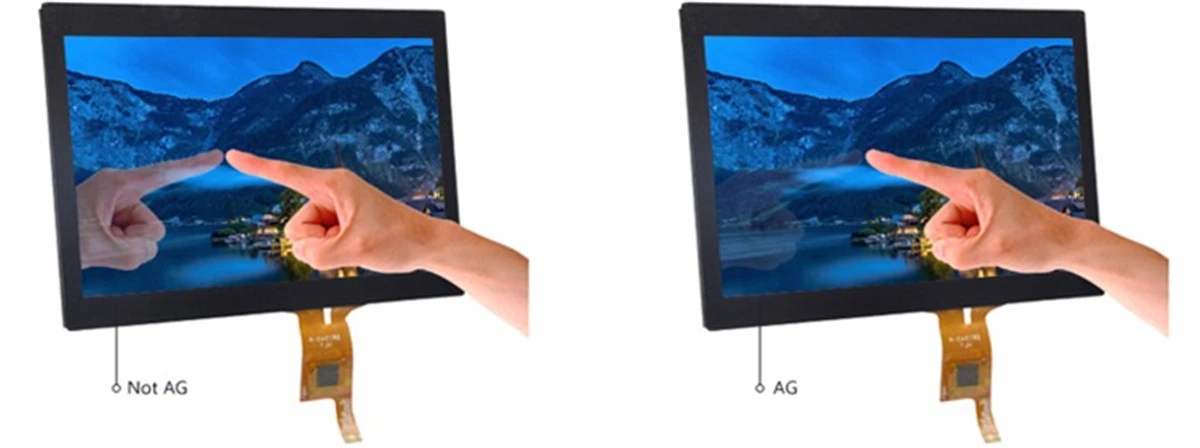

Anti Glare (AG) processing could eliminate screen surface mirror problem through
converting direct light to diffuse light on the touch screen.
AR processing means adding a type of coating that could reduce reflected light on the cover
glass,which dereases screen reflection and increases visual effects
significantly in the sun.

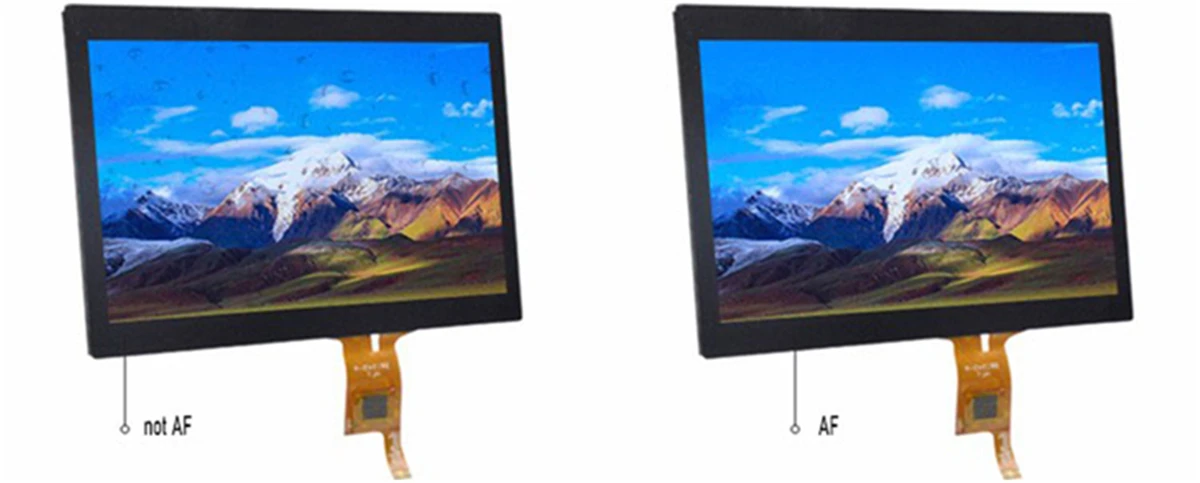

AF processing is adding on the cover glass a king of coating that
could increases surface smoothness, reduces surface sliding resistance , residual water
and fingerprints on the surface significantly and improves feeling and clarity.
Packing & Delivery
FAQ
Q:Can you provide OEM service?
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
A:yes, we can provide both OEM and ODM service,can customize products according to the drawings you supply.
Q: How can I trust your product quality?
A:We have more than 10 years experience in touch screen industry. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by ROHS.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly by our professional and strong technical team.
Q:What is the minimum order?
A:our company mainly deals with wholesale deals,but if you insist buying one set,welcome to take a sample for you check quality and function.
once sample is confirmed, we could allow for a small mount of orders(no quantity limitation) to be put into production and once this is confirmed, MOQ is required.
Q: What can Grahowlet technology do? Can you briefly introduce it?
A: The capacitive screen solution includes: Cypress , Goodix, Focal tech, ATMEL, EETI, ILI, etc. The cover lens, sensor and FPC of the touch can be customized in depth according to the actual needs of customers;
The display solution includes: the current mainstream display glass panel, and we can customize the brightness of the display screen, FPC shape, interface definition, driver IC solution according to the actual needs of customers, etc.
