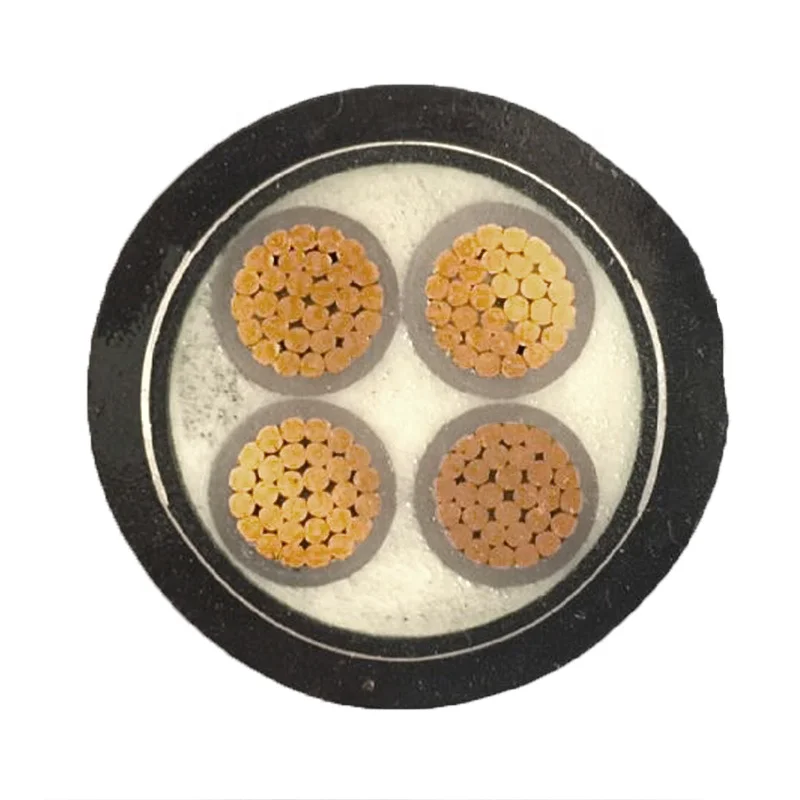

Low Voltage 16mm 4 Core Copper Armoured Power Cable Range Manufacturers Price India

Share on:

Price in USD:Details


Product Overview


Product Description

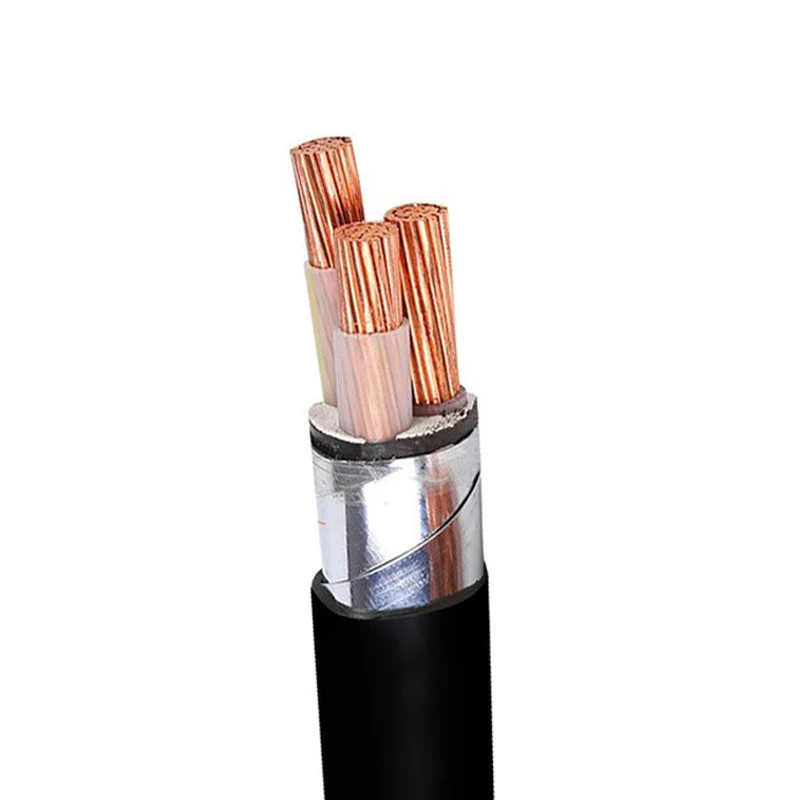

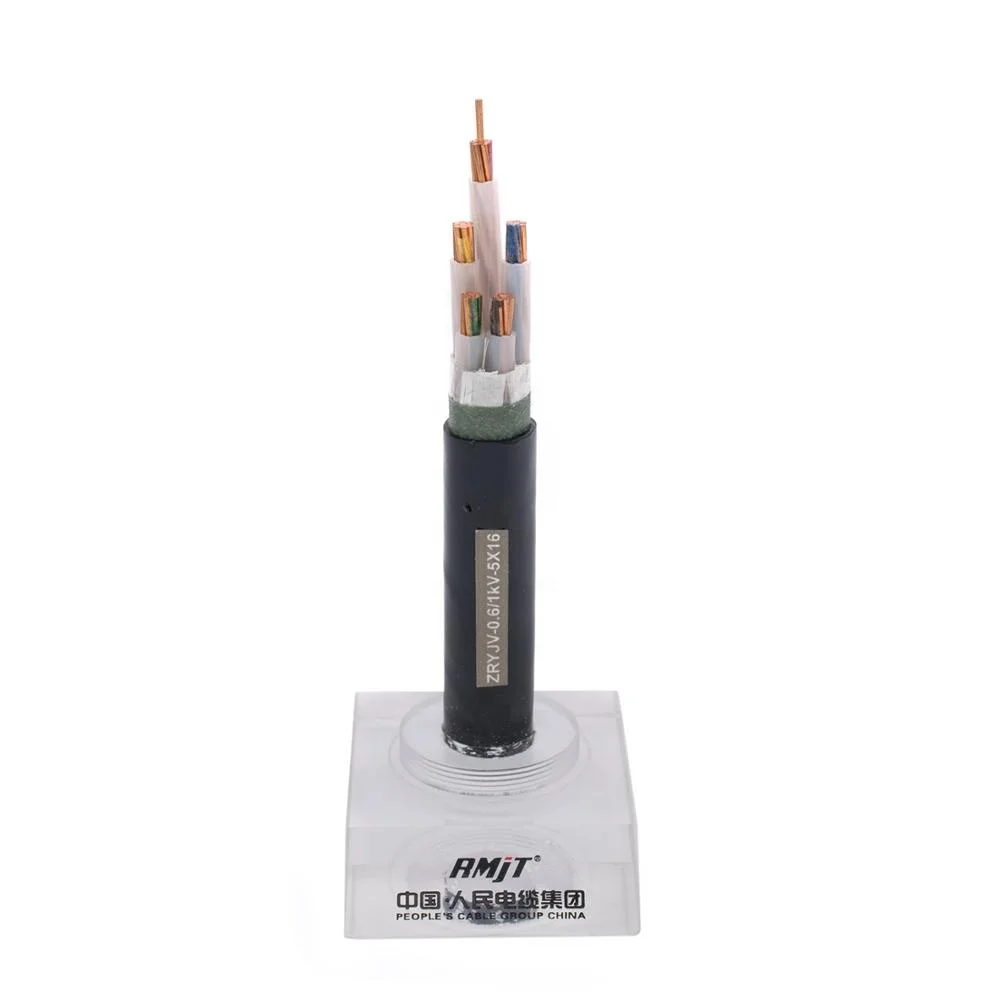

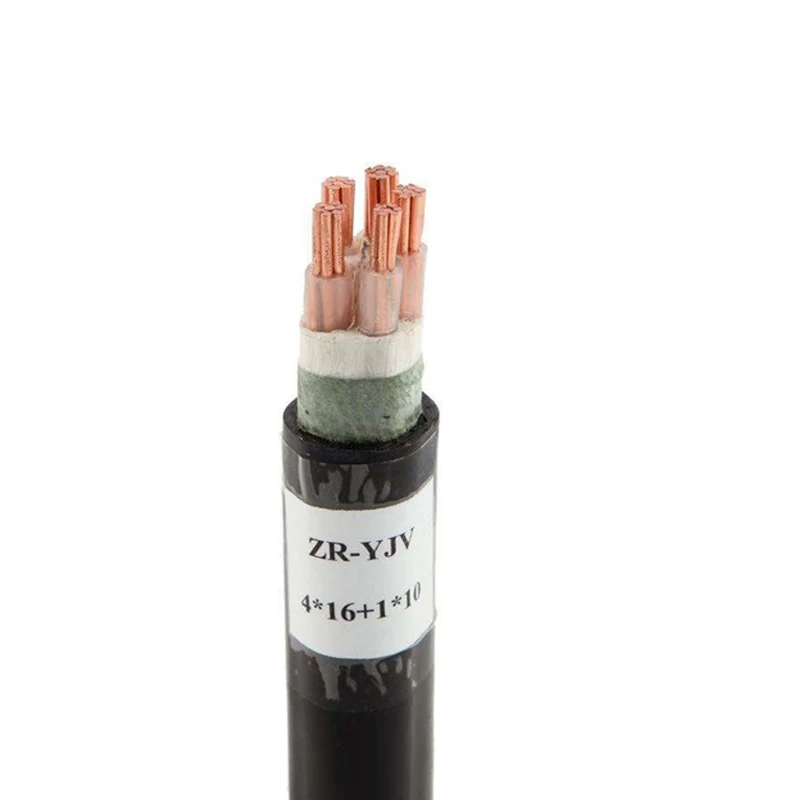

Low Voltage 16mm 4 Core Copper Armoured Power Cable Range Manufacturers Price India

Product Name
Copper core or aluminum core XLPE insulated PVC sheathed power cable

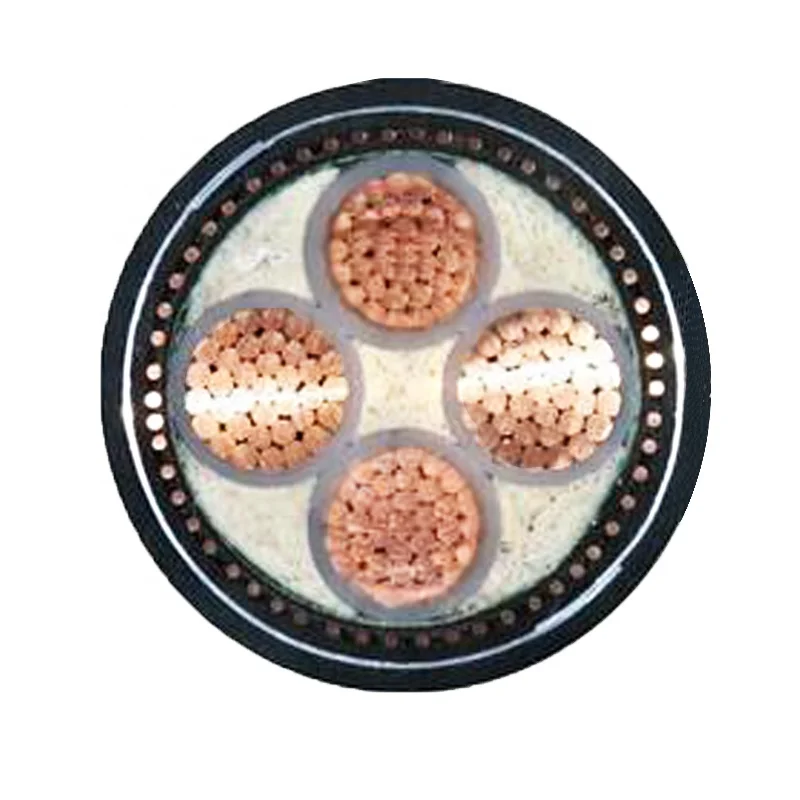

Copper core or aluminum core XLPE insulated steel tape armoured PVC sheathed power cable
Copper core or aluminum core XLPE insulated steel wire armoured PVC sheathed power cable
Rated Voltage
0.6/1kv 1.8/3kv 3.6/6kv 6/10kv 8.7/15kv 12/20kv 21/35kv 26/35kv
Steel tape armored, steel wire armored, Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Number of cores
Single core, 2 cores, 3 cores, 4 cores, 5 cores, 3+1 cores, 3+2 cores, 4+1 cores, etc.
Common size
1mm², 1.5mm², 2.5mm², 4mm², 6mm², 10mm², 16mm², 25mm², 35mm², 50mm², 70mm², 95mm², 120mm², 150mm², 185mm², 240mm², 300mm², 400mm², 500mm², 630mm², 800mm², 1000mm², etc.
Ordinary type, flame-retardant type, fire-resistant type, low-smoke halogen-free type
power distribution engineering, power transmission engineering, electromechanical and hydropower installation engineering, power transmission, power supply installation system, control system, etc.

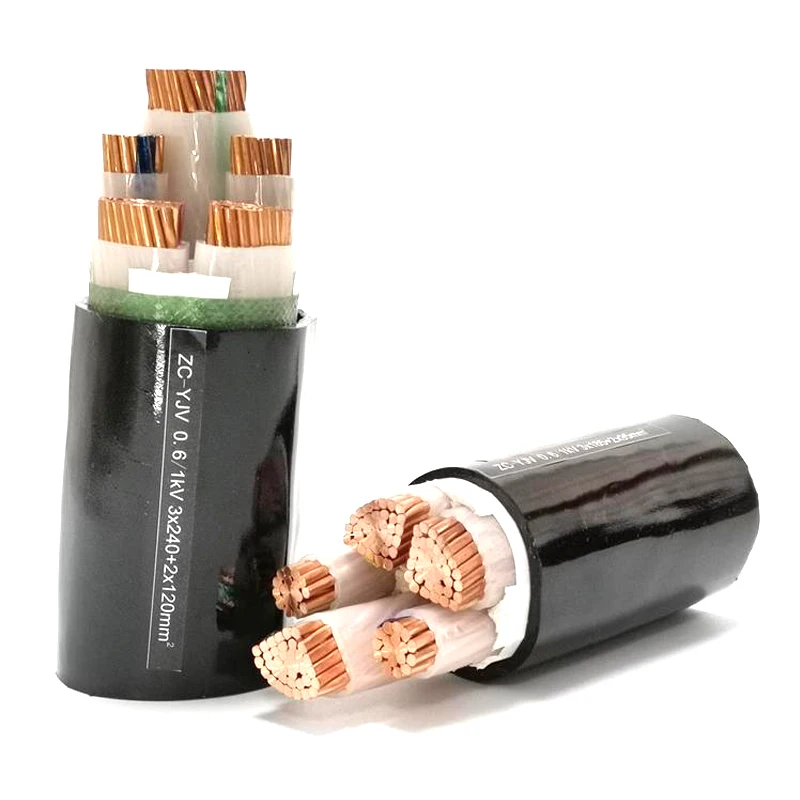

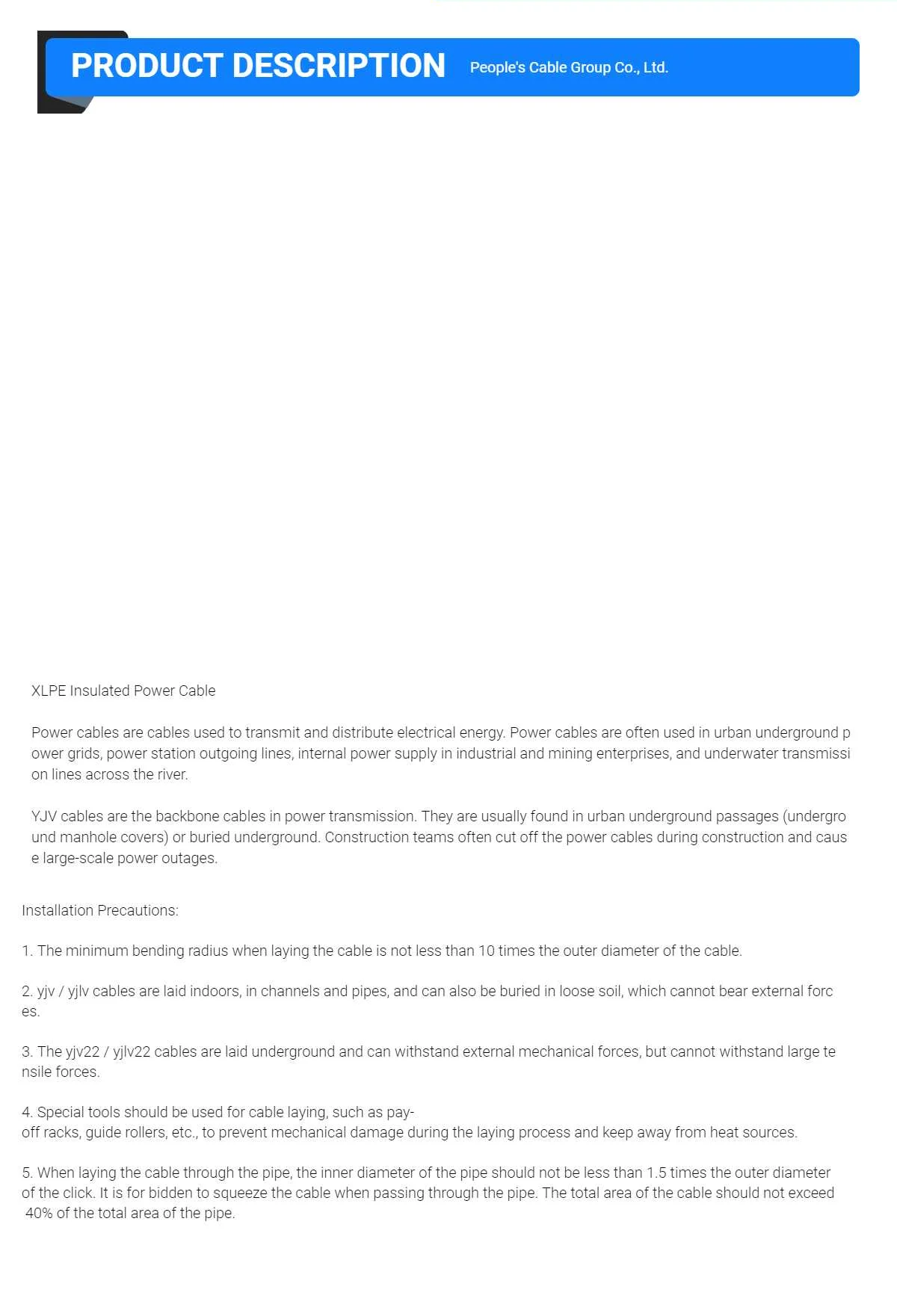

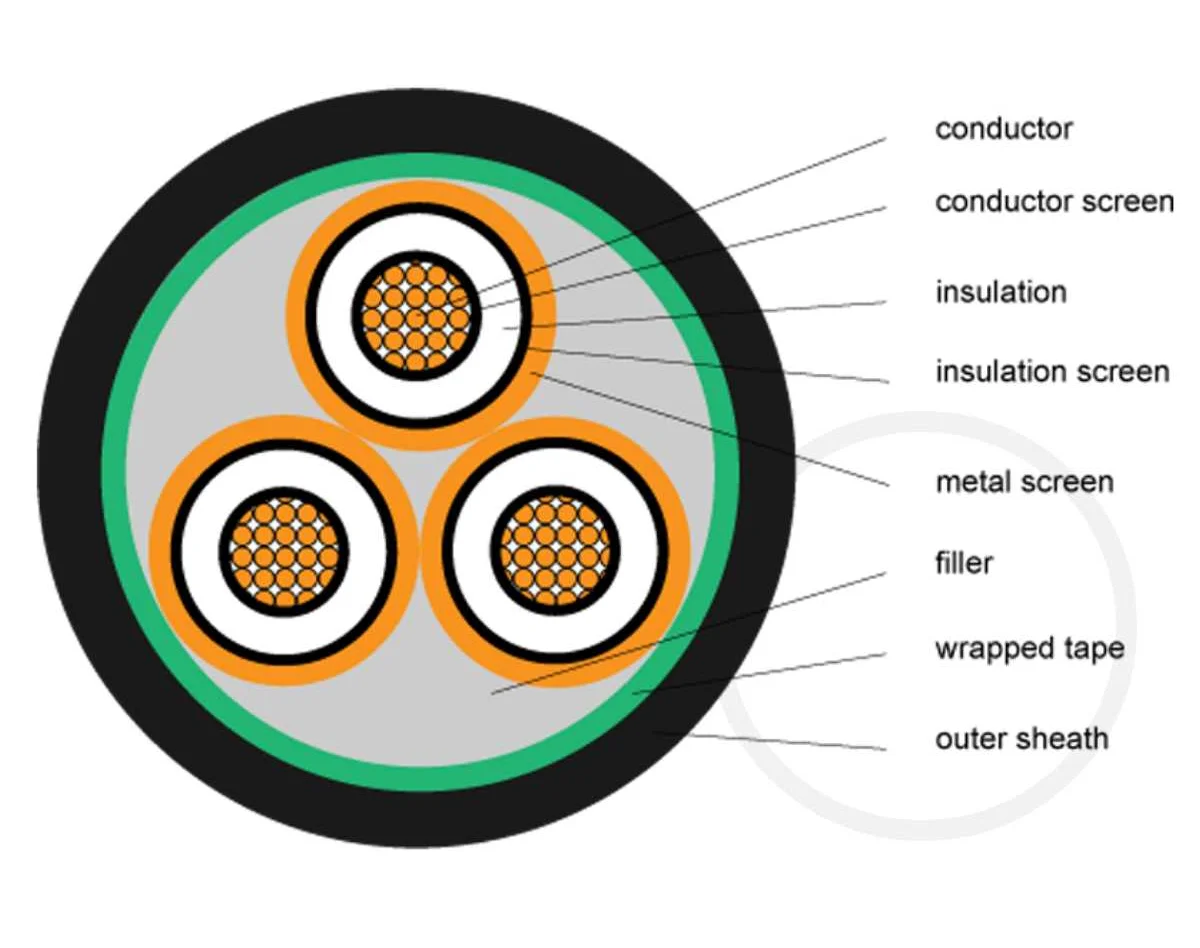

XLPE Insulated Power Cable

Power cables are cables used to transmit and distribute electrical energy. Power cables are often used in urban underground power grids, power station outgoing lines, internal power supply in industrial and mining enterprises, and underwater transmission lines across the river.

YJV cables are the backbone cables in power transmission. They are usually found in urban underground passages (underground manhole covers) or buried underground. Construction teams often cut off the power cables during construction and cause large-scale power outages.

Installation Precautions:

1. The minimum bending radius when laying the cable is not less than 10 times the outer diameter of the cable.

2. yjv / yjlv cables are laid indoors, in channels and pipes, and can also be buried in loose soil, which cannot bear external forces.

3. The yjv22 / yjlv22 cables are laid underground and can withstand external mechanical forces, but cannot withstand large tensile forces.

4. Special tools should be used for cable laying, such as pay-off racks, guide rollers, etc., to prevent mechanical damage during the laying process and keep away from heat sources.

5. When laying the cable through the pipe, the inner diameter of the pipe should not be less than 1.5 times the outer diameter of the click. It is for bidden to squeeze the cable when passing through the pipe. The total area of the cable should not exceed 40% of the total area of the pipe.

Steel wooden drum (fumigation) Cable length in each drum: 500m/1000m or as per actual cable length requirements.

Drum size:
As per cable length and container size
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!

Tianjin, or other ports as per your requirements.

Sea freight:
FOB/C&F/CIF quotation are all available.
*For some countries such as Africa countries, middle east countries, our sea freight quotation is much cheaper than clients get
from local shipping agency.


Q1: When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.
Q2: How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
Q3: How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days.
The samples will be sent to you via express and arrive in 3~5 days.
Q4: What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
