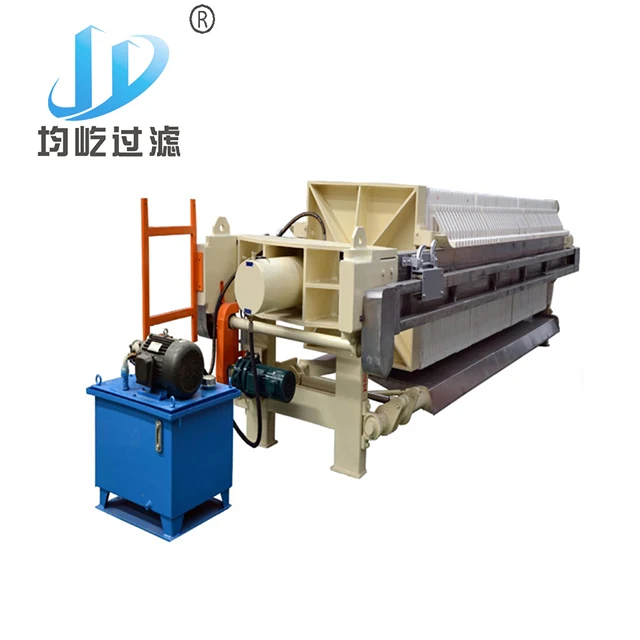

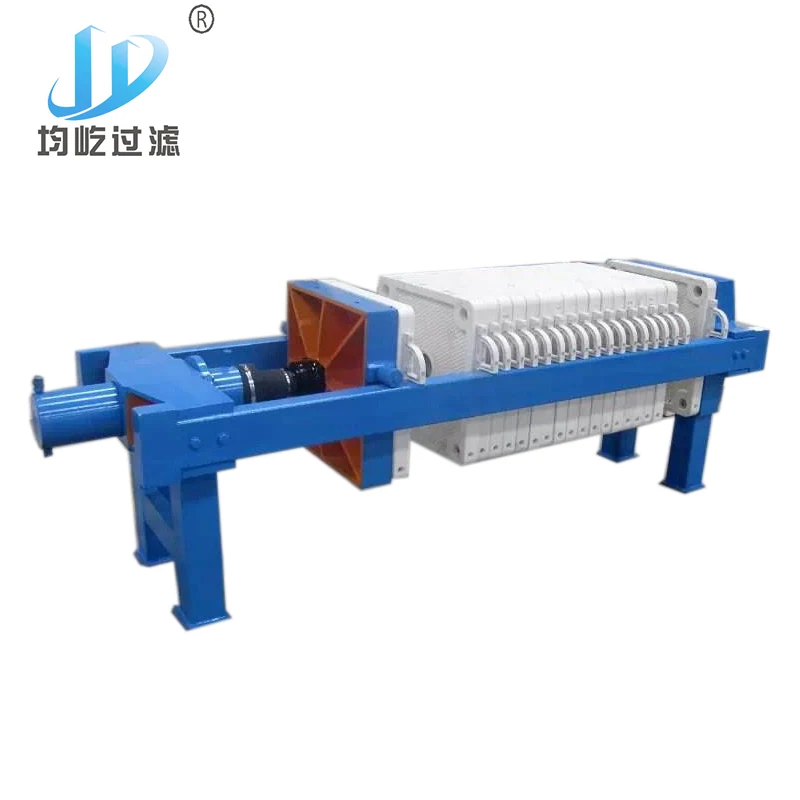

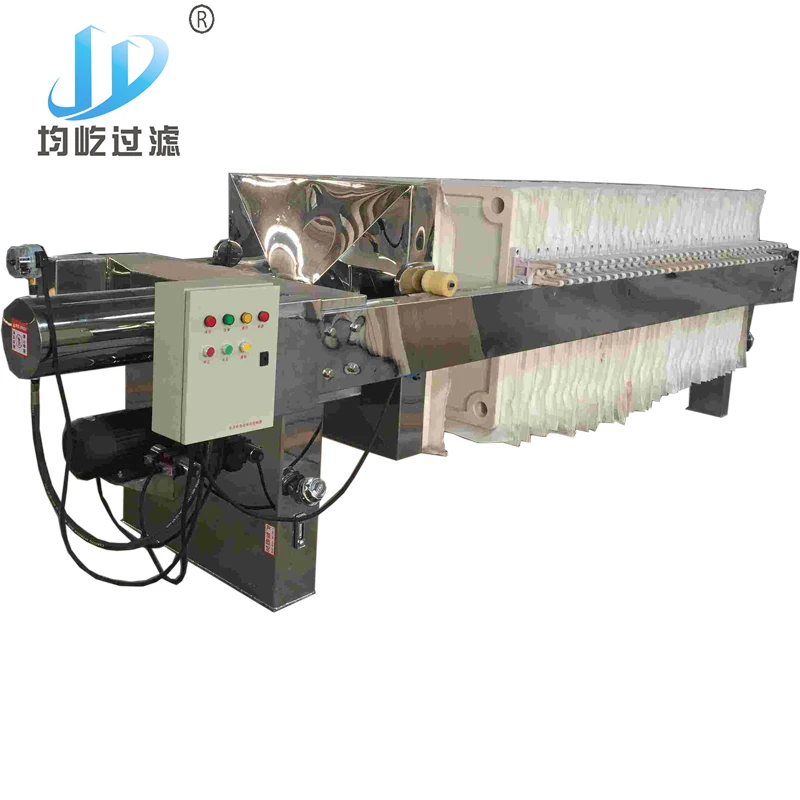

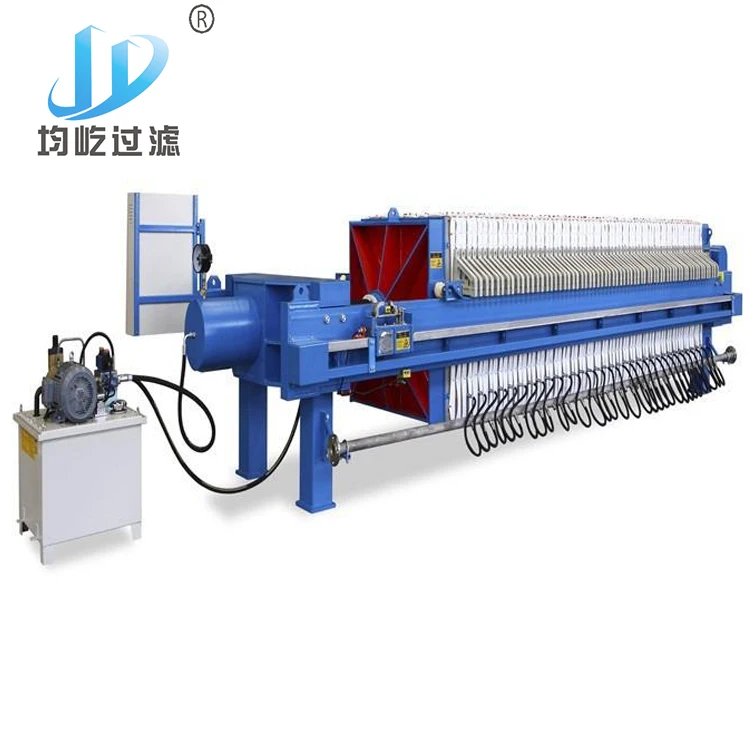

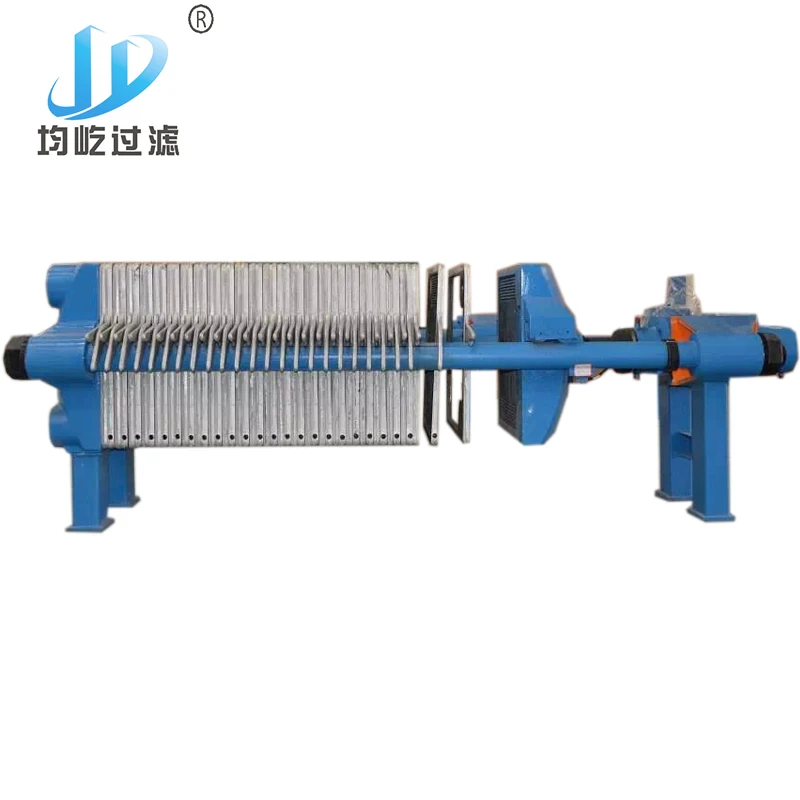

1000*1000 Membrane Filter Press Hydraulic Pressure Automatic Membrane Filter Press Oil Filter Press Machine
- Category: >>>
- Supplier: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Share on (1600451403460):
Product Overview
Description
Product Description
1000*1000 Membrane Filter Press Hydraulic Pressure Automatic Membrane Filter Press Oil Filter Press Machine
Membrane Filter Press(Diaphragm filter press), also known as diaphragm filter press, is a filter press equipped with a layer of elastic film between the filter plate and the filter cloth.
Filtration Process
The process of one batch filtration is:
Pressing -- Feeding material - Filtering -- Discharging cake.
1.Closing of the filter plates: when start the press button on the PLC control cabinet,the moving head plates will be activated by
the hydraulic clamping the plates.
2.Filling: The sludge (or slurry) will be pumped into the chamber one by one. When all chambers are full off filter cake, the
filtration is finished.
3.Filter opening: The moving head is drawn back to disengage the first filtration chamber. The
cake falls will drop from the plates under gravity.
The auto pulling system pulls out the plates one by one.
Pressing -- Feeding material - Filtering -- Discharging cake.
1.Closing of the filter plates: when start the press button on the PLC control cabinet,the moving head plates will be activated by
the hydraulic clamping the plates.
2.Filling: The sludge (or slurry) will be pumped into the chamber one by one. When all chambers are full off filter cake, the
filtration is finished.
3.Filter opening: The moving head is drawn back to disengage the first filtration chamber. The
cake falls will drop from the plates under gravity.
The auto pulling system pulls out the plates one by one.
Specification
Model | Filtration Area (m2) | Size of Filter Plate (mm) | Number of Filter Plate (pcs) | Thickness of Filter Cake (mm) | Filter Press (Mpa) | Power of Motor (Kw) | L | W | H |
XAMYG30/870-30 | 30 | 870 × 870 | 23 | 30 | 0.6/1.0 | 4.0 | 3510 | 1200 | 1300 |
XAMYG40/870-30 | 40 | 29 | 3990 | ||||||
XAMYG50/870-30 | 50 | 37 | 4510 | ||||||
XAMYG60/870-30 | 60 | 45 | 5030 | ||||||
XAMYG80/870-30 | 80 | 61 | 5870 | ||||||
XAMYG50/1000-30 | 50 | 1000 × 1000 | 27 | 30 | 4380 | 1500 | 1400 | ||
XAMYG60/1000-30 | 60 | 33 | 4890 | ||||||
XAMYG70/1000-30 | 80 | 45 | 5660 | ||||||
XAMYG100/1000-30 | 100 | 57 | 6520 | ||||||
XAMYG120/1000-30 | 120 | 69 | 7360 | ||||||
XAMYG100/1250-35 | 100 | 1250 × 1250 | 39 | 35 | 5530 | 1800 | 1600 | ||
XAMYG120/1250-35 | 120 | 47 | 6175 | ||||||
XAMYG150/1250-35 | 150 | 57 | 6926 | ||||||
XAMYG200/1250-35 | 200 | 75 | 8310 | ||||||
XAMYG250/1250-35 | 250 | 93 | 9680 | ||||||
XAMYG200/1500-35 | 200 | 1500 × 1500 | 51 | 35 | 7250 | 2300 | 1850 | ||
XAMYG300/1500-35 | 300 | 75 | 8830 | ||||||
XAMYG350/1500-35 | 350 | 87 | 10230 | ||||||
XAMYG400/1500-35 | 400 | 101 | 11360 | ||||||
XAMYG500/1500-35 | 500 | 125 | 13350 | ||||||
XAMYG600/2000-40 | 600 | 2000 × 2000 | 87 | 40 | 13130 | 3000 | 2600 | ||
XAMYG700/2000-40 | 700 | 101 | 14490 | ||||||
XAMYG800/2000-40 | 800 | 109 | 15870 | ||||||
XAMYG900/2000-40 | 900 | 129 | 17250 | ||||||
XAMYG1000/2000-40 | 1000 | 141 | 18630 |

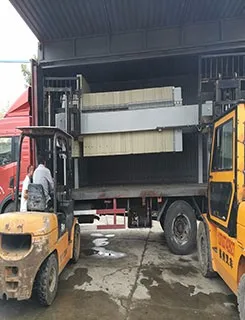

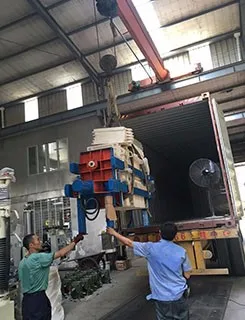

Packing & Delivery
The main frame will be wrapped by the plastic bag.
The spare parts and the electrical parts will be put in a wooden case.
The spare parts and the electrical parts will be put in a wooden case.
Company Profile
Shanghai Junyi Filter Equipment Co., Ltd has been in the bussiness of filter equipment for many years, we have established a comprehensive and effective service system and created an experienced service team.
We not only make the site planning and drawing of the layout and flow chart, but also send our technical personnel to the site to guide the installation and commission for our customers.
Our equipment has been exported to Peru, South Africa, Morocco, Russian and many other countries. For each customer, we build a usage file so that we can make the after-sale service better.
We produce more than 200 different models of the filter. The main products are the Press Filter / Filter / Oil Filter / Filter Bag. These equipments are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
When you choose our Filter Equipment, please tell us which kind of the material, what you will filter. According to the your material testing and the technological requirements in different industries, we can confirm the exact aperture and flow velocity to achieve the desired filtering purposes.
We not only make the site planning and drawing of the layout and flow chart, but also send our technical personnel to the site to guide the installation and commission for our customers.
Our equipment has been exported to Peru, South Africa, Morocco, Russian and many other countries. For each customer, we build a usage file so that we can make the after-sale service better.
We produce more than 200 different models of the filter. The main products are the Press Filter / Filter / Oil Filter / Filter Bag. These equipments are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, medicine, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.
When you choose our Filter Equipment, please tell us which kind of the material, what you will filter. According to the your material testing and the technological requirements in different industries, we can confirm the exact aperture and flow velocity to achieve the desired filtering purposes.
FAQ
1. who are we?
We are based in Shanghai, China, start from 2013,sell to Africa(30.00%),South America(20.00%),Domestic Market(15.00%),Southeast Asia(10.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Mid East(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Chamber Filter Press,Plate and Frame Filter Press,Membrane Filter Press,Filter Plate,Filter Cloth
4. why should you buy from us not from other suppliers?
Shanghai Junyi Filter Plant Co., Ltd has been in the business of filter equipment for many years, we have established a comprehensive and effective service system and created an experienced service team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
We are based in Shanghai, China, start from 2013,sell to Africa(30.00%),South America(20.00%),Domestic Market(15.00%),Southeast Asia(10.00%),Eastern Europe(5.00%),Southern Europe(5.00%),Western Europe(5.00%),Mid East(5.00%),North America(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Chamber Filter Press,Plate and Frame Filter Press,Membrane Filter Press,Filter Plate,Filter Cloth
4. why should you buy from us not from other suppliers?
Shanghai Junyi Filter Plant Co., Ltd has been in the business of filter equipment for many years, we have established a comprehensive and effective service system and created an experienced service team.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
