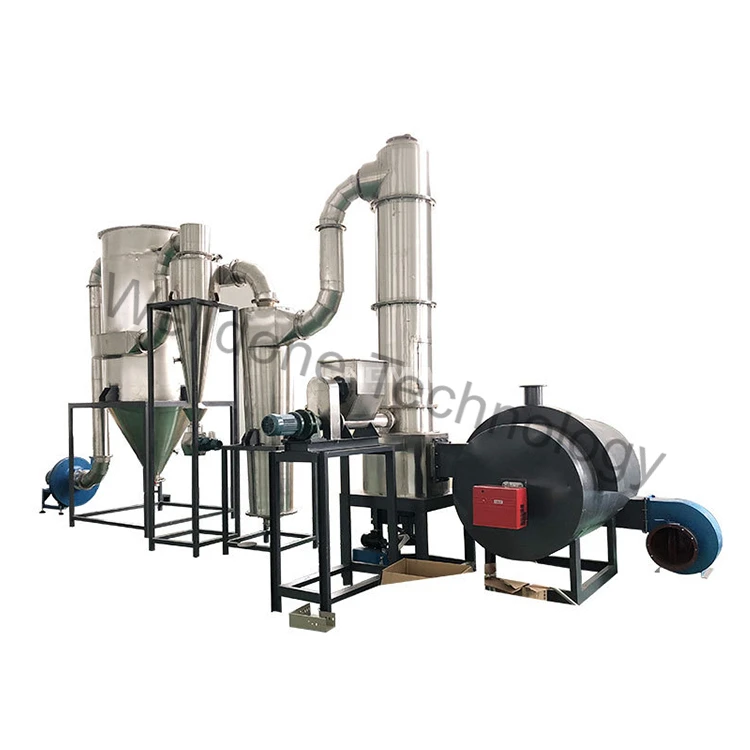

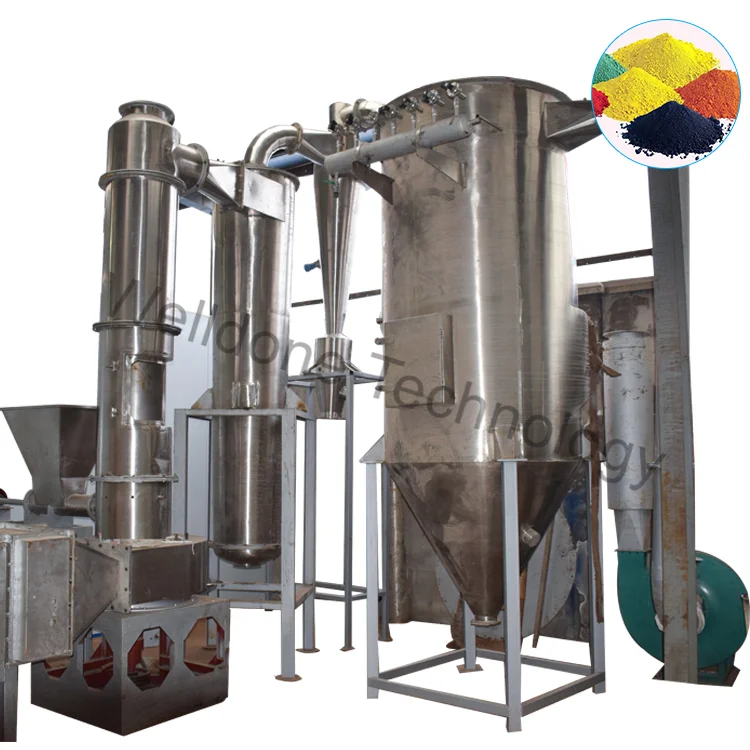

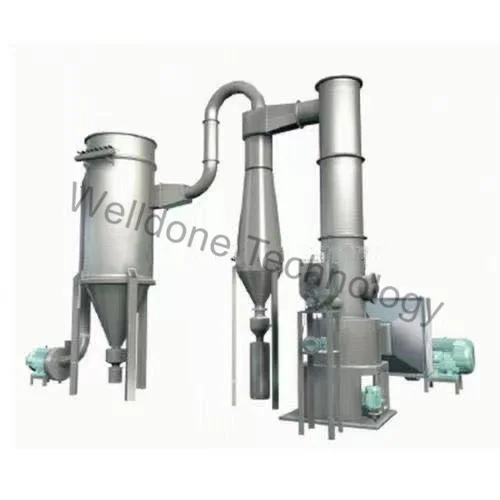

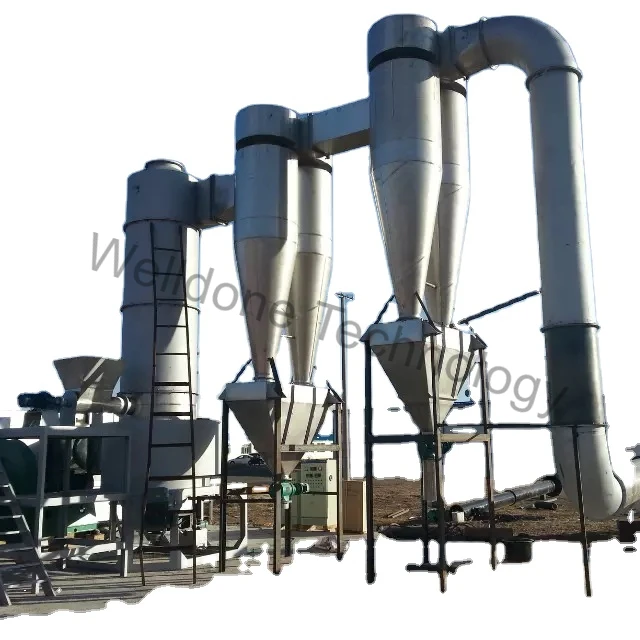

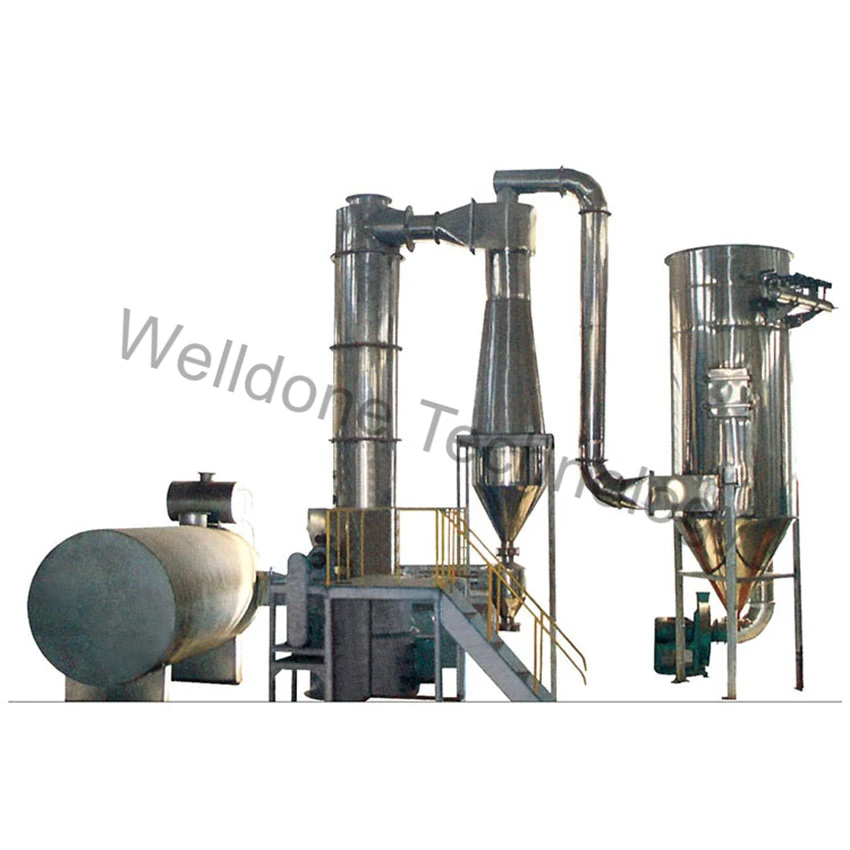

XSZ Automatic Flash Dryer / Spin Flash Dryer / Rotary Flash Dryer
- Category: >>>
- Supplier: Changzhou Welldone Machinery Technology Co. Ltd.
Share on (1600451420133):
Product Overview
Description
Picture of products
Specification
item | value |
Application | Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing |
Condition | New |
Place of Origin | China |
Jiangsu | |
Brand Name | WELLDONE |
Voltage | 220V-480V (TBD) |
Power | 18.5KW-255KW |
Dimension(L*W*H) | D:0.5*3.5m--D:2.1*6.5m |
Key Selling Points | Competitive Price |
Warranty | 2 years |
Weight (KG) | 5500 |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory |
Showroom Location | None |
Marketing Type | Hot Product 2019 |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Bearing, Gear, Motor, Gearbox, PLC |
Evaporation Capacity(kg/h) | 200 |
Heating Method | Gas Heating |
Material | SUS304, SUS316L, Other |
Weight | 250KGS-40000KGS |
Heating Source | Steam/Electric/Gas/Diesel |
Construction Material | CS/ SUS304/SUS316L/Titanium |
Evaporation Capacity | 10L-2500L |
Application | Powder / Granule / Filter Cake |
Drying Temperature | 80-350℃ |
Way to Discharge | Manual/ Pneumatic / Electrical |
Drying Efficiency | 50% |
Way to Control | Touch Screen / Remote / Button |
After-sales Service Provided | Free spare parts |

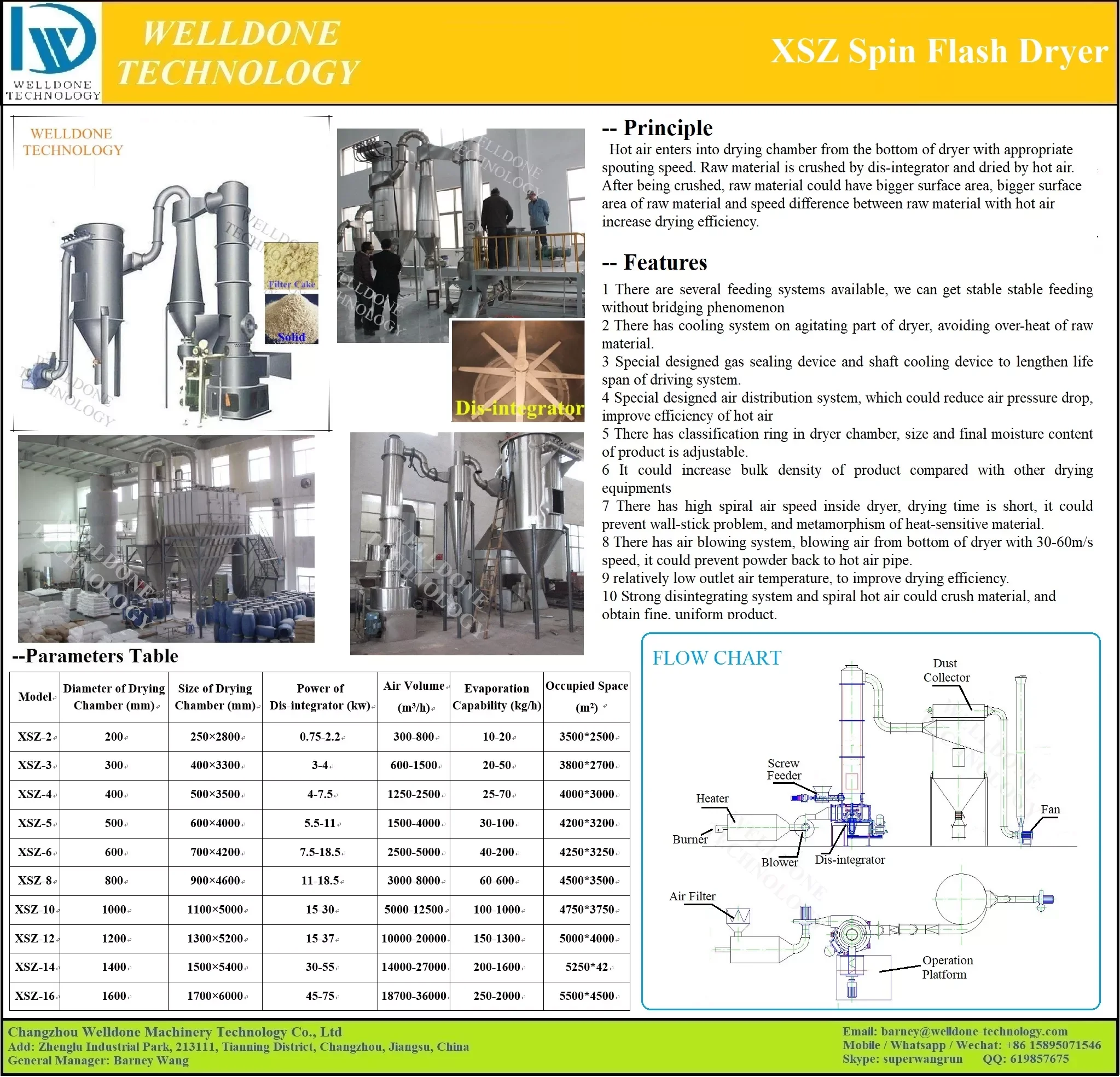

Principle
Hot air enters into drying chamber from the bottom of dryer with appropriate spouting speed. Raw material is crushed by
dis-integrator and dried by hot air. After being crushed, raw material could have bigger surface area, bigger surface area of raw material and speed difference between raw material with hot air increase drying efficiency.
dis-integrator and dried by hot air. After being crushed, raw material could have bigger surface area, bigger surface area of raw material and speed difference between raw material with hot air increase drying efficiency.
Features
1 There are several feeding systems available, we can get stable stable feeding without bridging phenomenon
2 There has cooling system on agitating part of dryer, avoiding over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final moisture content of product is adjustable.
6 It could increase bulk density of product compared with other drying equipments
7 There has high spiral air speed inside dryer, drying time is short, it could prevent wall-stick problem, and metamorphism of heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying efficiency.
10 Strong disintegrating system and spiral hot air could crush material, and obtain fine, uniform product.
2 There has cooling system on agitating part of dryer, avoiding over-heat of raw material.
3 Special designed gas sealing device and shaft cooling device to lengthen life span of driving system.
4 Special designed air distribution system, which could reduce air pressure drop, improve efficiency of hot air
5 There has classification ring in dryer chamber, size and final moisture content of product is adjustable.
6 It could increase bulk density of product compared with other drying equipments
7 There has high spiral air speed inside dryer, drying time is short, it could prevent wall-stick problem, and metamorphism of heat-sensitive material.
8 There has air blowing system, blowing air from bottom of dryer with 30-60m/s speed, it could prevent powder back to hot air pipe.
9 relatively low outlet air temperature, to improve drying efficiency.
10 Strong disintegrating system and spiral hot air could crush material, and obtain fine, uniform product.
Company Profile
Changzhou Welldone Machinery Technology Co., Ltd is a high technical research & package solution integration company founded in 2010, our members have over 20 years manufacturing experiences. We are able to provide various kind of dryers, granulators, extractors, evaporators, boilers, grinders, mixers etc. What's more, through the integration of top industrial intelligence, Welldone Technology is able to provide whole package solutions rather than just single equipment.
We have more than 120 users in over 50 countries!
Welldone Technology is your reliable friend in industrial machinery field!
--Company Vision:
The customer would become friend and family to us
--Company Mission:
Providing better quality, service and feeling to our customers, trying to become researcher of new technology; developer & implementer of exporting standard; integrator of top intelligence & technology in machinery industry
--Company Values:
Obligation; Profession; Progressing; Efficiency; Customer Orientation
We have more than 120 users in over 50 countries!
Welldone Technology is your reliable friend in industrial machinery field!
--Company Vision:
The customer would become friend and family to us
--Company Mission:
Providing better quality, service and feeling to our customers, trying to become researcher of new technology; developer & implementer of exporting standard; integrator of top intelligence & technology in machinery industry
--Company Values:
Obligation; Profession; Progressing; Efficiency; Customer Orientation
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2019,sell to Southeast Asia(30.00%),North America(25.00%),South America(20.00%),Eastern Asia(15.00%),Western Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drying Equipment,Granulating Equipment,Coating Equipment,Dry Granulator,Mixing Equipment
4. why should you buy from us not from other suppliers?
Welldone Technology is founded based on two factories and over 20 years manufacturing & technical research experience. We are able to provide package solution for our client.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2019,sell to Southeast Asia(30.00%),North America(25.00%),South America(20.00%),Eastern Asia(15.00%),Western Europe(10.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Drying Equipment,Granulating Equipment,Coating Equipment,Dry Granulator,Mixing Equipment
4. why should you buy from us not from other suppliers?
Welldone Technology is founded based on two factories and over 20 years manufacturing & technical research experience. We are able to provide package solution for our client.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
