24 x 10/100/1000Mbps Ethernet port plus 4 x 10G fiber SFP L2 L3 gigabit managed network switch

Product Overview

Description



24 x 10/100/1000Mbps Ethernet port plus 4 x 10G fiber SFP+ L2 L3 gigabit managed network switch





 Overview



TS2500-24G-4SFP+ is a L2 Non-traffic Ethernet switch using BCM standard chipset. It’s providing 24 port 10/100/1000Mbps auto negotiation Ethernet ports and 4*10Gb fiber SFP uplink ports, high integration design, small and exquisite, portable, suit for medium and small office and home network. Using store and-forward technology, combined with dynamic memory allocation, ensures allocate to each port effectively. Its wire speed switching that forwards packets can be as fast as the speed that your network delivers those packets to them. This network hub is with sturdy metal housing,Plug and Play,layer 2 managed,fanless,traffic optimization and limited lifetime protection. It's layer 2 managed supplying advanced security strategies and rich layer 2 management features.This JetStream gigabit managed switch is cost-effective for the ideal small and medium business solution.
Its 24* 10/100/1000M RJ45 Ports,4* Integrated 10G SFP Fiber Ports and 1 Console Port, which make it providing enough bandwidth for core data communications and transmission. It can supply strong communication ability with high capacity and support ACL function based on L3-L4. Its comprehensive security control strategy and CPU protect policy helps to improve the fault-tolerant ability, ensure the steady operation and load balancing of Network link. Meanwhile, it supports automatic DoS attack protection, SNMP, IEEE802.1, Spanning tree, Fast spanning tree protocol and link aggregation, and can be applied to small and medium enterprises,Core layer of community and school.



 Main Management Features

1. Excellent Performance
   - 256Gbps Bandwidth
   - Hardware routing, forwarding rate 131Mbps of line speed L3 switching packet
   - Can be deployed in the core of MAN and provide last 1km technology
   - Ethernet/IEEE802.3 data packet size (64 bytes to 1522 bytes)
   - Giant data packet in maximum 9216 bytes
2. Safety and Reliable
   - Provide DNS DDoS Attacks detecting and defending, Defense against deception and viruses
   - Support IEEE802.1x, provide port-based user Authentication, Shield Technology, Security Control Technology and Policy Control List
   - Limit the maximum connected hosts quantity of ports, Ethernet interface for multiple binding, increase the bandwidth and system redundancy
   - Strong ACL, Support L2-L4 data filtering
   - Strategy Control list and flowing monitoring
3. Convenient operation and maintenance
   - Get multiple management through Web, SNMP
   - Support XModem protocol, upgrade the software and Boot Room by TFTP/ZMODEM
   - Support SFP+ and downward compatible XFP
4. Strong flowing and broadcast management
   - Auto-detection and controlling broadcast storm, support IGMP, effectively limit the broadcast message flooding.
   - Half duplex and Full duplex flow control
   - Support Ethernet interface limit rate with 1M step size



 Specifications



Hardware
Model	TS2500-24G-4SFP+

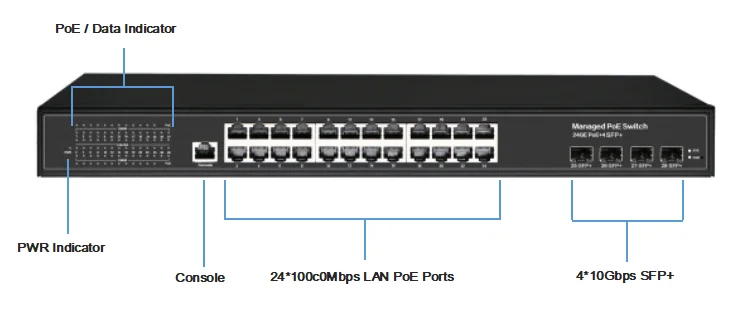

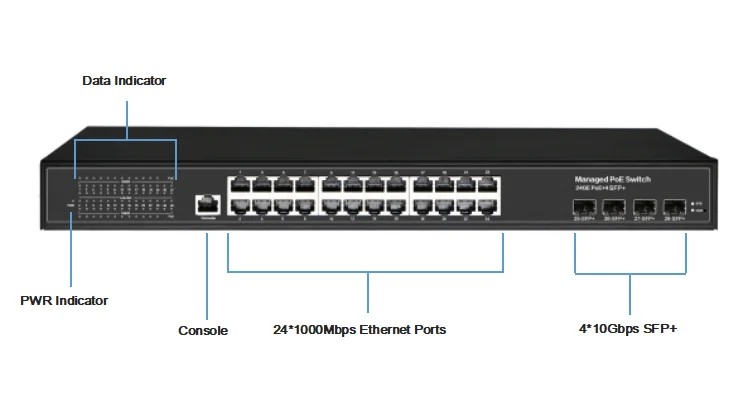

Port	24*10/100/1000Mbps
	4*10Gbps fiber SFP
Management port	1*Console
Reset KEY	1
Bandwidth	256Gbps
Packet forwarding	92.32Mpps
MAC	16K
PoE port	24
Transmission Mode	Store and forward
Environmental	working temperature : 0℃~50℃
	Storage temperature : -40℃~70℃
	Operating humidity : 10%~90% Non coagulation
	Storage humidity : 5%~95% Non coagulation

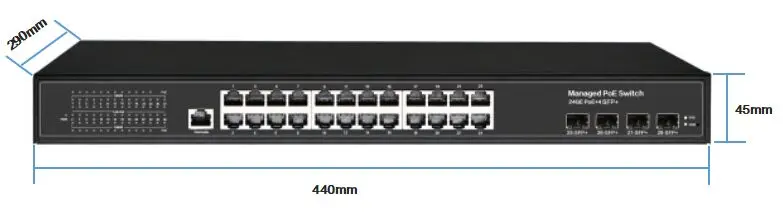

Product size	440(L)*290(W)*45(H)mm
Packing size	497(L)*393(W)*97(H)mm
Weight	5kg
Power in	AC 100~240V 50/60Hz
Lightning	Surge protection: 3KV 8/20us Grade: IP30
Certificate	CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B; RoHS;
Warranty	1 year
