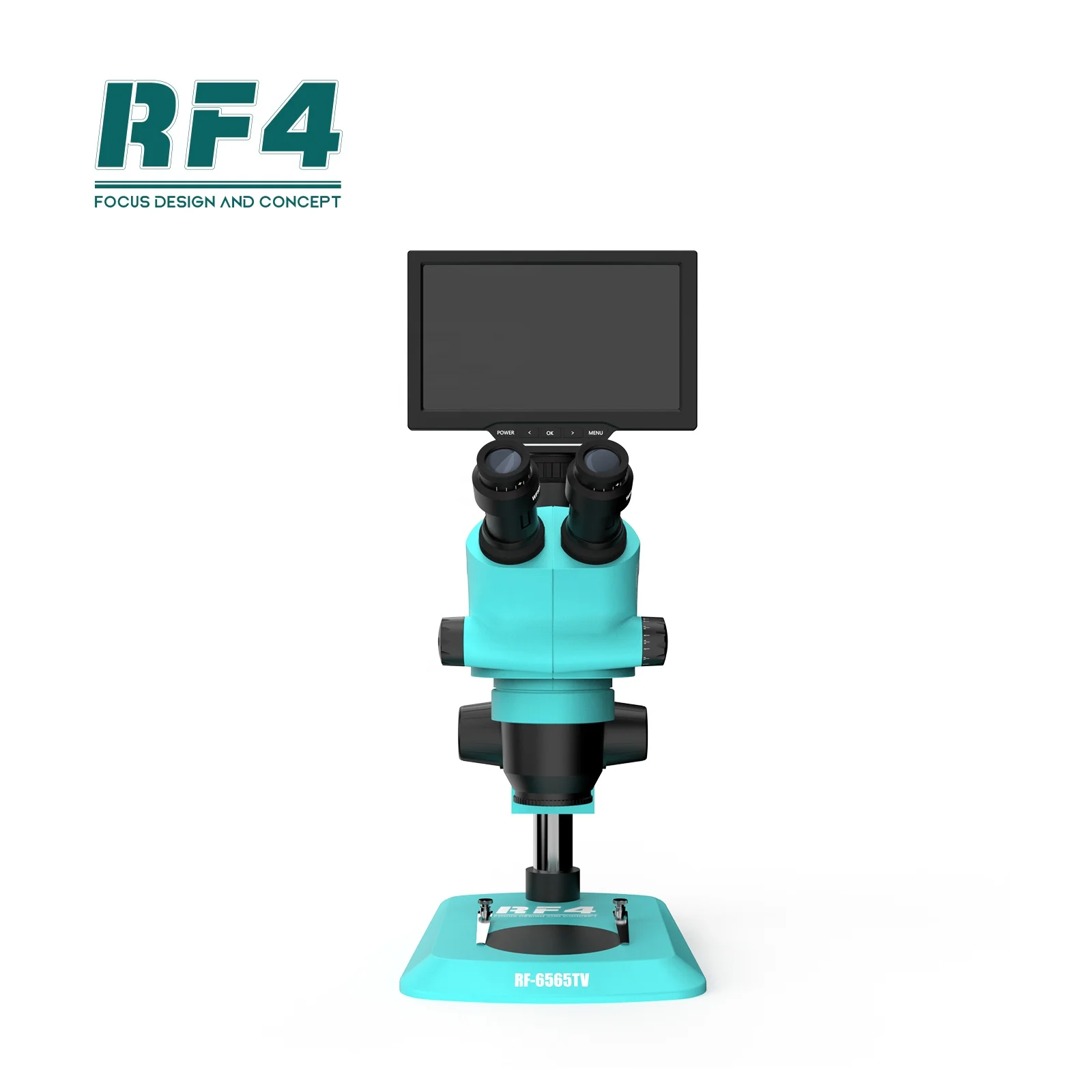

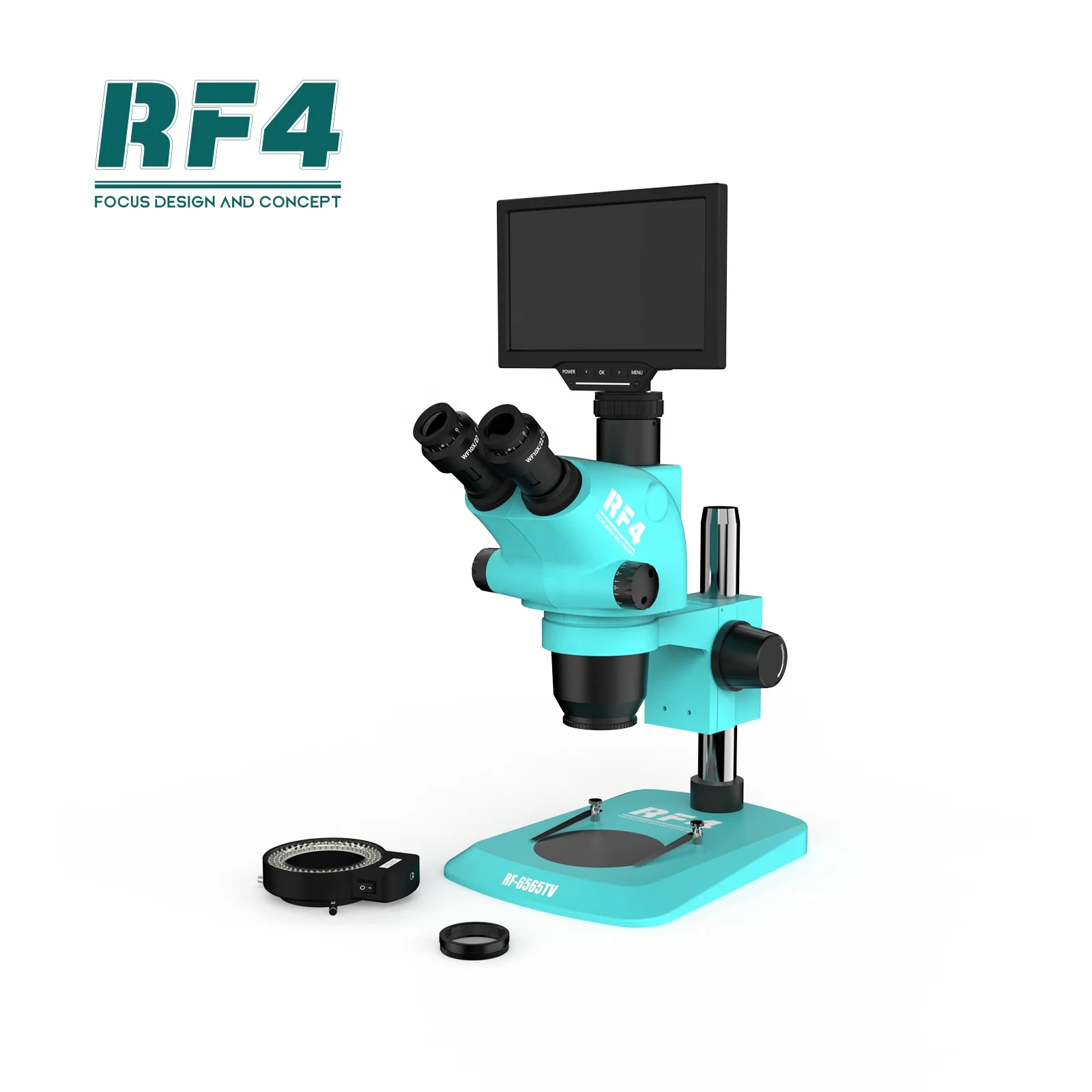

newest RF4 srereo trinocular microscope RF6565TV YS010W with 10 INCH HD wifi camera display monitor
- Category: >>>
- Supplier: Guangzhou KSL Electronic Equipment Co. Ltd.
Share on (1600452032005):
Product Overview
Description
Specification
item | value |
Warranty | 1 year |
Place of Origin | China |
Guangdong | |
Brand Name | RF4 |
Model Number | RF6565TV-YS010W |
Theory | Stereo Microscope |
Drawtube | Trinocular |
Product name | RF4 6.5-65X trinocular microscope with camera monitor 10-INCH |
Magnification | 6.5-65X |
Light source | 144 LED ring light |
Color | green |
Eyepiece | 10X/22 |
Working distance | 110mm |
moniter output | HD/USB |
moniter Pixel | 16mp |
Accessories | 144 LED light/ Dustproof len/ 0.5X ctv |
Application | PCB repair/jewelry/carving |
Product Description
Magnification:continuous zoom 6.5X to 65X
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.65-6.5X
Camera connector：0.5x ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Boom Stand: 280mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate

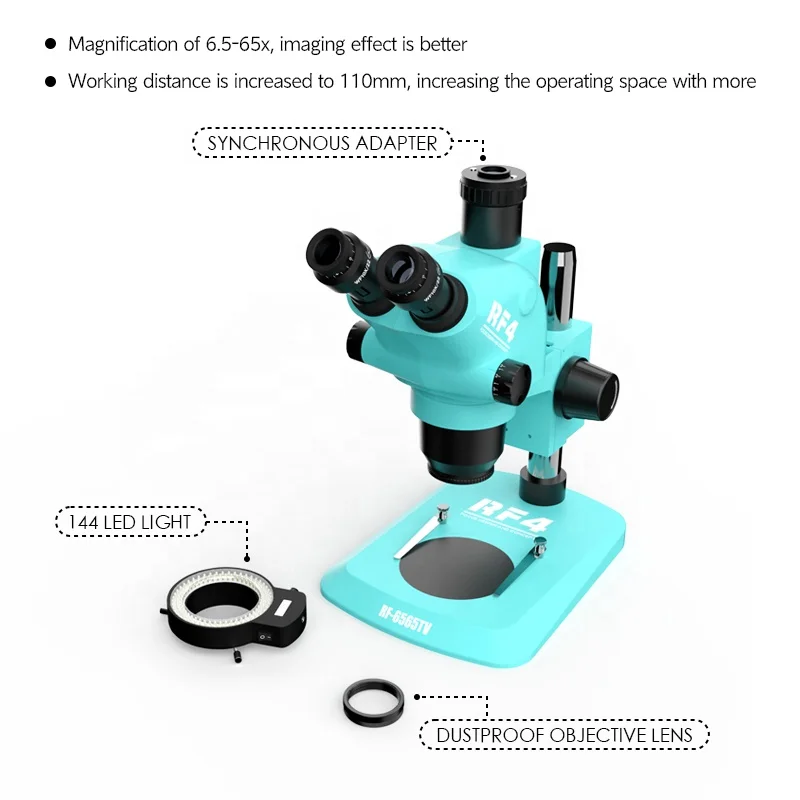

Accessories: 144 adjustable led light & dust proof Lens
Head: 45-degree inclined 360-degree swiveling trinocular
Eyepiece: WF10X/22MM
Barlow Lens: 0.5X & 0.7&2.0X(optional)
Objective: 0.65-6.5X
Camera connector：0.5x ctv
Monitor and eyepiece. Synchronous zoom
Camera:Different models optional
Boom Stand: 280mm φ32mm pillar, 200mm*255mm base with White/Black Round Plastic Plate
Accessories: 144 adjustable led light & dust proof Lens
Eyepiece | （Standard Configuration） | Auxiliary Observation | ||||||||
0.5X | 2X | |||||||||
Working Distance | Working Distance | Working Distance | ||||||||
Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | |||||
10X/22 Standard Configuration | 6.5X-65X | 3.38-33.8mm | 3.25X-32.5X | 6.77-67.7mm | 13X-130X | 1.69-16.9mm | ||||
20X/10 | 13X-130X | 0.77-7.7mm | 6.5X-65X | 1.54-15.4mm | 26X-260X | 0.38-3.8mm | ||||
30X/12 | 19.5-195X | 0.61-6.1mm | 9.75-97.5X | 1.23-12.3mm | 39-390X | 0.31-3.1mm | ||||
LED ring light | instructions |
Input | AC 100-240V , 50/60Hz |
Output | DC 12V , max 700mA |
Max output | 4.5W-6W |
Plug | EU/US |
LED | 144 LEDs |
Illumination | Over 30000-35000Lux |
Color Temperature | 6000-7000K |
Light color | White |
Inside diameter | 60mm |
Package | 144-LED Lamp Ring Power Adapter (Default EU Plug) |

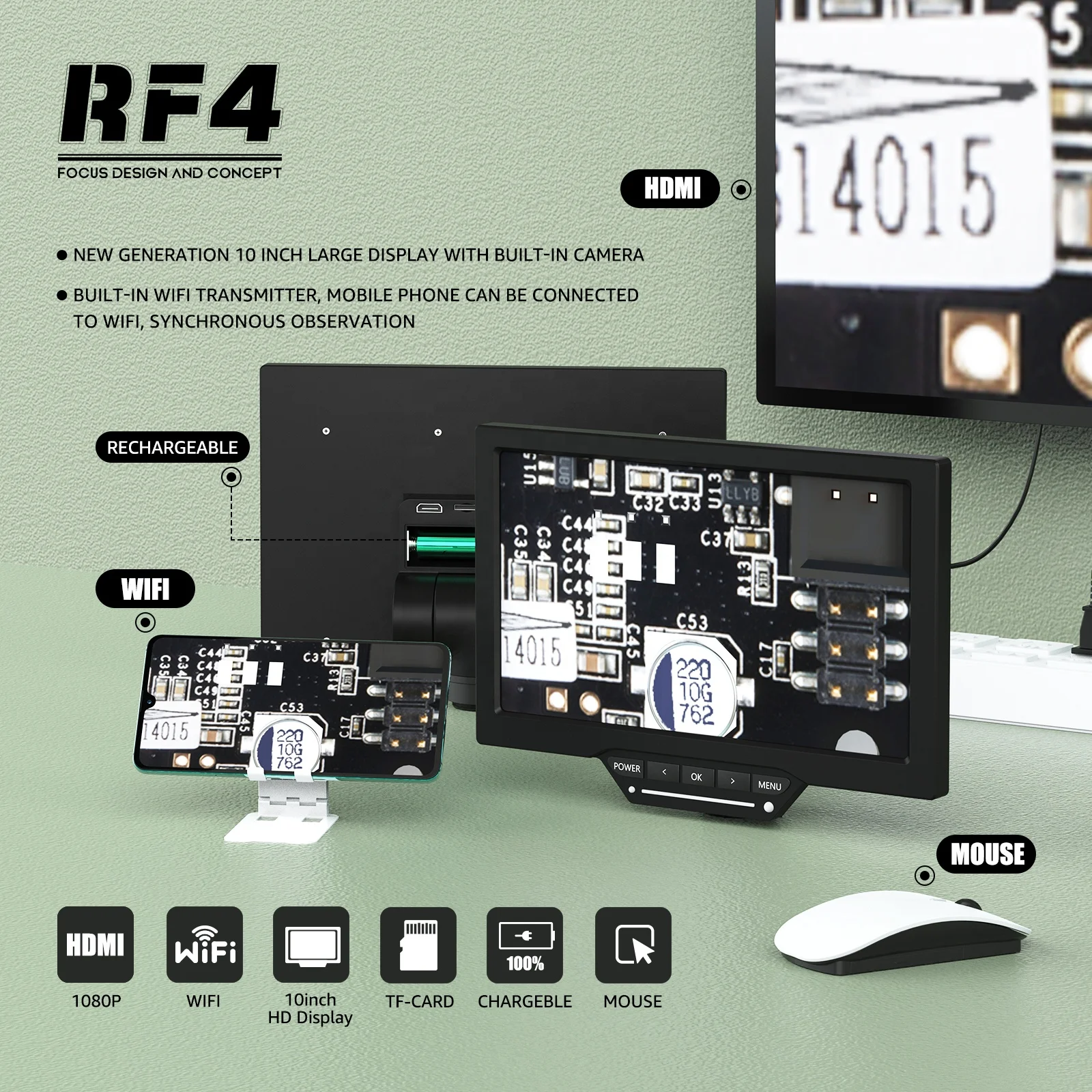

Screen size: 10 inches
Screen resolution: 1024x600
Image Sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Photo Resolution: 2688x1512, 5376*3024 (Interpolation)
video resolution: 1080P30 (clear), 720P60 (smooth)
HDMI resolution: 720P60
USB resolution: 1080P20
WiFi output:720x360@30fps,support Android and iOS (optional)
Exposure control: AE lock, exposure compensation (adjustable at ten levels)
White Balance:Automatic, manual (R, G, B ten level adjustable), one key
Image control: Contrast, saturation, sharpness ten level adjustment
Compared with the screen: full screen, left and right, up and down, 1/4
grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, Angle (optional)
Language: English, Simplified Chinese,Traditional Chinese
Fill light: touch type stepless regulation
Mouse interface: USB-A, recommended to use the original mouse (optional)
Infrared remote control: maximum 5 meters
WiFi distance: up to 10 meters (optional)
HDMI interface: Type-A
USB interface: Type-C USB2.0
Extended storage: supports up to 32G TF card
Working distance: 1cm~5m
Body size: 175mm (L) x 129mm (W) x 51mm (H)
Body weight: 320g (including battery) / 270g (excluding battery)
Screen resolution: 1024x600
Image Sensor: 1/3 inch (BSI)
Pixel size: 2um x 2um
Photo Resolution: 2688x1512, 5376*3024 (Interpolation)
video resolution: 1080P30 (clear), 720P60 (smooth)
HDMI resolution: 720P60
USB resolution: 1080P20
WiFi output:720x360@30fps,support Android and iOS (optional)
Exposure control: AE lock, exposure compensation (adjustable at ten levels)
White Balance:Automatic, manual (R, G, B ten level adjustable), one key
Image control: Contrast, saturation, sharpness ten level adjustment
Compared with the screen: full screen, left and right, up and down, 1/4
grid: 8 groups, position, color, thickness adjustable
Measurement: point, line, circle, Angle (optional)
Language: English, Simplified Chinese,Traditional Chinese
Fill light: touch type stepless regulation
Mouse interface: USB-A, recommended to use the original mouse (optional)
Infrared remote control: maximum 5 meters
WiFi distance: up to 10 meters (optional)
HDMI interface: Type-A
USB interface: Type-C USB2.0
Extended storage: supports up to 32G TF card
Working distance: 1cm~5m
Body size: 175mm (L) x 129mm (W) x 51mm (H)
Body weight: 320g (including battery) / 270g (excluding battery)
Packing & Delivery
Packing Detail:carton within foam inside or wooden box;
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
Shipping: 2~3 day after confirm payment;
3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc;
We can arrange shipment by sea. Minium CBM requirement : 1 CBM.
