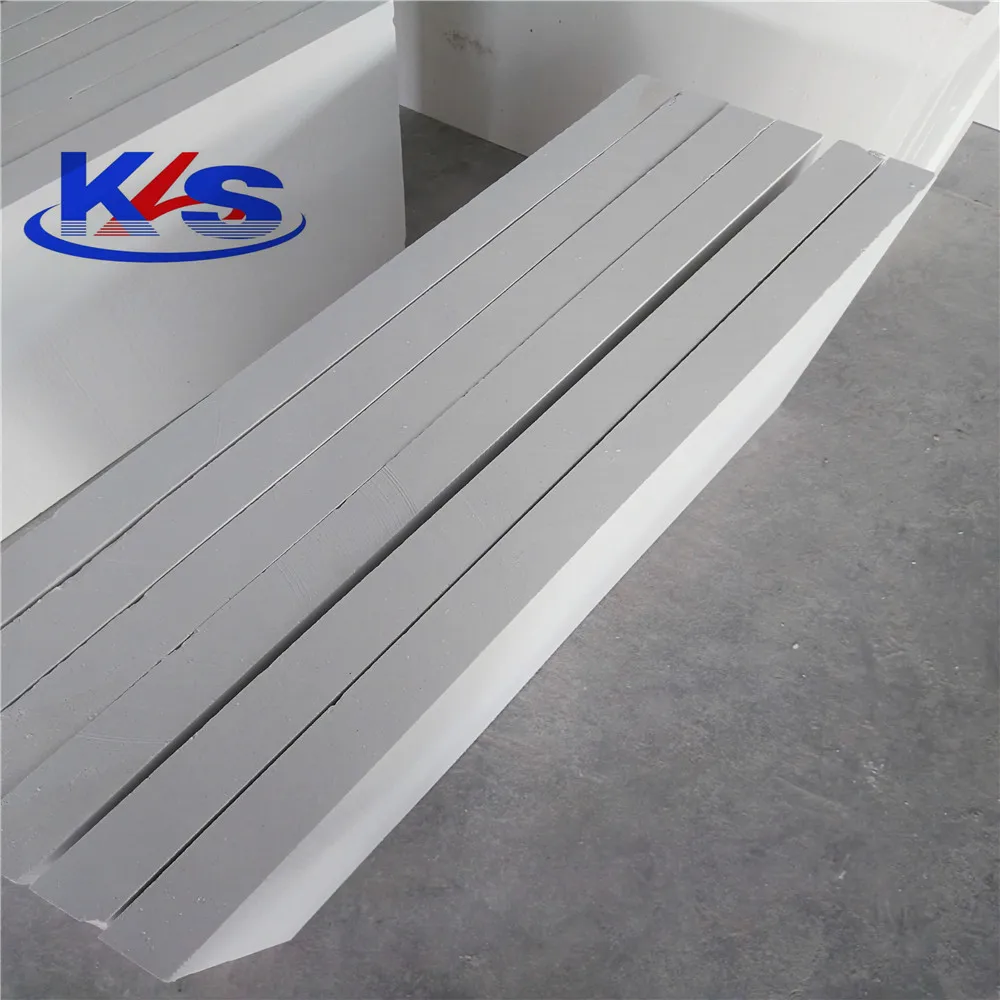

Silica Board 650C Calcium Silicate Insulation Board
- Category: >>>
- Supplier: Krs (Shandong) New Material Co. Ltd.
Share on (1600452072283):
Product Overview
Description
Product Description

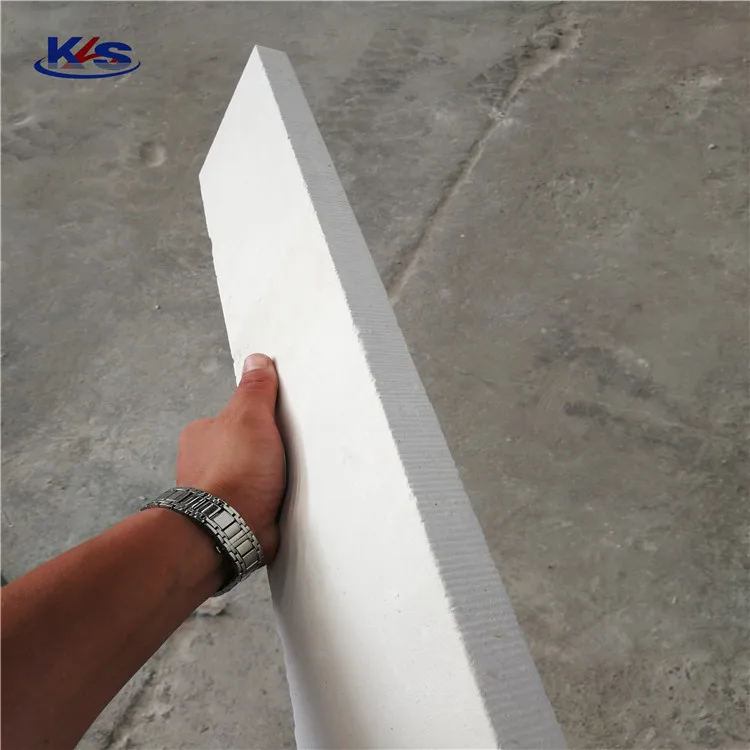

Calcium silicate board products are made of SIO2 and CAO through high temperature and high pressure reaction, adding environmental protection fiber, new energy-saving insulation material without asbestos, the product can be long-term use in 650°-1050° high temperature environment, extend the service life of equipment.
Calcium Silicate Board Size | ||||
Temperature | Size | |||
Length*Width(mm) | Thickness(mm) | |||
650 or 1050 | 400*250 | 25-150 | ||
600*300 | 25-150 | |||
600*150 | 25-150 | |||
610*150 | 25-150 | |||
500*500 | 25-130 | |||
1050 | 600*600 | 25-130 | ||
1000*500 | 25-130 | |||
1200*600 | 25-130 | |||
1000*1000 | 25-130 | |||
1200*1200 | 25-130 | |||
Advantages:
1.Good durability, can bear high temperature within the limit of continuous heat load.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.
2.Non-deformation within the temperature range.
3.Low thermal conductivity, in the whole range are used with unmatched adiabatic performance.
4.Light weight, high strength. It is the highest in these hard thermal insulation products.
5.Better durability, use for a long time without powder.
6.Construction with ordinary carpenter applicability, tools can be optional cut products.
7.Used safety, hygiene. Excluding asbestos, sulfur, chlorine such poisonous substances.
8.Fear water, but after drying also can be used.
Application：
1.Cement industry: preheaters and cyclone separators, decomposition kiln, tertiary air duct and cooler;
2.Nonferrous metallurygical industry: aluminum power calciner and electrolysis groove;
3.Petrochemical industry: Splitting furnace, catalytic cracking furnace, petroleum pipeline, underground heat-flooding;
4.Metallurgical industry (steel plant): hot-rolling heat furnace, cool-rolling mill set, RH vacuum degassing furnace, smelters, hot deformation and heat treatment plants;
5.Power plant:preheat stove, pipe;
6.Glass industry:melting furnace and recuperator, annealing furnace and cooling channels.
2.Nonferrous metallurygical industry: aluminum power calciner and electrolysis groove;
3.Petrochemical industry: Splitting furnace, catalytic cracking furnace, petroleum pipeline, underground heat-flooding;
4.Metallurgical industry (steel plant): hot-rolling heat furnace, cool-rolling mill set, RH vacuum degassing furnace, smelters, hot deformation and heat treatment plants;
5.Power plant:preheat stove, pipe;
6.Glass industry:melting furnace and recuperator, annealing furnace and cooling channels.

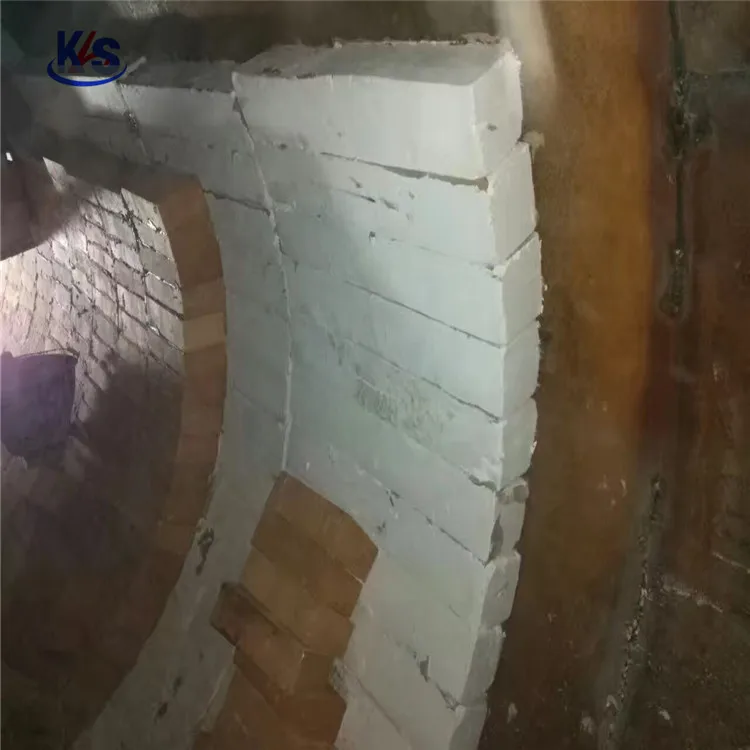

product application
Product Paramenters
Calcium silicate board Spec. | ||||||||||||
Items | Unit | KRS-A | KRS-B | KRS-C | KRS-D | |||||||
Density | Kg/m3 | 220±10% | 220±10% | 250±10% | 850±10% | |||||||
Pressure Strength | Mpa | ≥0.6 | ≥0.62 | ≥0.72 | ≥17 | |||||||
Flexural Strength | Mpa | ≥0.35 | ≥0.38 | ≥0.41 | ≥8 | |||||||
Thermal Conductivity | 100℃ | W/(M.K) | ≤0.055 | ≤0.053 | ≤0.059 | ≤0.095 | ||||||
200℃ | ≤0.067 | ≤0.064 | ≤0.068 | ≤0.12 | ||||||||
400℃ | ≤0.078 | ≤0.072 | ≤0.079 | ≤0.14 | ||||||||
800℃ | // | ≤0.171 | ≤0.193 | ≤0.25 | ||||||||
Temp.Limit | ℃ | 650 | 1050 | 1050 | 1000 | |||||||
Linear Shrinkage | % | ≤2 | ≤2 | ≤2 | ≤2 | |||||||
Water repellent products can be customized | ||||||||||||

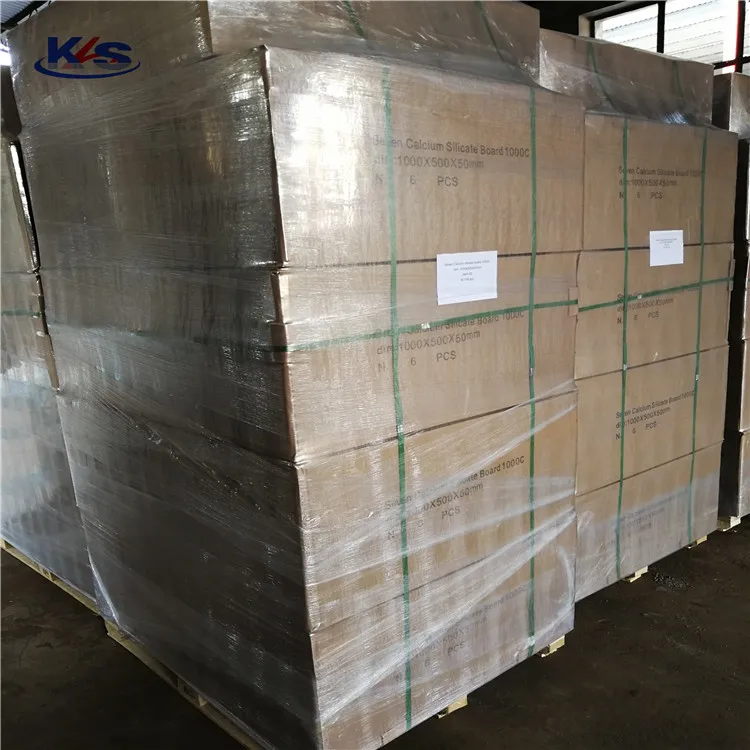

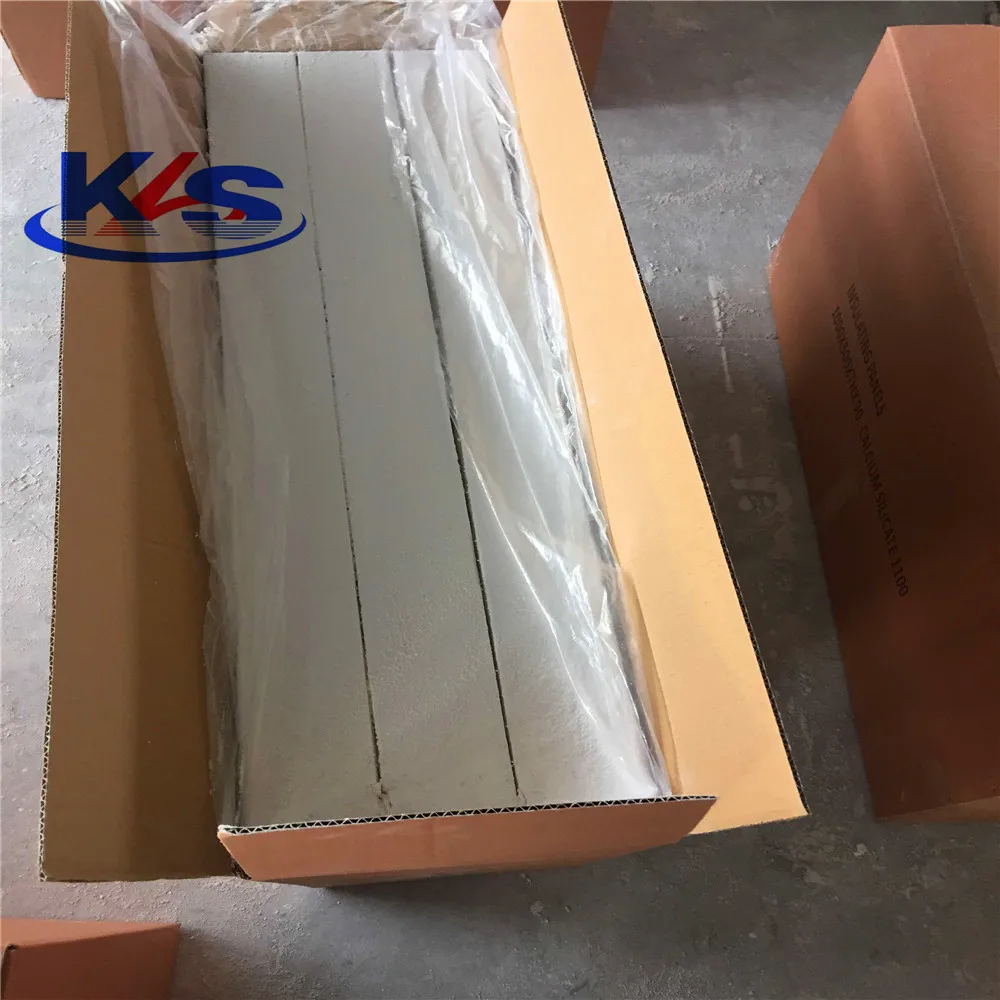

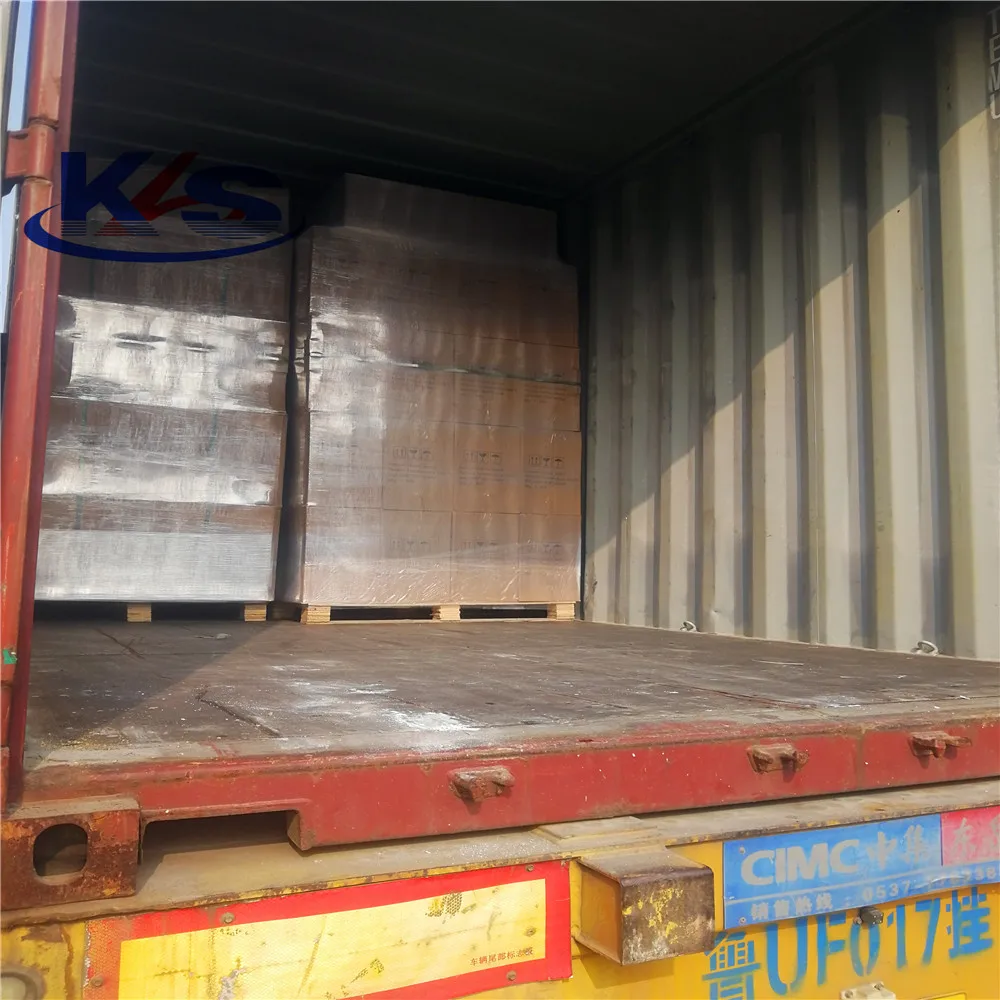

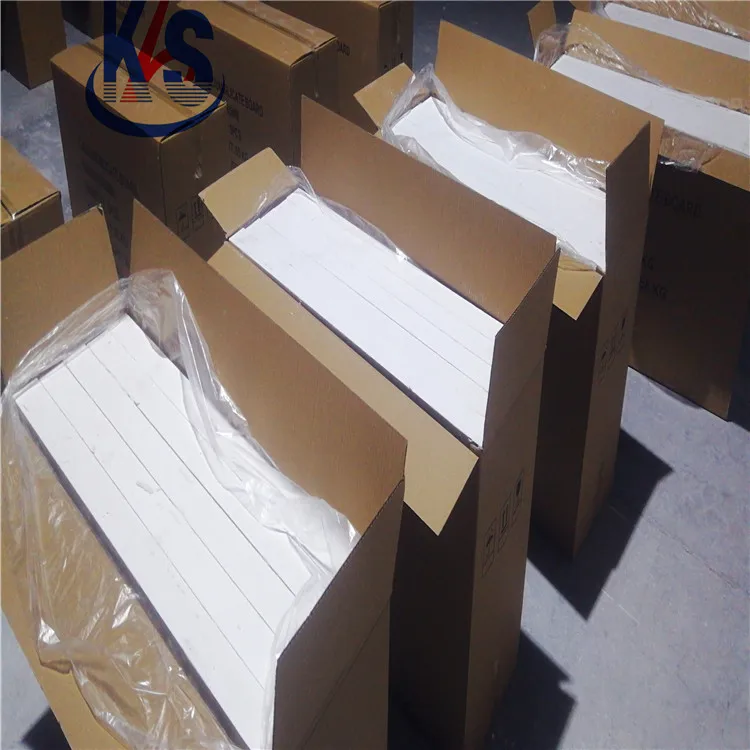

Packing&Shipping
1. standard exporting cartons
2. cartons with wooden pallet

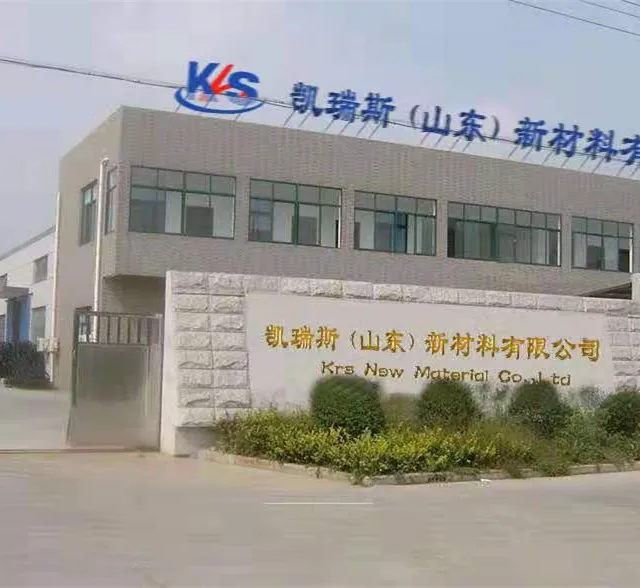

Company Introduction
"KRS new material Co., Ltd is engaged in refractory and insulation material for about 20 years and had a good reputation among customers all over the world.
The main products of the company are high temperature resistant calcium silicate heat insulation products, ceramic fiber products,perlite product and other thermal insulation refractory materials. Products are widely used in the construction of urban heat network and the heat insulation of various kinds of kiln and pipeline in metallurgy, petroleum, chemical, cement, electronics, machinery, ceramics, glass, natural gas and other industries."
The main products of the company are high temperature resistant calcium silicate heat insulation products, ceramic fiber products,perlite product and other thermal insulation refractory materials. Products are widely used in the construction of urban heat network and the heat insulation of various kinds of kiln and pipeline in metallurgy, petroleum, chemical, cement, electronics, machinery, ceramics, glass, natural gas and other industries."
