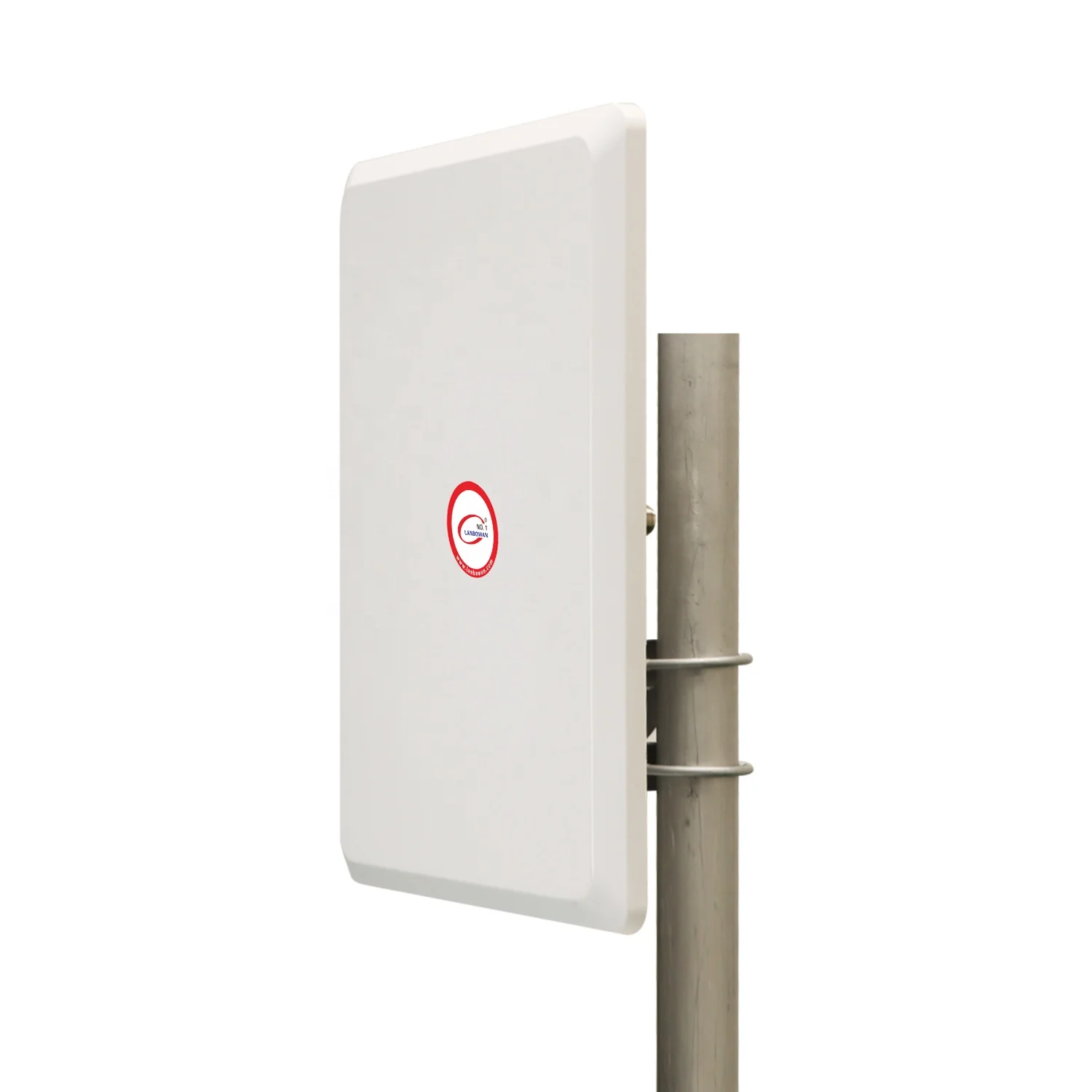

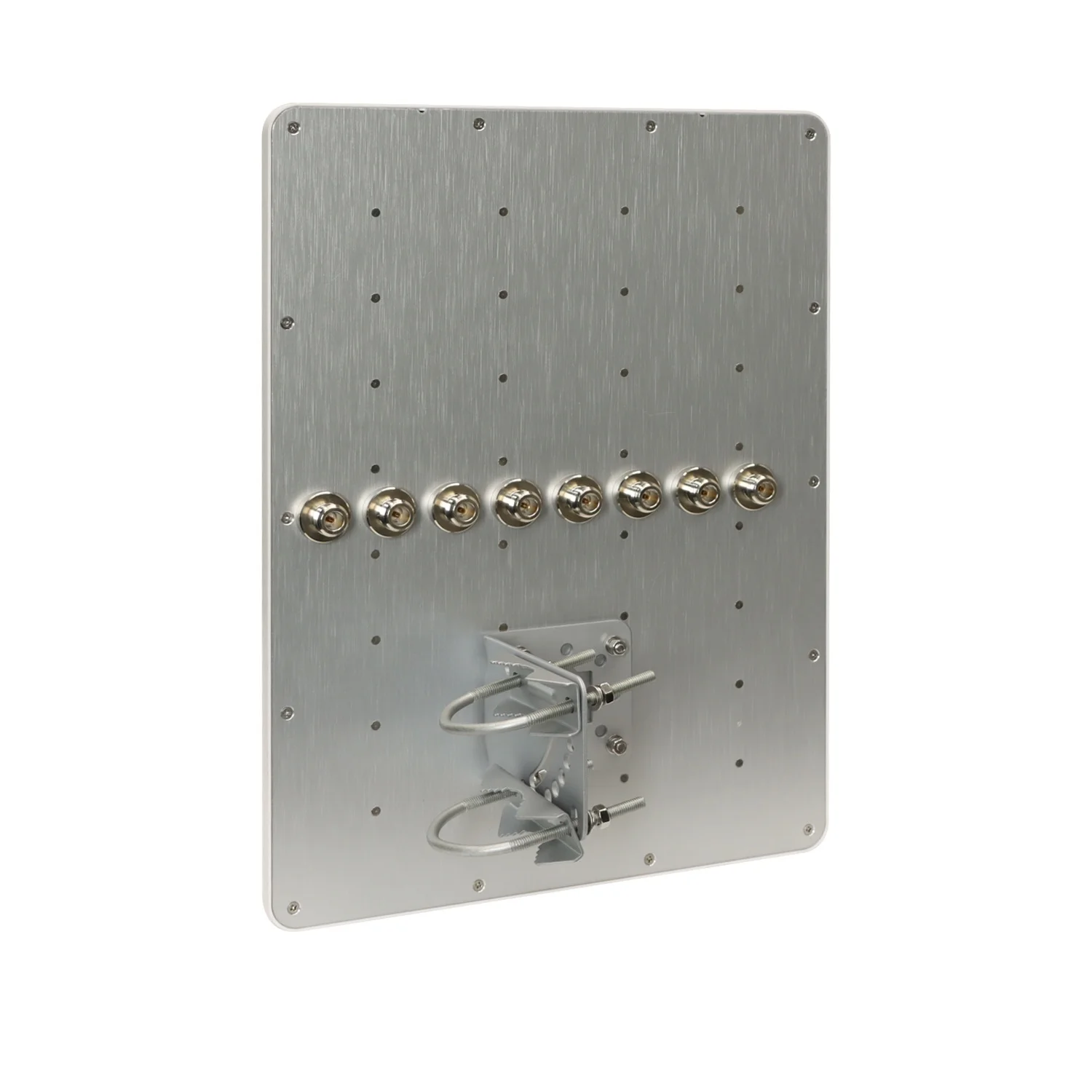

4.9 6.5GHz Frequency 8x8 MIMO and 802.11ax Applications 18dBi High Gain Sector Antenna
- Category: >>>
- Supplier: Lanbowan Communication Ltd.
Share on (1600452114080):
Product Overview
Description
Product Overview
Features
• 4.9-6.5GHz Frequency
• 18dBi High Gain
• 8x8 MIMO
• Dual Slant (4V+4H )
• 18dBi High Gain
• 8x8 MIMO
• Dual Slant (4V+4H )
Applications
• 4.9/5.1/5.3/5.4/5.8/6.4 GHz ISM and UNII Band
• 8x8 MIMO and 802.11ax Applications
• Long Distance Backhaul and Point to Point Data Links
• 8x8 MIMO and 802.11ax Applications
• Long Distance Backhaul and Point to Point Data Links
Product Paramenters
Electrical | ||
Model | ANT4965D18A-V4H4 | |
Frequency range | 4.9-6.5GHz | |
Gain | 18dBi | |
VSWR | <2.0 | |
Polarization | Dual Slant (4V+4H ) | |
Isolation | >25dB | |
Front to Back Ratio | 30dB | |
Azimuth Beam Width -3dB | 60º type | |
Elevation Beam Width -3dB | 8º type | |
Maximum Power Per Port | 50W | |
Impedance | 50Ω | |
Lighting protection | DC Ground | |
Mechanical | ||
Connector | 8 * N Female | |
Antenna Size | 400*300*25mm | |
Antenna Weight | 4.3kg | |
Antenna material | white | |
Radome material | aluminum | |
Diameter of the Pole | Φ30 to φ80 mm | |
Mechanical Tilt | ± 30° | |
Operational Temperature | -40°C to +70°C (-32°F to +158°F) | |
