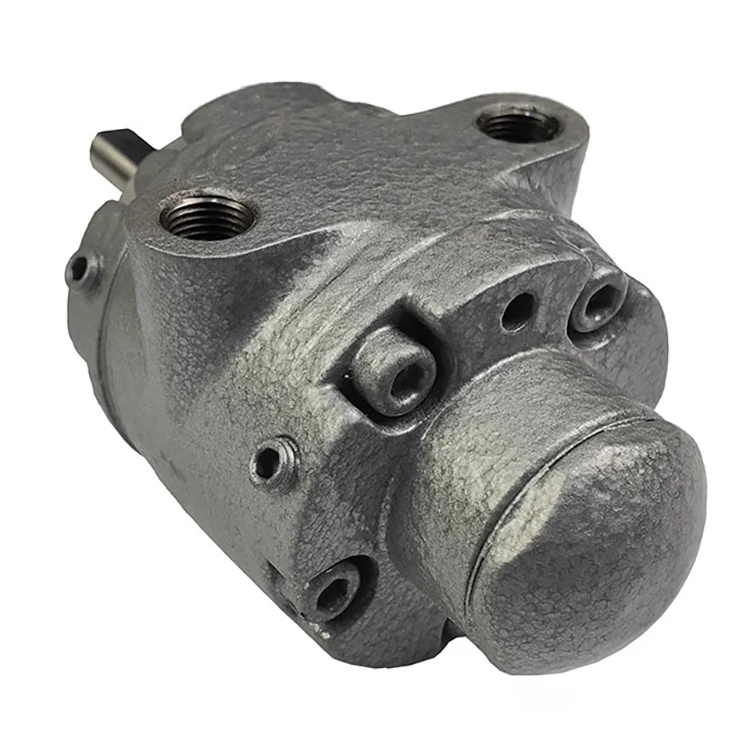

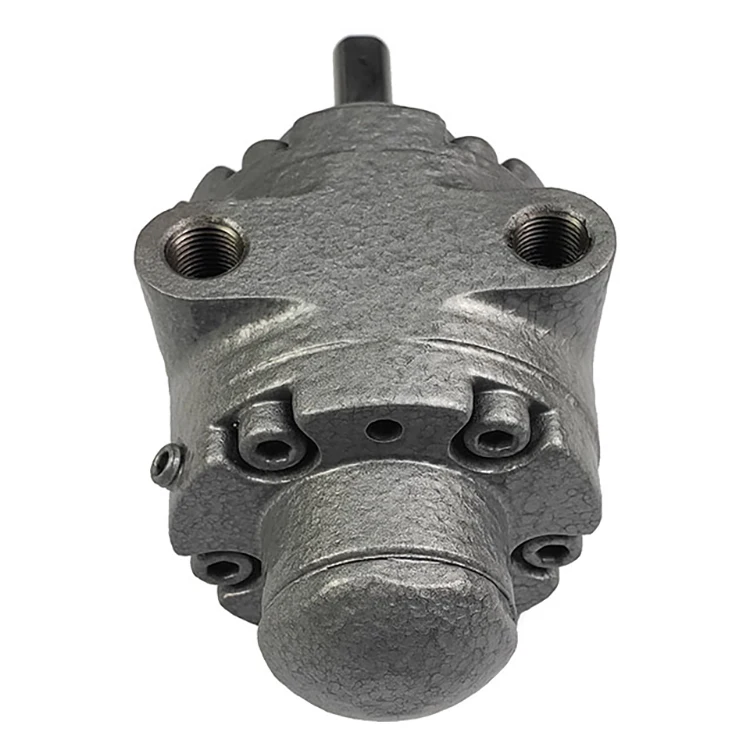

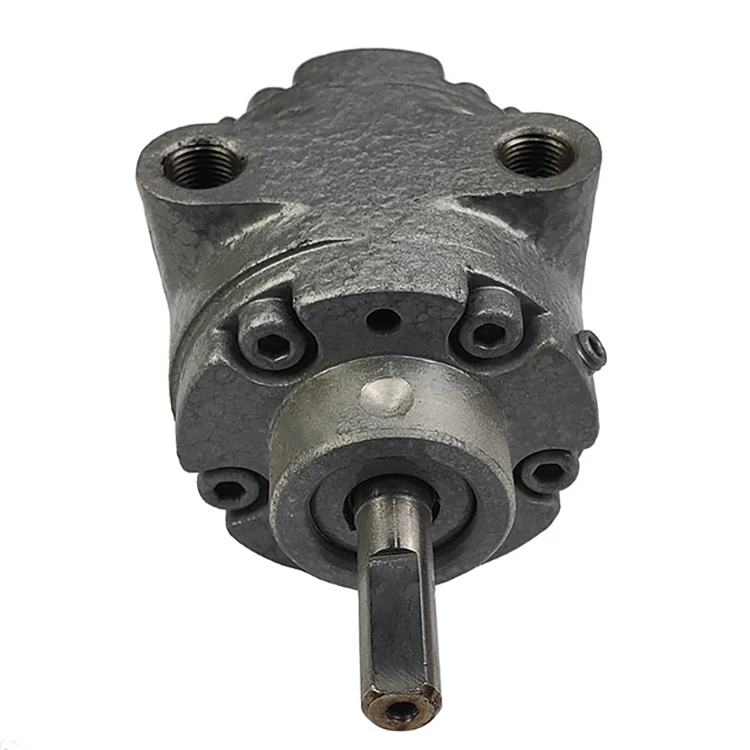

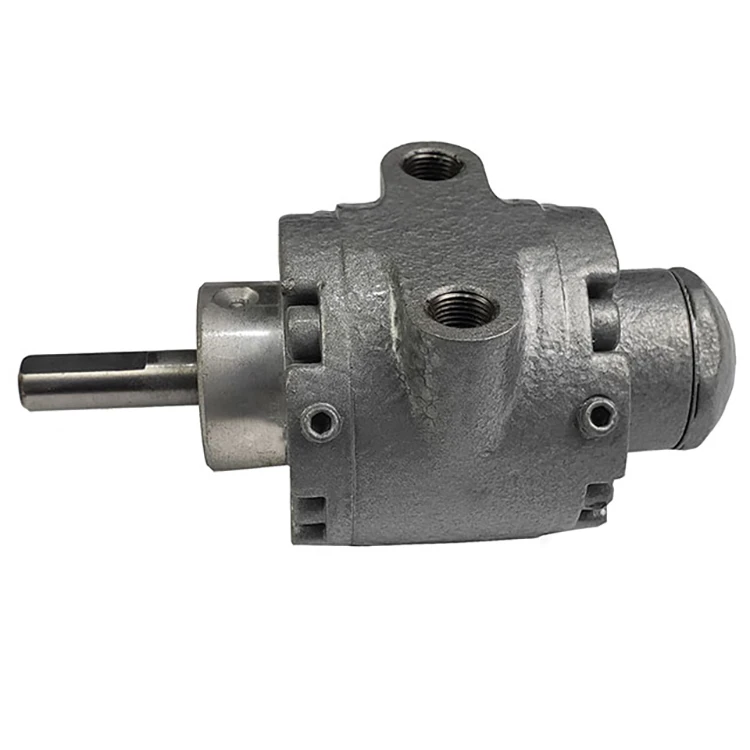

High speed high power small vane air motor
High speed high power small vane air motor
High speed high power small vane air motor
High speed high power small vane air motor
High speed high power small vane air motor
High speed high power small vane air motor
High speed high power small vane air motor

High speed high power small vane air motor

Share on (1600452575804):


Price:$117.00 - $130.00

Quantity:


Product Overview

Description



Product Description




Product features:


* Hongxin produces and sells 0.33KW-7KW standard conventional vane air motors , and can provide OEM or customized motor services.
Each motor has a unique product identification that can be traced to specific professional assembly workers;

*Hongxin vane type air motor has simple structure, small size, light weight, high horsepower, easy operation and convenient maintenance. It is suitable for water resistance, fire resistance, explosion-proof, explosion-proof and dust-proof, and it will not burn and heat under high-speed rotation. Substitute motors to work in harsh environments such as humidity, high temperature, and high dust;

*Hongxin vane air motor series can realize stepless speed regulation through speed control valve, and at the same time can add reducer to reduce speed and increase torque, so as to meet the various speed and torque requirements of customers. It is widely used in shipbuilding, metallurgy, papermaking, and offshore platforms. , Petrochemical, pharmaceutical and other industries.


Specification


Warranty
1year
Customized support
OEM, ODM, OBM
Place of Origin
China
Province
Jiangsu
Brand Name
HongXin
Type
Air motor
Model

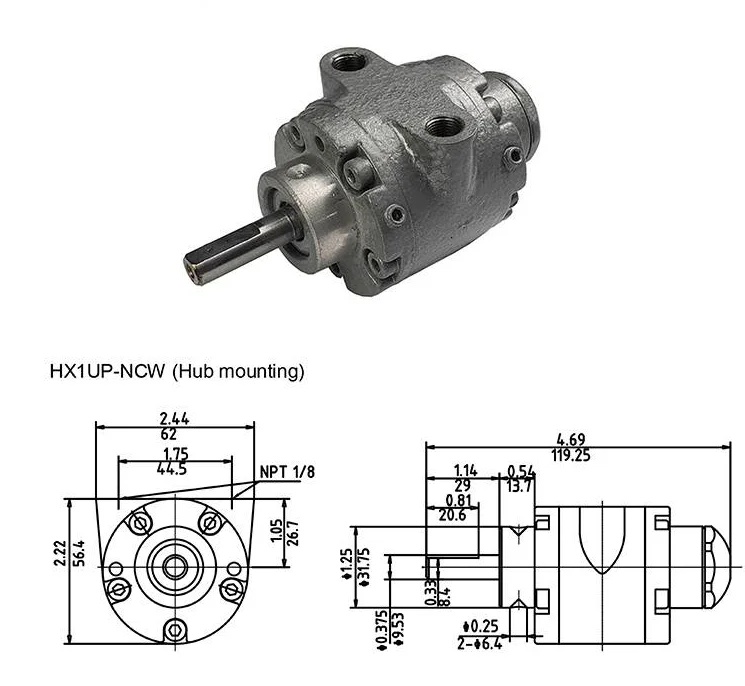

1UP-NCW-95 (counterclockwise and clockwise)
Power
0.33kW
Rotating speed
0-6000rpm
Torque
0.58Nm
Maximum torque
0.68Nm
Speed at maximum torque
500rpm
working pressure
0.6-0.8MPa
Maximum air consumption
0.78m³/min
Connection size
1/8"NPT
Output shaft diameter
9.53mm


Matters needing attention


(1) The air motor must be driven by dry, clean and lubricated compressed air, and an air filter, pressure regulating valve, and lubricator must be installed in the air circuit system, that is, a double or triple piece. The double and triple parts must be installed close to the air motor (within 0.5 meters).

(2) The inner diameter of the nozzle is not less than 5mm. Before connecting to the air motor, it is necessary to ventilate and clean up the debris and debris that may appear in the air pipe. These foreign objects enter the air motor and cause the motor to be stuck.

(3) The air motor must be lubricated continuously when it is running (the lubricating oil enters the air motor with the compressed air after being atomized by the lubricator). Lubrication will reduce the wear of the air motor blades and the corrosion of the internal parts of the motor, and prolong the service life. The lubricating oil label is ISO-VG32 special oil for lubricator or other lubricating oil with the same label. The amount of lubrication is 1-2 drops per minute.


Packing & Delivery




Plywood Case


Company Profile






Rudong Hongxin Machinery Co.,Ltd established in 2002,Located in Xinlin Industry District, Rudong, Jiangsu, China which is around 200km far from Shanghai. This plant covers an area of 56,000 square meters and possesses all sorts of CNC (computer numerical control) processing and detection equipments. Also it has around one hundred people of skilled workers, R&D staffs and administrators.

Under ISO9001 quality management system, our company is specialized in development and production of gas fluid interior impetus machinery equipments, and has exploited the leading pneumatic series products both at home and abroad, such as air motor, air winch, air mixer, air hoist, air explosion proof lamp, air fan, etc.

Air winch and air explosion proof lamp series has obtained CCS technical approval and certificate as well as CE certification for air motor series products.

All pneumatic series products are widely used and approved in many fields, e.g. ship, offshore platform, mine, petrochemical industries, etc. and popular in Europe, America, Africa and Southeast Asia.
