25mm dc brushless fan 25x25x10 mm 2510 5v 12 volt mini ventilateur cooling fan
- Category: >>>
- Supplier: Shenzhen Xu Hong Xiang Electronic Co. Ltd.
Share on (1600452924554):
Product Overview
Description

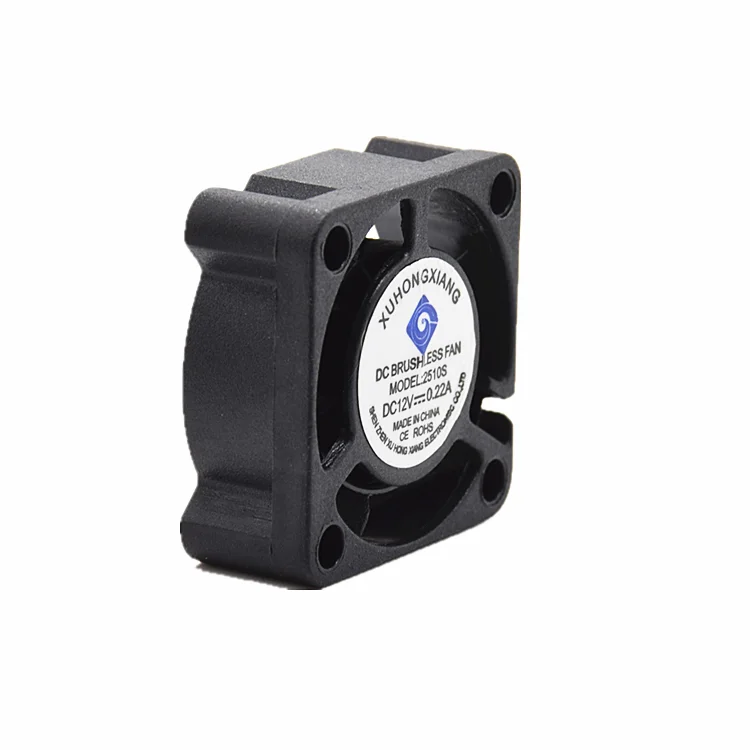

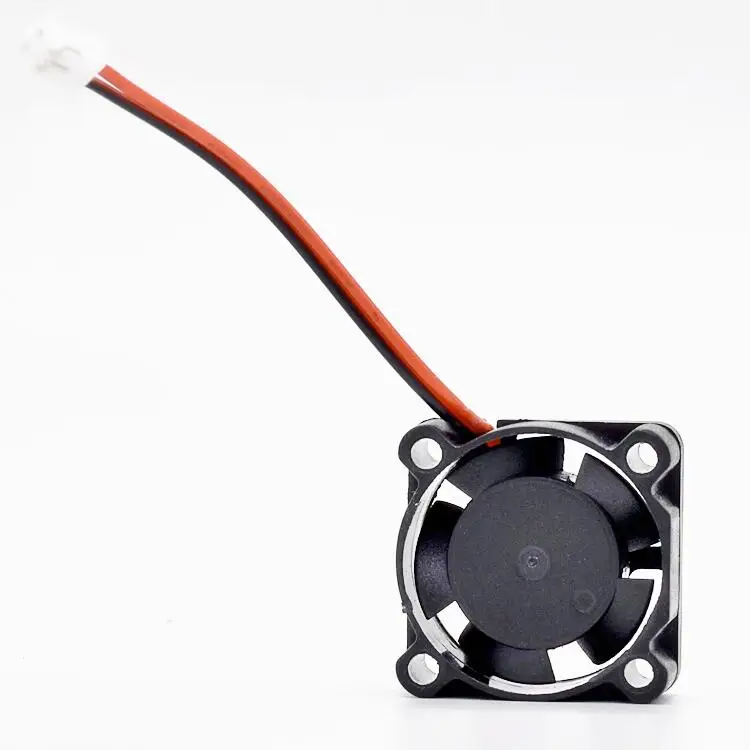

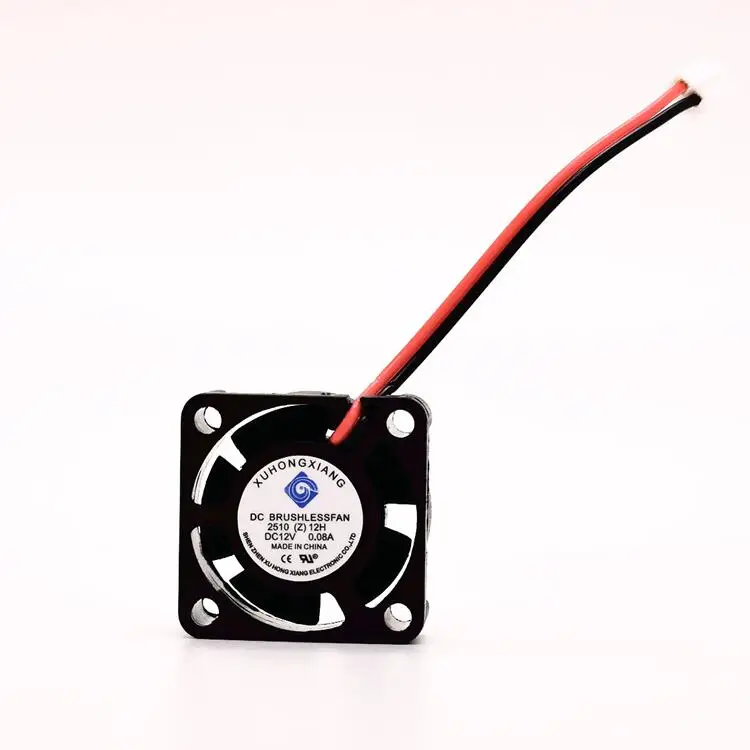

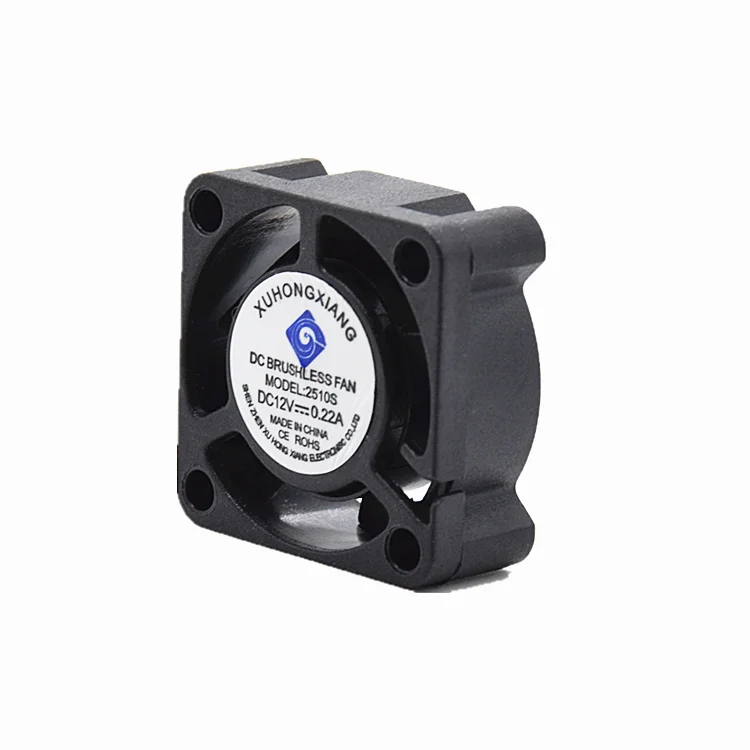

25mm dc brushless fan 25x25x10 mm 2510 5v 12 volt mini ventilateur cooling fan
Products Description

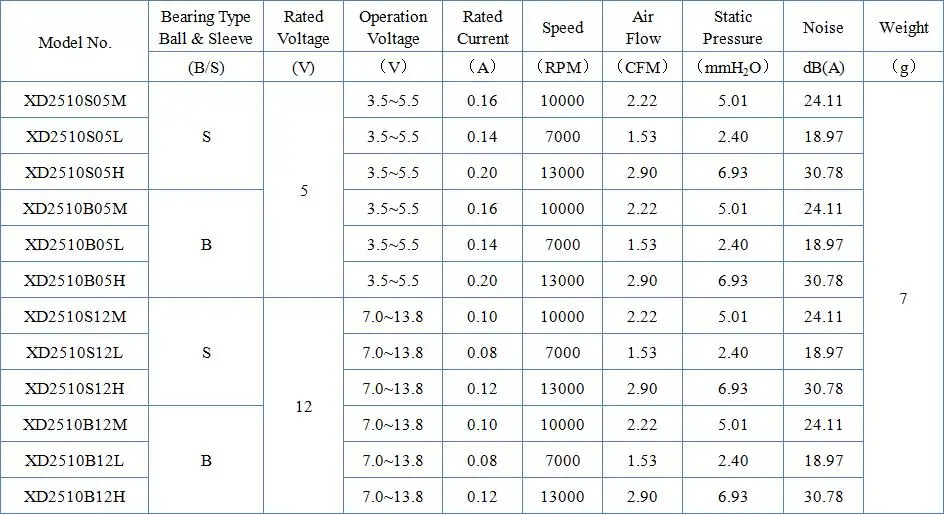

ITEM | STANDARD |
Place of Origin | Shenzhen China |
Brand Name | XuHongXiang |
Condition | New |
Color | Black |
Product Name | DC Cooling Fan |
Model Number | XD2510 |
Dimensions (L x W x H) | 25x25x10MM |
Rated Voltage | DC 5V |
Current | 0.14A |
Operation Voltage Range | 3.5~5.5 VDC |
Bearing Type | Sleeve Bearing |
Rated Speed | 7000 RPM ± 10% at rated voltage |
Air Flow | 1.53 CFM |
Static Pressure | 2.40 Inch-H2O |
Acoustic Noise | 18.97 dB(A) |
Power Interface | 2Pin |
Weight | 6 g |
Materials of Fan Frame | Thermoplastic PBT engineering plastics |
Materials of Fan Blade | Thermoplastic PBT engineering plastics |
Direction of Rotation | Counter-clockwise viewed from front of fan blade |
Certification | CE/RoHS/GS/UL |
Power Source | Electric |
Cooling/Heating | Cooling Only |
Motor | Brushless DC, auto restart Impedance & polarity protected |
Insulation Resistance | 10 At 500VDC between lead and frame |
Dielectric Strength | 1 min at 500VAC/50-60Hz, current min 5mA |
After-sales Service Provided | Return and Replacement |
Warranty | 1 Year |
Application | 3D printers,Stage lighting,VR equipment,Intelligent Manicure machine |
Operation Temperature Range | -10 to + 70 deg. C |
Storage Temperature Range | -40 to + 80 deg. C |
Life Expectancy | 30,000 Hours at 40 deg. C, 65% humidity, 90% CL. |
Company Profile
Certifications
We have different certifications for different market , UL listed in North American,CE&RoHS listed in Europe etc.
Connector
Package & Delivery
Package:
1. Carton package.2. 7-15 days after confirming your order and receiving your payment.
3. All items will be packed safely by our professional logistic department, please check the product before Sign off, if your item is damaged or lost by Express, please reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
Shipping:
1. We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory or agent is in Shenzhen, Dongguang or Guangzhou City.
1. We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
2. Large Measure are shipped by ship or by air as customer's requirements.
3. The fan can be dispatched by our truck driver if your factory or agent is in Shenzhen, Dongguang or Guangzhou City.
4. Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We are not responsible for any custom duty or import tax.
FAQ
1.How to choose a DC fan?
1) Fan size
2) Voltage of power
3) Current you expect
4) Speed you expect
5) Air flow you need.
6) Noise level you expect.
7) Lifespan of the fan.
8) If you need FG\\RD\\PWM\\Soft Start function.
2. What is the delivery time?
Sample lead time:3-7 days
Mass production lead time: 7 - 20 days(depend on the quantity)
3. How do we carry out quality control?
There are more than 20 processes to making a fan, our production procedure follow ISO9001:2008, we need to control every process well.
1) Bearing: NMB from Japan which will ensure the working life.
2) IC\\Mos and other electronic components, our suppliers include ROHM \\IR \\DALLAS \\Feeling Technology, and other famous brands.
3) Life testing, all of our projects will testing more than 1 year in such a environment: temperature is 60°C, voltage is more
than 20%(such as: 24V, the testing voltage is 28V), and the power restarts every 2 minutes.
4) We have experiences of making high quality fan for more than 10 years, all of our fans can work more than 50000H in normal condition with dual ball bearing. 30000H with sleeve bearing.
5) All of our fans will be tested at least twice when they are in the product line, like current\\speed\\noise\\wave form and
others, and 5-10% will be on random inspection.
4. Do you accept OEM? Can we print our own logo?
Yes! We accept OEM services. Please give us your design and requirement. MOQ 1000pcs.
5. What can I do if we can not find the suitable fan model in the fan list?
Please contact us for customized fans.
2) Voltage of power
3) Current you expect
4) Speed you expect
5) Air flow you need.
6) Noise level you expect.
7) Lifespan of the fan.
8) If you need FG\\RD\\PWM\\Soft Start function.
2. What is the delivery time?
Sample lead time:3-7 days
Mass production lead time: 7 - 20 days(depend on the quantity)
3. How do we carry out quality control?
There are more than 20 processes to making a fan, our production procedure follow ISO9001:2008, we need to control every process well.
1) Bearing: NMB from Japan which will ensure the working life.
2) IC\\Mos and other electronic components, our suppliers include ROHM \\IR \\DALLAS \\Feeling Technology, and other famous brands.
3) Life testing, all of our projects will testing more than 1 year in such a environment: temperature is 60°C, voltage is more
than 20%(such as: 24V, the testing voltage is 28V), and the power restarts every 2 minutes.
4) We have experiences of making high quality fan for more than 10 years, all of our fans can work more than 50000H in normal condition with dual ball bearing. 30000H with sleeve bearing.
5) All of our fans will be tested at least twice when they are in the product line, like current\\speed\\noise\\wave form and
others, and 5-10% will be on random inspection.
4. Do you accept OEM? Can we print our own logo?
Yes! We accept OEM services. Please give us your design and requirement. MOQ 1000pcs.
5. What can I do if we can not find the suitable fan model in the fan list?
Please contact us for customized fans.
