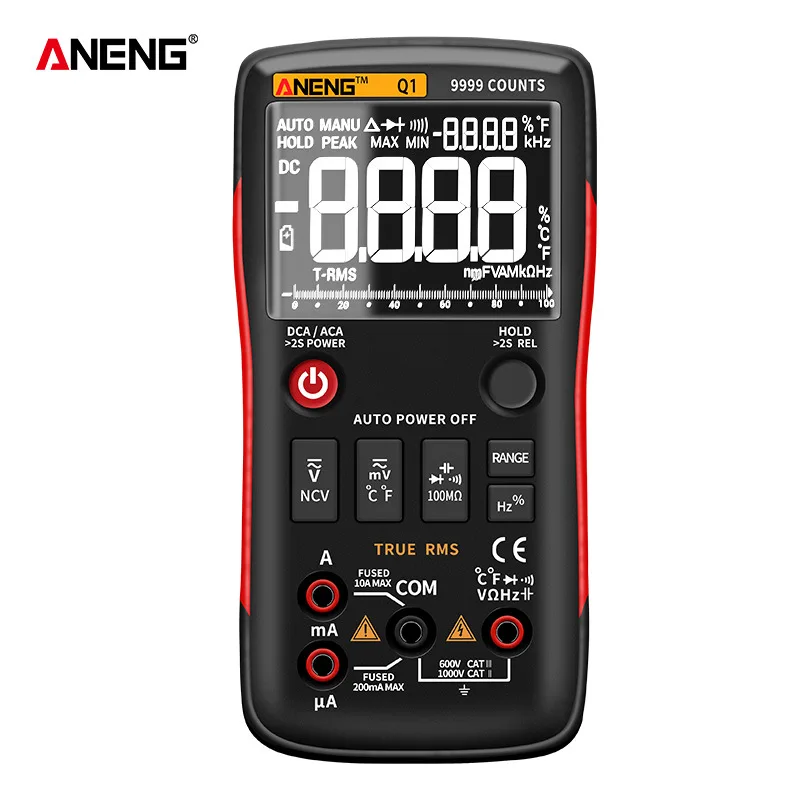

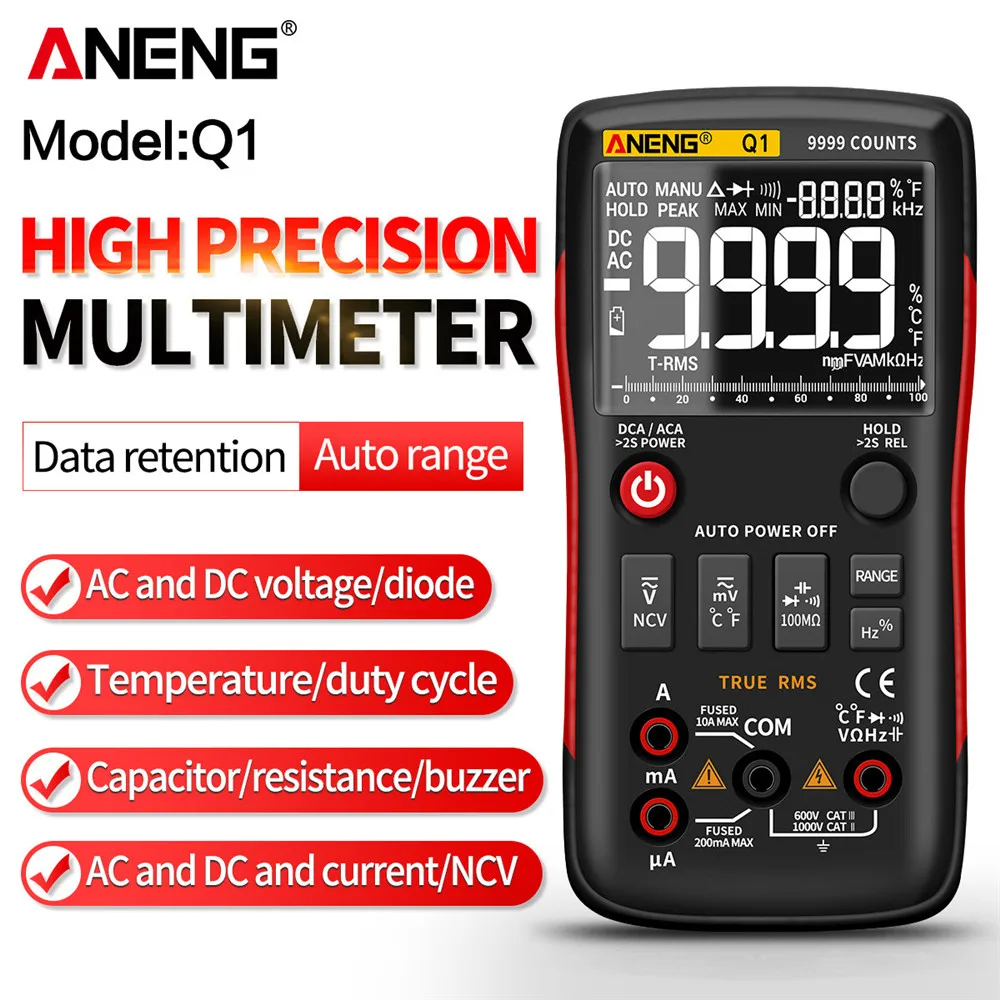

ANENG Q1 Digital Multimeter 9999 Analog Tester True RMS Professional Multimetro DIY Transistor Capacitor NCV Testers Lcr Meter
- Category: >>>
- Supplier: Zhenjiang Zhongtuo Electronic Technology Co. Ltd.
Share on (1600453067827):
Product Overview
Description
ANENG Q1 True-RMS Digital Multimeter Button 9999 Counts With Analog Bar Graph AC/DC Voltage Ammeter Current Ohm Auto/Manual
Please Note you have to reading the operate manual first before use,otherwise you will burn the device with wrong operat.
Specifications:
Brand Name\t ANENG\t Model Number\t Q1
Display (LCD)\t 9999 Counts\t Ranging \t Auto/Manual
Material \t ABS+TPE\t Update Rate \t 3 Times/Second
Ture RMS\t YES\t Data Hold\t YES
Relative Value Measurement\t YES\t Low Battery Indication\t YES
Backlight\t YES\t Auto Power Off\t YES
Operating \t Tenperature\t 0~40°C\t
\t Hunidity\t 75%\t
Storage \t Tenperature\t -20~60°C\t
\t Hunidity\t 80%
Funtion \t Range \t Accuracy
DC voltage (V) \t 999.9mV/9.999V/99.99V/999.9V\t ±(0.5%+3)
DC voltage (mV) \t 9.999mV /99.99mV \t ±(0.5%+3)
AC voltage (V)\t 999.9mV/9.999V/99.99V/750.0V\t ±(1.0%+3)
AC voltage (mV) \t 9.999mV /99.99mV \t ±(1.0%+3)
DC Current (mA&A)\t 999.9mA/9.999A\t ±(1.0%+3)
DC Current (A)\t 9999A\t ±(0.8%+3)
AC Current (mA&A)\t 999.9mA/9.999A\t ±(1.0%+3)
AC Current(A)\t 9999A\t ±(1.0%+3)
Resistance \t 99.99\t ±(1.0%+3)
Resistance \t 999.9 /9.999k /99.99k /999.9k /\t ±(0.5%+3)
Resistance \t 9.999M\t ±(1.5%+3)
Resistance \t 99.99M\t ±(3.0%+5)
Capacitor \t 9.999nF\t ±(5.0%+20)
Capacitor \t 99.99nF /999.9nF /9.999F /99.99F /999.9F\t ±(2.0%+5)
Capacitor \t 9.999mF\t ±(5.0%+5)
Frequency \t 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz\t ±(0.1%+2)
Duty cycle \t 1%~99%\t ±(0.1%+2)
Diode :YES\t Continuity :YES\t NCV :YES
Temperature \t (-20~1000)° /(-4~1832)°\t ±(2.5%+5)
Power\t 2 * 1.5V AA batteries\t (Not Included)
Sample Rate\t 3 times per second
DC voltage (V) \t 999.9mV/9.999V/99.99V/999.9V\t ±(0.5%+3)
DC voltage (mV) \t 9.999mV /99.99mV \t ±(0.5%+3)
AC voltage (V)\t 999.9mV/9.999V/99.99V/750.0V\t ±(1.0%+3)
AC voltage (mV) \t 9.999mV /99.99mV \t ±(1.0%+3)
DC Current (mA&A)\t 999.9mA/9.999A\t ±(1.0%+3)
DC Current (A)\t 9999A\t ±(0.8%+3)
AC Current (mA&A)\t 999.9mA/9.999A\t ±(1.0%+3)
AC Current(A)\t 9999A\t ±(1.0%+3)
Resistance \t 99.99\t ±(1.0%+3)
Resistance \t 999.9 /9.999k /99.99k /999.9k /\t ±(0.5%+3)
Resistance \t 9.999M\t ±(1.5%+3)
Resistance \t 99.99M\t ±(3.0%+5)
Capacitor \t 9.999nF\t ±(5.0%+20)
Capacitor \t 99.99nF /999.9nF /9.999F /99.99F /999.9F\t ±(2.0%+5)
Capacitor \t 9.999mF\t ±(5.0%+5)
Frequency \t 99.99Hz /999.9Hz /9.999kHz /99.99kHz /999.9kHz /2.000MHz\t ±(0.1%+2)
Duty cycle \t 1%~99%\t ±(0.1%+2)
Diode :YES\t Continuity :YES\t NCV :YES
Temperature \t (-20~1000)° /(-4~1832)°\t ±(2.5%+5)
Power\t 2 * 1.5V AA batteries\t (Not Included)
Sample Rate\t 3 times per second
Product Description
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | Original Brand |
Model Number | Q1 Digital Multimeter |
Measuring Current Range | 999.9mA/9.999A/9999A |
Measuring Voltage Range | 9.999mV /99.99mV /999.9mV/ |
Measuring Resistance Range | 999.9 /9.999k /99.99k /999.9k / |
Measuring Capacitance Range | 9.999nF/ 99.99nF /999.9nF |
Measuring Inductance Range | 99.99Hz /999.9Hz /9.999kHz |
Operating Temperature | 0~40°C |
Dimensions | 146x74x34 mm |
Ture RMS | YES |
Update Rate | 3 Times/Second |
Shipping | DHL FEDEX EMS TNT POST EMS |
Product Name | Multimeter |
Ranging | Auto/Manual |
Data Hold | YES |
Low Battery Indication | YES |
Relative Value Measurement | YES |
Auto Power Off | YES |
Packing & Delivery

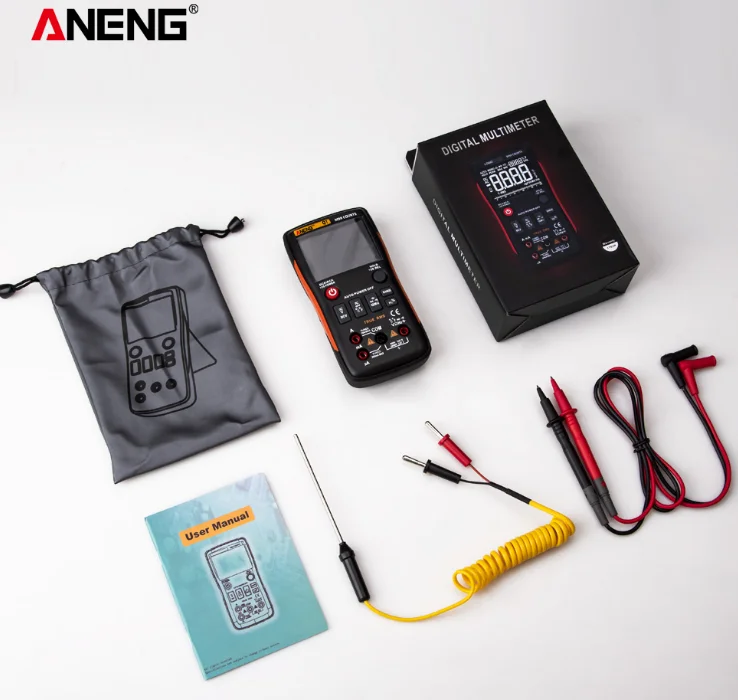

BOX
