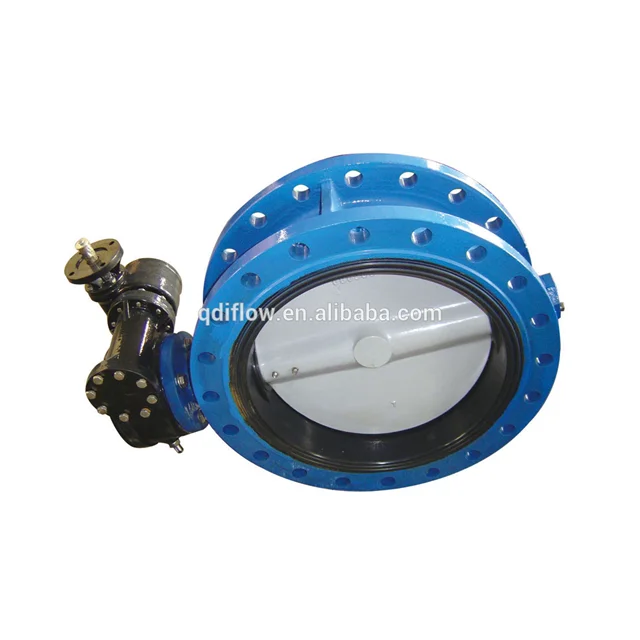

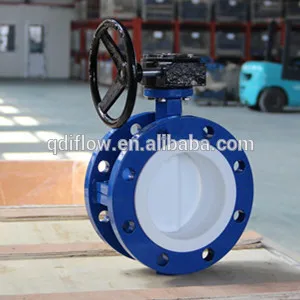

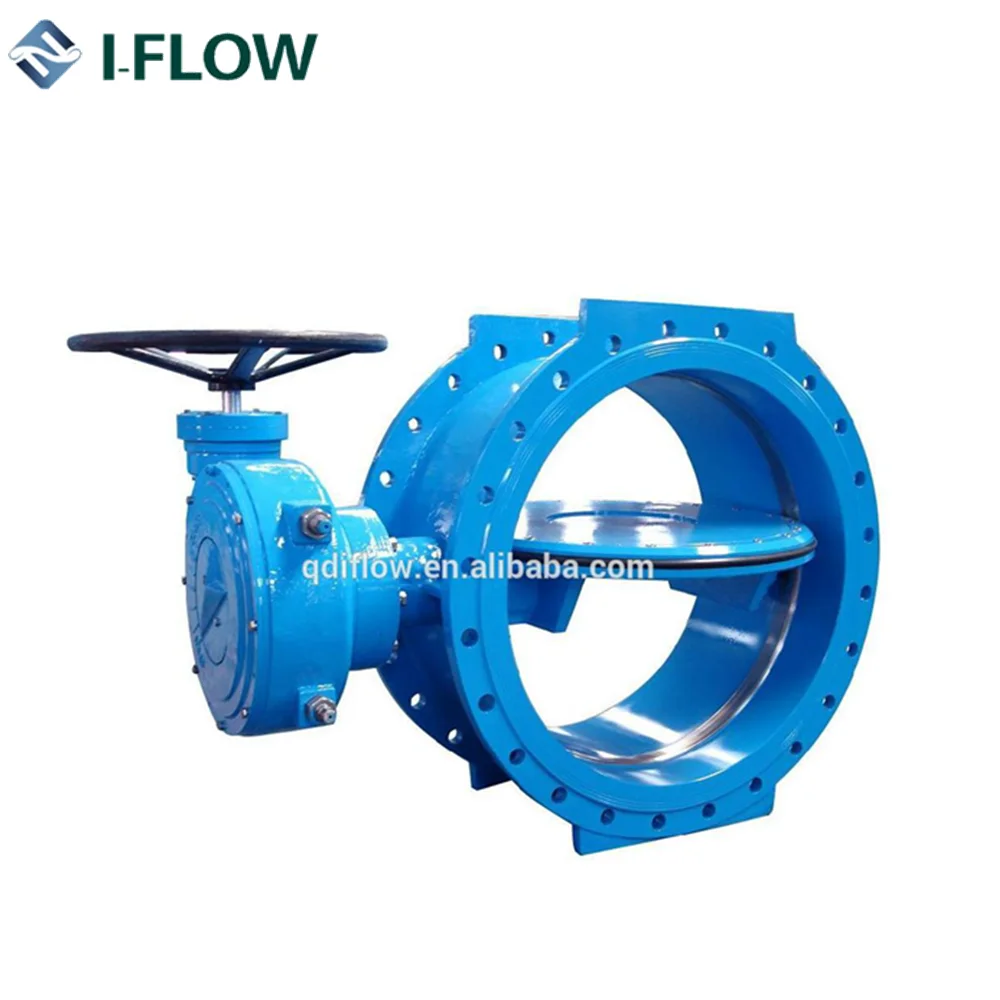

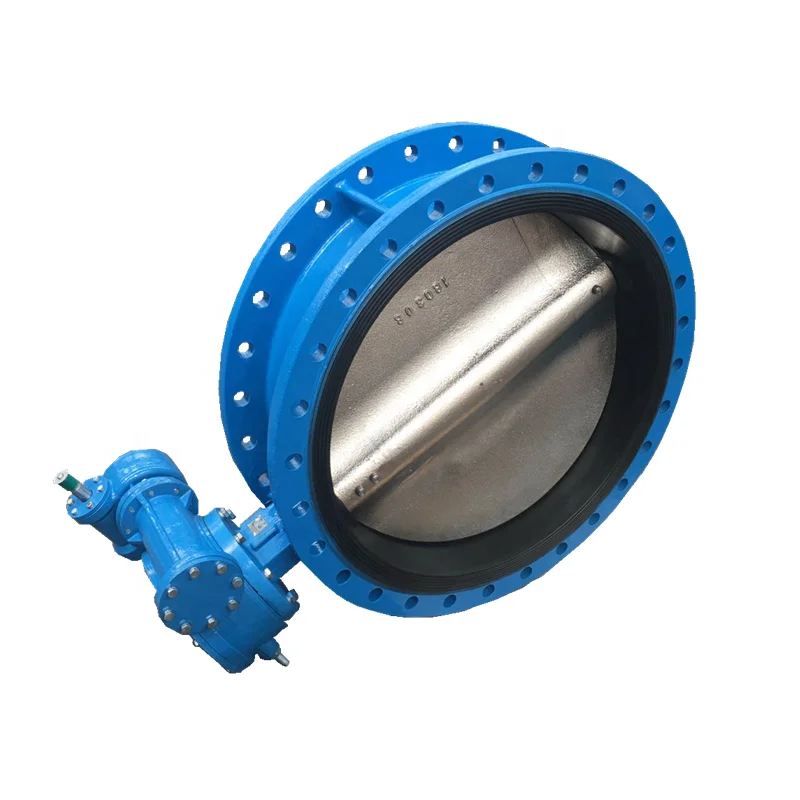

WRAS,DVGW rubber avaibable U type double flanged butterfly valve with PTFE liner
- Category: >>>
- Supplier: Qingdao I-Flow Co. Ltd.Qingdao Ltd.
Share on (1600453074386):
Product Overview
Description
Description of Product
1,High quality and competitive prices
2,CE,DNV,ISO 9001 approved
3,WRAS,DVGW rubber avaibable
Face to Face:API 609 Category A
MSS SP-67
BS 5155
ISO 5752
End connection:ANSI 16.1 CLASS 125 ,B16.5 Class 150
EN1092-2 PN10.PN16/
JIS 5K,10K ,16K
Tightness Check: API 598 Table 5
Temperature range: -40°c to 232 °c depending on the medium and selected
Operating Pressure:Max 232 psi(16 bar) for DN50-DN300
Max 150 psi(10 bar) fro DN350-DN1200
1,High quality and competitive prices
2,CE,DNV,ISO 9001 approved
3,WRAS,DVGW rubber avaibable
Face to Face:API 609 Category A
MSS SP-67
BS 5155
ISO 5752
End connection:ANSI 16.1 CLASS 125 ,B16.5 Class 150
EN1092-2 PN10.PN16/
JIS 5K,10K ,16K
Tightness Check: API 598 Table 5
Temperature range: -40°c to 232 °c depending on the medium and selected
Operating Pressure:Max 232 psi(16 bar) for DN50-DN300
Max 150 psi(10 bar) fro DN350-DN1200
