Medical blood test 3 parts fully auto vet hematology analyzer hematology analyzer for animal
- Category: >>>
- Supplier: Wester Technology Co. Limited
Share on (1600453078755):
Product Overview
Description
Medical blood test 3 parts fully auto vet hematology analyzer hematology analyzer for animal
Details Images
Product Description

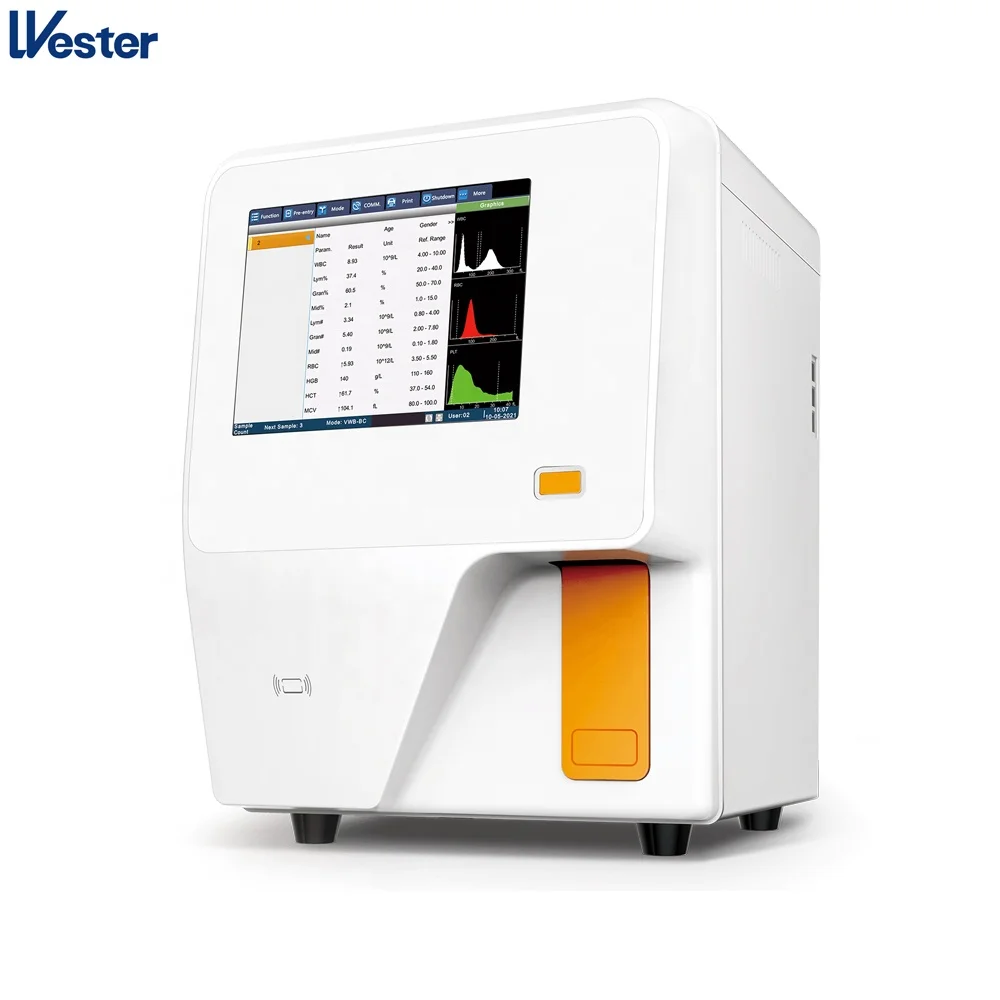

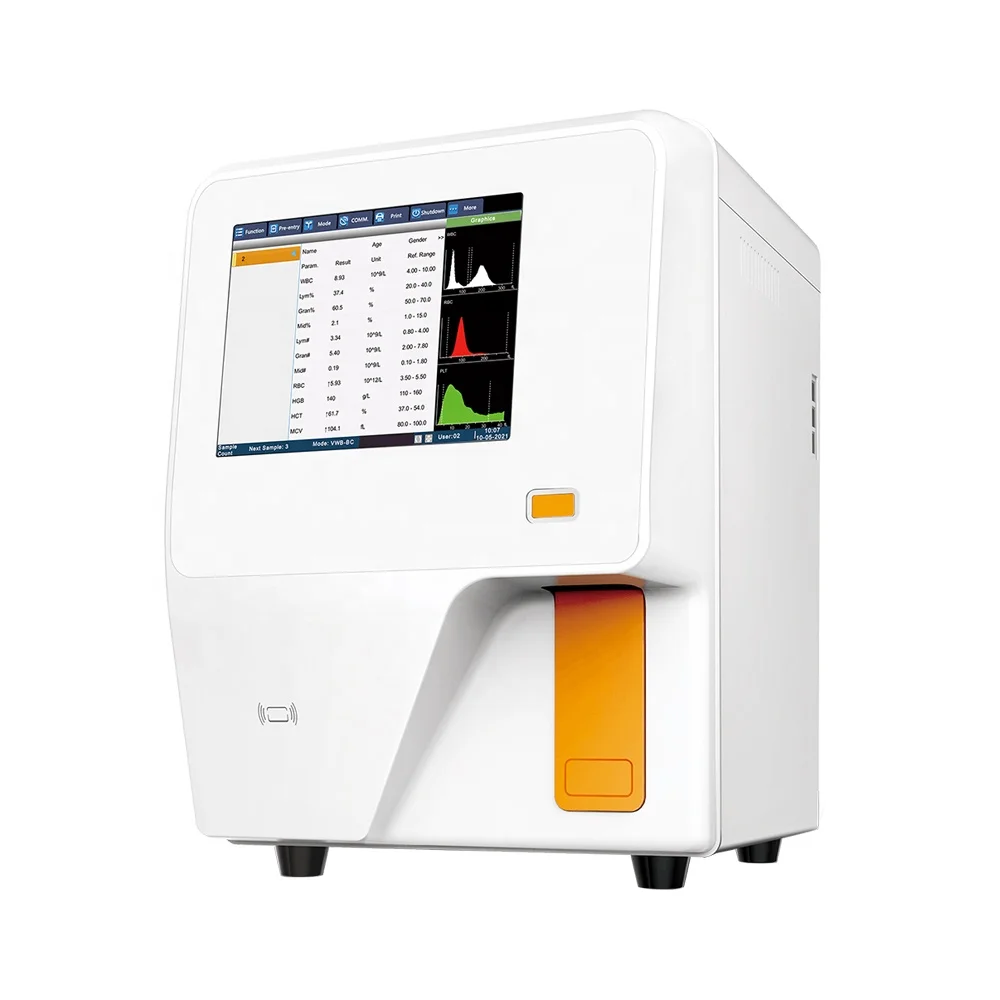

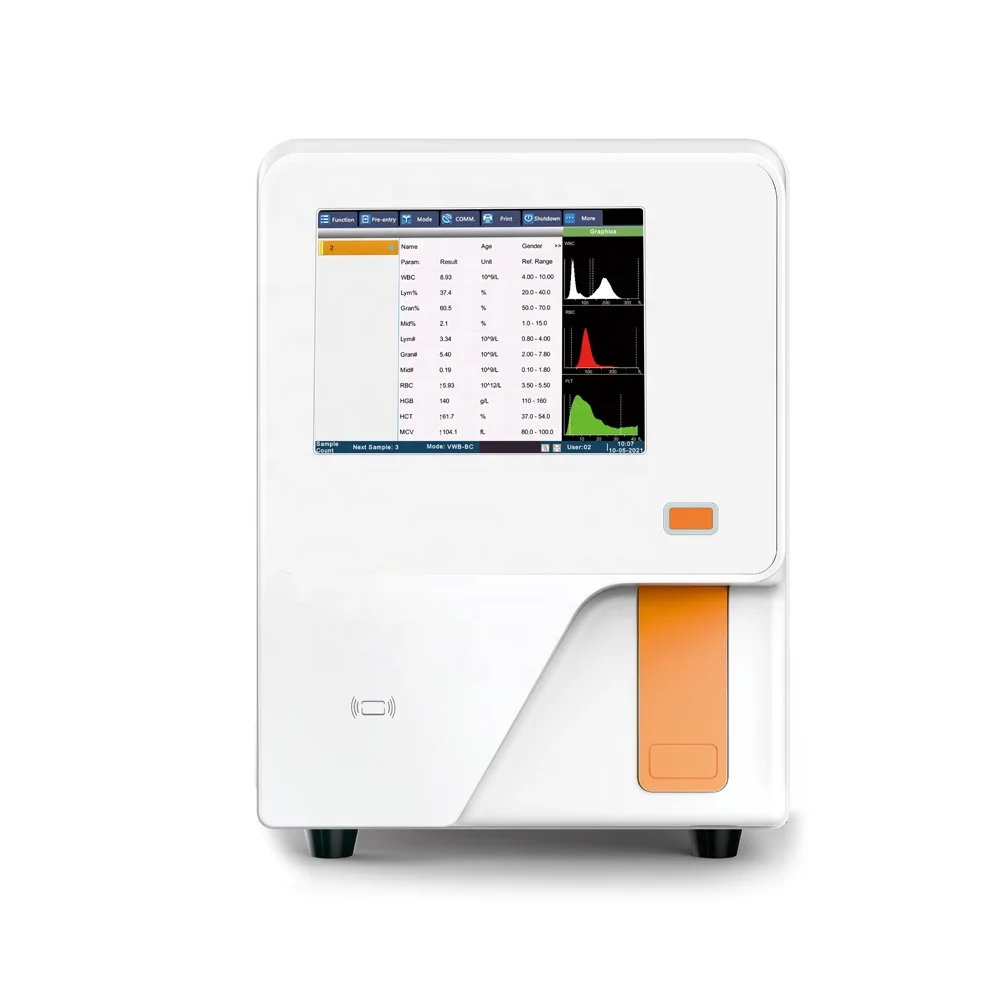

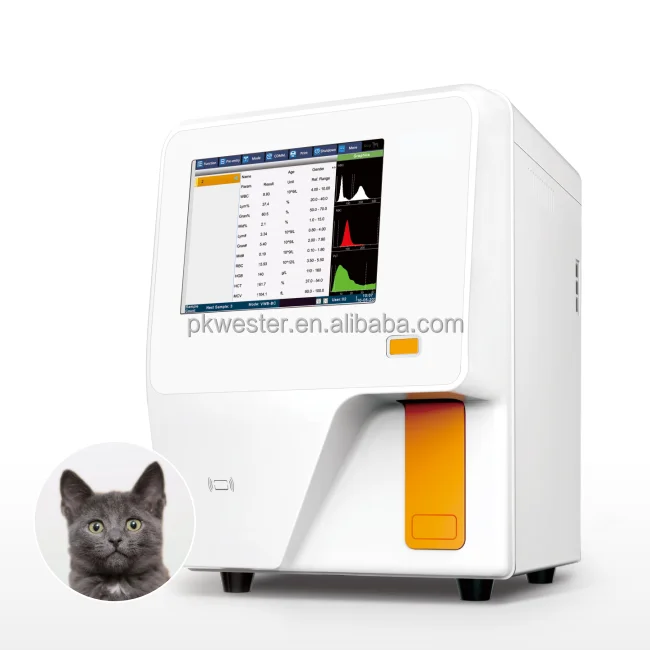

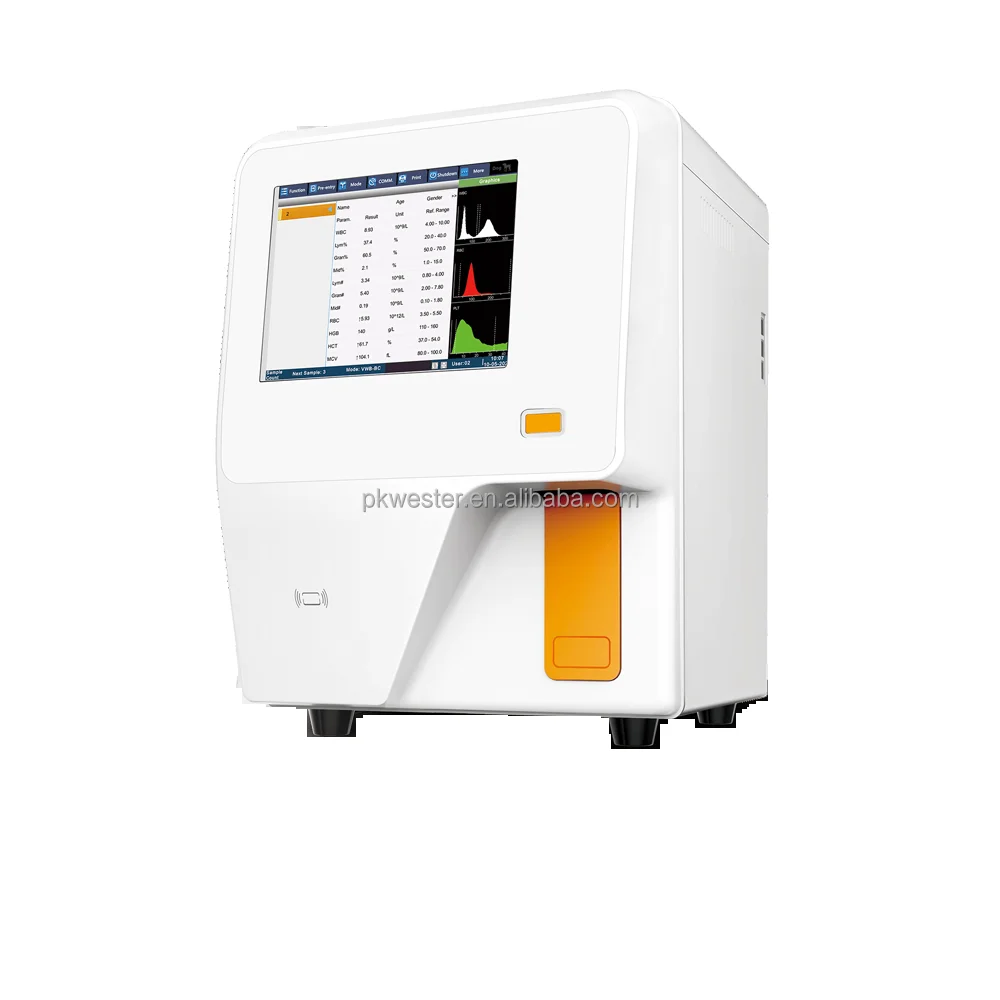

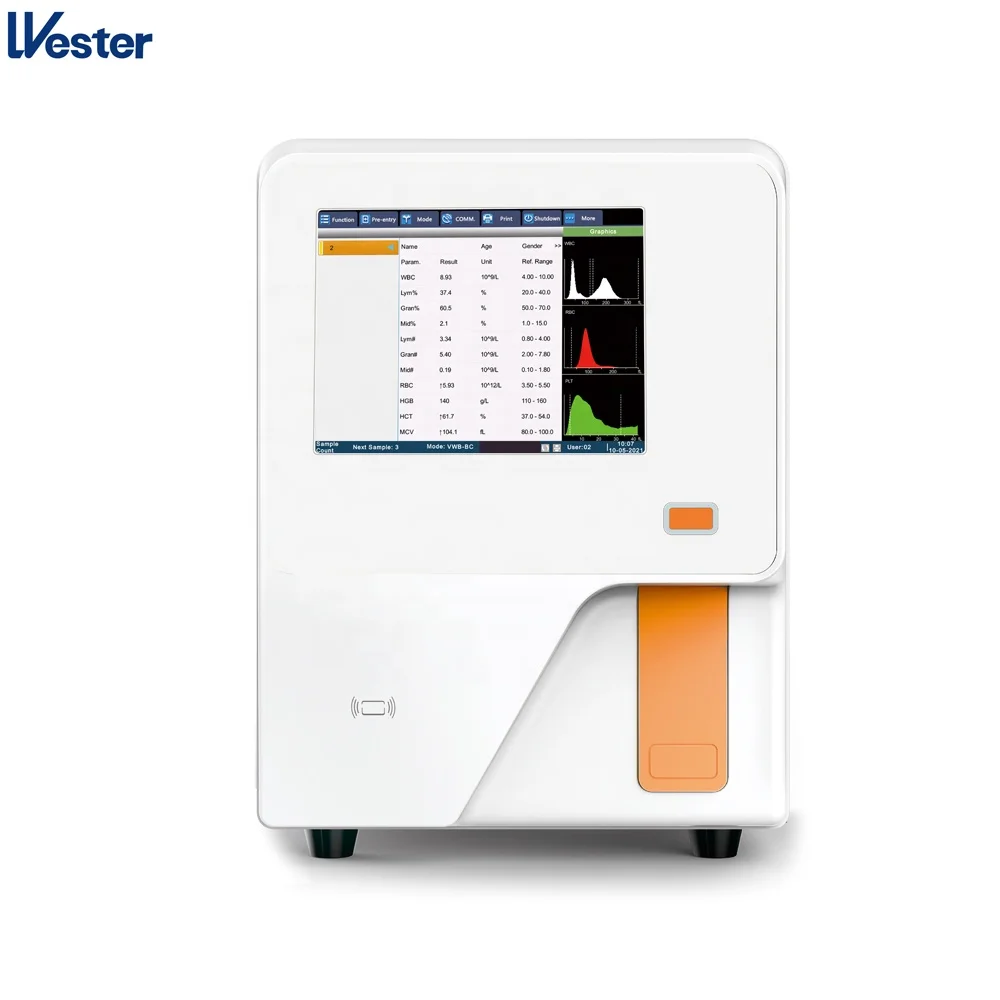

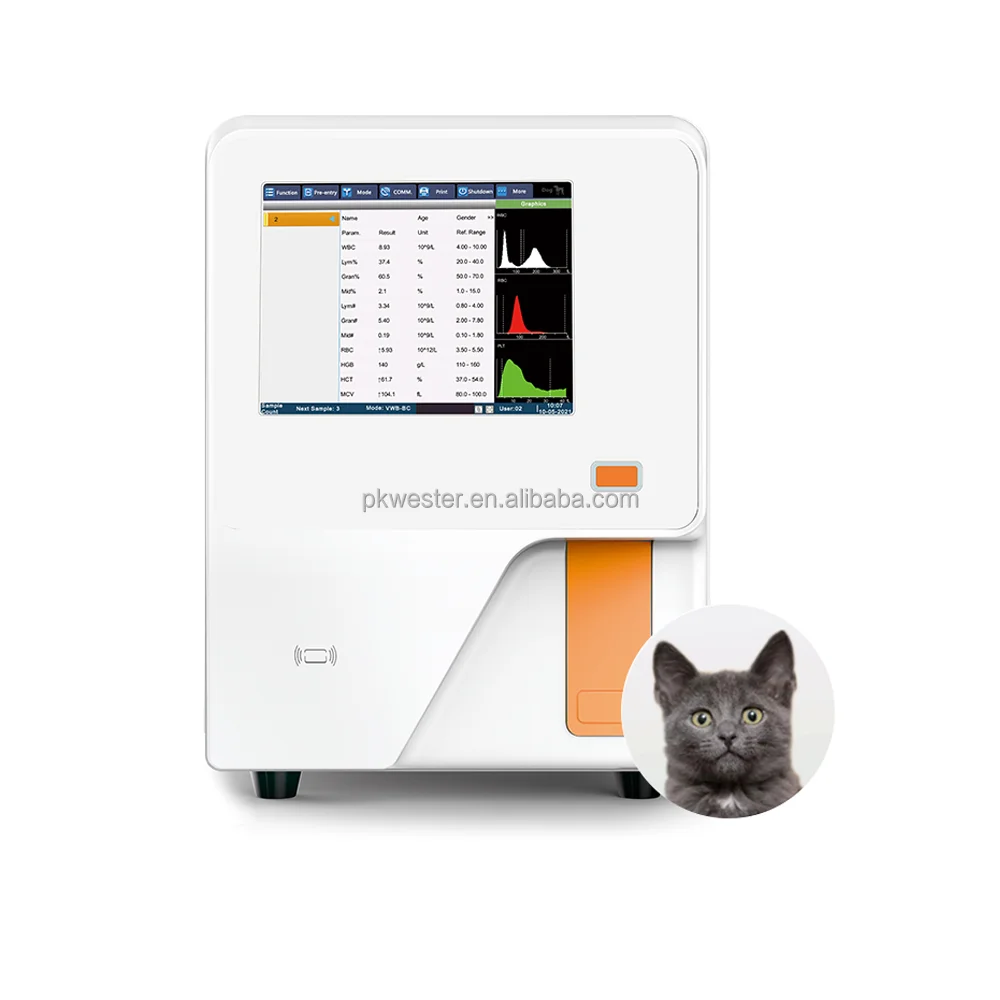

WS-3020VET 3-Part fully auto Veterinary Hematology Analyzer with electrical impedance measure principle, flow cytometry technology, intelligent anti-clog technology to ensure precise of the test results.
It supports 10 kinds of animal species including cat, dog, horse, pig, cattle, sheep, rabbit, monkey, rat, mouse and 10 user-defined species which can meet various requirements.
10.4-inch IPS colorful touch screen display bring better experience to user. Easy operation, fully function, Accuracy result, reliable performance.
* 2 Reagent Use Only
* High Resolution Colorful IPS 10.4 Inch touch Screen
* Automated & User-friendly Interface
* Accurate Results & Low Sample Consumption
* Easy Maintenance & Environment-friendly System

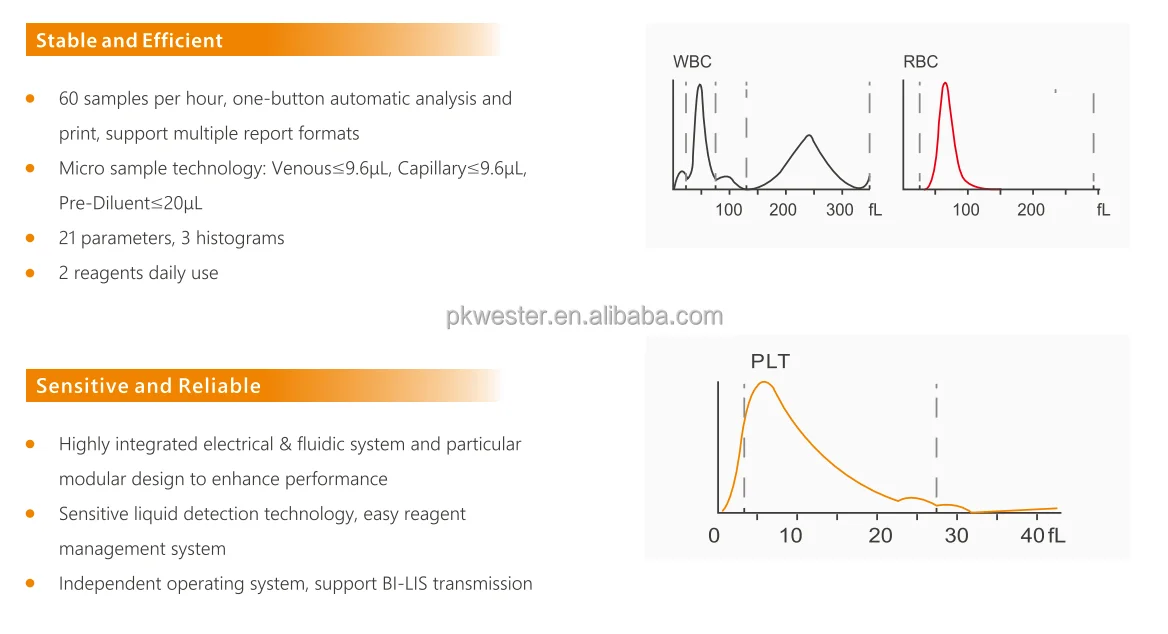

* 21 Parameters
* 3 Scatter diagrams
* 60 Throughput
* 12+ Species
* Support LIS

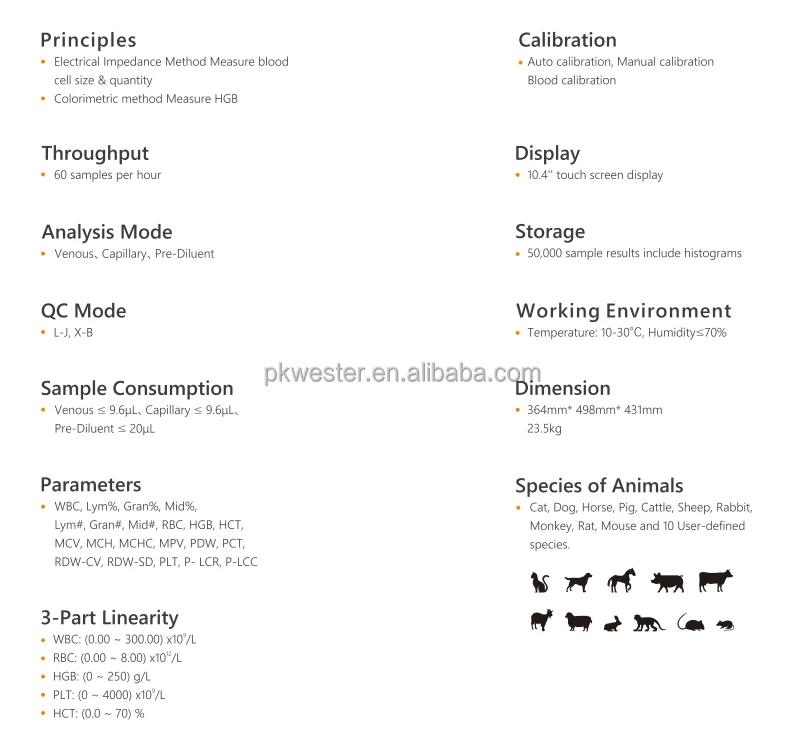

Specifications:

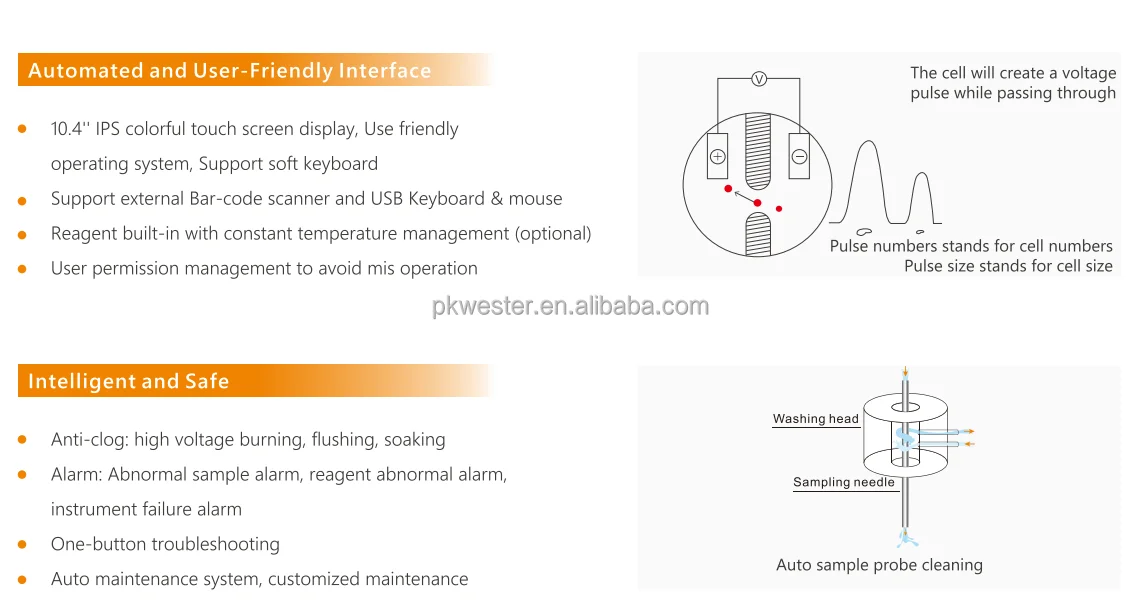

Principles | Electrical impedance method to measure the volume and number of cells, Colorimetric method Measure HGB |
Throughput | 60 samples per hour |
Analysis Mode | Venous, Capillary, Pre-Diluent |
QC Mode | L-J, X-B |
Sample Consumption | Venous≤9.6μL, Capillary≤9.6μL, Pre-Diluent≤20μL Parameters: WBC, Lym%, Gran%, Mid%, Lym#, Gran#, Mid#, RBC, HGB, HCT, MCV, MCH, MCHC, MPV, PDW, PCT, RDW-CV, RDW-SD, PLT, P-LCR, P-LCC |
3-Part Linearity | WBC: (0.00~300.00) x109/L RBC: (0.00~8.00) x1012/L HGB: (0~250) g/L PLT: (0~4000) x109/L HCT: (0.00~70) % |
Repeatability | WBC≤2.0% (3.5-15×109/L) RBC≤1.5% (3.5-6.5×1012/L) HGB≤1.5% (100-180g/L) PLT ≤4.0% (100-500×109/L) MCV ≤1.5% (70-110) fLHCT≤1.5% (35.0-50.0) % |
Calibration | Auto calibration, Manual calibration, Blood calibration |
Display | 10.4'' touch screen display |
Storage | 50,000 sample results with histograms |
Language | English/Portuguese /Bengali/Polish, Support customized language |
Printer | Support external barcode scanner and USB keyboard mouse |
Support Species | Cat/Dog/Horse/Pig/Cattle/Sheep/Rabbit/Monkey/Rat/Mouse and 10 customized animals. |
Working Environment | Temperature: 10-30℃ Humidity≤70% |
Instrument Dimension | 364mm*498mm*431mm |
Packing Carton | 62*58*59cm |
GW/Net | 31kgs/23.5kgs |

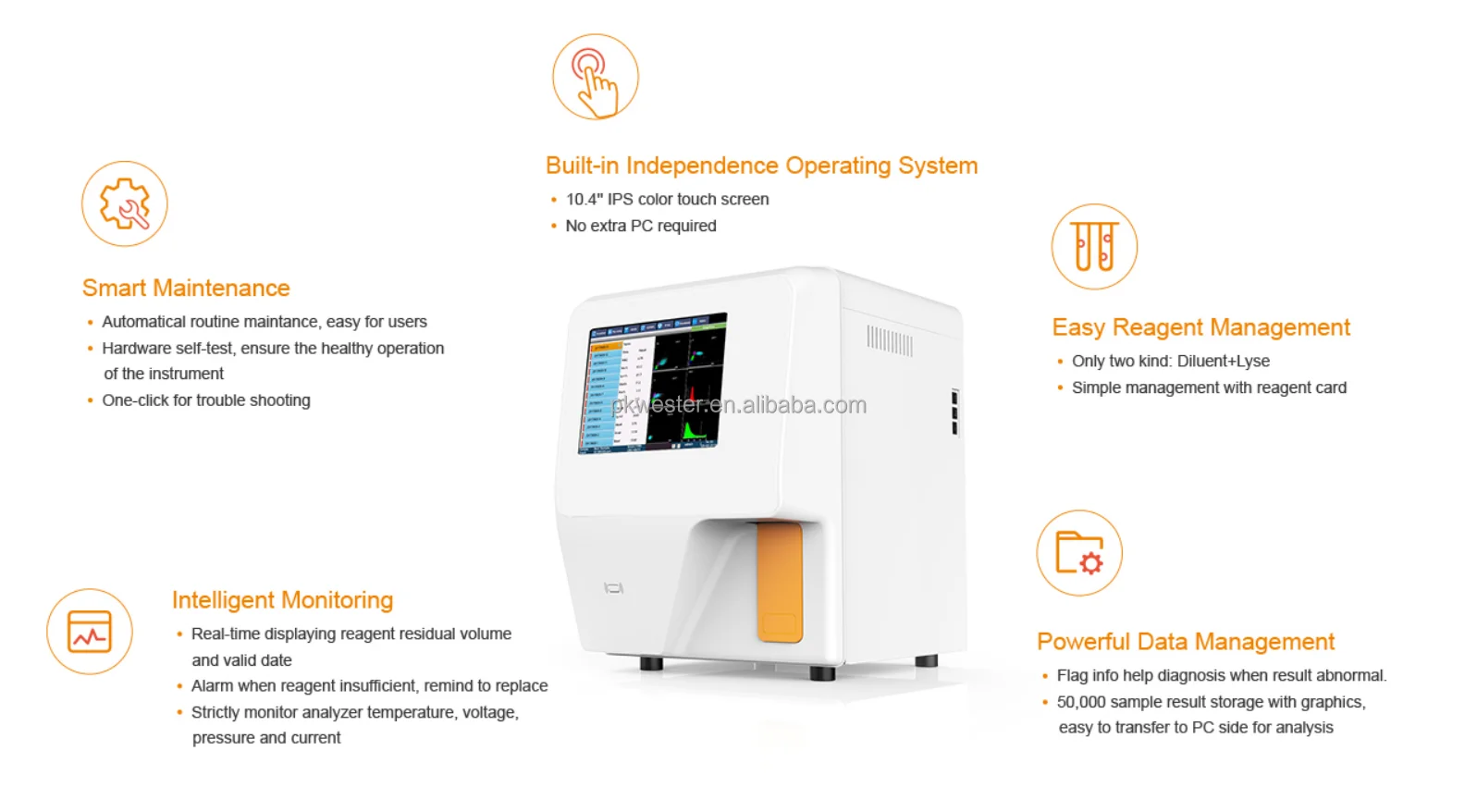

Smart Maintenance | Automagical routine militance, easy for users Hardware self-test, ensure the healthy operation of the instrument One-click for trouble shooting |
Built-in Independence Operating system | 10.4-inch IPS color touch screen No extra PC required |
Intelligent Monitoring | Real-time displaying reagent residual volume and valid date Alarm when reagent insufficient, remind to replace Strictly monitor analyzer temperature, voltage, pressure and current |
Easy Reagent Management | Only two kinds: Diluent +Lyse Simple management with reagent card |
Powerful Data Management | Flag info help diagnosis when result abnormal 50,000 sample result storage with graphics, easy to transfer to PC side for analysis |

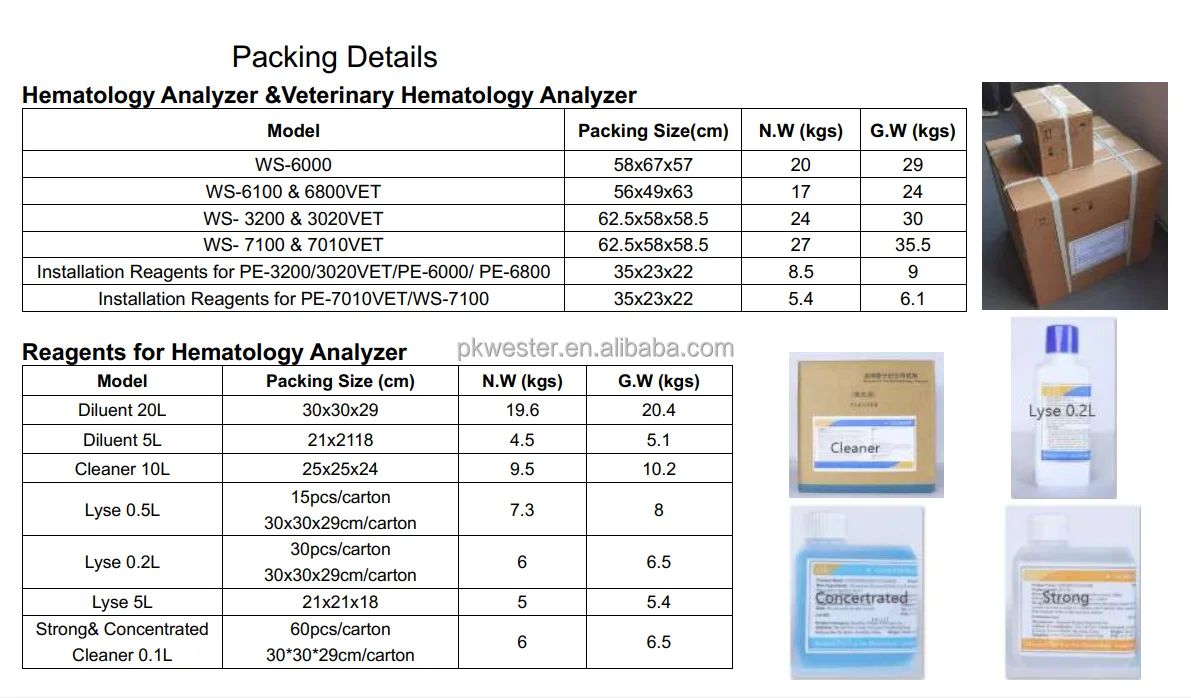

Packing & Delivery
Standard Packing List | ||||
Item No | Description | Quantity | ||
1 | WS-3020VET Main unit | 1set | ||
2 | WS-3020VET Operation manual | 1pc | ||
3 | Qualified certificate | 1pc | ||
4 | Europe standard power cable | 1pc | ||
5 | Spare fuse | 1pc | ||
6 | Diluent cap assembly | 1pc | ||
7 | Waste bottle cap assembly | 1pc | ||
8 | Waste bottle (soft) | 1pc | ||
