Price:$91.54

Quantity:


Product Overview

Description

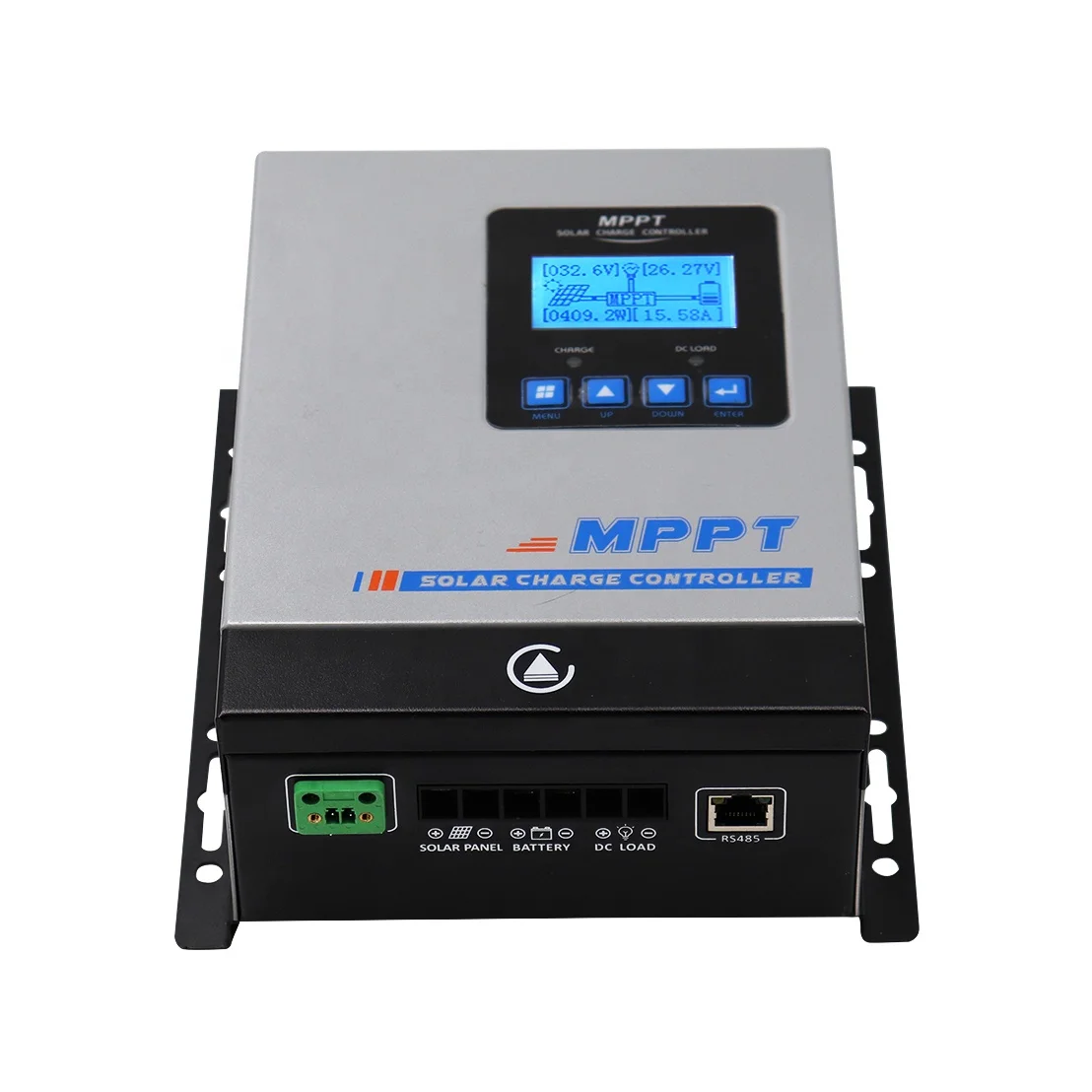

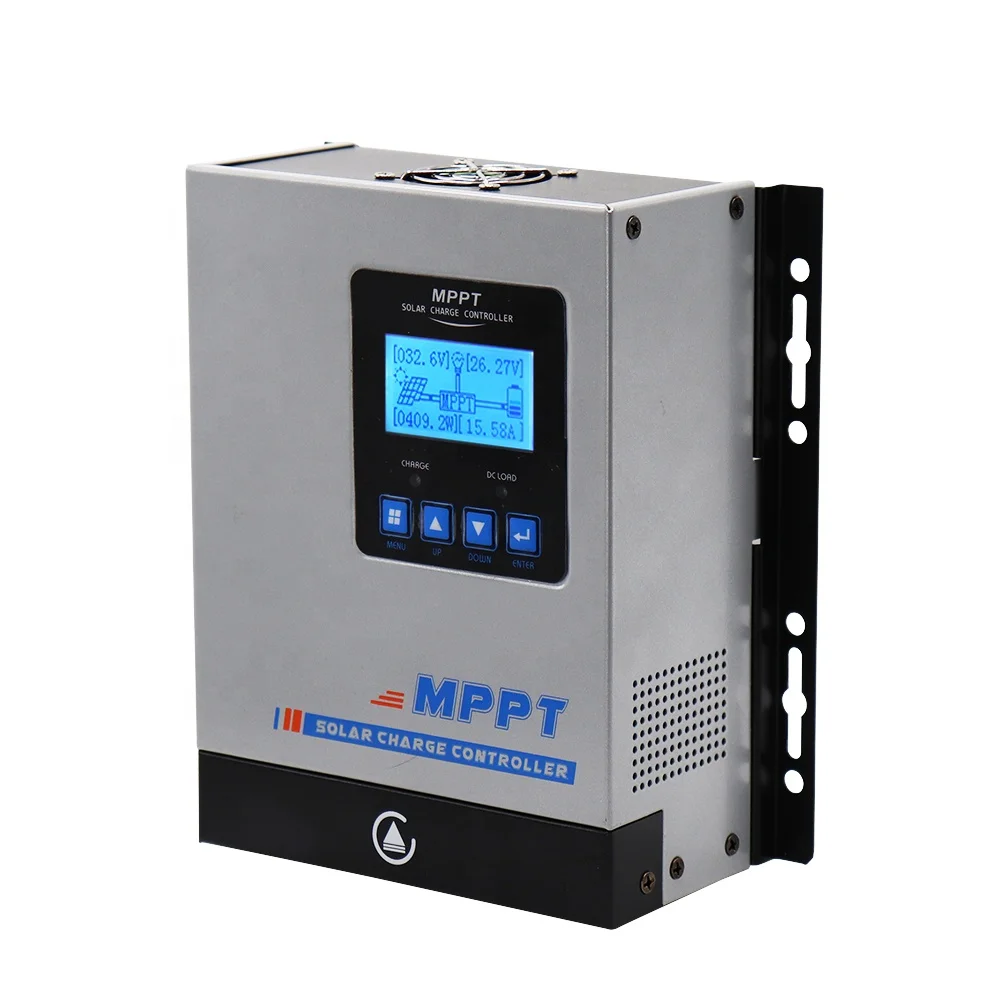

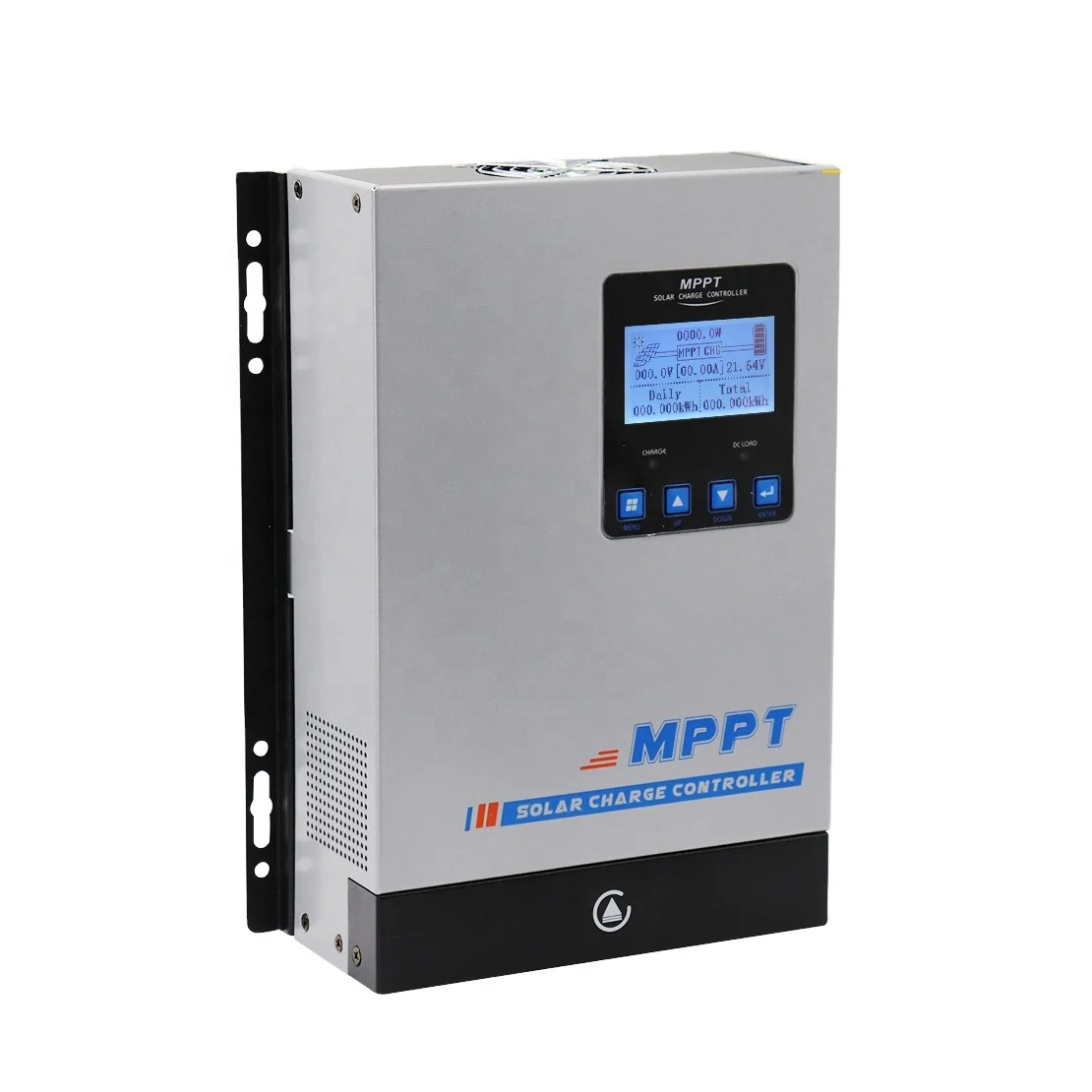

12V 24V 36V 48V DC and 20A 30A 40A 50A 60A 80A 100A MPPT Solar Charge Controller for Factory Use

Product advantage :
1. The efficiency is up to 99%.
2. Intelligent DSP control chipset.
3. Intelligent LCD display with multiple function.
4.Switching power is supplied by independent system.
5. True Over Temperature Protection.
6. New and original electronic components.
7. Internal circuit lines and signal lines are based on plug-pull blocks, not welding.
8.Equipped with RS485 port, can connect to the external screen, and WiFi connector, check the receipt at any time.


Features and advantages of MPPT
1
12/24/36/48VDC system voltage identification；
2
PV wide voltage range input, the maximum is 150V;
3
Charging method: three-stage charge (constant temperature, constant voltage, floating charge), which effectively extends the life of the battery；
4
Type of battery：Maintenance-free lead-acid battery（default），colldidal battery，liquid battery，lithium battery，lifepo4battery，others are available by customizing；
5
With RS485 port, WiFi controller can be configured.






AP-Series APpt solar charger controller Selection Guide
Model
AP-20
AP-30
AP-40
AP-50
AP-60
AP-80
AP-100
AP-120
Rate Current
20A
30A
40A
50A
60A
80A
100A
120A
Maximum Charging Current
22A
32A
45A
52A
62A
82A
102A
122A
APPT Range Operating Voltage
12V System
18VDC-80VDC
24V System
30VDC-100VDC
36V System
40VDC-100VDC
48V System
60VDC-150VDC
96V System
120VDC-200VDC
Maximum PV Array Power
12V System
280W
420W
570W
700W
900W
1140W
1400W
1800W
24V System
550W
840W
1130W
1400W
1700W
2260W
2800W
3400W
36V System
840W
1260W
1710W
2100W
2700W
3420W
4200W
5400W
48V System
1100W
1650W
2270W
2800W
3400W
4540W
5600W
6800W
96V System
7200W
9120W
11200W
14400W
Other
Supportable battery type
Sealed lead acid/Gel/Nical/Lifepo4/Lithium battery
Charger Mode
Three stages：Constand current（APPT),Equalizing charge ,Flotaing charge
Maximum efficiency
98%
Communication
RS485
Physical
Dimension，D*W*H(mm)
315*235*150mm
335*270*135mm
426*400*185mm
570X360X200mm
G.W(KGS)
3.5
4.5
5
13
*Product specifications are subject to change without further notice
