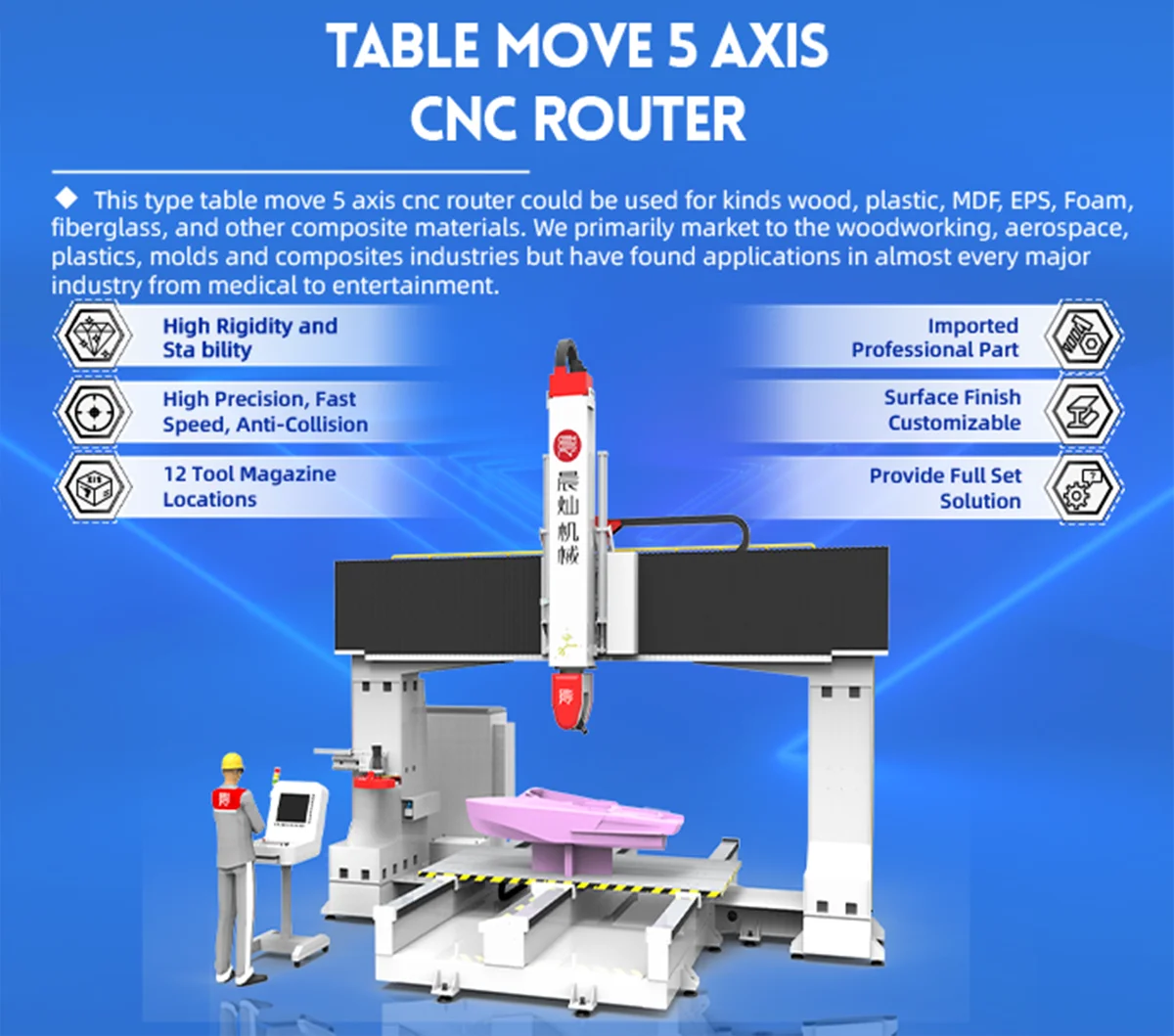

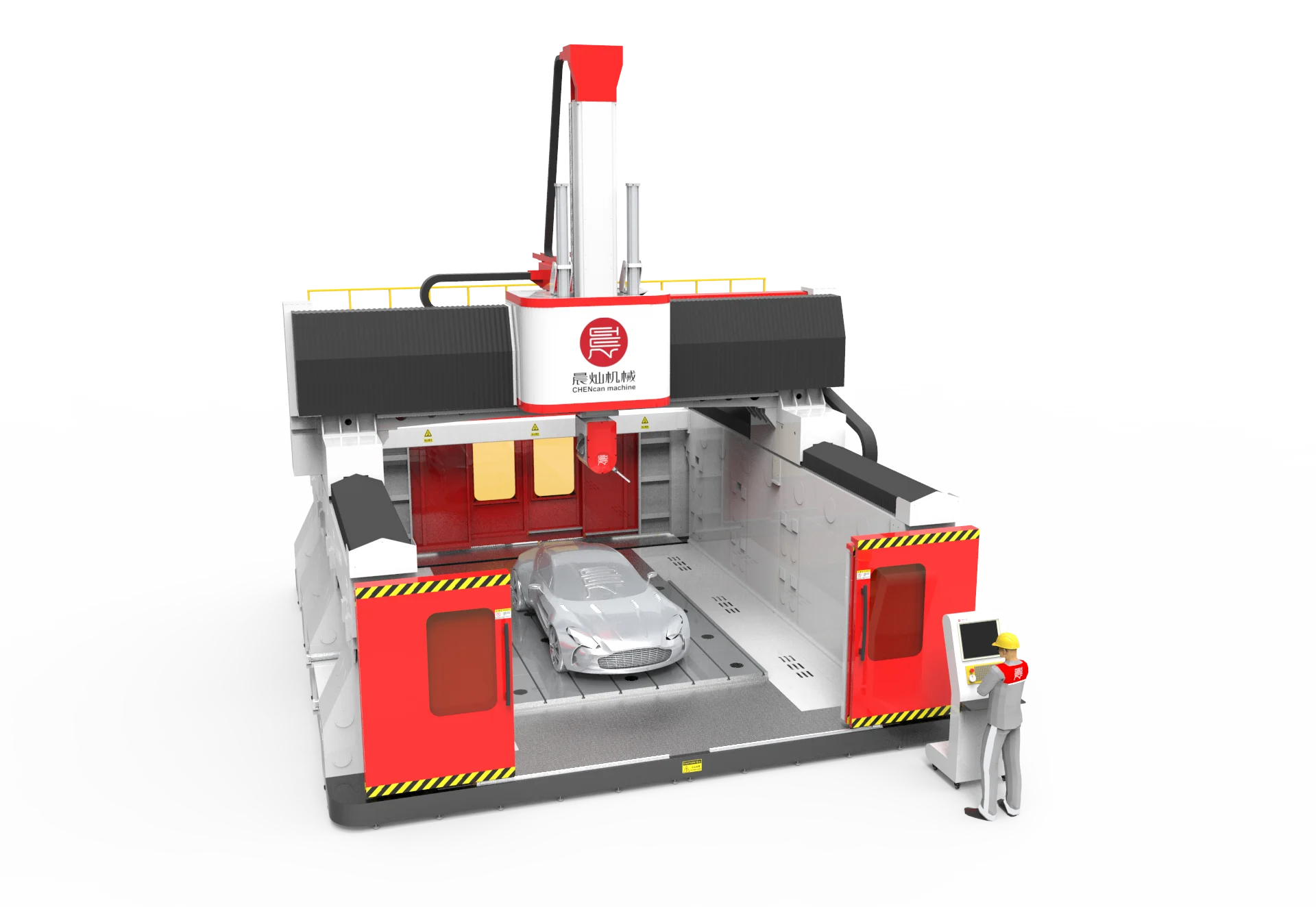

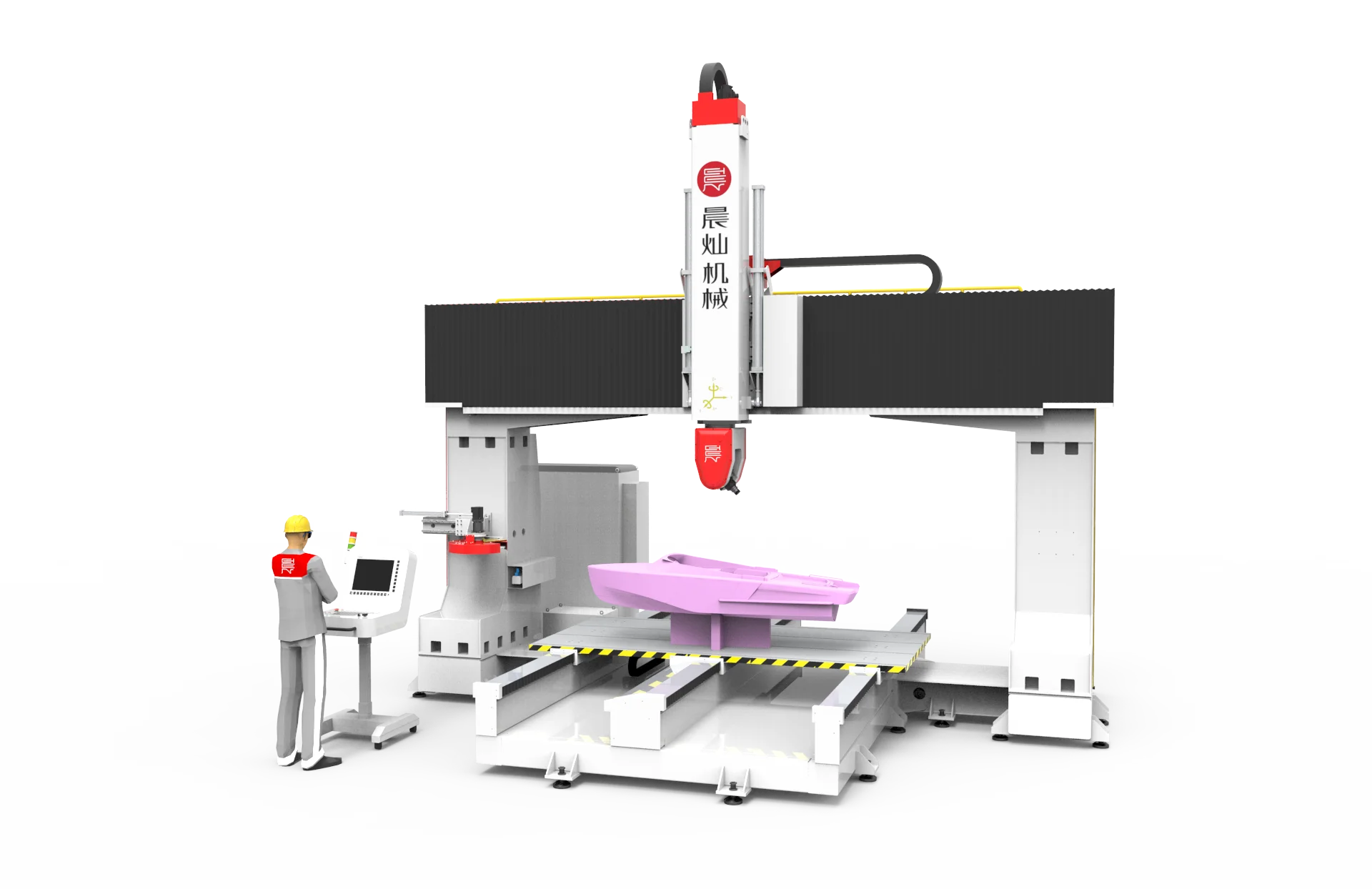

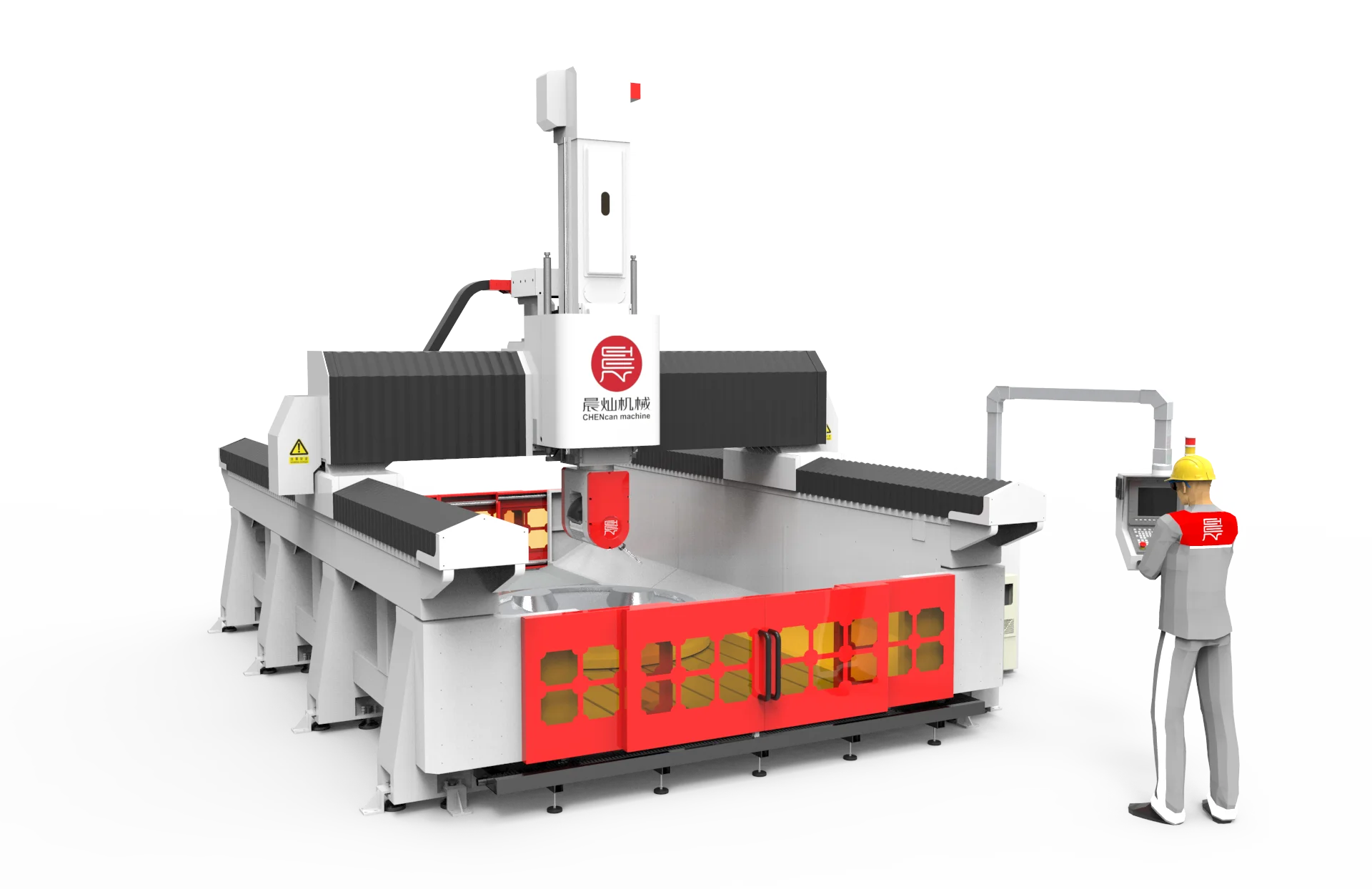

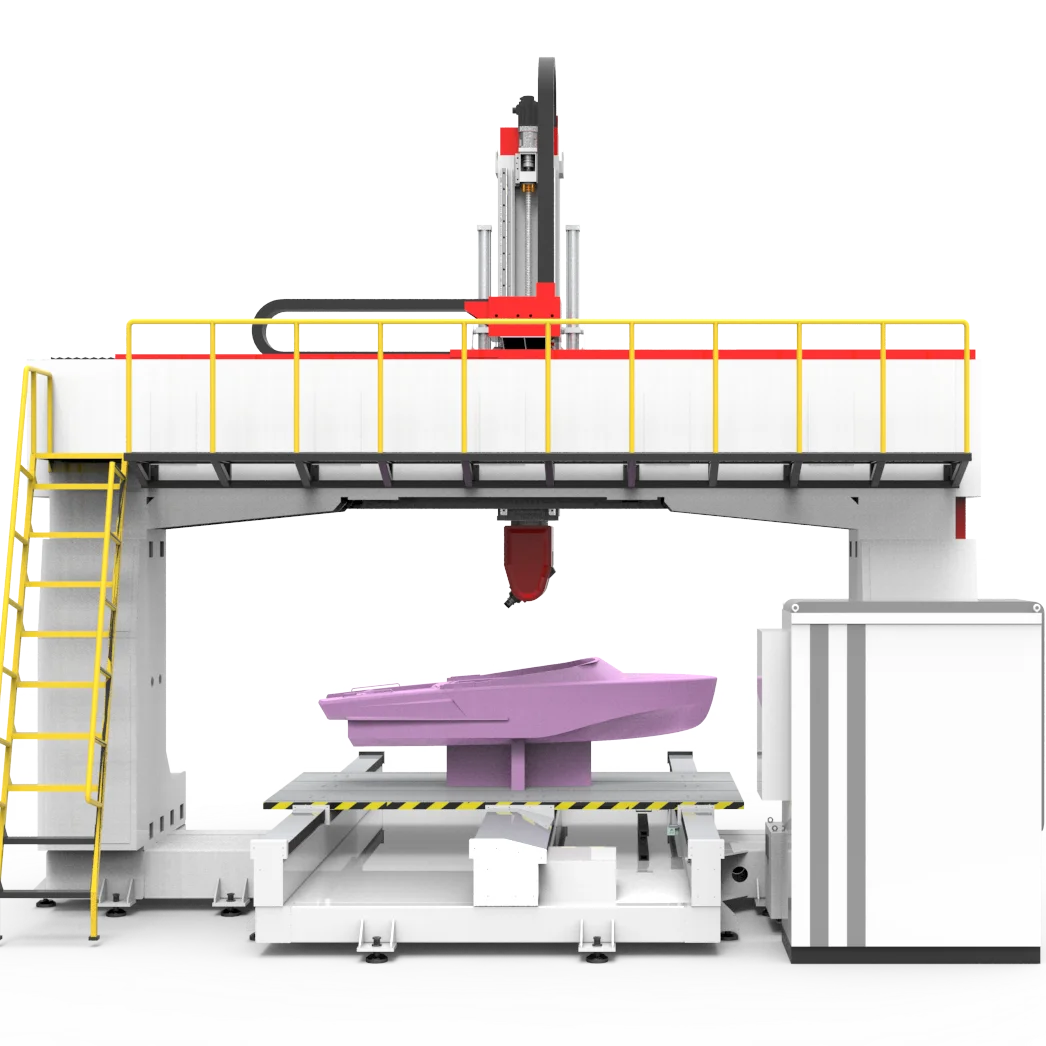

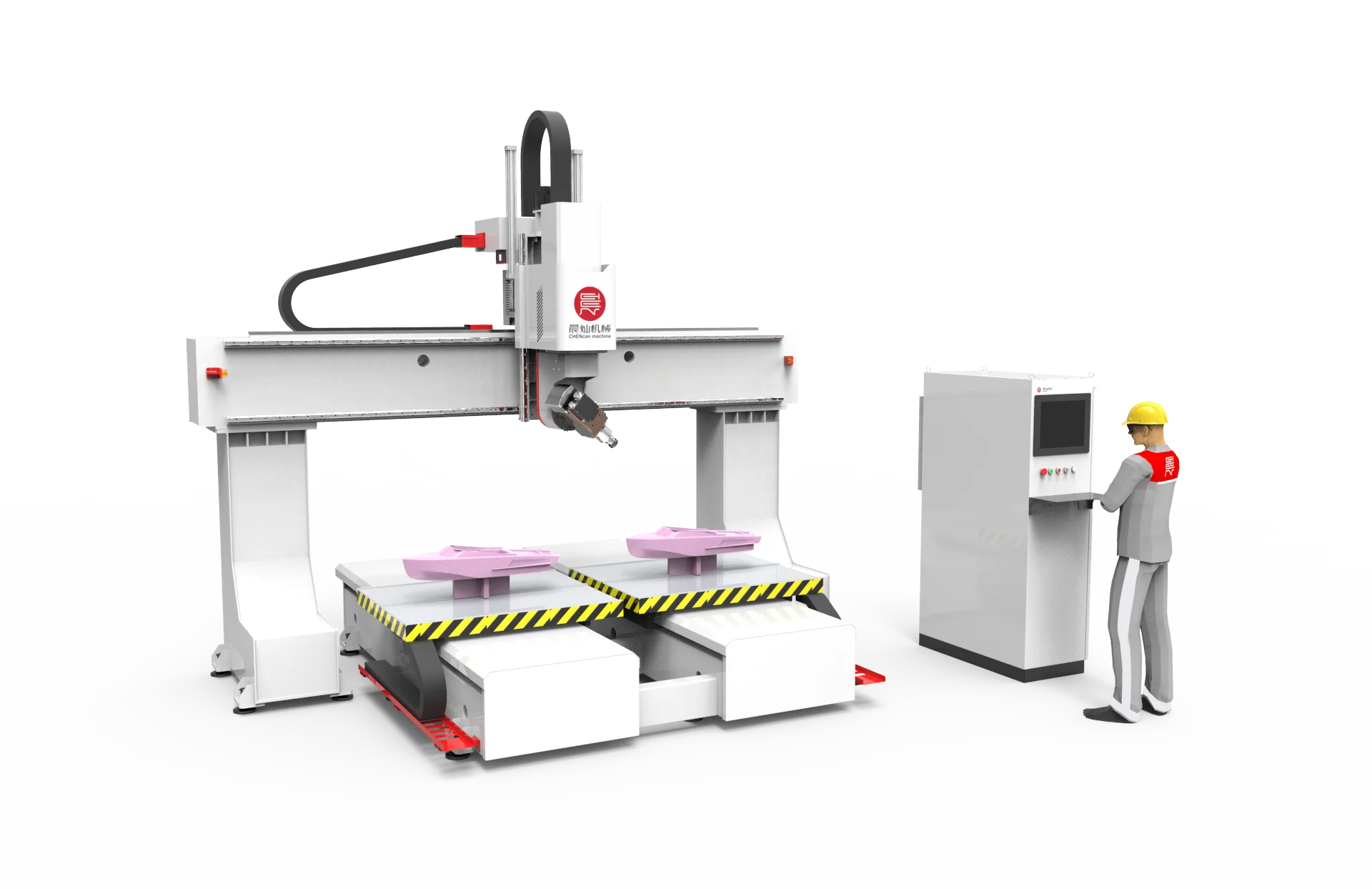

5 axis cnc router used for styrofoam EPS foam molds patterns milling cnc machine 5 axis
- Category: >>>
- Supplier: SHANDONG PEF MACHINE TOOL CO. LTD
Share on (1600453473641):
Product Overview
Description
Products Description
Product Paramenters
Stroke range 5 axis | X axis | 1300mm | |
Y axis | 2500mm | ||
Z axis | 1000mm | ||
A axis | ±120° | ||
C axis | ±360° | ||
Table surface | Iron table (Vacuum table and Aluminum table as optional) | ||
Frame | Strong thick steel tube, vibration stress relief and tempering processed | ||
Spindle | Spindle brand | Italy Hiteco Brand 15KW L model 5 axis head | |
Spindle | 15kw auto tool changer spindle | ||
Spindle cooling | Water cooling system with industrial chiller | ||
Speed | 0-24000rpm | ||
Tool magazine | Linear tool magazine 10 tools on the side of the machine | ||

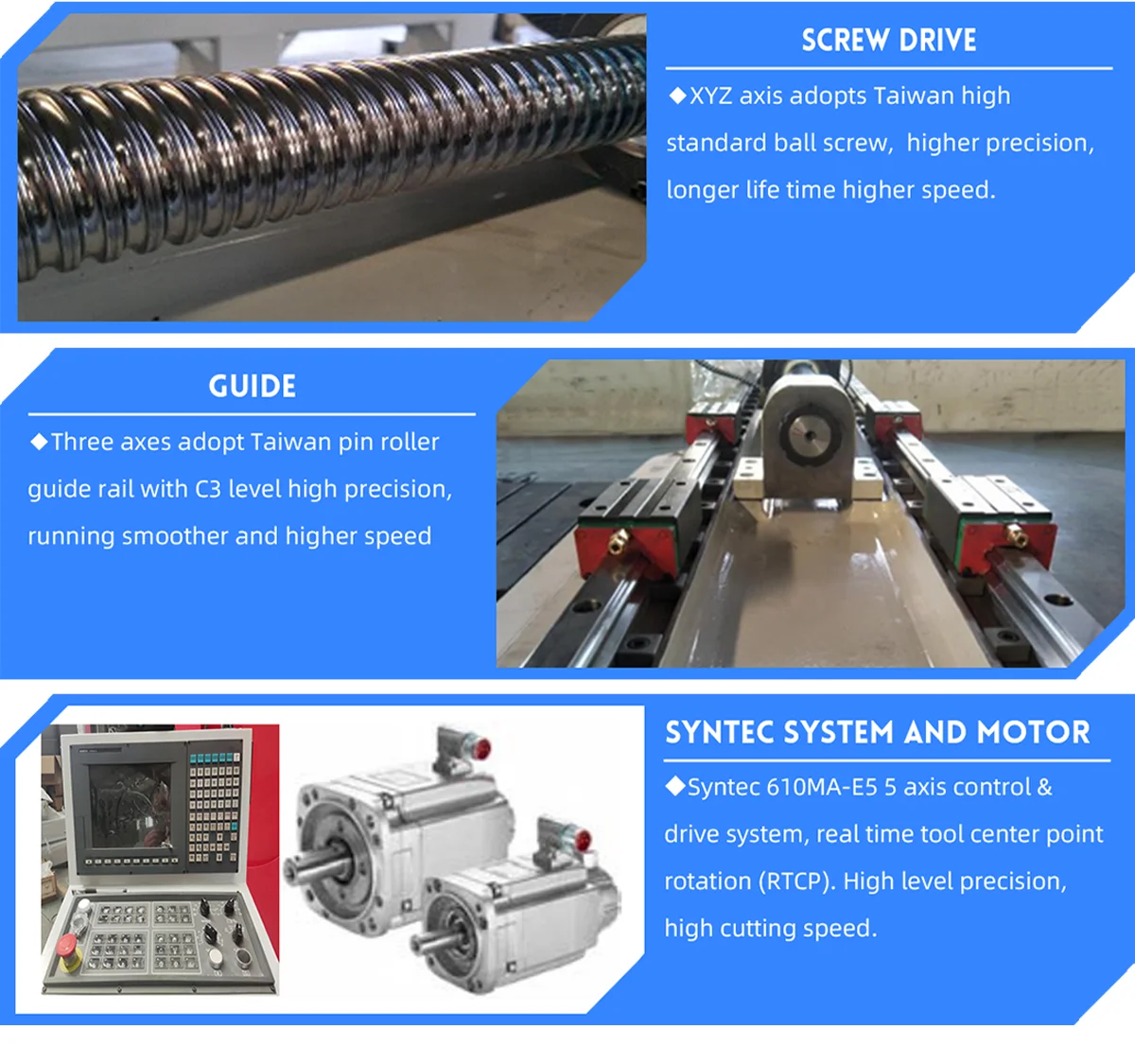

Control system | Syntec 5 axis control system | ||
Guide rail | Taiwan square rail system with big size (H35) | ||

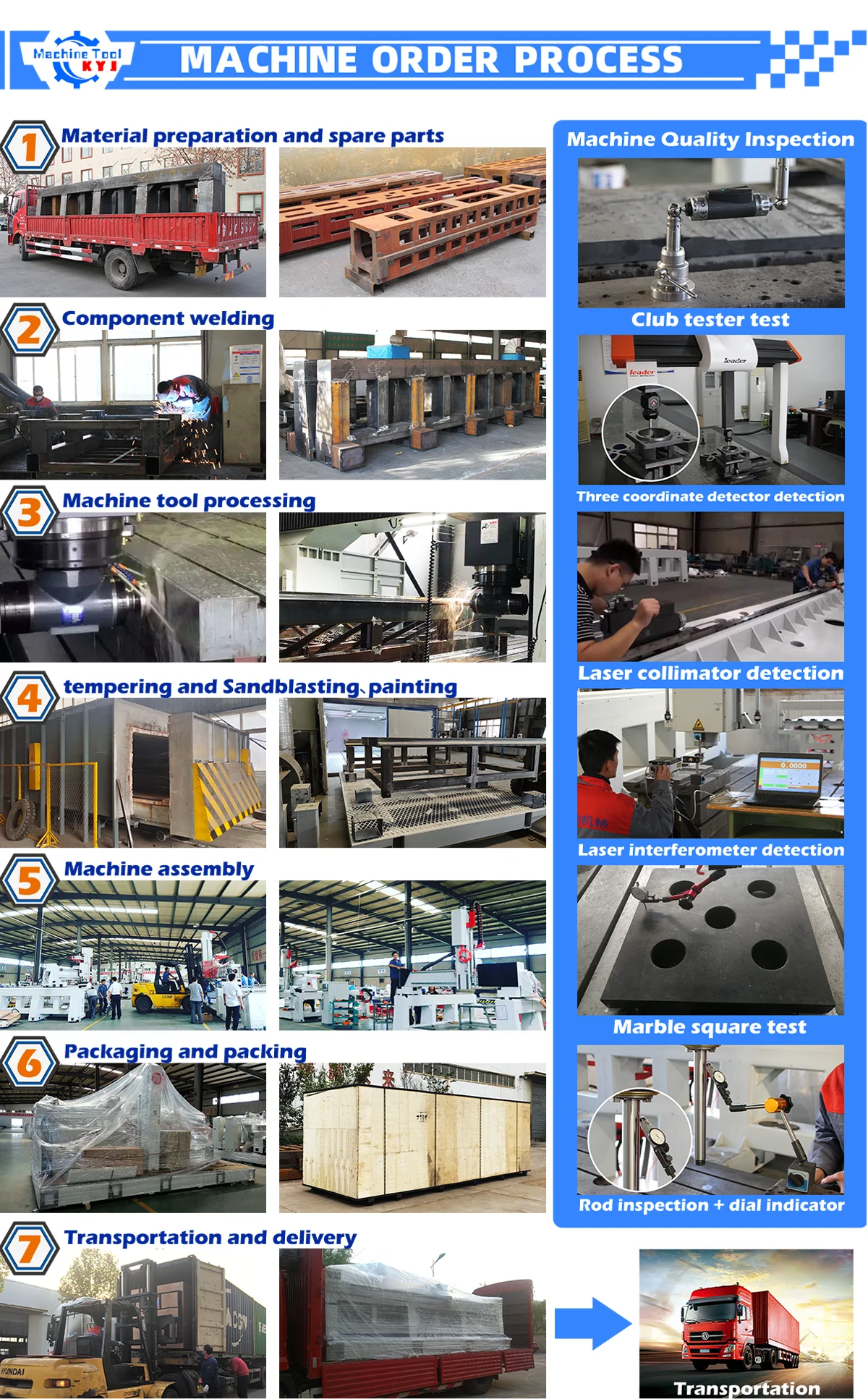

Production Process

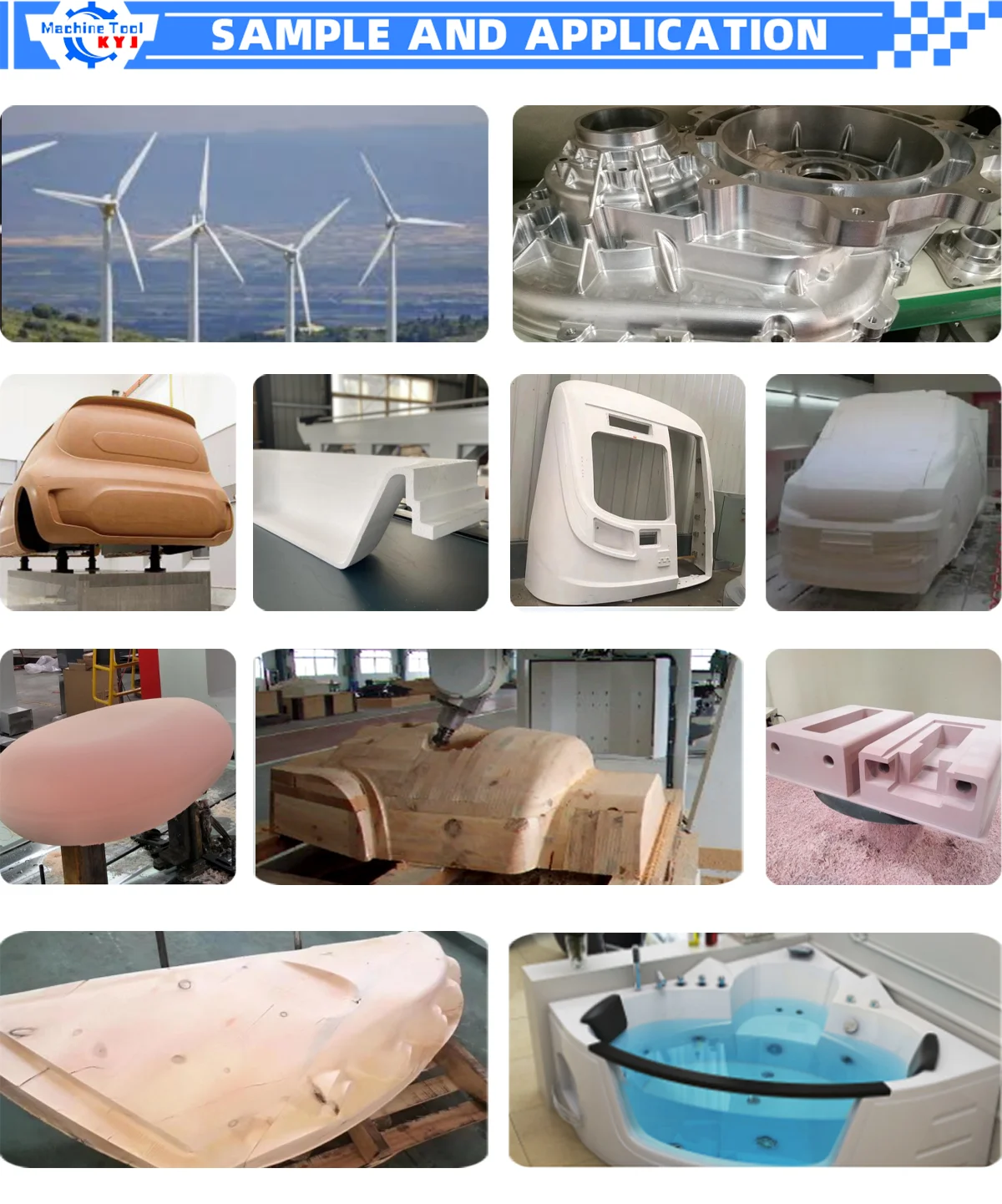

Sample
Industrial Design:
processing design of master models for automobiles, yachts, high-speed rail EMUs and other products. Composite
Materials:
Materials:
precision processing of FRP male molds, FRP products cutting and trimming, ABS plastic products cutting and trimming,wind power cover processing, yacht hulls and high-speed rail EMU interior parts.
Mold Industry:
five-axis processing of various non-metallic molds such as glass fiber reinforced plastic wooden molds, cast wooden molds, foam substitute wood resin products,etc.
Ceramic Sanitary Ware:
plaster molds and various plaster products processing.

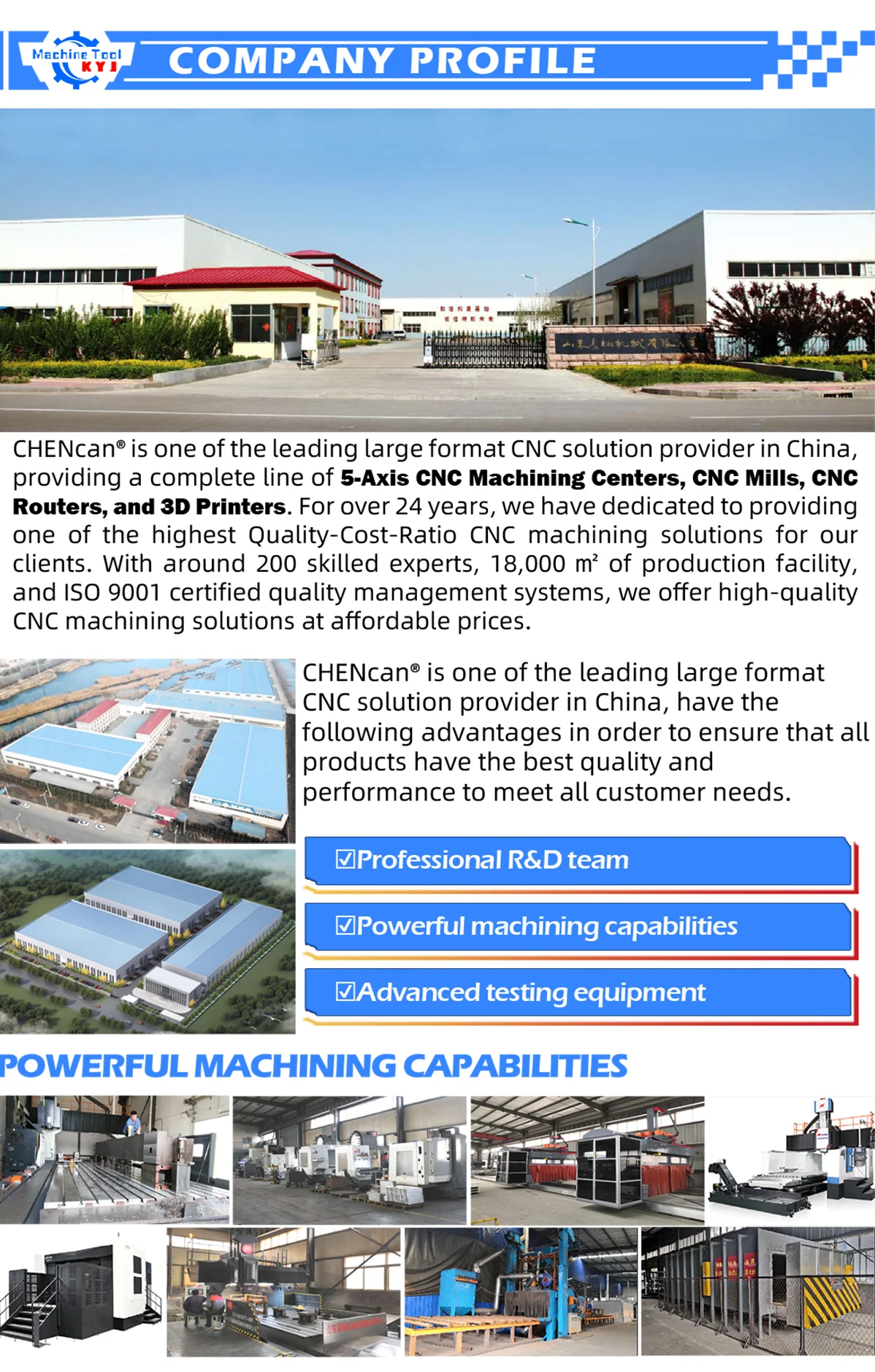

Company Profile
