Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00

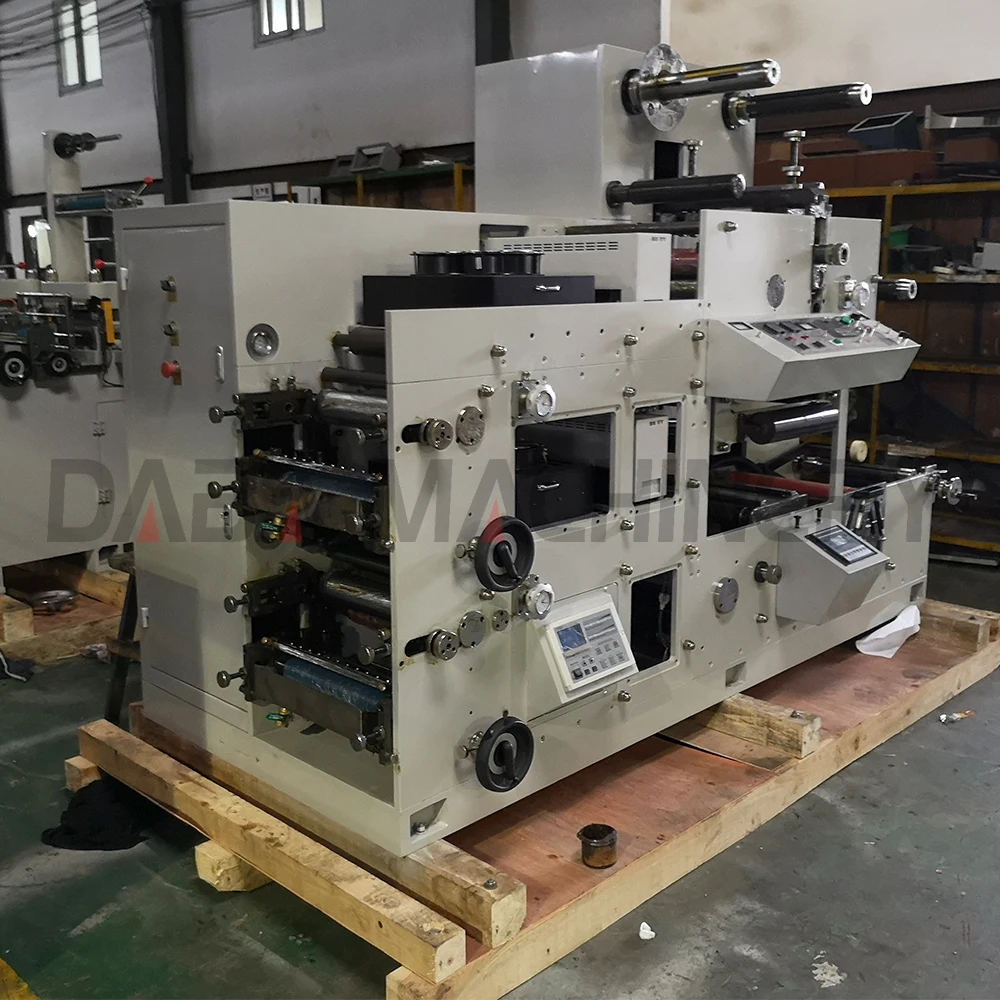

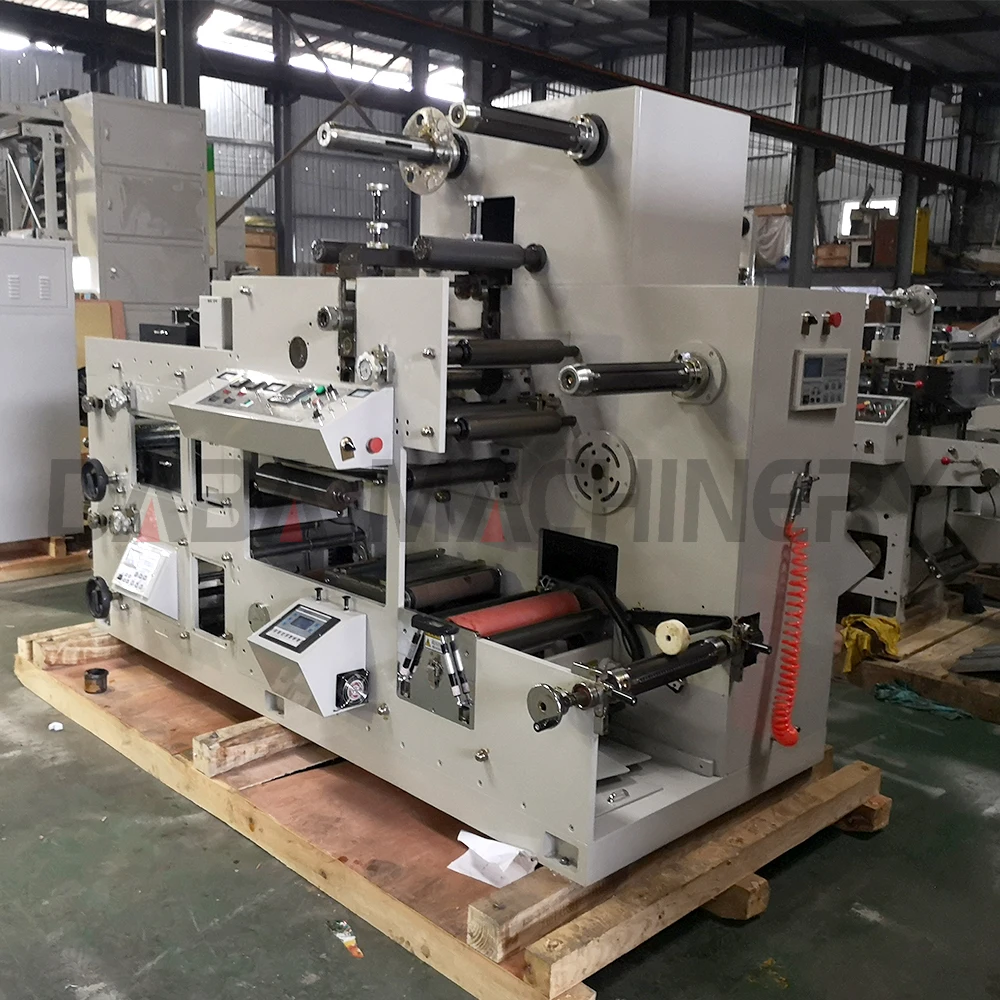

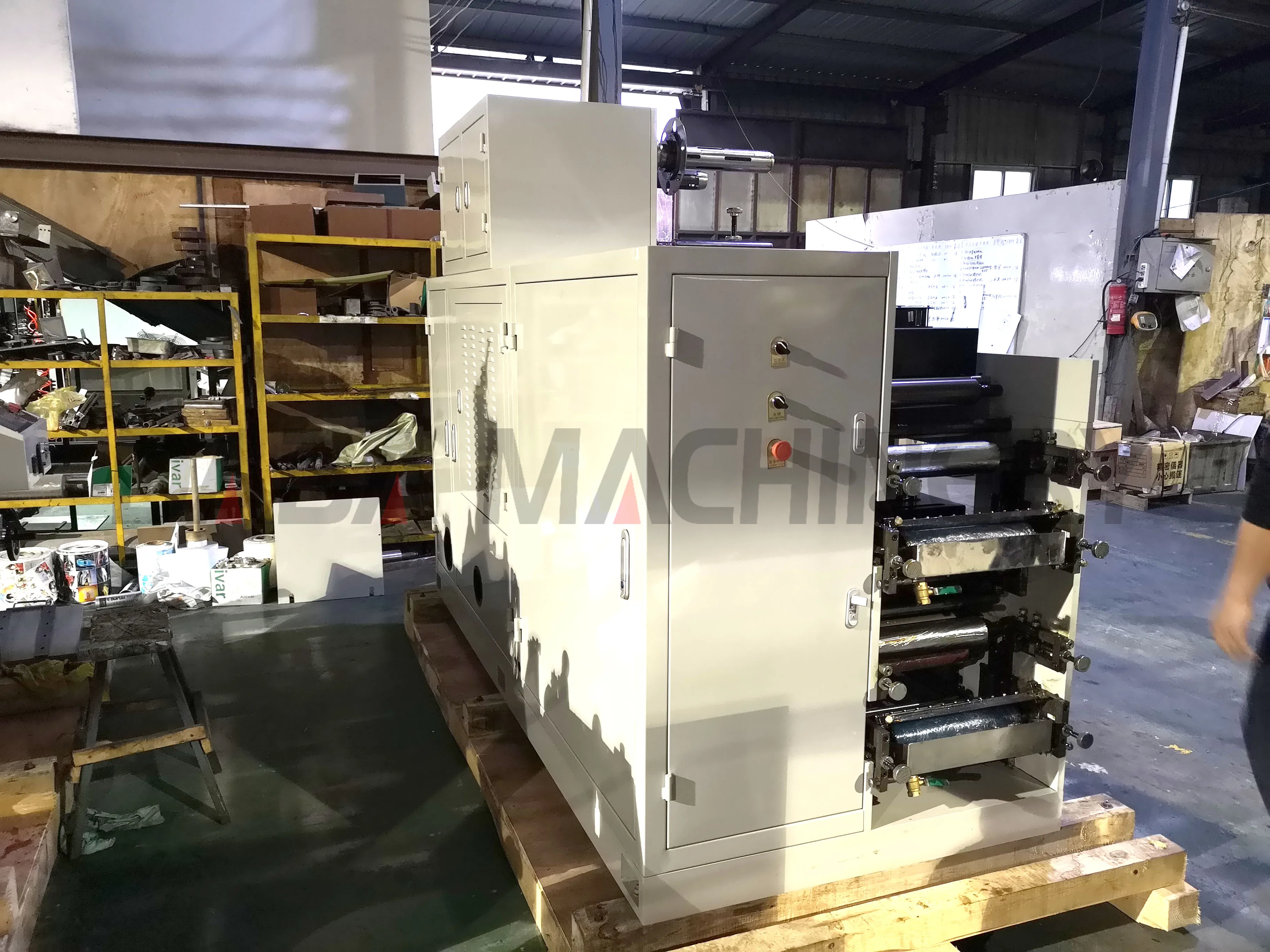

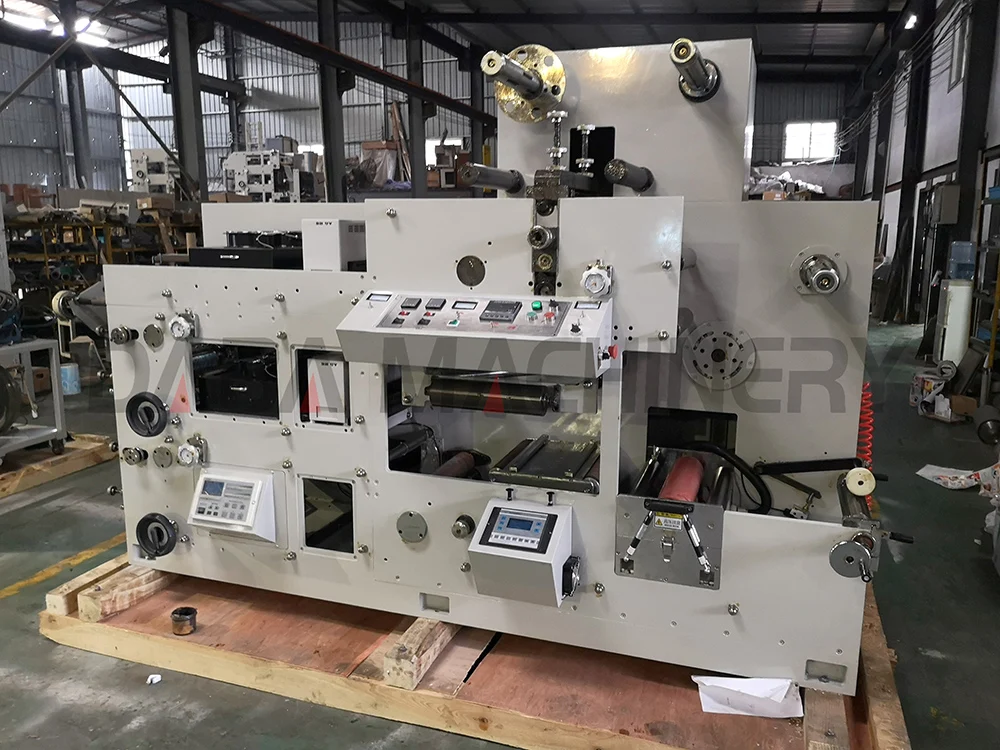

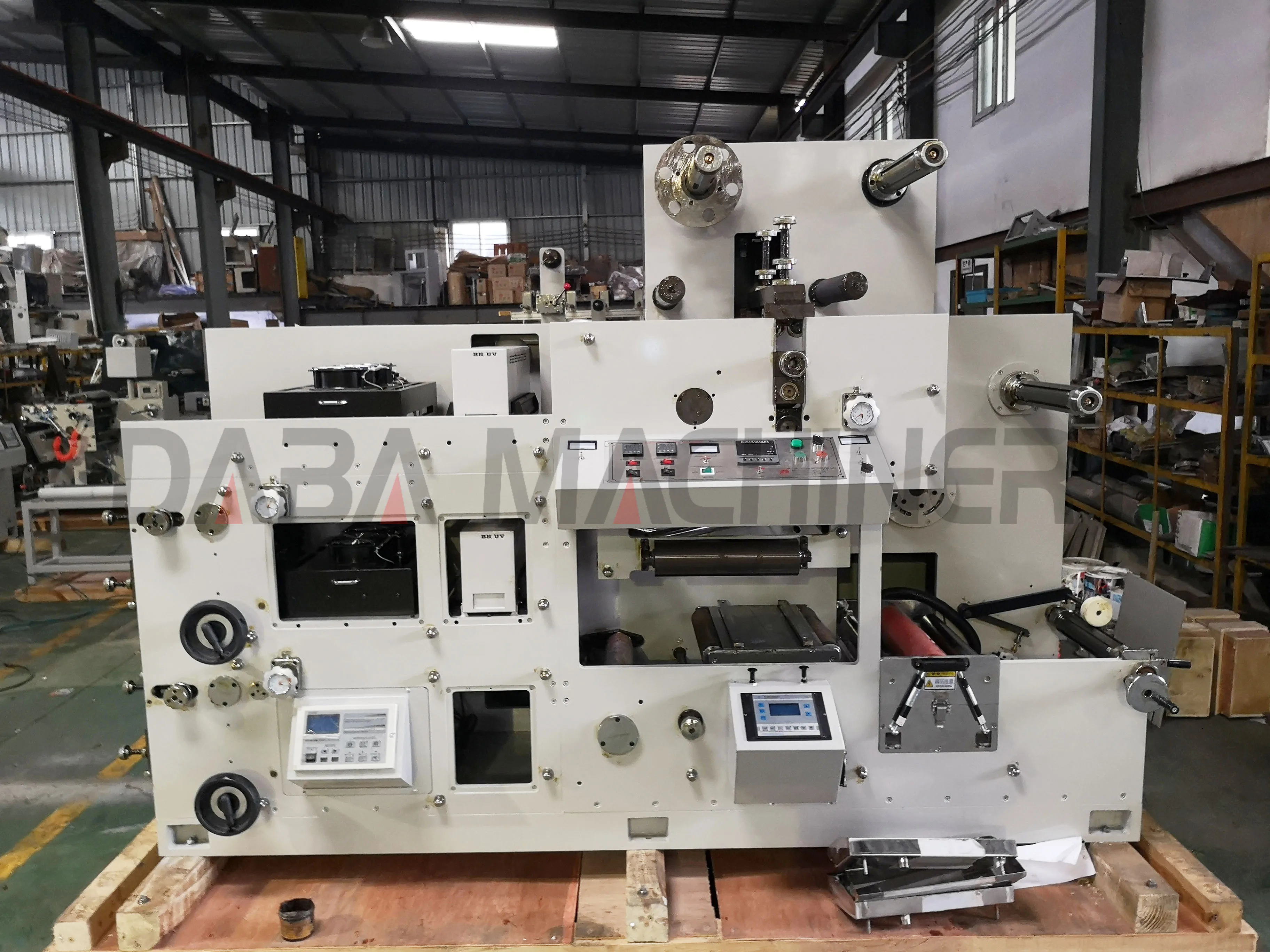

DABA Flexo label vinyl sticker printer printing and die cutting machine
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1600453569183):
Product Overview
Description
Product Description
Main Features
* 1. Main motor adopts imported frequency step-less speed regulator.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.
* 2. Unwinding,traction and rewinding are controlled by magnetic powder arrester,clutch and tension inspector. Tension controller is automatic type.
* 3. Machine adopts ceramic anilox roller, which is characterized by wearable,rust-resistant and long using life, etc.It can
improve the printing efficiency.
* 4. Printing unit adopt plate register function,each veins roller can print independently,without effecting others when leave it alone.
* 5. Each printing unit collocated with IR dryer, the UV dryer is optional.
* 6. The ink roller can break away automatically when machine stops,and it still run in a low speed avoid the ink dry or
asymmetric.
* 7. Unwinding and rewinding shaft adopt air shaft,it's convenient to change load and unload the material.
* 8. From material-feeding, printing, drying, glazing, laminating, molding, die-cutting, rewinding to waste-collecting can be done in the same machine, the machine is known for machine characteristics such as wide printing range, environmental ink, fast printing speed, convenient operation, high economic benefit and so on. It's the best choice for note, paperboard and label printing factories.
Machine Parameter | ||||||||||||||||
Model | DBRY -1C | DBRY -2C | DBRY -3C | DBRY -4C | DBRY -5C | DBRY -6C | DBRY -7C | DBRY -8C | ||||||||
Printing speed | 70m/min | 60-80m/min | ||||||||||||||
Printing color quantity | 1-12colors | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||||
Max. unwinding width | 320-480mm | |||||||||||||||
Max. Printing width | 320-480mm | |||||||||||||||
Min. Printing width | 60mm | |||||||||||||||
Max. unwinding diameter | 600-1000mm | |||||||||||||||
Max. rewinding diameter | 600-1000mm | |||||||||||||||
Precision of chromatography | ±0.10mm | |||||||||||||||
Machine weight | 1800KG | 2100KG | 2400KG | 2700KG | 3000KG | 3300KG | 3600KG | 3900KG | ||||||||

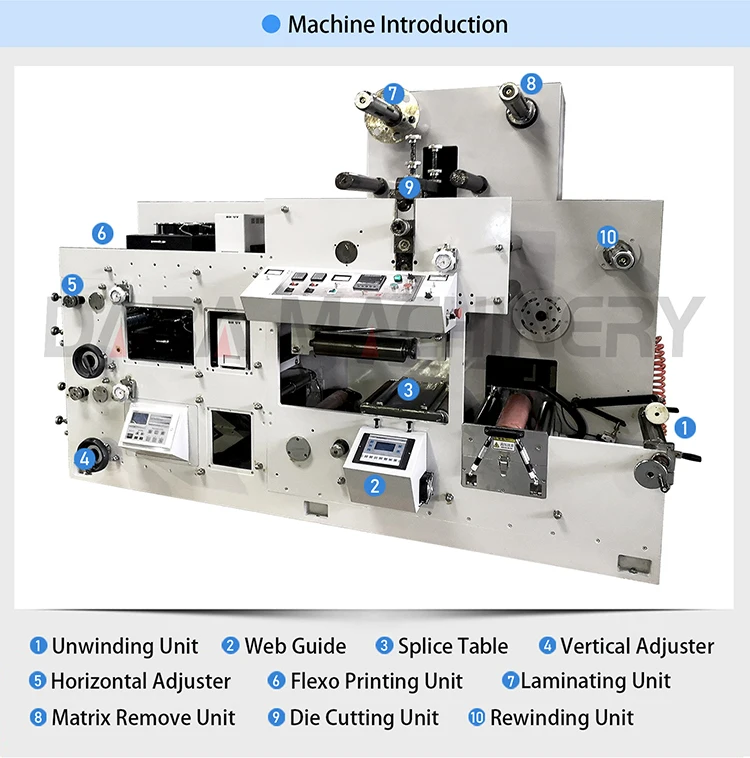

Details Images
1.Unwinding Unit
o Standard Cantilever unwinding station,maximum unwind diameter: 600mm
o 76mm (3″) air shaft roller.
o Electromagnetic power brake.
o Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension.
o 76mm (3″) air shaft roller.
o Electromagnetic power brake.
o Auto tension control–No roll-followers or external sensors to be adjusted or maintained. Support a stable unwinding tension.
2.Web guide system
o EPC system to ensure the printing material the lateral position before feeding to the printing station.
o Ultrasonic Web Guide System,transparent products can be easily detected.
o The precision is ±0.1mm.
o Ultrasonic Web Guide System,transparent products can be easily detected.
o The precision is ±0.1mm.
3.Splice Table
4.Turn Bar Vertical Adjuster
5.Turn Bar Horizontal Adjuster
6.Flexo Printing Unit
o Printing width:320 mm
o Max printing area: 320mm x 580mm
o Printing repeat Range :178-580 mm（56T-182T）
o Printing driven by 3 kw motor. It could by controlled at the control panel independently
o Gearing – 1/8 cp
o Printing plate thickness:1.7 or 1.14 mm
o Both sides tape thickness:0.38mm(3M)
o Printing station consist with :Measuring roller(Rub roller) ,Ceramic anilox roller, printing roller, scrapper
o 360°degree printing adjustment .
o Max printing area: 320mm x 580mm
o Printing repeat Range :178-580 mm（56T-182T）
o Printing driven by 3 kw motor. It could by controlled at the control panel independently
o Gearing – 1/8 cp
o Printing plate thickness:1.7 or 1.14 mm
o Both sides tape thickness:0.38mm(3M)
o Printing station consist with :Measuring roller(Rub roller) ,Ceramic anilox roller, printing roller, scrapper
o 360°degree printing adjustment .
7.Laminating Unit
o 76mm (3″) quick change air shaft.
o Feeding by motor.
o Feeding by motor.
8.Waste Matrix Remove Unit
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
9.Die Cutting Unit
o Gearing – 1/8 cp, 20 degree pressure angle.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
o Precision ground steel die plates –320mm (12.75″) model
o A driven capstan roller with adjustable tension control ensures reliable matrix stripping,
enabling high speed running even if the matrix rewind becomes unstable.
o Matrix / Waste Rewind – 400mm (15.75″) diameter.
o 76mm (3″) air shaft for waste rewind.
10.Rwinding Unit
o Maximum rewind diameter: 600mm .
o 76mm (3″) quick change airshaft.
o Electromagnetic power clutch.
o Auto tension control ensure the
rewinding tension is tight and
rewinding edge is clean.
o 76mm (3″) quick change airshaft.
o Electromagnetic power clutch.
o Auto tension control ensure the
rewinding tension is tight and
rewinding edge is clean.
Cold Stamping Unit（optional configuration）
o Need use UV glue with UV oven.
o Cold stamping can be placed at any position.
o Cold stamping can be placed at any position.
Cross cutting unit（optional configuration）
sheeting uint
Slitting System（optional configuration）
O With 8 pcs rotary knives
O Automatic magnetic powder tension control
O Special blades can be customized according to the product
O Automatic magnetic powder tension control
O Special blades can be customized according to the product
Camera（optional configuration）
Die Hoist（optional configuration）
Heating Oven UV Dryer（optional configuration）
o Each Printing Unit with one IR heating oven,UV is optional.
o Heating oven is equipped over on the printing material.
o Have independent windows for IR and UV oven,easy to install UV oven,do not affect the power and drying range of the IR oven and protect the life of the UV oven better.
o Heating oven is equipped over on the printing material.
o Have independent windows for IR and UV oven,easy to install UV oven,do not affect the power and drying range of the IR oven and protect the life of the UV oven better.
Delarm&Relarm Unit（optional configuration）
Electric Register System（optional configuration）
Application and Sample
Applicable Material:
* Self-adhesive paper,Self-adhesive thermal paper,thermal paper ATM etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
* Self-adhesive film:Self-adhesive PE film,Self-adhesive PET film,Self-adhesive PVC film,etc.
* plastic film:Cpp film,PET film,PVC film,PE film,etc.
* Laminating Film.
* Paper material:kraft paper,paper cup paper,etc.
Application Industry:
* Food product label, Anti-counterfeit label, Daily chemical products label, Medicines label, Chemical label, Paper cup paper,Blank label,etc.

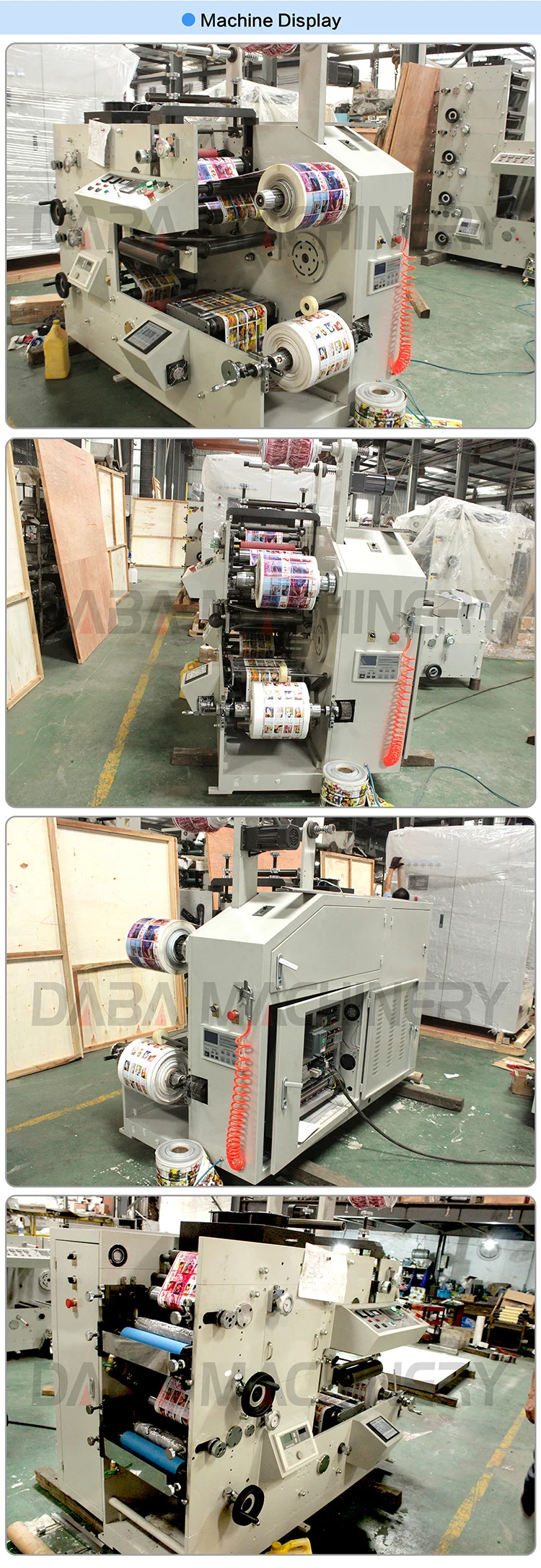

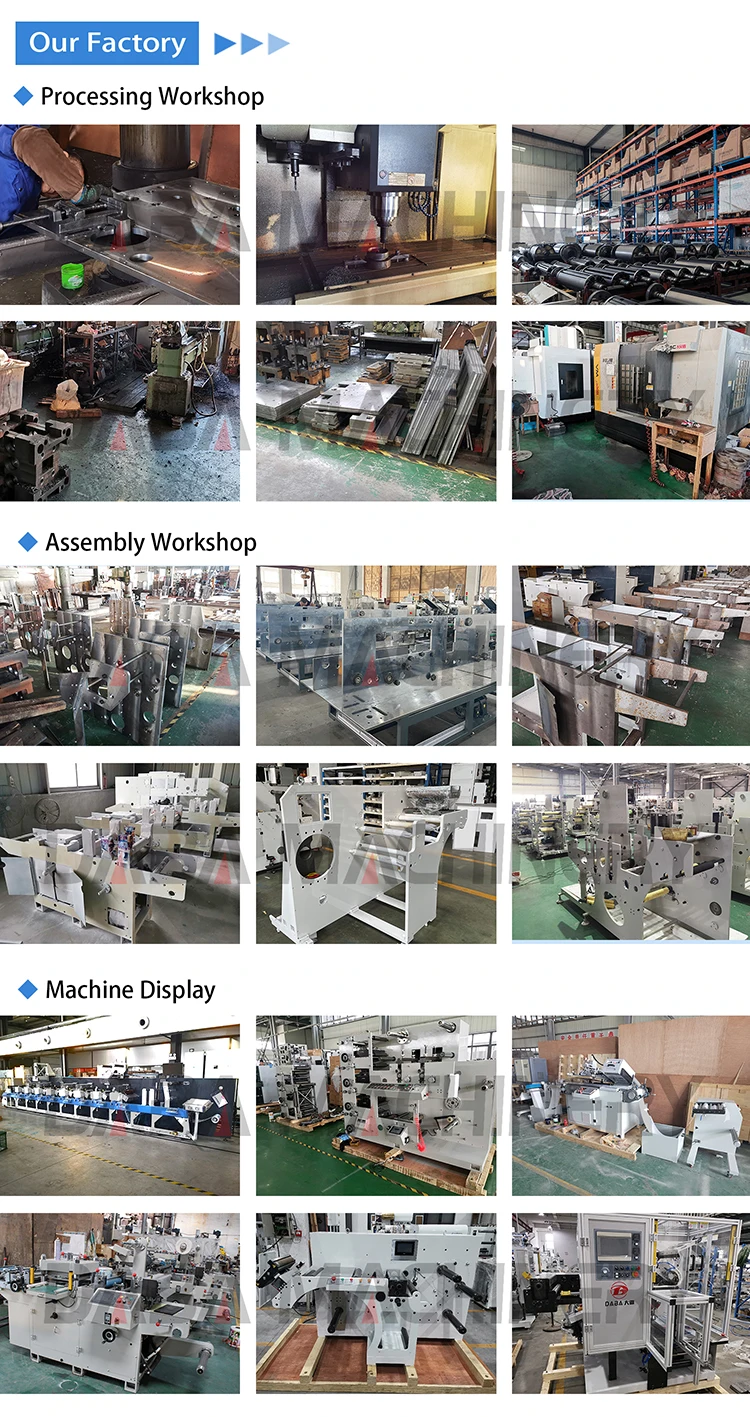

In Factory Photo
Our Service
1.Purchase Service
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
DABA COMPANY have a specialize and efficiency working team.If you are new onthe printing and packing area Some samples of your
products could be shew to uswill be appreicate we will give you specialized suggestion of whole work
2.Shipping Service
DABA COMPANY have a spcialized and independent department which just for
shipping the buyer's goods.The workers are knowing T/T,L/C Items well.All Exporteddocuments could be made perfectly
DABA COMPNAY cooperate with the most famous shipping company in China also.
They could provide the best and economic shipping ways to the buyer's port.
3.Installation Services
Installation Services are available with all DABA Company machines.DABA Comapnywill dispatch technician to The Buyer's factory to
installation and preoperation ofmachines But the buyer need to surpply the round trip tickets food hotel cost.
4.Clients Training Services
DABA Company advise The buyer could send own technican come to DABA factoryto learn how to operate machines.DABA Company
technician will teach and train thelerners hand by hand till he can operate machine by himself.
Obviouslly,Traning within Installation period is acceptable.
5.After Sales Service
DABA Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with
machines.Any parts broken Just a pictures or a videos.The new free parts will reachwithin 3-7 Express working days.
Packing & Delivery
Company Information
FAQ
Q: What's your delivery date?
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
A: Usually finish the production within 30days after your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight. We accept Cash.
Q: How many days will you finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, however, if require overseas service, you need pay salary to our technician 100USD/day.
Q: How could we do if the parts broken within warranty?
A: We would express the free replacement parts during the warranty date.
Q: How many worker do we need running those machines?
A: For flexo printing, slitting, die-cutting machine, only need one person for each.
Q: What should we charge for your engineer?
A: You should charge for the cost of our engineer's visa , air tickets, hotel, food ,and also their salary 100USD one day per person.
