Tonglian Optical 4 2 port poe switch 100m ethernet network switch for IP Camera system
Tonglian Optical 4+2 port poe switch 100m ethernet network switch for IP Camera system
Tonglian Optical 4+2 port poe switch 100m ethernet network switch for IP Camera system
Tonglian Optical 4+2 port poe switch 100m ethernet network switch for IP Camera system
Tonglian Optical 4+2 port poe switch 100m ethernet network switch for IP Camera system

Tonglian Optical 4 2 port poe switch 100m ethernet network switch for IP Camera system

Share on (1600453576611):


Price:$14.61 - $17.78

Quantity:


Product Overview

Description



Products Description






The TLG-POE204D 100M standard PoE switch provides 6 10/100M adaptive RJ45 ports, and at the same time, ports 1 to 4 have PoE power supply function, which can be used as Ethernet power supply equipment. All ports can automatically detect and recognize the power-receiving equipment that meets the IEEE 802.3at/af standard, and supply power to them through the network cable. Support two modes such as ordinary switch/250M transmission. TLG-POE204D makes it more convenient for you to use PoE technology to deploy wireless access points (AP) and IP-based terminal network equipment.


Software specifications




Basic Function
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Compatible with IEEE 802.3at/af standard powered devices (PD)
Compatible with certified non-standard powered devices (PD)
Store and forward
MAC automatic learning and aging
IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Hardware specifications
100M POE Port
4 pcs
100M Uplink RJ45 Port
2 pcs
Store and forward
Support
Exchange Content
1.2G
MAC Address Table
2K
Operating Temperature
0℃～40℃
Storage Temperature
-40℃～70℃
Operating Humidity
10%~90% RH without condensation
Storage Humidity
5%~90% RH without condensation


POE Standard
Standard IEEE802.3af/at the maximum power of a single port is 30W,
And the maximum power of the whole machine is 65W.
Support over current, over voltage, short circuit full protection.
Support high-power PD soft start.
Support sequential boot.
Support certified non-standard PD receiving power.
Power Input
AC 220V 50/60HZ



Supported Standards and Protocols
IEEE 802.3 Ethernet Media Access Control Protocol.
IEEE 802.3i 10BASE-T Ethernet.
IEEE 802.3u 100BASE-TX Fast Ethernet.
IEEE 802.3af realizes power supply for Ethernet equipment through Ethernet data line pair or equipment.
IEEE 802.3at realizes high-power power supply for Ethernet equipment through Ethernet data line pair or equipment.
IEEE 802.3x flow control.
Default System Mode
Ordinary switch/VLAN isolation/250M transmission
Transmission Rate
Ethernet 10Mbps half duplex, 20Mbps full duplex.
Fast Ethernet 100Mbps half duplex, 200Mbps full duplex.
Network Medium
10Base-T: 2 pairs of Category 3 (Cat3) or above UTP/STP (≤100m)
100Base-TX: 2 pairs of Category 5 (Cat5) or above UTP/STP (≤100m)
10Base-TX: 2 pairs of Category 5 (Cat6) or above UTP/STP (≤250m)

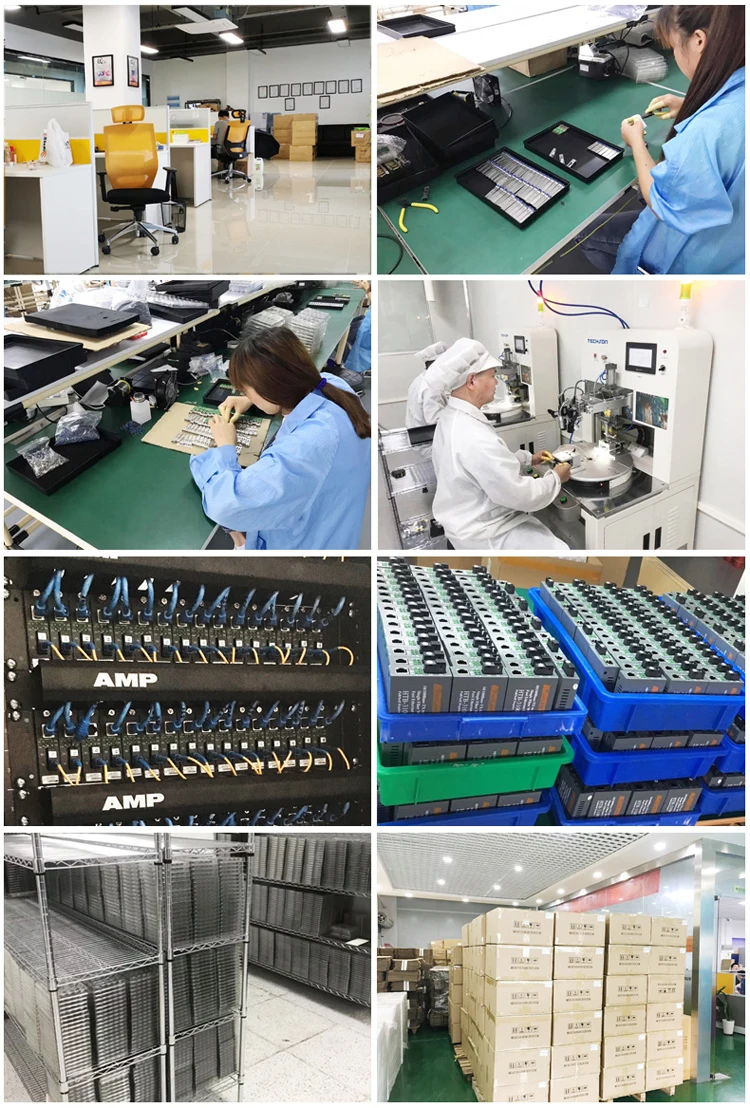

Company Profile


Shenzhen Tonglian Optical Technology Co., Ltd
Shenzhen Tonglian Optical Technology Co., Ltd is a production-oriented company, specializing in fiber optic equipements industry. It Located in Shenzhen, Guangdong, China mainland, the largest trading port, there is a large advantage on the shipping time and cost. We are a professional manufacturer of fiber optic equipements for last 8 years. We mainly produce SFP module, media converter, POE switch, photoelectric converter, industrial-grade switch and a series of products. We accept OEM and ODM orders. We have RoHs/UV/SGS/CE and the factory ISO9001 certificates. We can provide customers with professional services, high quality products and competitive prices.Our products sell well in the domestic and foreign markets. Our business mode is based on good faith, win by quality and serve customers.








Our Service






Shipping
-By sea. Around 20 days for transportation by sea.
-By plane. Around 3 days for air shipping to airport.
-By International couriers, TNT, DHL, FEDEX, UPS, etc. Around 5 days for express by DHL or other.


FAQ


Q1: Are you a factory?
A1: We are a manufacturer of SFP Modules, Media Converter, POE Switch and other fiber optical equipment.
Q2: OEM&ODM service is available?
A2: Yes. We welcome OEM&ODM project. If there is a certain order quantity, we can do including printing, logo, packaging and customized model for you.
Q3: May I have a sample order?
A3: Of course, all of our products support sample services.
Q4: What payment methods do you support?
A4: We could accept T/T(USD&RMB) bank transfer, Western Union and Trade Assurance.
Q5: How long is the delivery time?
A5: Normally we will send the goods within 2-3 working days after receiving payment.
Q6: How long is your Warranty?
A6: All the products will have 12 months Warranty.
