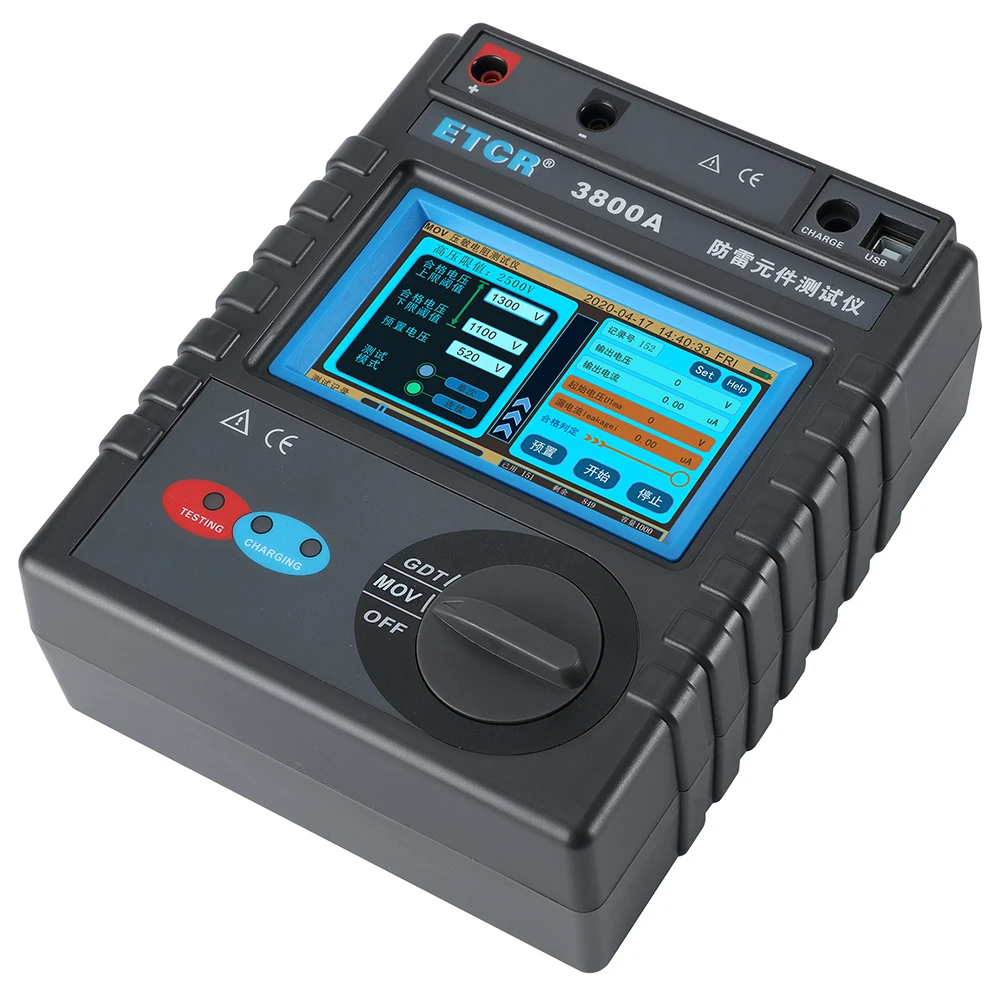

ETCR3800A Wholesale Lightning Protection Component Tester Electrical Insulation Resistance Meter
- Category: >>>
- Supplier: Guangzhou ETCR Electronic Technology Co. Ltd.
Share on (1600453603340):
Product Overview
Description
1. Range and Measurement Accuracy | ||||||||||
Measure Function | Output Voltage | Measure Range | Accuracy | Resolution | Test Condition | |||||
MOV | Initial action voltage U (1mA) | 50～3000V | ±2%rdg±3dgt | 1V | 1mA±5μA | |||||
Leakage Current I(0.75U, 1mA) | 0 ～ 1000μA | ±2%rdg±10dgt | 0.1uA | 0.75U1mA≤±1％ ±1d | ||||||
GDT | DC breakdown voltage Vsdc | 50～ 3000V | ±2%rdg±3dgt | 1V | 100V/S±10% | |||||
*Insulation resistance | 500V | 0.5MΩ ~ 2GΩ | 士5%rdgt10dgt | 0.1M | Only for ETCR3800B | |||||
2500V | 2.5MΩ ~ 10GΩ | 士5%rdg+10dgt | 0.1M | |||||||
2. Others Technical Parameters | ||

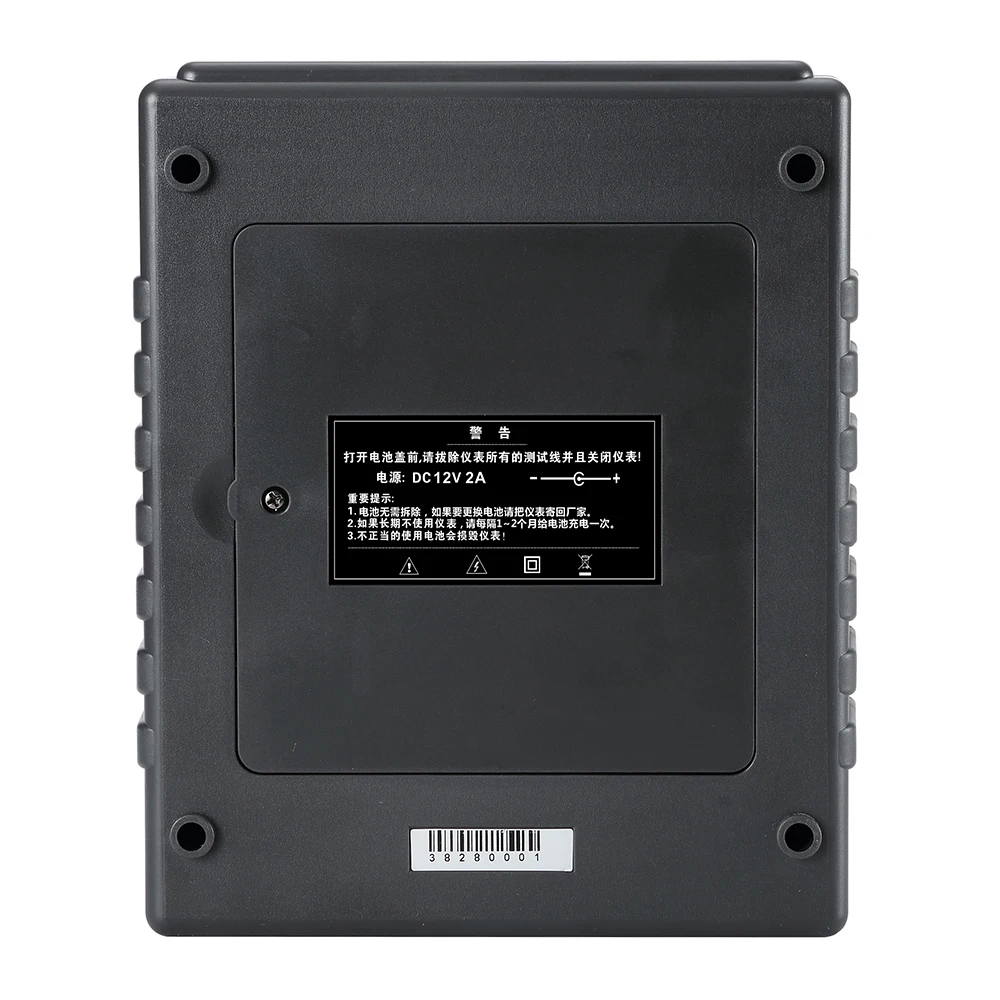

Power Supply | DC 7.2V 2600mAH rechargeable lithium battery(continues working above 3 hours) | |
Test mode | DC power drop method | |
Shift | Automatically | |
Display Mode | Touch color LCD, LCD size: 108mmx65mm | |
Host Dimension | 215mmx 178mmx83mm | |
Weight | 2.09kg(include accessories) | |
Test Wire | Red wire 1M, black wire 1M | |
Boost Speed Setting | 5 boost level in total | |
High Voltage Threshold ValueSetting | Adjusting with step “250V”, the maximum can be set to 3000V | |
Qualified Range Setting | Yes | |
Qualified Judgment Function | Buzzer indication, qualified ring once, unqualified three rings | |
Overvoltage Protection | Yes | |
Data Storage | MOV 1000 groups; GDT 1000 groups; Insulation resistance: 1000 groups, storage space used and remaining capacity indication | |
Data Upload | USB interface, storage test record can be uploaded to computer | |
Battery Voltage | Battery charge indication, low battery voltage remind to replace the battery | |
Auto Shut down | 25 minutes after boot up, the meter shuts down automatically without any operation | |

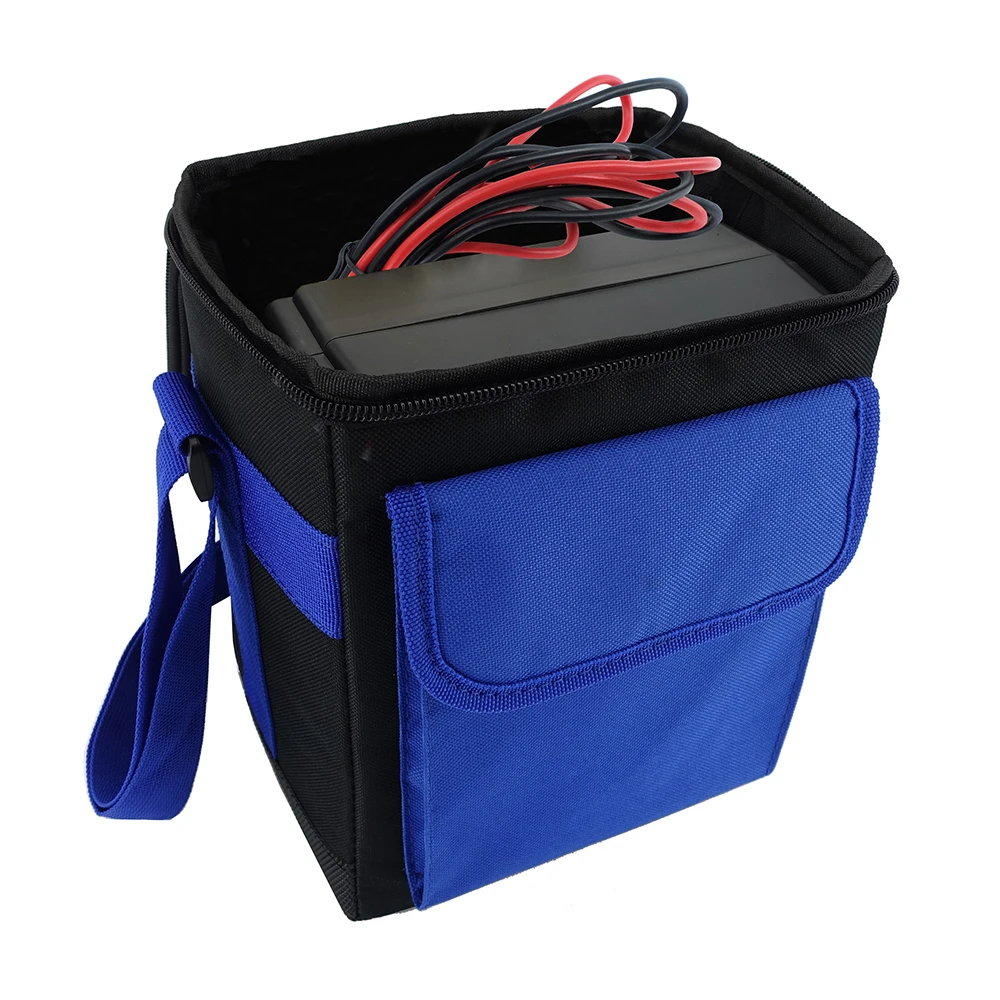

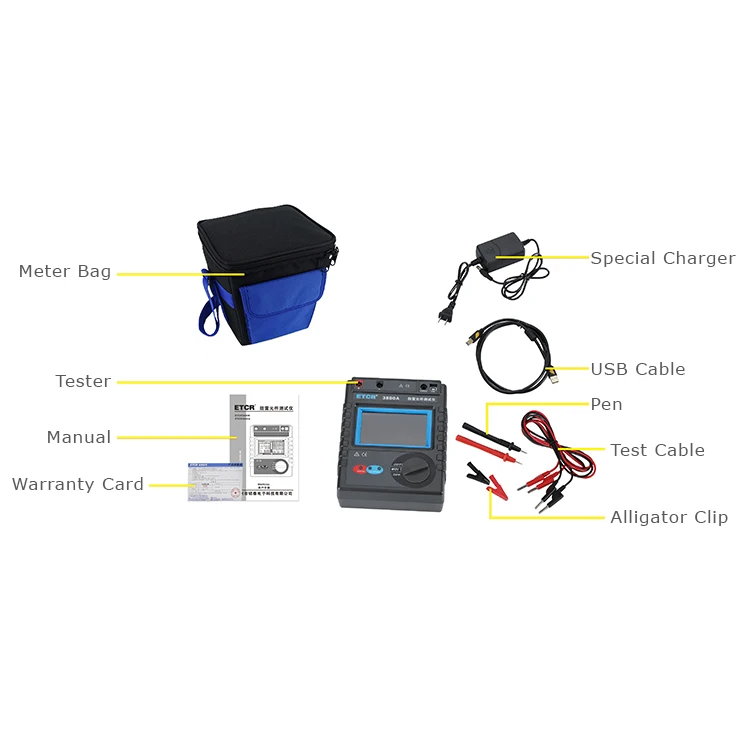

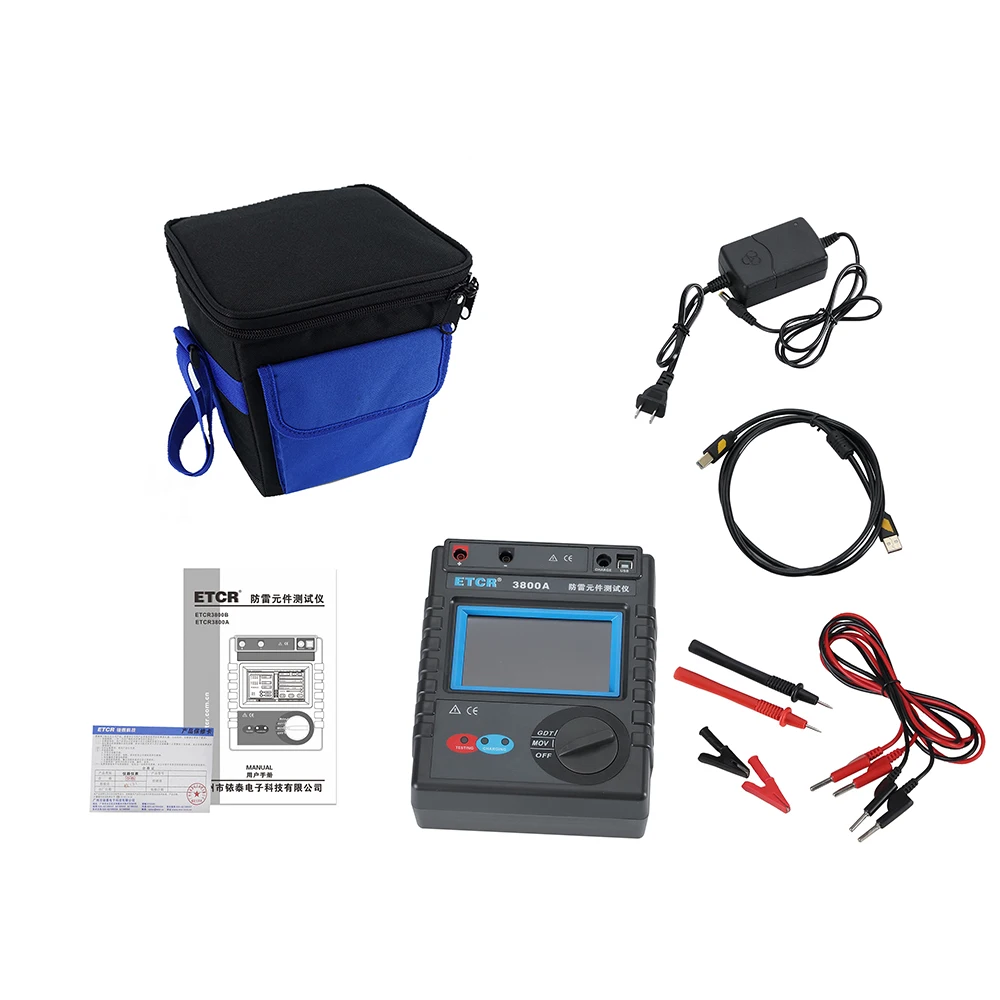

Accessories | Host: 1PCS; Test wires: 2PCS; Alligator clip: 2PCS; Probe: 2PCS; Charger: 1PCS; USB communication cable: 1PCS; Meter bag: 1PCS | |
Product Function
Used for testing the pressure-sensitive resistance (MOV), discharge tube (GDT) and other lightning protection components performance parameters and the insulation resistance (Mohm),polarization index test (PI),dielectric absorption ratio test (DAR).
Product Feature

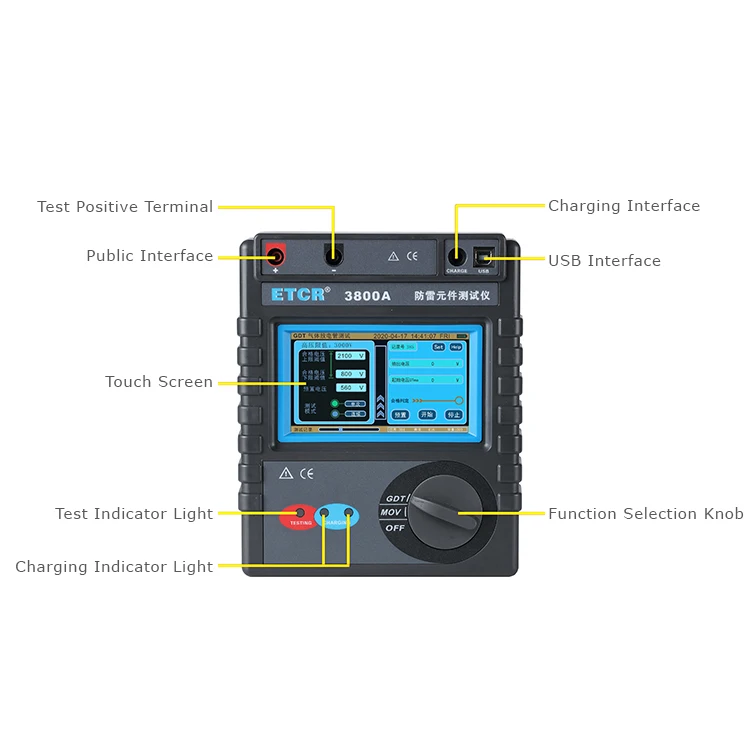

1.The new generation of intelligent lightning protection component tester, adopts touch color screen, click "HELP" key on the screen to pop up the operation method, effectively guiding the user to operate the instrument.
2.The tester with stable output voltage up to 3000V, can meet the testing requirements of various components..
3.The instrument has the function of professional parameters setting: booster speed setting, high voltage limit setting ,
qualified range setting ,and qualified judgment condition setting, mak the test convenient and easy..
4.With the choice of single test mode and continuous test mode, continuous test mode is especially suitable for batch component testing.
5.Automatic storage of test results containing date and time, can store 3000 groups of test records, data upload function by USB interface.Adopt with large capacity rechargeable lithium battery
2.The tester with stable output voltage up to 3000V, can meet the testing requirements of various components..
3.The instrument has the function of professional parameters setting: booster speed setting, high voltage limit setting ,
qualified range setting ,and qualified judgment condition setting, mak the test convenient and easy..
4.With the choice of single test mode and continuous test mode, continuous test mode is especially suitable for batch component testing.
5.Automatic storage of test results containing date and time, can store 3000 groups of test records, data upload function by USB interface.Adopt with large capacity rechargeable lithium battery
