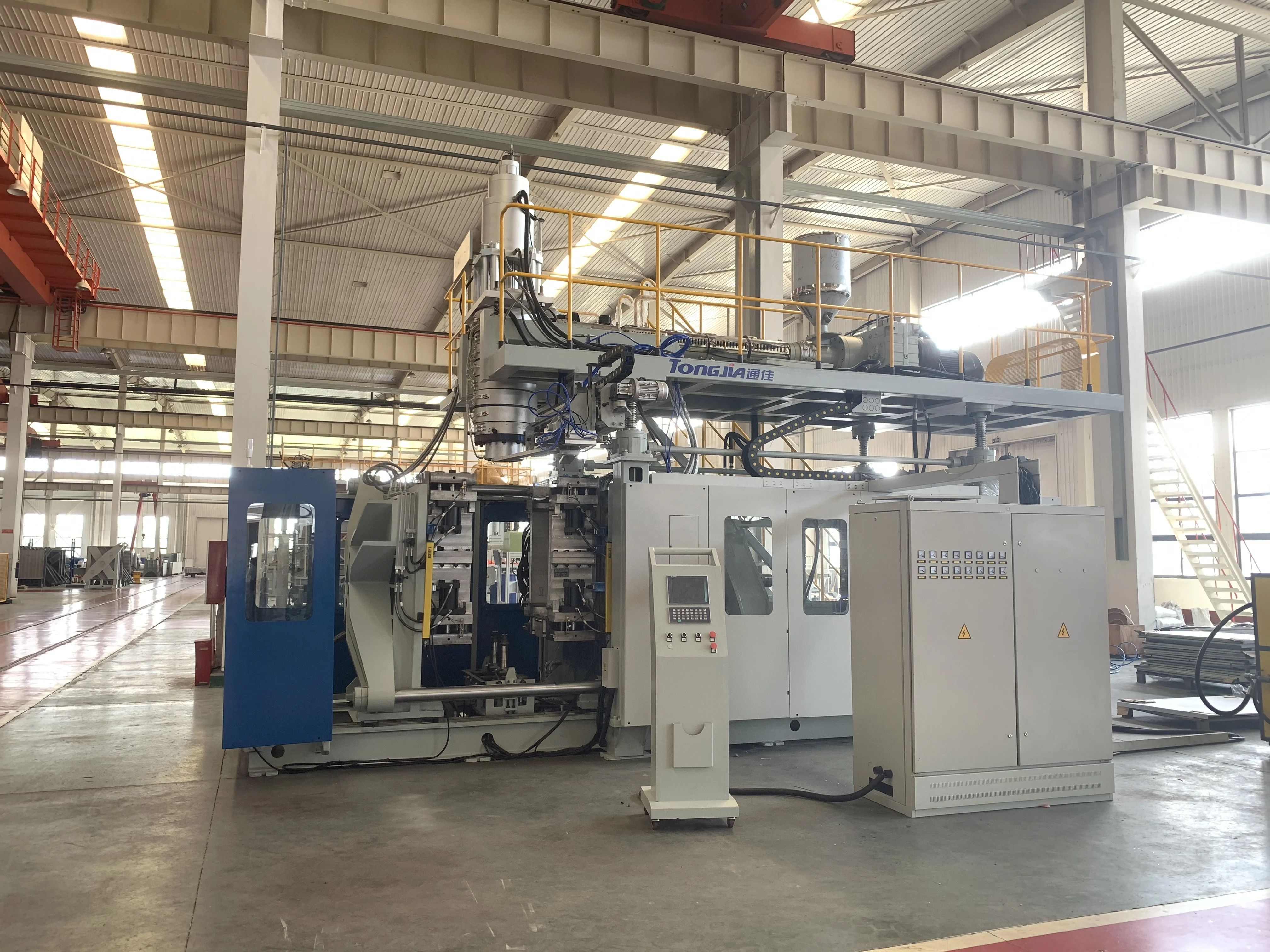

Tongjia Plastic Drum Water Tank blow molding machine Chemical Drum making machine

Share on (1600453685124):


Price:$250,000.00 - $300,000.00

Quantity:


Product Overview

Description

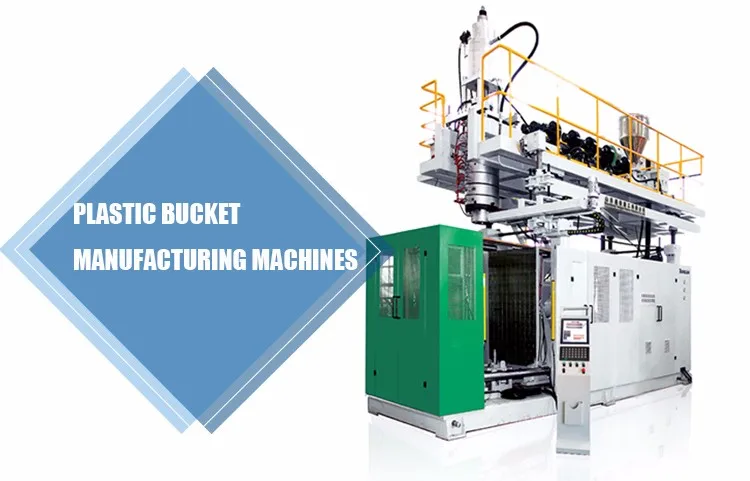

Plastic drum making blow molding machine





Product Introduction







Product Models


 There are two different models with different production capacity.























































Model Number



TJ-HB160L



TJ-HB230L



Material



HDPE



Max. capacity of product



160L



230L



Dia. of main screw



100mm



120mm



L/D ratio of screw



100MM



120MM



Platen opeining stroke



600-1400mm



800-1800mm



Total power



165KW



235kw



Air consumption



1.6M3/MIN



3.0M3/MIN



Dimensions



6.5×4.1×4m



7.5×4.1×5.5m



Total weight



20T



55T

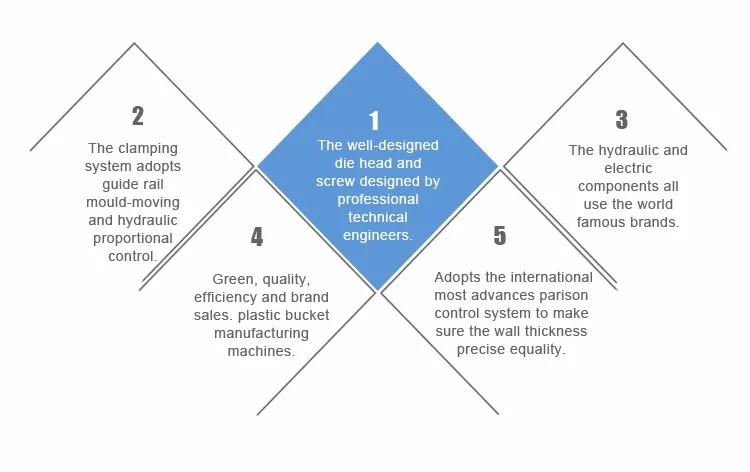

Product Features

























Clampingsystem

Diagonal double tie bar center clamping bidiredional synchronous


 high precision linear guideway clamping device


Injection systemDC speed control + Hardenedface gear reducer
Die systemSpecial steel center-feeding die
Hydraulic systemAll imported hydraulic valve +hydraulic servo control system
Control system

Imported PLC + Europe imported complete machine


control system (GEFRAN from Italy )








Product Application

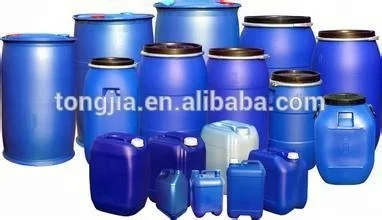

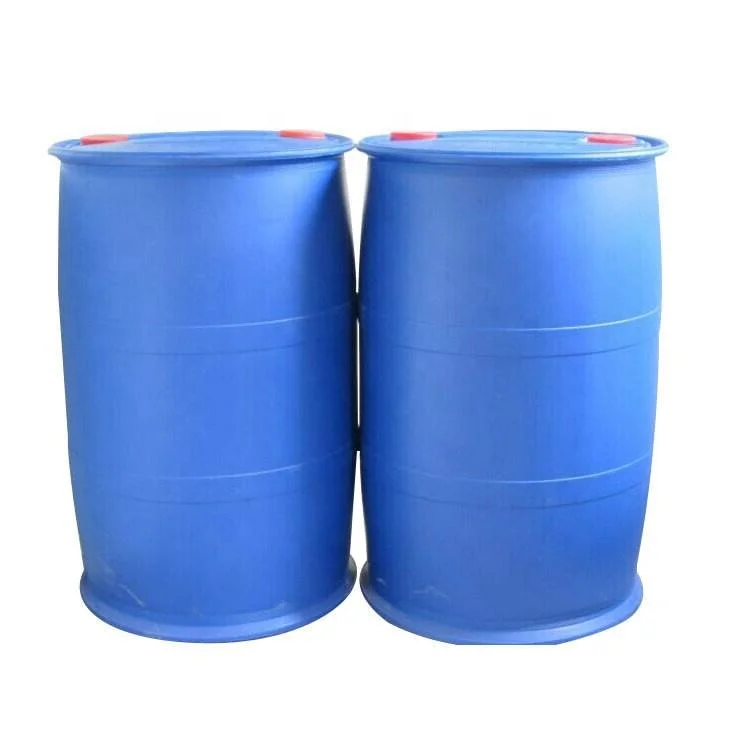

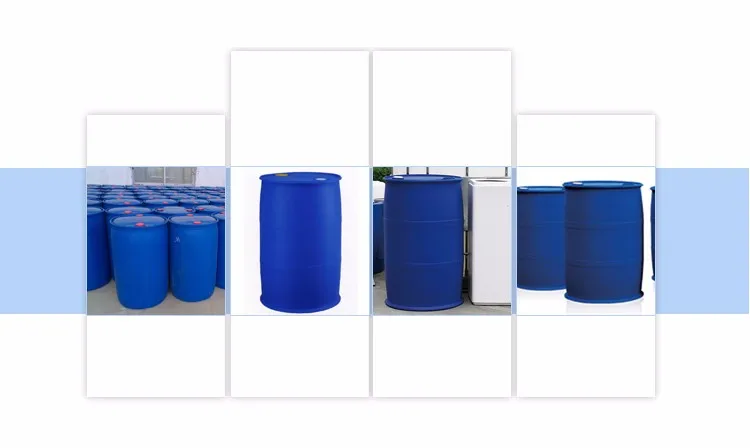

This model mainly for making various large-scale chemical used buckets.







Packing & Delivery


Standard export packaging:


1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.


2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinet and other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.


3. Reinforce easy-move part of the equipment.


4. Put desiccant before packaging to avoid rusting equipment during sea transportation.


5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support, 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced and professional exported wooden packaging manufacturing enterprises to make final package.
