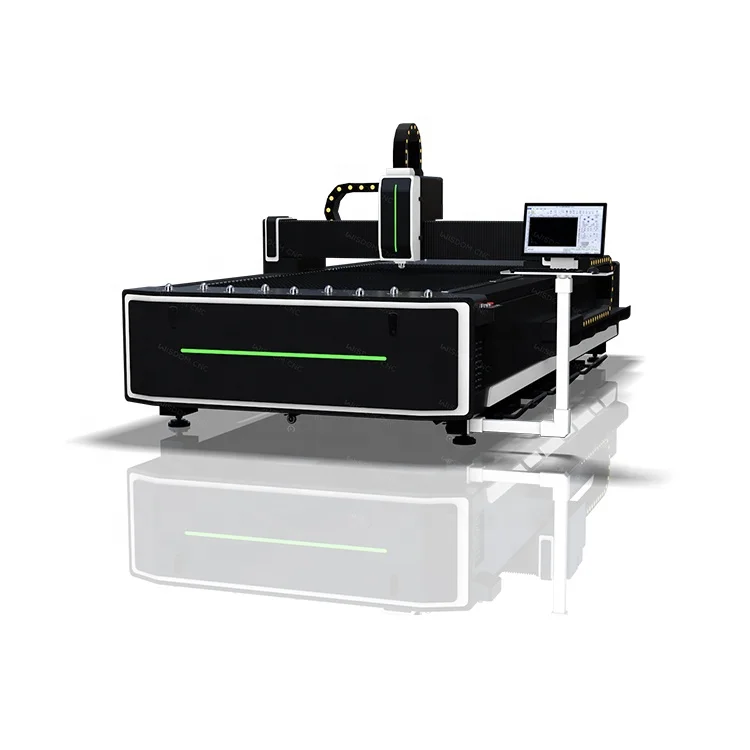

China leading 1530 CNC sheet metal 2000w fiber optic laser cutting machine 2kw price
Fiber laser specially cutting middle thick and thin materials such as stainless steel, mild steel/carbon steel, copper, alloy
steel, spring steel, galvanized plate etc.
Applicable fields: aviation, aerospace, electronics, appliances, subway accessories, automobile, machinery, precision parts, ships, saw blades, elevators, craft gifts, decoration, advertising, etc.
steel, spring steel, galvanized plate etc.
Applicable fields: aviation, aerospace, electronics, appliances, subway accessories, automobile, machinery, precision parts, ships, saw blades, elevators, craft gifts, decoration, advertising, etc.
PRODUCT SPECIFICATIONS
1 | Machine model | WS-F3015 |
2 | Cutting area | 3000*1500mm |
3 | Laser power | 1000w/ 1500w/ 2000w / 3000w/ 4000w/ 6000w |
4 | Laser source | Raycus/ MAX / JPT / IPG |
5 | Laser head | Raytools |
6 | Control system | Cypcut |
7 | Driving system | Japan Yaskawa |
8 | Transmission system | Taiwan Square guide rail and rack pinion |

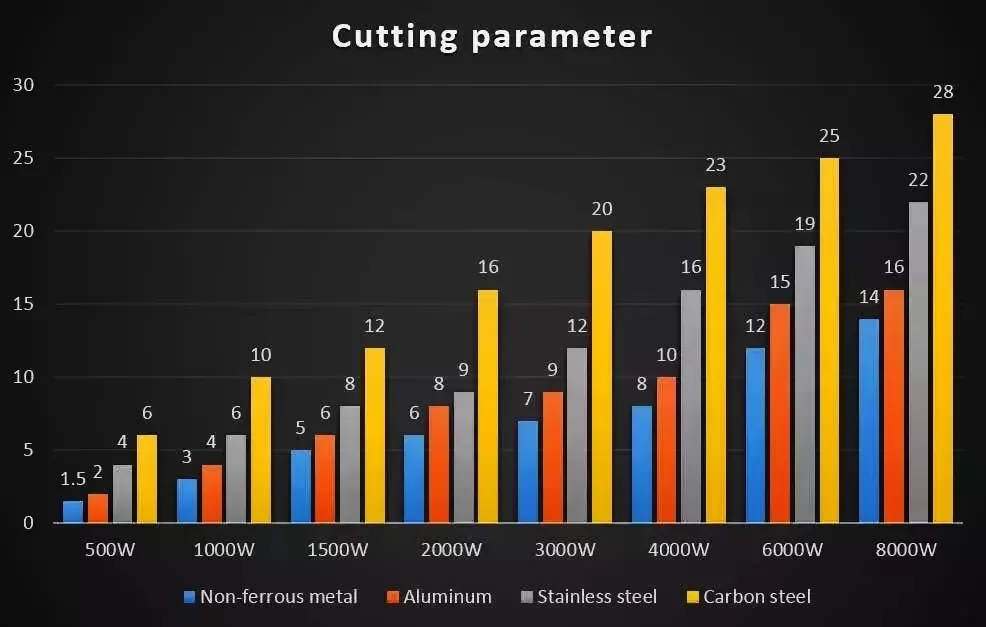

Cutting parameter

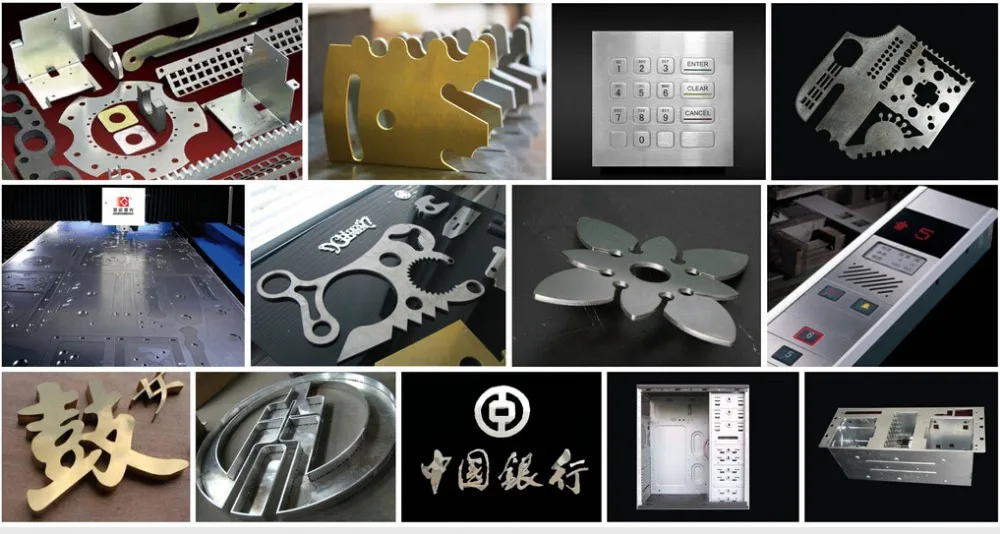

Working samples
PRODUCT CONFIGURATION

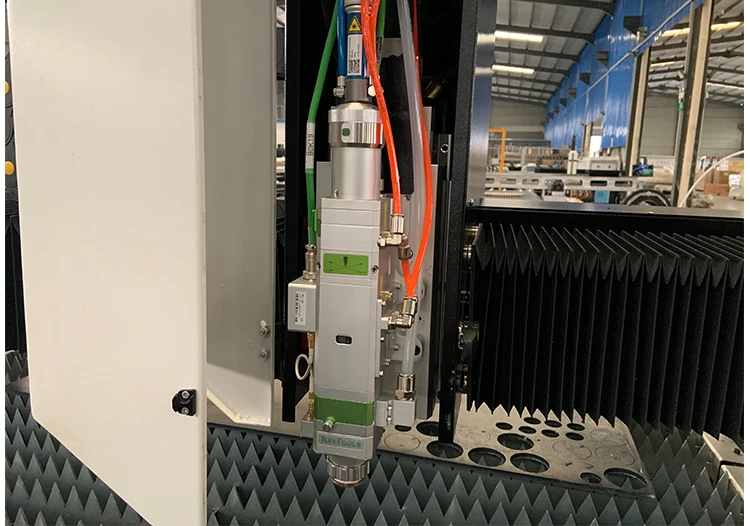

Professional laser cutting head
Laser cutting head is with Z axis height adjuster. The laser head is with capacitive sensing to automatically, stably and rapidly adjust the laser head height during cutting, which ensures it cutting with the same and the best focal length all the time even if the metal sheet is not flat.

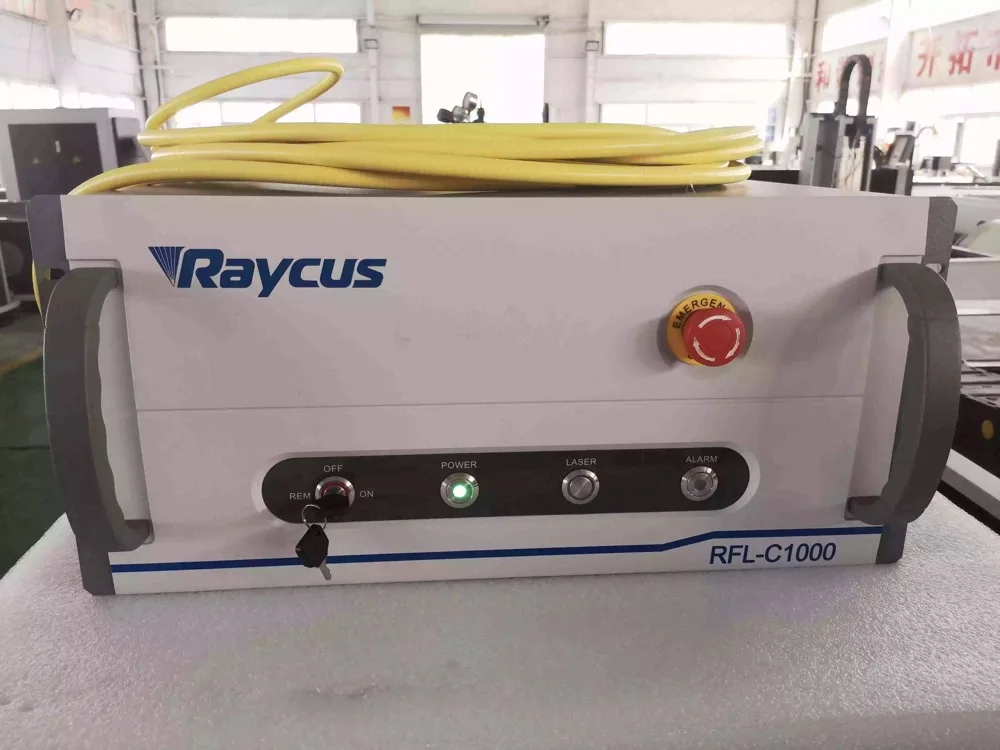

Raycus laser source
1. Excellent quality of laser beam, constant BP within all the ranges of laser powers, getting very small size laser spot even with long focus.
2. Special wavelength (1080nm), unique ability to cut high-reflective materials, such as aluminum, copper and brass, etc.
2. Special wavelength (1080nm), unique ability to cut high-reflective materials, such as aluminum, copper and brass, etc.
Cypcut control system
CypCut laser cutting control system integrates file reading, design, output, and processing control. It's able to complete the entire process from design to processing. The software, installed in an industrial computer, provides a wealth of laser cutting processing parameters, flexible layout and cutting path editing capabilities. Cypcut Control system and software in English language, supporting files: DXF, PLT, AI, LXD, etc. Drawing in the software is ok. Software is with fly cutting mode for cutting same products to save time. The nesting function automatically arranges graphs to leave minimum spaces and save materials.

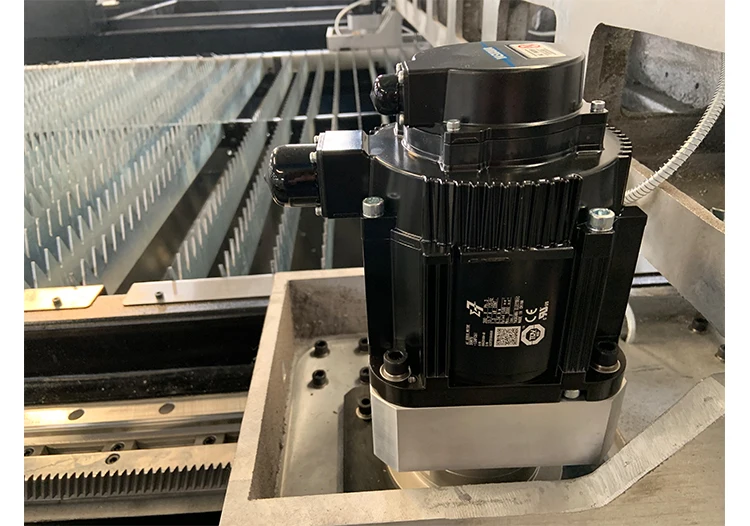

Yaskawa Servo motor
We use Japanese YASKAWA servo motors and drivers. Machine X is driven by a 850W motor, Y is driven by two 850W motors, and Z (laser head auto focusing) is driven by a 400W motor.

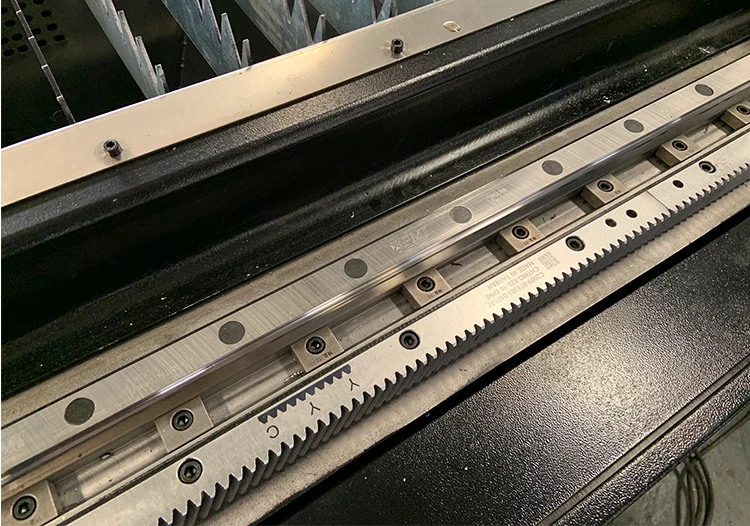

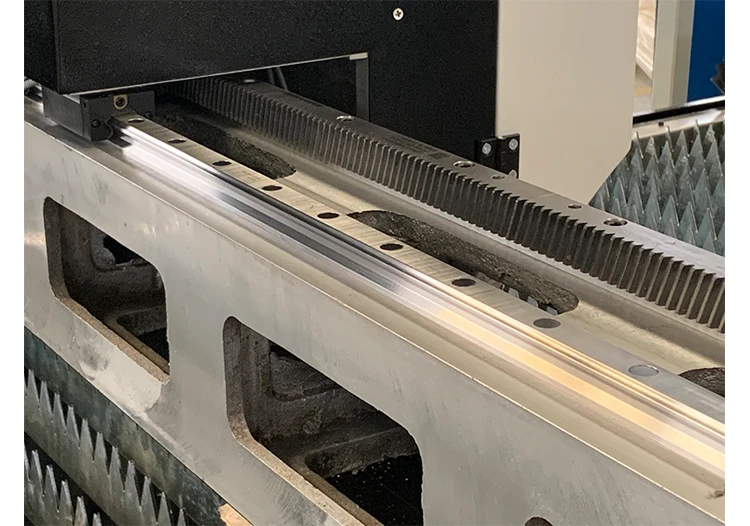

Linear guide rail and rack pinion
Machine is with gear rack and linear rail transmission, which ensures machine high speed movement, precision and stability as well. 2 gear racks and 2 rails (25mm width) in Y; 1 gear rack and 2 rails (20mm width) in X. The transmission system is protected by dust shields.

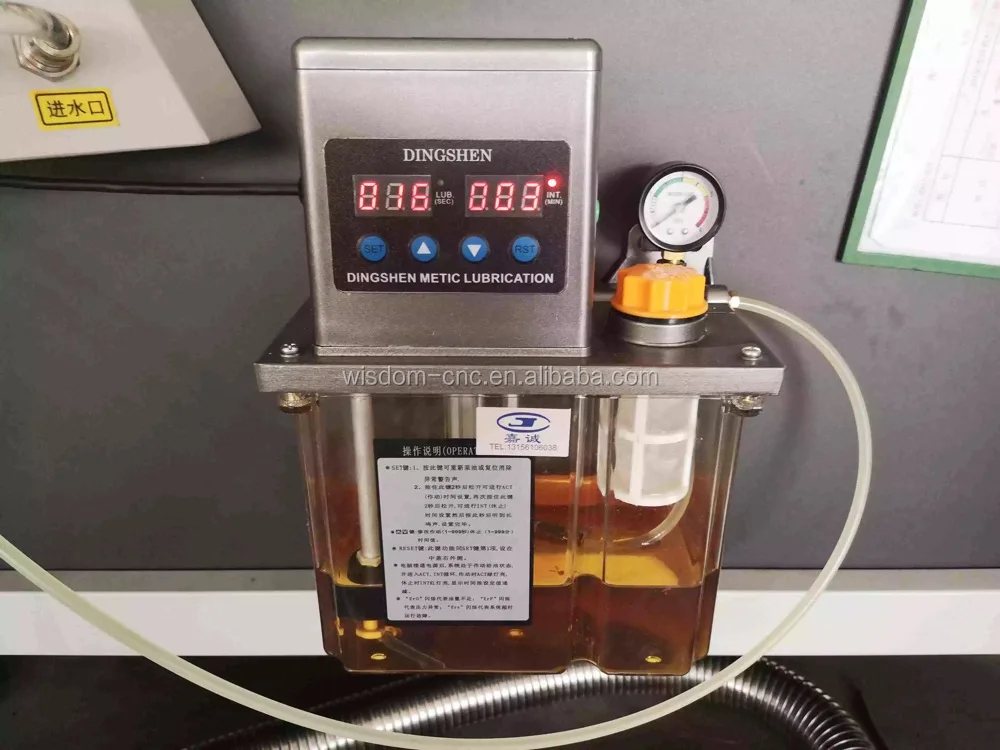

Automatic oil lubrication
Pressing the handle above the oil box, it automatically lubricate guide rails, which ensures the machine keep moving smoothly and with good precision.
Heavy cast aluminum beam

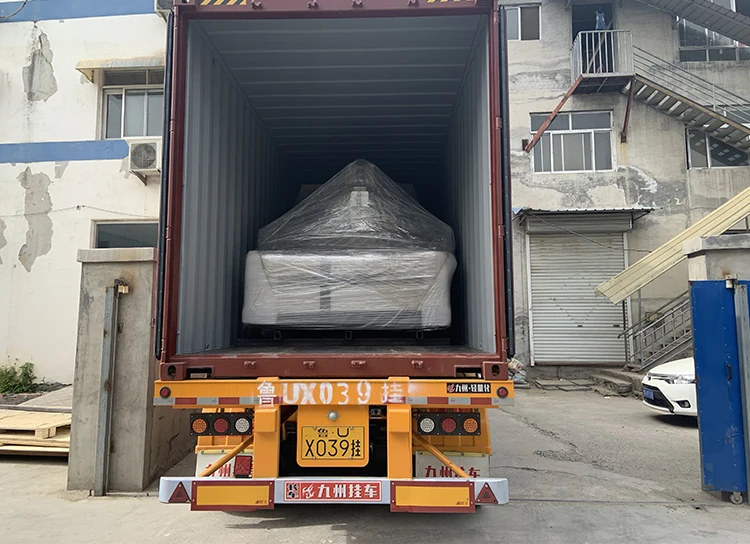

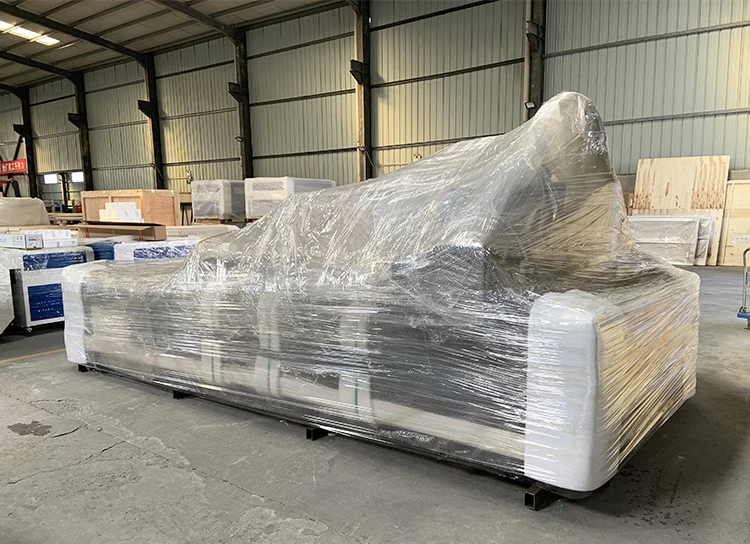

Packing and shipping
FAQ
Q1: Do you have after sales support?
A1: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q2: I am not sure if this machine suitable for my work?
A2: Don't worry, just tell us your working size, cutting materials and thickness, then we will recommend the most suitable machines.
Q3: What other things also need after we bought your machines?
Q4: How can i do if the machine goes wrong?
A4: We will offer online and remote guide and technical support.
A1: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.
Q2: I am not sure if this machine suitable for my work?
A2: Don't worry, just tell us your working size, cutting materials and thickness, then we will recommend the most suitable machines.
Q3: What other things also need after we bought your machines?
A3: The main consumable parts for the fiber laser cutting machine is nozzles and protective lens, you can change it after a period of time, buy from local or from our factory.
Q4: How can i do if the machine goes wrong?
A4: We will offer online and remote guide and technical support.
Q5: What's the warranty and free service?
A5: We will provide 3 years guarantee and whole lifetime free service including training, guide and maintenance, etc.
Welcome to contact with us for free guide and support! Looking forward to serve and cooperate with you!
