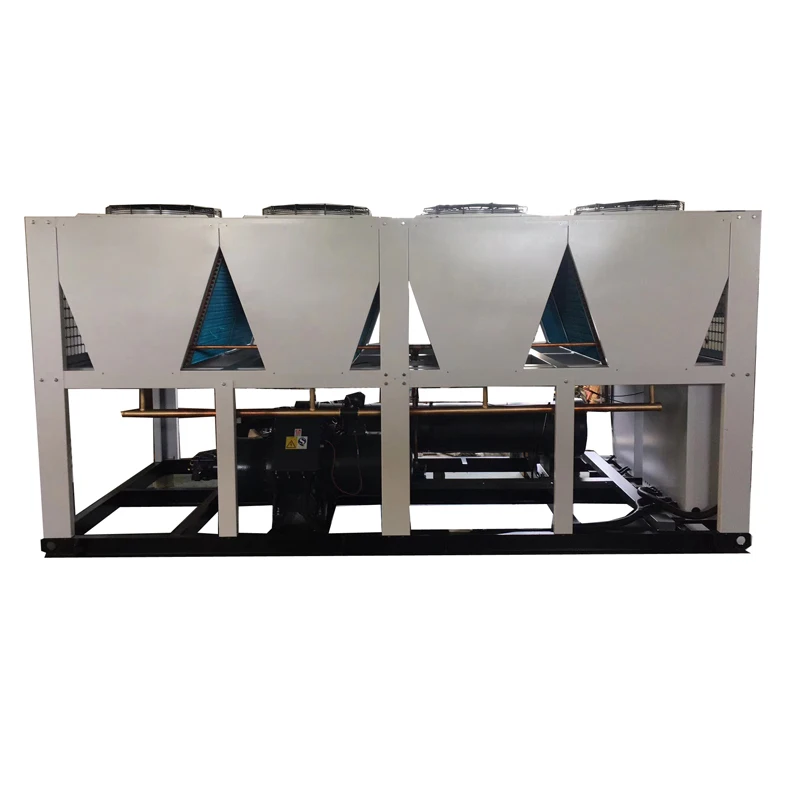

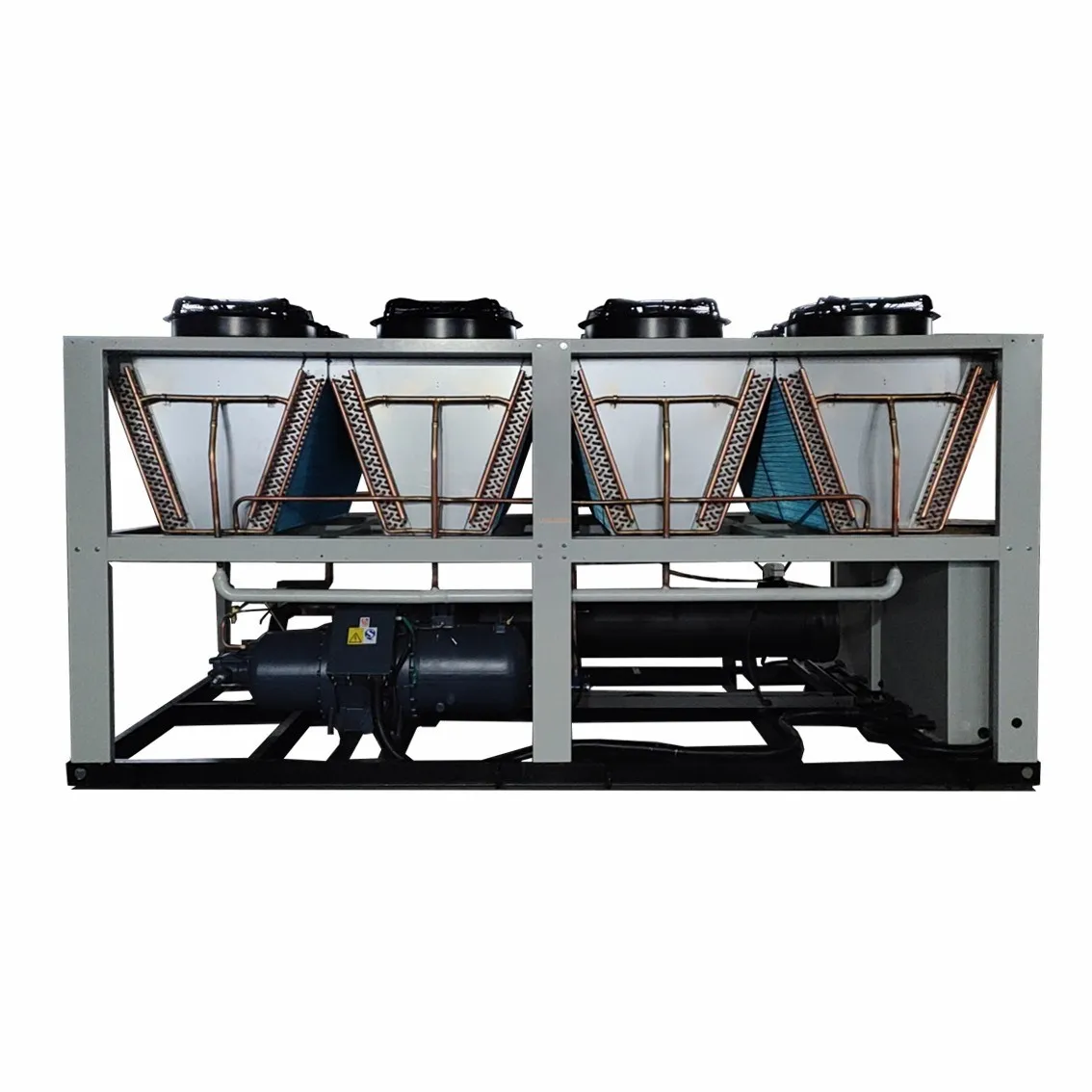

High Effective 100 Ton 150 Ton Capacity Screw Compressor Air Cooled Screw Chiller For Injection Molding Extrusion Machine
- Category: >>>
- Supplier: Shandong Mgreenbelt Machinery Co. Ltd.
Share on (1600453841024):
Product Overview
Description
Product Overview

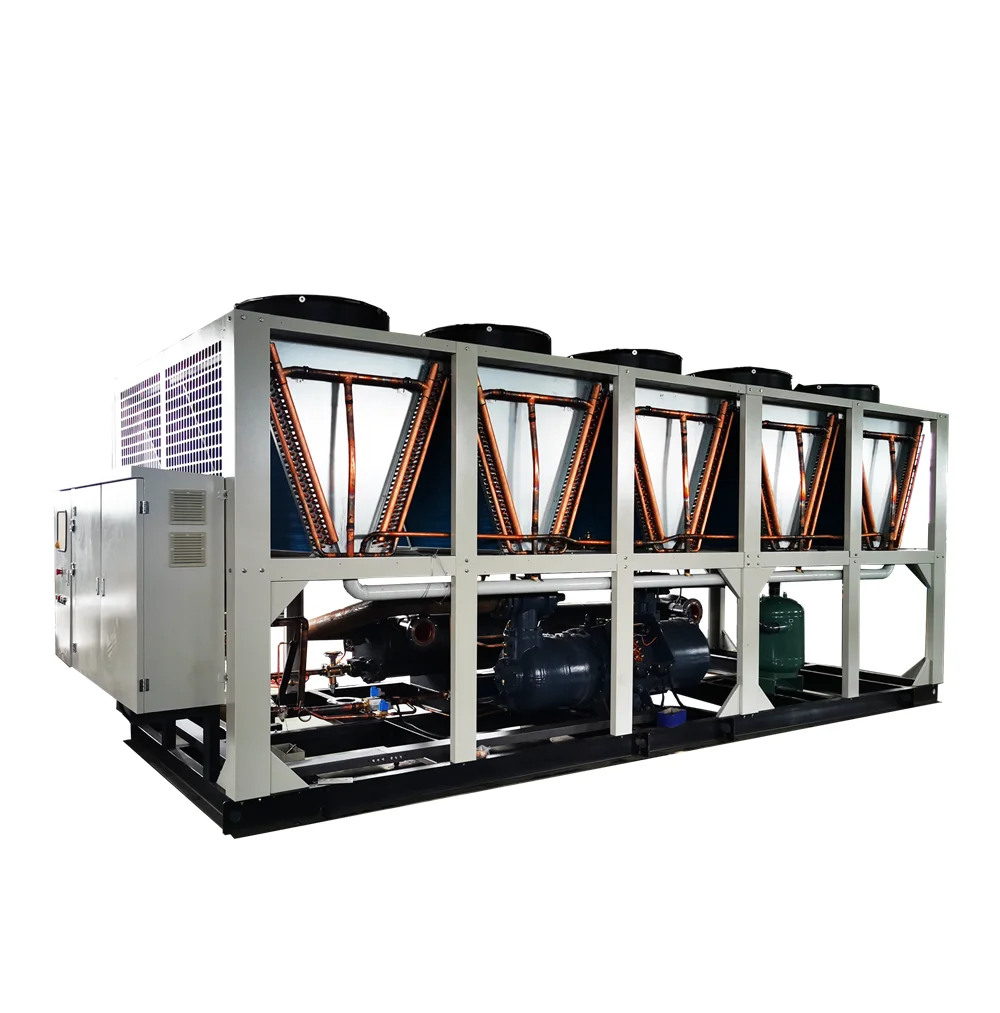

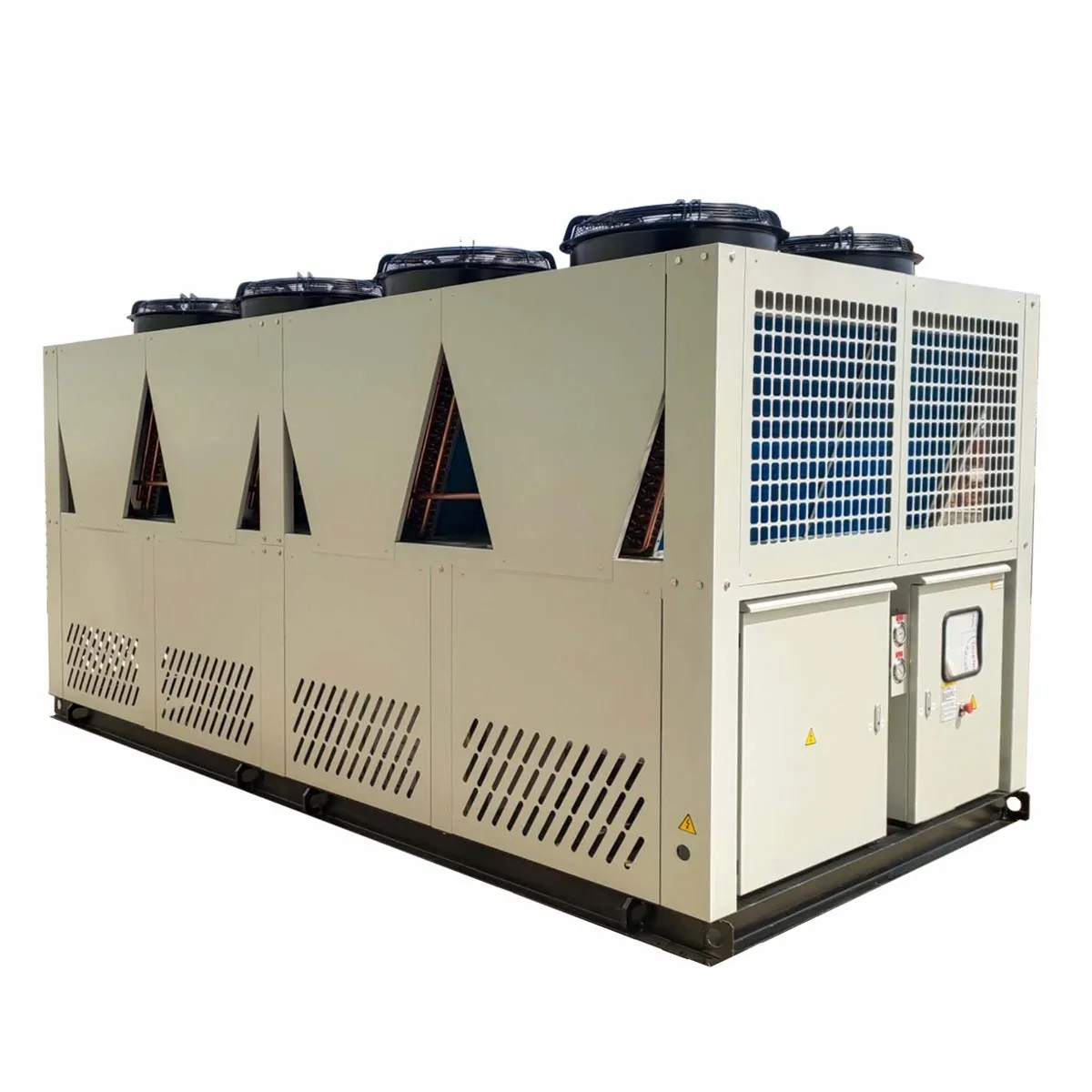

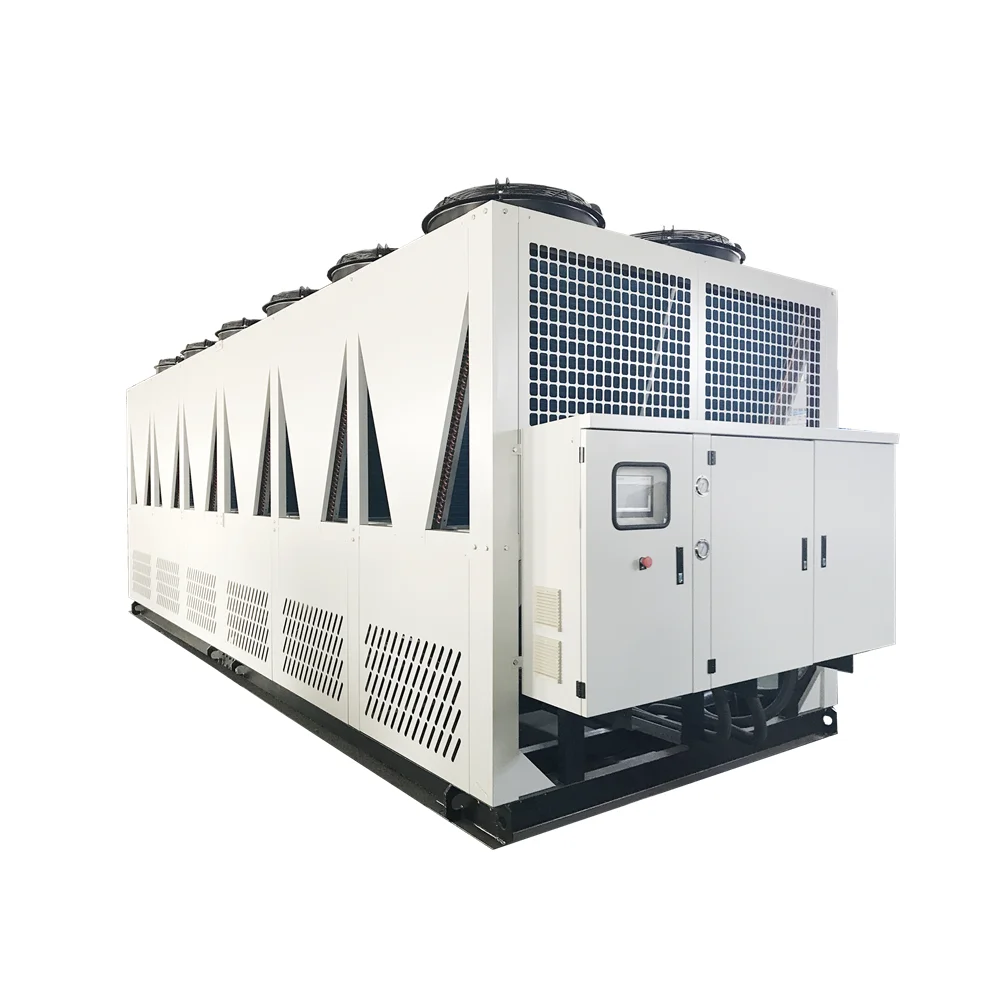

High Effective 100 Ton 150 Ton Capacity Screw Compressor Air Cooled Screw Chiller For Injection Molding Extrusion Machine
MGreenbelt is an Industrial Water Chiller Manufacturer! We can supply the one-station cooling solution for your plastic injection / molding / extruder / PVC Line / HDPE Line, OR Chemical / Food / milk or any other industry process cooling.
MGREENBELT as industrial water chiller plant,have gradually produced Industrial Chiller,Water Chiller,Air Cooler,Oil Chiller,Low Temperature Chillers,Hot Water Chiller, Heat Pumps and Central Air Conditioner which are widely applied to plastic & rubber machinery, daily-use chemical, textile, general machinery, laser machinery, LCD and PCB industry, electroplating, equipments of laboratory, food, pharmacy, etc .

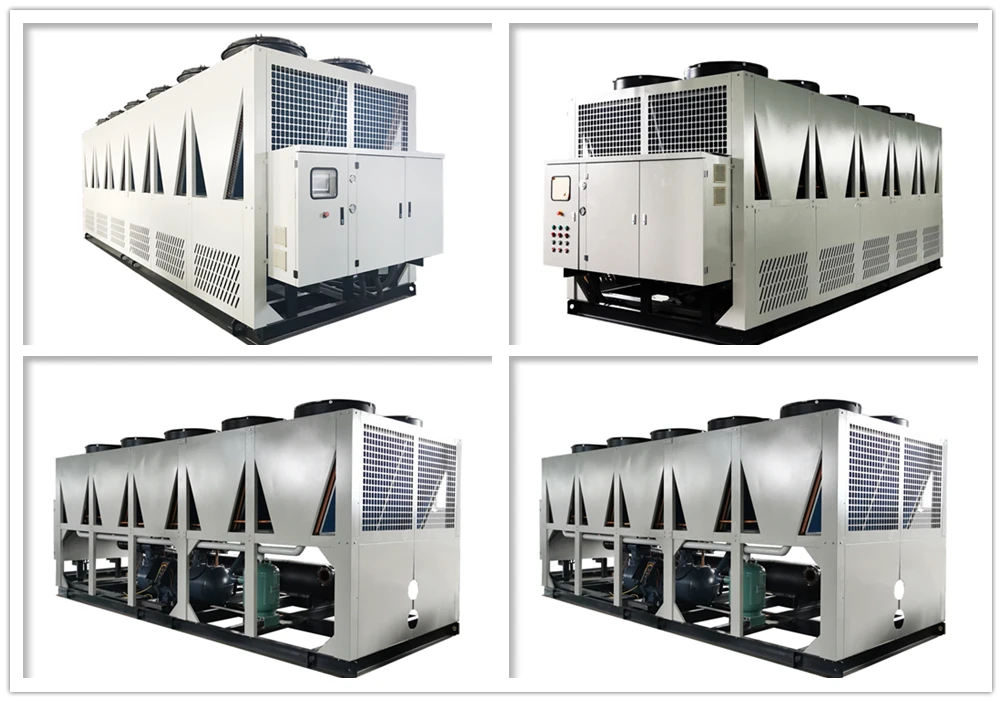

Air Cooled Screw Industrial Chiller Series
1. Air Cooled Screw Chiller
2. Air-cooled screw chiller capacity 20- 150 Ton
3. High quality branded screw compressor
4. Energy efficiency air-cooled type condenser
5. Temperature control from -15℃to 35℃
6. Dry shell and tube evaporator
7. No need to install a cooling tower
8. Easy installation&Operation and maintenance
2. Air-cooled screw chiller capacity 20- 150 Ton
3. High quality branded screw compressor
4. Energy efficiency air-cooled type condenser
5. Temperature control from -15℃to 35℃
6. Dry shell and tube evaporator
7. No need to install a cooling tower
8. Easy installation&Operation and maintenance
Model/Item | MG-150C | MG-200C | MG-260C | MG-300C | MG-420C | MG-520C | MG-600C | ||||||
Cooling Capacity (KW) | 153 | 203 | 254 | 305 | 422 | 523 | 600 | ||||||
Temperature Outlet | +5 deg C ~+35 deg C as normal, Also support outlet from -20 deg C / -15deg C /-10 deg C/-5C | ||||||||||||
Refrigerant | R22 / R407c / R134a industrial chiller | ||||||||||||
Compressor Type | Semi-hermetic screw | ||||||||||||
Compressor power(KW) | 51 | 66 | 79 | 94 | 124 | 160 | 182 | ||||||
Evaporator | Shell and tube | ||||||||||||
Water flow ( m3/h) | 26 | 35 | 44 | 52 | 72 | 90 | 103 | ||||||
Condenser Type | Efficient aluminum foil finned, air cooling industrial chiller | ||||||||||||
Air flow (m3/h) | 60000 | 80000 | 100000 | 120000 | 160000 | 200000 | 240000 | ||||||
Protection system | Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection. | ||||||||||||
Dimension (cm) | 330*230*240 | 405*195*200 | 405*195*200 | 496*195*215 | 460*225*246 | 568*225*246 | 668*225*246 | ||||||
Weight (kg) | 2480 | 3000 | 3100 | 3600 | 5000 | 6000 | 6800 | ||||||
FEATURES AT A GLANCE
Feature Of High Effective 100 Ton 150 Ton Capacity Screw Compressor Air Cooled Screw Chiller For Injection Molding Extrusion Machine
1. Air cooled screw water chiller series, the Cooling capacity ranges from 20 ton to 150 Ton；(if you need larger please choose our water cooled screw chiller series, or if you need smaller chiller please choose our scroll type chiller series)'
2. Temperature control ranges from 7°C to 35°C；the plastic injection/molding/extrusion process use usually need 15 deg C to 25 deg C, so this range is enough for plastic industry customer.
3. Shell and tube type evaporator；the closed type heat exchanger can ensure the highest heat exchange efficient, some time suggest to connect a external buffer tank if user side is also a closed loop, the buffer tank can storage some capacity, and save energy for customer.
4. The chilled water flow from 13 m3/h rate up to 103 m3/h;
5. Semi-hermetic screw compressor; we choose Hanbell brand from Taiwan, or Bitzer brand from Germany.
6. Hot gas bypass at compressor & flow switch
7. Custom alarm, phase reversal relay & LCD
8. Easy installation & digital communication, can support WIFI Connection, and RS485 communication.
2. Temperature control ranges from 7°C to 35°C；the plastic injection/molding/extrusion process use usually need 15 deg C to 25 deg C, so this range is enough for plastic industry customer.
3. Shell and tube type evaporator；the closed type heat exchanger can ensure the highest heat exchange efficient, some time suggest to connect a external buffer tank if user side is also a closed loop, the buffer tank can storage some capacity, and save energy for customer.
4. The chilled water flow from 13 m3/h rate up to 103 m3/h;
5. Semi-hermetic screw compressor; we choose Hanbell brand from Taiwan, or Bitzer brand from Germany.
6. Hot gas bypass at compressor & flow switch
7. Custom alarm, phase reversal relay & LCD
8. Easy installation & digital communication, can support WIFI Connection, and RS485 communication.
Why Choose Us
Industrial water chiller is an auxiliary cooling machine that is equipped with different features for plastic processing as dehumidification, drying, molding, and temperature control by producing cooling and releasing heat either by chilled air or water from the system.we has designed the best Plastic Chiller over others and successfully supplied it to all over the world marketplace.
What we can supply for you?
Product Name | High Effective 100 Ton 150 Ton Capacity Screw Compressor Air Cooled Screw Chiller For Injection Molding Extrusion Machine | ||||||
Who we are? | Manufacturer of chiller, Solution provider for you. | ||||||
Our honor | We have passed the third-party certificate, such as SGS, BV, and etc; and also we have ISO9001, ISO14000, ISO14001 certificate, And also we are the AAA standard of the Contract abiding and trustworthy enterppise; AAA Standard of the Demonstration unit of honest operation; AAA Standard of the Enterprise credit evaluation certificate; AAA Standard of the Heavy quality credit unit. Product with CE, UL, CSA Certificate | ||||||
Our Product | Industrial water cooled chiller; air cooled chiller ; screw water chiller, smaller air cooled scroll chiller, water cooled scroll chiller; plastic chiller, food chiller, glycol chiller, dairy chiller, any industry process cooling chiller. | ||||||
Our company located | Jinan city, Shandong, China | ||||||
Service | Customer one to one talk, can response within 1 hour. | ||||||
Shipment | Accept EXW, FOB, CIF Terms, door to door shipping | ||||||
Installation | Free install drawing, free one to one support, or send engineers to customer for support | ||||||

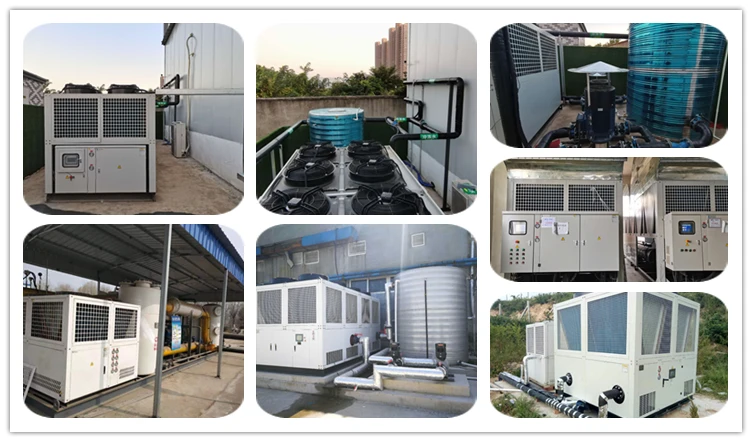

Successful Project
MGREENBELT has specialized in this line more than 18 years, we have sold the screw water chiller more than 200 countries from all over the world. include the follow industry:
(1).Plastic Industry: -Presses, Mixing mill, plastic injection molding Chiller;
-Extrusion machine chiller -Blowing molding machine chiller; -Thermoforming chiller -Vacuum forming chiller
-Extrusion machine chiller -Blowing molding machine chiller; -Thermoforming chiller -Vacuum forming chiller
(2). Brewery/Winery
-Brewery chiller;-Distillery Chiller;-Winery Chiller;-Fermentation Chiller;-Immersion Chiller;-Cold Storage Chiller;-Glycol chiller.
-Brewery chiller;-Distillery Chiller;-Winery Chiller;-Fermentation Chiller;-Immersion Chiller;-Cold Storage Chiller;-Glycol chiller.
(3).Chemical Industry -Acid chiller; -Brine chiller;-Chemical Chiller.- Pharmaceutical chiller;
(4). CNC Cooling -CNC Chiller;-Laser Chiller;-Plasma Chiller;-Waterjet Cutting chiller; -Welding chiller. -Printing chiller;-Spindle oil cooling chiller
(5).Concrete / Cement -Batch Cooling -Cement Cooling -Concrete chiller. (6). Farming -Dairy milk chiller -Poultry chiller
(5).Concrete / Cement -Batch Cooling -Cement Cooling -Concrete chiller. (6). Farming -Dairy milk chiller -Poultry chiller
(7).Food Industry -Bakery chiller; -Beverage chiller;-Fish Hatchery chiller-Food process cooling chiller -Hydrocooler chiller; -Ice cream chiller; -Yogurt chiller.
(8).Heavy Industrial -Anodizing chiller;-Biodiesel chiller;-Biogas chiller;-Die Casting chiller;-HAVC
Chiller;-Hydraulic chiller-Oil chiller
Chiller;-Hydraulic chiller-Oil chiller
SIMILAR PRODUCTS
1. Air Cooled Scroll Water Chiller: Cooling capacity from 1 Ton to 50 Ton, adopt scroll compressor, use one compressor, two compressor system, 3 compressor system, or 4 compressor system, if you need smaller chiller can choose it.
3. Water cooled scroll water chiller: Cooling capacity from 1 Ton to 80 Ton, adopt scroll compressor, use one compressor, two compressor system, 3 compressor system, or 4 compressor system, if you need smaller chiller and convenient to install cooling tower can choose it.

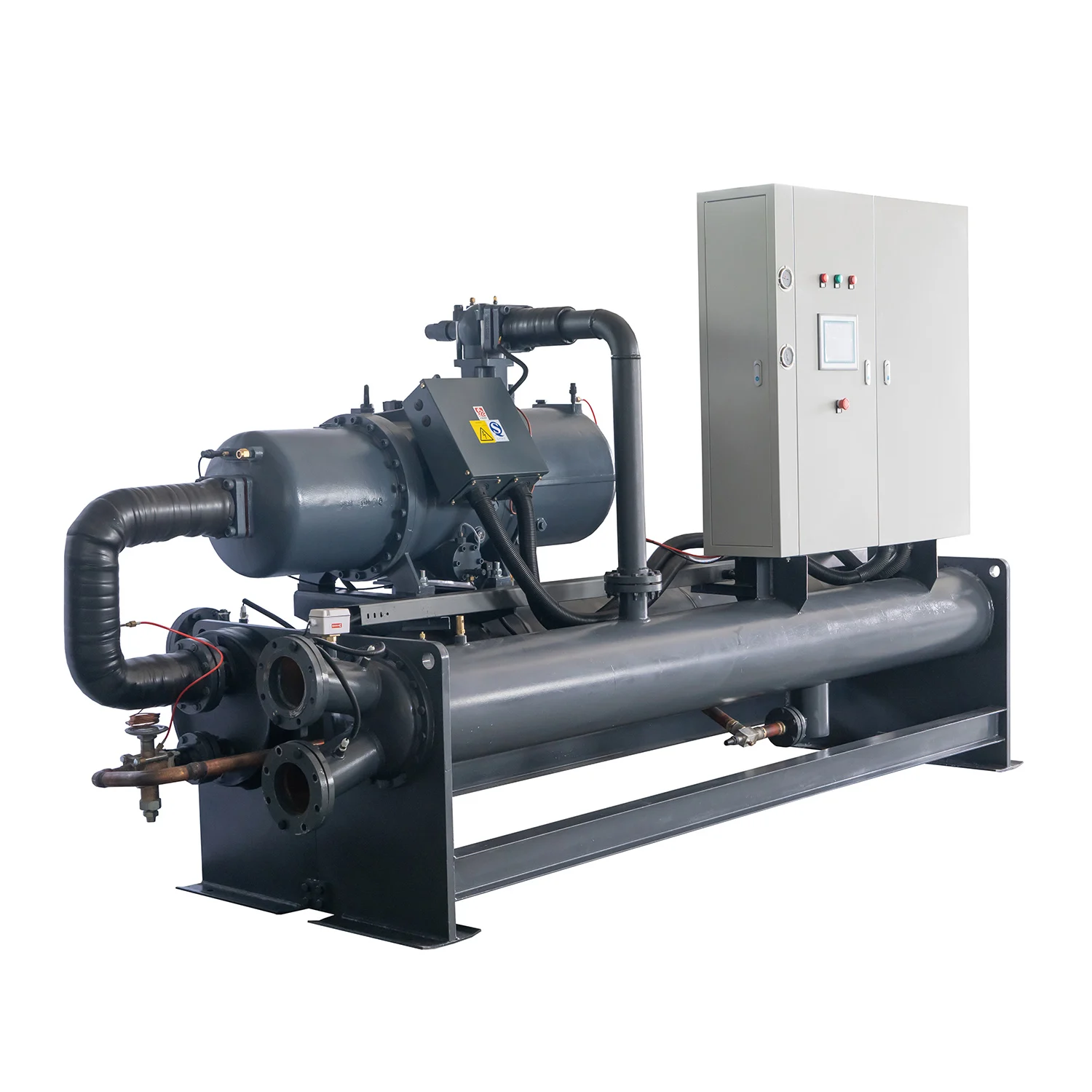

2.Water cooled Screw Water Chiller: Cooling capacity from 30Ton to 500 Ton, adopt SCREW compressor, use one compressor, two compressor system, if you need larger cooling capacity can choose it.
3. Water cooled scroll water chiller: Cooling capacity from 1 Ton to 80 Ton, adopt scroll compressor, use one compressor, two compressor system, 3 compressor system, or 4 compressor system, if you need smaller chiller and convenient to install cooling tower can choose it.
FAQ
You may have some questions when use the water chiller in your plastic equipment? here is some questions from our customer usually ask, hope can help you.
Question 1. How to Decrease the Power Consumption of Chiller?
Question 1. How to Decrease the Power Consumption of Chiller?
Reply: You can decrease the power consumption of your
Plastic Chiller by providing suitable moderate electricity. Make a good usage plan and don’t overload your Plastic Chiller and take care of maintenanice too.
Question 2. Why your Plastic Chiller does not Provide Proper Cooling Sometimes?
Reply: No cooling or decreased cooling may be because of many reasons. Power failure, leakage of pipe or condenser, and severity of atmospheric temperature are some of the reasons.
Question 3. Why is the Evaporator Temperature Too Low in your Chiller?
Reply: When there is no refrigerant flow in the compressor, the evaporator temperature of the Plastic Chiller decreases.
Question 4. What are the Types of Chiller?
Reply: There are two types of Chiller Water Cooled Chiller, Air Cooled Chiller
Question 5. What is the Purpose of an Abnormal Alarm Buzzer in Chiller?
Reply: It is applied for safety; the refrigeration circuit of the Chiller automatically cuts off the connection, if
there is any error alarm for its safety.
Question 6. What are the Safety Devices that are installed in Chillers?
Reply:
(1). Some safety devices for a Chiller are;
(2). Overload protection.
(3). Low water level alarm device.
(4). Wrong/reverse phase protection.
(5). High/low-pressure protection.
(6). Flows switch protection.
(7). Antifreeze protection alarm.
Question 7. What type of Materials does a Chiller cool during the Process?
Reply: A Plastic Chiller cools the hot plastic materials that are injected, blown, extruded, or stamped by mold during the
process.
Plastic Chiller by providing suitable moderate electricity. Make a good usage plan and don’t overload your Plastic Chiller and take care of maintenanice too.
Question 2. Why your Plastic Chiller does not Provide Proper Cooling Sometimes?
Reply: No cooling or decreased cooling may be because of many reasons. Power failure, leakage of pipe or condenser, and severity of atmospheric temperature are some of the reasons.
Question 3. Why is the Evaporator Temperature Too Low in your Chiller?
Reply: When there is no refrigerant flow in the compressor, the evaporator temperature of the Plastic Chiller decreases.
Question 4. What are the Types of Chiller?
Reply: There are two types of Chiller Water Cooled Chiller, Air Cooled Chiller
Question 5. What is the Purpose of an Abnormal Alarm Buzzer in Chiller?
Reply: It is applied for safety; the refrigeration circuit of the Chiller automatically cuts off the connection, if
there is any error alarm for its safety.
Question 6. What are the Safety Devices that are installed in Chillers?
Reply:
(1). Some safety devices for a Chiller are;
(2). Overload protection.
(3). Low water level alarm device.
(4). Wrong/reverse phase protection.
(5). High/low-pressure protection.
(6). Flows switch protection.
(7). Antifreeze protection alarm.
Question 7. What type of Materials does a Chiller cool during the Process?
Reply: A Plastic Chiller cools the hot plastic materials that are injected, blown, extruded, or stamped by mold during the
process.
About Us
If you want know more about MGREENBELT Company
Established in 2003, MGREENBELT Specialized in manufacture chiller and chiller system including: air chiller, water chiller,
industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature controller, cold room project
for over 20 years experience. MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.
Established in 2003, MGREENBELT Specialized in manufacture chiller and chiller system including: air chiller, water chiller,
industrial chiller, oil chiller, glycol chiller, process chiller, screw chiller, mold temperature controller, cold room project
for over 20 years experience. MGREENBELT promise offers the best chiller&chiller system solution with competitive price to clients worldwide.

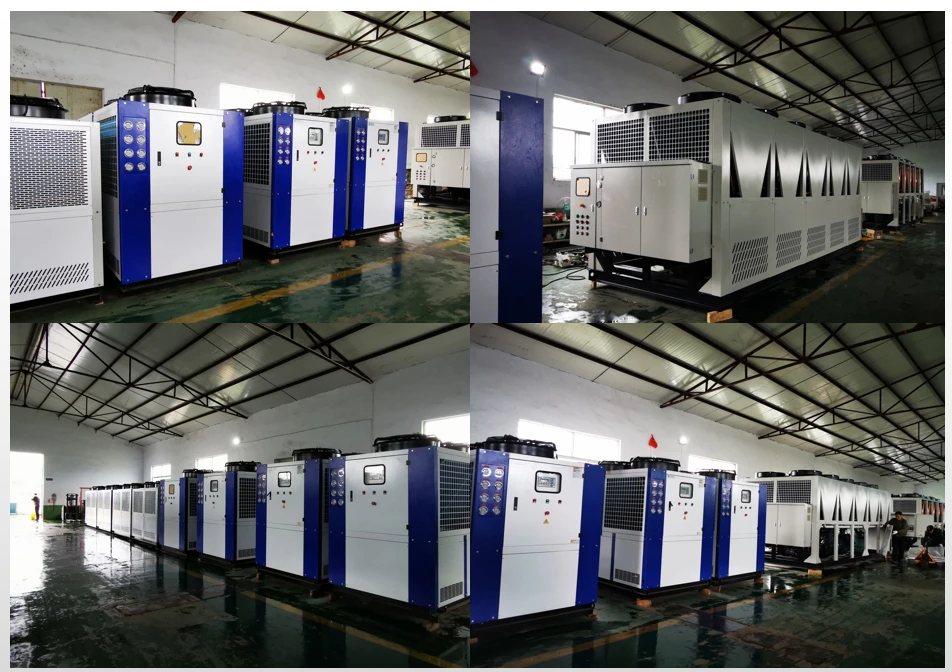

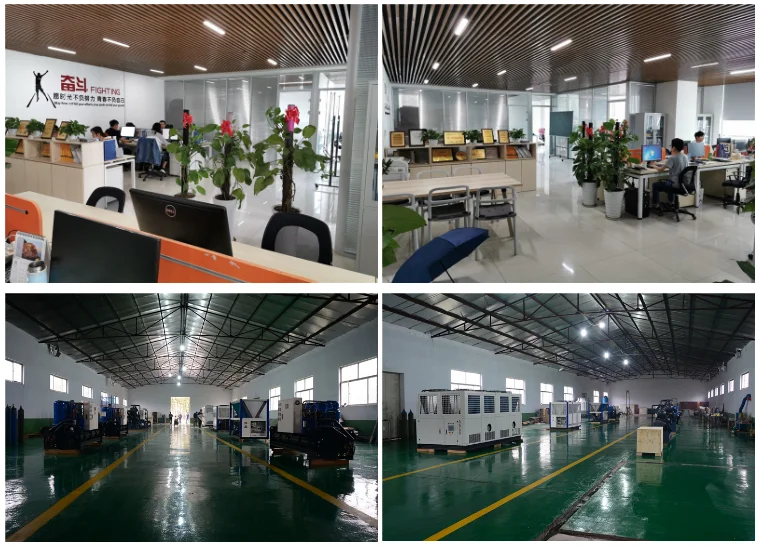

11605 Square meters factory area; Within over 1000 chiller units produce every year, we thrive on providing
