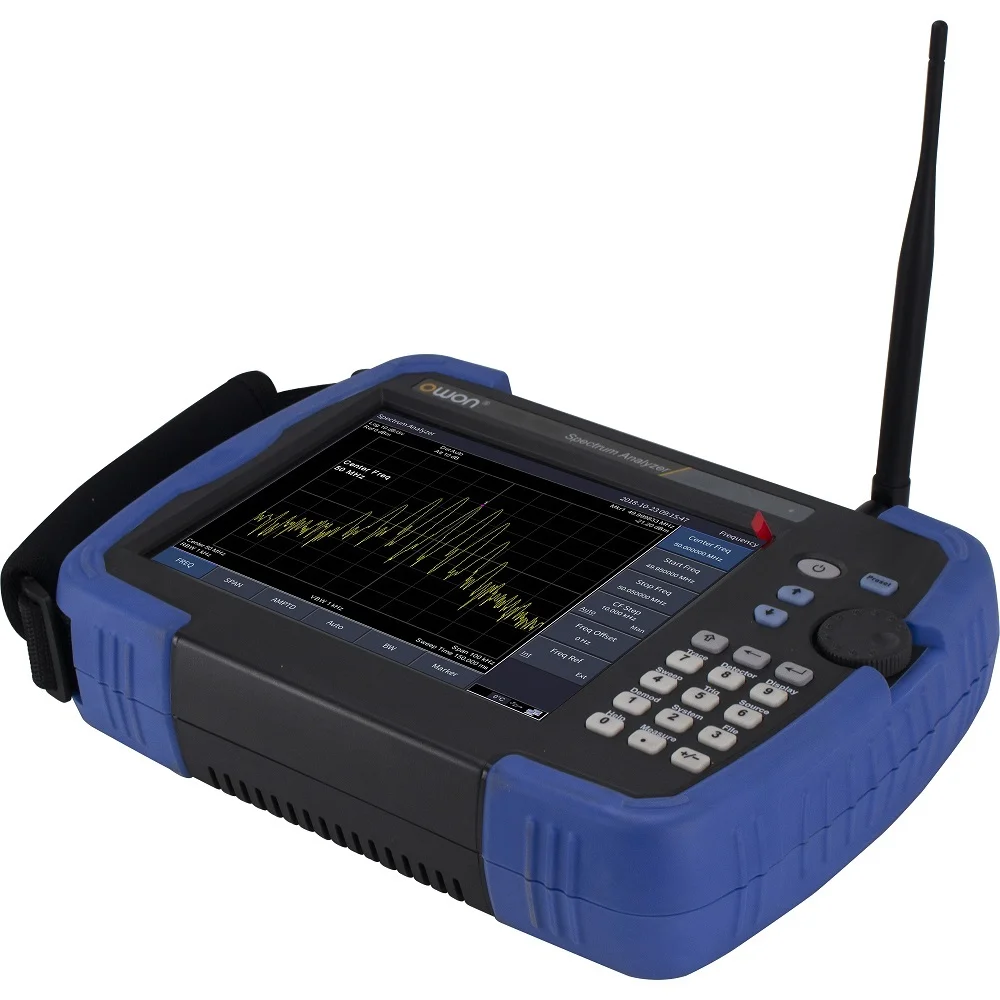

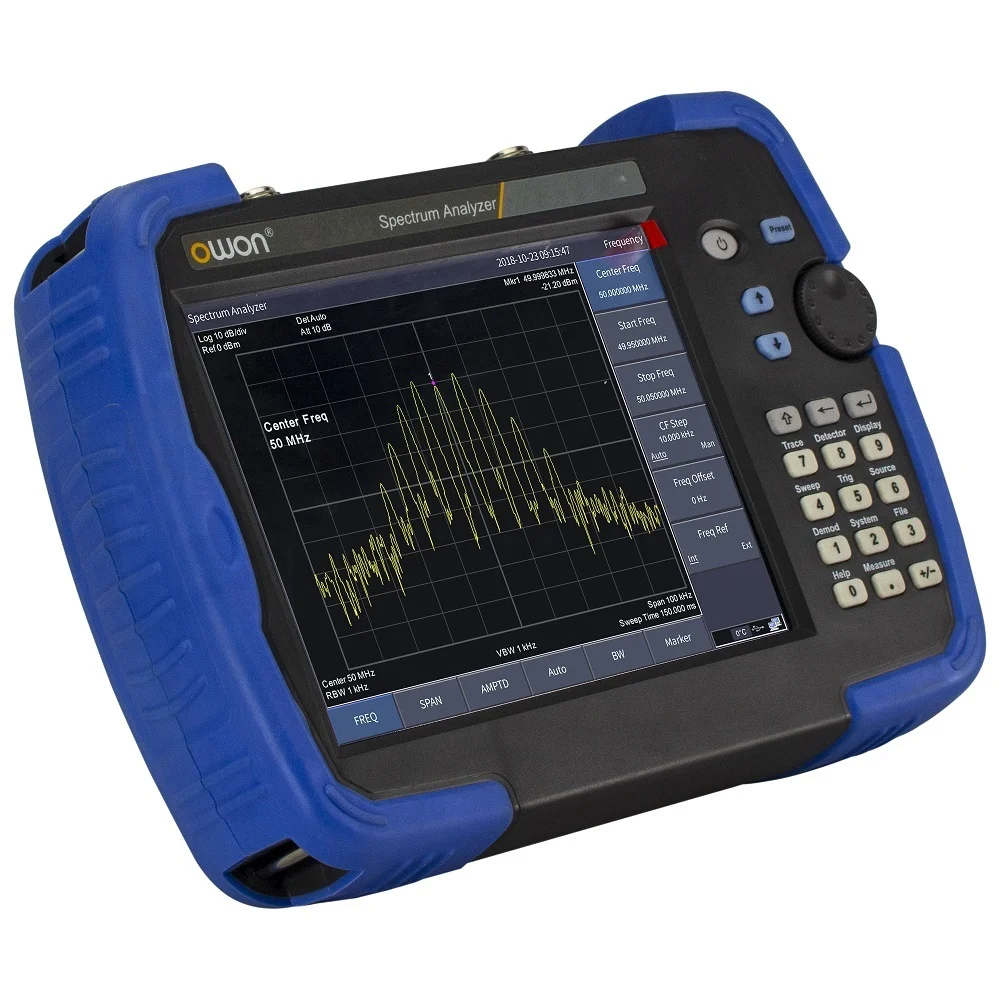

OWON HSA1000 Series HSA1016 TG HSA1036 TG Handheld Spectrum Analyzer

Model

HSA1016(TG)

HSA1036(TG)

Frequency Range

9kHz - 1.6 GHz

 9kHz - 3.6 GHz

Frequency Resolution

1Hz

Aging rate

<1ppm/Year

Phase Noise (fc=1GHz)

<-80 dBc/Hz @10 kHz offset

Resolution Bandwidth (-3dB) (RBW)

10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz

Video Bandwidth(-3dB)(VBW)

10Hz to 3MHz

Display Average Noise Level (DANL)

(Input Attenuation= 0 dB, Sample Detector, Trace Average ≥20, 20℃ to 30℃, Input Impedance=50 Ω, RBW normalizes to 1Hz)

1MHz-10MHz

-160dBm (Typical)

10MHz-1GHz

-160dBm (Typical)

1GHz-1.5GHz

-158dBm (Typical)

1GHz-3.6GHz

-158dBm (Typical)

Detectors

Positive-peak, negative-peak, sample, normal, RMS

Trace functions

Clear write, Max Hold, Min Hold, View, Blank, Average

level unit

dBm,dBuW,dBpW,dBmV,dBuV, W,V

Tracking generator (-TG Model)

100 kHz-1.5 GHz

100 kHz-3.6 GHz (Tracking generator)
35 MHz-3.6 GHz (signal generator)

Output power level range
(-TG Model)

-30 dBm-0 dBm

Output power level resolution
(-TG Model)

1dB

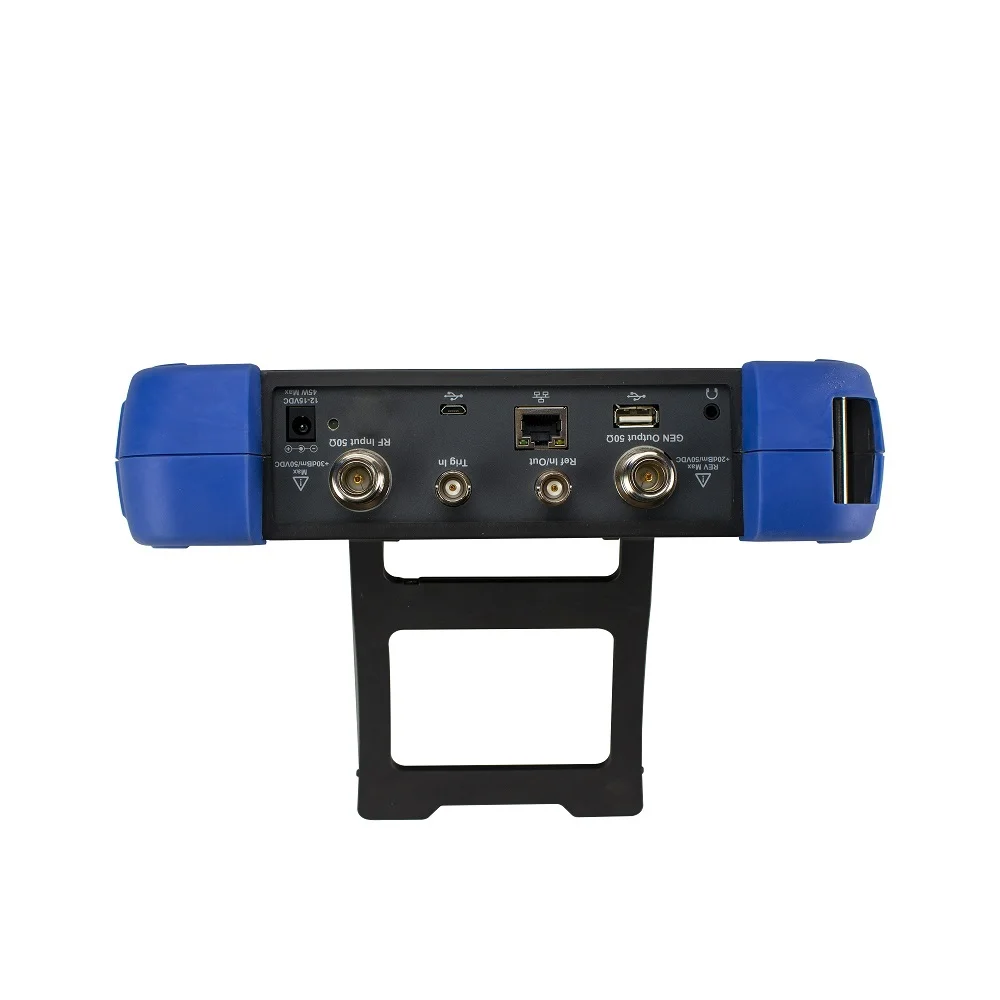

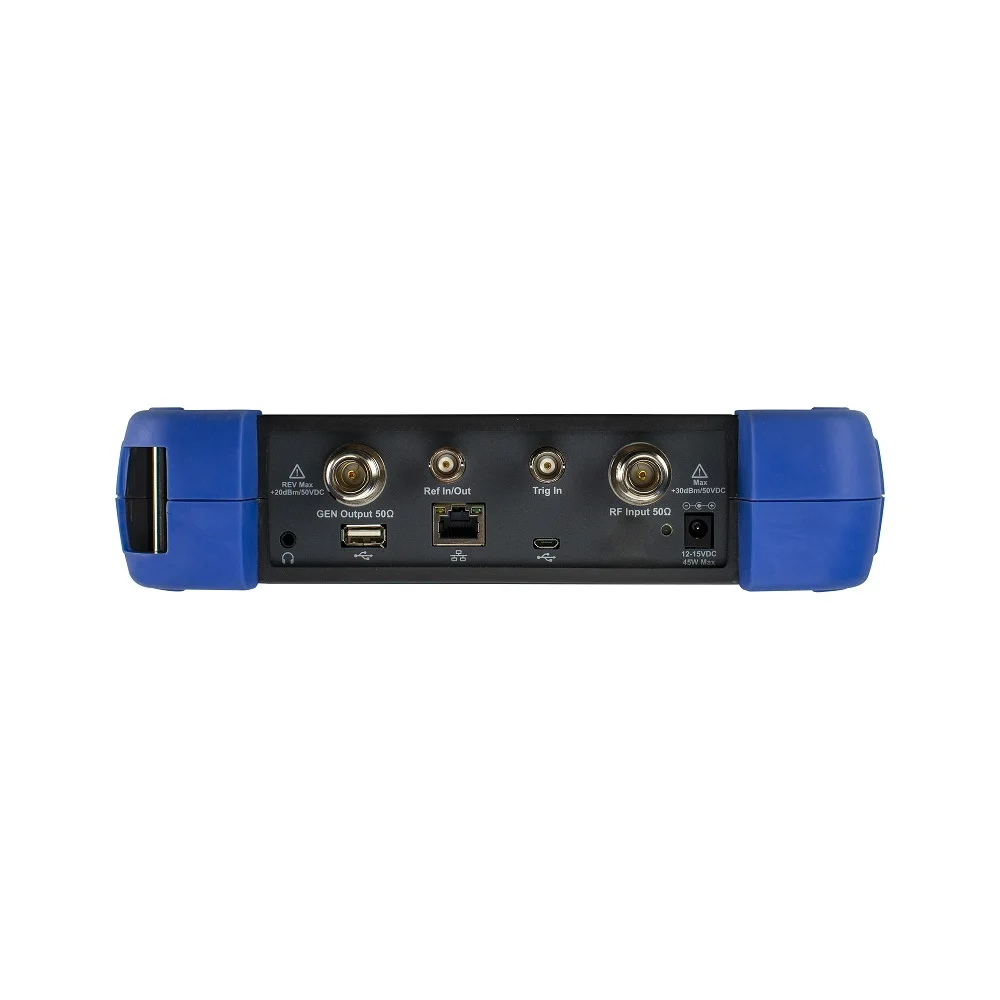

Communication Port

USB HOST, USB DEVICE, LAN, earphone port

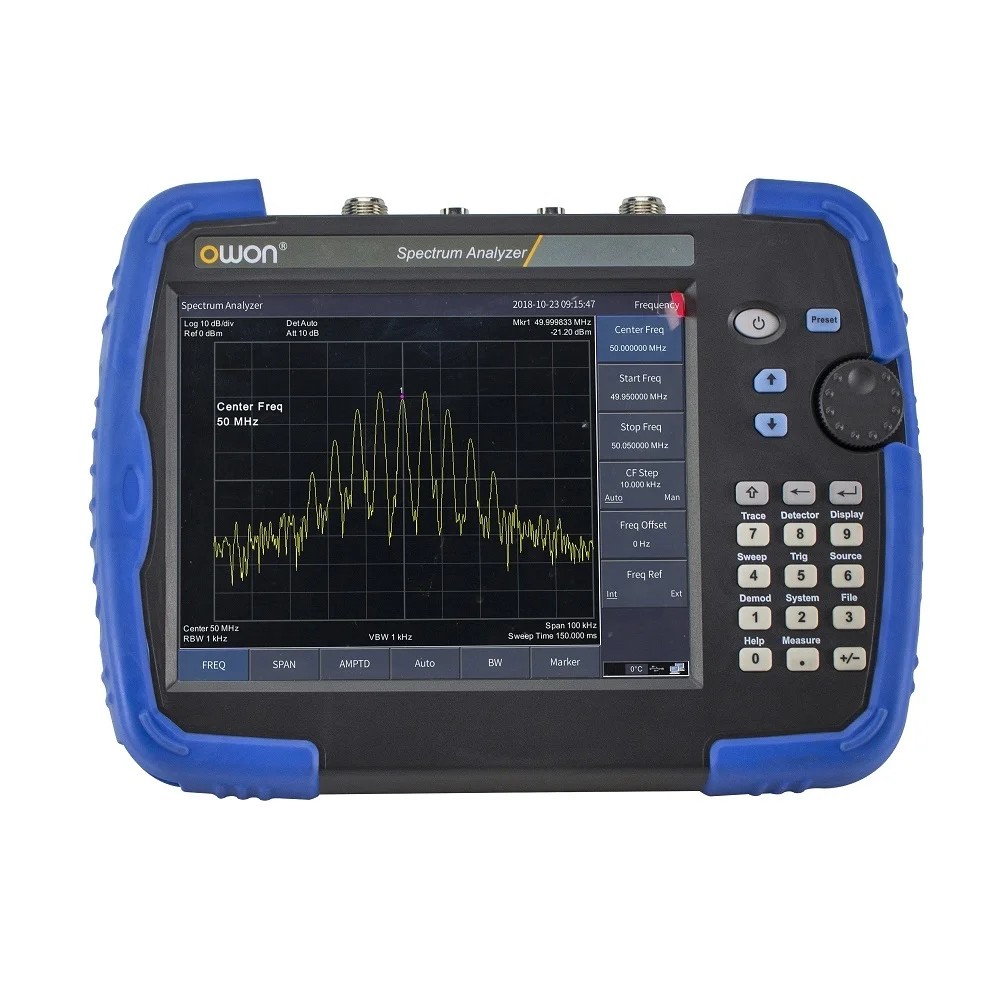

Display

8 inch touch LCD
