Large dry ice making machine pelletizer with capacity 100kg/H
- Category: >>>
- Supplier: Jinan Robin Machinery Co. Ltd.
Share on (1600454345451):
Product Overview
Description
Product Description

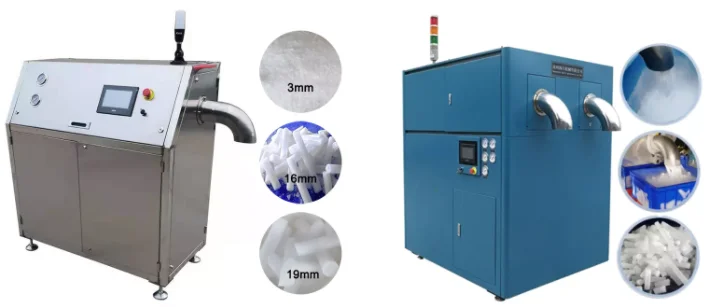

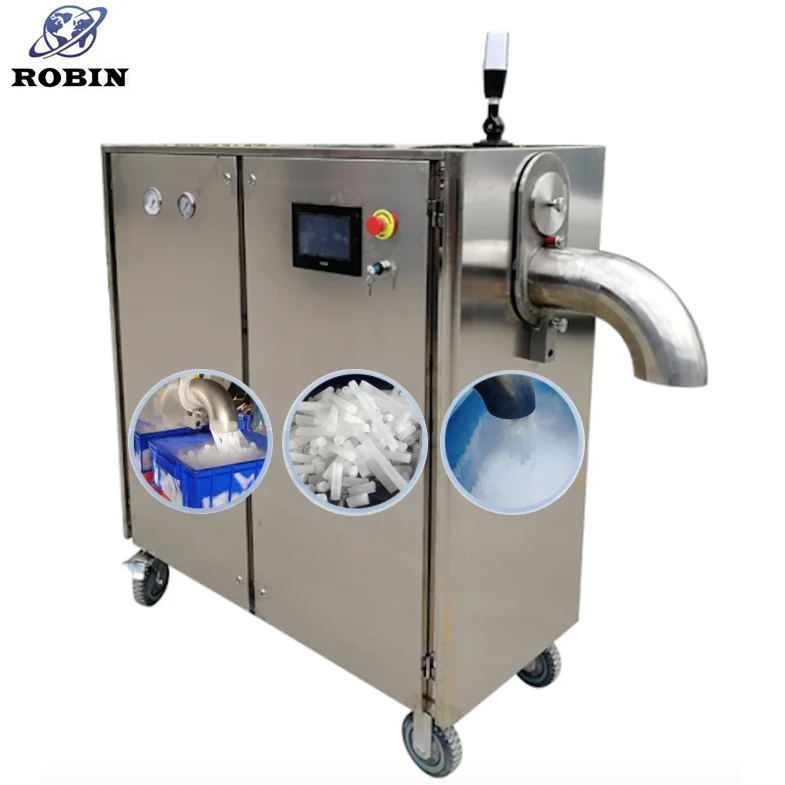

Large dry ice making machine pelletizer with capacity 100kg/H
Special design concept, high mechanical manufacturing precision, equipped control system, software and advanced measurement. This series of granular dry ice machine is widely used in dry ice cleaning, low temperature preservation and cold chain transportation, smoke effect and other industries.
This machine is a fully automatic production equipment. It can be started by one-button button and can control all functions, which greatly improves production efficiency and saves production costs.
Dry ice machines are ideal for tissue preservation, specimen shipping, biologicals manufacturing, industrial processes, ice cream, food samples, frozen meats and seafood, and classroom demonstrations. Create dry ice blocks in two minutes or less at your convenience. Simple operation requires no secondary procedures. Includes everything needed to make uniform, ready to use block except the CO2 suply. Required cylinders of liquid CO2 complete with siphon are readily available from industrial gas dealers or welding supply houses. One-year warranty on all parts.
FEATURES

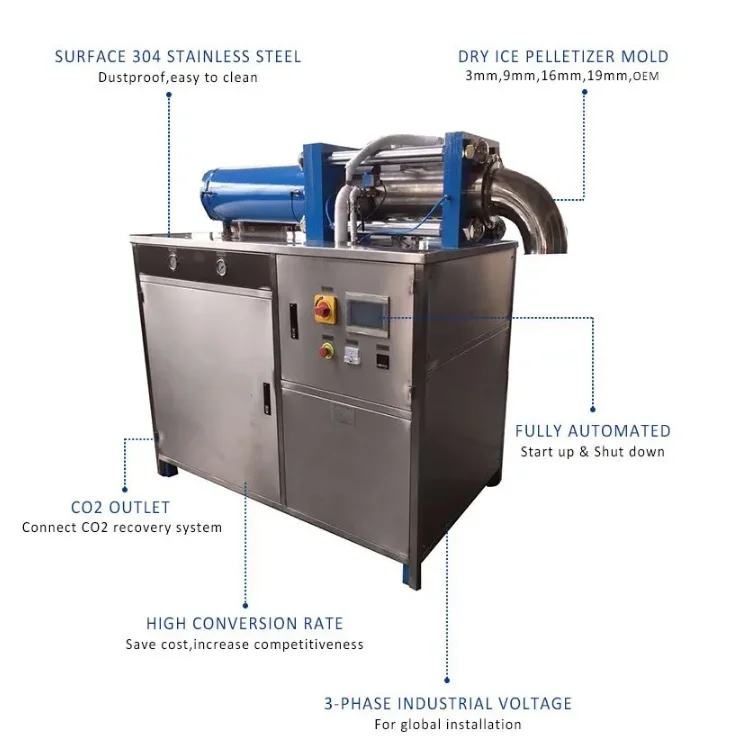

1. The body is made of stainless steel, and the fully enclosed design makes the equipment more integrated, reduces the noise of the equipment when it is working, and prevents the danger caused by the accidental touch of the personnel during the work.
2. The core electrical parts are original.
3. The hydraulic pump station and the pellet forming module are all built-in. On the one hand, it reduces the footprint of the equipment, and on the other hand, it also makes dry ice production avoid the influence of dust.
4. Touch LCD panel operation, you can set the number of hydraulic cylinder purge, working time, etc., reducing the error rate of manual operation.
5. Optional food-grade configuration of the hydraulic system (using stainless steel parts and edible food oil as the hydraulic transmission medium)
PARAMETER
| Model | RB-50 | RB-80 | RB-125 | RB-250 | RB-500 |
Production capability | 40-50 kg/h | 70-80kg/h | 125-140 kg/h | 250 kg/h | 300-500 kg/h |

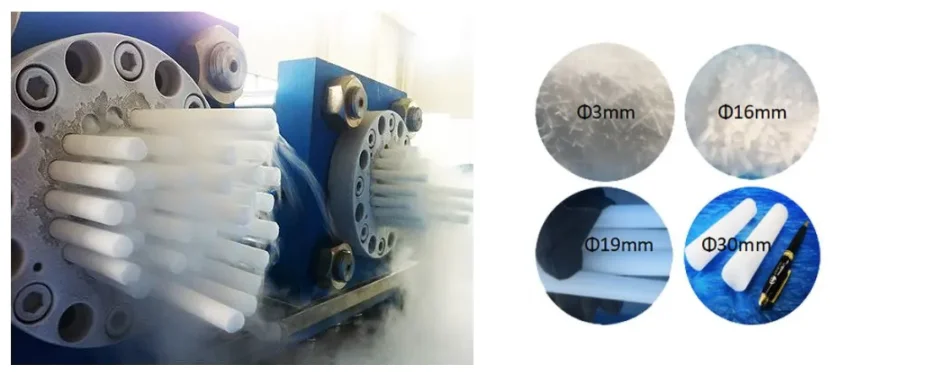

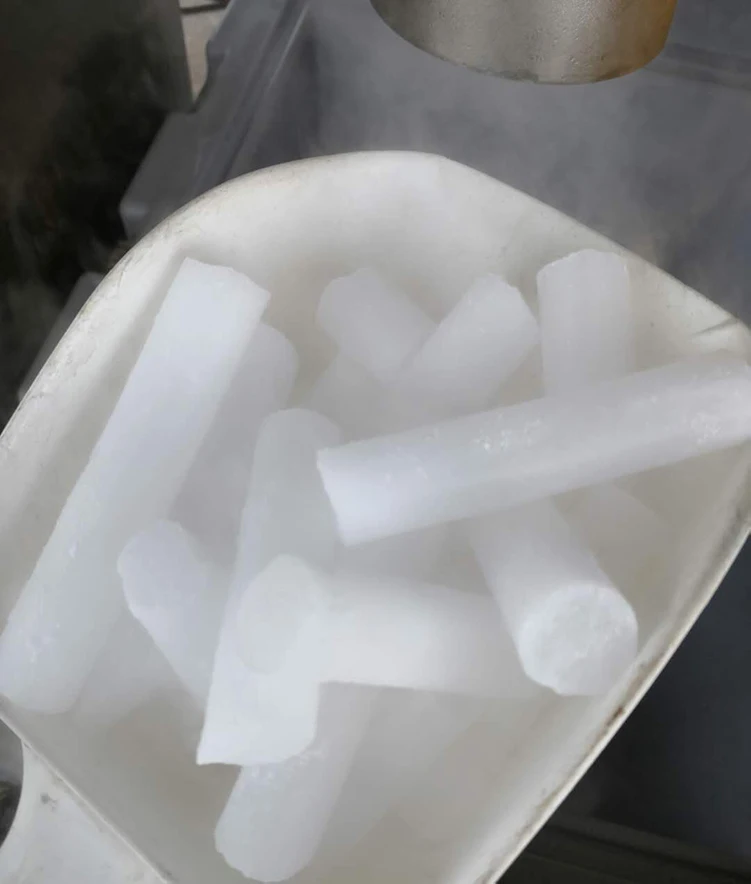

Dry ice specification | Φ3mm,Φ15mm | Φ3mm,Φ16mm, Φ19mm | Φ3mm,Φ16mm, Φ19mm | Φ3mm,Φ16mm, Φ19mm | Φ3mm,Φ10mm, Φ16mm,Φ19mm |
The density of dry ice | 1550kg/m³ | 1550kg/m³ | 1550kg/m³ | 1550kg/m³ | 1550kg/m³ |
Liquid and solid co2 conversion ratio | ≥42% | ≥42% | ≥42% | ≥42% | ≥42% |
The total power | 2.5kw | 4kw | 5.5kw | 11kw | 18.5kw |
Equipment weight | 200KG | 350kg | 500kg | 1200kg | 1.8T |
Overall dimensions | 90cm×50cm×90cm | 135cm×65cm×125cm | 130cm×65cm×155cm | 150cm×90cm×170cm | 160cm×135cm ×175cm |
FAQ
1. Can I band my logo?
Yes, we can do the logo with sticker, printing
2. What's your delivery time?
Dry ice machine is about 35-40 days after the payment confirmed. Dry ice container is about 10-12 days after the payment confirmed.
3. After I buy the machine, what will you do if I don't know some of the function?
We will show you how to use the machine perfectly. Technical support and the video is available.
4. What can I do if the machine troubled after I buy it?
We provide completely after sales service, and our engineers are available to service machinery overseas.
5. What's the terms of payment ?
We accept T/T, 30% Deposit and 70% balance paid before delivery.
6. What guarantee do you provide? Warranty?
Our warranty is 1 year
Welcome your enquiry! And Please chat with us through trade manager to know more.
