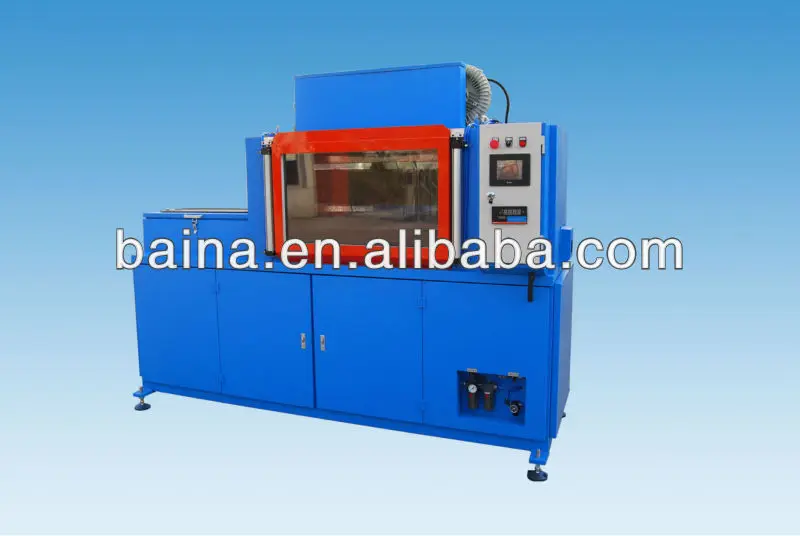

electrostatic rubber flocking machine

Product Overview

Description

Effective range of main engine flocking	the width of the products to be flocked≤100mm
Working diameter of fiber-off roll	160mm
Working length of fiber-off roll	1100mm
Total power of main engine motor	7KW
Delivery speed	0---15m/min, frequency control
Outside measurements of the machine	4760 (L)×2500 (W)×3500 (H) (mm)
Weight of the machine	app. 3000kg
Main power supply	3 phase 5 line AC380±10 50HZ
Control circuit	AC220V, use neutral line

·Major components shall be Schneider products

Parts installed on control box:

·Start button, stop button and emergency button

·Action indicator light

. An emergency stop button is contained.

Caution notice

Caution notices shall be set up at areas with dangerousness, high temperature anid high voltage.
