Led Beam Exterior Led Floodlights 200w 300w 400w Spotlight Lamps for Stadium
- Category: >>>
- Supplier: Dongguan,Rayborn,Lighting,Co.,Limited
Share on:
Product Overview
Description
Features of led flood light for football field, tennis court, padel court, basketball court, parking lot, warehouse, etc..
1. 50/100/150/200/250/300/400/500w
2. AC100-277V
3. 5 years warranty
4. CE RoHS SAA C-tik EMC LVD FCC certificated
500w 600w 800w led flood light reflector for football stadium lighting
Product Description
| 500W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-500WSD | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| Lamp Driver | Meanwell *2PCS | ||
| LED Chip: | SMD3030 | ||
| LED Power | 500W | ||
| LED QTY: | 480pcs | ||
| LED Working Voltage: | DC36 ~42V | ||
| System Consumption: | 505W | ||
| LED Luminous Flux | Warm White | 54000LM | |
| Pure White | 60000LM | ||
| Cool White | 60000LM | ||
| Viewing Angle: | 60/90/60*150° | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+The secondary light distribution lens | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –35℃~55℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| The color of the lamp shell | Black | ||
| Size | 599*450*130mm | ||
| Certificates | CE ROHS EMC LVD | ||

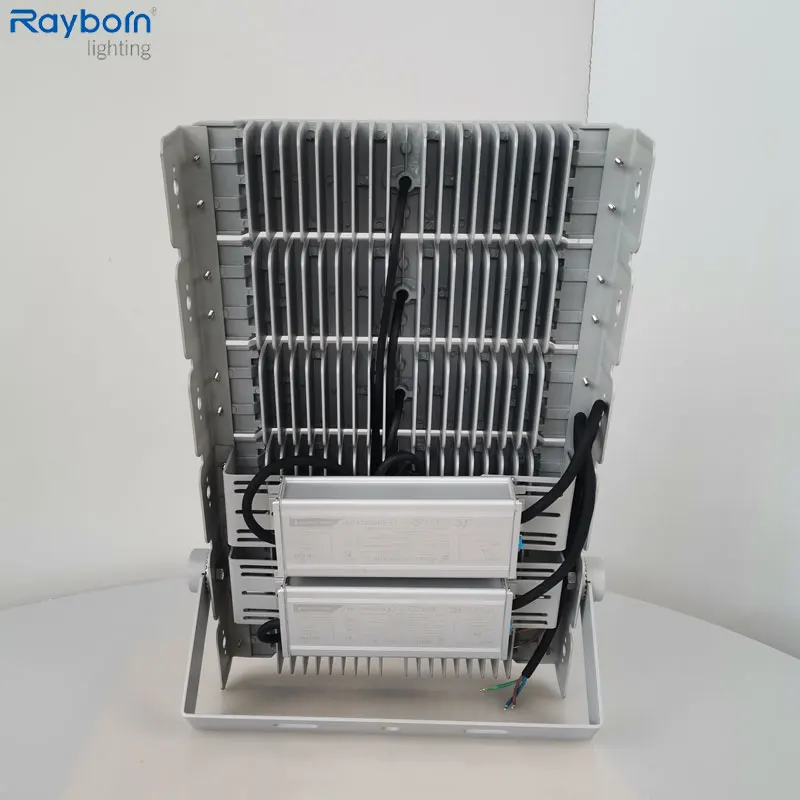

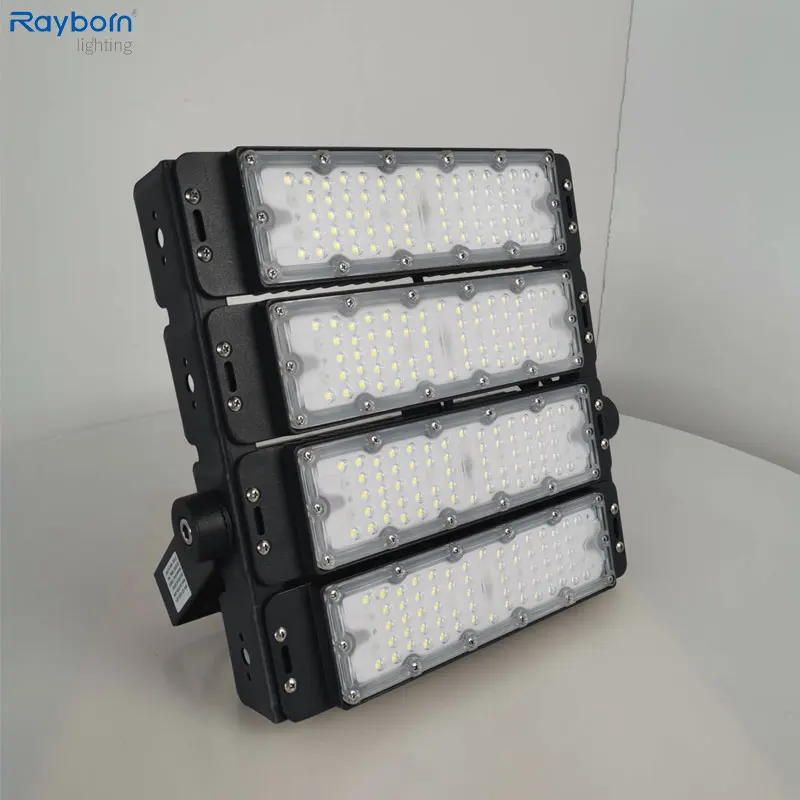

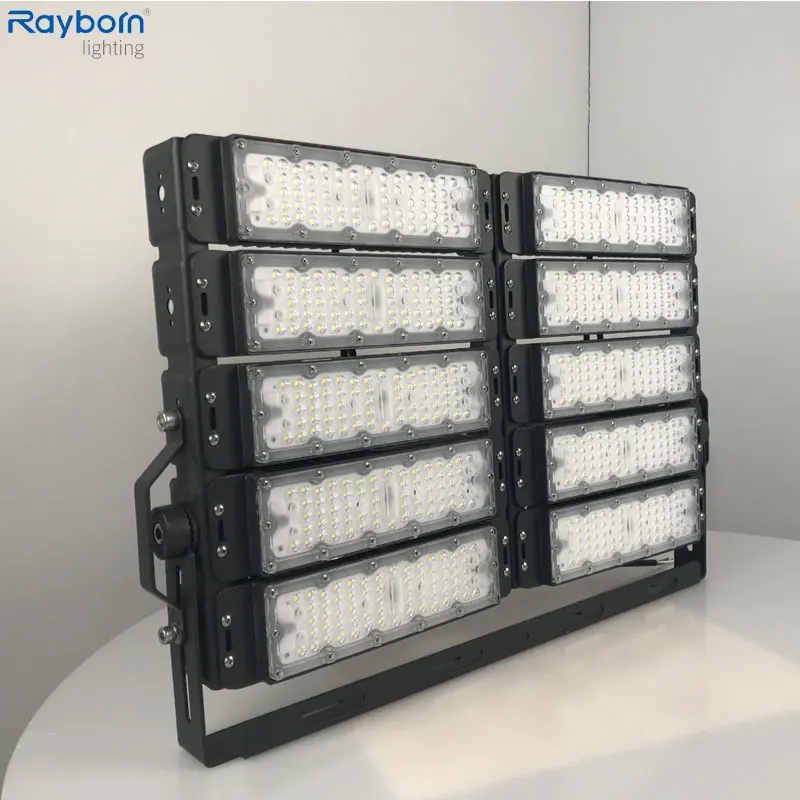

Images of 500w led flood light
LED Flood light Features
LED Chip: 140lm/w LED Chips which is the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Supply: LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature: LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics: Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing: Die cast aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable: silicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty: 5 years. Do not attempt to take housing apart as this will ruin the seal and void all warranty.
Certification: FCC CE RoHS approval.
Quality Control: Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable: Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Dimension of 500w led flood light
Strict tests for led flood light

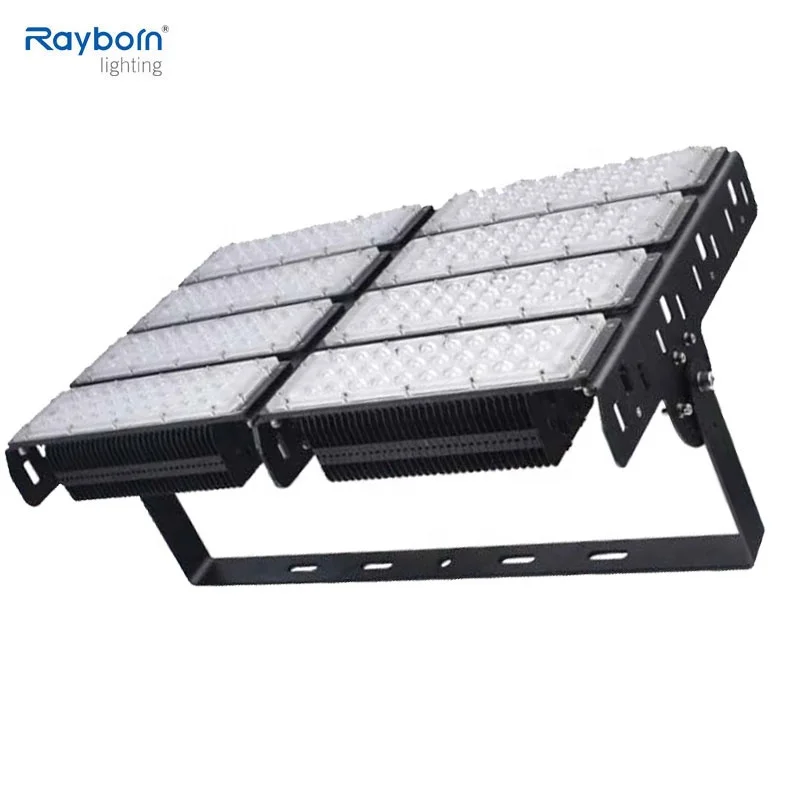

More choices for led flood light
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer 5 year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packaging & Shipping
Packaging details about led floodlight
| Item | Dimension | Carton Size | Gross Weight | Packaging |
| 50w led flood light | 315*93*130mm | 33*22*22cm | 4.9KG | 2PCS/carton |
| 100W led flood light | 315*180*130mm | 35*26*16cm | 4.5KG | 1PCS/carton |
| 150W led flood light | 315*270*130mm | 35*31*16cm | 5.5KG | 1PCS/carton |
| 200W led flood light | 315*373*130mm | 39*35*16cm | 7KG | 1PCS/carton |
| 250W led flood light | 315*463*130mm | 55*35*16cm | 8.9KG | 1PCS/carton |
| 300W led flood light | 598*283*130mm | 64*33*17cm | 10.5KG | 1PCS/carton |
| 400W led flood light | 598*373*130mm | 64*44*19cm | 13KG | 1PCS/carton |
| 500W led flood light | 598*453*130mm | 63*53*17cm | 15KG | 1PCS/carton |
Shipping ways
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
Company Information
Dongguan Rayborn Lighting Technology Co.,Ltd. a professional LED lights manufacturer,has been committed to the development production of exquisite, beautiful, safe, green energy-saving lighting products. Our products mainly contain serial varieties:led high bay light,led street light, led flood light, led tunnel light, led panel light, led spot light, led tube light, led ceiling light,etc.
FAQ
Q1.What is the main business of Rayborn Lighting?
A: Rayborn focus on LED home lighting products from 2008 till now. Rayborn is the top
suppliers of led indoor and outdoor lighting fixtures. Especially focus on LED panel light,led
tube light, led downlight and so on. Outdoor lighting focus on led floodlight, led street light,etc.
Q2. What is the warranty of Outdoor LED Lighting?
A : Rayborn outdoor LED Lighting offer 5 years warranty depending on different types.
Q3. What is the payment term?
A: For sample order, we can accept T/T, Paypal, West Union, 100% in advance. For bulk
order, 30% deposit in advance by T/T, 70% balance before shipping. For very big order. L/C is negotiable.
Q4. Can I add my logo on the led Lighting label?
A : Yes,our led lighting can print customer's logo on inner and outer carton.
Q5. What kind of certificates Rayborn Got?
A: Rayborn led light got CE,EMC,LVD,ROHS,FCC,C-tik,SAA Certification.
