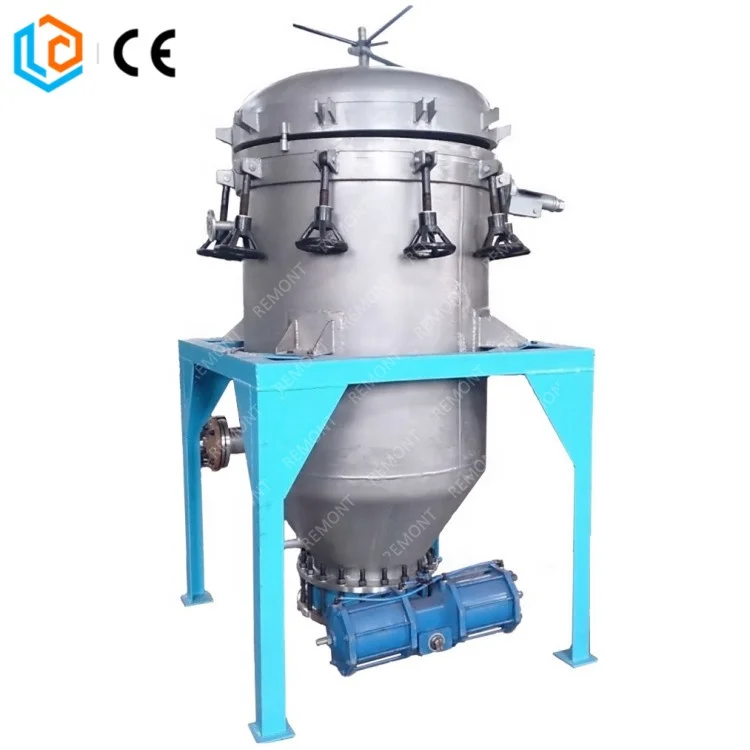

Leaf filter vertical pressure 3 layers machine price
- Category: >>>
- Supplier: Henan Remont I/E Co. Ltd.Henan Ltd.
Share on (1600454444341):
Product Overview
Description

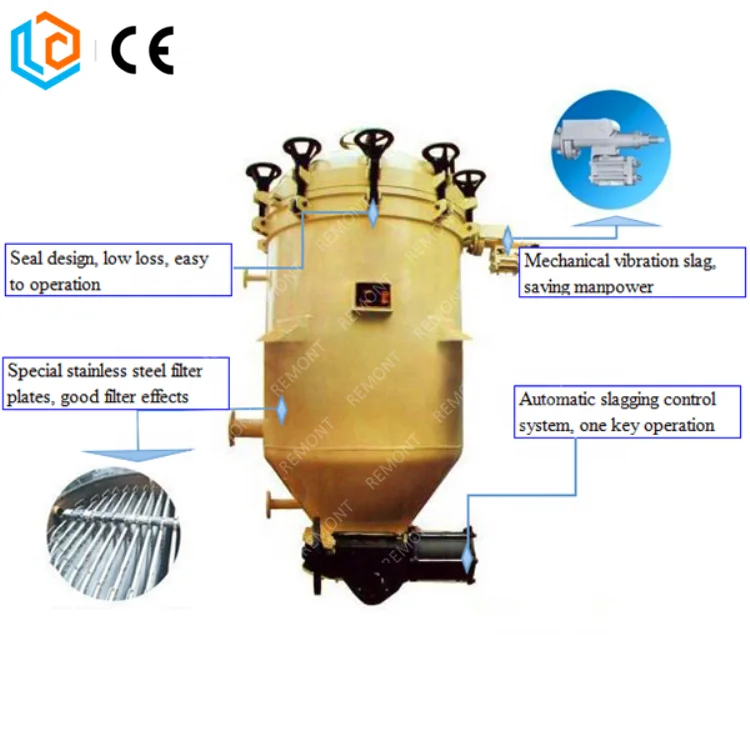

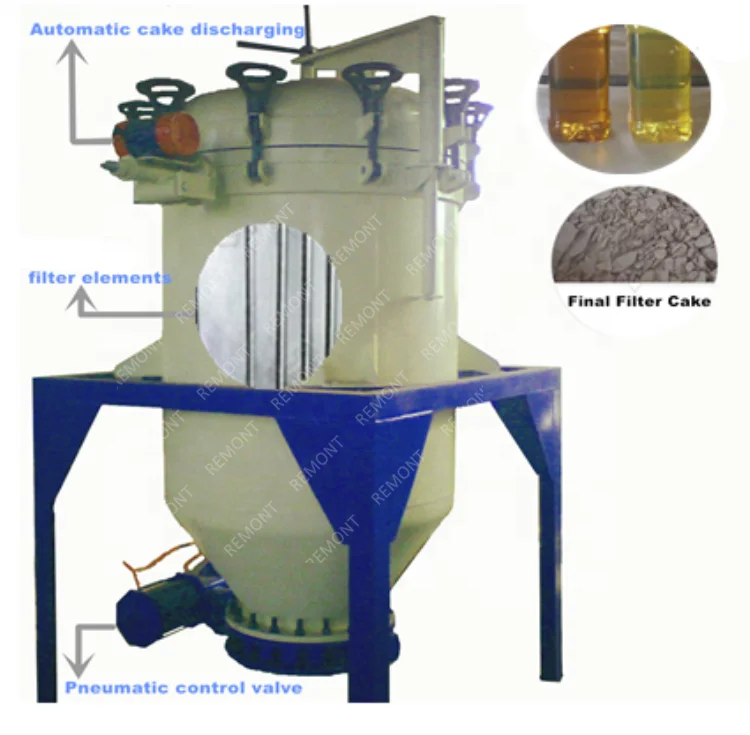

MG Series Waste oil filter machine automatic slagging vertical leaf filter is a kind of pressure filtration equipment. Under pressure, the solid particles in the filtrate will be trapped on the filter leaves, and the filter cake is formed gradually. Under pressure, the filtrate goes through the filter cake. Then the filtrate outflow tube body through the filter tip. At last, you can get clear filtrate. With filtration time increases, so that the thickness of the filter cake ever thickening. The filter resistance is increasing, the tank pressure gradually increased to a certain value. Then you must be slagging. Stop pumping the filtrate into the tank and blowing compressed air through the tank overflow pipe. After the liquid is drained, blow the steam (or air) into the tank body to dry the filter cake. Then the vibrator starts, so that the vibration response of the filter, the filter cake on the leaves shaking off the bottom of the tank through the slag discharge valve body.
Detailes of Product
Detailed accessories of Leaf filter vertical pressure 3 layers machine price
Leaf filter screen
Butterfly valve

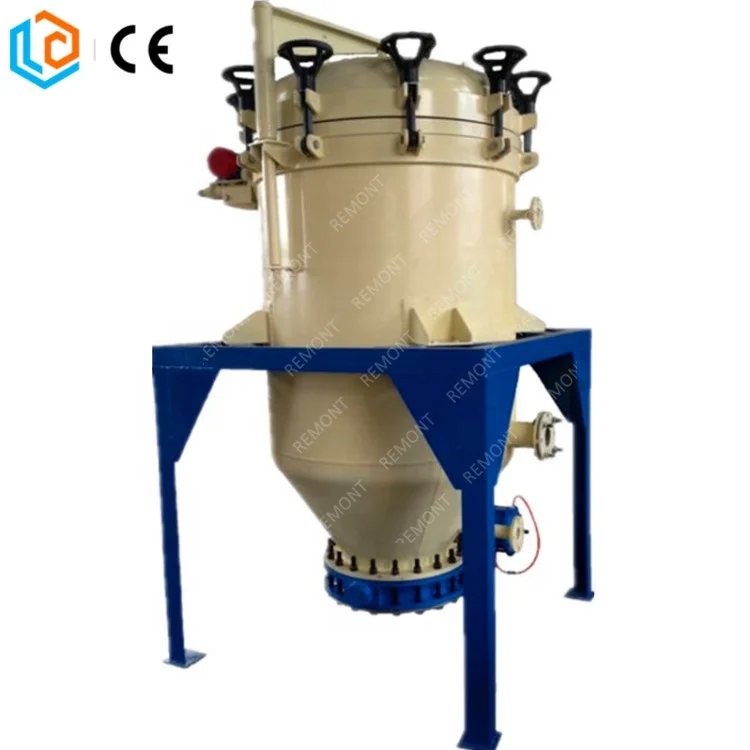

Whole leaf filter machine
Application
Actual application of Leaf filter vertical pressure 3 layers machine price
The leaf filter is mainly used for bleaching, decolorizing, etc. of oil.
Mainly used in oil industry( for used motor oil decolorization, for oil dewaxing, for acidified coconut oil filtering, for palm oil filtering, etc.);
Environmental protection industry(rivers, lakes, water, sewage treatment station , water purification back to the swimming pool.), etc.
Cuatomer's actual working site
Technical Parameters
Technical Parameters
Technical specifications of Leaf filter vertical pressure 3 layers machine price
| Model | Filter square(m³) | Diameter (mm) | Distance between filter leaf(mm) | Inlet | Outlet | Overflow | Slag outlet | Height | Weight |
| (mm) | (mm) | (mm) | (kg) | ||||||
| MG-4 | 4 | 550 | 70 | Dg50 | 80 | Dg32 | 300 | 2000 | 460 |
| MG-8 | 8 | 650 | 70 | Dg50 | 80 | Dg32 | 300 | 2100 | 890 |
| MG-10 | 10 | 800 | 70 | Dg50 | 80 | Dg32 | 400 | 2300 | 1200 |
| MG-15 | 15 | 900 | 70 | Dg50 | 80 | Dg32 | 400 | 2400 | 1500 |
| MG-20 | 20 | 1100 | 75 | Dg50 | 80 | Dg32 | 400 | 2500 | 1800 |
| MG-30 | 30 | 1200 | 75 | Dg50 | 80 | Dg32 | 400 | 2600 | 2500 |
| MG-40 | 40 | 1300 | 75 | Dg70 | 80 | Dg50 | 500 | 3000 | 3400 |
| MG-50 | 50 | 1400 | 75 | Dg80 | 80 | Dg50 | 500 | 3300 | 3800 |
| MG-60 | 60 | 1500 | 75 | Dg80 | 80 | Dg50 | 600 | 3500 | 4500 |
Main Features of Leaf filter vertical pressure 3 layers machine price
◊ Working pressure:0.1-0.49Mpa
◊ Design temperature:≤150°c
◊ Vibrator air pressure:0.45-0.6 Mpa
◊ Liquid content in slag: ≤0.5%
◊ Max. working pressure:0.6Mpa

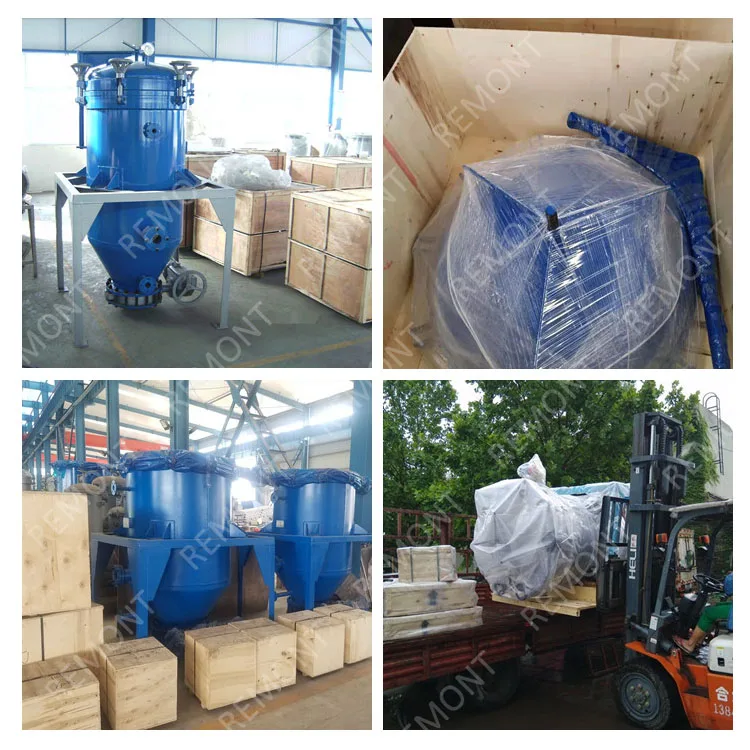

Packaging & Shipping
In general, the packing for leaf filter is standard wooden box for export or the whole container. Of course, the packing for leaf filter can be customized based on your requirements.
Company Information
Why choose us?
- We have been working on filtration and screening for nearly 20 years;
- You are not my client, you are my friend;
- We welcome you to visit our factory at any time;
- Rich experience;
- Customers in many countries;
- Professional technical team;
- Timely help and response;
- Perfect service, etc.
FAQ
Most suitable one for you, please tell me the following questions.
Main body materials:_____
Filteration area:_____m²
Raw material: _____
Capacity:_____
Customization: _____
♥Welcome to visit our factory!
♥ We hope our perfect products and services can satisfy your desire!
Related Products

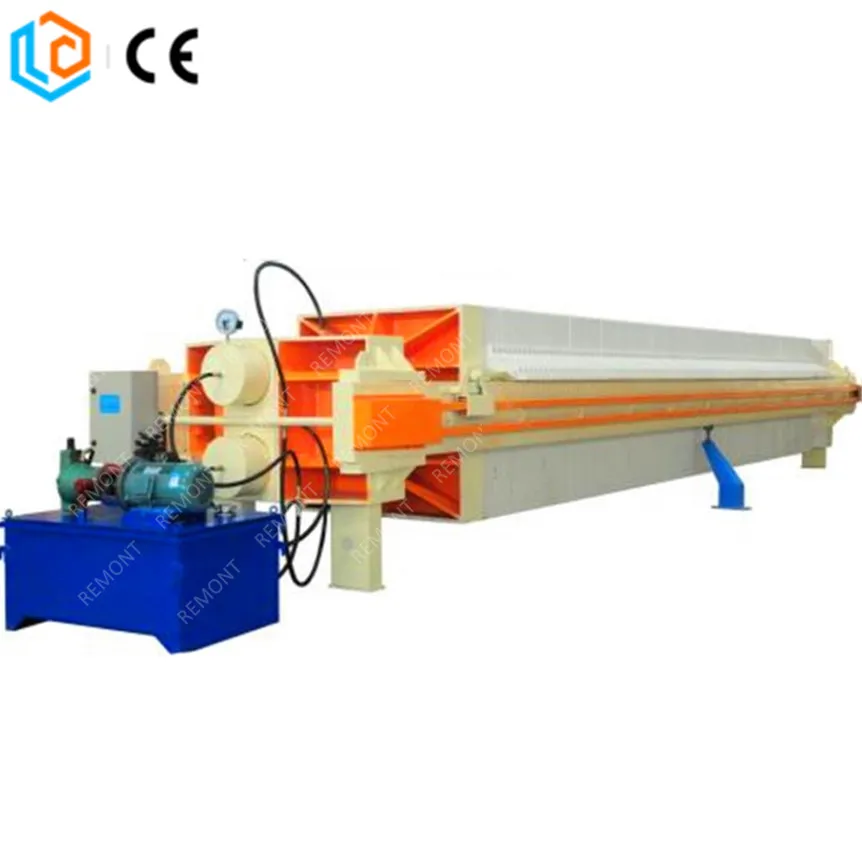

Dewatering equipment filter press system Recessed frame used cooking oil filter press
