Product Overview
Description
VR
Product Description
Product Introduction
The third-generation single module CW fiber laser series developed by Raycus range from 300W to 30000W, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios cutting welding , holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
Feature
①.High Electro-optical Conversion Efficiency
②.Stable beam quality
③.Sheet Cutting Efficienc
④.Altitude Stress-resisting Capacity
⑤.Maintenance-free Operation
⑥.Customized Output Fiber Length
Product Specifications
Model | RFL-C2000 | RFL-C3000S | |
Average Output Power (W) | 2000 | 3000 | |
Central Wavelength(nm) | 1080±5 | ||
Max. Modulation Frequency(m J) | 5 | ||
Operation Mode | CW / Modulate | ||
Output Power Stability(%) | ±1.5 | ||
Red Laser | Yes | ||
Beam Delivery Optics | QBH(Customizable) | ||
Polarization State | Random | ||
Delivery Cable Length(m) | 20(Customizable) | ||
Power Supply(V AC) | Three Phase-four Wire Connect 380±10% | ||
Control Mode | RS232/AD | ||
Power Range(%) | 10~100 | ||

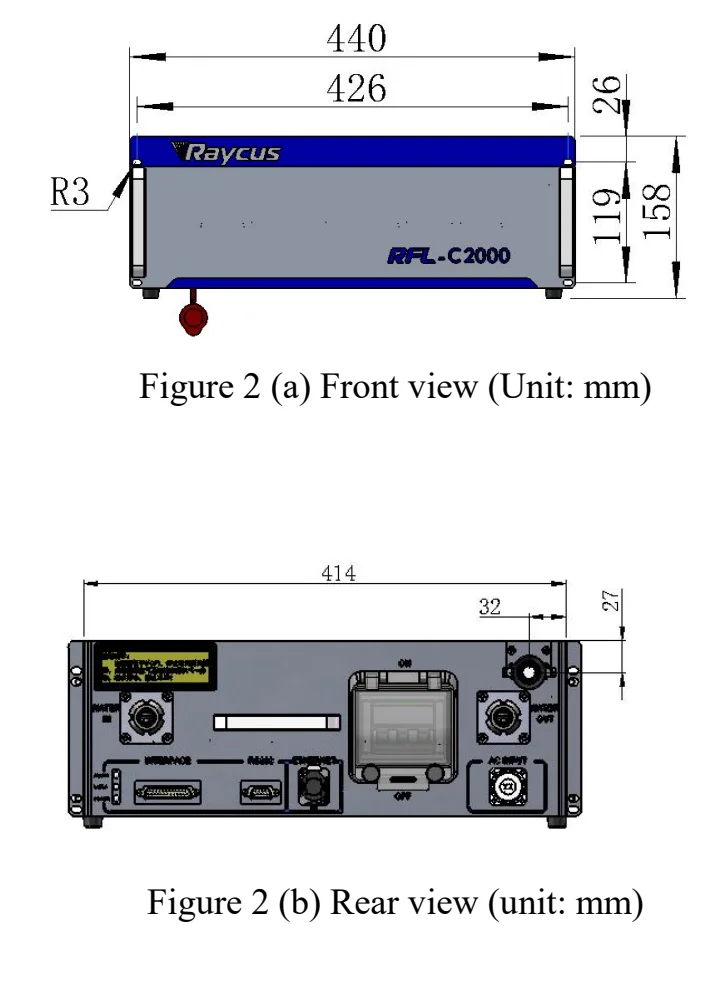

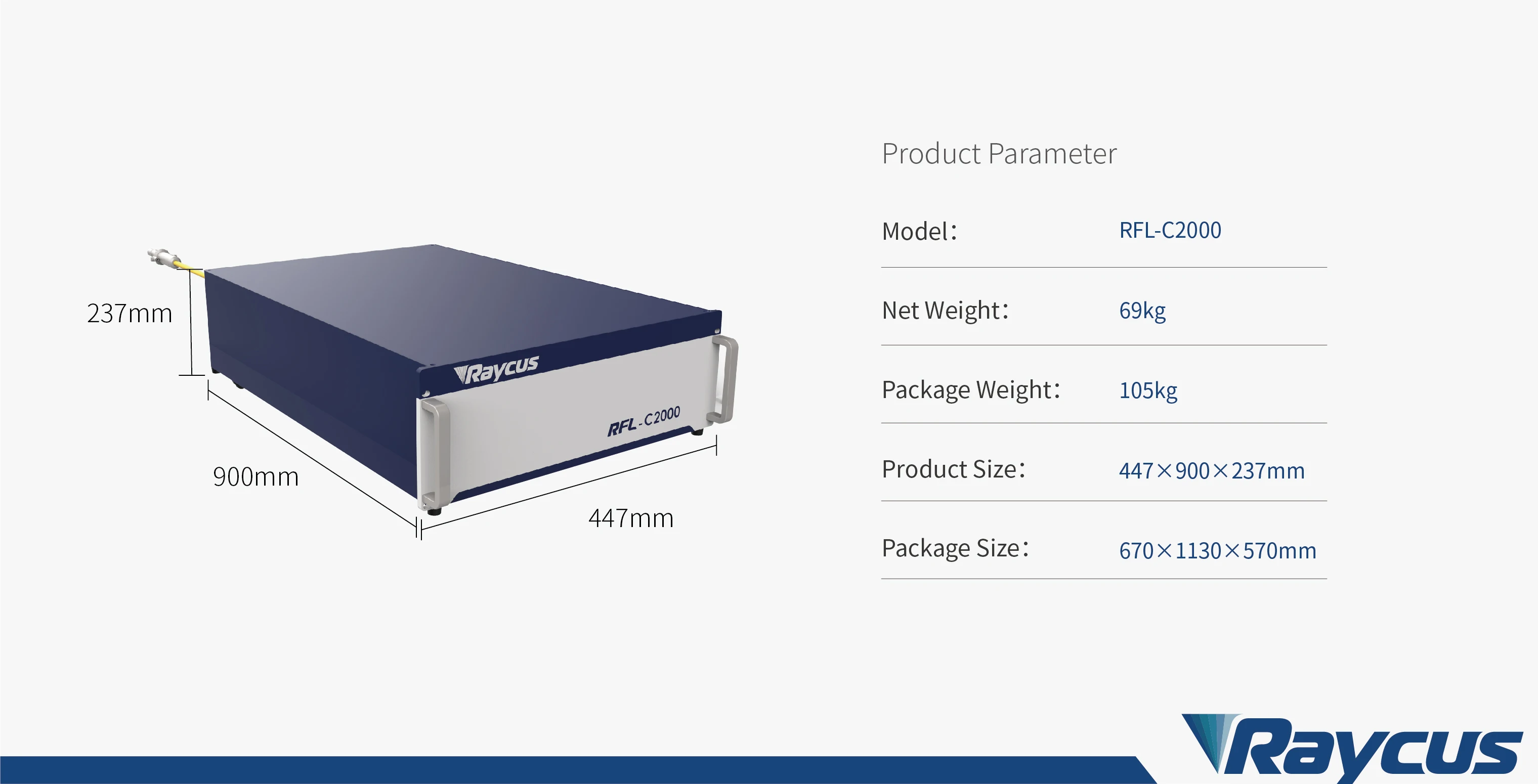

Dimensions(W×H×D)(mm) | 485×900×237（handle included) | ||
Weight(kg) | ＜80 | ＜85 | |
Operating Temperature(℃) | 10~40 | ||
Cooling Method | Water Cooling | ||

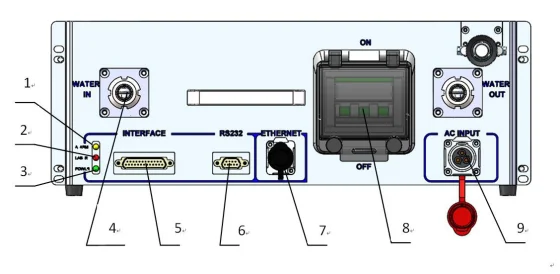

1 | Alarm | Laser fault indicator |
2 | Laser | Laser output indicator |
3 | Power | Power Indicator, indicates that the power is switched on when the LED illumines. |
4 | Water pipe joint | Pagoda joint, insert the quick-plug water pipe with an outer diameter of 16 into the pagoda head and fasten it with a clamp to connect the laser to the circulating cooling water. |
5 | Interface | Laser external control interface, see [4.4 Interface and Definition] |
6 | RS232 | 232 serial interface for communication between laser and host computer. |
7 | ETHERNET | Ethernet interface for communication between laser and upper computer. |
8 | Power | Rocker switch for turning on the laser's main power. |
9 | AC Input | 220V Power line input |
Application
