Product Overview
Description

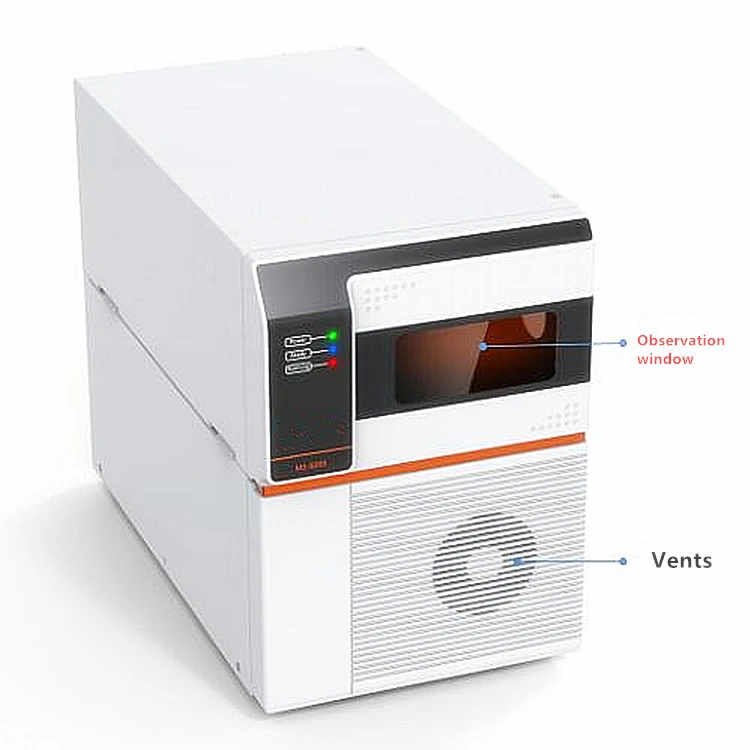

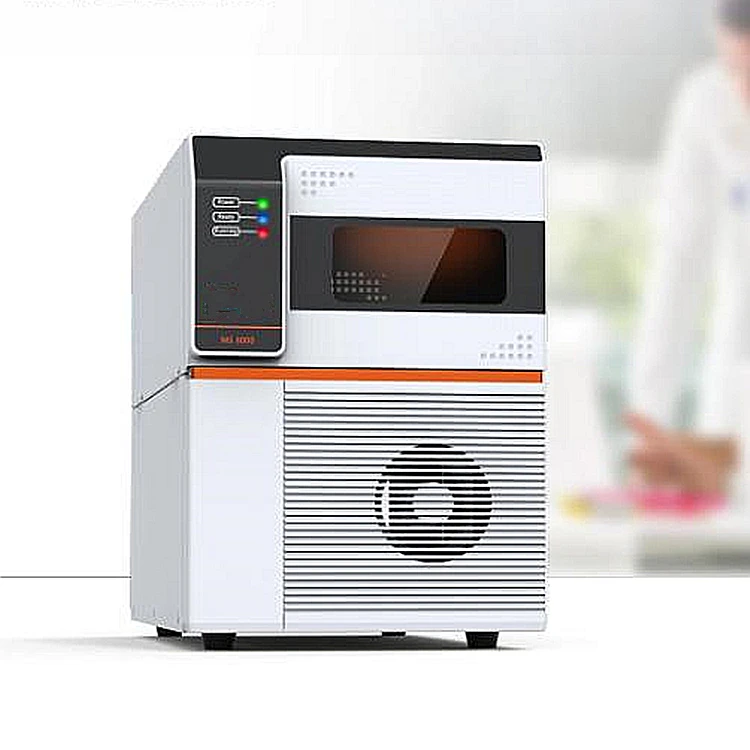

GC MS-6000 Chromatography GC MS Gas Chromatograph
Main features

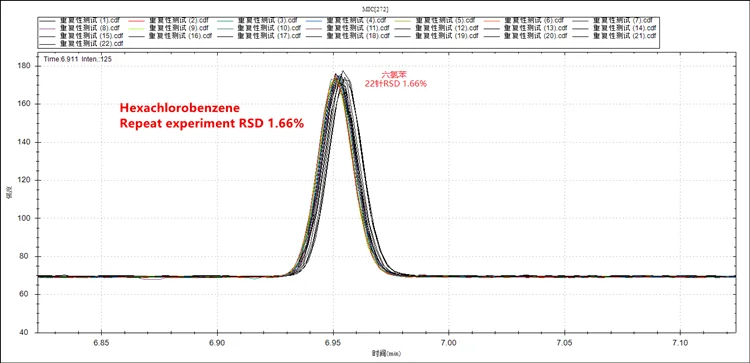

1. Temperature and pressure control accuracy of GC is ensuring good test repeatability
2. Wide temperature RF power supply can better adapt to various laboratory environments and provide better stability
3. High-precision all-metal molybdenum quadrupole ensures good mass spectral resolution
4. Quadrupole mass analyzer with pre-quadrupole can effectively reduce the pollution of the quadrupole
5. Electron multiplier with high-energy conversion dynode guarantees excellent sensitivity
6. High-performance turbomolecular pump have high pumping speed, stable operation and long life, provides an excellent vacuum environment for mass spectrometry
7. High-temperature inert ion source for efficient ionization is reducing pollution, equipped with two long-life filaments, providing double the use time
8. It can be configured with automatic sampler, purge and trap instrument, thermal desorption instrument, headspace sampler, etc. for the analysis of samples in various states.
Column oven
Procedure heating | Better than 6 order 7 platform |
Operating temperature range | RT +5℃ to 450℃ |
Temperature setting accuracy | 0.01℃ |
Highest programmed heating rate | 120℃/min |
Cooling speed | 300℃~50℃ less than 300s |
Split/splitless capillary column injection port
Shunt mode | Splunt, no shunt, pulse not shunt, pulse shunt |
Maximum operating temperature | 400℃ |
Setting range of column head pressure | 0~100psi |
Accuracy of column head pressure control: | 0.01psi |
Flow control | Constant flow, constant pressure, program flow flow, program boost, etc |
Heating area | More than 6 area, max 400℃ |
Autosampler | Optional |
Mass spectrometer detector
Mass number range | 1.5~1000 amu |
Maximum scanning speed | 10,000 amu/s |
Sensitivity | 1pg, OFN, S/N 150:1 |
Quality stability | >±0.1amu/24 hours |
EI ion source | Inert with dual filament |
Ionization energy | 10~100eV |
Ion source temperature | 150~350℃ |
GCMS interface temperature | 100~350℃ |
Mass analyzer | With a pre-quadrupole and high-precision all-metal quadrupole rod, the temperature stability can be guaranteed without temperature control |
Scan function | Full scan, selective ion monitoring, full scan, and selective ion synchronous monitoring, alternating scanning |
Detection system | Electronic multiplier with a high-energy tap pole |
Vacuum system | Mechanical pump pump 4m³ / h and high performance turbine molecular pump 90 L/s |
Company introduction
Our services
FAQ
1. Can you do custom-made?
OEM, ODM welcomed.
1). Silk print your logo on the product.
2). Customized Color Box.
3). Design and produce based on your idea and draft.
2. What is your MOQ?
1). Normally, if custmer need our brand or stick their brand, there is no MOQ.
2). If customer need design new machine body, the first time MOQ is 30 pcs.
3. How about your payment?
1). Amount less than $1000, you can pay for the order by Paypal, Western Union.
2). Amount more than $1000, you can pay for the order by T/T, LC.
4. How about the shipping?
1). For sample order, it would be sent by express company like UPS, Fedex, TNT ect.
2). For bulk order, it would be sent by sea. We have our cooperation forwarder and you also can use your own forwarder.
5. How about deliery time?
1). For standard sample or the quantity less than 10 pcs, the lead time is about 2 to 5 working days after payment.
2). For bulk order, normally, it needs about 20 to 30 days, and it is based on your QTY.
6.How about your service?
1). Any inquiries will be replied within 24 hours.
2). Professional manufacturer, top-quality, competitive price.
3). All products will be strictly quality checked and well-packed before delivery.
4). If you order FCL and the broken more than 2%, we will replace you next time.
5). If you have any questions, please feel free to contact me at any time.
