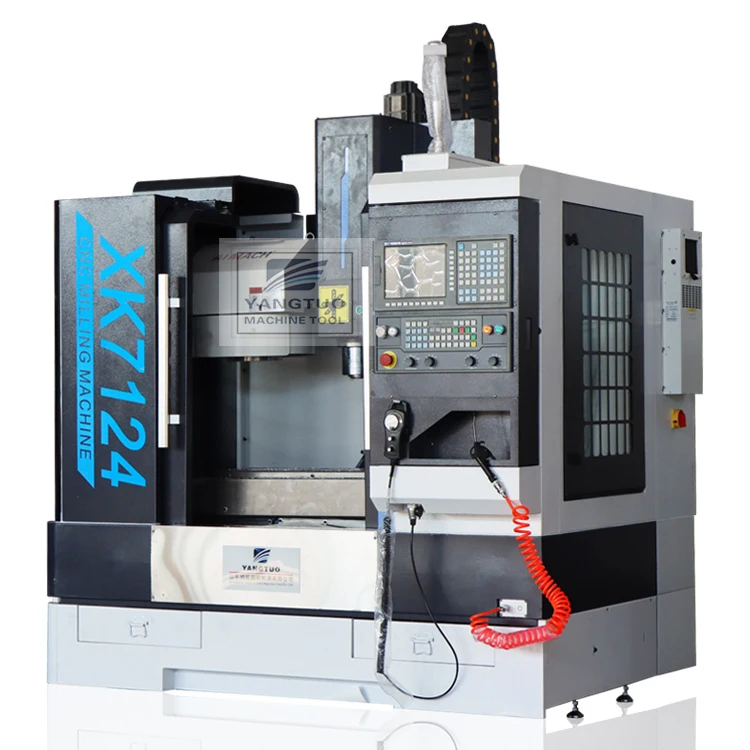

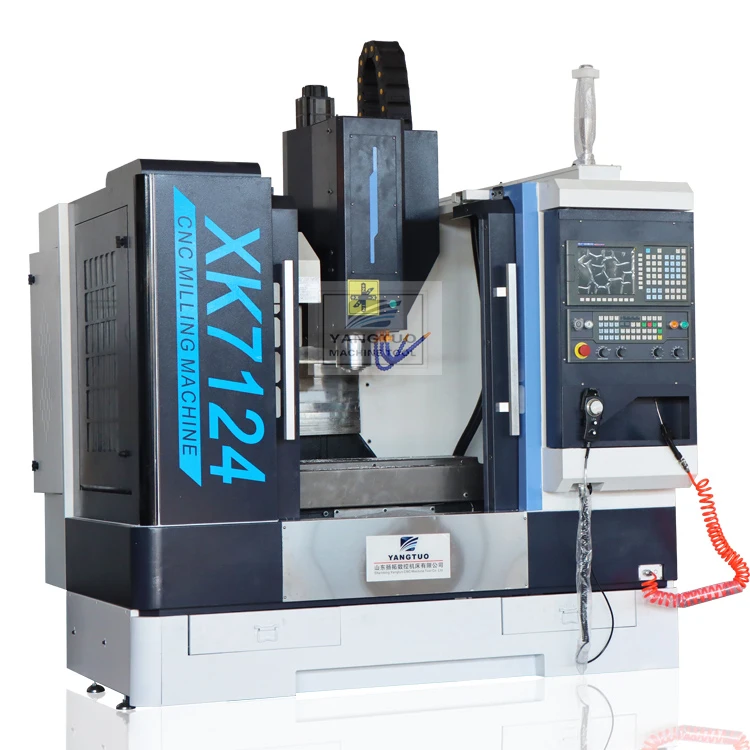

cheap price factory sell FANUC 0i MF system vertical milling machine center XK7124 vmc milling machine
- Category: >>>
- Supplier: Shandong Yangtuo CNC Machine Tool Co. Ltd.
Share on (1600454589086):
Product Overview
Description
Product Description

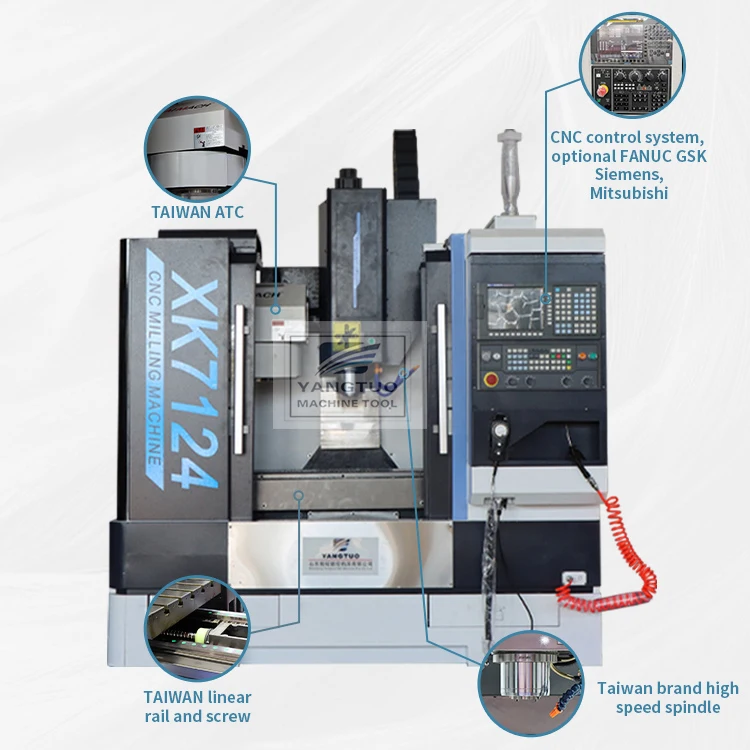

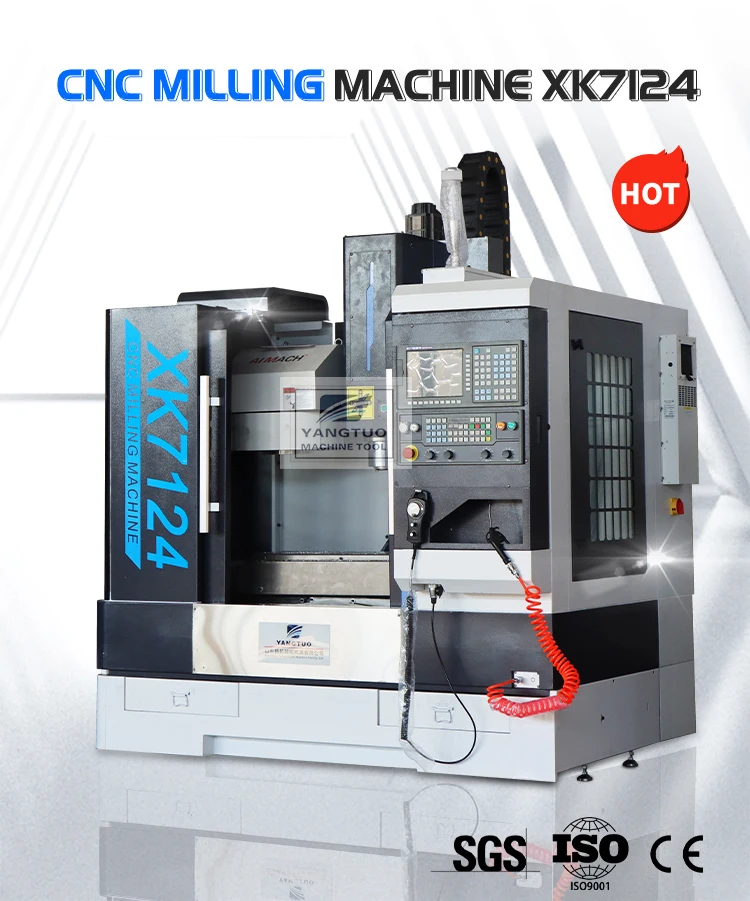

China hot sell hobby small cnc milling machine XK7124 3 axis CNC bed type CNC milling machine
The machine feature and specification .
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb
structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2. adopt the first 3D variable diameter design treatment in China to ensure the stability and reliability of the body.
3.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.

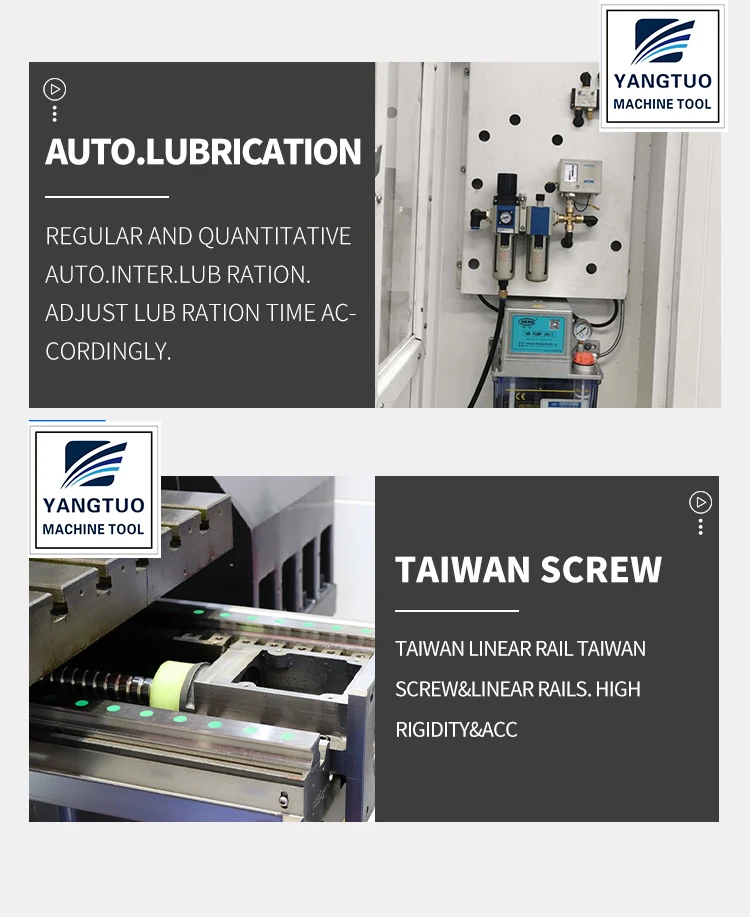

4. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
5. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
1. adopt high quality resin sand wear-resistant castings, strong and tough bones, super large column, wide and low seat, honeycomb
structure. After two annealing treatment and vibration aging, remove stress to ensure long-term deformation.
2. adopt the first 3D variable diameter design treatment in China to ensure the stability and reliability of the body.
3.X,Y,Z shaft is hard rail quenching treatment to increase the reliable performance of machine tools.
4. three-axis drive adopts high precision, high rigidity ball wire rod pair, high precision special bearing, which ensures the
positioning accuracy and repeated positioning accuracy.
5. adopts the protective cover of the guide rail of the sealed machine tool, which effectively protects the guide rail and the
lead screw, and prolongs its service life.
Table size | 1000X240mm |
Max. table load | 300kg |
T slot qty-width*distance | 3-14x75 |
spindle speed | 8000r p m |
spindle nose to table surface | 90-470mm |
Spindle center to Column surface | 360mm |
Spindle taper | BT40 |
Main motor power | 2.2/3.7kw (servo) |
X axis travel | 500mm |
Y axis travel | 320mm |
Z axis travel | 450mm |
X/Y/Z axis rapid feed | 15/15/15m/min |
Positioning accuracy | ±0.01mm |
Repeatabeility accuracy | ±0.005mm |
Net Weight | 2400 kg |

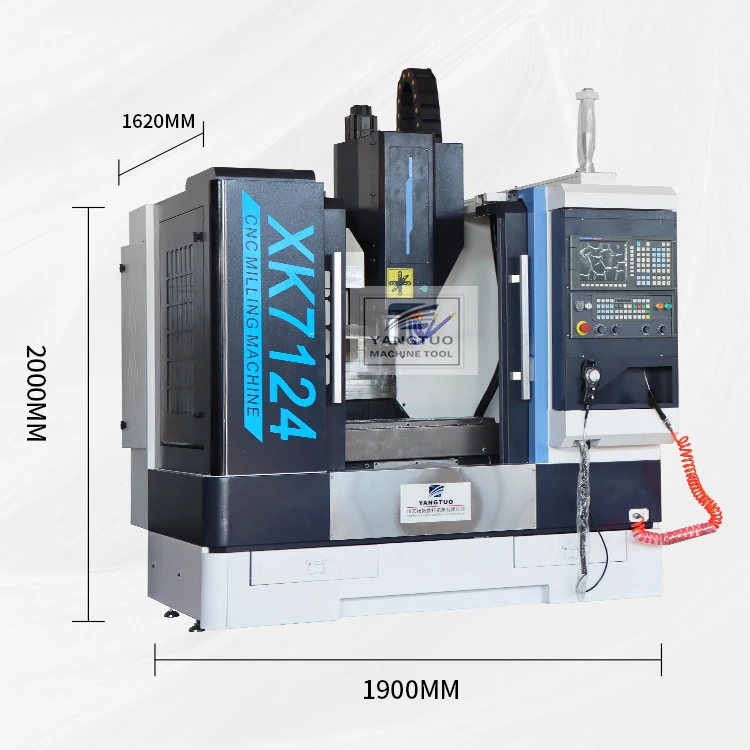

Overall Dimension | 1900X1620X2000 |
Related Products
After Sales Service
one year During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express. Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.
FAQ
1.How to send my enquiry?
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5.Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
You can contact us by email, phone call, Instant Messenger (WhatsApp, WeChat, Skype).
2 . How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
4: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5.Check the acceptance
When receiving the goods, please check product carefully: Whether there is packing damage, leakage and whether the goods are
damaged; Whether product quantity and accessories are same as required; Whether all machine details are fine If there is any
problem about machine, please take pictures and contact us immediately.
6.OEM Service
We accept purchase orders with customers' brand or trade mark.
