Cheap Thin Client Mini PC 2 LAN N3520 pfsense Server Router Win10 ioT Gateway POS RS485 4G SIM Linux Fanless Industrial Computer

Share on (1600454614871):


Price:$146.42 - $159.97

Quantity:


Product Overview

Description



Related Products


fanless-mini-pc





Product Description


Cheap Thin Client Mini PC 2 LAN N3520 pfsense Server Router Win10 ioT Gateway POS RS485 4G SIM Linux Fanless Industrial Computer

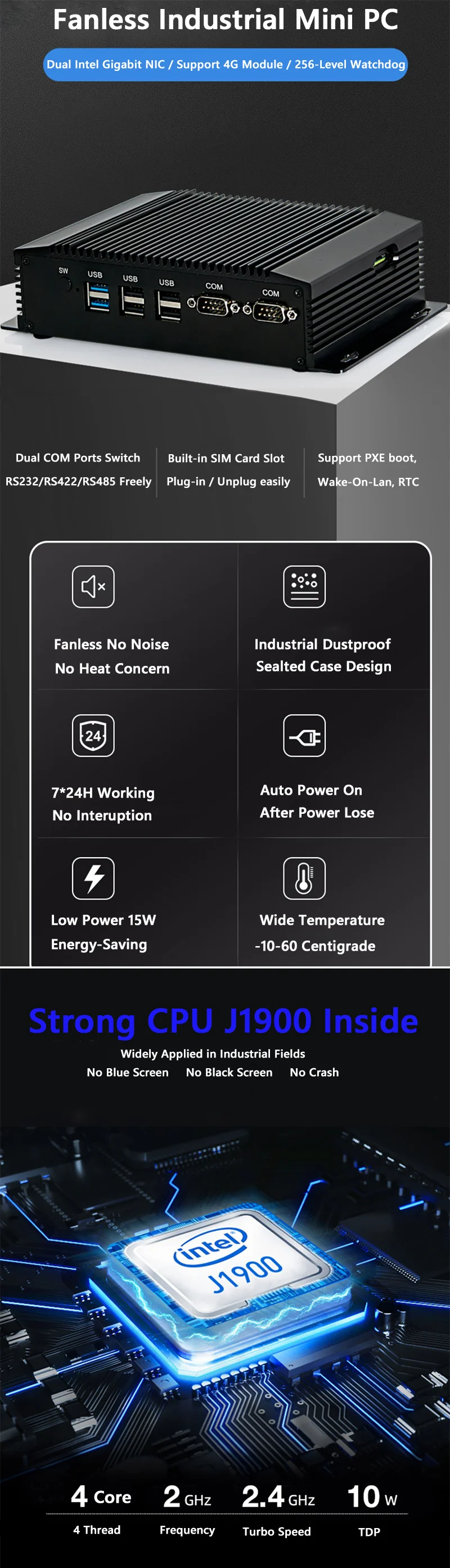

Features:

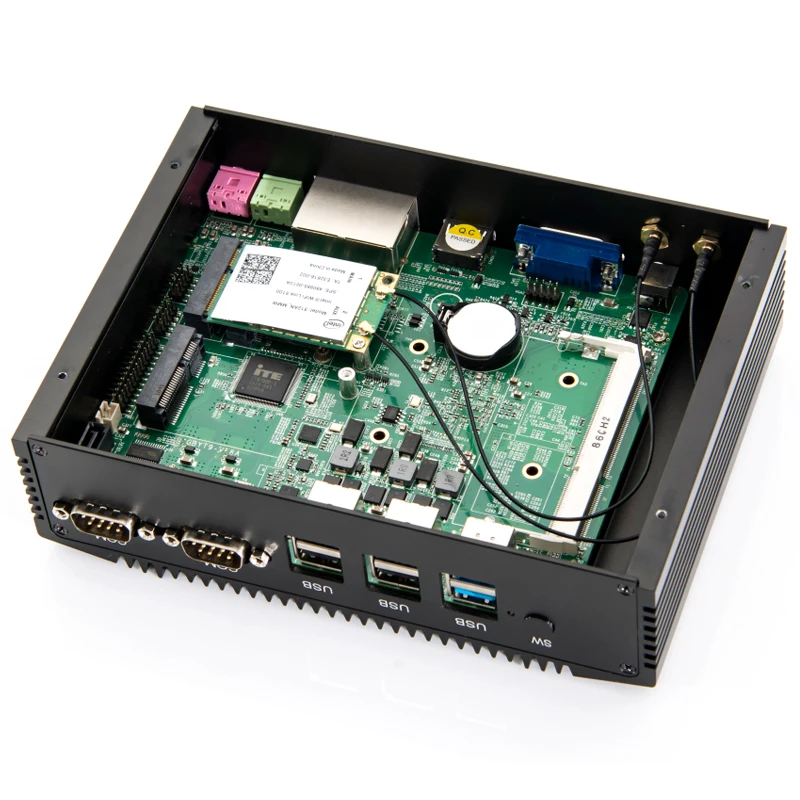

- With dual Intel i213AT Gigabit Ethernet Controller;

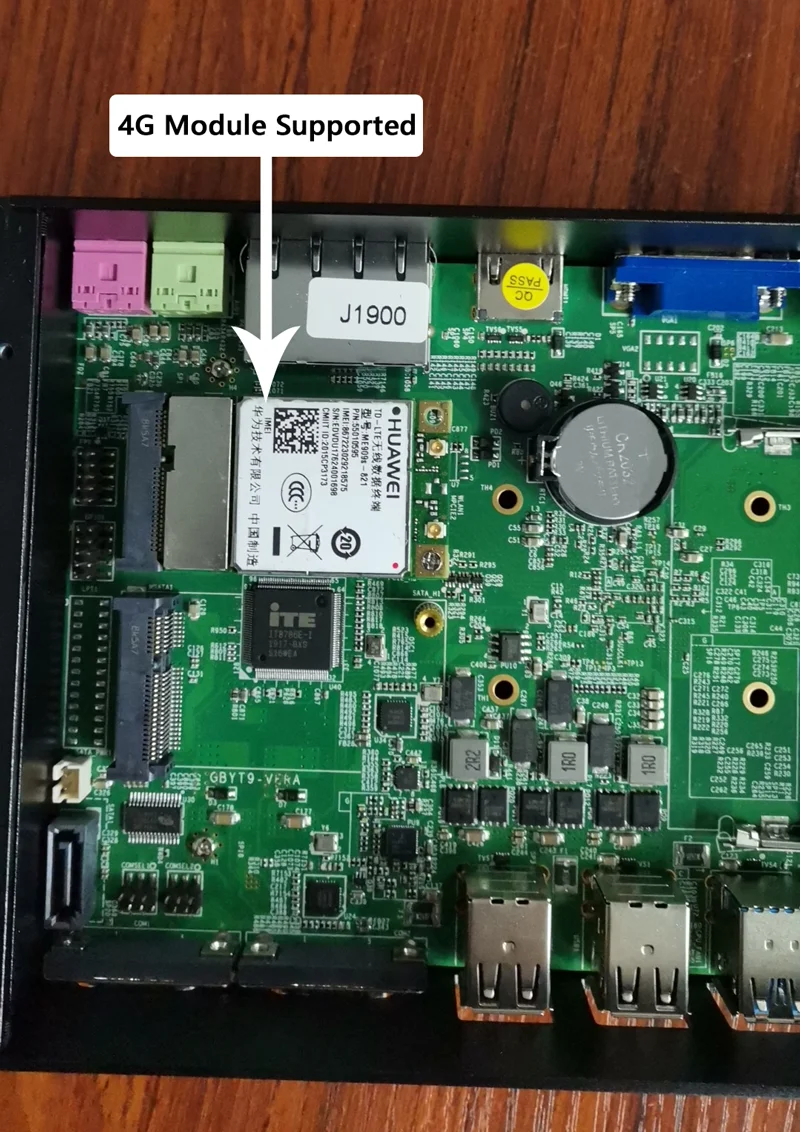

- Support 4G Function: Embedded 4G SIM slot in computer case, with full height mini PCI express 4G Module slot on motherboard;

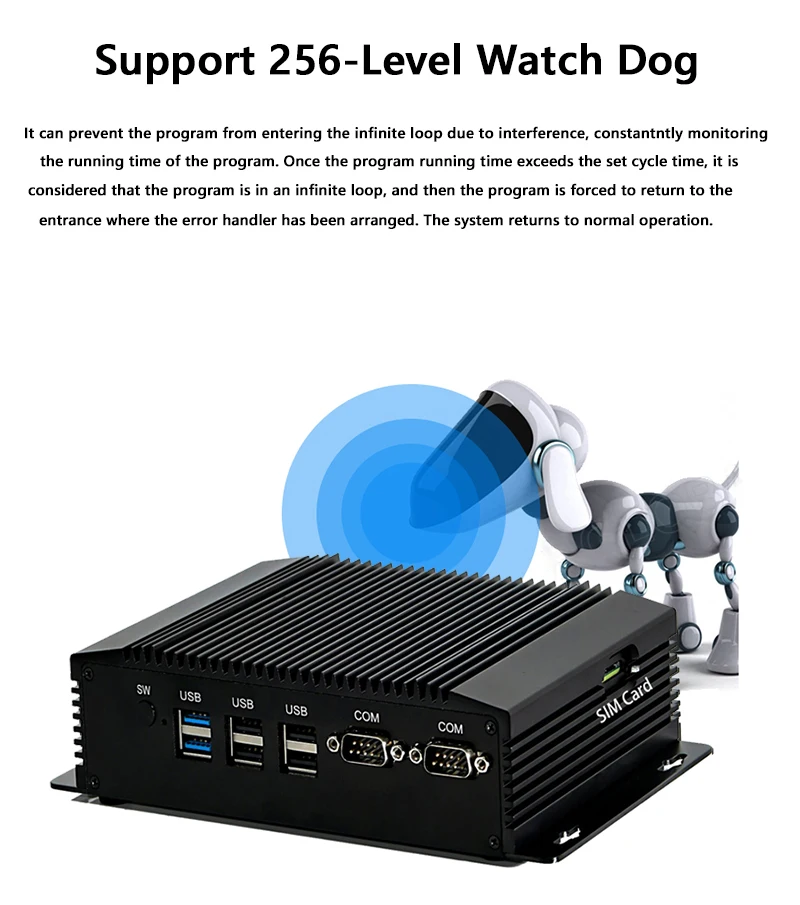

- Support 256-Level watch dog, PXE boot, RTC, wake-on LAN, automatically power on when power failure;





- Dual RS232 COM ports support switching to RS422 or RS485 by BIOS setting;



- Compatible with 1x DDR3L 1.35V memory, up to 8GB; allow 1x mSATA SSD and SATA 2.5" HDD/SSD hard drive;

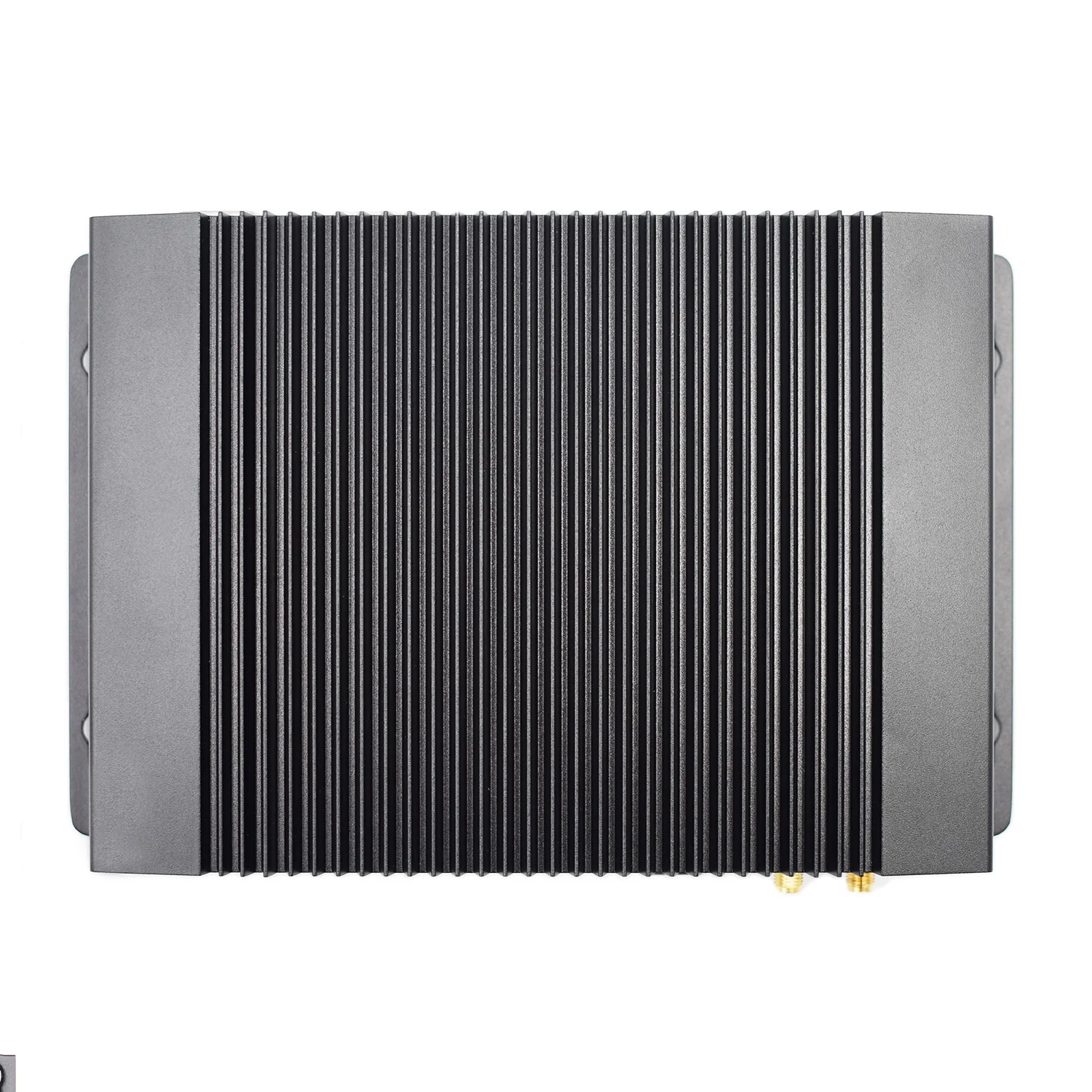

- Fanless construction, aluminum radiator, zero noise experience;








Specifications
























































































Processor



Intel Celeron N3520, 4 core 4 thread, 2.0GHz, turbo 2.42 GHz, 2MB Cache



Memory



Max 8G DDR3 1333/1600MHz laptop memory, 1* 204 pin SO-DIMM



Storage Capacity



Support 1* 2.5 inch SATA laptop HDD or SSD, 1* mSATA SSD



Graphics



Intel® HD Graphics



Power Supply



DC 12-19V/3A



OS



support Windows7/8/10 and all kinds Linux OS



BIOS



AMI BIOS, ACPI supported, support Auto power on after power loss, PXE Boot, RTC Wake Up, Wake-On-LAN, watchdog, etc



Case Material



Full Brushed Aluminum Alloy

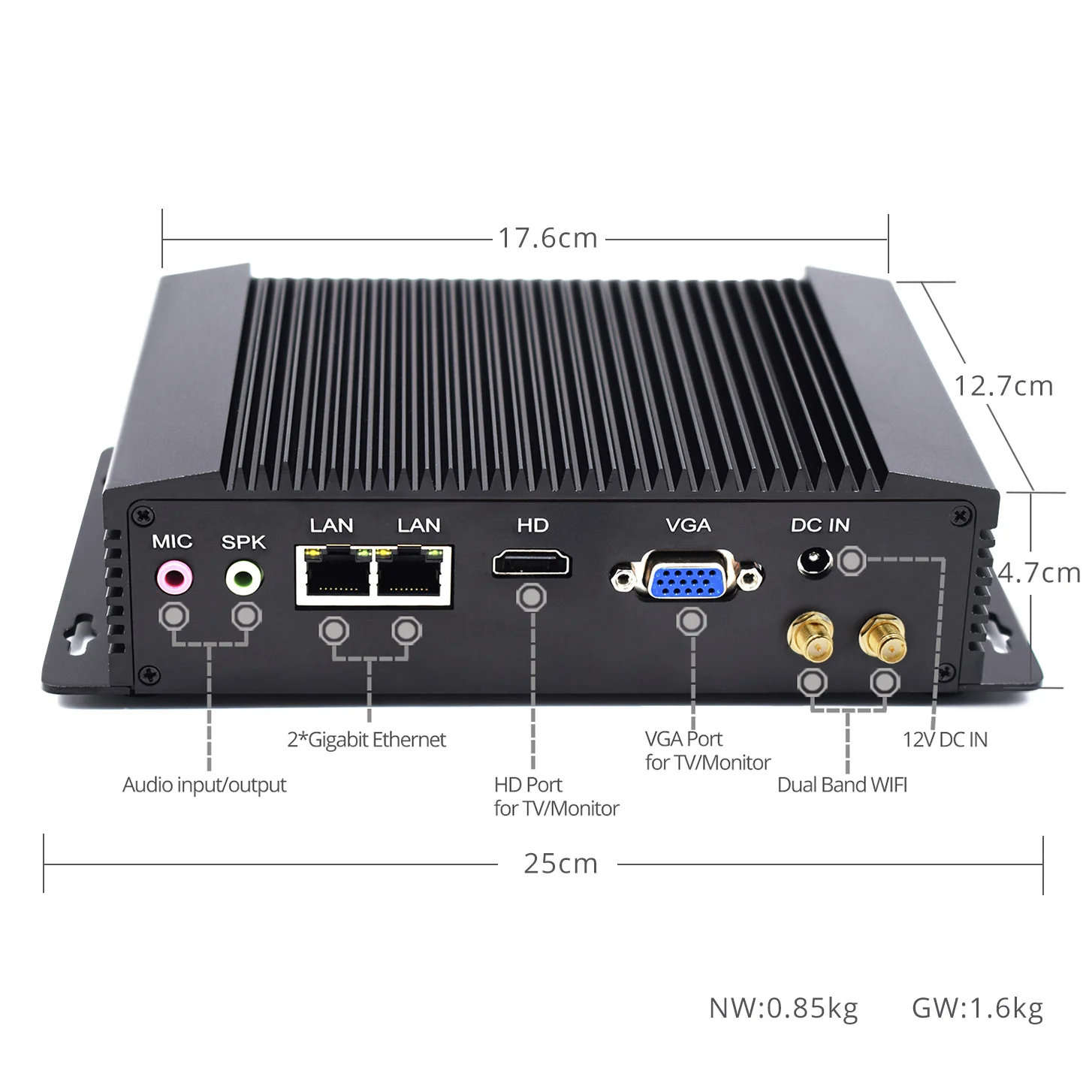

Dimension17.6*12.7*4.7 cm

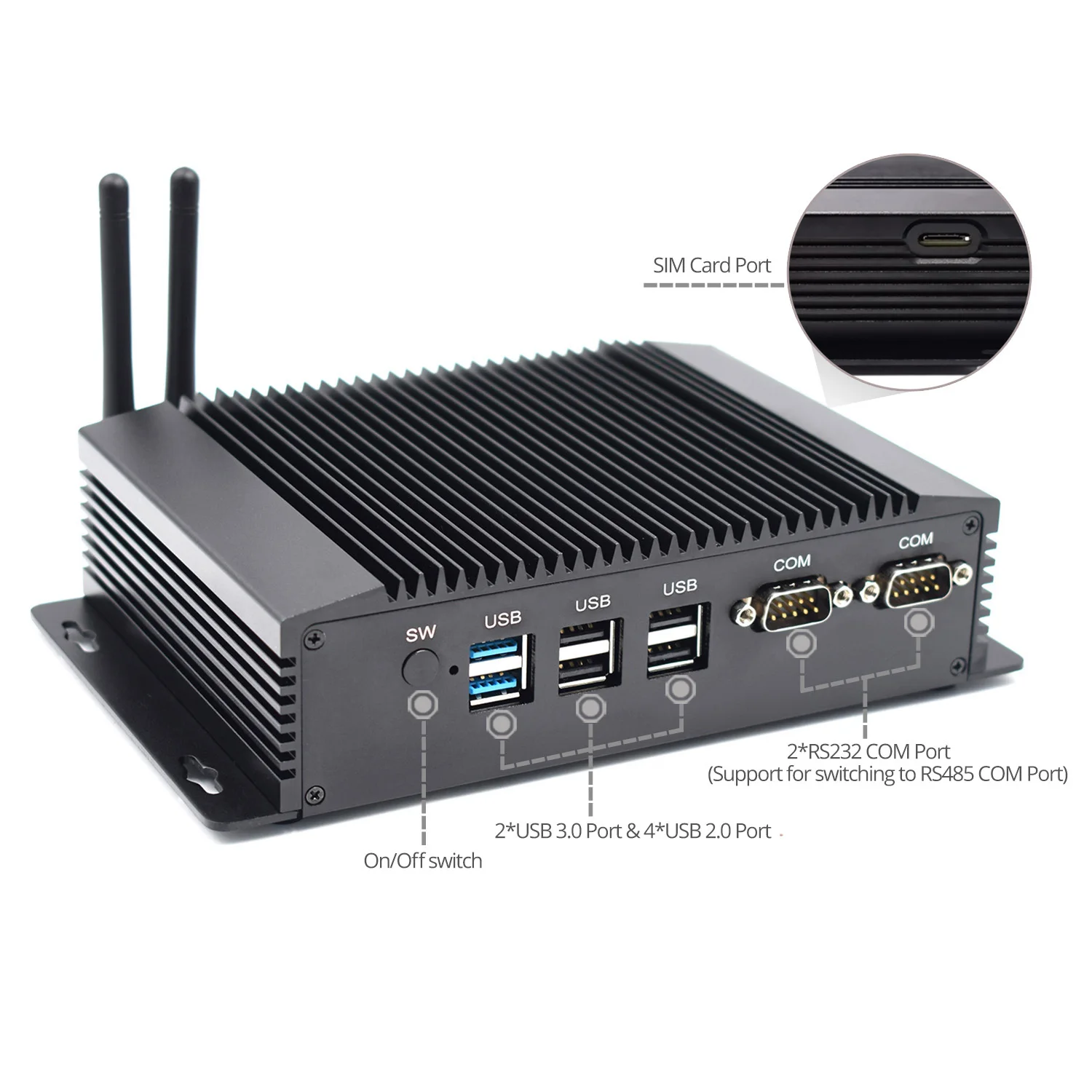

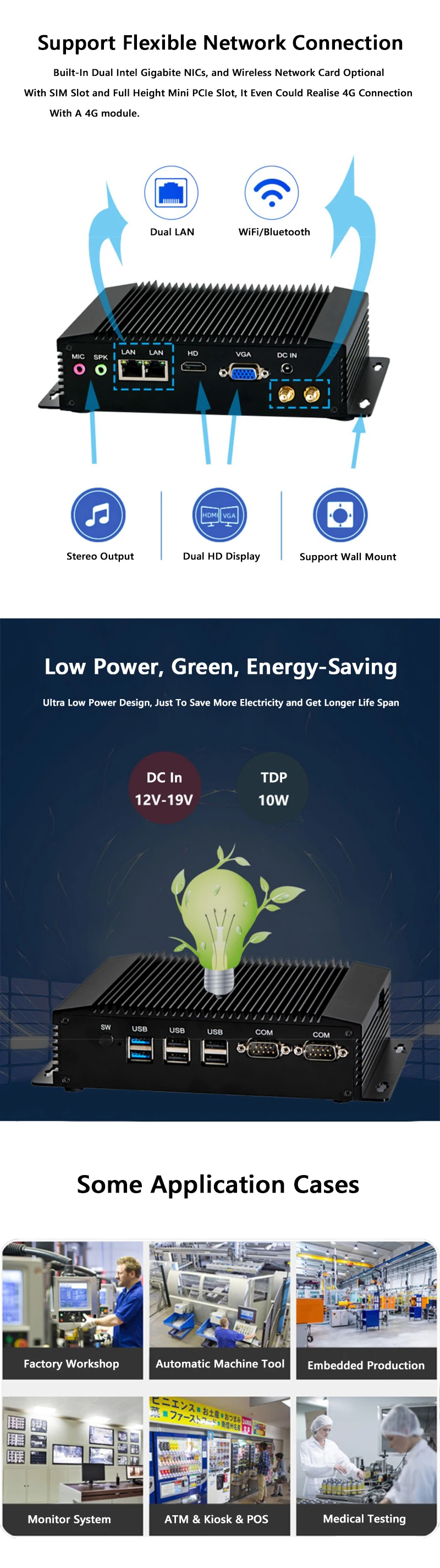

I/O



1* VGA +1* HD output



2* Intel i213 Gigabit RJ45 10/100/1000mbps BaseT Lan


1* SIM card slot

2* RS232 COM Port(support switching to RS422/RS485 via BIOS)



4* USB 2.0 + 2* USB 3.0



1* SPK + 1* MIC



1* DC 12V-In Power interface



Operation Temperature



0~70 centigrade (32°F-140°F)



Warranty



30 days free defective replacement and 3 years free repair



Relative humidity



10~90% relative humidity



TDP



Theoretically 10W



Weight



NW 0.8kg, GW 1.6kg



Package Content



1* Mini PC; 1* power adapter; 1* power cord; 1* Driver CD; 1*User manual, etc




















Main advantages
- Small size: all Adeli fanless mini pcs smaller than A4 paper, some of the small size pc only 3.5-inch size, just like the HDD sized using it traditional fat computers. Most of that small size fanless mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.



- Durability: all those fanless mini pcs are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminum alloy computer case, very durable.



- Low power: all the Adeli fanless mini pcs using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.



- Universal performance: Adeli fanless mini pcs compatible with almost all popular operating systems, such as Win10, Linux. You can use this mini computer as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.



- Silent operation: fanless mini pc also name as silent computer, quiet mini pc or silent desktop pc. As there is no fan inside, the pc runs totally silent all day long, make sure you can keep wholehearted in to your work.


fanless-i5-industrial-pc





    mini-pc-x86










What can this mini computer do?


- Office work: Office, Skype, yahoo, outlook and all other office requirement support and runs perfect;



- Design work: Photoshop, CorelDraw, Dreamweaver, iIIustrator, Flash, InDesign and all others



- Game playing: support most online games and PC games, like War craft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.



- Entertainment: support ultra HD 4K resolution, support XBMC and others program that support Windows and Linuxs



- Used as server, used as an industrial machine, hospital, factory, etc


application





Packaging & Shipping


 packing-of-mini-pc





Our Services


factory










Company Information





pc-factory


 why-choose-us


mini pc windows 10.jpg





FAQ


1. Can you put my brand name (logo) on these products?
Yes,.We can support OEM/ODM service, the process of customization is following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.





2. What payment method do you accept?
T/T, Western Union, PayPal, Escrew, Alibaba Trade Assurance order payment; Money Gram, Cash, L/C, etc.





3. What is the Minimum Order Quantity (MOQ)?
We can sell one piece of sample for your testing.





4. What is the lead time of your products?
1-3 days for one sample, 15 working days for a large quantity.





5. How many years for the product warranty?


3 years, we have a professional team work for after-sales services, please kindly feel free to contact us if any questions.





6. What are the shipping methods for it?


We can ship by International express, like DHL, UPS, Fedex, TNT, etc; or by Air/ Sea, etc.





7. What kinds of customization can you do?


We can do the products as per your configuration of CPU, RAM, hard disks, WiF, I/O ports, color, size, customized OS, logo, etc.





8. Can you equip the devices with related products or services?


Yes, we can offer you mouse and keyboard combo, HD cable, genuine Win 10 license, external CD-ROW, USB Hub, 4G dongle, etc.



9. What is HS code of Adeli mini pc?
8471504090





Any more questions, please feel free to contact us, will reply you soonest. Thanks.
