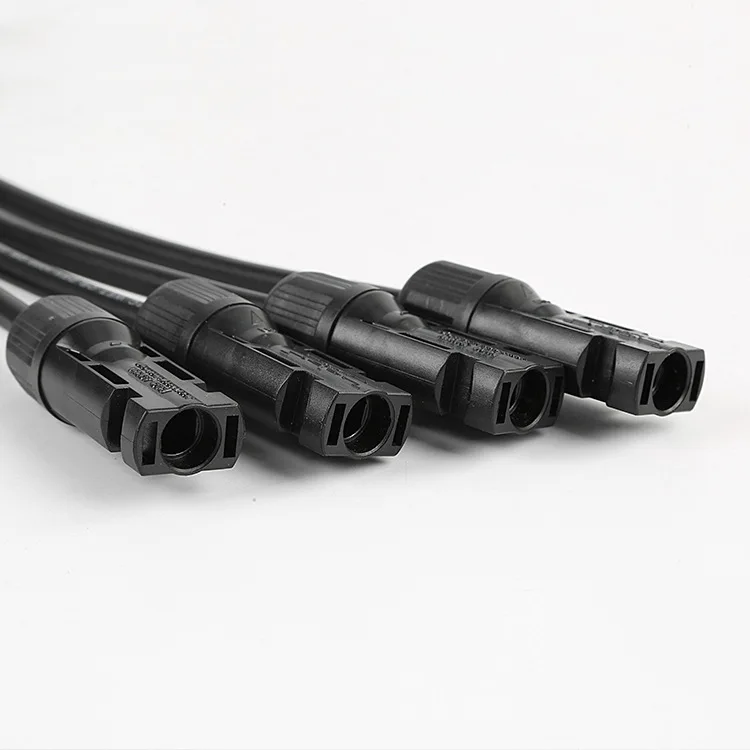

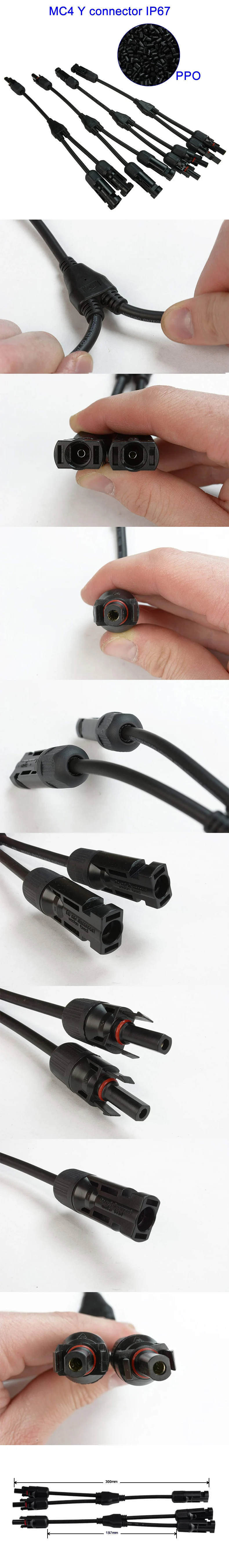

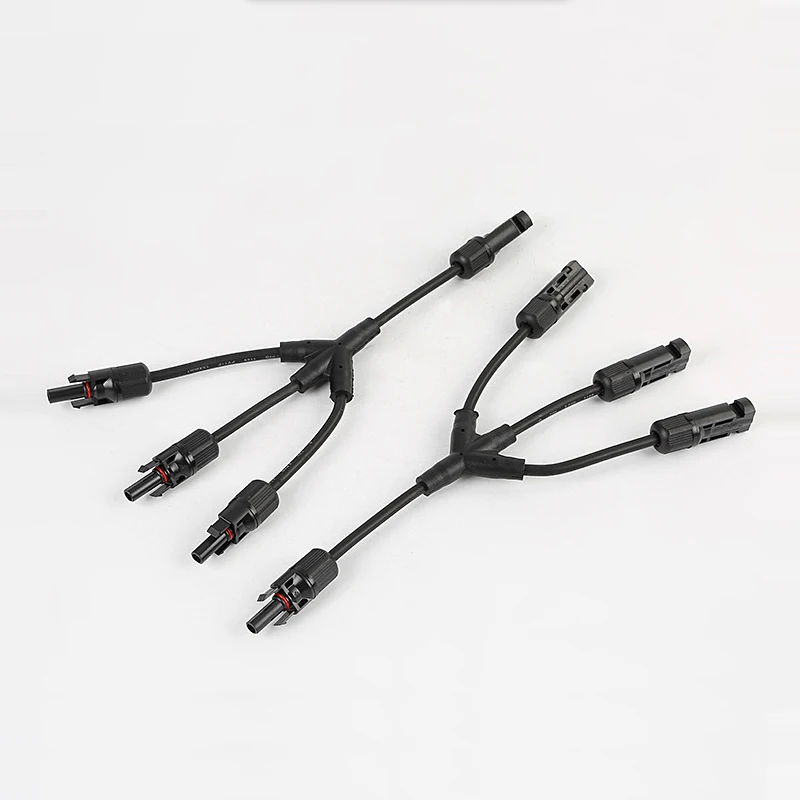

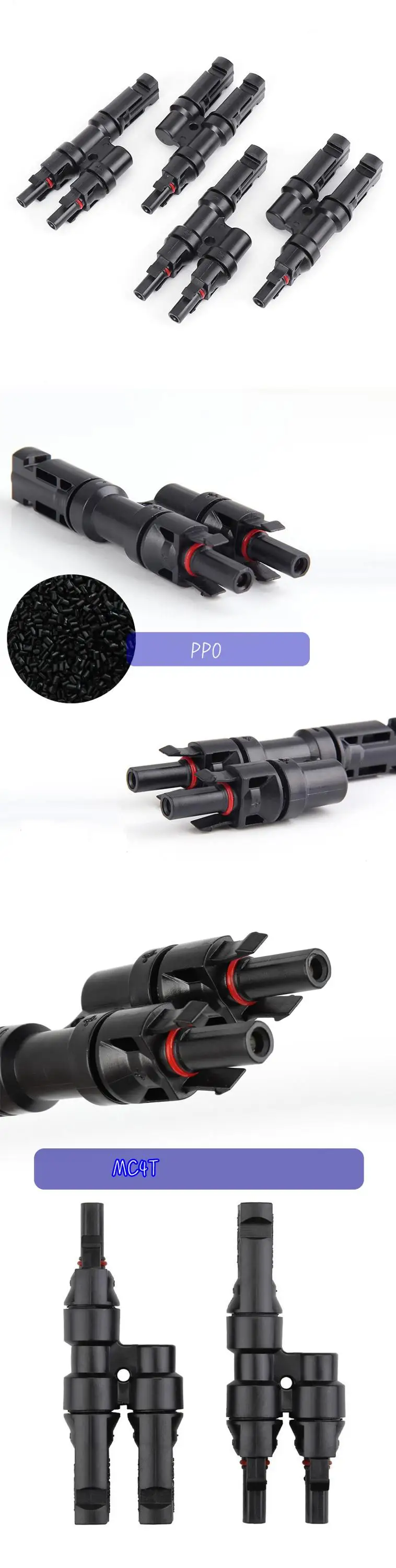

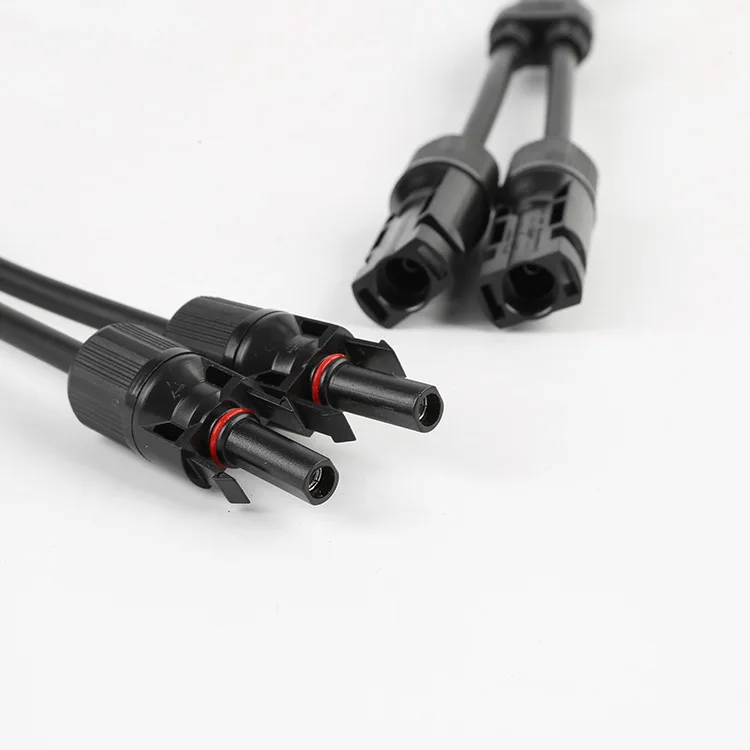

DC1000V Y type 3 way MC 4 PV connector Solar photovoltaic panel parallel waterproof connector 2 to 1, 3 way
- Category: Connectors >>>
- Supplier: Yueqing,Lanpu,Electrical,Co.,Ltd.
Share on:
Product Overview
Description
Order NO. | Part P/N | Cable special | ||
Connector | Terminal | Conductor size (mm2) | Cable OD(ΦDmm) | |
MC4-CMMM-14 | MC4-CMMM-H | MC4-CM-T14 | AWG 14(2.5mm2) | Φ4.5-Φ8.5 |
MC4-CMMM-12 | MC4-CM-T12 | AWG 12(4.0mm2) | ||
MC4-CMMM-10 | MC4-CM-T10 | AWG 10(6.0mm2) | ||
Order NO. | Part P/N | Cable special | ||
Connector | Terminal | Conductor size (mm2) | Cable OD(ΦDmm) | |
MC4-CFPM-14 | SMC4-CFPM-H | MC4-CF-T14 | AWG 14(2.5mm2) | Φ4.5-Φ8.5 |
MC4-CFPM-12 | MC4-CF-T12 | AWG 12(4.0mm2) | ||
MC4-CFPM-10 | MC4-CF-T10 | AWG 10(6.0mm2) | ||
Rated current | 30A(2.5-6mm2) | |||
Rated voltage | 1000vDC | |||
Test voltage | 6000V(50HZ,1min) | |||
Overvoltage type/pollution degree | CATⅡ/2 | |||
Contact resistance of plug connector | 1mΩ | |||
Contact material | Copper,Tin-plated | |||
Insulation material | PPO | |||
Degree of protection | IP2×/IP67 | |||
Flame class | UL94-VO | |||
Safety class | Ⅱ | |||
Suitable cable | OD 4.5-8.5(2.5-6.0mm2) | |||
Insertion force/withdrawal force | ≤50N/≥50N | |||
Connecting system | Crimp connection | |||
Temperature range | –40℃~+125℃ | |||
