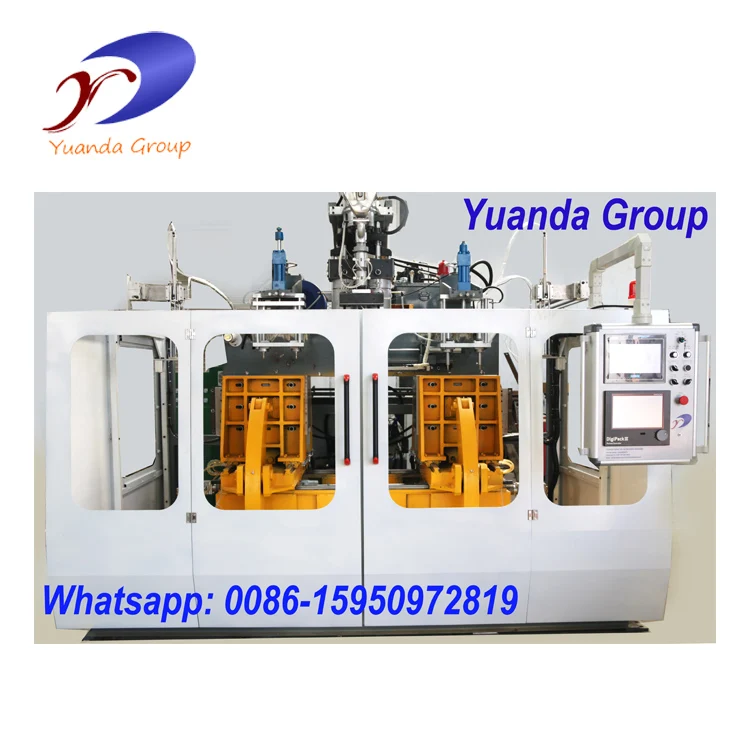

20 Liter Jerry can blow molding Machine lowest price machine de moulage par suffrage double stations
- Category: >>>
- Supplier: Yuanda Power Machinery Co. Ltd.
Share on (1600454903797):
Product Overview
Description
Product Description
Name | Units | YD100Ⅰ | YD100Ⅱ |
Max, product volume | L | 30 | 30 |
Dry cycle | PC/H | 600 | 400*2 |
Screw diameter | MM | 100 | 100 |
Screw L/D ratio | L/D | 25 | 25 |
Screw drive power | KW | 55 | 55 |
Screw heating capacity | KW | 15 | 15 |
No, of heating zone | ZONE | 4 | 4 |
Outpul of HDPE | KG/H | 200 | 200 |
oil pump drive power | KW | 15 | 15 |
Camping force | KN | 230 | 230 |
Max,size of mold | MM | 600*660 | 600*660 |
Template size | MM | 600*655 | 600*655 |
Mold stroke | MM | 420-920 | 420-920 |
Max,die diameter | MM | 250 | 250 |
Bolwing pressure | MPA | 0.8 | 0.8 |
Air volume | M³/MIN | 1.2 | 1.5 |
Cooling water pressure | MPA | 0.3 | 0.3 |
Water consumption | L/MIN | 120 | 120 |
Size of machine | L*W*H | 5.0*3.0*3.2 | 5.0*3.0*3.2 |
Weight of machine | TON | 15 | 15 |

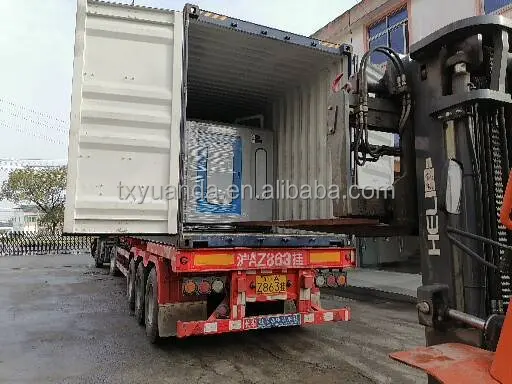

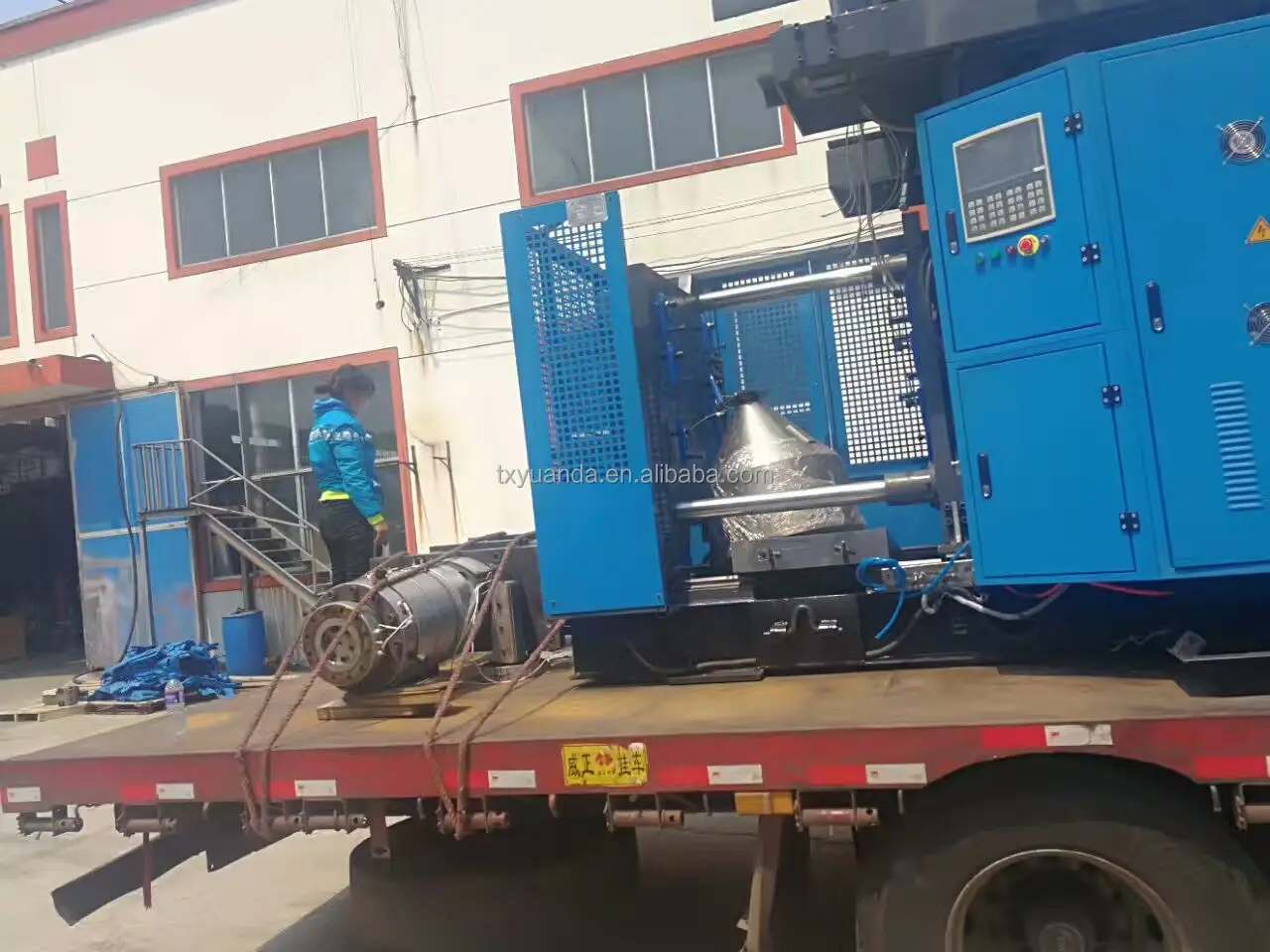

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

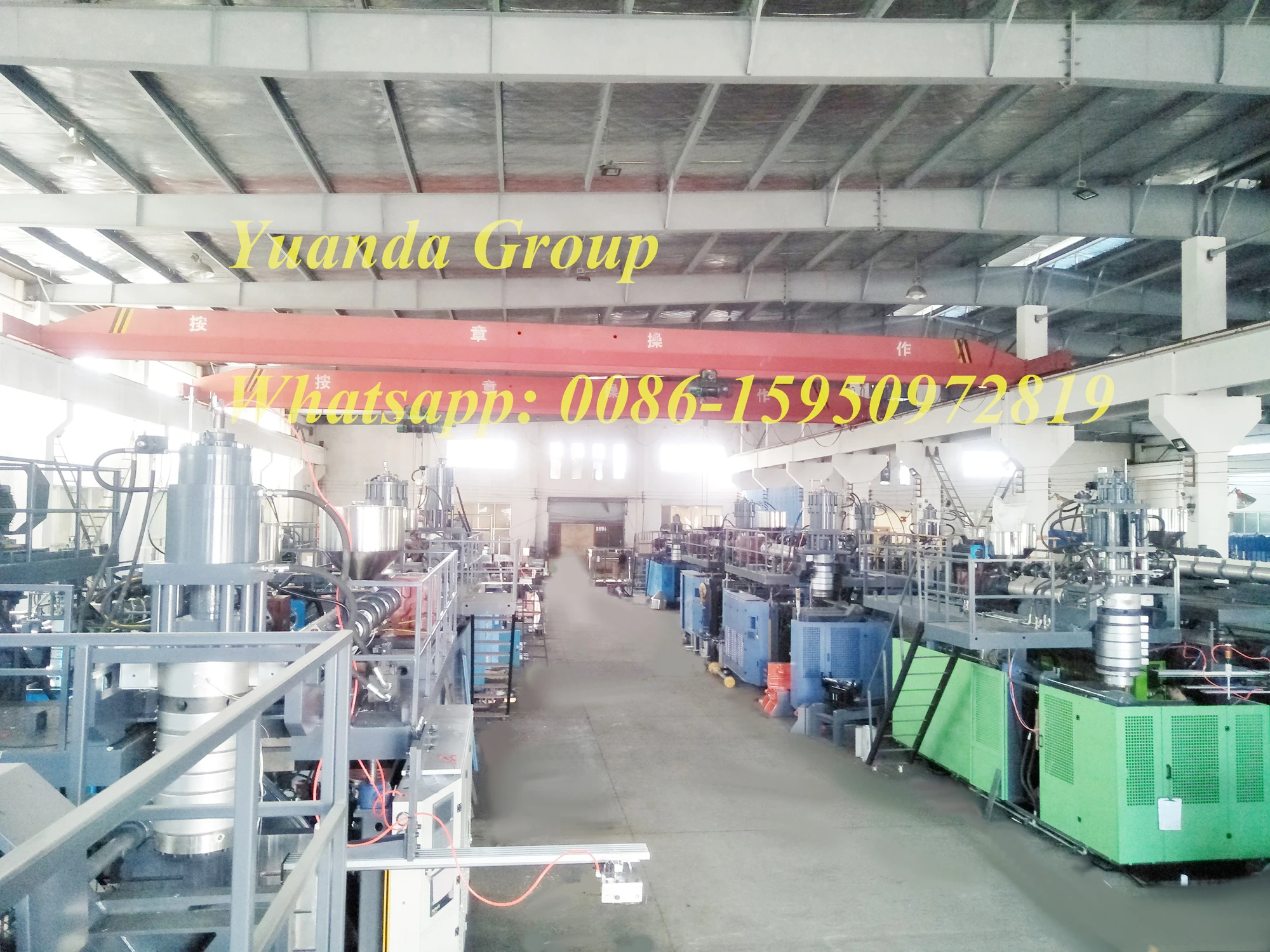

Company Profile
