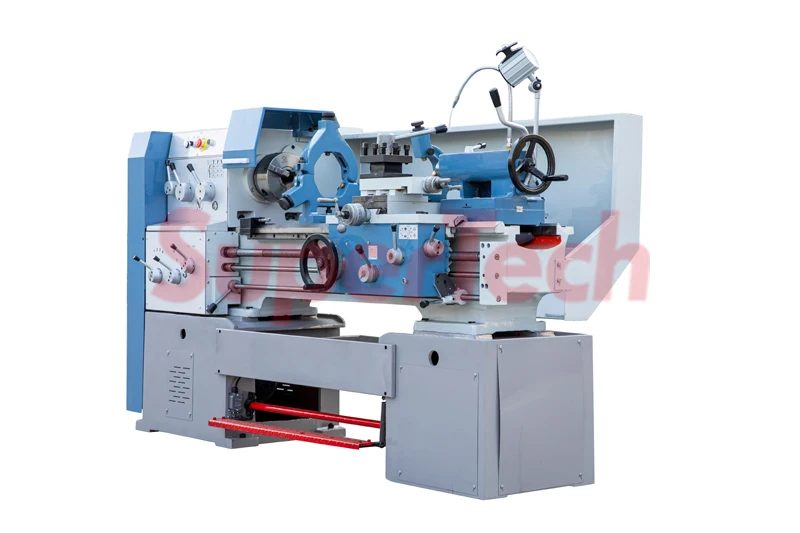

LCM410 1500M manual horizontal used heavy duty lathe machine showroom/manual sieg lathe manual lathe price
- Category: >>>
- Supplier: Supertech Machine Tool Co. Ltd.
Share on (1600454934367):
Product Overview
Description
LC410 SERIES
LC410/1000 for teaching equipment
LC510(A) SERIES
LC510/2000 for factory
LC600(A) SERIES
LC600/2000 for ship workshop
Production Description
PRODUCT FEATURES
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED AND PRECISION GRINDING.
*HEADSTOCK GEARS PRECISELY GROUND AND HARDENED TO REDUCE NOISE.
*KINDS OF THREADS, RAPID TRAVEL PATENTED.
*THE SURFACE OF THE BEDWAYS IS SUPERSONIC FREQUENCY HARDENED AND PRECISION GRINDING.
*HEADSTOCK GEARS PRECISELY GROUND AND HARDENED TO REDUCE NOISE.
*KINDS OF THREADS, RAPID TRAVEL PATENTED.
SPECIFICATION | Item | UNIT | LC410 | LC510(A) | LC600(A) | ||
CAPACITY | Max.swing over bed | mm | 410 | 500 | 600 | ||
2 | Max.swing over cross slide | mm | 230 | 330 | 360 | ||
Center Distance | mm | 1000/1500/2000 | |||||
HEADSTOCK | Spindle hole | mm | 52 | 52(82) | 52(82) | ||
Spindle speed(Number) | rpm | 40-1400 | |||||
FEEDS AND THREADS | Longitudinal feeds range | mm | 0.0832-4.66 | ||||
Cross feeds range | mm | 0.048-2.69 | |||||
3 | Metric threads range | mm | 0.25-14 | ||||
4 | Inch threads range | TPI | 2-40 | ||||
TAILSTOCK | Dia.of tailstock sleeve | mm | 65 | 75 | 75 | ||
6 | Taper of tailstock sleeve | / | MT4 | MT5 | MT5 | ||
7 | Max.travel of tailstock | mm | 140 | 150 | 150 | ||
MOTOR | Main drive motor | KW | 4 | 5.5 | 7.5 | ||
Product Details

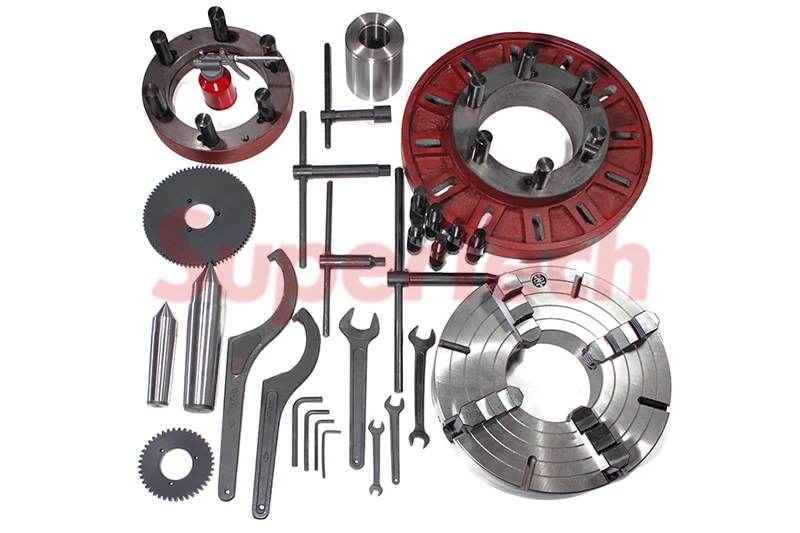

The standard configuration for LC series lathe machine.

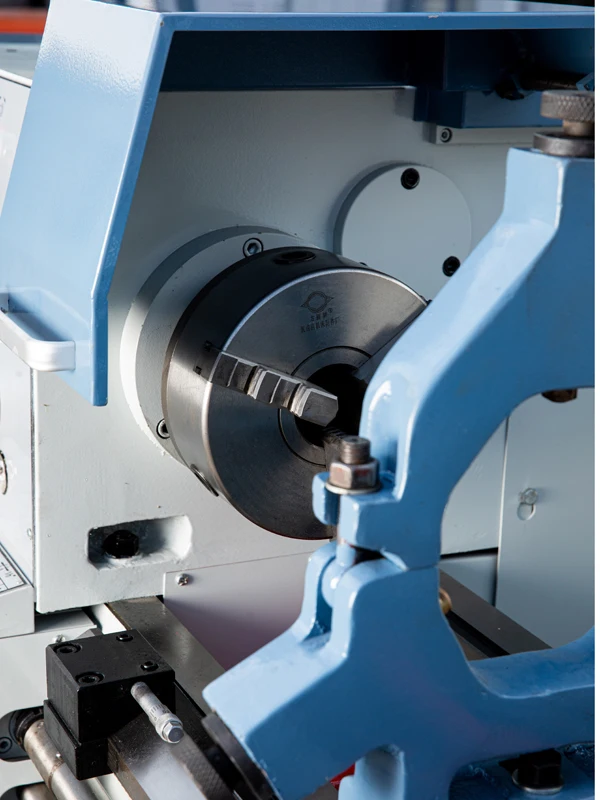

1. 3-jaw chuck
2. 4-jaw chuck
3. face plate
4. drive plate

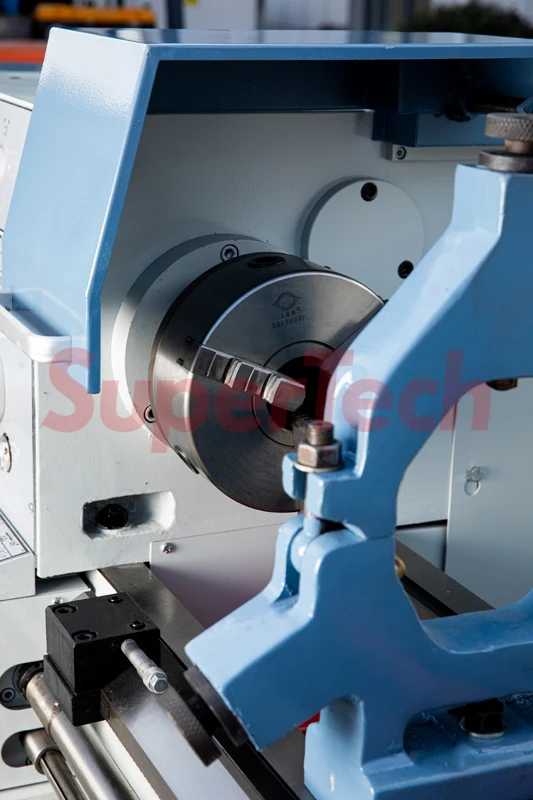

5. steady rest
6. follow rest
7. longitudinal touch stop
8. thread-cutting dial
The optional configuration for LC series lathe machine.
1. 2axis or 3axis digital readout system(SINO brand)
2. quick change tool post(USA/Italy/Europe type)
3. CE protection(Chuck/toolpost/leadscrew)
4. live center
5. drill chuk
6. taper function attachment
7. rapid travel for X/Z axis with motor
8. turning tools set and inserts
Company Profile
Supertech Machine Tool Co .Ltd is located in Yancheng city, Jiangsu Province.The main products are lathe, milling, bending, shearing, rolling and so on.
Supertech has the excellent product structure, stable performance, and supports customization, as well as a complete and scientific quality management system. Besides,we have advanced production equipment perfect testing platform, with a strong comprehensive R&D and production capacity.Our products have been exported to Russia, the Middle East, India, South Korea, South Africa and other forty countries. We are dedicated to serving our customers. While the company grows, we will continue to implement the policy of "honesty, quality first" and provide you with excellent service. Any products are strictly repeatedly tested and accepted,guarantee not to leave the factory if not qualified.
Users must use and keep the equipment in strict accordance with the product operation manual. If the equipment fails to work properly due to problems caused by defective manufacturing or technology,our company will replace or repair the equipment for users free of charge.Ensure that problems are resolved as soon as possible, and actively troubleshoot for customers. Within the warranty period, if the equipment is damaged or unable to work properly due to improper use by the users, the paid service will be implemented according to the situation.
We warmly welcome friends of all circles to visit our factory, instructing and advancing together.
Supertech has the excellent product structure, stable performance, and supports customization, as well as a complete and scientific quality management system. Besides,we have advanced production equipment perfect testing platform, with a strong comprehensive R&D and production capacity.Our products have been exported to Russia, the Middle East, India, South Korea, South Africa and other forty countries. We are dedicated to serving our customers. While the company grows, we will continue to implement the policy of "honesty, quality first" and provide you with excellent service. Any products are strictly repeatedly tested and accepted,guarantee not to leave the factory if not qualified.
Users must use and keep the equipment in strict accordance with the product operation manual. If the equipment fails to work properly due to problems caused by defective manufacturing or technology,our company will replace or repair the equipment for users free of charge.Ensure that problems are resolved as soon as possible, and actively troubleshoot for customers. Within the warranty period, if the equipment is damaged or unable to work properly due to improper use by the users, the paid service will be implemented according to the situation.
We warmly welcome friends of all circles to visit our factory, instructing and advancing together.
Packaging and delivery
FAQ
1. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu, China.
It takes about 2.5 hours from Shanghai or Nanjing by train; 2 hours from Guangzhou or Beijing by airplane.
2. Q: What is the lead time?
A: It depends on your order quantity. Standard machines 15-30 days, special configurations need 30-45 calendar days.
3. Q: Where is your loading port
A: Mainly it's Shanghai port, others as discussion.
4. Q: What are your payment terms?
A: T/T 30% deposit and balance payment before shipment; or 100% LC at sight.
5. Q: Can you export and supply the customs clearance documents we need?
A: We have much experience on exporting, supply the CE certificate, Form E, price certification and so on as standard, special documents with discussion
6. Q:What's the guarantee time for your machines?
A: Our guarantee time is 15 months after machines leaving our factory, technical support for life.
A: Our factory is located in Yancheng City, Jiangsu, China.
It takes about 2.5 hours from Shanghai or Nanjing by train; 2 hours from Guangzhou or Beijing by airplane.
2. Q: What is the lead time?
A: It depends on your order quantity. Standard machines 15-30 days, special configurations need 30-45 calendar days.
3. Q: Where is your loading port
A: Mainly it's Shanghai port, others as discussion.
4. Q: What are your payment terms?
A: T/T 30% deposit and balance payment before shipment; or 100% LC at sight.
5. Q: Can you export and supply the customs clearance documents we need?
A: We have much experience on exporting, supply the CE certificate, Form E, price certification and so on as standard, special documents with discussion
6. Q:What's the guarantee time for your machines?
A: Our guarantee time is 15 months after machines leaving our factory, technical support for life.
