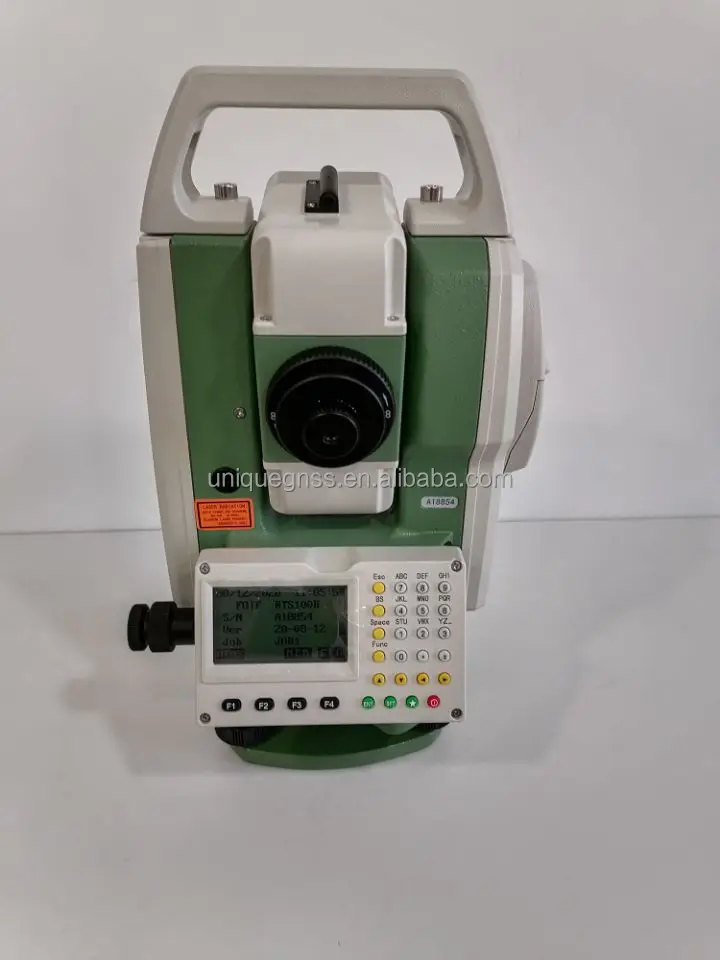

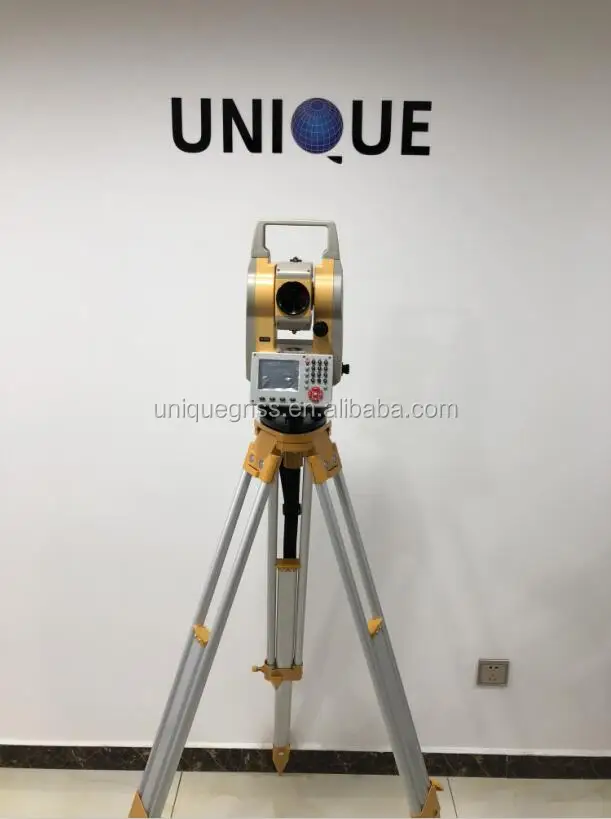

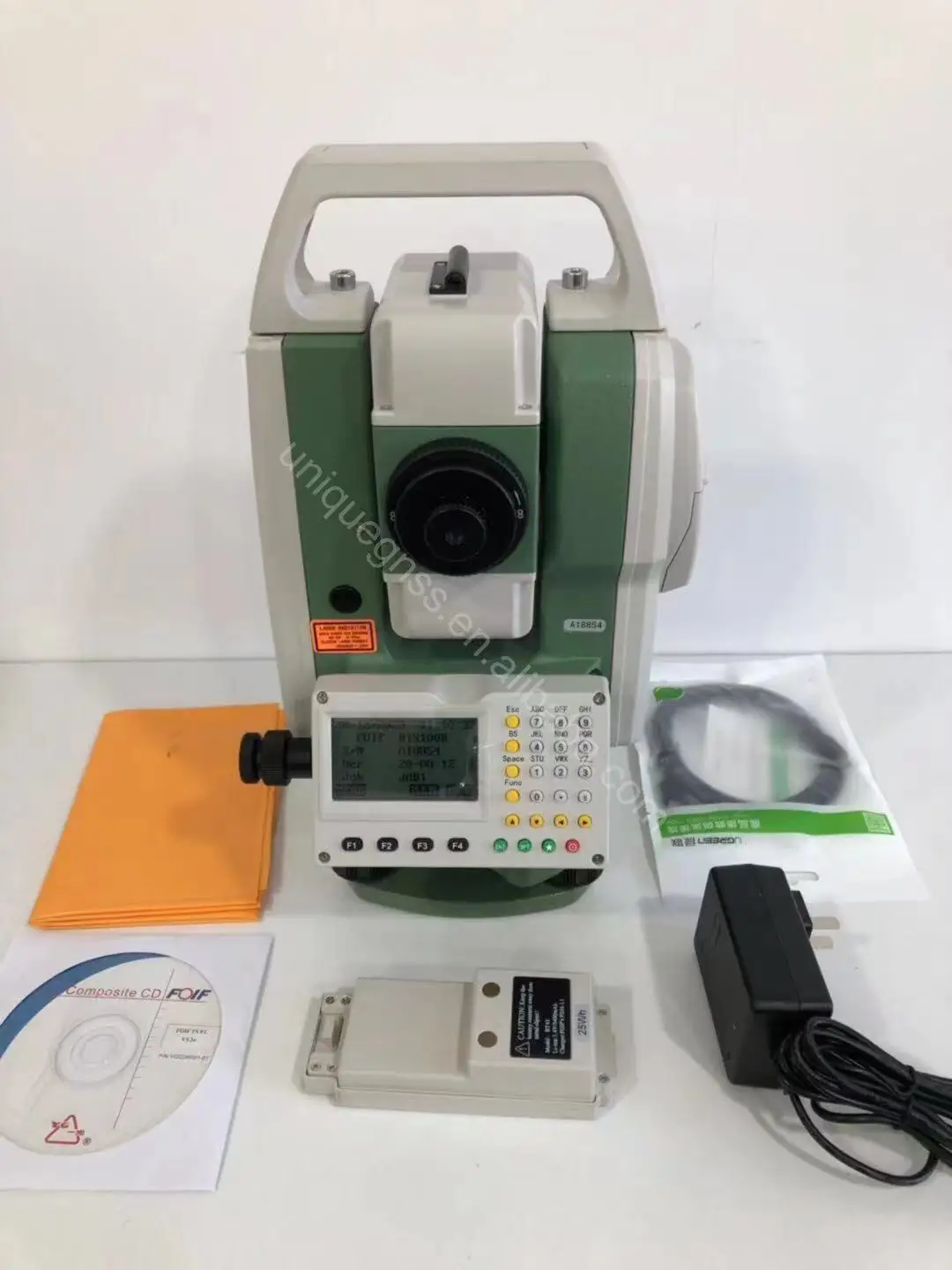

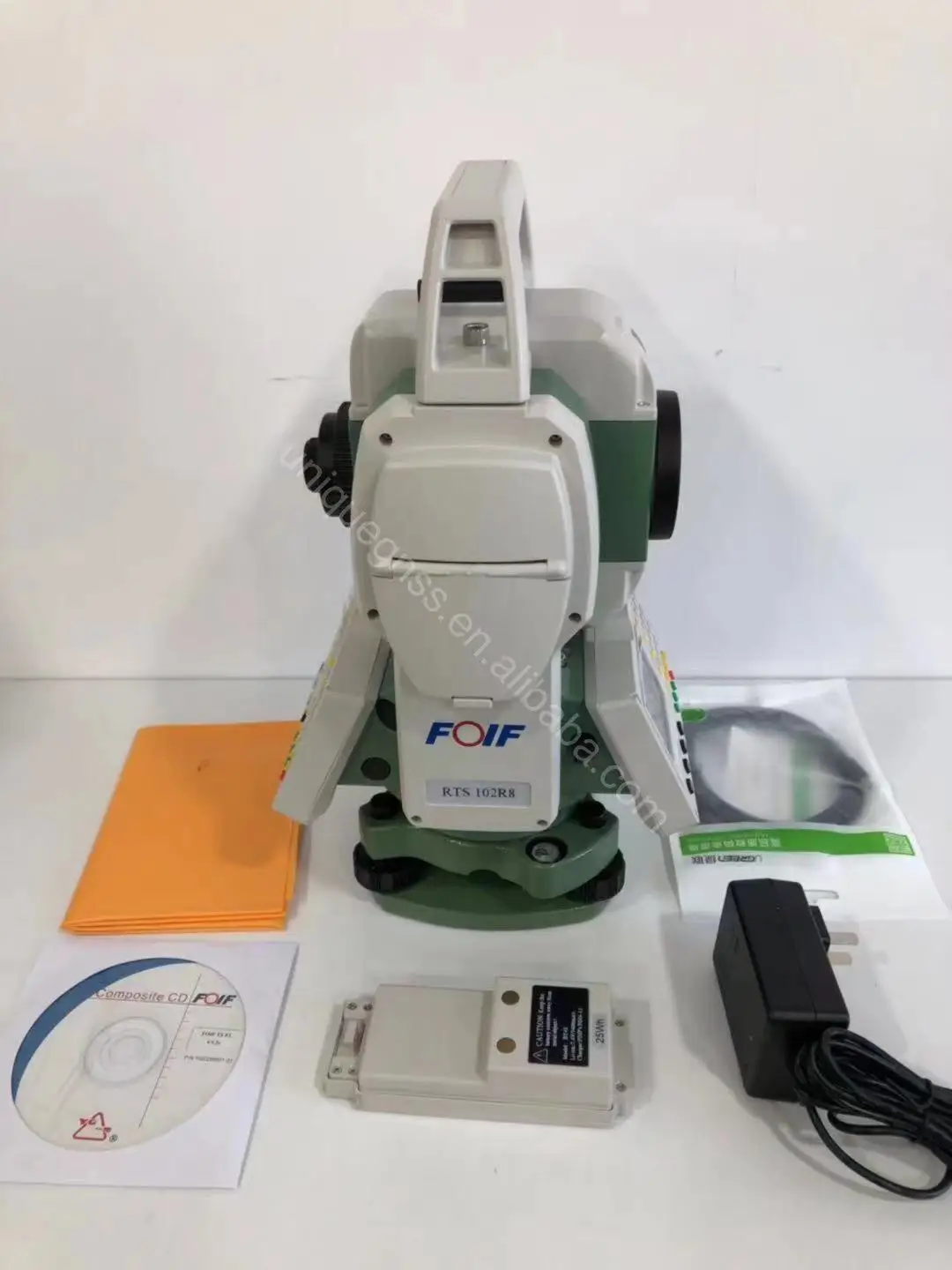

Other test instrument Total Station RTS102R8 with high performance and good price
- Category: >>>
- Supplier: Tianjin Unique Technology Co. Ltd.
Share on (1600454943751):
Product Overview
Description
Detailed Images
Product Description
Feature ：
1.Alphanumeric keyboard
2.Reflectorless measuring distance 800M
3.Bluetooth cable-free connection (factory optional)
4.120000 points and 40 jobs can be saved
5.Can be operated with a data collector .foif FieldGenius ,or other third party software is avaiable
4.120000 points and 40 jobs can be saved
5.Can be operated with a data collector .foif FieldGenius ,or other third party software is avaiable
Technical data | ||
Telescope | ||
Image | Erect | |
Length/ Image | 156mm/ Erect | |
Objective aperture | 45mm | |
Magnification | 30x | |
Field of view | 1°30’ | |
Shortest focus distance | 1.0m | |
Angle measurement | ||
Reading system | Absolute encoder | |
Angle unit | 360°/400gon/6400mil, selectable | |
Display resolution | 1”/5”/10”(or 0.2mgon /1 mgon /2mgon) | |
Accuracy* | 2” | |
Distance measurement (R800) | ||
Laser class(iec60825-1) | ||
Reflectorless | Class 3A(3R) | |
Reflective sheet/RP60 | Class 3A(3R) | |
Prism | Class 1 | |
Measurement range | ||
Reflectorless* | 2.0 to 800m | |
Single prism | 2.0 to 5000m | |
Accuracy | ||
Prism | 2mm+2ppm | |
Reflective sheet/ RP60 | 3mm+2ppm | |
Reflectorless | 3mm+2ppm | |
Measuring time(prism) | ||
Tracking | 0.4 sec | |
Fast | 0.6 sec | |
Fine | 1.0 sec | |
Display resolution(m/inch selectable) | 0.2mm | |
Temperature input range | －40℃ to +60℃ (1℃ steps) | |
Pressure input range | 500hPa to 1500hPa (1hPa steps) | |
Prism constant correction | -99.9mm to +99.9mm | |
Compensator | Dual-axis | |
Range | ±3' | |
Setting accuracy | 1" | |
Level vial sensitivity | ||
Plate level vial | 30"/2mm | |
Circular level vial | 8"/2mm | |
Laser plummet(Standard)* | ||
Accuracy | ±1mm/1.5m | |
Laser class | Class 2/IEC60825-1 | |
Laser spot brightness | Adjustable | |
Laser wave length | 635nm | |
Optical plummet (Factory Optional) | ||
Accuracy | ±0.8mm/1.5m | |
Image | Erect | |
Magnification/ Field of view | 3x/4° | |
Focus range | 0.5m to | |
Power | ||
Battery | 3400mAh Li-ion Rechargeable | |
Output voltage | 7.4VDC | |
Continuous operation time (angle measurement) | Approx. 24 hours (At +20℃) | |
Charger | FDJ6-LI | |
Chargering time (at+20) | Approx.4hours | |
Application progarms | ||
Data collection/Stake out/Resection/REM/MLM AREA/Point to line/Z coordinate/OFFset/ROAD/Tranverse | ||
Others | ||
Display | LCD, 6 lines *20characters (96*160dots) | |
CPU | 32Bit | |
Memory | 120000 points, support SD card (max. 16G) | |
Keyboard | Alphanumerucal keyboard on both sides | |
Weight(including batteries) | 5.1 kg | |
Operating temperature | －20℃to+50℃ | |
Storage temperature | －40℃to+70℃ | |
Interface | USB/RS-232C/Bluetooth(Factory Optional) | |
Water and dust protection | IP66 (IEC60529) | |
Data collector | F58 ,fully rugged PDA (Optional) | |

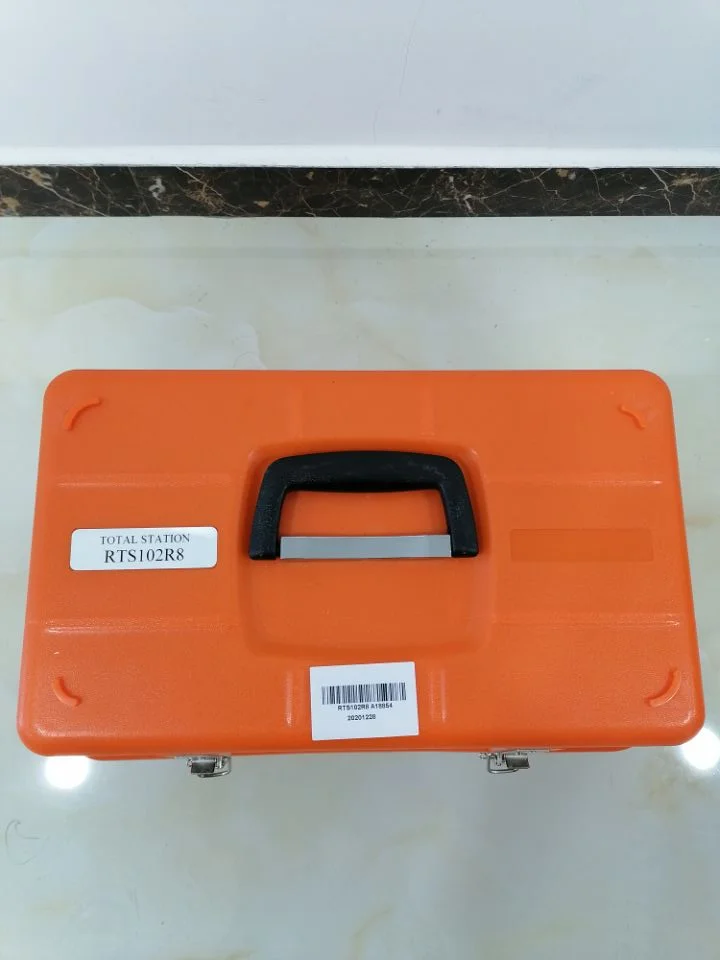

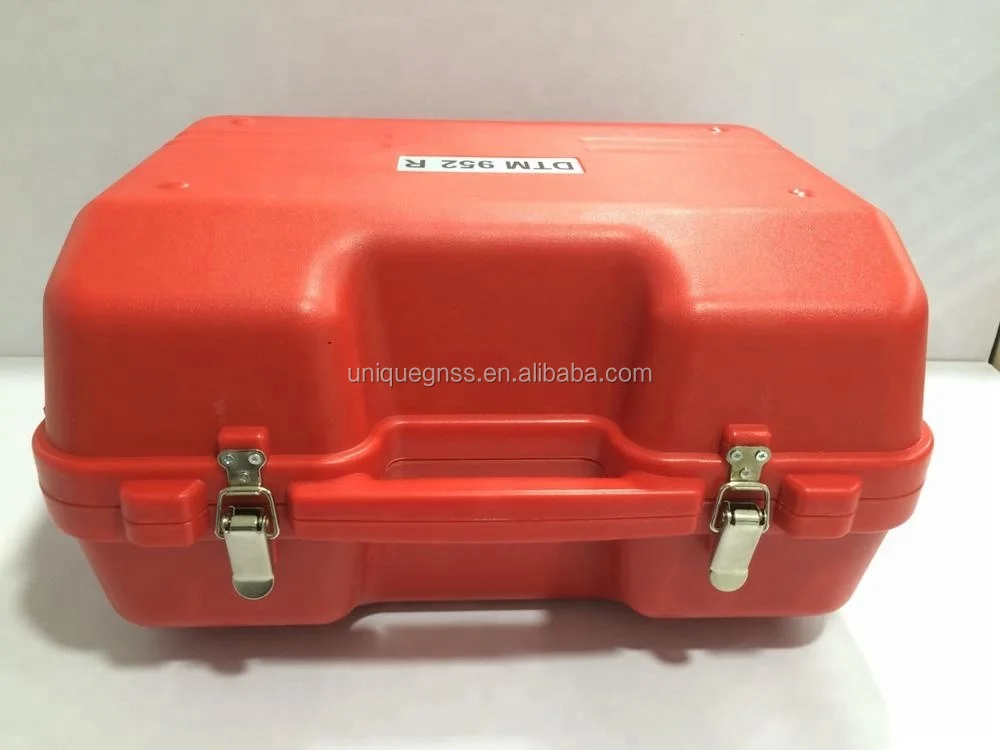

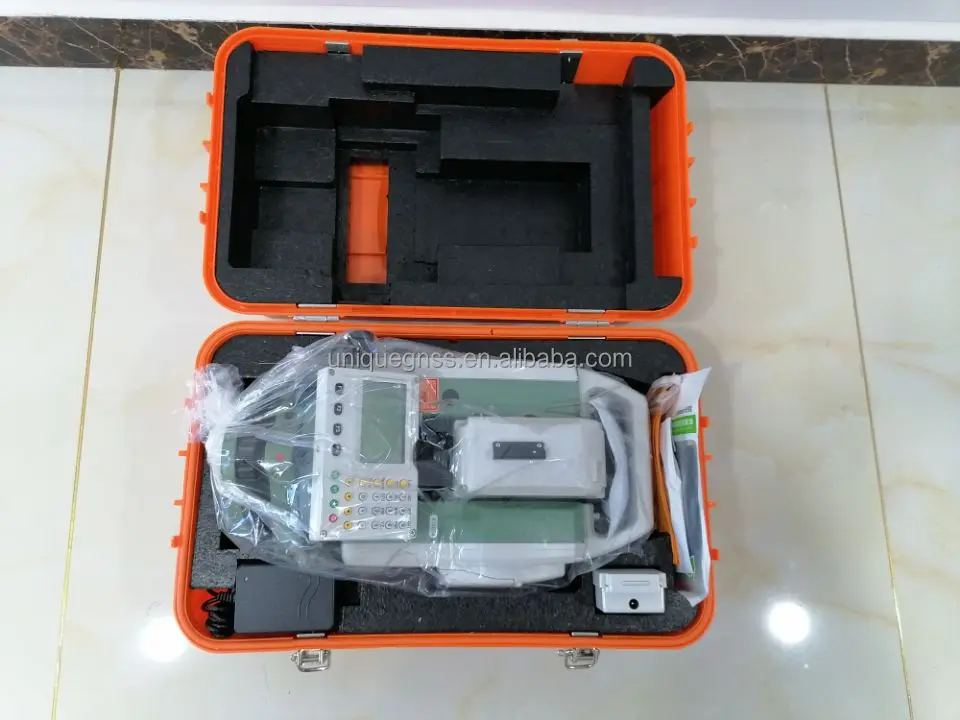

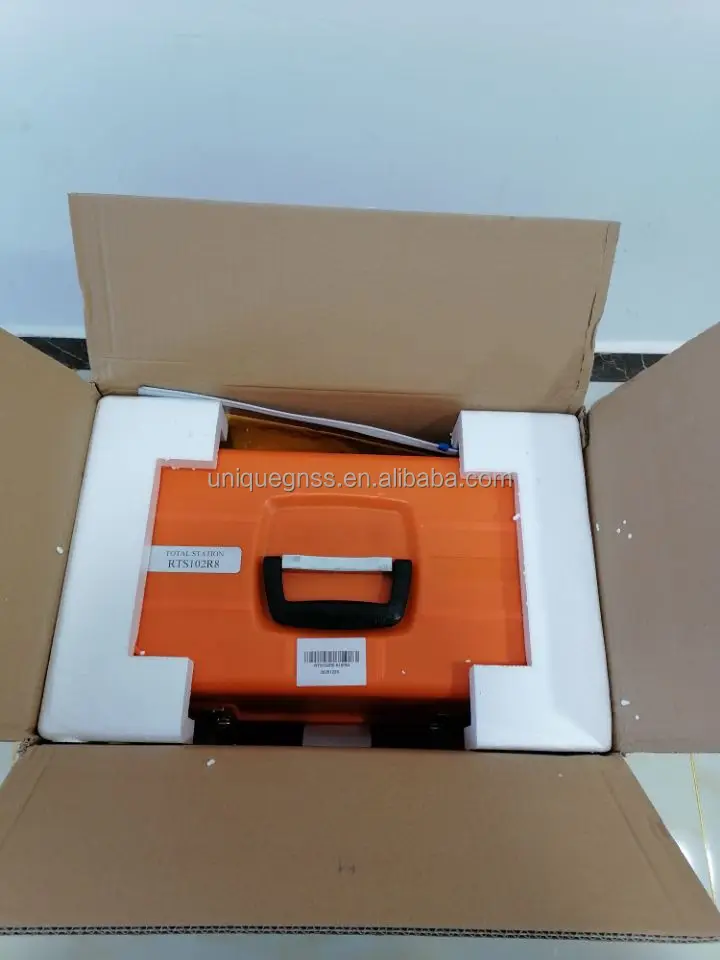

Packing & Delivery
Our Services and Advantages
Services
1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
